VIVO HOME HZB-12/H User manual

Countertop Ice Maker with Handle
Instruction Manual
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND SAVE IT FOR FUTURE REFERENCE.

Important Safety Instructions
Getting to Know Your Unit
Automatic Self-cleaning Program
Operating & Maintenance
Unpacking Your Ice Maker
Assemble Handle
Connecting
Cleaning and Maintaining
Using
Troubleshooting
Circuit Diagram
Technical Parameters
Explosive Drawings
1
3
3
4
4
5
5
6
6
7
8
8
9
Contents

We have provided many important safety messages in the user manual and your appli-
ance.
Always read and obey all safety messages.
This is the safety alert symbol:
All safety messages will follow the safety alert symbol and the word “DANGER” or
“WARNING”.
These words mean:
Do not follow instructions strictly can result in serious injury.
All safety messages provide information about potential hazards, outline measures to
reduce the chance of injury, and describe the consequences of not following the
instructions. When using electrical appliances, follow basic safety measures to reduce
the risk of danger. Before using the appliance, make sure to read all instructions careful-
ly.
-1-
IMPORTANT SAFETY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10
Do not use this or any other device with a damaged cord.
If the supply cord is damaged, it must be replaced by the manufacturer, or a similarly
qualified person to avoid a hazard.
This ice maker must be positioned so that the plug is accessible.
Only connect to properly polarized outlets. Do not plug any other appliance into the
same outlet. Make sure the plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or other heat insulators. Do not cover the
cord.
Keep the cord away from trac areas, and do not submerge in water.
We do not recommend the use of an extension cord, as it may overheat and cause
danger. If you must use an extension cord, use No.14AWG minimum size and rated
no less than 1875 watts.
Unplug the ice maker before cleaning or making any repairs or servicing.
Exercise caution and use reasonable supervision when the appliance is used near
children.
Do not use your ice maker outdoors. Place the ice-maker away from direct sunlight
and ensure that there are at least 4 inches of space between the back of your unit
and the wall. Keep a minimum distance of 4 inches on each side of your unit free.
- YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.
DANGER
WARNING

-2-
IMPORTANT SAFETY INSTRUCTIONS
11.
12.
13.
14.
15.
16.
17.
18.
19.
Do not use other liquids to make the ice cube other than water.
Do not clean your ice maker with flammable fluids. The fumes can cause danger.
Do not tip over.
If the ice maker is brought in from outside during winter, give it a few hours to warm
up to room temperature before plugging it in.
WARNING: This appliance must be earthed.
DANGER - Do not use mechanical devices to defrost the ice maker.
DANGER - To be repaired only by trained service personnel. Do not puncture refrig-
erant tubing.
CAUTION - Consult the repair manual/owner's guide before attempting to install or
service this product. Follow all safety precautions.
Install the ice maker according to the safety standards for Refrigeration Systems,
ASHRAE15. Do not install the ice maker in the corridors or hallways of public build-
ings.
If the unit with the problem needs to be maintained, replacing it with like compo-
nents and servicing shall be done by factory-authorized service personnel, to mini-
mize the risk of possible ignition due to incorrect parts or improper service.
The wires in this mains lead are colored in accordance with the following code:
Green or Green with a strip yellow: Grounding
White: Neutral
Black: Live
To avoid a hazard due to instability of the appliance, it must be placed at an even or flat
surface.
IMPORTANT:

AUTOMATIC SELF-CLEANING PROGRAM
Plug on the unit, and press the "ON/OFF" button on the control panel for more than 5
seconds. The self-cleaning process will take 30 minutes, and the "Ice Full, Add water"
indicator flashes in turn during cleaning. After cleaning, drain the water from the inner
tank through the drainage outlet at the bottom of the machine.
-3-
1.
2.
3.
4.
5.
6.
7.
8.
Ice shovel
Ice full sensor
Ice basket
Top cover with transparent window
Air exhausting
Water drain cap: at the front bottom side of the unit
MAXIMUM WATER LEVEL: ▼
Remove the ice basket, you can see the water level mark
Handle

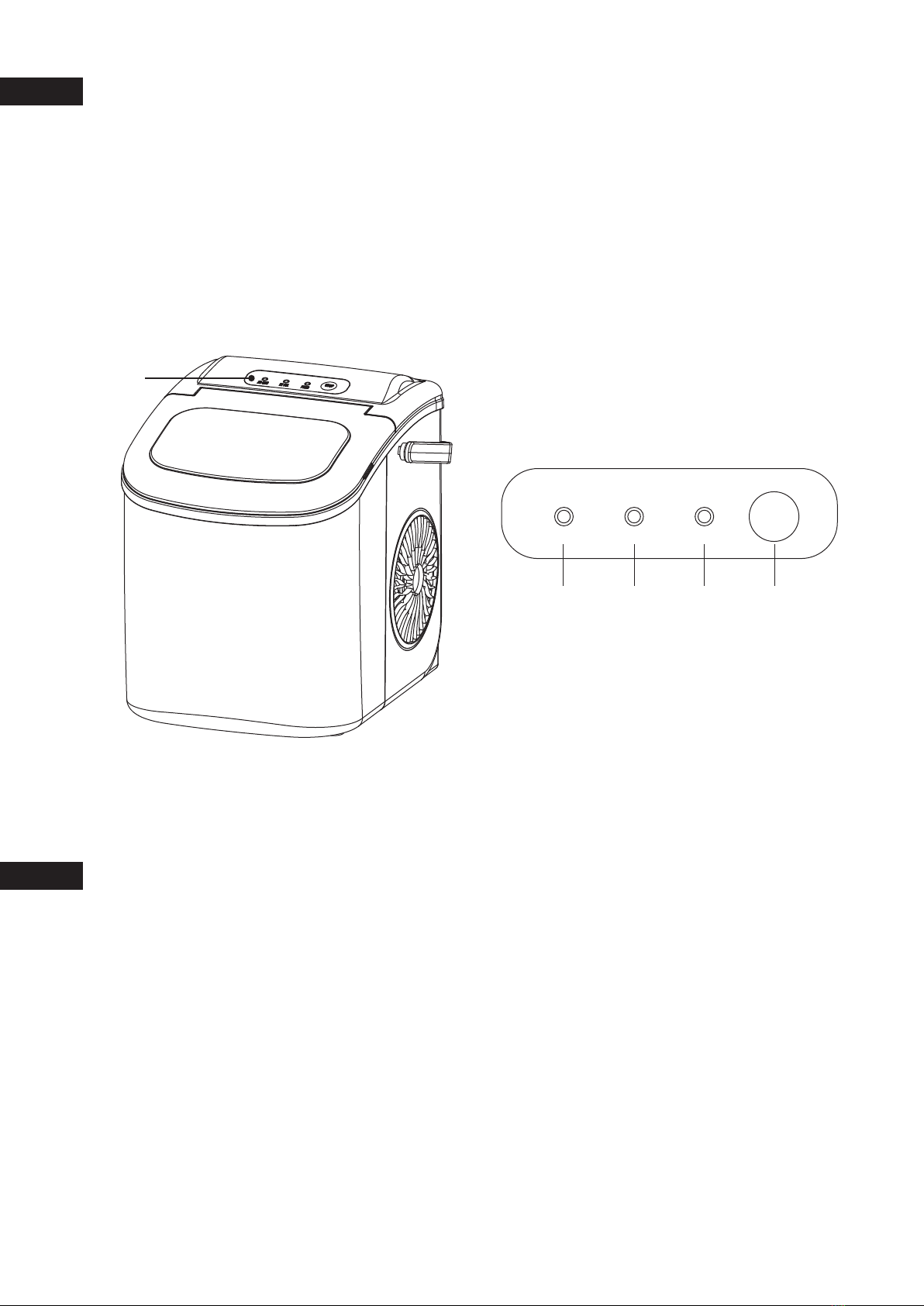

GETTING TO KNOW YOUR UNIT
-GENERAL INSTRUCION
1
4
7
6
5
8
2
3

WARNING: Fill with potable water only.
1.
2.
3.
4.
5.
Remove the outer and inner packaging. Check if the ice basket and ice scoop are
inside. If any parts are missing, please contact our customer service.
Remove the tapes for fixing the ice shovel, ice basket & ice scoop. Clean the tank &
ice basket.
Put the ice maker on a level & flat countertop without direct sunlight and other
sources of heat (i.e.: stove, furnace, radiator). Make sure that there is at least 4 inches
gap between the back & LH/RH sides with the wall.
Allow one hour for the refrigerant fluid to settle before plugging the ice maker in.
The appliance must be positioned so that the plug is accessible.
Control Panel: Easy to use, visible functions touch display setting.
A. Button to turn on/o the unit
B. Power indicator
C. Ice-Full indicator
D. Water shortage indicator
-4-
OPERATING & MAINTENANCE
-POSTION OF CONTROL PANEL & FUNCTION
UNPACKING YOUR ICE MAKER
Control
Panel
ADD WATER ICE FULL POWER
ON/OFF
ABCD

Rotate the handle to the same angle as the mounting hole on the machine, and put it on
the machine.
-5-
ASSEMBLE HANDLE
DANGER
* Improper use of the grounded plug can result in the risk of electrical shock. Please
call our customer service if the power cord is damaged.
1.
2.
3.
This unit should be properly grounded for your safety. The power cord of this appli-
ance is equipped with a three-prong plug which mates with standard three-prong
wall outlets to minimize the possibility of electric shock.
Plug your appliance into an exclusive, properly installed, grounded wall outlet. Do not
under any circumstances, cut or remove the third (ground) prong from the power
cord. Any questions concerning power and/or grounding should be directed toward
a certified electrician.
This appliance requires a standard 110-120volt, 60Hz electrical outlet with three-
prong ground.
CONNECTING

CLEANING AND MAINTAINING
It is highly recommended to clean your ice maker thoroughly before using it.
1.
2.
3.
4.
5.
6.
Take out the ice basket.
Clean the interior with diluted detergent, warm water, and a soft cloth.
Then use the water to rinse the inside parts, and drain out the water by unplugging
the drain cap on the front bottom side.
The outside of the ice maker should be cleaned regularly with a mild detergent
solution and warm water.
Dry the interior and exterior with a clean soft cloth.
Drain the water completely & dry the interior if the machine is not used for a long
time.
USEING
1.
2.
3.
4.
5.
6.
Open the cover, remove the ice basket, and pour water into the tank.
Keep the water level below the water level mark.
Press the “ON/OFF” button on the control panel to begin the ice-making cycle.
The ice-making cycle lasts approximately 6 to 13 minutes, depending on the selec-
tion of ice cube size and the room temperature. The recommended room tempera-
ture is 50°F to 105°F.
If the water pump can’t inject water, the ice maker will stop automatically, and the
“ADD WATER” indicator will be on. Press the “ON/OFF” button, fill the water up to the
maximum water level mark, and press the “ON/OFF” button again to turn on the unit
again. Allow the refrigerant liquid inside the compressor for at least 3 minutes to
settle before restarting.
The ice maker stops when the ice basket is full and the “ICE FULL” indicator will be
on.
Warning: Direct sunlight or sunlight reflection may cause infrared sensor malfunc-
tion. If the unit doesn’t stop even if the ice cubes obstruct the sensor, move the unit
where no sunlight.
Change water in the water reservoir every 24 hours to ensure a reasonable hygiene
level. If the unit isn’t to be used, drain all the water and dry the tank.
-6-

-7-
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
“ADD WATER” indicator
is on.
Lack of Water. Stop the ice maker, fill
water, and press “ON/OFF”
button again to restart the
unit.
Remove ice from ice
basket.
Keep pressing the
"ON/OFF" button for 5
seconds, and the unit
could make ice 10 cycles
even “Ice” indicator is on.
Stop the ice maker, and
restart it when the ice
blocks melt. Select the
small-size ice cube selec-
tion.
The temperature of water
recommended at
40°F-90°F
The room temperature
should be 50°F-105°F,
water temperature should
be 40°F-90°F
Verify by a qualified tech-
nician.
Verify by a qualified tech-
nician.
Ice is full in basket.
The ice making cycle is
too long.
Water temperature in inner
tank is too low.
Room temperature or
water temperature in inner
tank is too high.
Refrigerant in cooling
system leaks.
Pipe in the cooling system
is blocked.
“ICE FULL” indicator is
on.
Ice cubes stick together.
Ice making cycle is
normal but no ice
formed.

CIRCUIT DIAGRAM
TECHNINCAL PARAMETERS
Model
Protection Type
Power
Refrigerant
Design Pressure
Low Side
Vesicant
Net Weight
Dimension ( W * D *H )
Enclosure
High Side
Ice Making Current
Ice Harvest Current
HZB-12/H
I
115 V/60 Hz
R600a 0.74 Oz/21 g
88 Psig
C5H10
6.2 kg
222×294×290 mm
Plastic
290 Psig
1.5 A
1.8 A
RELAY
T1
MCU
MOTOR VALVE
COMP
AC-L
AC-N
DC WATER
PUMP
+PUMP-
+FAN-
3
Overload
Protector
C
COMP
S M
21StartLelay
N
L
POWER
SUPPLY
G
SolenoidValve
MotorForIce
shovel
SM
WATER
POWER
Ice Full
Add Water ON/OFF
OPERATION PCB
DC FAN
MOTOR
COND TEMP SENSOR
ELECTRICAL DIAGRAM
MICRO SWITCH
MICRO SWITCH
INFRARED
SENSOR
DETECTOR
WATER LEVEL
DETECTING
MAIN CONTROL PCB
-8-

EXPLOSIVE DRAWINGS
22
23
24
25
13
1211
10
9
8
7
4
3
1
21
5
6
20 19 1618 15 1417
26
27
30
32 33 234 35
31
28
29
-9-

-10-
EXPLOSIVE DRAWINGS
1
2
3
4
5
6
7
8
9
11
17
S/N
10
12
13
14
15
16
18
Power Cord
Plastic Clip
Back Panel
Plate Back Support
DC Water Pump
Silicon Pump Sealing
Handle
Control Box Cover
Main PCB
Control Box
Ice Making Box
Ice Scoop Link
Ice Shovel
Evaporator
Micro Switch
Inner Tank Bracket, LH
Back Btm Panel
Back Top Panel
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
1
QtyPart Description
19
20
21
22
23
24
25
26
27
29
35
S/N
28
30
31
32
33
34
36
Displaying PCB
TouchPad
Front Top Panel
Water Filter
Ice Scoop
Ice Basket
Inner Tank Brackt, RH
Stainless Wire
Water Supply Pipe
Synchronous Motor
Condenser
DC Fan Motor
Nylon Plug Drain
Copper Tube Filter
Plastic Bottom
Compressor
Magnetism Valve
Internal Wire
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
QtyPart Description

To continuously improve its products, VIVOHOME reserves the right to modify this
information without prior notification.
For any questions regarding assembly, please watch the video on the
product page or contact our customer service. Our customer service will gladly assist
you with any additional questions, comments, or concerns.
Thank you for using VIVOHOME products in your home!
Made in China
Thank You For Purchasing From
VIVOHOME
NOTE:
