Vivol CTT-D06 User manual

Assembly Instructions
Single Motor Height Adjustable Desk
CTT-D06
Please follow these Assembly Instructions.
Please record your serial number in the space provided below and retain this manual for future reference.
This will save you timemake assembly easier and prevent possible damage to your new Desk.
Assistance may be required for some assembly procedures. Correct assembly is your responsibility.

Specification
100V-240V
24V DC2.1A
2.4A
45.4Kg(100Ib)
25mm(7.9in)/s
750mm-1250mm(29.4in-46.9in)
Input Voltage
Output Voltage
USB Output
Max Load Capacity
Speed
Height Range

S 1
8 8 8
2 3
2.4A
Down Save Memory
Charge
1.5A Charge
1.5A Charge
Up
Lock
LED Display

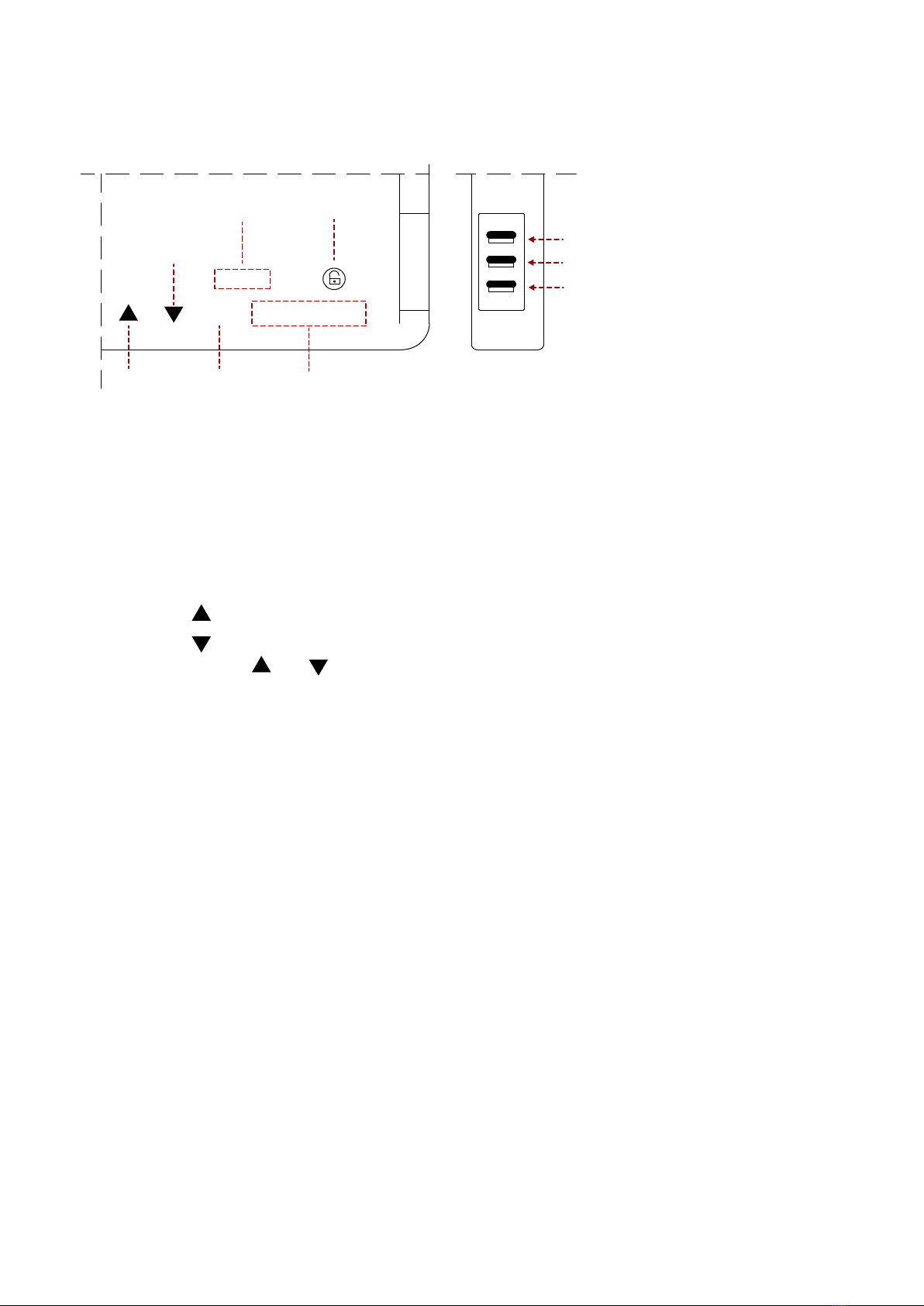

LED Control Panel
1.Reset operation
When system are abnormal ,or system show “RST”,It should do reset operation.How to reset:
hold press “Down” button until motor stop ,and press “Down” button 5s again,enter reset mode
automatically.Do not loose “Down” button during the operation.If loose “Down “button,system will stop
reset mode.When finishing reset,buzzer will make a sound to show reset successfully.
2.Up and down button operation
When touch UP button,desk move up until arrive desk top position.
When touch Down button,desk move down until arrive desk bottom position.
When shortly touch or button,desk will move short distance ,realize point move.
3.Position save and memory run
Led control panel can save 3 memory positions,save method as following:when run to specific
position,touch “S”button,indicator will show “S-”,and the “-”will flicker,while touch “1-3”button,save this
position to “1-3” button.
If run to memory spot,touch corresponding storage position “1-3”button.The indicator will show
corresponding position height,then run to storage corresponding position height automatically.During
run,any button can stop system.
4.Metric and British system switch
Hold touch “S”+“3”button for 5 s switch metric and British system,CN means cm,IH means inch.
5.Lock and unlock
Lock:Hold touch “LOCK”1 s,the indicator show “Loc”,this represents system has locked,can not do
any operation.
Unlock:Hold touch “LOCK”1 s,the indicator show from “Loc” to figure ,it represent system unlock.
6.Charge
When system enter dormancy mode or indicator light is off,it will start to charge automatically.
When indicator light is on,it will stop charge automatically.The first USB charge current is 2.4A.
The second USB charge is 1.5A.The third USB charge is 1.5A.

7.Error Code
Error code Instruction Solution
ER1 Defect of motor1 connecting or Hoare Checking the connect of motor 1
ER2 Defect of motor2 connecting or Hoare Checking the connect of motor 2
ER3 Defect of motor3 connecting or Hoare Checking the connect of motor 3
ER4 Default phase of motor 1 Checking the connect of motor 1
ER5 Default phase of motor 2 Checking the connect of motor 2
ER6 Default phase of motor 3 Checking the connect of motor 3
ER7 Locked-rotor or over heat of motor 1 Reset and reduce the table load
ER8 Locked-rotor or over heat of motor 2 Reset and reduce the table load
ER9 Locked-rotor or over heat of motor 3 Reset and reduce the table load
ERR Controller hardware error Change controller
E31 Power supply of controller less or over Connect the power again
E34 Abnormal connecting of hand controller Checking the connecting of hand controller
A01 Anti-collision of motor 1 Operate again
A02 Anti-collision of motor 1 Operate again
A03 Anti-collision of motor 1 Operate again
A08 Anti-collision of balancing apparatus Operate again
E09 Table incline or deviation over 1 cm Check lead screw in column
HOT Over heat or continuous work over 2min Wait 18mins

S123
3
Load Capacity
45.4kg/100lb
Load Capacity
6.9kg/15.2lb

M6X1
8PCS 4PCS
Table Foot
Cabinet wheel Hex wrench Power line
Desktop Frame
2PCS
4PCS 1PC 1PC
1PC 1PC
5M6X45
Parts List:

Step 1：Assemble desktop
Step 2：Assemble desk foot
M6X45
(8pcs)(1pc)
Hex wrench
M6X15
(8pcs)(1pc)
Hex wrench

Cabinet wheel
Step 3：Assemble Cabinet wheel
(4pcs)
