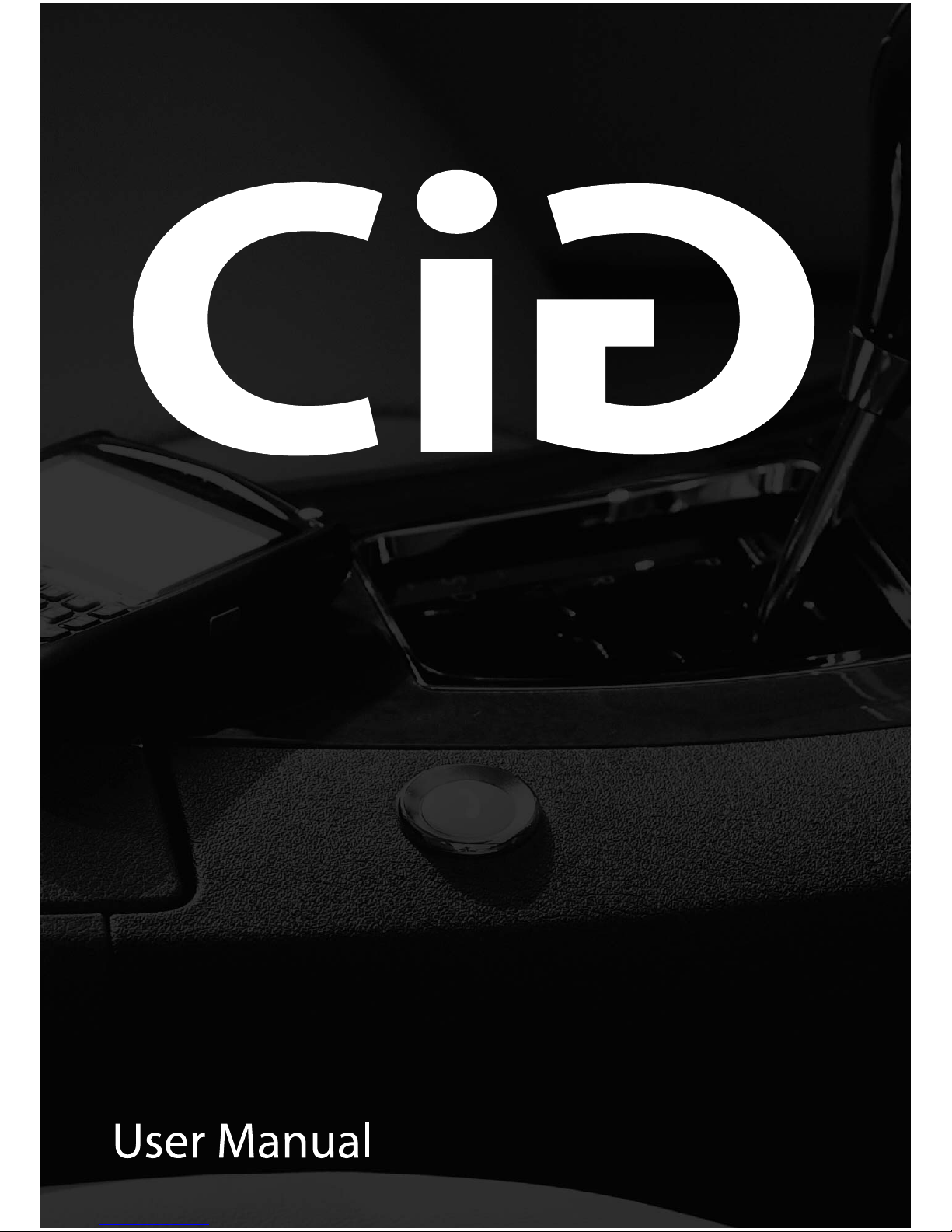

CiG-Blue™ Bluetooth In-Car Handsfree System User Manual

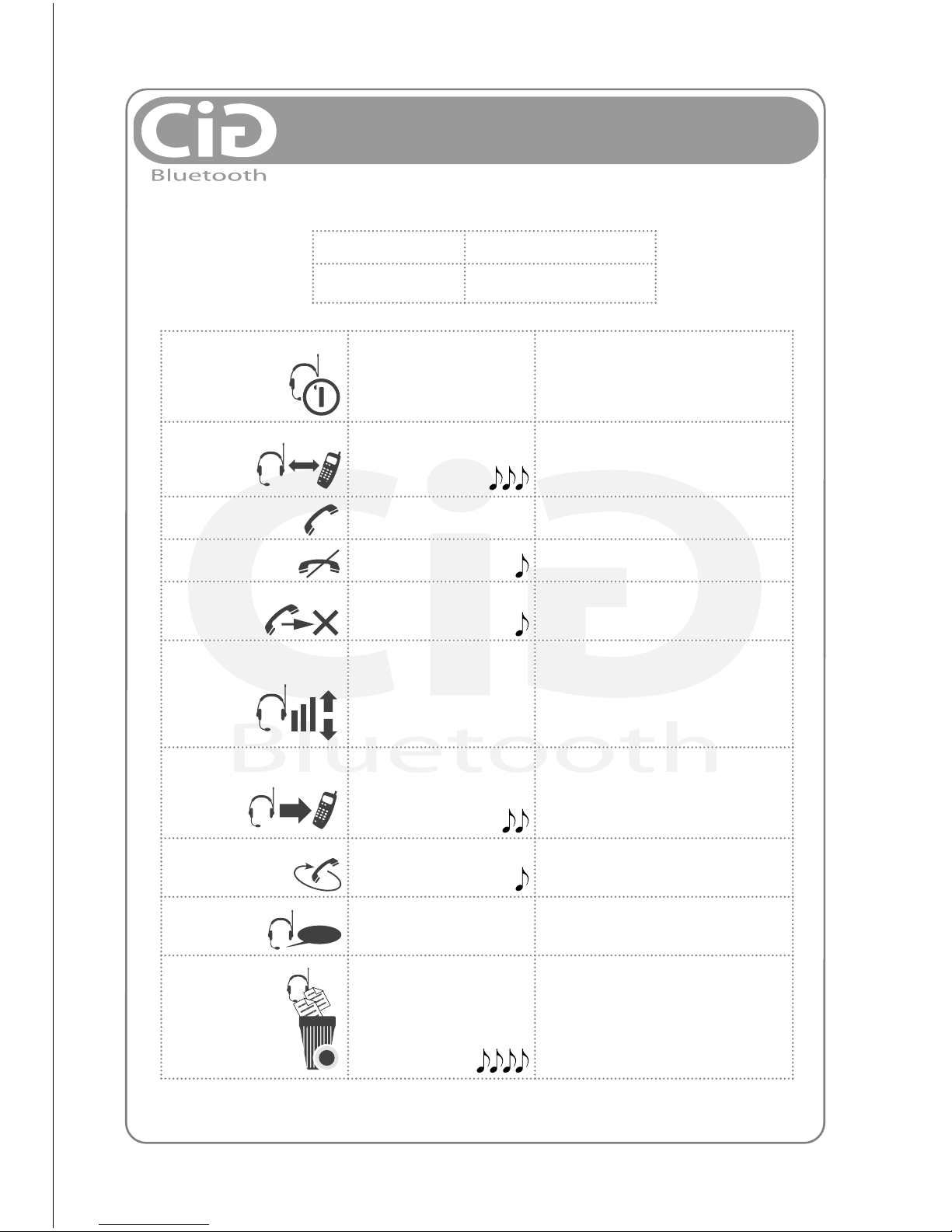

Quick-Start Guide
Bluetooth In-Car Hands Free System
Device ID CiG-Blue_#####
Pass Key 1234
Power On Turn on Bluetooth When the vehicle is turned on, the
paired cell phone will automatically
connect to the CIG-Blue system. If
the phone has not been paired, the
CIG-Blue will enter pairing mode.
Pairing Press and hold for 12
seconds
Press and hold the button until you
hear 3 beeps, after 12 seconds.
Using your phone to complete the
pairing, enter the Pass Key "1234".
Answer a Call Short button press Just a short press of the button
answers an incoming call.
Ending a Call Hold for 2 seconds To hang up, press and hold until you
hear 1 beep after 2 seconds.
Reject a Call Hold for 2 seconds To reject an incoming call press
and hold the button until you hear
1 beep, after 2 seconds.
Adjust the volume Short button press During a call, the volume can be
adjusted with repeated button
presses. The volume level will
cycle between Min / Max, and a tone
sounds when you reach each end of
the scale.
Transfer to the Handset Hold for 8 seconds Press and hold the button until you
hear 2 beeps, after 8 seconds, to
transfer the call between the CIG
Blue hands free system and your
handset.
Redial the last number Hold for 2 seconds In standby mode, press and hold the
button until you hear 1 beep after 2
seconds to redial the last number.
Voice Dialing Short button press In standby mode, a short tap of
the button activates the voice dial
feature on your cell phone.
Memory Erase Press and hold for 15
seconds
Press and hold the button until you
hear 4 beeps after 15 seconds to
erase all pairings from the device.
Once the memory is erased, the
system will enter pairing mode.
Refer to "2. Pairing" for instructions
on connecting your new phone.

CiG-Blue™ Bluetooth In-Car Handsfree System User Manual
Pairing Guide
Pairing your phone is simple, just follow these steps :
(The system can pair up to 3 phones)
1. Hold button down until you hear 3 short beeps, after 12 seconds.
(This puts the system into pairing mode for 5 minutes)
2. Go to settings or connections in your phone menu.
3. Find Bluetooth menu.
4. Turn Bluetooth on.
Your phone will have a function like:
Search for new device New Handsfree Search
Depending on the phone, the selection will vary, select the function and the phone will
search for the bluetooth kit.
Your Phone will then display all the bluetooth devices in the area. Select
CiG-Blue. Enter the passcode 1234. the system will let out a positive bleep to
advise you are now paired.
To delete all paired phones: hold button for 15 seconds.
IMPORTANT NOKIA USERS if you want the kit to connect automatically
you must now select Paired Devices and select the CiG-Blue and change
default to: Device Authorised Yes, or Conn Auth Yes or
Auto-Conn. Without Confirmation Yes
This allows your phone to automatically connect when you start the car.
Pairing Troubleshooting
Cannot find the Bluetooth
menu
Please see the user manual of your phone for assistance on
various phone models.
Phone will not pair The system can only be paired with 3 phones at one time. To
delete previous pairings, hold the button down until 4 beeps
are heard, and then try again. Sometimes phones have software
problems and need to be reset. Please remove and reinstall your
battery and try again. Try deleting all other devices from your
phone and try again, as you may have exceeded the maximum
number of connections for your handset.
I paired my phone but when
I start the car it does not
connect automatically
See The Pairing Note for Nokia users.

CiG-Blue™ Bluetooth In-Car Handsfree System User Manual
Operation
Connection
After you enter the car and turn the ignition on, the system will link with your phone. If it is the first
time you have connected or your phone was not the last to connect it will take between 40-90 seconds
to connect. If your phone was the last to use the kit then connection will take place in less than 10
seconds. Some phones are faster than others so the kit leaves time for phone with highest priority to
have a chance to connect before connecting another phone. You will hear a positive Bleep when the
kit is connected.
Connection Priority
The system decides on which phone to connect as follows:
Priority 1 Last phone to have connected.
Priority 2 Phone connected most times to the kit
This means that if you have three phones linked to the system and you all enter the car at the same time,
then the person who last used the system will be connected. If the last used phone is not found, then
who ever has used the system most in the past will get priority. If you want to change who is using the
kit then turn the bluetooth off on the phone you do not want to connect and restart your vehicle.
Dial
a. Voice Dial A quick press of the button activates the voice dial feature on your handset, and
when ready the system lets out a "Bleep". Speak out the name of the person you wish to call. These
names must be pre-recorded on the phone. Follow the instructions in your phone user manual on how
to record the names. To cancel a voice dial press the button once more. If the phone has no voice dials
or does not support voice dial you hear 4 negative beeps.
b. Dial a number Enter the number you want to dial on the phone and press the dial button.
c. Redial To redial a last called number, press and hold the button until you hear one beep after
2 seconds.
Reject a Call
Hold the button down until you hear a beep after 2 seconds to reject an incoming call.

CiG-Blue™ Bluetooth In-Car Handsfree System User Manual
Operation
Private Call
If you want to have a private call on your handset, after you answer the call simply press and hold the
button until you hear 2 beeps after 8 seconds and the system will transfer the call to the handset. Press
and hold the button again until you hear 2 beeps after 8 seconds to get the call back on the handsfree
system.
Disconnect from Kit
If you enter the car and you do not want any phone calls in hands free mode, just press and hold the
button until you hear 2 beeps after 8 seconds and the kit will disconnect. When calls come in they will
only be on your handset. To manually connect again, press and hold the button again until you hear 2
beeps after 8 seconds or restart the vehicle.
Volume Control
The volume is adjusted by short presses on the button, and cycles between minimum and maximum
loudness in 15 steps. At each end of the scale, 2 short beeps can be heard, alerting you that the volume
is now changing in the opposite direction.
Sound Quality
The system uses the highest quality components and latest DSP (digital signal processing) to give you
the best possible sound quality for the caller and receiver. A few things must be remembered though
to give you the best results:
a. Road Noise The faster you drive the more background noise exists and the lower the
sound quality will be for your caller. The system has excellent DSP to reduce the noise but closing your
windows etc. will help.
b. Echo Cancellation The system has excellent Echo cancellation to prevent the callers
from hearing themselves back through the kit. To give the best quality for your caller try and have the
volume at the lowest level which you can still easily hear them. This helps reduce any echo effects.
c. Talk at a normal level Some older phone systems you had to yell at the system for
people to hear you. This system uses the latest in sensitive microphones to allow you to talk at a
normal level. If you yell at the system then your voice will be reduced in volume by the DSP and you may
even sound quieter. Just talk at a normal level and your caller will easily be able to hear you.
IMPORTANT If you arrive at your destination during a call, it may be necessary to
transfer the call back to your handset to avoid interrupting your conversation once
the vehicle is shut down.This is done by holding the CiG-Blue button down until you
hear 2 beeps, or can be done through the options menu of most handsets.

CiG-Blue™ Bluetooth In-Car Handsfree System User Manual
Specifications
Product Specifications
Power supply voltage scope DC 10.5 ~ 16 volts
Working temperature -25°C ~ -75°C
Storage temperature -35°C ~ -85°C
Current consumption In Operation:
• ACC ON (during charging + conservation) °~ 1.5A(Max) / DC
12V
In Static Mode:
• ACC ON (during charging) °~ 800mA(Max) / DC 12V
• ACC ON (mobile is not connected) °~ 180mA(Max) / DC 12V
• ACC OFF °~ 0mA
Microphone (including amplifying
circuit)
• Category: FT105A Directional
• Sensitivity: 47 ± 4dB
• SN ratio: >55dB (Min)
• Frequency response: 100 ~ 16 KHz
Amplifier output (drive
loudspeaker)
• Output power: 20W (Max)
• Impedance: 4W
• Max output current: 2.6A
• Max undistorted amplitude: 8Vpp
Mute Mode LO_MUTE
• Operating Current: 50mA (Max)
Antenna control Keep the antenna in pre-conversation state.
Bluetooth module Conform to Bluetooth Headset Profile v1.1
Transmission specification of
each terminal
Terminal connecting to the vehicle bodyline
> Batt: • Supply Voltage: 10.5 ~ 16V
• Supply Currend: 3A (Max)
