Scosche BlueFusion BFCL2K User manual

BFCL2K
HANDS-FREE BLUETOOTH®INTERFACE FOR
SELECT 2003-UP SELECT CLASS 2 GM VEHICLES
WITH XM SAT
TUNER
WITHOUT
XM SAT
BFEXTB
(EXTENSION)
APPLICATIONS HARNESS APPLICATIONS
©2010 SCOSCHE INDUSTRIES, INC.
iPhone is a trademark of Apple Inc., registered in the US and other countries.
CADILLAC
ESCALADE 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
ESCALADE ESV 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
ESCALADE EXT 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
CHEVROLET
AVALANCHE 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
COLORADO 2004-10 BFCL2XMB BFCL2HB NOT REQUIRED
CORVETTE 2006-08 BFCL2XMB BFCL2HB YES /XM ONLY
IMPALA/IMPALA SS 2003-05 BFCL2XMB BFCL2HB YES /XM ONLY
MONTE CARLO 2003-05 BFCL2XMB BFCL2HB YES /XM ONLY
SILVERADO CLASSIC 2007
SILVERADO NEW 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
SUBURBAN 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
TAHOE 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
TRAILBLAZER 2004-08 BFCL2XMB BFCL2HB NOT REQUIRED
UPLANDER 2005-07 BFCL2XMB BFCL2HB NOT REQUIRED
VENTURE 2003-05 BFCL2XMB BFCL2HB NOT REQUIRED
GMC
CANYON 2004-10 BFCL2XMB BFCL2HB NOT REQUIRED
ENVOY/XUV 2004-06 BFCL2XMB BFCL2HB NOT REQUIRED
SIERRA CLASSIC 2007 BFCL2XMB BFCL2HB NOT REQUIRED
SIERRA NEW 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
YUKON 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
YUKON XL 2003-06 BFCL2XMB BFCL2HB NOT REQUIRED
HUMMER
H2 2003-07 BFCL2XMB BFCL2HB NOT REQUIRED
H3 2006-07 BFCL2XMB BFCL2HB NOT REQUIRED
PONTIAC
MONTANA SV6 2005-06 BFCL2XMB BFCL2HB NOT REQUIRED
SI 02/10-BFCLK2 (3000533)
The Scosche BFCL2K BlueFusionTM Bluetooth Interface will allow you to wireless-
ly communicate with your Bluetooth enabled celular phone and Stereo Bluetooth
transmitters. The BFCL2K communicates directly with your factory radio allowing
you direct control of hands-free, voice dialing, and A2DP functionality. These in-
terfaces maintain the original integrity of important diagnostic and safety systems
within the vehicle. For up-to-date applications or any Technical asistance with this
product, call Scosche Tech support at [phone] Ext 3.

2
RADIO COMPATABILITY
WORKS WITH
NAVIGATION RADIOS AND
NON-NAVIGATION RADIOS
NOTE: RADIO ILLUSTRATIONS ABOVE ARE TYPICAL. THERE ARE ADDITIONAL RADIO
MODEL/ STYLES THAT ARE COMPATIBLE WITH BLUEFUSION. YOUR CAR MAY DIFFER.
XM TUNER LOCATIONS GUIDE
TRUCKS/ SUV
(BEHIND GLOVE BOX) SEDANS
(TRUNK, VARIOUS)
CROSSOVER SUV's
(BEHIND LEFT SIDE PANEL)
PRELIMINARY: Determine whether you have an XM module in the vehicle.
Press the band button to see if the XM source displays on the screen of the
radio.
IMPORTANT CELL PHONE DISCLAIMER: READ FIRST!
• SomecellularphonemanufacturersutilizeaBluetooth microprocessor that
unfortunately is not compatible with the BlueFusion system. Some phones
from Palm, LG (Envy/Envy2), Samsung (Impression) and HTC (Omni) have
exhibited operating difficulties with the BlueFusion system. If you own these
models or other models from these manufacturers call Scosche Tech Support
for the latest updated phone incompatibility list. [phone].
• ThisBlueFusiondevicewillpairtoONEphoneattime.
• Duetovariancesincellphonemanufacturing,CallerIDfunctionsmayvary
from what is printed in this manual.
• BlueFusiondoesnotsupportphonebookprofiles.
• Scoschedoesnotguarantee100%compatibilitywithallBluetooth
cellphones.
QUICK BUTTONS
Multi-Function Knob
TO SCROLL MENUS
Seek Forward
TO ANSWER/ SELECT
Seek Back
TO END/ PREVIOUS MENU
These are the only buttons used for the
interface.
Please read and understand this entire
manual before operating the interface.
Select
CH1
CUSTOM
STEREO
XM Preview
No Category Info
TITLE : No Title Info
: XM Preview
ARTIST
XM1
XM
Info
XM
Options
2:17PM
SEEK
NAV
CONFIG
NAV
RPT
BAND
SEEK
SCAN
PWR
VOL
1
PREV
2
NEXT
3
REV
4
FWD
5
SIDE
6
RDM
AUDIO
PUSH
P-TYPE
TURN
AUTO
HR MIN
BAND TAPE
DISC INFO SEEK
TYPE TRAF AUTO
EQ
AUTO
VOL
DISPL
TUNE
DISPL
TUNE
SEEK
SEEK
QUICK BUTTONS
Multi-Function Knob
TO SCROLL MENUS
Seek Forward
TO ANSWER/ SELECT
Seek Back
TO END/ PREVIOUS MENU
These are the only buttons used for the
interface.
Please read and understand this entire
manual before operating the interface.
Select
CH1
CUSTOM
STEREO
XM Preview
No Category Info
TITLE : No Title Info
: XM Preview
ARTIST
XM1
XM
Info
XM
Options
2:17
PM
SEEK
NAV
CONFIG
NAV
RPT
BAND
SEEK
SCAN
PWR
VOL
1
PREV
2
NEXT
3
REV
4
FWD
5
SIDE
6
RDM
AUDIO
PUSH
P-TYPE
TURN
AUTO
HR MIN
BAND TAPE
DISC INFO SEEK
TYPE TRAF AUTO
EQ
AUTO
VOL
DISPL
TUNE
DISPL
TUNE
SEEK
SEEK

IMPORTANT NOTE: If vehicle is equipped with XM tuner box (active or not
active) the BFGMLANXMB harness must be used. The BFGMLANXMB “T”
harness must be installed at the SAT radio Tuner box location.
XM TUNER LOCATIONS: Trucks/SUVs: Behind Glove box, Crossovers: Left
rear side panel, Sedans: Trunk.
TECH TIP: Do not mount the BFCL2 module near moving or mechanical de-
vices that may damage the interface. Keep away from any hot surface areas like
heater ducts, direct sun light and metal surface areas that may get hot.
BFCL2 INTERFACE INSTALLATION
1. Locate XM tuner box in vehicle.
2. Remove harness from the XM tuner.
3. Install BlueFusion “T” harness
into the XM tuner.
4. Plug the 24 pin connector into
the BFCL2 BlueFusion interface.
IMPORTANT NOTE: When vehicle is NOT equipped with XM tuner box, the
BFCL2HB harness must be used. The BFCL2 “T” harness must be installed
behind the vehicle’s stereo.
TECH TIP: Do not mount the BFCL2 module near moving or mechanical
devices that may damage the interface. Keep away from any hot surface areas
like heater ducts, direct sun light and metal surface areas that may get hot.
NON-XM INSTALLATION:
1. Remove the factory radio.
2. Remove the 12 and 24 pin
connectors from the factory radio.
3. Use T-taps to connect the power
and ground wires.
4. Plug the factory 14 and 16 pin
connectors into (2) BFCL2HB
female harnesses.
5. Plug the (2) BFCL2HB male
harnesses into the factory radio.
6. Plug the 24 pin connector into the
BFCL2 BlueFusion interface.
VEHICLES WITH SAT TUNER
VEHICLES WITHOUT SAT TUNER
3
XM HARNESS
MICROPHONE
24-Pin
3-PIN
XM TUNER
BOX
CAR HARNESS
BUILT IN
FILTER BOX
NON XM HARNESS
MICROPHONE
24-Pin
3-PIN
F
ACTORY
RADIO
FACTORY HARNESSES
POWER
GROUND

4
IMPORTANT NOTE: BFEXTB extension is required on vehicles that have their
SAT Tuners located at the rear of the vehicle. BFETXB is sold separately
(Not included) (Impala, Monte Carlo).
TECH TIP: Do not route BFEXTB extension cable over sharp edges or near
moving parts.
BFEXT INSTALLATION:
1. Locate XM tuner box in vehicle.
2. Remove XM harness from XM tuner.
3. Install BFGMLANXMB T harness
between the Factory XM harness
and XM SAT Tuner.
4. Plug the 24 pin Female connector in
to the “T” harness in place of
where the BlueFusion module
would connect.
5. Route BFEXTB cable to under
driver’s seat location.
4. Plug the 24 BFEXTB Male
connector into the BFGMK
BlueFusion interface.
TECH TIP: Aim microphone towards the driver’s seat
MICROPHONE INSTALLATION:
1. Attach the microphone to the headliner above the rear view mirror.
2. Carefully route the microphone cable behind the headliner and down the
“A” (front most) pillar
Use caution when routing cable and avoid sharp edges or moving metal parts.
3. Route the cable to the BlueFusion interface location and plug it into the 3-pin
connector on the Scosche “T “harness.

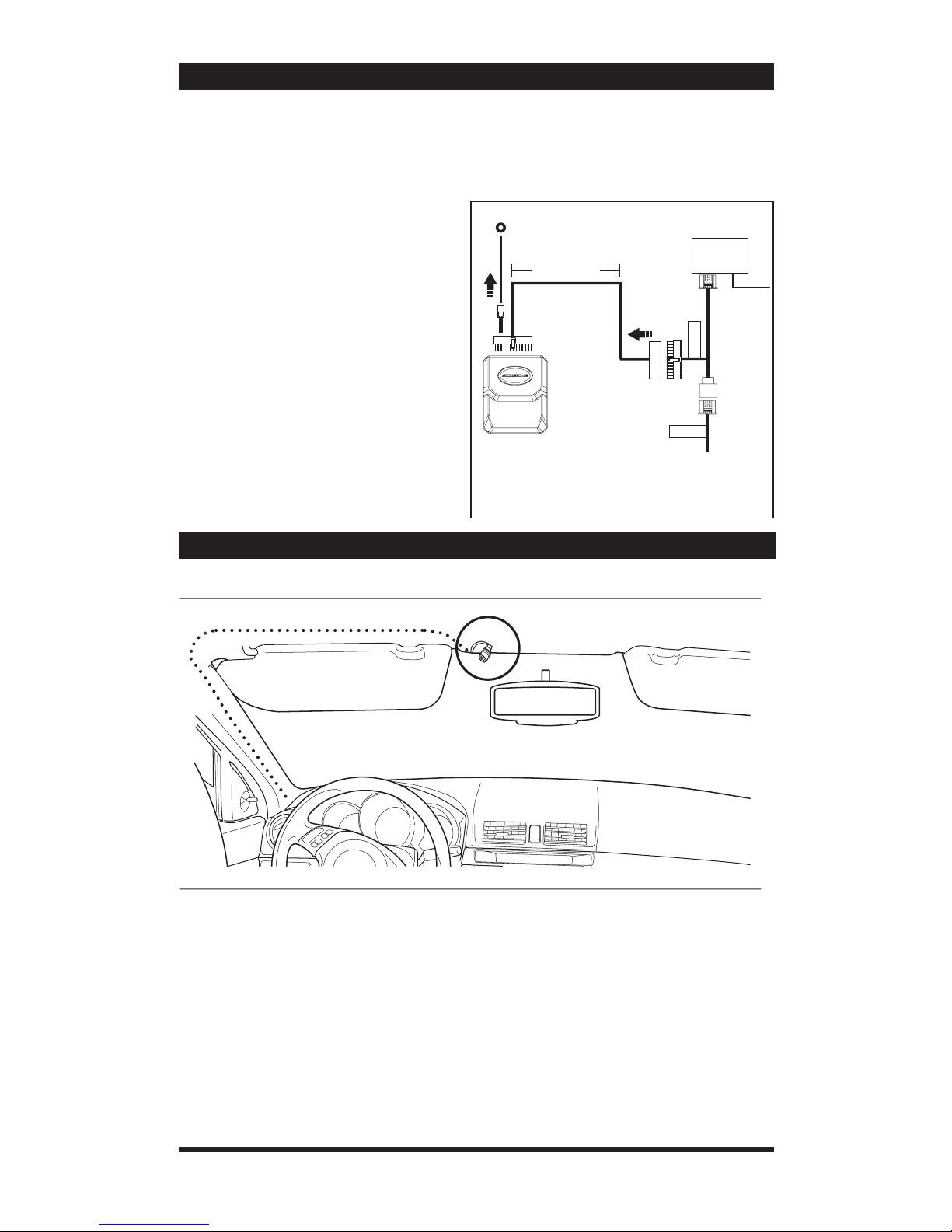

VEHICLES WITH REAR SAT TUNER
XM HARNESS
MICROPHONE
3-PIN
XM TUNER
BOX
CAR HARNESS
10ft. EXTENSION
TRUNK MOUNTED
24-Pin
BLUEFUSION MICROPHONE INSTALLATION
VEHICLES
XM HARNESS

5
IMPORTANT NOTE: Your Bluetooth cellular phone must be paired with the
BlueFusion system before use. Once the initial pairing process has been
copleted, your phone should easily connect and disconnect to BlueFusion
during daily use.
PAIRING INSTRUCTIONS:
1. Once the hardware has been properly installed, insert the key and start the
vehicle. The BlueFusion interface needs to read the vehicle’s ignition codes to
properlyinitialize.
2. Press the “BAND” button on the radio until XM is selected as the radio
source.
3A. Vehicle’s with XM Tuner installed: Press and hold SEEK BACK/SEEK DOWN
to get to BlueFusion screen.
3B. Vehicle’s without XM Tuner installed: BlueFusion menu screen will be
displayed at this step. You do not have to use the SEEK BACK/SEEK DOWN
button to switch between XM and BlueFusion screens.
4. Once in the BlueFusion screen, you will hear a beep tone indicating that
BlueFusion is in pairing mode. (BlueFusion enters pairing mode automatically
when the Ignition is turned on and no phone is currently paired.)
5. From your phone’s Bluetooth menu, perform a search for new devices (refer
to your cell phone user manual). The phone should display “BlueFusion”
6. Select [pair to] BlueFusion and enter pin code 0000 when prompted. This will
complete the pairing process. (Once your phonies paired with BlueFusion, the
beep tones should stop and BlueFusion is now ready for use.)
ADDITIONAL PAIRING NOTES:
•Ifpairingisunsuccessful,repeatsteps1-6above.Ifyouareunabletopair,
please call Tech Support [phone] Ext. 3
•AfteryourphonehasbeeninitiallypairedwithBlueFusion,itshouldeasily
re-connect for future use. Many phones will automatically re-connect to the
BlueFusion system as long as you keep your phones Bluetooth feature
active. If your phone does not freely connect and disconnect to BlueFusion,
consult your phones owner’s manual to check for addition options that may
require enabling.
PAIRING YOUR CELLULAR PHONE

6

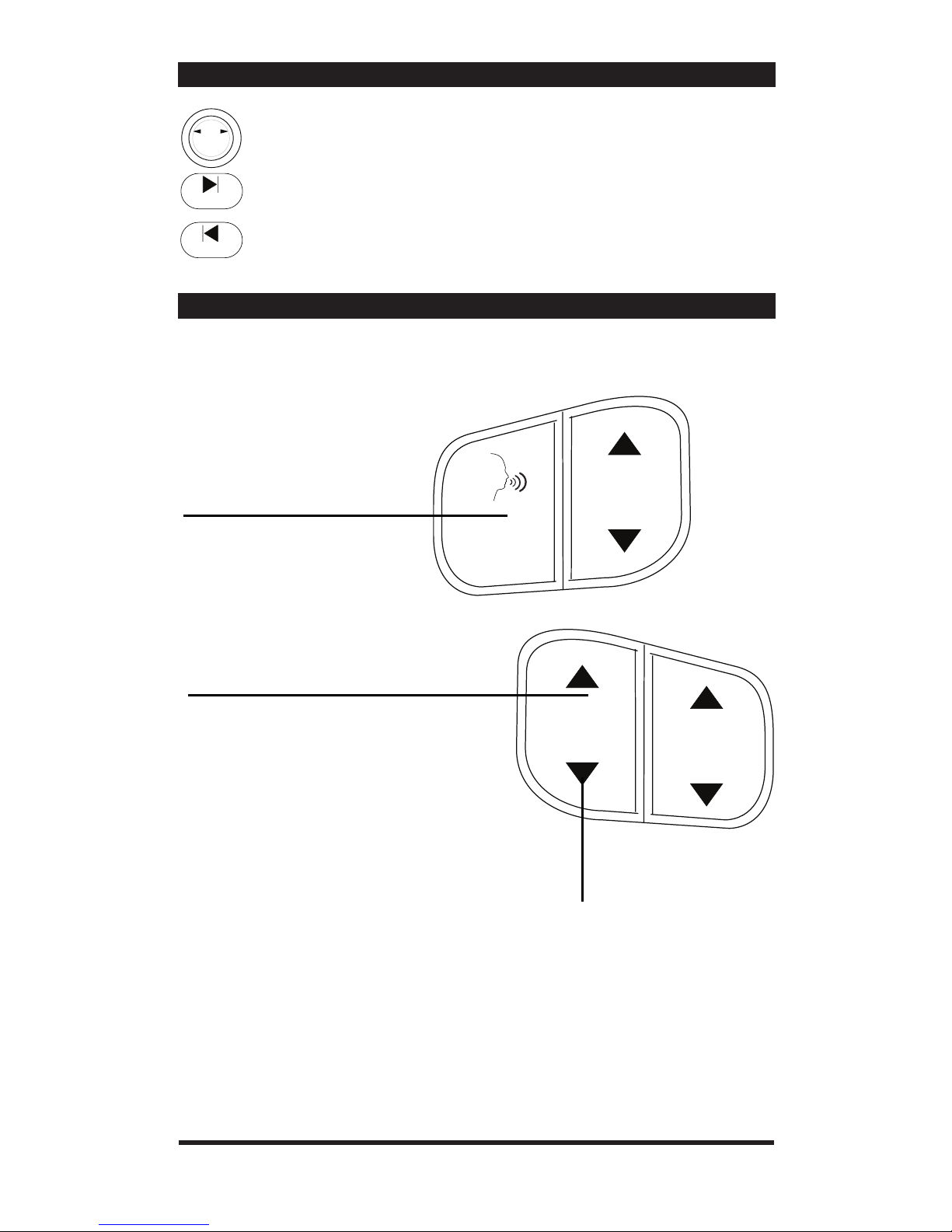

USING THE STEERING WHEEL CONTROLS
USING THE RADIO CONTROLS
Multi-Function Knob
TO SCROLL MENUS
Seek Forward
TO ANSWER/ SELECT
Seek Back
TO END/ PREVIOUS MENU
These are the only buttons used for the
interface.
Please read and understand this entire
manual before operating the interface.
DISPL
TUNE
SEEK
SEEK
SEEK VOL
SRC
PROG
All other buttons on the steering wheel controls are defaulted to send the
conversation to switch back to privacy mode (back to the cellular phone).
ANSWER - Press the track forward button once.
END/ IGNORE - Press the track back button once.
VOICE DIAL - Press the talk button twice.

AUTO-CONNECT/ DISCONNECT (ENTERING AND LEAVING THE VEHICLE)
When the vehicle is started, BlueFusion will automatically connect to the phone
which it was last paired. Some cellular phones may not freely disconnect and
re-connect without user input. If you are having difficulty with this process, there
may be additional settings required in your particular phone that will set
BlueFusion as a “trusted” device. This operation may vary between phone
brands and models.
If you are already on an active call and you enter and start the vehicle,
BlueFusion will automatically switch the call to hands-free mode.
If you are on an active call and the vehicle is turned off, BlueFusion will
automatically transfer the call to the handset.
VOICE DIALING:
NOTE: This feature activates your cell phone’s voice dial function. The cell
phone used must be voice dial compatible.
TO ACTIVATE VOICE DIAL ON THE RADIO:
Scroll to Voice dial in BlueFusion main menu and press seek forward once.
TO ACTIVATE VOICE DIAL FROM THE STEERING WHEEL:
Press the mute button twice. (See page 6 for steering wheel control layout)
HANDS-FREE OPERATION
Your BlueFusion system functions as an XM source through your Factory
Stereo. In order to access BlueFusion, the XM band must be selected
(See diagram).
If listening to a source other than XM, BlueFusion will automatically switch to the
XM band when there is an incoming call. (See note) When the call is ended your
radio may not switch back to the previous source unless the previous source
was XM.
NOTE: Vehicles equipped with Y91 Premium BOSE systems (such as Cadillac
Escalade, Hummer H2, Sierra Denali) will automatically switch back to which-
ever source was previously selected.

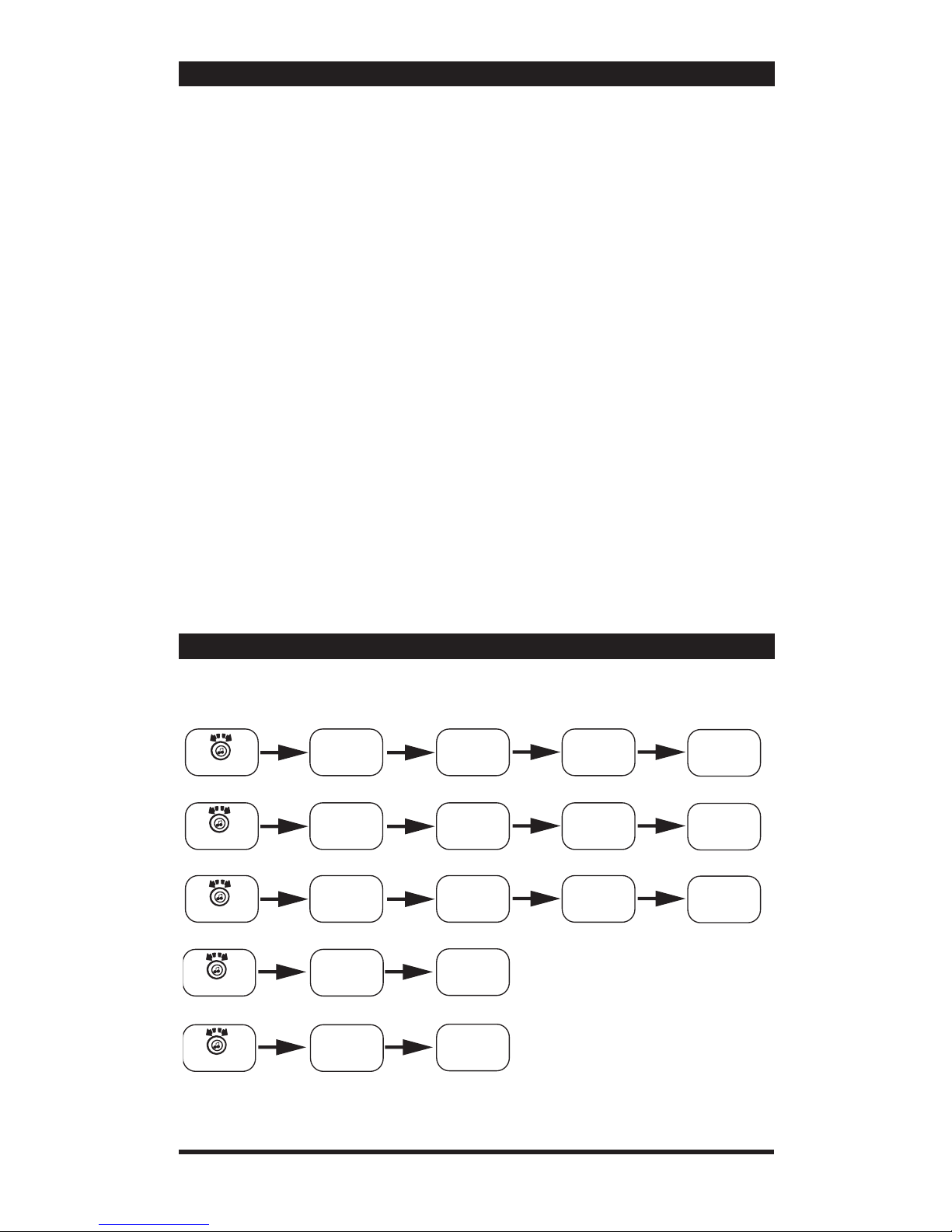

SWITCHING BETWEEN SOURCES
AM
FM CD DVD/
NAV
XM Sat
BlueFusion
AUX
7

HANDS-FREE OPERATION
INCOMING CALLS:
When receiving an incoming call the Factory radio will automatically switch to
the BlueFusion source and display caller number. The BlueFusion system is
designed to display caller ID only. (Some phones may provide additional
message string information and provide a name in place of the calling number.
Your results may vary). BlueFusion does not support Phonebook profile.
TO ANSWER A CALL:
Press Seek Forward on the steering wheel controls.
Press Seek Forward from the radio controls.
INCOMING CALLS (BLOCKED NUMBER):
When receiving an incoming call the Factory radio will automatically switch to
the BlueFusion source, however a number WILL NOT display on the screen.
Answer the call using the same buttons as Incoming calls above.
OUTGOING CALLS (FROM HANDSET):
When making an outgoing call directly from the phone, the factory radio will
automatically switch to the BlueFusion source and send hands-free audio
through the factory speakers.
TO MAKE AN OUTGOING CALL FROM CALL LOG:
Enter incoming, outgoing, or missed call menus from BlueFusion main menu,
scroll to selected number and press Seek Forward to initiate a call to the chosen
number
ENDING A CALL:
Press Seek Back on the radio
Press Seek Back on Steering Wheel Control.
IGNORING AN INCOMING CALL:
Press and hold Seek Back from the Steering Wheel Control.
Press Seek Back from the radio.
REDIAL LAST NUMBER:
Scroll to redial in BlueFusion main menu and press Seek Forward to initiate a call
to the last dialed number.
TRANSFER TO HANDSET:
To transfer a call to privacy mode you can:
Change the audio source of the radio or power off the radio ONCE THE CALL
HAS BEEN ACCEPTED.
HANDS FREE VOLUME ADJUSTMENT:
If you find the hands-free volume level to Low or High when switching between
other sources, follow this step: When idle (standby), scroll to “Settings” from the
BlueFusion menu and press Seek Forward. This will now allow access to hands
free volume. Use the radio or steering wheel volume controls to adjust volume
level as needed. The setting will only apply to hands free mode.
HANDS-FREE OPERATION
8

SECONDARY AND CONFERENCE CALL HANDLING
When receiving a second call while in an active call the BlueFusion display a
new menu with a list of second call handling functions.
TO ANSWER THE SECOND CALL AND PLACE ACTIVE CALL ON HOLD:
Press Seek forward on radio.
Press Seek forward on Steering Wheel Control.
SWAP CALLS:
(This option is only present during TWO active phone calls)
Scroll to “Swap Calls” in BlueFusion’s second call menu and press seek forward
once.
RELEASE HELD CALL:
Scroll to “Release held call” in BlueFusion’s second call menu and press seek
forward once.
CONFERENCE 2 CALLS:
Scroll to “Conference” in BlueFusion’s second call menu and press seek forward
once.
END CURRENT CALL AND ANSWER SECOND CALL:
Scroll to “End and Receive” in BlueFusion’s second call menu and momentarily
press seek forward once.
TO END SECOND CALL:
Press seek back once on the radio controls.
Press seek forward once on the steering wheel controls.
(Depending on your phone, when the second call is ended the held call will ei-
ther automatically reconnect or it will ring back as a new call.) for steering wheel
control layout)
Note: This flow chart is for visual purposes only. It is NOT a representation of a BlueFusion
video screen or graphics.
Incoming
Calls
Redial
Seek fwd
to list
numbers
Scroll
*Voice dailing feature with voice dial enabled cell phones only. Consult your phone’s user guide.
to determine if your phone is capable. Some phones may require additional setup within the phone
before using this feature.
Seek fwd
to list
numbers
Seek fwd
to list
numbers
Select
number to
call
Seek fwd
dials
number
Outgoing
Calls
Select
number to
call
Seek fwd
dials
number
Missed
Calls
Select
number to
call
Seek fwd
dials
number
Seek fwd
redials last
number
Scroll
Scroll
Scroll
*Voice
Dial
Seek fwd
to activate
Scroll
BLUEFUSION MENU MAP
Note: This flow chart is for visual purposes only. It is NOT a representation of a BlueFusion
video screen or graphics.
Incoming
Calls
Redial
Seek fwd
to list
numbers
Scroll
*Voice dailing feature with voice dial enabled cell phones only. Consult your phone’s user guide.
to determine if your phone is capable. Some phones may require additional setup within the phone
before using this feature.
Seek fwd
to list
numbers
Seek fwd
to list
numbers
Select
number to
call
Seek fwd
dials
number
Outgoing
Calls
Select
number to
call
Seek fwd
dials
number
Missed
Calls
Select
number to
call
Seek fwd
dials
number
Seek fwd
redials last
number
Scroll
Scroll
Scroll
*Voice
Dial
Seek fwd
to activate
Scroll
9

A2DP/AVRCP STREAMING AUDIO
A2DP STREAMING AUDIO/ AVRCP REMOTE CONTROLS
Important Cell Phone Disclaimer: READ FIRST!
BlueFusion will support audio streaming while it is paired with a cell phone
(whether this is within the same device supporting multiple profiles or two
separate device).
-While streaming A2DP, redial and voice dial functions are DISABLED.
-Volume output through A2DP will vary from device to device, some products
may have distortion at full volume and level control adjustment may be neces-
sary to match the volume between other sources. This may occur during use
with an iPhone 3GS. See A2DP Volume Adjustment section below.
PAIRING A2DP FROM YOUR PHONE:
Most phones capable of streaming audio through the A2DP profile will automati-
cally pair this profile when pairing with the hands free profile. If this is does not
occur, then refer to your phones user manual for A2DP pairing instructions.
PAIRING A2DP FROM A SEPERATE DEVICE:
To pair a separate device, such as the Scosche TZ4 or other Bluetooth Audio
transmitting device, there must first be a phone paired to the BlueFusion’s
Hands Free profile. Ensure that the phone is paired only to hands-free profile
and not A2DP, refer to your phones manual for selective pairing functions. Once
the phone is paired only to the hands-free profile you may activate the pairing
process from your second device. Music will start playing once the device has
paired.
A2DP AUDIO VOLUME ADJUSTMENT:
If you find the A2DP audio stream level to low or High compared to other sourc-
es, follow this step: During A2DP audio streaming, scroll to “Settings” from the
BlueFusion menu and press Seek Forward. This will now allow access to A2DP
volume. Use the radio or steering wheel volume controls to adjust A2DP level
as needed. The setting will only apply to A2DP streaming.
AVRCP CONTROLS
To Select Next Track:
Press the seek forward button once.
Press the seek forward button once on the
steering wheel control.
To select Previous Track:
Press seek back once on the radio.
Press seek back once on the steering
wheel control.
10
SEEK VOL
SRC
PROG
PAUSE/PLAY - Press the talk button once.

For all issues take the following steps first before moving on to any other trouble
shooting.Thisprocessinsurescompleteinitialization.
1) Turn off vehicle
2) Unplug interface,
3) Enter vehicle and close all doors
4) Wait until the vehicle computer enters “Sleep” Hibernation.
(After approx. 3 min. Listen for click sound in thee doors).
5) Without opening doors, plug in interface
6) Start engine.
Unit has been installed properly but BlueFusion screen does not display.
Pair phone and make outgoing phone call from any source. OEM radio will
switch to BlueFusion screen automatically. If this does not occur check vehicle
compatibility chart for your vehicle.
TROUBLE SHOOTING
NO AVRCP CONTROL
RANGE ISSUE
DEVICE NOT FOUND
BAD CALL QUALITY
NO SOUND
AUDIO DROP OUTS
Verify that the paired device supports AVRCP functionality.
Bluetooth standard range maxing out at 30 feet, may vary
due to environment.
Delete all previous pairing attempts and try again.
Make sure the cellular is within range of the module (30ft.).
Make sure the signal reception of the cellular phone is strong.
Make sure the module is on and paired to transmitting device.
Make sure the volume is correct, check both the radio and
the transmitting device, and other items within range.
Make sure the transmitting device is at a good battery state.
If the item in on low battery, please recharge.
NOTE: Due to every phone having different software and functionality features,
many phones may work different with the Bluetooth module of the BFGM. We
recommend contacting the Scosche Technical Support at 1-800-621-3695 Ex.3
with any common or reoccurring issues.
TROUBLE SHOOTING
NOTE: DUE TO EVERY PHONE HAVING DIFFERENT SOFTWARE AND
FUNCTIONALITY FEATURES, MANY PHONES MAY WORK DIFFERENT WITH
THE BLUETOOTH MODULE OF THE BFGMK. WE RECOMMEND
CONTACTING THE SCOSCHE TECH SUPPORT AT: 1-800-621-3695 EXT. 3
WITH ANY QUESTIONS.
11

This device complies with FCC Rules Part 15. Operation is subject to the following two
conditions: 1) This device may not cause interference, and 2) this device must accept
any interference that may be received, including interference that may cause undesired
operation. The manufacturer is not responsible for any radio or TV interference caused
byunauthorizedmodificationtothisequipment.Suchmodificationcouldvoidtheuser’s
authority to operate the equipment.
LIMITED WARRANTY
Scosche Industries Inc. warrants this product to be free from defects in material and
workmanship for a period of 1 year from purchase. This Scosche product is sold with
the understanding that the purchaser has independently determined the suitability of this
product. This warranty is offered to the original purchaser of the product only. This warranty
does not cover the product if physically damaged, subject to negligence or misuse, abuse,
alteration, accident, or an act of GOD. This warranty does not apply to product which has
water or physically damaged by accident or which has been misused, disassembled or
altered.
The original dated sales slip or proof of purchase will establish warranty eligibility. If the
product should prove defective within the warranty period, return the product with proof
of purchase to Scosche Industries Inc. Scosche, at its option, will replace or repair the
product free of charge and return the product postage paid.
In no event shall Scosche Industries, Inc. be responsible for claims beyond the replacement
value of the defective product, or in any way be liable or responsible for consequential or
incidental damages. No empress warranties and no implied warranties, whether for fitness
or any particular use or otherwise, except as set forth above (which is made expressly in
lieu of all other warranties) shall apply to products sold by Scosche. Scosche Industries
cannot be held responsible for discrepancies/inconsistencies that may occur due to
automotive manufacturing changes or option.
FCC
12
