Vnstw G-700 User manual

G-700
0
G-700 Operation Manual
(Multiple channels Curved Screen Edge Blender)
Technical support:
E-mail: sales vnstw.com
Tel: [phone] ext. 301
Cell: [phone]
Skype: vns-inc
Version: 1.03
Website: www.vnstw.com.tw

G-700
1
Table of Contents
1 Introduction…………………………………………………………………………………………..… 4
2 Outlook........................………………………………………………………………………………… 5
3 Functions and Features……………………………………………………………………….……... 5
4 Application................................................................................................................................ 7
5 elpful Tips for system installation and setup...............………………………………………... 8
6 Application case study……………………………………………………………………………….. 10
6.1 Conventional curved screen edge blending….............……………………..…….….….. 10
6.2 4k daisy chain connection for curved screen edge blending...................................... 10
6.3 Multiple PC input simulation system.............................................................................. 11
6.4 Edge blending with projector at portrait position.......................................................... 11
6.5 Flexible display in edge blending system....................................................................... 12
6.6 Stretch image with full screen.....................................……………………………………... 12
6.7 igh resolution edge blending with PC multi-windows display card.....................….. 13
6.8 “L/M” shape video wall with edge blending............……………………………………….. 15
6.9 Irregular curved display..................……………………………………………………………. 15
6.10 Active 3D and passive 3D display..................................…………………………………… 16
7 Internal Grid Pattern for Geometry Adjustment……………………………………………….….. 17
8 OSD menu and operation……………………………………………………………………………….. 18
8.1 OSD simultaneous control in all channels...................................................................... 18
8.2 [Picture] Color Adjustment……………………………………………………………….……… 19
8.3 [Image Setup] for PC graphics from VGA input……………………………………………… 20
8.4 [Image Properties]…………………..……………………………………………..…………….. 20
8.4.1 [Color]: Preset mode & Custom color…………………………………..……………… 21
8.4.2 [Input Signal] selection………………………………..………………………………….. 21
8.4.3 [Scaling]: Display aspect ratio…………………………………………………………. 21
8.4.4 [Output Mode] selection…………………………………………………………………… 21
8.4.5 PIP/POP setting (Picture in Picture & Side by Side)............................................... 22
8.4.6 [Orientation] (Flip & Rotation)…………………………………………...................….. 24
9 Video Wall Setting………………………………………………………………………………..……... 24
9.1 [Zoom]: split the image…………………………………………………………………………. 25
9.2 [Pan]: assign image location…………………………………………………………………… 25
9.3 [Overlap]: set image overlap pixel……………………………………………………………. 26
9.4 Example for three projector edge blending………………………………………...……….. 26
10 Passive 3D Display…………………………………………………………………….……………….. 27
10.1 System Configuration…………………………………………………………………….……. 27
10.2 System installation and setup………………………………………………………………… 27
10.3 GeoBox 3D settings……………………………………………………………………..……… 28
10.3.1 [Input Format]……………………………………………………………………………… 28

G-700
2
10.3.2 [Output Format]…………………………………………………………………………… 28
10.3.3 [1080p 24 z Output]…………………………………………………………………….. 29
10.3.4 [Identity]: check final 3D settings…………………………………………………….. 29
11 Active 3D applications………………………………………………………………………………… 29
11.1 Procedures for active 3D setting…………………………………………………………….. 30
12 [Anyplace]: Geometry Correction and Edge Blending…………………………………...…….. 31
12.1 Geometry alignment range…………..…………………………………………….…………. 31
12.2 Procedures for geometry alignment…………………………………………………….…… 31
12.3 [Reset] in geometry alignment...................................................................................... 32
12.4 ow to increase the accuracy of geometry alignment................................................ 32
12.5 [Edge Blend]………………..…………………………………………………………………….. 33
12.5.1 [Edge] selection and settings………………………………………………………….. 34
12.5.2 [Gamma]: Color correction in edge blending area…………………………………. 34
12.5.3 [Offset]: Black level uplift……………………………………………………………….. 36
12.5.4 [Corner]: Adjust [Offset] compensation position…………………………………… 37
12.5.5 [Shift]: Edge blending area shift and Edge Mask…………………………………… 38
12.5.6 [Color]: Individual projector white balance and color correction………………… 38
12.6 [Gwarp] PC tool…………………………………………………………………………………. 39
12.6.1 When [Gwarp] PC tool is necessary……………………………………………………. 39
12.6.2 System configuration……………………………………………………………………… 40
12.6.3 [Gwarp] operation…………………………………………………………………………. 40
12.6.3.1 System connection……………………………………………………………. 40
12.6.3.2 [Warp Adjust]……………………………………………………………………. 41
12.6.3.3 [Video Wall]………………………………………………………………………. 41
12.6.3.4 [Edge Blend]…………………………………………………………………….. 42
12.6.3.5 Color [Uniformity] correction..………………………………………………. 42
12.6.3.6 [Save file] & [Save to Box]……………………….…………………………… 42
12.7 Example for 3 projector edge blending setup....…………………………………….......... 42
13 OSD Miscellaneous Functions—[Options]………………………………………………..………..... 47
13.1 System Information: [Information]…………………………………………………..……….... 47
13.2 OSD Language: [Language]……………………………………………………………………. 47
13.3 [Reset]……………………………………………………………………………………..……….. 47
13.4 [Accessibility]………………………………………………………………………………..……. 48
13.4.1 [Button Repeat Rate]………………………………………………………….………….. 48
13.4.2 [Menu Time Out]…………………………………………………………………….….…. 49
13.4.3 [Logo Time Out]……………………………………………………………………..……. 49
13.4.4 [Standby Time Out]……………………………………………………………………….. 49
13.5 [Setting]………………………….……………………………………………………..……….…. 50
13.5.1 Audio [Mute]………….…………………………………………………………….…….... 50
13.5.2 Frame Lock and Smooth Switching Mode…………………………………………… 50

G-700
3
13.5.3 [Box ID]…………………….…………………………………………………………..…… 51
13.5.4 [Profile Setting]………….………………………………………………………………… 51
13.5.5 [Network]………………….……………………………………………………….……….. 52
13.5.5.1 [RS232] Command ………………………………..…………………………..… 52
13.5.5.2 RS232 setting……………………………………………………............……… 53
13.5.5.3 Example of low cost RS232 controller……………………………............... 54
13.5.5.4 [Ethernet] control…………………………………………….…………............ 54
13.5.6 [EDID] setting……………………………………………………………………………… 56
14 Screen Selection…………………………………………………………………………………….….. 58
15 Projector Selection……………………………………………………………………………….……. 58
16 Specifications…………………………………………………………………………………………… 59
17 Revision history………………………………………………………………………………………… 61
Limited Warranty
This device is designed and tested to the highest standards and backed by two years’ parts and labor warranty. Warranties are
effective upon the first delivery date to the end customer and are non-transferable. Warranty related repairs include parts and
labor, but do not include repair of faults resulting from user negligence, special modifications, abuse (mechanical damage),
shipping damage, and/or other unusual damages. The customer shall pay shipping charges when the unit is returned for repair.
Manufacturer will pay shipping charges for return shipments to customers.
Manufacturer does not assume responsibility for consequential damages, expenses or loss of revenue, inconvenience or
interruption in operation experienced by the customer. Warranty service shall not automatically extend the warranty period.
FCC/CE statement
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a residential / commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.

G-700
4
1 Introduction
G-700 is a curved screen edge blending processor with the ability to provide multiple processing channels
to control from 1 to 4 projectors based on user’s requirements. G-701 can provide single processing channel for
one projector, G-702 for 2 projectors, G-703 for 3 projectors and G-704 for 4 projectors. It was designed for
sophisticated edge blending as well as image warping, stacking, projection mapping, irregular video wall and
passive 3D…etc. One G-704 can execute 4 projector edge blending without any additional equipment or splitter.
Two G-704 can control up to 8 projectors.
Each processing channel has 3 input ports (1x HDMI, 1x DP, 1x DVI-I) to support 5 input formats (HDMI,
DP, VGA, DVI-D, YPbPr) and one HDMI output port. One 4K HDMI loop out port is for raw signal daisy chain
connection. Input ports support up to 3840x1080 60Hz and 4k UHD 30Hz resolution with 4:4:4 full color
sampling. It is integrated with 10-bit high end processor, motion adaptive de-interlace and 3:2/2:2 pull-down.
PIP (picture in picture) and POP (side by side) are standard functions in each processing channel. In one
G-704, user can display up to 8 different input contents on the screen. If user requires PIP or POP image across
entire screen, user can use the first channel as PIP/POP processor and connect the output to other processing
channel input port to get PIP/POP image across entire screen. If user uses two channels for PIP/POP
processing, then user can get 3-4 different contents across complete edge blending screen.
Advanced warp technology is embedded in G-700. User can use front panel keypad, IR controller or PC
to perform edge blending and sophisticated geometry alignment up to 17x17 grids through user friendly
operation interface. Geometry adjustment range is big enough for most of the applications. By remote controller,
user can adjust corner position up to H=+_600 pixels and V=+_400 pixels in full HD output resolution. If PC tool
is used, geometry alignment range will be double. User can also apply serial connection among processing
channels to increase geometry adjustment range for some special applications.
It can perform color and white balance adjustment in individual projector. Edge blending region gamma
correction and non-edge blending area black level uplift are also standard function in G-700.
HDMI loop out supports daisy chain connection up to 3840x1080 60Hz or 4k/2k 30Hz and allows
large display with multiple G-700 cascaded without video distributor. Video wall function in G-700 is to crop and
allocate source image for each projector. Complete curved edge blending can be achieved without PC, video
distributor and splitter.

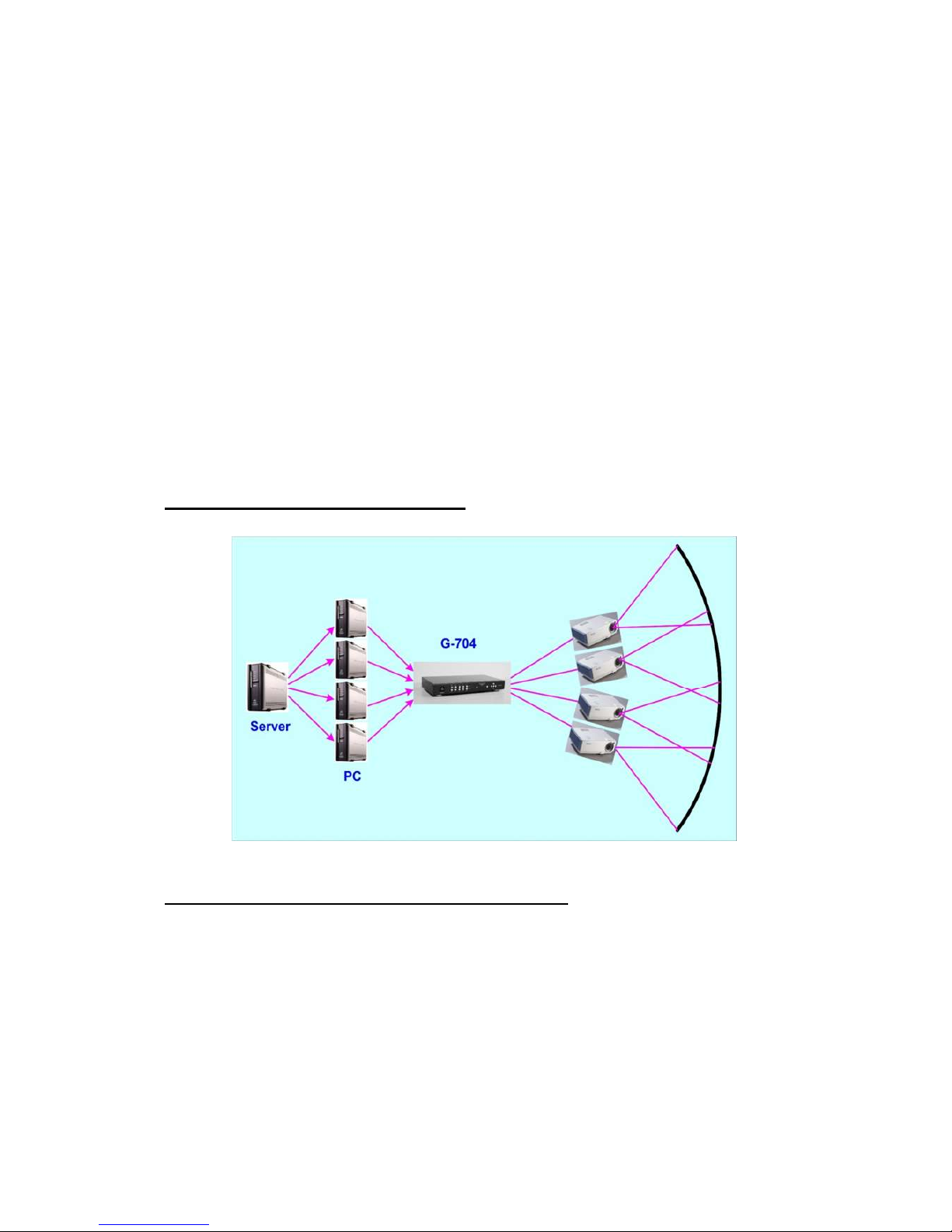

G-700 is an ideal solution for simulation. It can connect with inputs from multiple PC and combine them
into one seamless image. It also provides flexible displays in edge blending system. For a 3x projector edge
blending system, user can configure as 1+1+1 independent display, 1+2 (two edge blends) and all-in-one (three
edge blends). User can also execute edge blending with projector at portrait position to increase image height. It
is a good fit with laser projector without the limitation in installation angle.
In order to optimize video performance, G-700 is designed to support non-VESA standard input timing
and allow user to create any EDID timing in the range between 1024x768 and 3840x2160.
With G-700, users can replace high end projector with low cost projector without lens shift, warp and edge
blending. It provides easy configuration, low entry barrier, cost effective, reliable and flexible solution.
