VOGE SR4 Max LX350T-5A Product guide

Important information about this book
Welcome to VOGE
We say thanks and express our congratulations to your correct choosing on VOGE.
You need to know your motorcycle as well as yourself, to safely drive under various conditions.
Please carefully read this book before your first driving, which includes important information and
suggestion about driving and its equipment, also the maintenance and pre-cautions. In case there are
some questions about this motorcycle, the VOGE dealers are very glad to suggest and help you. We
hope you enjoy your every minute on driving.
This book includes the important information, issues need pay attention to, warning and cautions
about the motorcycle, so please always keep it on the motorcycle even lend or sell to others, this is
very important. The pictures or details in this book may be different with the actual motorcycle, but
their description and principle are the same. This book is a part of the motorcycle, keep it always on
the vehicle even sell or lend. VOGE improves its products all the time to make sure its high quality and
safety performance, so the information in this book may not be complete same with your actual
motorcycle, in this case, the VOGE dealers are glad to provide your correct suggestions.
The standard of execution：Q/LX 1032-2022
This user manual meets the standards：GB/T 19678.1、GB/T 9969、GB/T 40494
All rights of final interpretation belong to Loncin Motor co.ltd.

Caution This mark means more effective and convenient point for driving Because we keep
improvements on motorcycle, so the actual motorcycle may not be complete same with this book,
please set the actual motorcycle as standard while without further information.
!Caution
Issues need pay attention to
Warning
!
Danger
!
!Danger
This book fits for the driver with license only, please correctly and cautiously drive and pay
attention to：
Refit at will is not allowed;
Please follow the local laws and regulations;
Any refit on this motorcycle may be bad for noise, emission and performance.
This mark indicates it may lead to bad injury even death.
This mark indicates it may lead to damage on motorcycle.
This mark means more effective and convenient point for driving.
This user manual has the warning marks as below, when you saw it, please follow these
driving and maintenance procedure.

Content
Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Head part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Left side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Right side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Lower side of seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Loading and accessories . . . . . . . . . . . . . . . . . . . . . . . . 6
Issues need pay attention to during driving . . . . 7
Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

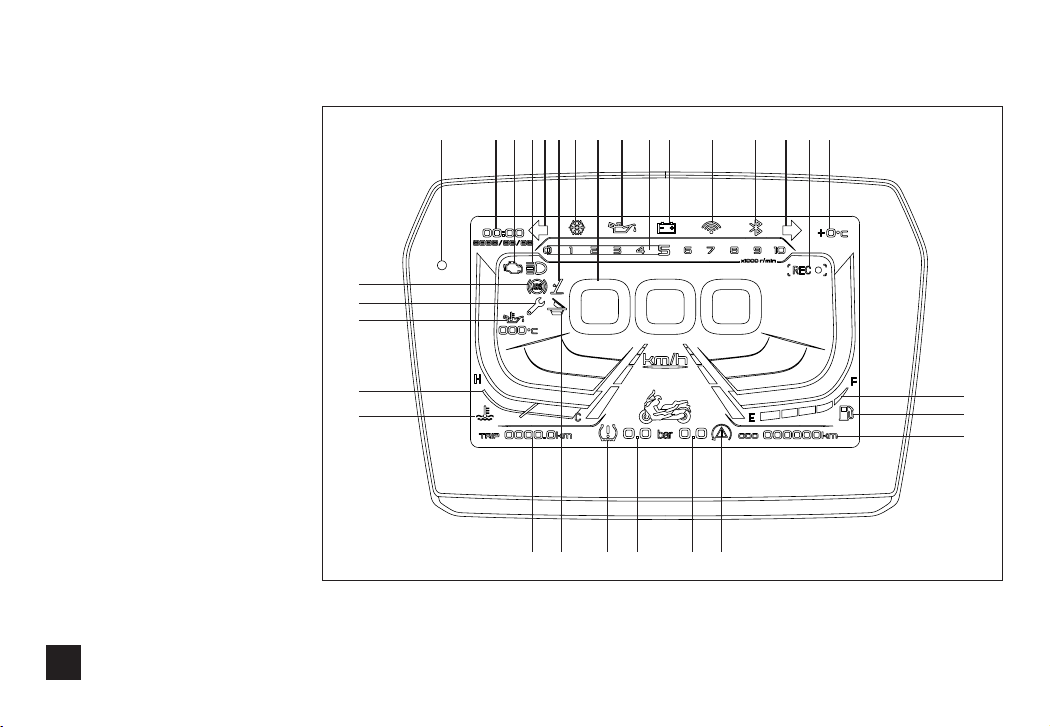

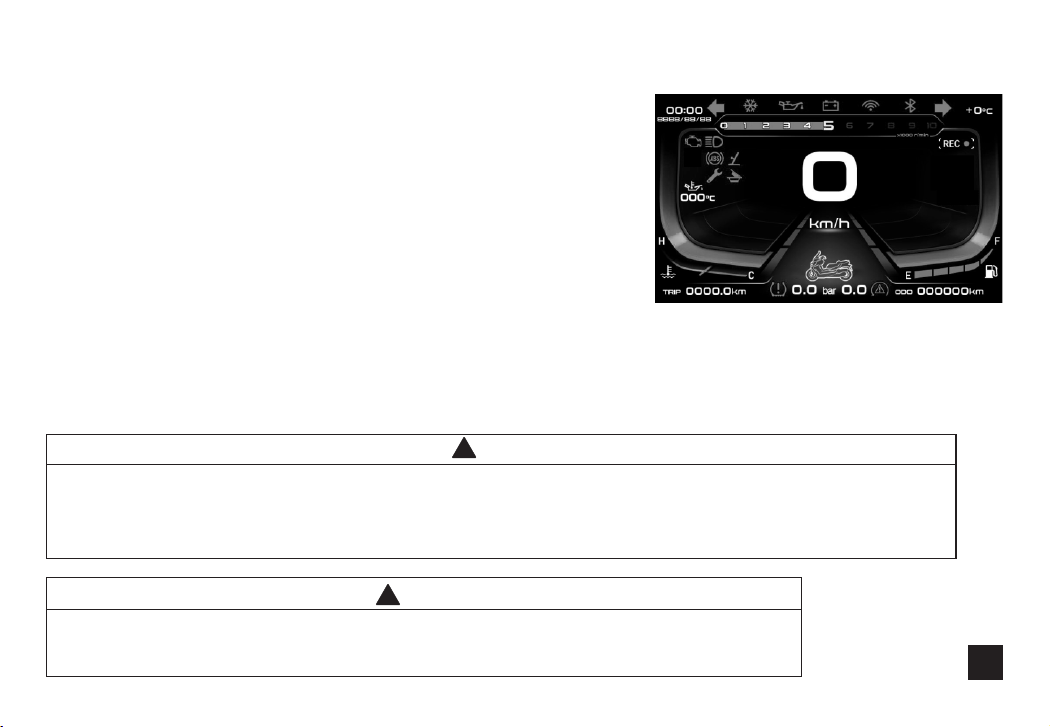

nstrument and indicating light. . . . . . . . . . . . . . . . 10I
Issues need pay attention fuel filling . . . . . . . . . . 16
oolant temperature alarm lightC. . . . . . . . . . . . . . 17
............................17Insufficient coolant
......................18Operation for instrument
Power socket of USB . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Steering switch assy............................26
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Opening for seat
Use of front luggage case . . . . . . . . . . . . . . . . . . . . . . 29
Opening for fuel tank cap . . . . . . . . . . . . . . . . . . . . . . 30
Remote key and spare key . . . . . . . . . . . . . . . . . . . . . 30
Driving recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Side stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adjustment before driving. . . . . . . . . . . . . . . . . . . . . 32
Adjustment for throttle lever . . . . . . . . . . . . . . . . . . 33
Adjustment for rear shock absorber . . . . . . . . . . . 34
Adjustment for headlight . . . . . . . . . . . . . . . . . . . . . . 35
uxiliary turning light . . . . . . . . . . . . . . . . . . . . . . . . . 35A
otorcycle grinding-in........................35M
he engine grinding-in ........................36T
he tires grinding-in . . . . . . . . . . . . . . . . . . . . . . . . . . . 36T
he brake system grinding-in. . . . . . . . . . . . . . . . . . 36T
The driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
he engine starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38T
Driving on road. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Braking and parking. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
BS system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41A
he use of ABS system . . . . . . . . . . . . . . . . . . . . . . . . . 41T
CS traction control system. . . . . . . . . . . . . . . . . . . . 44T
uel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45F
...........................46The fuel evaporation

Three-way catalyst .............................47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47Troubleshooting
.........................47Engine starting failure
.......................48Difficult engine starting
............................48Weak engine power
. . . . . . . . . . . . . . . . . . . 49Inspection and maintenance
. . . . . . . . . . . . . . . . . . 52The maintenance for air filter
. . . . . . . . . . . . . 53The maintenance for oil in engine
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Check the oil level
Replacement for engine oil . . . . . . . . . . . . . . . . . . . . 55
Replacement for oil element. . . . . . . . . . . . . . . . . . . 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57Oil filling up
...........58Check and maintenance for coolant
. . . . . . . . . . . . . . . . . . . 59The replacement for coolant
. . . . . . . . . . . . . . . . . . 61Maintenance for brake liquid
Tire maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Relay/Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuse chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Brake pads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
. . . . . . . . . . . . . . . 66The replacement for light signal
The storage and clean for motorcycle .........67
Refit and accessories ..........................69
........................70Motorcycle parameters
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72Maintenance plan
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74Electrical diagram

1
Identification
The Vehicle Identification
Number（VIN） name plate
engine type and delivery number
Nameplate
Vehicle Identification Number（VIN）Engine type and delivery number

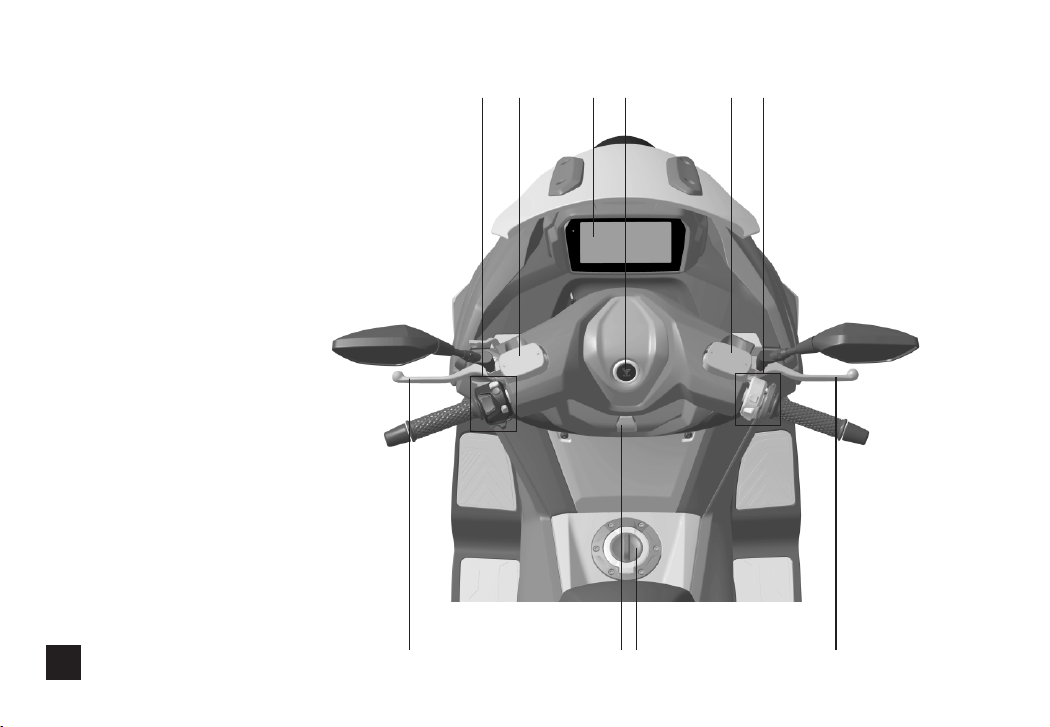

Head part
2
267
4
1 9 8
5
3
1. Rear brake lever
2. Left switch assy.
3. Rear brake oil cup
4. Instrument
5. Ignition switch
6. Front main brake oil cup
7. Right switch assy. and greaser base
8. Front brake lever
9. Fuel tank lock(Cap)
10. Luggage case hook
1 0

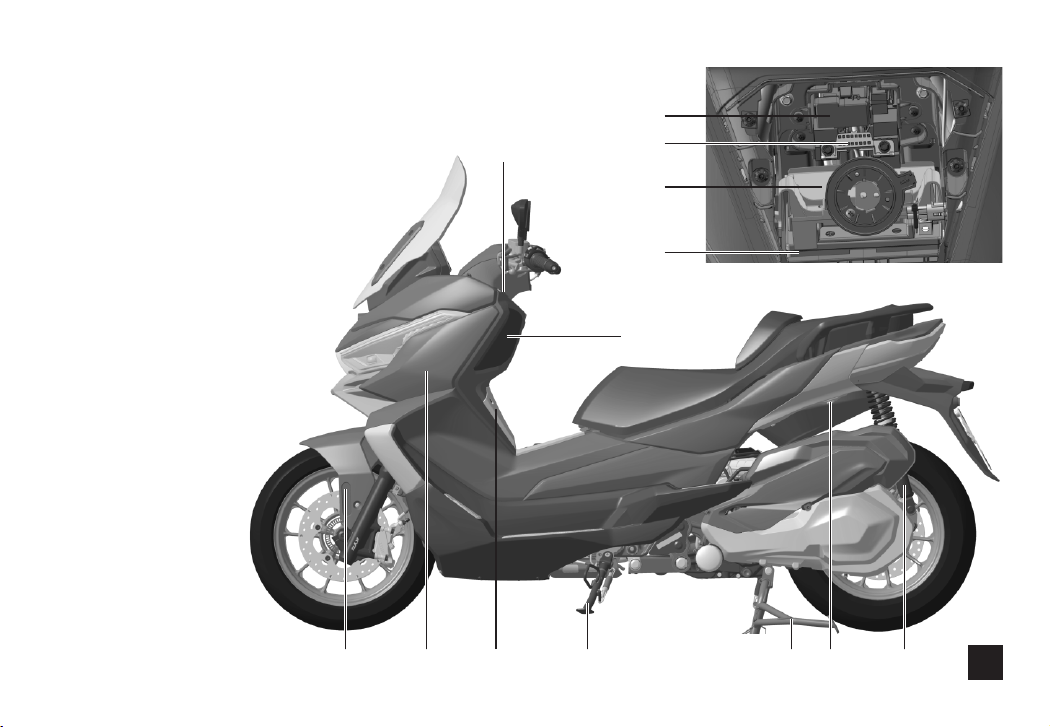

Left side
11
3
11. Left gloves case switch
12. Left gloves case
13. Spring pressure adjustor
14. Emergency unlocking device for seat
15. Main stand
16. Side stand
17. Battery covering plate;
17-1. Fuse box
17-2.OBD socket
17-3.Antenna
17-4. Battery
18. Coolant expansion can
(Under left front side cover)
19. Left side reflector
17
18 1314
12
17-1
1516
17-2
17-3
19
17-4

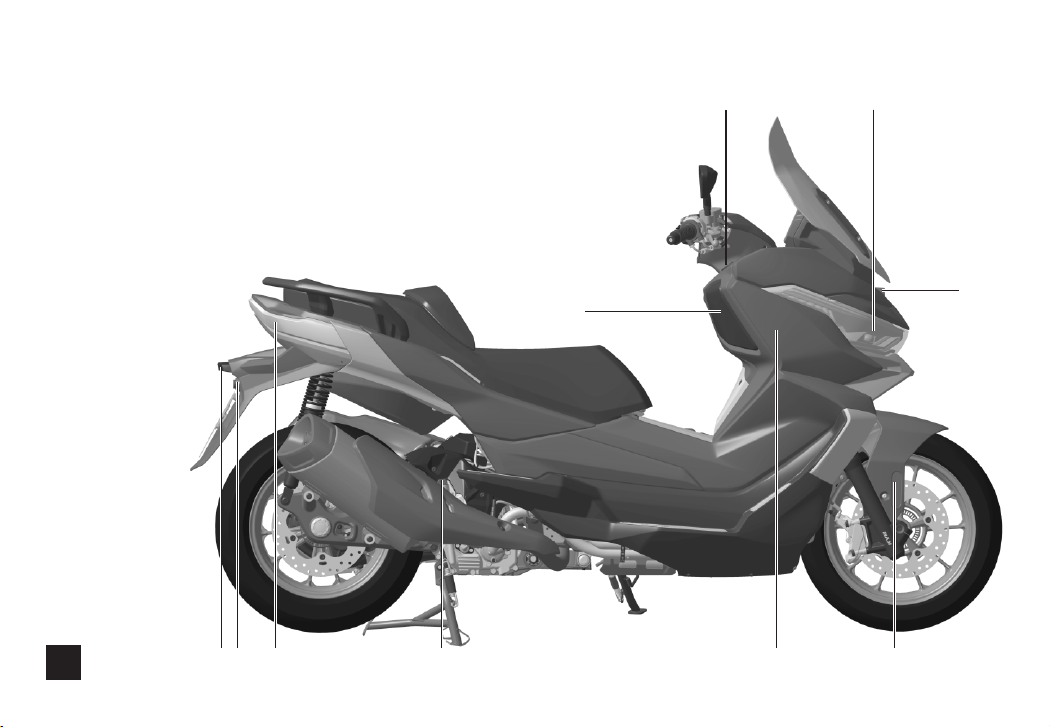

Right side
4
20. Right gloves case
21. Right gloves case switch
22. Headlight
23. Right reflector
24. Light turning button(Under right front
side cover，Adjustment refer to P35)
25. Oil filling up port and oil gauge
26. Taillight
27. Rear reflector
28. Rear registration
plate
29. Camera
2 1
2 0
2 42 5
2 2
2 3
2 8 2 62 7
2 9

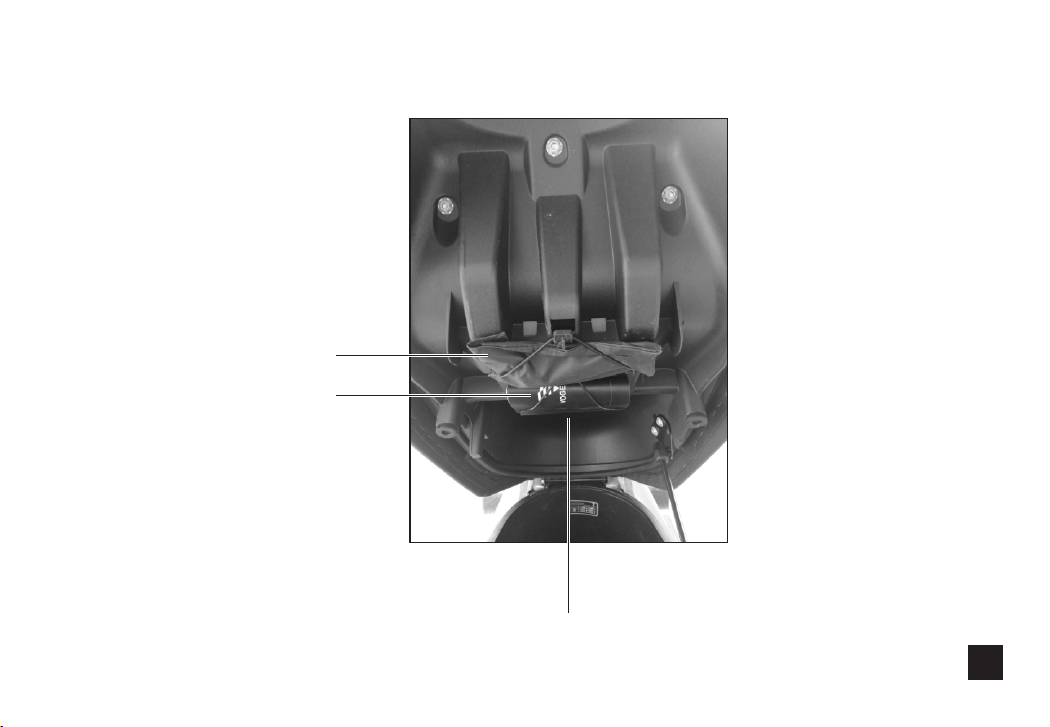

Lower side of seat
30. Tool box
31. User manual
32. Rear luggage case light
5
30
31
32

Loading and accessories
Please make sure the motorcycle is not overloading before driving. Incorrect loading,
refit, accessories or maintenance are all bad and dangerous for driving.
Please adopt the parts and accessories made by us only.
The parts or accessories are not made by us, incorrect installation or loading are all bad for
performance even break laws, please take responsibility for yourself or others.
The parts or accessories of this motorcycle are specially designed and tested, so they are
what we strongly suggest ones
The change of motorcycle's weight is a big influence on performance. So the loading, passenger and
accessories shall follow our suggestion.
6
!Danger
!Caution

7
1. Any driver must know well about the motorcycle, the incorrect sitting position or off set during
driving may be bad for operation or control of motorcycle; When driving, the passenger need. stably
sit on his seat without influence driver. Passenger is an animal is not allowed.
2. Keep the luggage low to decrease the influence on focus, also the weight of luggage needs evenly
spread on both sides, please avoid the luggage extend too long.
3. The luggage must fix on the motorcycle firmly, make sure it could not move before driving, in case it
is unstable in driving, please check its fixing once again, and adjust if it is necessary.
4. Too heavy or big the luggage is not allowed, the overloading must be bad for driving and
performance.
5. The accessories or luggage may decrease motorcycle performance shall not be loaded, make sure
all what you do may not be bad for lighting system, ground clearance, brake performance, side angle,
operation, compression distance of tire, working travel for front shock absorber or other performance
related to driving.
6. More weight on handle bar or front fork may be and for turning, and lead to unsafe driving.
7. Fairing cover, wind shield glass, backrest or other parts with big size may have influence on stability
or operation during driving, they increased not only the weight, but also the size, which lower down
the power. In case their design lack of test, they may lead to unsafe driving.
8. Refit to tricycle with side car is not allowed, drawing for other vehicles is also not allowed, and we
take no responsibility for refit without authorization.
The maximum loading: 201kg, including driver, luggage, and accessories.
Issues need pay attention to during driving

Ignition switch
The ignition switch is at the upper cover of handle bar. This model is with a remote
and plastic key (Includes a mechanical key). Please keep a key for spare one. The
ignition switch, seat lock, steering lock and fuel tank lock share a same key.
1. When driving the motorcycle, and distance between remote key and antenna
shall not longer than 1.3m.
2. When the motorcycle is power off, long press the ignition switch to lock the
head part, then slightly turn the head to confirm its locking up. After the head
part locked up, shortly press the ignition switch to unlock.
3. The head part could not be locked when the wheel is running.
4. When locking the head, turn the head part to the most left, otherwise the head part could not be
locked.
5. When the motorcycle need be power on, in case the head part is locked, shortly press the ignition
switch, unlock the head, then shortly press to get power on.
6. When the head is locking, in case press the ignition switch for 3 seconds, the unlocking and power
on may achieve in one time.In case the head unlocked/locked up, the buzzer may ring out.
8. In case the motorcycle is power on, the blue indicator light on switch is on for 1 minute. In case the
red indicating light on ignition switch is flashing, which means the wireless communication between
key and motorcycle have problem, please make sure the distance between the key and antenna is
within 1.3m.
9. When the remote key is out of power, please stick the remote or spare key to the cover in the front of
fuel tank cap, meanwhile shortly press ignition switch to power on and start the engine in 1 minute, or
the motorcycle may automatically off.
8

This model is equipped the main and side stand, when use the side stand, to keep stability, please
turn the handle bar to the most left, no most right to lock up the handle bar.
Long press the ignition switch is not allowed when driving, otherwise the motorcycle may power
off and lose the power.
!Caution
!Danger
9
10. When the motorcycle is in 0 speed, in case need to be power off, shortly press the ignition switch.
In case press the ignition switch for 3 seconds, the power off and head lock up may finish in one time.
11. When the speed is faster than 0, shortly press the ignition switch, the motorcycle may not off. Press
the ignition switch by 3 seconds the motorcycle may be forcedly off.
12. Even the distance to antenna is within 1.3m, put the remote key at somewhere of motorcycle may
lead to abnormal communication with motorcycle, and then lead to power failure or fail to start the
engine, where including but not only right gloves case, nearby steering stem, surface of instrument
and helmet case.

Instrument and indicating light
10
1 2 3 4 5 7 8 9 10 11 12 13 1415 16
17
18
19
2021222324
26
27
28
29
30
6
25
1. Light sensor
2. Date/time
3. Engine malfunction alarm
4.High beam indicator
5.Left turning indicator light
6.Side stand
7. Surrounding lower
temperature reminder
8. Speed
9.Oil level indicator
10.Engine rotation
11. Low voltage alarm
12. WIFI
13.Blue teeth
14. Righ turning indicator
15. Driving recorder indicator
16. Surrounding temperature
17. Fuel volume
18.Low fuel reminder
19. Mileage
20. TCS indicator light
21. Rear tire pressure
22. Front tire pressure
23.Tire pressure alarm
24.Fuel tank cap unlocking
reminder
25.Single mileage
26. Coolant temperature
alam
27. Coolant temperature
28. Oil temperature and alarm
29. Maintenance
reminder
30. ABS malfunction
indicator

" "Left turning light
When push the left switch to" "，the indicator" "is on.
In case the turning light is damaged or in other malfunction，this indicator light" "flashes
faster than normal situation, which reminding you the malfunction of turning signal light.
Engine malfunction alarm" "
" "When the managing system of engine is in malfunction，the alarm light is on.
When the motorcycle is just power on, the indicating light is permanently on，After the engine " "
started, the indicating light goes off immediately." "
!Warning
Direct wash on instrument by high pressure water is not allowed. Wipe up the instrument by gasoline,
ethanol or organic solvent is not allowed, or the instrument may partly crack or color fading.
!Caution
11
!Warning
After the engine started, the indicating light" "goes on or flashing，at this moment, the
motorcycle may not be normally stated, and the fuel system may not work.
In motorcycle driving, in case the indicating light" "goes on or flashing, please stop using,
then contact the VOGE dealers.

ABS malfunction indicator" "
When the motorcycle is power on，the ABS malfunction indicator is flashing，when the motorcycle
moved forward，the indicating light goes off immediately." "
ABS failed，ong press the ignition switch to power off.
!Caution
12
TCS indicating light" "
When the motorcycle was power on，the TCS indicating light is" "slowly flashing，
when the motorcycle is in driving，the indicating light goes off。
TCS could be off in instrument setting，after it is off，the indicating light TCS is permanently on." "
When the motorcycle is power one every time, the TCS is on of default.
When TCS is on，during driving，when the rear wheel get skidding，TCS may decrease engine torque
and tire skidding.
When TCS is working，the indicating light TCS" "fastly flashes.
" "During driving, the indicating light is permanently on of flashing,stop driving and contact
the VOGE dealer immediately.
!Danger
When the TCS is on, when driving，in case the indicating light TCS is permanently on, " "
which means the TCS function is failed， please contact the VOGE dealer.
!Warning

13
The fuel in the tank is waving in the running, when there is a few fuel, the indicating light may
be not on, which is normal, don't worry. In case the alarm gets yellow during driving, which
means the residual fuel is about 3L.
!Caution
TFT display screen
Connection of blue teeth: When the mobile phone connected
through blue teeth to instrument, the instrument can display
the call number. (Number+name)
Rotation speed: The rotation speed of engine. (r/min-the
rotation circles in one minute of crankshaft at the moment)
Speed: The running speed of motorcycle. (km/h-kilometers/
hour or mph-miles per hour)
Water temperature: The temperature of coolant at the moment.
(Unit: ℃, when the temperature ≥105℃, the alarm light gets on,
and the indicating strip get red completely).
Fuel level: Show you the residual fuel at the moment.
When the fuel in the fuel tank is about running out, the alarm light may get yellow to remind you the
fuel filling-up.
!Danger
Carefully operate the instrument during driving because it may decrease your
control on motorcycle.

High beam indicating light" "
" "When pushed the headlight switch on left switch assy. upwards，the indicating light gets on.
When pressed the overtaking light switch on left switch assy the indicating light" "gets on ,until
you release the switch.
!Caution
" "Right turning indicating light
" " " "When pushed the right turning signal switch of right switch assy to ，the light gets on.
14
" "Oil level indicating light
" "When the oil is lower than normal, the indicating light gets on.
The only way to check oil level is by the oil mark on oil gauge.
!Caution
!Warning
In case the oil indicating light is permanently on when engine started, which means " "
continue the driving may lead to poor lubrication even damage the engine due to low oil
level, under this case ,stop the driving and engine, then check the oil level.
When the turning signal light got damaged or without getting on due to other malfunction, the
indicating light" " flashes faster than under common conditions, which remind you to check
the malfunctions on turning signal light

15
Tire pressure display
When the front tire pressure is <1.9bar, the pressure shows the red, while the tire alarm light is on,
when the tire pressure was >2.0bar, the pressure shows the white while the alarm light gets off.
When the front tire pressure is >2.9bar, the pressure shows the red, while the tire alarm light is on,
when the tire pressure was <2.7bar, the pressure shows the white while the alarm light gets off.
When the rear tire pressure is <2.1bar, the pressure shows the red, while the tire alarm light is on,
when the tire pressure was >2.2bar, the pressure shows the white while the alarm light gets off.
When the rear tire pressure is >3.1bar, the pressure shows the red, while the tire alarm light is on,
when the tire pressure was <2.9bar, the pressure shows the white while the alarm light gets off.
When the position of pressure data show you a red line instead of data, which means the tire pressure
monitor has malfunction, please contact the service station for inspection, only when the running
speed is faster than 25km/h or pressure changed, it sends wireless signal to receiver.
The receiver may work only when engine started.
The tire pressure displaying on receiver is the last success receiving of tire pressure, which means the
pressure data may not be the actual one when the running speed was lower than 25km/h, in case the
tire pressure changed during this period, the actual pressure may not be displayed on the instrument,
for example the air charging or discharging when the motorcycle is parking, at this moment, the latest
pressure may not be displayed, when the running speed is higher than 25km/h, the latest tire pressure
may update.
Please adopt the tire pressure sensor of VOGE only.
When the tire pressure sensor, BCM or controller replaced, the tire pressure needs
be matched once again. When matching, please confirm the target wheel, to avoid
the wrong identification between the front or rear wheel.
!Caution

This alarm light reminds you fuel filling-up
Caution: The fuel is not enough may lead engine starting failure or bad power performance, under this
case, continue the use may damage the fuel pump.
Completely run out the fuel in the tank is not allowed, fill up the fuel before alarm light getting yellow.
Issues need pay attention fuel filling
Open the fuel tank cap when the motorcycle was
power off. When the cap needs be opened, get the
remote key within 1.3m to motorcycle, slowly turn
the tank cap once or fast turn it twice, it could be
opened.
Wash the fuel tank lock by high pressure water is
not allowed to avoid water gets in.
Please adopt the gasoline of 92# or the unleaded
gasoline above 92#. Fuel tank capacity:12.8L
Fastening torque of bolt on
fuel tank cap:2N.m
·The fuel is corrosive to the painting surface, make it color fade or get bad
for looking, In case there is fuel on the painting surface, please wipe it up
Immediately.
·The fuel may get expand when it met heat, so too full the fule in the tanke
may lead to high pressure and make fuel tank distort or fuel outflow.
·So too full the fuel tank when filling it up is not allowed, get the fuel level
reach the bottom surface of shaking ring of fuel tank.s port is enough.
!Warning
Please stop the engine
when filling up the
fuel and get it far away
from spark, smoke, fire
or heat source.
!Danger
16
2
1
1Fuel level 2
Fuel tank port
Fuel tank cap
