Vogue 352356 Wiring diagram

VOGUE UPRIGHT FRIDGE FREEZER 318L
352357352356

Thank for purchasing our products and thank you for placing your confidence
in us.
Please read this manual carefully before using. Follow instructions and keep
it for future reference.
Please follow the operating instructions and safety notices in the manual.
If any trouble arise, do not fix it yourself or hand it to the after sales service
center which has not been authorized. Please contact the local authorized
service center.
CONTENTS
Name And Usage Of The Parts .......................................................................1
Product Introduction ......................................................................................1
Safety Warnings ...........................................................................................2
Handling And Placement................................................................................4
Instruction For Usage....................................................................................5
Guide For The Installation And Removal Of Tray ......................................9
Maintenance And Cleaning............................................................................7
Button Instruction Of Display.........................................................................10
Operational Guidance Of Display...................................................................11
The Setting Of The Cooling Room..................................................................11
Operational Guidance Of Display...................................................................11
The Setting Of The Functions........................................................................12
Lighting And Its Replacement
Non-fault Phenomenon................................................................................13
Faults And Nalysis...................................................................................... 14
Analysis And Elimination Of Special Phenomena...........................................14
Technical Parameters .................................................................................15
Packing List................................................................................................15
.................................................................................12
Door Handle Installation Of Freezing Room.....................................................8

with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions
6. Keep ventilation openings, in the appliance enclosure or in the built-instructure,
clear of obstruction.
7. Do not use mechanical devices or other means to accelerate the defrostingprocess,
other than those recommended by the manufacturer.
8. Do not damage the refrigerant circuit.
9. Do not use electrical appliances inside the food storage compartments of
theappliance, unless they are of the type recommended by the manufacturer.
10. Do not store explosive substances such as aerosol cans with a flammable
propellant inthis appliance.
11. This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
WARNING: Please according to local regulations regarding disposal of the
appliance for its flammable refrigerant and blowing gas.
WARNING: The lamp must be replaced by the manufacturer, its service agent or
similarly qualified persons.
1. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
WARNING: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.

This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
To avoid contamination of food, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the
temperature in the
compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible
drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water
supply if water has not been drawn for 5 days.
– Store raw meat and fish in suitable containers in the refrigerator, so that it is not
in contact with or
drip onto other food.
– Two-star frozen-food compartments are suitable for storing pre-frozen food,
storing or making icecream
and making ice cubes.
– One-, two- and three-star compartments are not suitable for the freezing of fresh
food.
– If the refrigerating appliance is left empty for long periods, switch off, defrost,
clean, dry, and leave
the door open to prevent mould developing within the appliance.
WARNING: Food needs to be packed in bags before putting into the refrigerator,
and liquids need to be packed in bottles or containers to avoid the problem that
the product design structure is not easy to clean.

1
PRODUCT INTRODUCTION

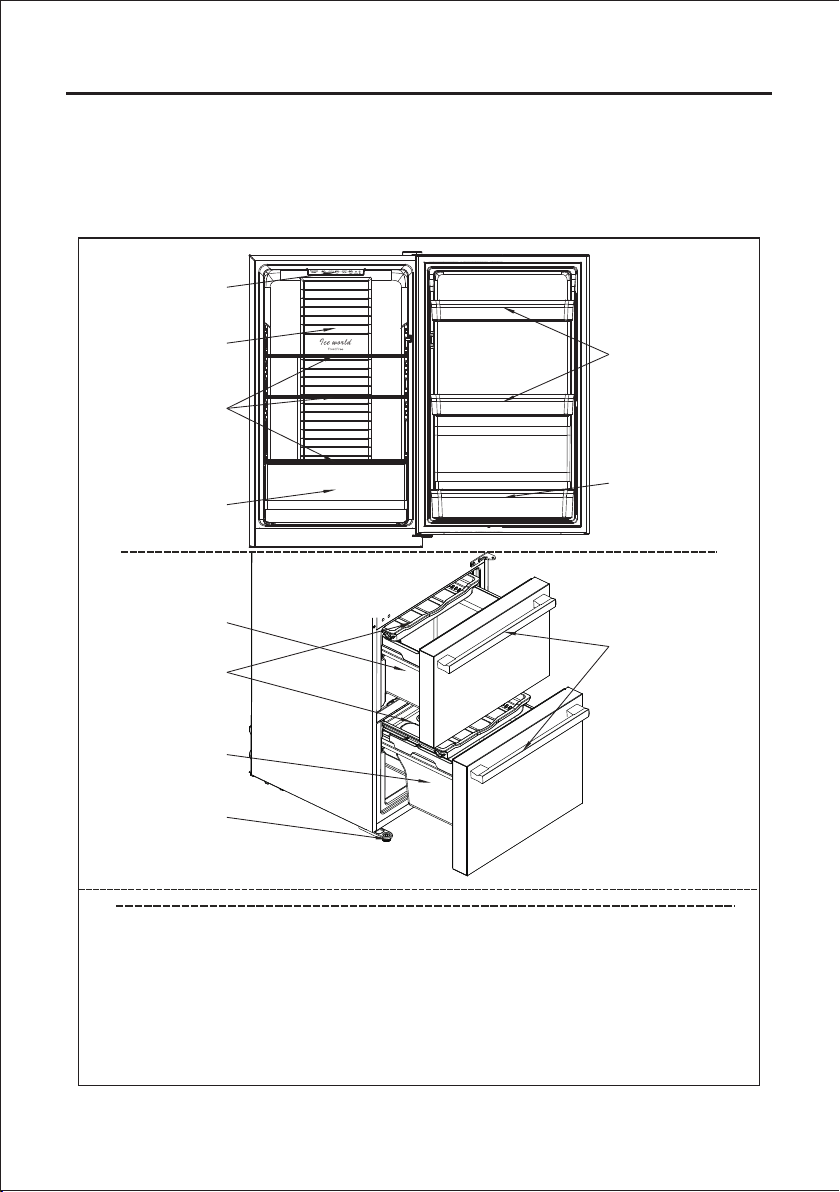

NAME AND USAGE OF THE PARTS
1. LED lamp components and thermostat
2.Refrigerated air duct components
3.Glass shelf of fridge room
4.Vegetable crisper
6.Transparent bottle shelf
7.Top drawer of freezing room
8. Freezer drawers and trays
9.Bottom drawer of freezing room
The picture is for reference only. Please refer to the material object for details.
Some features and devices may not be consistent with the product you purchased.
The specific structures and configuration should be based on the actual product.
7
8
9
10
11
Refrigerating chamber freezing chamber
5.Transparent door shelf 10.Adjustable feet
11.Door handle of freezing room
1
2
3
4
5
6

2
PRODUCT INTRODUCTION
SAFETY WARNINGS
The refrigerator you purchased uses a
power supply voltage of 220V single-
phase AC, with a frequency of 50HZ. It
must be operated with a dedicated
socket (above 10A) and reliably
grounded. In any case, do not remove
the third pin (ground wire) of the power
cord. The power cord plug should be
firmly in contact with the socket,
otherwise it may cause a fire.
It is recommended that electrical
appliances such as power outlets,
regulators, microwave ovens and
unstable items (heavy objects,
containers containing water)
should not be placed on the top
table of the refrigerator. It is not
allowed to use electrical
appliances in the refrigerator
except our recommended models.
The product you purchased is a
household refrigerator. According to
the stipulations of national standard,
the household refrigerator is only
suitable for storing food but not for
other purposes, such as storage of
blood, drugs, and biological products,
etc. It also cannot store inflammable
and explosive dangerous goods as
well as strong corrosive acids and
alkaloids in the fridge.
When your refrigerator is disused,
please remove the door and door seal,
to avoid the accident when children go
in to play.

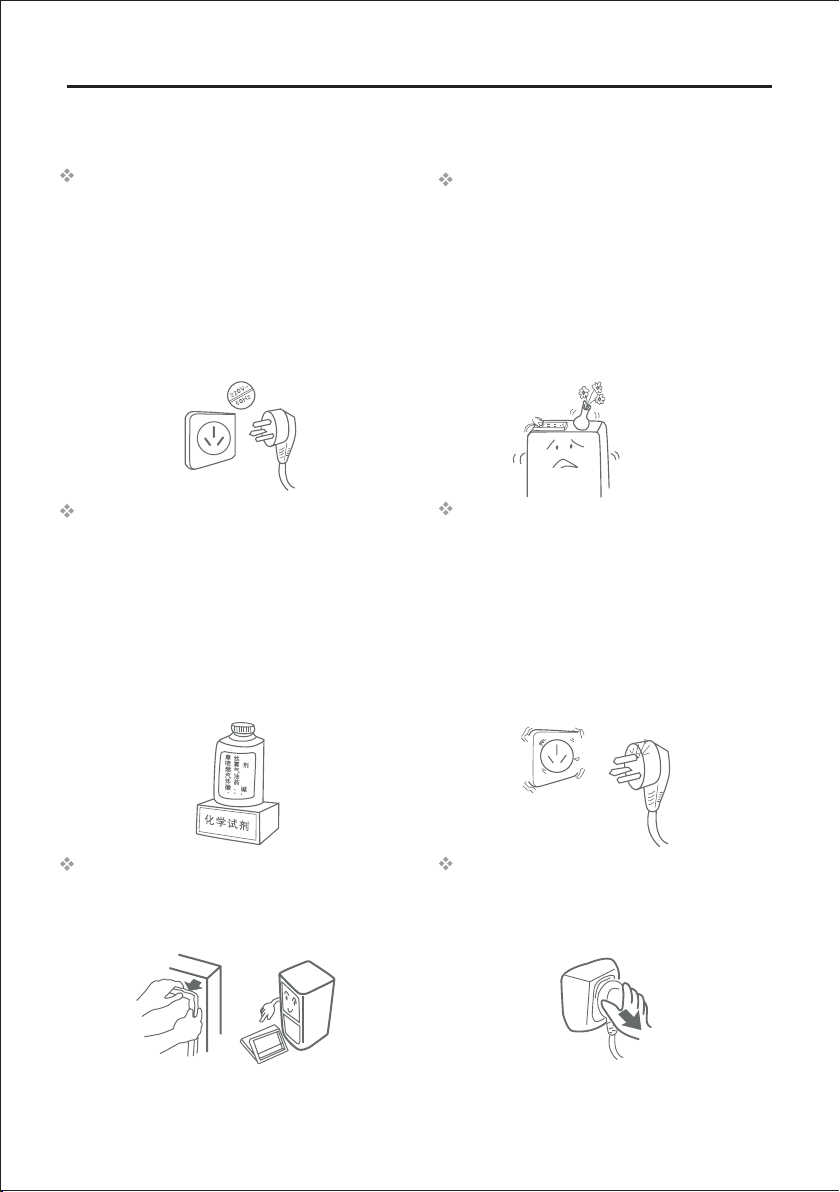

Do not pull the plug of the
refrigerator by pulling the power
cord. When the refrigerator is
moved away from the wall, please
operate carefully. Do not roll or
damage the power line. Do not
continue to use when the power
line is damaged or the plug is worn,
and must be replaced by the repair
point designated by the
manufacturer.
Before cleaning and maintenance,
please pull off the power plug to
avoid electric shock.

3
Strictly prohibit self dismantling and
transforming the refrigerator as well as
damaging the refrigerating line of
refrigerator. When it is found that the
refrigerating line is damaged or the
combustible gas is leaked, the leakage
valve should be closed in time, the
doors and windows should be opened
and the repair points specified by the
manufacturer should be contacted in
time.
Liquid glass bottles or cans should not
be placed in the freezer to prevent frost
cracking.
Watch out for children and make
sure they don't play in the
refrigerator. Besides, do not let
anyone climb, sit, stand or lean on
the refrigerator door.
Do not touch the cold surface of
the freezer, otherwise it will cause
frostbite easily due to low
temperature.
Note: the spark generated by pulling insert the plug of the power
supply may ignite the leaked gas.
SAFETY WARNINGS
PRODUCT INTRODUCTION
USE METHOD AND PRECAUTIONS OF DIFFERENT COMPARTMENTS
TIPS FOR USE OF REFRIGERATOR COMPARTMENT
5. Before freezing, the food,separated from raw and ripe,should be
wrapped tightly with fresh-keeping film, and placed in different containers.
The temperature of freezing room is - 18°C Meat should be kept in fresh
and fish in deep-frozen. In order to make the taste fresh and delicious, and
to lock up the nutrition of food, the food in the refrigerator should not be
stored for more than three months.
4. Raw food and cooked food need to stored in different containers. In order
to prevent bacterial contamination, raw vegetables and fruits should not
be exposed to raw meat or fish. Vegetables and fruits should be wrapped
by film and stored in the crisper.
3. Meat and seafood need to be packed in different containers and stored for
not more than 3 days.
1. the common refrigerating temperature of food stored in refrigerator is from
4°C to 8°C. In this environment, cooked meat can not be stored for more
than 4 days, and fruits and vegetables should not exceed one week at most.
can not be stored for more than7 days.
2. The common temperature of the chilling room is from -1 to 4 and meat °C,
CAUTION:
Flammable Gas
This symbol alerts you to take care as the appliance contains a
flammable refrigerant. Do not expose it to high heat, sparks or open
flames

4
PRODUCT INTRODUCTION
Refrigerator should not be placed in
wet or splashy places. If the
refrigerator is accidentally splashed
with water or other dirt, please clean
it with a soft cloth in time.
Do not place in too cold (below 5°C)
environment, and do not use in
outdoor and rain.
Please pull the power plug and
remove all the food in the fridge when
handling.
Use tape to fix the movable parts of
refrigerator, like glass shelves of
fridge, vegetable crisper and freezer
drawer. Close the door and fix it with
adhesive tape so as not to be opened
when moving.
Do not hold the door to move the
refrigerator in the process of
transportation. You should lift the
refrigerator from the bottom.
Refrigerator should be placed far
away from the heat source and
space of direct sunlight, so as not
to affect the performance of the
refrigerator.
It is not appropriate to lift sideway
or reverse the refrigerator during
the handling. If you have to tilt, the
inclination between the cabinet
and the ground should not be less
than 45 degrees. Do not use the
mobile pulley on the prone
scratched floor, it may scratch the
floor.
The refrigerator you purchased
uses R600a refrigerants that are
very flammable. When you are
transporting and placing the
refrigerator, please avoid collisions
or violent shocks to prevent
damage of the refrigeration system
or fire accidents.
The refrigerator should be placed on a
flat and solid ground. If it needs to be
placed high, it should also choose a
stable, firm and non- inflammable pad.
Do not use the foam pad of the
refrigerator to make it higher. If there is a
slight instability, the adjustable foot of
the front of the refrigerator can be
adjusted. Rotate the adjustable foot
clockwise to raise the height of the
refrigerator and reduce the height by
counterclockwise.
Refrigerator should be placed in a
dry, well ventilated place. The
sides and back of the refrigerator
should be retained more than 10
cm of space, and the top to retain
more than 30 cm of space.
Refrigerator should not be placed in wet
or splashy places. If the refrigerator is
accidentally splashed with water or
other dirt, please clean it with a soft
cloth in time.
Refrigerator should be placed far
away from the heat source and
space of direct sunlight, so as not
to affect the performance of the
refrigerator.
HANDLING AND PLACEMENT
>10cm
>10cm
>10cm

5
PRODUCT INTRODUCTION
INSTRUCTION FOR USAGE
All the packaging components,
including the foam pad (which cannot
be used to make the refrigerator
higher) and the adhesive tape used
for fixing accessories, must also be
removed together. Check the
accessories and information, as well
as the items in the package according
to the packing list in the instructions.
After the power supply is switched
on, the refrigerator will continue to
work for a long time in order to
reach the predetermined
temperature. During this time,
please try to reduce the number of
open doors. For the first and a
longer working time, the noise of
the refrigerator may be slightly
larger, and the temperature of both
sides may be higher. After a period
of time, when the refrigerator is
fully cooled, it can be used and put
into food.
Note: Refrigerators cannot be transported upside down. If they are
transported upside down carelessly, refrigerators must be placed for 2
hours before they can be energized.
Responsible disposal of the appliance
At the end of its working life, do not throw this appliance out with your
household rubbish.Electrical and electronic appliances contain
materials and substances which, if handled or disposed of incorrectly,
could be potentially hazardous on the environment and human health.
Observe any local requlations regarding the disposal of electrical
consumer goods and dispose of it appropriately for recycling and
recovery of the refrigerant. This appliance contains the flammable
refrigerant isobutane (R600a) and cyclopentane (R141b) in the cabinet
insulation, and must be disposed of in a separate waste collection.
Contact your ocal authorities for advice on recycling facilities in your
area
Take care not to damage the pipework at the back of the appliance
before or durino transportation so that the refrigerant gas cannot escape
The plug must be rendered useless and the cable cut off directly behind
the appliance or the machine to prevent misuse
DANGER. Risk of child entrapment: When discarding a freezer, make
sure to take off the door and the spring action or bolt catch. Leave the
shelves in place so that children cannot easily climb in, get trapped
inside and suffocatel.

6
PRODUCT INTRODUCTION
INSTRUCTION FOR USAGE
Please do not rush to connect the
power supply after the stable
placement and cleanness of the
refrigerator. It should be stand for at
least 2 hours, and then switch on the
power to ensure the normal operation
of the refrigerator.
Place the refrigerator in the right
place (see the foregoing points for
attention), and make a full cleaning
of the refrigerator before use (refer
to the latter section of cleaning
methods).of the refrigerator.
Note: The power cord should not be pressed by the refrigerator itself
and other heavy objects, so as to avoid damaging the power line and
causing accidents.
The temperature of refrigerating
chamber is usually around 0-10 ℃,
which is used to store fresh food for a
short time, such as vegetables, fruits
and beverages, etc..
The storage of goods in the
refrigerating chamber should not be
too dense. It should leave proper
space for the cold air circulation.
Hot food should be cooled to room
temperature and then put into the
fridge.
The amount of fresh food placed in the
freezer should not exceed the
freezing capacity listed in the
technical parameters of the
refrigerator.
Refrigerated food should be wrapped
in plastic wrap and placed evenly on
the shelf to prevent taint of odor or
excessive evaporation of moisture.
Radish or similar food should cut
off leaves to prevent nutrition from
being absorbed by leaves. The
eggs are stored on the egg rack by
standing vertically, so that the
storage period can be extended.
Minimize the number of opening
and closing times to reduce the
loss of cold air.vertically, so that
the storage period can be
extended.
Note: It should be noted that food should not obscured the outlet
when storing food, so as not to cause bad circulation of the cool air
and affect the normal performance of the refrigerator.
Frozen foods should not be refrozen
after thawing. They should be eaten
as quickly as possible.
Use sealed packages or fresh-
keeping bags to freeze food as far as
possible, so that they can be stored
for a longer time and can reduce the
frosting level of freezing chamber.
After the blackout, please reduce
the number of open doors, and try
not to put in the new food ( to
prevent the temperature in the
cabinet to pick up faster).
If a power outage is known
beforehand, you should make
more ice cubes that placed in a
watertight container, and put them
in the upper of the refrigerating
chamber.
