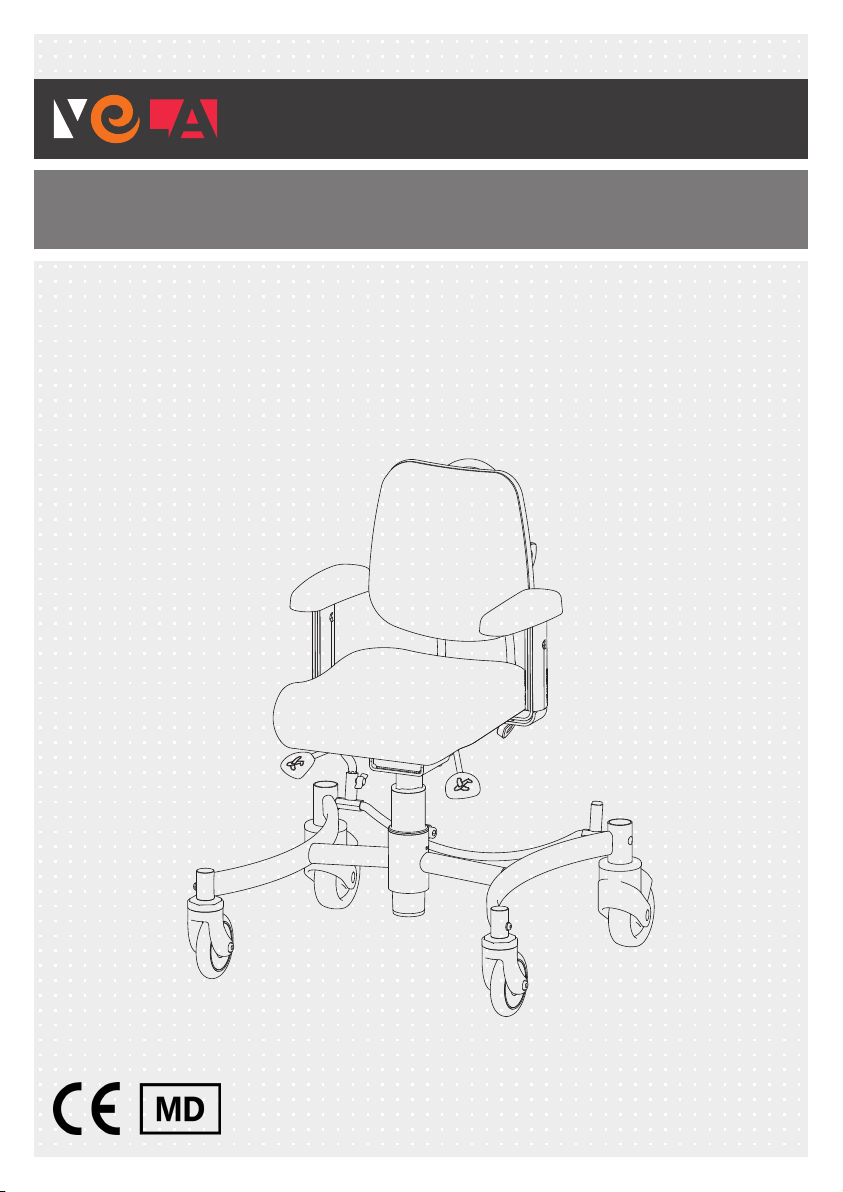

Vola Hip Hop 50 User manual

VELA Hip Hop
50/100
ISO 9001
ISO 14001
INSTRUCTION FOR USE EN
VARIANT:
Manual no. 105493

2
TABLE OF CONTENTS
1.0. INTRODUCTION 3
1.1. WARNINGS 4
1.2. TROUBLESHOOTING 5
1.3. LABELS USED ON THE CHAIR 6
1.4. SAFETY 7
1.4.1. Intended use 7
1.4.2. Transport 7
1.5. WARRANTY 7
1.6. UNPACKING THE CHAIR 8
1.7. MAINTENANCE 8
1.7.1. Wheels 8
1.7.2. Frame 8
1.7.3. Padding 8
1.7.4. Recycling guide 8
1.8. RECYCLING AND DISPOSAL 8
1.9. USER MANUAL 9
1.9.1. Adjustment of seat height 9
1.9.2. Adjustment of seat tilt 9
1.9.3. Adjustment of back height & angle 9
1.9.4. Brake 9
1.9.5. Adjustment of armrest, height 10
1.9.6. Adjustment of armrest, width & depth 10
1.9.7. Adjustment of seat depth 10
1.9.8. Adjustment of comfort wedges and zones 10

3
DEAR CUSTOMER
Congratulations on your new VELA chair! We are sure
this chair will give you daily pleasure. This user manual
provides useful information on adjusting, operating
and maintaining your chair.
Important
Please read this user manual carefully and keep it safe
for when you need to refer to it. This manual is also
available on VELA’s website: www.vela.eu, where you
can also find other relevant information.
If you have questions, experience errors or adverse
events, please contact your VELA supplier.
We reserve the right to make changes.
VELA
Gøteborgvej 8-12
DK-9200 Aalborg
Denmark
www.vela.eu
1.0. INTRODUCTION

4
1.1. WARNINGS
Use In case of an allergic reaction, stop using the chair and consult a doctor
Use Only use original spare parts from VELA
Use Do not make any changes to the accessories that come with the chair
Use Only use the chair for the intended purpose
Use Only adjust the seat angle while the user’s feet are on the floor
Use Always have the chair brake on when you sit down or get up
Use Never use the chair on surfaces with level dierences as the chair may become unstable
Use Maintenance other than cleaning should always be performed by a professional
Use Never service the chair while it is in use
Use Always follow the recommended maintenance and cleaning instructions
Use The chair's functions are intended for the user. Only the user or trained professionals
should adjust the chair while the user is sitting in it
Use Risk of shearing or squeezing fingers in moving parts. Therefore, never use the chair if
someone is touching underneath the seat
Choking hazard Choking hazard on small parts. Never allow children to play with the chair, as small parts
are removable

5
1.2. TROUBLESHOOTING
Mistake Possible cause and solution
Manual height adjustment does not work There is too much load or uneven load on the chair.
Try to adjust the height without sitting in the chair. If
this does not work, the gas cartridge is defective and
should be replaced. Contact your VELA supplier
The brake function does not work The brake is not activated. See section 1.9.4.
The armrest seems loose One of the screws might be loose. Tighten the screw
again
The chair rolls badly Wheels are blocked. Clean the wheels for wire residue
and the like
If the above does not solve your problem, you should contact your VELA
supplier.

6
IN GENERAL
1.3. LABELS USED ON THE CHAIR
Warning Risk of shear and squeeze:
Keep hands and fingers away from moving parts
Labels
60 x 22.5 mm
The last six digits are the product ID number:
Labels on the chair should be read at a distance of approx. 40 cm under nor-
mal daylight conditions.
For labels related to the operation of the chair, please refer to section 1.9.
UDI:
<Model name>
<Model ref. no.>
<Manufacturer>
<Adress>
<Webpage>
<Safe working load>
<Production date/order no.>
(XX) XXXXXXXXXXXXXX (XX) XXXXXX
MEDICO

7
1.4. SAFETY
This chair is CE marked and compli-
es with applicable EU regulations.
The chair is manufactured by:
VELA, Gøteborgvej 8-12,
9200 Aalborg SV, Denmark.
1.4.1. INTENDED USE
This device is intended to support
a child in a sitting posture while
performing indoor activities of daily
living, including school activities.
:: The chair is not built to stand on
:: The wheel brake must always be
activated when sitting down or
standing up
All variants of this chair are tested
and approved for a maximum load
of 60 kg. For optimal use, the chair’s
recommended user weight is 15-50
kg.
Note: Persons using a harness in
the chair must always be supervised
when the harness is in use.
1.4.2. TRANSPORT
When transporting the chair by
car, airplane or any other means
of transport, always use the chair
brake. The chair is not approved
for use as a passenger seat in any
means of transportation and may
not be used as such.
The chair is designed to be
transported under the following
environmental conditions:
Temperature: - 20°C to + 60°C
Humidity: 15-95%
Allow the chair to stand for 24 hours
before use if it has been stored
below - 10°C.
1.5. WARRANTY
VELA grants a right of claim under
applicable law in the country where
the chair is acquired. The right of
complaint applies only when using
original spare parts and accessories,
as well as customisations made by
professionals.
Note: if an exclusive contractual
agreement has been made directly
with VELA, this applies!
VELA assumes no liability for
damages to the product or the user
caused by:
:: Transportation
:: Misuse
:: Normal wear and tear
:: Wrong use
:: Use of spare parts and acces-
sories that are not original VELA
products
:: Adjustments made by unauthori-
sed service technicians

8
1.6. UNPACKING THE CHAIR
The chair comes in environmentally
friendly and recyclable packaging.
In case of defects or transport
damage to the chair, please contact
your VELA supplier right away. In
such cases, do not attempt to use
the chair or to fix it yourself.
On delivery you have received:
:: VELA chair
:: Instructions for use
1.7. MAINTENANCE
We recommend an annual inspec-
tion of the chair to identify any de-
fective or worn parts. All removable
parts should be tightened regularly.
You can find various guides on
www.vela.eu.
1.7.1. WHEELS
We recommended you regularly
check the wheels and remove any
residual threads, etc.
1.7.2. FRAME
Clean with lukewarm water and if
necessary, add some pH-neutral
detergent.
1.7.3. PADDING
Fabric: Clean by chemical cleaning,
with furniture cleaner or with water
using a hard-wrung cloth.
Synthetic fabric or leather: Clean
with water or mild soap using a
hard-wrung cloth.
Leather: Clean by vacuuming with a
soft brush. Avoid using detergent.
Note: On www.vela.eu you can find
cleaning instructions for all our stan-
dard upholstery types.
1.7.4. RECYCLING GUIDE
Your VELA chair can be reused by
another person when you no longer
need it as long as the chair is servi-
ced by a technician beforehand.
The life expectancy of the chair is
five years for regular and proper use
as long as VELA, your VELA supplier
or a trained professional perform an
annual inspection with replacement
of worn parts.
1.8. RECYCLING AND DISPOSAL
This product contains recyclable ma-
terials. Therefore, the product must be
disposed of in accordance with local
regulations and not together with
ordinary household waste. Proper dis-
posal and recycling will help prevent
negative eects on the environment
and people.

VELA
HIP HOP
100
9
1.9.2. ADJUSTMENT OF SEAT TILT
Adjust the seat tilt by turning the handle below the seat.
1.9. USER MANUAL
Replacement of the gas spring may only be performed
by the service support team from your dealer or a
skilled technical person.
1.9.1. ADJUSTMENT OF SEAT HEIGHT
Adjust the seat height by pushing the lever placed below the
seat.
1.9.3. ADJUSTMENT OF BACK HEIGHT & ANGLE
Adjust the back height and angle by turning both knobs on the
back of the backrest. Remember to tighten the knobs again
afterwards.
1.9.4. BRAKE
The chair brakes by moving the lever on the side of the chair forward.
Unlock the chair by moving the handle back into upright position.
Note: The brake can be moved by loosening the screw at the bottom of
the brake lever, remove the plastic knob on the opposite side hole and
insert the brake lever. Remember to tighten the lever again.

VELA
HIP HOP
100
10
1.9.6. ADJUSTMENT OF ARMREST, WIDTH & DEPTH
Adjust by loosening the screw (Allen key) underneath the seat
and regulate the width/depth of the armrest. Remember to
tighten the screw afterwards.
1.9.7. ADJUSTMENT OF SEAT DEPTH
Adjust by loosening the hand screws underneath the seat and
regulate the depth by pushing/pulling the backrest. Remember
to tighten the screw afterwards.
1.9.8. ADJUSTMENT OF COMFORT WEDGES AND ZONES
It is possible to adjust the comfort of the seat via the zipper
placed on the back of the seat cushion. This makes it possible
to insert/remove or change the wedges and comfort zones of
the seat.
1.9.5. ADJUSTMENT OF ARMREST, HEIGHT
Adjust by loosening the screw (Allen key) on the armrest bar
and regulate the height of the armrest. Remember to tighten
the screw afterwards.

11

701.6163 © Vermund Larsen A/S
VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: [phone] :: [email protected] vela.eu
