Volcano SOLID VALVE User manual

2. Choose temperature 3. Grind substance 4. Fill Filling Chamber
max. 10 mm
min. 1 mm
max. 1/2 inch
min. 1/16 inch
5. Insert Filling Chamber Insert
approx.5sec.
6. Preheat substance
if control lamp is off
7. “Click” Valve Balloon
on Filling Chamber
ok
8. Watch vapor density
9. Remove full Balloon Unit 10. Detach Valve Balloon
from Filling Chamber
11. Caution! Hot surface!
Never leave Filling Chamber
on VOLCANO
12. “Click” Mouthpiece
on Valve Balloon
1. Switch heat on
(takes 3-5 min.)
www.storz-bickel.com
Quick Start Manual for
STORZ & BICKEL GMBH & CO. KG · In Grubenäcker 5-9 · 78532 Tuttlingen/Germany
Refer to the Instructions for Use for important safety and user advice. Do not operate the device without rst reading and understanding the Instructions for Use!

www.storz-bickel.com
Dismantling, Cleaning, Replacing
STORZ & BICKEL GMBH & CO. KG · In Grubenäcker 5-9 · 78532 Tuttlingen/Germany
©by STORZ & BICKEL GmbH & Co. KG · VAL-30-092 02-2018 · Subject to alterations · All rights reserved

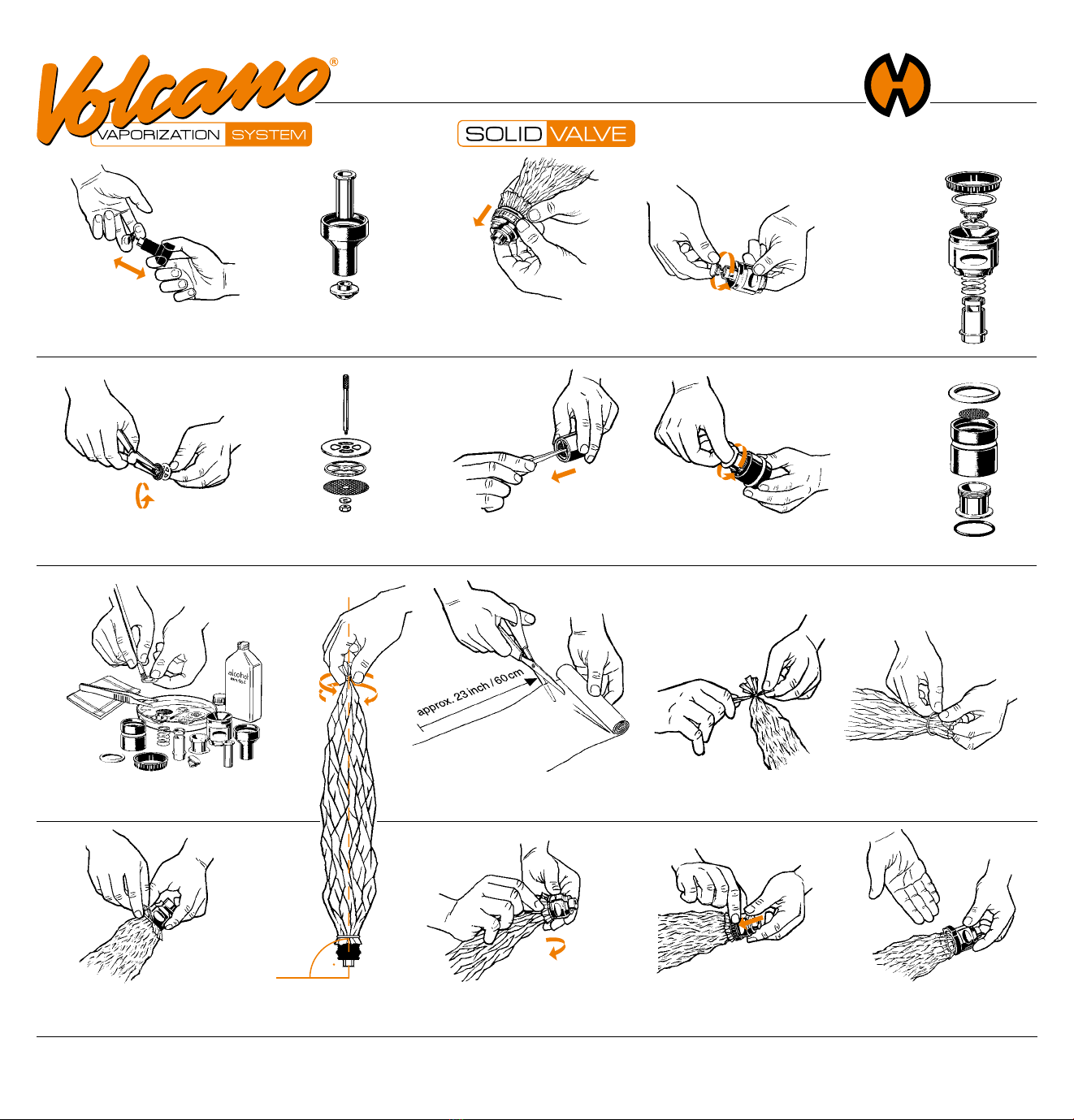

1. Pull off Lip Piece 2. Dismantled
Mouthpiece
3. Pull off Slipring
and Balloon
4. Screw off Valve Cap 5. Dismantled
Valve
6. Screw off nut from
Filling Chamber Insert
7. Dismantled
Filling Chamber Insert
8. Pull off Filling
Chamber Ring
9. Screw off Filling
Chamber Cylinder
10.
Dismantled
Filling Chamber
11. Manual cleaning with alcohol
(min. 90%), also dishwasher safe
12. Cut off a piece of approx.
50 - 60 cm (19 -23 inch)
13. Tie close at one end 14. Attach Balloon
Fixation Ring
15. Attach Balloon
to Valve
17. Evert balloon
mantle
18. Attach Slipring
to secure Balloon
19. Ready to use
16. Align Valve
Balloon to Valve
