VOLKTEK NHL-2340NF User manual

4-port 10/100 LAN and 1-port Fiber
WAN 802.11n Wireless VoIP Gateway
N
N
NH
H
HL
L
L-
-
-2
2
23
3
34
4
42
2
2N
N
NF
F
F/
/
/
N
N
NH
H
HL
L
L-
-
-2
2
23
3
34
4
40
0
0N
N
NF
F
F
User Manual
Version 1.2
March 2011

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
2
http://www.volktek.com/
COPYRIGHT
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, whether electronic,
mechanical, photo copying, recording or otherwise, without the prior written
permission of the publisher.
FCC WARNING
This equipment has been tested and found to comply with the limits for a class A
device, pursuant to part 15 of FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a commercial installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communication. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case, the user will be required to
correct the interference at the user’s own expense.
CE
This is a Class A product. In a domestic environment, this product may cause radio
interference in which case the user may be required to take adequate measures.
CAUTION
RISK OF EXPLOSION IF A BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Take special care to read and understand all the content in the warning boxes:
Warning

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
3
About This Guide...................................................................................................... 5
WELCOME .......................................................................................................................................................... 5
PURPOSE ............................................................................................................................................................ 5
TERMS/USAGE ................................................................................................................................................. 5
FEATURES .......................................................................................................................................................... 5
TECHNICALSPECIFICATIONS .......................................................................................................................... 7
PACKINGLIST.................................................................................................................................................... 7
Hardware Description............................................................................................... 8
Installation................................................................................................................. 8
POWERINGONTHEGATEWAY ....................................................................................................................... 9
LED Indicators......................................................................................................... 10
WPSBUTTON ................................................................................................................................................ 11
Web Management.................................................................................................... 12

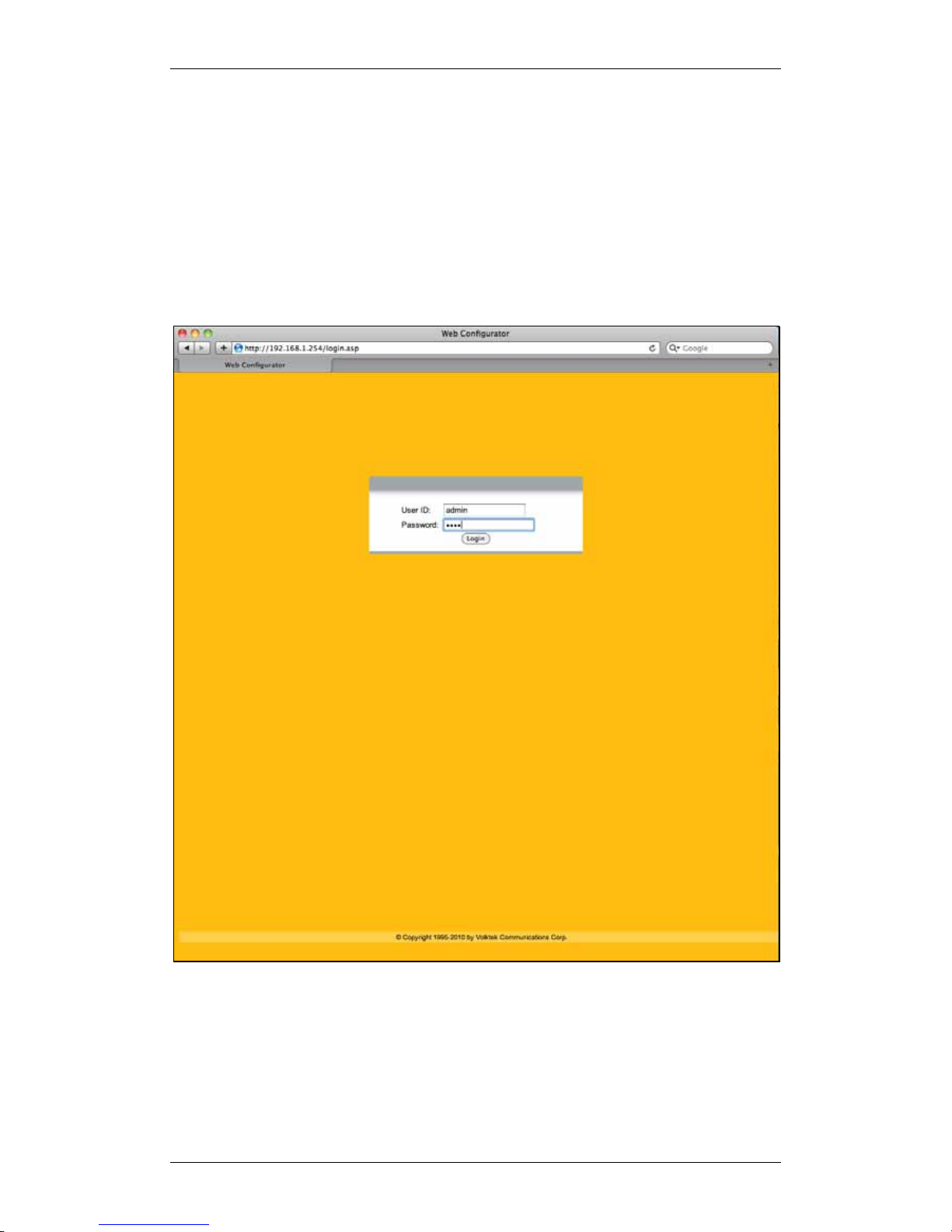

LOGINTOWEBMANAGEMENT ................................................................................................................... 12
SYSTEMINFORMATION ................................................................................................................................. 13
Status ..................................................................................................................................................................13
MultipleAPTable.................................................................................................................................................................. 15
ActiveSessionTable ............................................................................................................................................................ 17

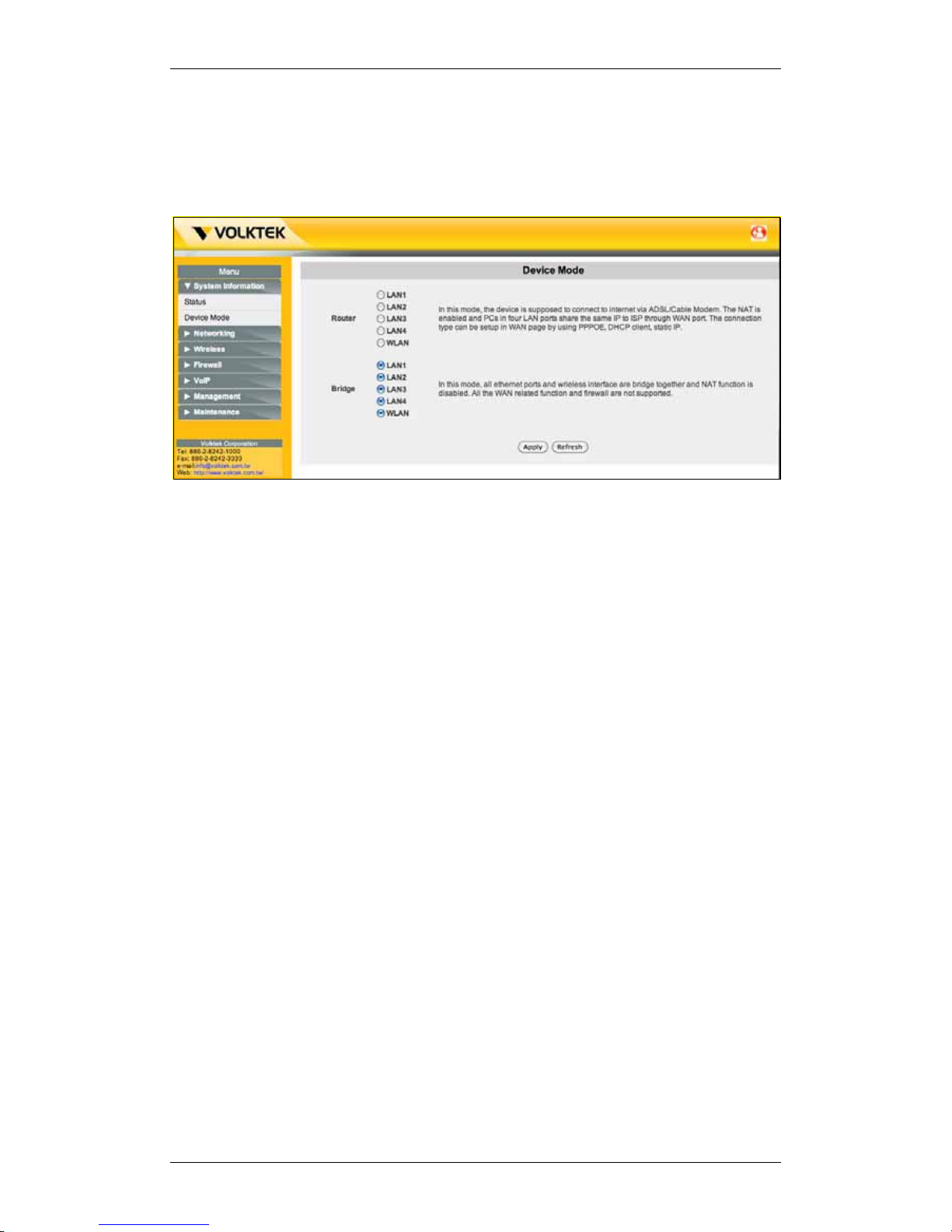

DeviceMode .....................................................................................................................................................18
NETWORKING................................................................................................................................................. 18
WAN.....................................................................................................................................................................18
DHCPClient ............................................................................................................................................................................. 18
StaticIP .....................................................................................................................................................................................21
PPPoE.........................................................................................................................................................................................23
LAN.......................................................................................................................................................................25
NAT ......................................................................................................................................................................28
General ...................................................................................................................................................................................... 28
DMZ............................................................................................................................................................................................. 30
PortForwarding.................................................................................................................................................................... 31
MBM(MediaBandwidthManagement) .............................................................................................32
VLAN....................................................................................................................................................................33
WIRELESS ....................................................................................................................................................... 35
BasicSettings ..................................................................................................................................................35
MultipleAP .............................................................................................................................................................................. 37
ActiveWirelessClientTable............................................................................................................................................. 38
AdvancedSettings.........................................................................................................................................39
Security ..............................................................................................................................................................41
WEP ............................................................................................................................................................................................ 41
WPA ............................................................................................................................................................................................ 43
WPA2 ......................................................................................................................................................................................... 45
WPA‐Mixed.............................................................................................................................................................................. 46
AccessControl .................................................................................................................................................48
WPS......................................................................................................................................................................49
FIREWALL ....................................................................................................................................................... 51
Filter....................................................................................................................................................................51
RuleConfiguration ............................................................................................................................................................... 52
DenialofService ............................................................................................................................................53
ContentFilter ..................................................................................................................................................55
VOIP(NHL‐2342NFONLY) ..................................................................................................................... 56
SIP.........................................................................................................................................................................56
SIPSettings.............................................................................................................................................................................. 56
AdvancedSetup ..................................................................................................................................................................... 58
PhoneSetting ..................................................................................................................................................61
AnalogPhone.......................................................................................................................................................................... 61
SpeedDial................................................................................................................................................................................. 62
Region........................................................................................................................................................................................63

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
4
PhoneBook.......................................................................................................................................................64
CallForward............................................................................................................................................................................ 64
ContactList.............................................................................................................................................................................. 66
GroupList................................................................................................................................................................................. 67
BlockList .................................................................................................................................................................................. 68
DNDWhiteList ...................................................................................................................................................................... 69
QoS .......................................................................................................................................................................70
MANAGEMENT ............................................................................................................................................... 71
TR069................................................................................................................................................................71
AutoProvision.................................................................................................................................................72
MAINTENANCE ............................................................................................................................................... 73
SystemSettings...............................................................................................................................................73
General ...................................................................................................................................................................................... 73
DynamicDNS .......................................................................................................................................................................... 74
Time............................................................................................................................................................................................ 75
Log........................................................................................................................................................................76
Tools ....................................................................................................................................................................77
Firmware.................................................................................................................................................................................. 77
Configuration.......................................................................................................................................................................... 77
Restart .......................................................................................................................................................................................78

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
5
About This Guide
Welcome
Congratulations on choosing the NHL-2342NF 4-port 10/100 LAN and 1-port fiber
WAN 802.11n Wireless VoIP Gateway, the next generation in broadband service
fiber to the home devices.
The NHL-2342NF Triple-Play VoIP Gateway allows users to play three types of
content service on one device including high speed Internet (data), VoIP (voice), and
Video on Demand/Video Conference/IPTV (video). Superior scalability and flexibility
means broadband subscribers using the NHL-2342NF that only need partial content
service, either data, voice, or video in the beginning, can easily allow ISPs to disable
one service via remote setup and then enable service again when subscribers need
it. Through this auto-provisioning feature, subscribers using the NHL-2342NF can
change their content service at any time via remote on-line log in. The billing system
will be adjusted automatically according to the changed service. Subscribers do not
have to go to ISPs’ front desk to change their service in person thus saving both
subscribers and ISPs significant time and cost.
Unlike unmanaged media converters and switches that leave all connected ports
down when one port is down, the NHL-2342NF features port isolation to help prevent
“one down all down” network operation disasters. The Triple-Play VoIP Gateway
supports remote in-band management that helps ISPs manage their complex
networks easily and reduce both CAPEX and OPEX significantly. With unpredictable
operational issues occurring all the time in today’s broadband network, the NHL-
2342NF enables ISPs to offer increased network performance and subscriber
satisfaction.
Purpose
This guide discusses how to install and configure your 802.11n Wireless VoIP
Gateway.
Terms/ Usage
In this guide, the term “Gateway” (first letter upper case) refers to the NHL-2342NF
802.11n Wireless VoIP Gateway.
Features
Network
•TCP/IP
•Triple play
•Each LAN can be configured as Bridge mode or Routing mode
(port-based VLAN)
•By traffic, Router to select WAN MAC*
•Supports IGMP proxy V1 & V2
•IGMP snooping
•Dynamic DNS

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
6
•DHCP client/server
•DHCP option 60
•NAT (includes multi-to-multi NAT)*, 2048 NAT sessions
•Port forwarding
•Firewall: IP/Port/MAC filter
•UPnP support (IGD)
•Supports 16 IP Static route* (CLI only)
•SNTP-Simple Network Time Protocol (RFC 2030)
•SIP ALG
•RTSP ALG
Management
•Web-based User interface: HTTP/HTTPs*
•Command Line Interface (CLI)
•Configuration Backup & Restore
•Telnet Management
•Remote TFTP/HTTP/TR-069 (TR-104) Firmware Upgrade
•Logging via Syslog
•Auto provision (TFTP/FTP/HTTP/HTTPS)
•Bandwidth management
•Bandwidth Borrowed & Limitation
•DiffServ Code Point Classifying (DSCP)
•802.1Q tag VLAN*
•802.1p Priority, six level priority queues* (default VOIP first)
•Management VLAN (CLI only)
*Feature: future F/W upgradeable

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
7
Technical Specifications
Power Characteristics:
Power Supply Requirement: 12V AC 1A Switching power supply.
Note various regional power supplies must be in
place to meet different regional power standards.
Environmental Characteristics:
Operating Temperature 0°C to 40°C
Relative Humidity 20% to 85%
Storage Temperature -20°C to 65°C
Relative Humidity 20% to 90%
Dimensions:
229 mm (W) x 139mm (D) x 40mm (H)
Weight:
440g
Safety:
EN60950
Electromagnetic Compatibility:
Emissions: FCC Part 15 (Class B), CE approved
Packing List
•One NHL-2342NF
•One antenna
•One power adapter
•Two Screws for case
•Four rubber pads
•One Support CD including a Quick Start Guide, User Manual, and free
software utilities

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
8
Hardware Description
Back Panel:
NHL-2342NF
NHL-2340NF
Installation
The location chosen for installing the Gateway may greatly affect its performance.
When selecting a site, we recommend considering the following rules:
•Install the Gateway in an appropriate place. See Technical Specifications for
the acceptable temperature and humidity ranges.
•Install the Gateway in a location that is not affected by strong electromagnetic
field generators (such as motors), vibration, dust, and direct sunlight.
•Leave at least 10cm of space at the front and rear of the unit for ventilation.
•Affix the provided rubber pads to the bottom of the Gateway to protect the
case from scratching.
•Refer to the NHL-234xNF Quick Installation Guide for instructions on
installing the fiber WAN.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
9
Powering On the Gateway
The Gateway uses an AC power supply 100~240V AC, 50~60 Hz. The power on/off
button is located at the rear of the unit. The Gateway’s power supply automatically
self-adjusts to the local power source and may be powered on without having any or
all LAN segment cables connected.
1. Insert the power cable plug directly into the receptacle located at the back of
the device.
2. Plug the power adapter into an available socket.
3. Push the power button to power on device.
Note: For international use, you may need to change the AC power adapter
cord. You must use a power cord set that has been approved for the
receptacle type and electrical current in your country.
4. Check the front-panel LEDs as the device is powered on to verify that the
Power LED is lit. If not, check that the power cable is correctly and securely
plugged in.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
10
LED Indicators
This NHL-2342NF is equipped with a variety of LEDs to enable users to determine
the current status and display what is happening on all of the connections. They are
as follows:
Power/System Status
POWER (Green/Red)
Green On: Power and system are on.
Green Off: Power off.
Red On: System error.
WAN
WAN (Green)
Green On: Link successful.
Green Blinking: Data transmitting.
Green Off: Link off or device power off.
WLAN/WPS
WLAN (Green/Orange)
Green on: Wireless on.
Green off: Wireless off.
Green blinking at 4Hz/s: Wireless traffic indicator.
Orange blinking at 4Hz/s: WPS is being configured.
Internet
INTERNET (Green/Red)
Green on: IP connected. The device has a WAN IP address from IPCP
or DHCP and fiber is linked or a static IP address is configured, PPP
negotiation has successfully completed – if used – and fiber is linked)
and no traffic is detected. If the IP or PPPoE session is dropped due to
an idle timeout, the light will remain green if a fiber connection is still
present. If the session is dropped for any other reason, the light is
turned off. The light will turn red when it attempts to reconnect and
DHCP or PPPoE fails.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
11
Green Off: Modem power off, modem in bridged mode, or connection
not present.
Green Blinking: IP connected and IP traffic is passing through the
device (either direction), flashing at 4 Hz with a 50% duty cycle
Red On: Device attempt to become IP connection failed (no DHCP
response, no PPPoE response, PPPoE authentication failed, no IP
address from IPCP, etc.).
For bridged mode, the indicator light MUST be off.
LAN
LAN 1~4 (Green)
Green On: Link successful.
Green Blinking: Data transmitting, flashing at 4 Hz with a 50% duty
cycle.
Green Off: Link off or device power off.
Phone (NHL-2342NF only)
Phone 1 & 2 (Orange)
Solid Orange: When the phone port’s defined SIP account for outgoing
call is registered.
Flashing Orange (Slowly – 4Hz): When voice port is off hook.
Flashing Orange (Quickly – 8Hz): There is a voice message in the
corresponding SIP account.
Orange Off: No Registered SIP accounts to this line or device power off.
WPS Button
Use the WPS-enabled device’s WPS button to enable wireless security. It can be
either a button in the utility or a physical button. You must press the button on the
second device within two minutes of pressing the one first on the first. It doesn’t
matter which button is pressed first.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
12
Web Management
The Gateway provides Web pages that allow management through the Internet.
Log into Web Management
From a PC, open your Web browser, type the following in the Web address (or
location) box: http://192.168.1.254 and then press <Enter>.
This is the factory default IP address for the Gateway. A login dialog is displayed, as
follows:
Enter the user name, admin, and default password, 1234, and then click Login.
Use the following defaults the first time logging into the program. The password can
be changed at any time using the System Settings window’s General tab
(Maintenance >System Settings >General).
Default User Name: admin
Default Password: 1234

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
13
System Information
The System Information folder contains a read-only Status window and a Device
Mode window that allows the Gateway to be configured as either a Router or a
Bridge.
Status
The Status window appears each time a user logs into the program. Alternatively,
this window can be accessed by clicking System Information > Status.
Status window
The read-only Status window contains the following information:
Device Information
System Name This is the model name. It is for identification purposes.
Firmware Version This is the firmware version.
System Up Time This is the total time the NHL-2342NF has been on.
Current Date/Time This is the NHL-2342NF’s present date and time.
Device Mode This is the current NHL-2342NF mode. The device can
function in Router, Bridge, or Mixed mode. See the Device
Mode window (System Information >Device Mode) to

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
14
change this setting.
WAN Information
IP Address This is the WAN port’s IP address.
IP Subnet Mask This is the WAN port’s subnet mask.
Connection Type This is the connection type status.
DNS This is the IP address of the DNS.
LAN Information
IP Address This is the LAN port’s IP address.
IP Subnet Mask This is the LAN port’s subnet mask.
DHCP This is the LAN port’s DHCP role, Enable or Disable.
System Status
Interface These are the devices three types of interfaces.
Status This is the current status of each interface type.
CPU Usage This displays what percentage of the NHL-2342NF’s
processing ability is currently used. When this percentage is
close to 100%, it is running at full load, and the throughput is
not going to improve anymore. If certain applications need
greater throughput, then turn off some other applications.
Memory Usage This displays what percentage of the heap memory the
NHL-2342NF is using.
WLAN Information
SSID This is a descriptive name used to identify the NHL-2342NF
on the wireless LAN.
Mode This is the operation mode of wireless the NHL-2342NF is
currently using.
Band This is the manually selected operating frequency currently
being used on the wireless LAN.
Channel Number This is the manually selected channel number currently being
used on the wireless LAN.
Encryption This is the type of encryption security currently being used on
the wireless LAN.
WPS This displays Enabled when the WPS has been set up. This
displays Disabled if the WPS has not been set up.
Multiple AP Click the Detail hyperlink to display the Multiple AP Table.
Summary
Active Session Click the Detail hyperlink to display the Active Session Table.
VoIP Status
Account This displays the VoIP account.
Registration This displays the VoIP registration status.
URI This displays the SIP URI.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
15
Click Refresh to display current settings of the Gateway.
Multiple AP Table
Click the Multiple AP Table Detail hyperlink in the Status window. Read-only
information includes SSID, Band, Encryption, BSSID, and Associated Clients.
Multiple AP Table window
The Multiple AP Table window contains the following parameters:
Multiple AP
Index The index number of the multiple AP table entry.
Enable Tick to enable the multiple AP table entry.
Band Select the proper operating frequency for the wireless
network. The options are: 2.4 GHz (B+G+N) for networks
using a mix of 802.11b, 802.11g, and 802.11n wireless
clients,2.4 GHz (G+N) for networks using a mix of 802.11g
and 802.11n wireless clients, 2.4 GHz (B+G) for networks
using a mix of 802.11b and 802.11g wireless clients, 2.4
GHz (N) for networks using 802.11n wireless clients only,
2.4 GHz (G) for networks using 802.11g wireless clients
only, or 2.4 GHz (B) for networks using 802.11b wireless
clients only.
SSID Enter a Service Set Identity (SSID) associated with the
wireless station. All wireless stations associating with the
access point built-in to the NHL-2342NF must have the
same SSID.
Data Rate Select the data transmission rate. For best performance, it is
strongly suggested to choose the default, Auto.
Broadcast SSID Enable or disable the broadcasting of the NHL-2342’s SSID.
If this is Disabled, the SSID in the outgoing beacon frame
will be hidden. This prevents a station from obtaining the
SSID through scanning using a site survey tool.
Remote
Management Select WAN+LAN or WAN.
Active Client List Click the Show button to display the Active Wireless Client
Table window for AP1, AP2, AP3, or AP4.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
16
Click Apply to commit the settings. Click Refresh to display current settings of this
window. Click Close to close this pop-up window.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
17
Active Session Table
Click the Active Session Detail hyperlink in the Status window. Read-only
information includes Index, Internal, Protocol, External, NAT (Port), and Time Out
(sec).
Active Session Table window
The Active Session Table window contains the following parameters:
Active Session Table
Index The index number of the active session table entry.
Internal The internal IP address of the of the active session table
entry.
Protocol The protocol of the active session table entry.
External The external IP address of the of the active session table
entry.
NAT (Port) The NAT port number of the active session entry.
Time Out (sec) The time, in seconds, until the active session entry times
out.
Page Up Click to scroll up the page.
Page Down Click to scroll down the page.
First Page Click to advance to the first page of the table.
Last Page Click to advance to the last page of the table.
Click Refresh to display current settings of this window.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
18
Device Mode
The Device Mode window allows users to select Router mode, Bridge mode, or a
Mixed mode employing both Router and Bridge modes. Access this window by
clicking System Information > Device Mode.
Device Mode window
Click Apply to commit the settings. Click Refresh to display current settings of the
window.
Networking
Networking folders contain configuration windows for WAN (Static IP, DHCP Client,
or PPPoE), LAN, NAT, MBM, and VLAN.
WAN
The WAN window allows users to configure the WAN Access Type as DHCP Client,
Static IP, or PPPoE. DHCP Client is the default.
DHCP Client
Dynamic Host Configuration Protocol (DHCP), based on RFC 2131 and RFC 2132,
allows individual clients to obtain TCP/IP configuration at start-up from a server.
Users can configure the NHL-2342NF’s LAN as a DHCP server or disable it. When
configured as a server, the NHL-2342NF provides the TCP/IP configuration for the
clients. If DHCP service is disabled, another DHCP server must be available on that
network, or the computer will need to be manually configured. Access this window by
clicking Networking > WAN.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
19
WAN window for DHCP Client
The WAN window for DHCP Client contains the following parameters:
WAN Settings (for DHCP Client)
WAN Access Type Choose DHCP Client. The other options are Static IP or
PPPoE.
Attain DNS
Automatically Click to attain DNS automatically. Otherwise, enter DNS
manually using the field below.
Set DNS Manually Click and enter the DNS server IP address(es) assigned by
the ISP in the three fields below.
DNS1-DNS3 Enter the DNS server IP address(es) assigned by the ISP.
Clone MAC Address Enable MAC address cloning.
Enable UPnP Enable the Universal Plug and Play (UPnP) feature.
Universal Plug and Play (UPnP) is a distributed, open
networking standard that uses TCP/IP for simple peer-to-
peer network connectivity between devices. A UPnP device
can dynamically join a network, obtain an IP address,
convey its capabilities and learn about other devices on the
network. In turn, a device can leave a network smoothly and
automatically when it is no longer in use.
Enable IGMP Proxy Enable the IGMP proxy feature. IGMP proxy enables the
device to issue IGMP host messages on behalf of hosts that
the device discovered through standard IGMP interfaces.
Enable Ping Access
on WAN Enable the Ping access on WAN feature. This allows Ping to
use the WAN to send ICMP echo request packets to the
target host and listen for ICMP echo response replies.
Enable Web Server
Access on WAN Enable the Web server access on WAN feature. This allows
Web server access via the WAN.
Enable IPsec Pass Enable the IPSec Pass Through on VPN connection feature.

VOLKTEK NHL-2342NF TRIPLE-PLAY VOIP HOME GATEWAY
20
Through on VPN
Connection This encapsulates a complete IP datagram, forming a virtual
tunnel between IPSec-capable devices.
Enable PPTP Pass
Through on VPN
Connection
Enable the PPTP Pass Through on VPN connection feature.
Point-to-Point Tunneling Protocol (PPTP) enables secure
transfer of data through a Virtual Private Network (VPN). The
NHL-2342NF supports one PPTP connection at a time.
Enable L2TP Pass
Through on VPN
Connection
Enable the L2TP Pass Through on VPN connection feature.
Layer 2 Tunneling Protocol (L2TP) is used to support data
transfer through a Virtual Private Network (VPN). It relies on
an encryption protocol that it passes within the tunnel to
provide privacy.
Click Apply to commit the settings. Click Refresh to display current settings of the
window.
