vollara LAUNDRY PURE 2.0 User manual

LAUNDRY
PURE2.0
READ MANUAL CAREFULLY FOR PROPER USE AND OPERATION.
COLD WATER LAUNDRY SYSTEM
Made in the USA
2017 Space Technology
Hall of Fame Inductee

2
CONTENTS
General Information . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . . 3
Installation Requirements . . . . . . . . . . . . . . . . . . . 4
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . 5
Removing Cover . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation of Wall Anchors or Screws . . . . . . . . . . . . . 6
Reinstall the Cover . . . . . . . . . . . . . . . . . . . . . . . 7
Hose Installation . . . . . . . . . . . . . . . . . . . . . . . 7-8
Connecting the Power Adapter. . . . . . . . . . . . . . . . . 8
System Set Up . . . . . . . . . . . . . . . . . . . . . . . . . 9
Changing the ActivePure Cell Assembly . . . . . . . . . . . . 10
Before Washing Clothes . . . . . . . . . . . . . . . . . . . . 11
Using Your LaundryPure 2.0 . . . . . . . . . . . . . . . . . . 11
Washers Requiring Hot & Cold Water. . . . . . . . . . . . . .12
Temp. Control & External Water Tap . . . . . . . . . . . . . . 13
Status Indications . . . . . . . . . . . . . . . . . . . . . . . 13
Frequently Asked Questions . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 15-16
Warranty Information . . . . . . . . . . . . . . . . . . . . . 17
PRODUCT OVERVIEW
LaundryPure 2.0 is designed to work in conjunction with your washing
machine, using cold water and our proprietary ActivePure®Technology to
clean clothes. As your washer begins to ll, LaundryPure 2.0 will turn on.
LaundryPure 2.0 is equipped with an internal leak sensor.
There’s a smart new approach to laundry that’s based on earth-friendly
science and technology. LaundryPure 2.0, designed and made in America,
eliminates the need for hot water, detergents, fabric softeners and
bleaches, thereby allowing it to pay for itself over and over again.
LaundryPure 2.0 is easy to install. It is intended to work with residential
clothes washers and is for use by anyone interested in an economical,
earth-friendly alternative to the typical detergents and chemicals currently
available, without modifying existing appliances, electrical systems, or
plumbing.
LaundryPure 2.0 uses a variation of the technology originally developed
for use in the International Space Station and is recognized as a Certied
Space Technology by the Space Foundation.
FILL IN AND SAVE
The location of the serial number is on the back panel of the water
unit, below the water line connection. Write it here and retain for
future reference.
Model No. ___________________________________________________________
Serial No. ___________________________________________________________
Date of Purchase _____________________________________________________
Vollara Distributor ____________________________________________________
_____________________________________________________________________
Distributor’s Oce Phone No. _________________________________________
_____________________________________________________________________
Distributor’s Oce Address ___________________________________________
_____________________________________________________________________
SPECIFICATIONS
AC/DC Adapter:
• AC in: 100 - 240V ~ 50/60 Hz .45A
• DC out: 12V
Power Consumption:
• .4W AC (standby mode)
• 1.3W AC operating
Dynamic Water Pressure:
• Minimum 20 psi to 60 psi / 1.37 ~4.13 bar
Water Temperature:
• Use cold water only (do not use hot water)
Operating Environment:
• 50˚F - 100˚F ( 10˚C - 37.8˚C)
• Humidity 40% ~ 85%
Dimensions:
• 17.3” x 5.19” x 3.69”
• 43.94cm x 13.48cm x 9.37cm
Weight:
• 4.3 lbs
• 1.95 kg
GENERAL INFORMATION

3
Read this manual in its entirety prior to installing or using your LaundryPure 2.0.
• For indoor use only
• Do not operate unit with cover removed
• Disconnect all power before servicing
• Do not use an extension cord or other adapter with this appliance
• This appliance is not recommended for use with high sediment content water; if your water has
a high sediment content, consult a water ltration expert for available options
• Maximum dynamic water inlet pressure is 60 psi
• Use the new hose included with the unit, when connecting the LaundryPure 2.0 to your
washing machine; you should also replace any washing machine hose that is more than
3 years old
• Do not clean the cover of your LaundryPure 2.0 with harsh chemicals, abrasives, or cleansers;
to clean, use a soft cloth dampened with water
• LaundryPure 2.0 is designed for normal residential use only; use in a commercial or
non-residential setting may damage the unit and will void your warranty
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of re, electrical shock, or personal injury, all wiring must be done
in accordance with the National Electrical Code ANSI/FNPA, No. 70 - Latest Revision and local
codes and ordinances in the USA. For Electrical Codes outside the USA, consult your local
regulatory agency for the latest codes and ordinances. It is the personal responsibility and
obligation of the appliance owner to provide adequate electrical service for this appliance.
We have provided important
safety warnings in this manual
and on your appliance. Always
read and obey all safety
messages.
Safety warnings in this manual
are dened as follows:
WARNING:
Electrical shock hazard.
You can be killed or seriously
injured if you don’t follow
instructions.
CAUTION:
Damage to your appliance or
the surrounding area can occur
if you don’t follow instructions.
DANGER:
Death or serious injury can occur
if instructions are not followed
immediately.
NOTE:
This information is included to
aid in installation and use of this
appliance.
NOTE: Your LaundryPure 2.0 Unit was factory tested. It is normal for some residual
water to still remain in the unit as a result of these tests.
Water treated by your LaundryPure 2.0 unit is intended for clothes washing only and is NOT
approved for any internal consumption such as drinking, bathing, brushing teeth, etc. DO NOT
drink, ingest, or internally consume the water from your LaundryPure 2.0 unit or washing
machine. DO NOT provide water from your LaundryPure 2.0 to your pets or other animals.
CAUTION:
SAVE THESE INSTRUCTIONS

4
ELECTRICAL REQUIREMENTS
100 - 240 Volt 50/60 Hz 5 AMP (minimum) Fuse or Circuit Breaker.
LaundryPure 2.0 is equipped with an AC to DC power supply.
WATER REQUIREMENTS
A dynamic water pressure greater than 20 psi / 1.37 bar and less than 60
psi / 4.13 bar is required to correctly operate your LaundryPure 2.0.
See Cautions below.
WATER
OUTLET
WATER
INLET
INSTALLATION REQUIREMENTS
17.3” (43.94 cm)
5.19” (13.48 cm)
3.69” (9.37 cvm)
Incoming water pressure must be greater than 20 psi / 1.37 bar. If
your household water pressure is greater than 60 psi / 4.13 bar, you
must install an in-line pressure reducer before installing LaundryPure
2.0. Failure to follow these instructions may result in water leakage,
property damage, personal injury, and may void your warranty.
Water pressure of 20 psi / 1.37 bar to 60 psi / 4.13 bar is required to
correctly operate your LaundryPure 2.0. Low water pressure may
prevent your unit from operating properly and/or cause a failure in
your washing machine’s water valve.
The washer’s water valve may also not shut o completely. Check
the documentation supplied with your washing machine for exact
specications. Your washing machine and cold water faucet must be
within 4 feet of the right side of the unit to use the inlet hose provided
with your LaundryPure 2.0.
TO AVOID THE POSSIBILITY OF WATER DAMAGE, SHOULD A
HOSE LEAK, ALWAYS HAVE FAUCETS ACCESSIBLE AND TURN
OFF FAUCETS WHEN WASHER IS NOT IN USE. DO NOT USE WITH
A CARBON FILTER.
CAUTION:
NEVER USE AN EXTENSION CORD.
CAUTION:
LOCATION CONSIDERATIONS
The LaundryPure 2.0 must never be installed in areas where water
may freeze since the unit will always maintain some water in the unit,
the water valve, and hose areas. This can cause damage to internal
components. It is also recommended to avoid installation in areas of
high humidity, as it can eect the operation of the unit.

5
BEFORE YOU START
REMOVING COVER
• Remove your new LaundryPure 2.0 from its packaging
• Inspect the unit for any signs of shipping damage
NOTE: Your LaundryPure 2.0 unit was factory tested. It is normal for some residual water to still remain in the unit as a result of these tests.
Screws
1. Remove the two (2) cover screws located
on the bottom of the unit.
2. Remove the two (2) screws (not shown) along
the top of the LaundryPure 2.0.
3. To remove the cover, pull the top away from the
unit, then lift o the cover.

6
INSTALLATION OF WALL ANCHORS OR SCREWS
A. If using supplied wall anchors, drill two 3/16” (4.76 mm) diameter
holes. Place two wall anchors into the wall. Install two supplied screws
and tighten until almost all the way in.
B. If mounting to wall studs, drill two 3/32” (2.381 mm) diameter holes
approximately 1” (25.4 mm) deep. Install two supplied screws and
tighten until almost all the way in.
17.3” (43.94 cm)
Keyholes
NOTE: Washing machine and cold water faucet must
be within 4 feet (1.21 m) of the right side of unit.
1. Place the LaundryPure 2.0 to the wall and mark the appropriate
keyholes with a pencil.
Screws (not shown)
2. Position the keyholes of the LaundryPure 2.0 onto the screws
(not shown). Finish tightening screws enough to securely
mount unit, but still allowing it to be removed from wall.
Remove unit from wall.
NOTE: The provided hardware kit contains adhesive backed rubber
spacers to be placed on back of unit to provide additional
clearance from wall if needed for hose installation or the use
of ActiveClean Port. (Page 12)

7
1. Turn the cold water o by shutting o the cold water faucet.
NOTE: To help prevent water spray when disconnecting hoses, you can
relieve pressure in the water line by momentarily starting your
washing machine.
NOTE: To ease hose installation and prevent cross threading, connect hose
prior to mounting unit on wall.
NOTE: Remove the two black caps from the hose connections
before installing hoses.
2. Remove the cold water hose from the cold water inlet
on the back of your washing machine. Leave hot water
hose attached.
When connecting hoses to your LaundryPure 2.0 start by hand tightening the hose
connector(s). Using adjustable pliers, nish tightening hose connector(s). Do not
remove or disconnect the hot water line from your washing machine or water valve.
CAUTION:
1. Return the LaundryPure 2.0 cover to its original position, tting the bottom
in place and tipping upward.
2. Secure with two (2) screws (not shown) along the top edge.
3. Put the two (2) remaining screws along the bottom edge and tighten.
REINSTALL THE COVER
HOSE INSTALLATION
Screws
Screws

8
CONNECTING POWER ADAPTER
1. Insert the provided power cord into the POWER IN socket located on the side of the unit.
Do not use any AC/DC adapter other than the one supplied with your LaundryPure 2.0 or Vollara replacement AC/DC
adapter (item#: 49873-US). Failure to follow these instructions may void your warranty and/or result in damage to your
unit, re, or electrical shock.
CAUTION:

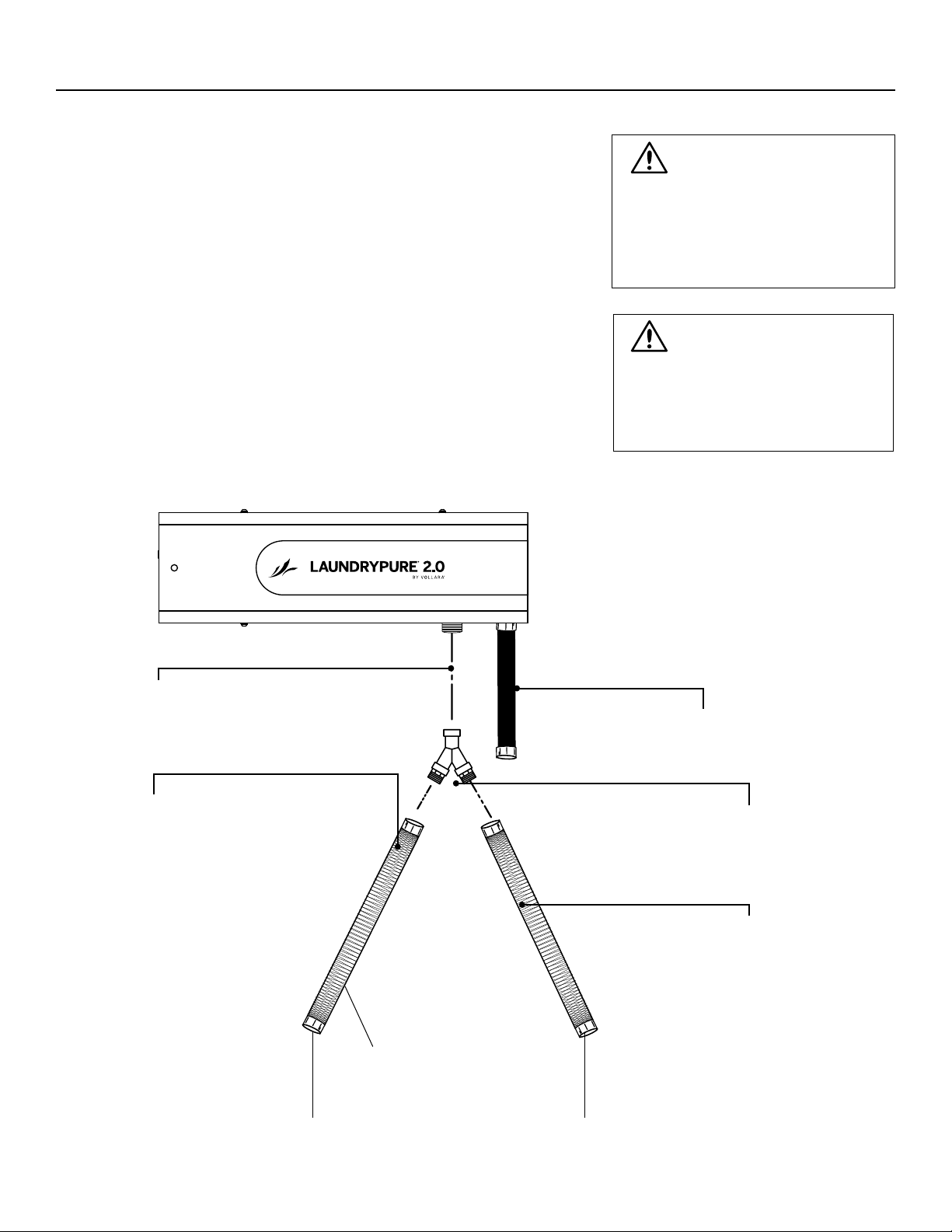

HOSE INSTALLATION CONTINUED
3. Connect the hose from the cold water inlet on your washing
machine to the INLET connection on your LaundryPure 2.0.
5. Finally, connect the new hose to the cold water inlet on your washing machine.
4. Connect the new hose provided with your LaundryPure 2.0 to the water
OUTLET connector on your LaundryPure 2.0 unit.
NOTE: To ease hose installation and prevent cross threading,
connect hoses prior to mounting unit on wall.
NOTE: If your existing hose is more than 3 years old, we recommend that you replace
it with the optional stainless steel hose (item#: 49701-US).
NOTE: Do not plug the adapter into the wall socket until installation is complete. See page 9.

9
SYSTEM SET UP
4. Start your washer. The status light should
illuminate blue after a few seconds.
NOTE: Your LaundryPure 2.0 will automatically turn
on and o as your washing machine starts, and stops.
Electrical Shock Hazard. When working with electrical connections, the
appliance and surrounding area should be clean and dry of any standing water.
Failure to follow these instructions can result in death, re, or electrical shock.
Electrical Shock Hazard. Do no use an extension cord.
Failure to follow these instructions can result in death,
re, or electrical shock.
WARNING: WARNING:
1. Plug power cord into the wall outlet of your
home’s electrical power system. See page 4 for
electrical requirements.
Status Indicator Lights
2. Turn on the cold water valve.
3. Check all hoses to ensure no water
is leaking. Tighten if necessary.

10
6
6
7
3
45
8
8
9
CHANGING THE ACTIVEPURE CELL ASSEMBLY S/N 49919
1. Unplug from power source and remove cover (see page 5)
2. Remove unit from wall
3. Remove tubing at cell (Figure 1)
4. Unplug photo sensor at cell (Figure 1)
5. Unplug wire harness from bulb (Figure 1)
6. Remove 2 ballast screws (Figure 1)
7. Unplug ballast from PCB (Figure 1)
8. Remove 2 cell screws at back (Figure 2)
9. Slide ActivePure Cell up slightly and to the right (Figure 3)
10. Tilt cell forward and slide up and out; may require pulling very
slightly on plumbing – use extreme caution – do no break
plumbing connections. (Figures 4, 4a, 4b)
11. Replace with new ActivePure Cell (S/N 49919) and remount to
base (Figure 5)
NOTE: Two holes, A and B, are used to install new ActivePure Cell
12. Assemble unit and mount on wall (Follow steps 9 - 1)
NOTE: The ActivePure Cell Assembly requires replacement at approx. 9,000 hours of use. The LED will ash periodically (visual chirp) to notify that
cell replacement is required. The UV bulb will NOT be turned on again until the cell has been replaced.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 4a
Figure 4b
