USER’S MANUAL

2
GENERAL INFORMATION
Contents
General Information . . . . . . . . . . . . . . . . .2
Use & Safety Considerations . . . . . . . . . . . . 3
Installation Requirements . . . . . . . . . . . . . 4
Cabinet Features . . . . . . . . . . . . . . . . . 4
Before You Start . . . . . . . . . . . . . . . . . . .5
Removing Cover . . . . . . . . . . . . . . . . . . .5
Installation of Wall Anchors . . . . . . . . . . . . 6
Hose Installation. . . . . . . . . . . . . . . . . . .7
System Set Up. . . . . . . . . . . . . . . . . . . 9
Before Washing Clothes . . . . . . . . . . . . . . 10
Using Your LaundryPure . . . . . . . . . . . . . . 10
Washers Requiring Hot & Cold Water . . . . . . . . 11
Status Indications . . . . . . . . . . . . . . . . . 12
Frequently Asked Questions . . . . . . . . . . . . 13
Installation Problems . . . . . . . . . . . . . . . 13
Warranty Information . . . . . . . . . . . . . . . 14
Declaration of Conformity . . . . . . . . . . . . . 15
Product Overview
LaundryPure is designed to work in conjunction with your
washing machine, using cold water, and ActivePure to
clean clothes. As your washer begins
to fill, LaundryPure will turn on.
LaundryPure is equipped with an internal leak sensor.
See page 12 for more details.
Please record the serial number of your LaundryPure by
Vollara, LLC:
Model # ___________________________________________
Serial # ___________________________________________
Please record the name and phone of your Independent
Vollara Business Owner:
Name _____________________________________________
Phone_____________________________________________
SPECIFICATIONS
AC/DC Adaptor:
• AC in: 100 - 240V ~ 50/60 Hz .45A
• DC out: 12V
Power Consumption:
•.4W AC (standby mode)
• 1.3W AC operating
Water Pressure:
• Minimum 20 psi to 75 psi maximum
Water Temperature:
• Use cold water only (do not use hot water)
Operating Environment:
• 50˚F - 100˚F ( 10˚C - 37.8˚C) Humidity 20% ~ 70%
Dimensions:
• 17.25 in. x 9.6 in. x 4.05 in.
• 438 mm x 244 mm x 103 mm
Weight:
• 4.486 pounds
• 2.04 kg

3
• For indoor use only.
• Do not operate unit with cover removed.
• Disconnect all power before servicing.
• Do not use an extension cord or other adapter with this appliance.
• This appliance is not recommended for use with high iron or sediment content
water. If your water has a high iron or sediment content, consult a water
filtration expert for available options.
• Maximum dynamic water inlet pressure is 75psi.
• Use the included new hose when connecting the LaundryPure unit to your
washing machine. You should replace any washing machine hose that is more
than 3 years old.
• Do not leave your hot water hose disconnected.
• Do not clean your LaundryPure with harsh chemicals, abrasives, or cleansers.
Use a soft cloth dampened with water.
• Do not mount the LaundryPure unit vertically, below the top of the washer or
at an angle. Improper mounting may not allow the unit to function properly
and void your warranty. See page 6 for correct mounting instructions.
• LaundryPure is designed for normal residential use only. Use in a commercial
or non-residential setting will void your warranty.
USE & SAFETY CONSIDERATIONS
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all
wiring must be done in accordance with the National Electrical Code ANSI/
FNPA, No. 70 - Latest Revision and local codes and ordinances. It is the personal
responsibility and obligation of the appliance owner to provide adequate
electrical service for this appliance.
We have provided
important safety warnings
in this manual and on your
appliance. Always read and
obey all safety messages.
Safety warnings in this
manual are defined
as follows:
WARNING:
Electrical shock hazard.
You can be killed or seriously
injured if you don’t follow
instructions.
CAUTION:
Damage to your appliance
or the surrounding area
can occur if you don’t
follow instructions.
DANGER:
Death or serious injury can
occur if instructions are not
followed immediately.
NOTE:
This information is included
to aid in installation and use
of this appliance.
NOTE:
Your LaundryPure Unit was factory tested. It is normal for some residual
water to still remain in the unit as a result of these tests.
Water treated by your LaundryPure unit is intended for clothes washing only
and is NOT approved for any internal consumption such as drinking, bathing,
brushing teeth, etc. DO NOT drink, ingest, or internally consume the water
from your LaundryPure unit or washing machine. DO NOT provide water
from your LaundryPure to your pets or other animals.
CAUTION:

4
ELECTRICAL REQUIREMENTS
100 - 240 Volt 50/60 Hz 5 AMP (minimum) Fuse or Circuit
Breaker.
LaundryPure is equipped with an AC to DC power supply.
NEVER USE AN EXTENSION CORD.
WATER REQUIREMENTS
A dynamic water pressure of 20 to 75 psi is required to
correctly operate your LaundryPure. See Cautions below.

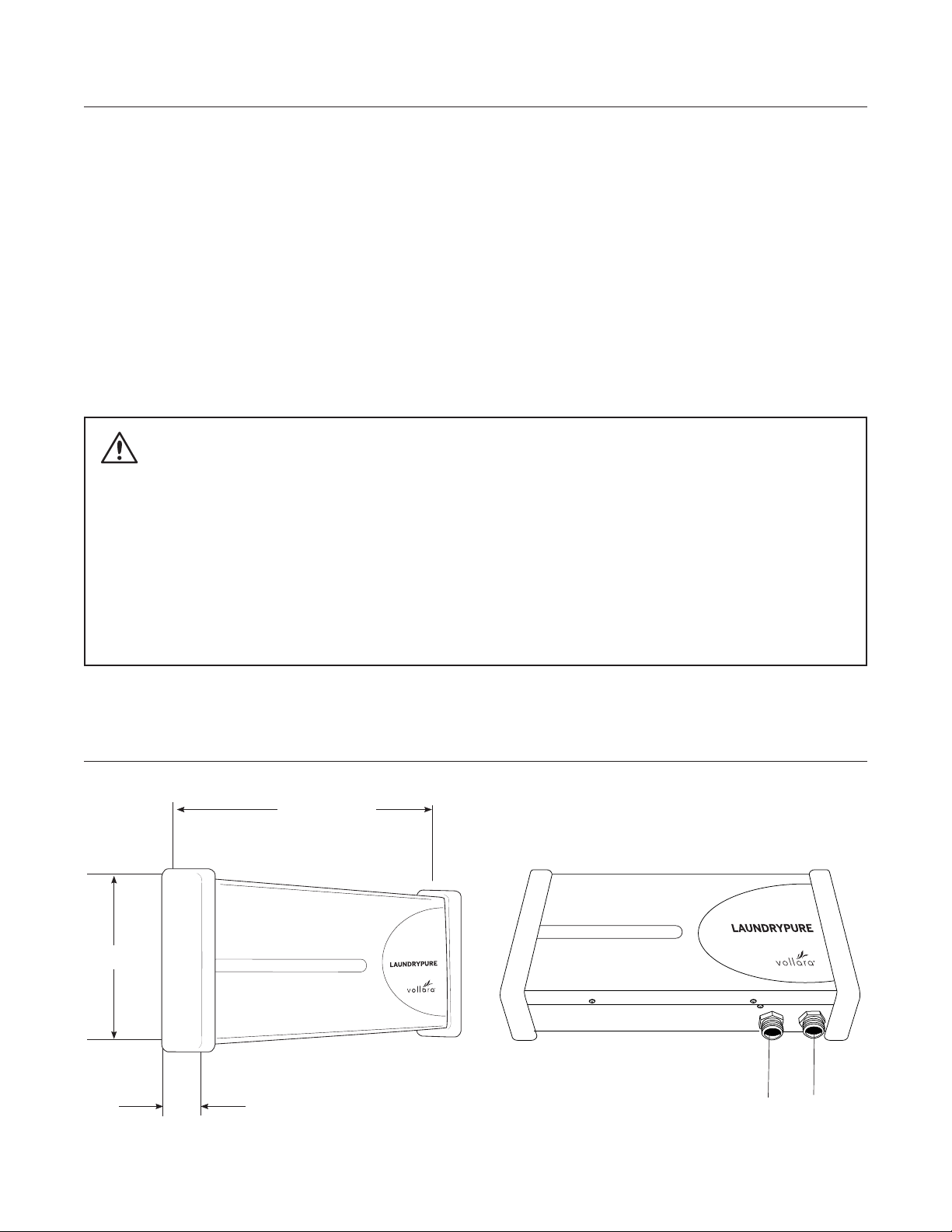

CABINET FEATURES
WATER
OUTLET
WATER
INLET
INSTALLATION REQUIREMENTS
LOCATION CONSIDERATIONS
It is recommended the LaundryPure never be installed in
areas where water may freeze since the unit will always
maintain some water in the unit, the water valve, and hose
areas. This can cause damage to internal components. It is
also recommended to avoid installation in areas of high
humidity, as it can eect the operation of the unit.
17.25” (438 mm)
9.6” (244 mm)
4.05” (103 mm)
Incoming water pressure must be less than 75 psi. If your household
water pressure is greater than 75 psi, you must install an in-line
pressure reducer before installing LaundryPure. Failure to follow
these instructions may result in water leakage, property damage,
personal injury, and may void your warranty. Water pressure of 20 to
75 psi is required to correctly operate your LaundryPure. Low water
pressure may prevent your unit from operating properly and/or cause
a failure in your washing machine’s water valve.
The washer’s water valve may also not shut o completely. Check
the documentation supplied with your washing machine for exact
specifications. Your washing machine and cold water faucet must be
within 4 feet of the right side of the unit to use the inlet hose provided
with your LaundryPure.
TO AVOID THE POSSIBILITY OF WATER DAMAGE, SHOULD A HOSE
LEAK, ALWAYS HAVE FAUCETS ACCESSIBLE AND TURN OFF
FAUCETS WHEN WASHER IS NOT IN USE.
Water quality may aect the performance of your LaundryPure unit.
If you have water quality concerns such as high iron content or high
chlorine content, consult a water filtration expert. This system is
designed for use on potable water systems only.
CAUTION:

5
BEFORE YOU START
REMOVING COVER

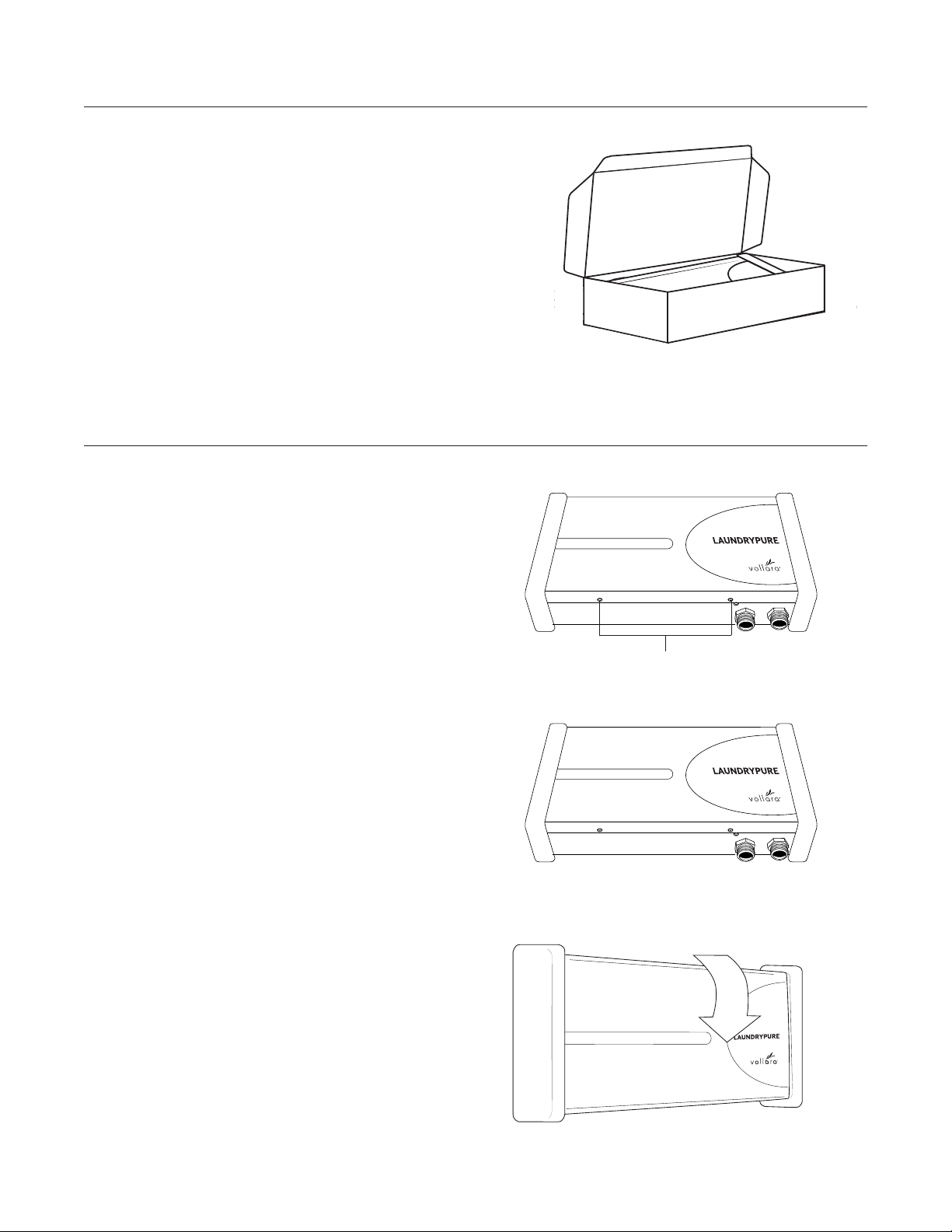

1
Remove the two (2) cover screws located on the bottom
of the unit.
2
Remove the two (2) screws (not shown)
along the top of the LaundryPure.
3
To remove the cover, pull the top away from
the unit, then lift o the cover.
• Remove your new LaundryPure from its packaging.
• Inspect the unit for any signs of shipping damage.
NOTE:
Your LaundryPure unit was factory tested. It is normal for
some residual water to still remain in the unit as a result of
these tests.
Screws

6
This appliance must be installed in a level,
horizontal configuration as shown. Do not
install the unit vertically, below the top of
the washer or at an angle. Failure to follow
these instructions may prevent the internal
moisture sensor from operating properly.
CAUTION:
INSTALLATION OF WALL ANCHORS OR SCREWS
A. If using supplied wall anchors, drill two 3/16” diameter
holes. Place two wall anchors into the wall. Install two
supplied screws and tighten until almost all the way in.
B. If mounting to wall studs, drill two 3/32” diameter
holes approximately 1” deep. Install two supplied
screws and tighten until almost all the way in.
16” OC
Keyholes
NOTE: Washing machine and cold water faucet must
be within 4 feet of the right side of unit.
1
Level and place the LaundryPure to the wall and mark
where the two (2) keyholes are on each side with a pencil.
Screws (not shown)
2
Position the keyholes of the LaundryPure onto the screws
(not shown). Finish tightening screws enough to securely
mount unit, but still allowing it to be removed from wall.
Remove unit from wall.

7
21
HOSE INSTALLATION
Turn the cold water
o by shutting o
the cold water
faucet.
NOTE: To help prevent water spray when
disconnecting hoses, you can relieve pressure
in the water line by momentarily starting your
washing machine.
NOTE:To ease hose installation and prevent cross threading,
connect hose prior to mounting unit on wall.
Remove the cold water
hose from the cold water
inlet on the back of your
washing machine. Leave
hot water hose attached.
When connecting hoses to your LaundryPure hand start the
hose connector(s) Using adjustable pliers finish tightening
hose connector(s). Do not remove or disconnect the hot
water line from your washing machine or water valve.
CAUTION:
1
Return the LaundryPure cover to its original position,
fitting the bottom in place and tipping upward.
2
Secure with two (2) screws (not shown) along the top
edge.
3
Put the two (2) remaining screws along the
bottom edge and tighten.
REINSTALL THE COVER
Screws
Screws
NOTE: Remove the two black caps from the hose connections
before installing hoses.

8

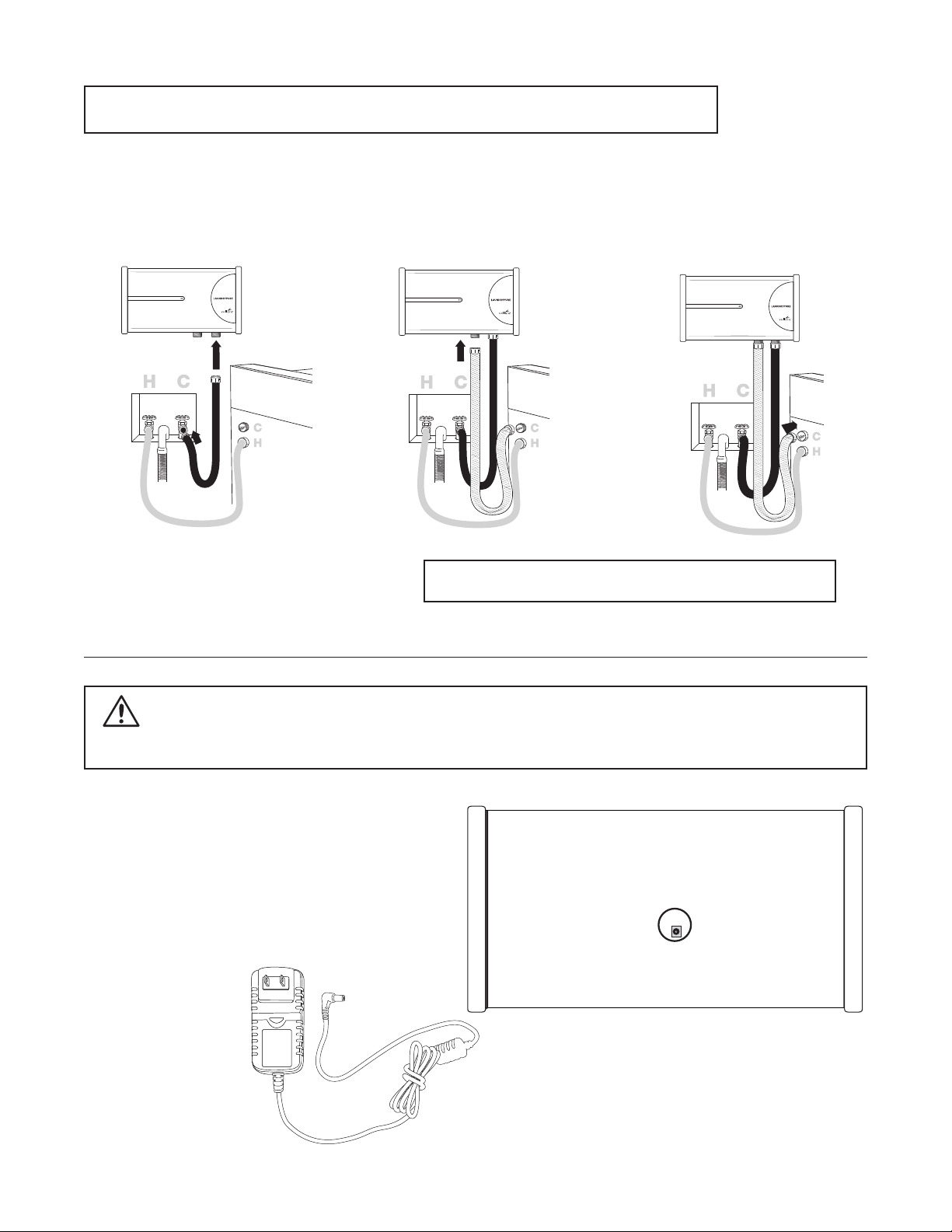

CONNECTING POWER ADAPTOR
1. Insert the provided power cord into the
POWER IN socket located on the back of the unit.
(Note: Do not plug the adaptor into the wall socket
until installation is complete. See page 9.)
2. Align mounting screws with mounting keyholes
on back of unit and place unit on wall.
Do not use any AC/DC adaptor other than the one supplied with your LaundryPure or Vollara
replacement AC/DC adaptor (item #9950152). Failure to follow these instructions may void
your warranty and/or result in damage to your unit, fire, or electrical shock.
CAUTION:
The AC/DC adaptor
is designed to work
worldwide. The
electrical plug may
be removed and
*other types added
depending on the
country electrical
requirements.
5
4
3
Connect the hose from the cold
water inlet on your washing
machine to the INLET connection
on your LaundryPure.
Finally, connect the new hose
to the cold water inlet on your
washing machine.
Connect the new hose provided
with your LaundryPure to the
water OUTLET connector on
your LaundryPure unit.
NOTE:To ease hose installation and prevent cross threading,
connect hoses prior to mounting unit on wall.
NOTE:If your existing hose is more than 3 years old, it is our recommendation that you replace
it with the optional stainless steel hose (item #US70980).
*Other types are optional. Not included.

9
2
Turn on the cold water valve.
SYSTEM SET UP
3
Check all hoses to ensure no water
is leaking. Tighten if necessary.
4
Start your washer.
The status light should
illuminate blue.
NOTE: Your LaundryPure will automatically turn on and o as your washing machine starts, and stops.
Electrical Shock Hazard. When working with
electrical connections, the appliance and
surrounding area should be clean and dry of any
standing water. Failure to follow these instructions
can result in death, fire, or electrical shock.
WARNING:
Electrical Shock Hazard. Do no use an extension
cord. Failure to follow these instructions can result
in death, fire, or electrical shock.
WARNING:
1
Plug power cord into the wall outlet of your home’s
electrical power system. See page 4 for electrical
requirements.
Status Indicator Lights

10
BEFORE WASHING CLOTHES
IF YOUR WASHING MACHINE IS NOT NEW you will need to
perform this procedure to help remove any detergent buildup
that may contaminate your clothing.
1. Do not put clothes in the washer at this time.
Set your machine to its largest load setting, cold water only.
2. Start the washer and let it run through every cycle.
3. Once it has finished, repeat Steps 1 and 2 three more times.
Depending on the age and severity of detergent buildup,
it may be necessary to perform Step 3 several times.
NOTE: If you have a front loading washer, odors can develop
due to stagnant water left inside. If musty odors develop it may
be necessary to run a commercially available cleaner made
especially for front loading washers to eliminate such odors.
CAUTION:
To avoid the possibility of water damage, should a hose leak,
always have faucets accessible and turn o faucets when washer
is not in use.
IF YOUR WASHING MACHINE IS NEW, skip this section
and continue below.
BEFORE USING YOUR LAUNDRYPURE FOR THE FIRST TIME
USING YOUR LAUNDRYPURE
DETERGENT AND FABRIC SOFTENER
You may choose to continue to use detergent and/or fabric softeners if desired. However,
to completely experience all the benefits of your new LaundryPure, we recommend
washing using nothing but cold water. NEVER apply detergent directly to dry clothes.
Allow washer to fill, then add detergent to prevent staining on clothes.
COLD HOT NORMAL OPERATION
Using your LaundryPure is as simple as turning on the washing machine. LaundryPure
is designed to use the COLD/COLD setting of your washing machine.
HEAVY STAINS
For heavy stains, pre-treat area, apply pre-treater (such as Re:Move), rub gently and let
stand for several minutes. Wash as normal.

11
When connecting hoses to your
LaundryPure hand start the hose
connector(s) Using adjustable
pliers finish tightening hose
connector(s).
CAUTION:
Some washing machine models require water to flow through both the
HOT and COLD valves for proper operation. In some cases, if only the
COLD water side is connected, the water valve will not operate or the
washing machine will not fill to the proper level. To solve this problem,
the installation of a “Y” adaptor (available at most hardware stores)
may be used. The use of the “Y” adaptor allows water to flow equally
through both the HOT and COLD water valves. Optional stainless steel
hose (US70980) must be installed on the hot water connection. To
Install, turn water o at the valves and disconnect the existing HOT
water hose (at the valve and washing machine) Connect the “Y” adaptor
to the Outlet on your LaundryPure, then connect both the optional
stainless steel hose (US70980) and Cold hose from your washer to the
“Y” adaptor (see diagram below). Operate your washer on the WARM/
WARM setting (your LaundryPure will still be
using just cold water).
Turn o both water valves (hot and
cold) before disconnecting hoses.
Failure to follow these instructions may
result in water leakage and/or possible
injury from hot water.
CAUTION:
NOTE: Your hot source water
valve will not have a hose
connected to it. Make sure it is
fully turned o. It is recommended
you secure a cap (available at
most home improvement stores)
to prevent leakage.
FOR WASHERS THAT REQUIRE HOT & COLD WATER INPUT
Connect to household
plumbing COLD water valve
“Y” adaptor
Make sure the “Y” adaptor
valve is in the on position.
Connect to HOT water inlet on
washing machine
Connect to COLD water inlet
on washing machine
Disconnect the existing hose
from the HOT valve and
washing machine and
remove. Replace with
optional stainless
steel hose.
Part No. US70980
(not included).
Disconnect this
stainless steel hose
from the OUTLET on
your LaundryPure,
then connect
it to the “Y”
adaptor.
Connect the “Y” adaptor to the
OUTLET on your LaundryPure.
Be sure to hold the fitting with
pliers while tightening the
adaptor.
Stainless steel hose supplied
with LaundryPure.

12
STATUS INDICATIONS
The LaundryPure monitors its operations with status
indicator lights.
• Blue light indicates normal operation
• Red light indicates a possible issue
• Red light with audible alert indicates a possible leak
If this occurs, please contact Customer Service at
[phone].
• Electrical Shock Hazard. Disconnect power before
attempting installation or service.
• Electrical Shock Hazard. When working with electrical
connections, the appliance and surrounding area
should be clean and dry of any standing water. Failure
to follow these instructions can result in death, fire,
or electrical shock.
• Do not operate LaundryPure with the UV shield or
front cover removed or improperly installed. Failure
to follow these instructions can result in severe eye
damage, death, or electrical shock.
WARNING:
CAUTION:
WARNING:
TEMPERATURE CONTROLLING WATER VALVES
Some washers monitor the incoming cold water temperature and adjust too cold of water by
adding hot water, even if the water temperature is set to cold. If you have one of these washers,
do not install with the “Y” adapter. Failure to do so may cause the washer to not operate
correctly. Consult your washing machine owner’s manual if needed.
An optional LaundryPure water tap allows you to run oxygenated water for other uses
such as cleaning surfaces. (ActiveClean Port - 9950107)
EXTERNAL WATER TAP (AVAILABLE SEPARATELY)
Status Indicator Lights

13
FREQUENTLY ASKED QUESTIONS
Does LaundryPure get out tough stains without
pretreating? Tough stains will still require pretreatment.
Does the LaundryPure work with all types of water
including hard water? LaundryPure will work with
all household water qualities, however additional pre-
filtering may be necessary depending on the source water
condition. To improve your results, if desired, use a water
softener for hard water and/or a prefilter for chlorine ,
sediment or iron.
Will the LaundryPure work with commercial washing
machines? LaundryPure is designed for residential use
only.
Is a plumber required to install LaundryPure?
The customer is responsible for installation of their
LaundryPure unit. Some customers may prefer to have a
plumber perform the installation although LaundryPure
can be installed in most homes by the home owner
using standard hand tools. It should be noted there are
potential problems which can arise during the installation
depending on the condition of the plumbing in the home
and the configuration and location of the washer. If the
cold water valve is stuck or the washing machine needs to
be moved back which may require re-leveling, a plumber
may be required. Vollara, LLC is not liable for improper
installation or damage caused from improper installation
and recommend a licensed plumber. Appropriate warnings
and concerns are included in this owner’s manual.
Always follow local plumbing codes when installing the
LaundryPure.
Can I hook the LaundryPure unit up to things other than
a washing machine? No. However, Vollara has an optional
ActiveClean port kit you can install on the LaundryPure to
create oxygenated water for other cleaning uses (see page
12).
What eect does LaundryPure have on elastic? Normal
operation of a LaundryPure unit should have no negative
impact on elastic in clothing.
Can I let my clothes soak?
It is not recommended that clothes are allowed to soak in
LaundryPure water.
INSTALLATION PROBLEMS?
Installation procedures can vary according to washing machine model. If you experience installation problems, read the
manual first to make sure you have installed the unit correctly. Call Customer Service at 800-989-2299 for more
information.

14
LIMITED THREE (3) YEAR WARRANTY
Customer should not repackage and ship the LaundryPure® unit due to possibility of irreparable damage. For warranty
service, please contact Vollara or your Independent Distributor for the address of the nearest service center.
LIMITED THREE (3) YEAR WARRANTY
Customer should not repackage and ship the LaundryPure® unit
due to possibility of irreparable damage. For warranty service,
please contact Vollara Customer Service at 800.989.2299, or
your Vollara Independent Business Owner, for the address of
the nearest service center.
WHAT IS COVERED BY THIS WARRANTY
We warrant the LaundryPure® to the Customer, subject to the
conditions below, against defects in workmanship or material,
provided that the products are returned to a service location
within three (3) year from the date of purchase.
INSTALLATION AND MAINTENANCE
REQUIREMENTS
This warranty is expressly conditioned upon proper installation,
operation, cleaning and maintenance, all in accordance with the
Owner’s Manual. Failure to meet any of these requirements will
void this warranty. Servicing of your LaundryPure® by parties
other than our authorized representatives and/or using parts
other than genuine parts will also void this warranty.
HOW TO OBTAIN WARRANTY SERVICE
Customer must contact Vollara Customer Service and provide
proof of purchase within the above time period. We will repair
or replace and return the product, without charge and within
a reasonable period of time, subject to the conditions herein,
if its examination shall disclose any part to be defective in
workmanship or material. If we, in our discretion, are unable
to repair the product after a reasonable number of attempts,
we will provide either a refund of the purchase price or a
replacement unit, at the company’s option.
WHAT IS NOT COVERED BY THIS WARRANTY
This product is intended for household use only. Ordinary wear
and tear shall not be considered a defect in workmanship or
material. These warranties do not apply to desiccant cartridge
nor for loss or damage caused by accident, fire, abuse, misuse,
improper installation, leaking, modification, misapplication,
commercial use or by any repairs other than those provided
by our authorized Service Center. This warranty is non-
transferable.
MISSING SERIAL NUMBERS AND UNAUTHORIZED
CHANNELS
If a valid serial number is missing from the product, the warranty
will be voided. Vollara products are authorized for sale through
Vollara Independent Business Owners only. Warranties are
voided if a product is purchased through unauthorized channels,
this includes websites that are not authorized to use Vollara’s
trademarked names, images and logos as well as Internet
auction sites (e.g. ebay and Craigslist). The only approved
Internet presence for Vollara products is www.vollara.com.
To confirm warranty coverage prior to purchasing a product,
contact Vollara at 800.989.2299 with the serial number located
on the back of the unit.
EXCLUSION OF OTHER WARRANTIES AND
CONDITIONS
EXCEPT AS PROVIDED HEREIN, WE MAKE NO REPRESENTATION
OR WARRANTY OF ANY KIND. ALL OTHER WARRANTIES OF
ANY KIND, EXPRESS OR IMPLIED, ARE HEREBY EXPRESSLY
DISCLAIMED, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
LIMITATION OF LIABILITY FOR SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES
WESHALLNOTINANYCASEBELIABLEFORSPECIAL,INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING FROM BREACH OF
EXPRESSED OR IMPLIED WARRANTIES, CONDITIONS,
GUARANTEES OR REPRESENTATIONS, BREACH OF CONTRACT,
NEGLIGENCE OR ANY OTHER LEGAL THEORY. Such excluded
damages include, but are not limited to, loss of profits or revenue,
and loss of the use of the products, and any loss caused by leaks
or other water damage.
EXCLUSION OF SUBSEQUENT OWNERS:
Except as otherwise required by applicable legislation, this
warranty is not transferable.
FOR U.S. APPLICATION ONLY
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. Some states do
not allow limitations on warranties, or on remedies for breach. In
such states, the above limitations may not apply to you.
FOR CANADIAN APPLICATION ONLY
This warranty gives you specific legal rights and you may also
have other rights which vary from province to province. Some
provinces and territories do not allow limitations on warranties, or
on remedies for breach. In such provinces or territories, the above
limitations may not apply to you.
If any provision of this warranty or part thereof is held by a court
of competent jurisdiction to be invalid, illegal, or unenforceable,
the validity, legality and enforceability of the remaining provisions
or parts thereof will not in any way be aected or impaired within
the jurisdiction of that court. This entire warranty shall continue to
be valid, legal and enforceable in any jurisdiction where a similar
determination has not been made.
This warranty is provided by:
Vollara, LLC
5420 LBJ Freeway, Suite 1010
Dallas, TX 75240.
SERVICE
Every eort is made to ensure customers receive an up-to-date instructions manual on the use of our products; however, from time to time,
modifications to our products may without notice make the information contained herein subject to alteration. For the latest information, please
visit our web site.

15
Vollara, LLC | 5420 LBJ Freeway, Suite 1010 | Dallas, TX 75240 | 800.989.2299
© Vollara, LLC. All Rights Reserved
LP_OM_65-00498_VA-00493_ENGFR_0114
Part No. 65-00498 VA-00493
We: Vollara, LLC
5420 LBJ Freeway, Suite 1010
Dallas, TX 75240
Declare under our sole responsibility, that the Electronic Laundry System
Model: LaundryPure W1016A
to which this declaration relates, conforms with the following standards:
EN55014-1 EMC Requirements for Household Appliances and Similar Apparatus - Emissions
EN50014-2 EMC Requirements for Household Appliances and Similar Apparatus - Immunity
EN60950-1 2001 + 11: 2004 Safety of Information Technology Equipment - General Requirements
By conformance with the standards reference, the product meets the provisions of the EU Directives listed below:
Low Voltage Directive 2006/95/EC (applies to power supply only)
EMC Directive 2004/108/EC
RoHS Directive 2002/95/EC
WEEE Directive 2002/96/EC
Authorized by: Company: Vollara, LLC
5420 LBJ Freeway, Suite 1010
Representative: Andy Eide Dallas, TX 75240
Title: Vice President of Product Development and Research U.S.A.
Date: January 01 , 2014
CE DECLARATION OF CONFORMITY
This equipment has been tested and found to comply with
the limits for Industrial, Scientific, and Medical Equipment
(ISM), pursuant to Part 18 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television, which can
be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
Consult the Dealer or an experienced radio/TV technician
for help.
FCC DECLARATION OF CONFORMITY
Name: Vollara, LLC
Model: LaundryPure W1016A
Manufacturer: Vollara, LLC
This device complies with Part 18 of the FCC Rules.
RESPONSIBLE PARTY
Vollara, LLC
5420 LBJ Freeway, Suite 1010
Dallas, TX 75240
Ph: [phone]
Signature:
Printed Name: Andy Eide
Title: Vice President, Product Development & Research
Date: January 01 , 2014

16
LAUNDRY
PURE
LA FAÇON INTELLIGENTE ET ÉCOLOGIQUE
DE FAIRE LA LESSIVE
®
ATTENTION : Veuillez
lire attentivement
le présent manuel
pour obtenir les
indications d'utilisation
et de fonctionnement
correctes.
MANUEL DE
L' U T I L I S AT E U R

17
INFORMATIONS GÉNÉRALES
Contenu
Informations générales . . . . . . . . . . . . . . 17
Considérations d’utilisation et de sécurité . . . . . 18
Exigences liées à l’installation . . . . . . . . . . . 19
Caractéristiques du boîtier . . . . . . . . . . . . 19
Avant de commencer . . . . . . . . . . . . . . . 20
Retirez le couvercle . . . . . . . . . . . . . . . . 20
Installation des supports muraux ou des vis . . . . 21
Installation des boyaux . . . . . . . . . . . . . . 22
Branchement de l’adaptateur électrique . . . . . . 23
Avant de nettoyer votre linge . . . . . . . . . . . 25
Utilisation de votre LaundryPure . . . . . . . . . 25
Pour les machines à laver nécessitant une arrivée d’eau
chaude et d’eau froide . . . . . . . . . . . . . . 26
Indicateurs de panne . . . . . . . . . . . . . . . 27
Foire aux questions . . . . . . . . . . . . . . . .28
Des problèmes d’installation? . . . . . . . . . . . 28
Renseignements sur la garantie . . . . . . . . . .29
Déclaration de conformité . . . . . . . . . . . . 32
Présentation du produit
Le dispositif LaundryPure est conçu pour fonctionner en
conjonction avec votre machine à laver, en utilisant de l'eau
froide, et avec le dispositif ActivePure pour le nettoyage de
vos vêtements. Lorsque votre machine à laver commence à
se remplir, LaundryPure se met en marche.
Le dispositif LaundryPure est équipé d'un capteur de fuite
interne. Consultez la page 12 pour de plus amples détails.
Veuillez noter le numéro de série du votre dispositif
LaundryPure par Vollara, LLC :
Modèle n° _________________________________________
Numéro de série n°_________________________________
Veuillez prendre note du nom et du numéro de téléphone
de votre revendeur indépendant Vollara :
Nom ______________________________________________
Téléphone _________________________________________
SPÉCIFICATIONS
Adaptateur CA/CC :
• CA d'entrée : 100 - 240V ~ 50/60 Hz 0,45A
• CC de sortie : 12V
Consommation électrique :
• 0,4AC (mode veille)
• 1,3AC (fonctionnement)
Pression de l'eau :
• Minimum 20 psi jusqu'à un maximum de 75 psi
Température de l'eau :
• Utiliser de l'eau froide uniquement
(ne pas utiliser d'eau chaude)
Environnement de fonctionnement :
• 50˚F - 100˚F (10˚C - 37,8˚C) Humidité 20% ~ 70%
Dimensions :
• 17,25 in. x 9,6 in. x 4,05 in.
• 438 mm x 244 mm x 103 mm
Poids :
• 4,486 livres
• 2,04 kg

18
• Réservé à l'usage intérieur.
• Ne pas utiliser l'appareil sans le couvercle en place.
• Débrancher l'alimentation électrique avant de procéder à l'entretien.
• Ne pas utiliser de rallonge électrique ou tout autre adaptateur avec cet appareil.
• L'utilisation de cet appareil avec de l'eau à haute teneur en fer ou en dépôt n'est
pas recommandée. Si votre eau contient une teneur élevée en fer ou en dépôt,
consultez un expert en filtration de l'eau pour en savoir plus sur les options
disponibles.
• La pression dynamique maximale de l'arrivée d'eau est de 75 psi.
• Utilisez le flexible neuf inclus lors du raccordement de votre appareil
LaundryPure avec votre machine à laver. Vous devriez remplacer tous les
flexibles de machine à laver âgés de plus de 3 ans.
• Ne laissez pas votre flexible d'eau chaude non raccordé.
• Ne nettoyez pas votre LaundryPure avec des produits chimiques corrosifs, des
abrasifs ou des détergents. Utilisez un linge doux humidifié avec de l'eau.
• Ne montez pas le dispositif LaundryPure à la verticale, sous la partie supérieure
de la machine à laver ou dans un angle. Le montage incorrect peut empêcher
l'appareil de fonctionner correctement et annuler votre garantie. Consultez la
page 21 pour obtenir les instructions pour un montage correct.
• LaundryPure est uniquement destiné à l'usage résidentiel normal. Toute
utilisation dans un cadre industriel ou non résidentiel annulera votre garantie.
CONSIDÉRATIONS D'UTILISATION ET DE SÉCURITÉ
PRÉCAUTIONS DE SÉCURITÉ IMPORTANTES
• L'ensemble du câblage doit être eectué conformément au National Electrical
Code ANSI/FNPA, No. 70 - dernière révision et aux codes et ordonnances
locales, ce dans le but d'éviter tout risque inutile d'incendie, de choc électrique
ou de blessure. Le propriétaire de l'appareil a la responsabilité personnelle et
l'obligation de fournir une alimentation électrique adéquate au dispositif.
AVERTISSEMENT :
ATTENTION :
REMARQUE :
Nous avons indiqué des
avertissements de sécurité
importants dans le présent
manuel et sur votre appareil.
Lisez et respectez toujours ces
messages de sécurité.
Les avertissements de sécurité
compris dans le présent
manuel sont définis comme
suit :
Risque d'électrocution. Le
non-respect des instructions
vous expose à un danger de
mort ou à un risque de
blessure grave.
Le non-respect des
instructions expose votre
appareil et la zone
environnante à des
dégâts potentiels.
DANGER :
Si les instructions ne sont pas
suivies immédiatement, vous
vous exposez à un danger de
mort ou à un risque de blessure
grave.
Ces informations sont
fournies pour vous aider lors de
l'installation et de l'utilisation
de l'appareil.
REMARQUE :
Votre dispositif LaundryPure a été contrôlé à l'usine. Il est normal qu'une faible
quantité d'eau résiduelle se trouve à l'intérieur de l'appareil : elle est due aux
contrôles en question.
L'eau traitée par votre dispositif LaundryPure est uniquement destinée au nettoyage
de vos vêtements et n'est approuvée pour AUCUN TYPE de consommation interne
(boire, se baigner, se brosser les dents, etc.). NE buvez PAS, N'ingérer PAS et NE
consommez PAS de manière interne l'eau provenant de votre dispositif LaundryPure
ou de votre machine à laver. NE donnez PAS l'eau provenant de votre dispositif
LaundryPure à vos animaux de compagnie.
ATTENTION :

19
EXIGENCES ÉLECTRIQUES
Fusible ou disjoncteur de 100 - 240 Volt 50/60 Hz 5 AMP
(minimum)
Le LaundryPure est équipé d'une alimentation électrique
CA vers CC.
NE JAMAIS UTILISER DE RALLONGE ÉLECTRIQUE.
EXIGENCES POUR L'EAU
Une pression hydraulique dynamique située entre 20 et
75 psi est nécessaire au fonctionnement correct de votre
dispositif LaundryPure. Consultez les avertissements
ci-dessous.
CARACTÉRISTIQUES DU BOÎTIER
EXIGENCES LIÉES À L'INSTALLATION
CONSIDÉRATIONS LOCALES
Il est recommandé de ne jamais installer le LaundryPure
dans des zones où l'eau est susceptible de geler : l'appareil
conserve en eet en tout temps une certaine quantité d'eau à
l'intérieur du boîtier, du robinet et des flexibles. Cela pourrait
endommager les composants internes. Il est également
recommandé d'éviter l'installation dans des zones soumises
à une humidité élevée car le fonctionnement de l'appareil
pourrait en être aecté.
17,25” (438 mm)
9,6” (244mm)
4,05” (103mm)
La pression de l'eau d'arrivée doit être inférieure à 75 psi. Si la
pression hydraulique de votre domicile est supérieure à 75 psi, vous
devez installer un détendeur avant d'installer le LaundryPure. Le
non-respect des présentes instructions peut entraîner des fuites
d'eau, endommager votre propriété, provoquer des blessures
corporelles et annuler votre garantie. Une pression hydraulique située
entre 20 et 75 psi est nécessaire au fonctionnement correct de votre
dispositif LaundryPure. Une faible pression hydraulique peut empêcher
votre appareil de fonctionner correctement et/ou entraîner une
défaillance du robinet de votre machine à laver.
Le robinet de votre machine à laver peut également ne pas se refermer
complètement. Consultez la documentation fournie avec votre machine
à laver afin d'obtenir de plus amples
spécifications. Votre machine à laver ainsi que le robinet d'eau froide
doivent se trouver à moins de 122 cm du côté droit de l'appareil afin de
permettre l'utilisation du flexible d'arrivée fourni avec votre LaundryPure.
AFIN D'ÉVITER TOUT DÉGÂT CAUSÉ PAR LES EAUX, PROVOQUÉ
PAR LA FUITE D'UN FLEXIBLE, VEILLEZ À CE QUE LES ROBINETS
SOIENT ACCESSIBLES ET FERMEZ-LES LORSQUE LA MACHINE À
LAVER EST INUTILISÉE.
La qualité de l'eau peut aecter la performance de votre dispositif
LaundryPure. Si vous avez des doutes concernant la qualité de votre
eau, s'agissant par exemple de sa teneur en fer ou en chlore, consultez
un expert en filtration de l'eau. Ce système est conçu pour être utilisé
sur les systèmes d'eau potables uniquement.
ATTENTION :
SORTIE
D’EAU
ARRIVÉE
D’EAU

20
AVANT DE COMMENCER
RETIREZ LE COUVERCLE
1
Retirez les deux (2) vis du couvercle situées au bas
de l’appareil.
2
Retirez les deux (2) vis (non indiquées)
situées sur la partie supérieure du LaundryPure.
3
Pour retirer le couvercle, tirez sur la partie
supérieure de l’appareil et soulevez le couvercle.
• Retirez votre nouveau dispositif LaundryPure de son emballage.
• Inspectez l’appareil à la recherche du moindre signe de dégât
dû au transport.
REMARQUE :
Votre dispositif LaundryPure a été contrôlé à l’usine. Il est normal
qu’une faible quantité d’eau résiduelle se trouve à l’intérieur de
l’appareil : elle est due aux contrôles en question.
Vis
