Volt Polska OPTI ECO User manual

MANUAL
VOLT POLSKA Sp. z o.o.
ul. Grunwaldzka 76
81-771 Sopot
www.voltpolska.pl
ECONOMIC
CIRCULATING
PUMPS
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

1. INTRODUCTION
Content of this manual is intended to facilitate the operation and use of
domestic circulators as much as possible. It contains information on the safe installation
and use of the product. It is recommended that you read the instructions carefully, as the
lack of proper knowledge regarding the assembly and operation of the device may
cause damage to the pump or personal injury caused by moving pump parts, leaking
liquids or improper electrical connections.
Pumps are always checked thoroughly before leaving the factory. For some
models, individual parts or accessories may be packed separately, so make sure that all
parts of the device are delivered at the time of purchase, and check that there are no
signs of damage.
ATTENTION: Before purchasing, carefully check the pump for signs of
damage. All types of mechanical damage can cause health and life risks and are not
covered by the warranty.
2. USAGE
OPTI EKO pumps are intended for forcing circulation in heating installations.
They can be used in single and two-pipe installations as well as when installing floor
heating. The pump is equipped with a system that automatically adjusts the pump
characteristics to the installation in which it works.
Thanks to the permanent magnet pump design and the electric motor powered
by the frequency converter, the pump can adapt its operation to the current demand,
thus reducing energy losses. Its design and functional features meet the latest
standards (EuP Directive), and the energy efficiency ratio EEI is less than 0.2 or 0.23
(depending on the model).
3. TECHNICAL PARAMETERS
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
Input voltage 230 V, -10% ÷ +6%, 50Hz
Relative humidity 95%
Sound pressure level Lower than 43 dB
Ambient temperature 0ºC ÷ +40ºC
Liquid temperature +2ºC ÷ +100ºC
Power
Qmax
Hmax 4,5m (ECO 25-40/180 ) / 6m (OPTI 25-60/180 )
Max. Working pressure 10bar
Protection IP42
Depending on the model, check the nameplate

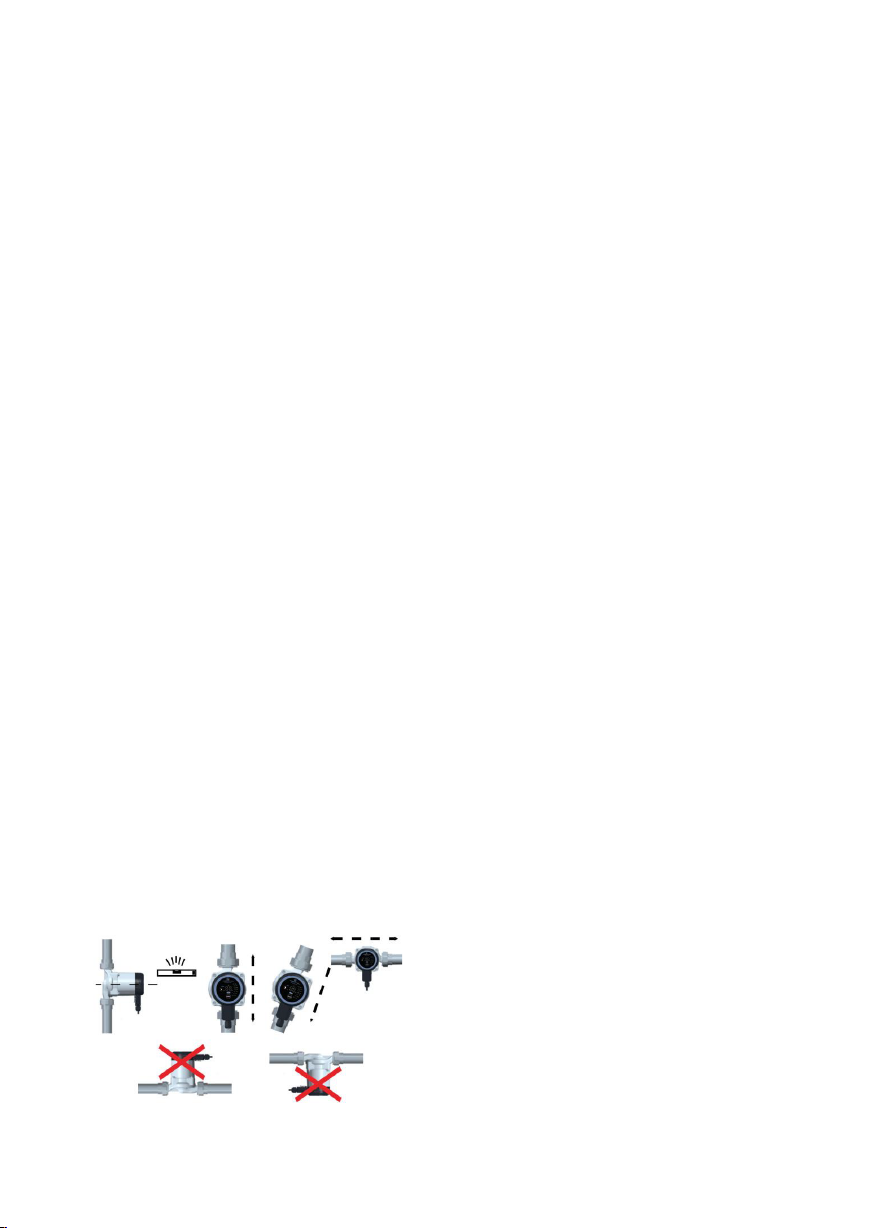

Correct installation of the pump:
NOTE: Pumps are not suitable for pumping aggressive, flammable, explosive, high
viscosity liquids containing mineral oils, solid particles and fibrous impurities. Damage
to the pump caused by pressing the above-mentioned types of liquids is not subject to
warranty repairs.
4. PUMP INSTALLATION
Device should be used as intended. Each time before installing the pump,
check whether its condition allows operation in a way that does not endanger your
health or life. There are a few basic rules to remember when installing, operating and
operating:
źAll installation work must be carried out only by specialized personnel
źAll repairs and maintenance should be carried out only after disconnecting the pump
from the power supply
źBefore dismantling, drain the system or close the shut-off valves at the pump inlet
and outlet, and wait until the temperature of the elements drops below 50 ° C.
źIf individual components need to be replaced, please contact the manufacturer's
service.
źAny amendments introduced without obtaining authorization for this release the
Guarantor from any kind of liability.
źAfter completing the work, switch on all protective and safety devices again
Pump should be installed in a straight section of the installation. Shut-off valves
must be fitted on the suction pipe as well as the supply pipe. Please note that the system
pressure does not exceed the permissible operating pressure of the pump and that the
required flow direction is in line with the arrow on the pump body.
Pump should be installed in such a place that there is easy access to it (for
venting). The water in the installation must be treated and not silted under any
circumstances. The system should be filled with liquid and vented.
The pump is self-venting and does not need to
be vented before start-up. Air collected in the
pump can cause noise. This noise stops after
a few minutes of pump operation.
The pump is quickly vented by briefly starting
the pump in gear III, depending on the type
and size of the installation. The pump will be
vented when the noise level is significantly
reduced and it will be set according to the
instructions in the manual.
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

Terminal box settings can be changed as follows:
 Loosen the screws connecting the motor to the pump housing
 Turn the engine to the desired position
 Tighten the screws again
Selection of pump setting depending on the type of installation. Factory setting = AUTO
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
Recommended Alternative
A Floor heating AUTO
B Two-pipe installation AUTO
C One-pipe installations
Lowest characteristics at
proportional pressure control (PP1)
The highest characteristics when regulating
proportional pressure (PP2)
Installation type
Poz.
Pump setting
Highest characteristics w ith constant pressure control (CP2)
or low est characteristic at constant pressure control (CP1)

AUTO (underfloor heating or two-pipe systems)
AUTO function (factory set) adapts the pump operating parameters to the current
heating system demand. Since the pump operating parameters change slowly, it is
recommended to leave the pump with the AUTO function activated before making changes to the
pump settings, for at least a week. In AUTO mode, the pump stores the last operating parameters.
If you select the AUTO function again, the pump will return to the last settings in AUTO mode.
Pump has the option of selecting automatic night reduction. Factory setting for
automatic night setback: inactive.
Following conditions must be met to ensure proper operation of the automatic night setback:
Pump must be mounted on the supply pipe. Automatic night setback does not work if the
pump is mounted on the return pipe.
The installation (boiler) must be equipped with automatic liquid temperature control. Automatic
night reduction is activated by pressing the night reduction button.
From the moment the automatic night reduction is activated, the pump will automatically
change its performance between normal operation and night reduction. Changing the operating
mode between night reduction and normal operation depends on the temperature of the liquid
flowing in the pipe. The pump automatically switches to night reduction mode when the sensor
registers a drop in liquid temperature by more than 10-15 ° C in about 2 hours. The temperature
drop must be at least 0.1 ° C / min. The return to normal operation will take place without a time
delay if the medium temperature rises by approx. 10 ° C.
Operation with automatic night reduction is not possible if the pump has been set to
constant speed I, II or III.
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
AUTO
PP1
PP2
CP1
CP2
III
II
I
Informs about active automatic night reduction
DESCRIPTION
Automatic pump adjustment function
Lowest characteristic curve with proportional pressure control
Highest characteristic curve with proportional pressure control
Lowest characteristics at constant pressure control
Highest characteristics at constant pressure control
Constant characteristics, gear III
Constant characteristics, gear II
Constant characteristics, gear I

5. ELECTRICAL INSTALLATION - CAUTION
ll installation work must be carried out only by specialized personnel. VOLT
POLSKA is not responsible for any damage to persons or property caused by the
interference of persons who do not have the appropriate permissions.
The electrical connection must be carried out according to the following diagram:
6. STORAGE AND MAINTENANCE
User is obliged to supervise the technical condition of the pump, observing all
safety rules mentioned above. The pump requires no special maintenance during
operation. The desired pump performance characteristics are obtained by modifying
the engine speed. Modifications can be made while the pump is running, using a switch
on the terminal box.
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99

[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
7. WARRANTY
When sending the device to the service, the user is obliged to empty the pump of
residual water or other liquids, as well as to protect the device against any damage that may occur
during transport. Any damage caused by the customer is not subject to warranty repair.
WARRANTY DOES NOT COVER:
źdamage resulting from improper transport by the purchaser's means, and any mechanical
damage caused by the use of non-original spare parts and as a result of improper use or the
instructions in the operating manual,
źdamage resulting from improper storage or maintenance,
źdamage caused by pumping sand,
źdamage caused as a result of connecting to the electrical installation that does not meet the
conditions contained in the operating instructions, or does not comply with applicable power
standards.
źdamage caused as a result of tampering with the product of unauthorized persons, as well as
any additional alterations to the repairs or changes (alterations) by unauthorized persons
(e.g. disassembly of the plug).
źdamage caused by external forces, the cause of which is outside the device covered by the
warranty (e.g. frost damage, random accidents, natural disasters, force majeure, etc.)

WARRANTY CARD
FILL IN CASE OF NEEDS
(*) Delete as appropriate
I agree to the paid repair of the pump due to:
(*) expiration of the warranty period / damage caused by the fault of the user
Before starting the repair, the service will inform you by phone about the exact costs of the
repair.
Please attach a copy of the purchase document (receipt or FV) to the complaints sent and, if
possible, a printed and completed complaint form from www.voltpolska.pl
Full and current regulations of service repairs can be found on our website
www.voltpolska.pl
[email protected] (58) 341-05-06 | [email protected] (58) 341-38-80 | [email protected] (22) 100-42-99
DAT E OF PURCHASE
SHIPMENT ADDRESS
SIGNATURE
DAM AGE DESCRIPT ION
SERVICE INFORMATION
