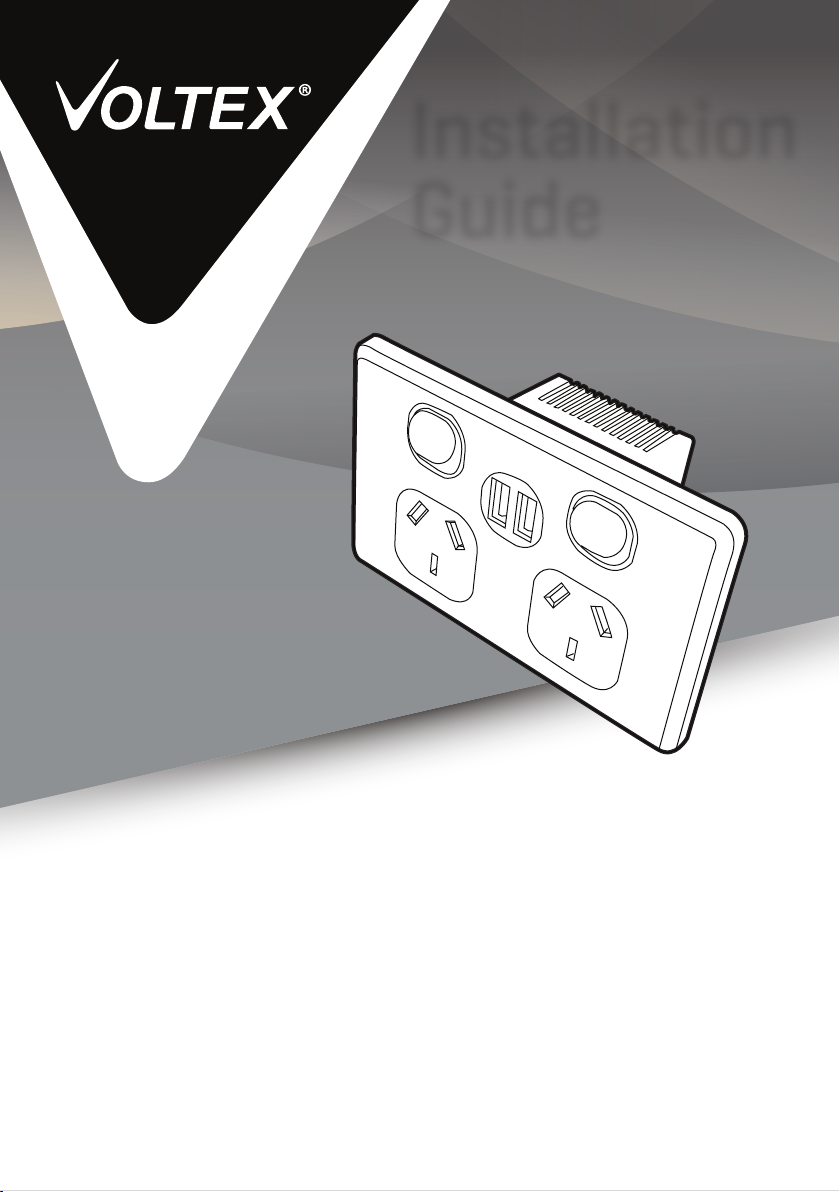

Voltex SLPP2HUSB User manual

Installation
Guide
Double Power Outlet
with Dual USB Outlets for General Use
SLPP2HUSB
SLPP2HUSBB
CPP2HUSB
CPP2HUSBB
SLPP2HUSBS
SLPP2HUSBBS
CPP2HUSBS
CPP2HUSBBS
II121018-LG

IMPORTANT INSTALLATION, USER & WARRANTY INSTRUCTIONS
GENERAL SAFETY WARNINGS
© Voltex Electrical 2019. All Rights Reserved.
®
Thank you for your purchase of the Voltex Classic /Shadowline Double Power Outlet
with Dual USB Outlet. Please read these instructions carefully before installing and
using the accessory. Keep the instructions handy for future reference.
IMPORTANT: This accessory must be installed in accordance with national and
local council building regulations, and the Australian and New Zealand wiring rules
AS/NZS 3000 latest edition thereof.
ALL ELECTRICAL WORK MUST BE CARRIED OUT BY A LICENSED ELECTRICAL
CONTRACTOR OR ELECTRICIAN.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE ACCESSORY.
To reduce the risk of fire, electrical shock or injury to persons or property:
1. Use this accessory only as described in this manual. Any other use not
recommended by Voltex Electrical may cause fire, electric shock, or injury to
persons and void the warranty. If you have questions, please contact Voltex
Electrical at first.
2. Always operate the accessory from a power source of the same rated voltage,
frequency and power input as indicated on the accessory identification plate.
3. This accessory is intended for household use and similar applications only. It is
not suitable for use in an environment heavily laden with dust.
4. This accessory is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the accessory by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the accessory.
5. Do not operate after the accessory malfunctions, is dropped or appears
damaged in any way.
6. There are no user-serviceable parts inside the accessory. Contact your local
electrician if servicing or maintenance is required.
7. This accessory is designed for indoor use only.

© Voltex Electrical 2019. All Rights Reserved.
®
8. This accessory should not be installed in areas exposed to constant vibration,
temperature fluctuations, or areas of high humidity.
9. Make sure that the power is OFF before installation.
10. The accessory must be properly connected to the protective earthing conductor
in the installation wiring of the installation.
11. Carefully follow the care instructions when cleaning the accessory.
Power Outlet
250Va.c.; Max 10A
USB
Input: 240Va.c.; Max. 0.6A; Output: 5Vd.c.; 2 x 2.1A
Standby power consumption: Less than 0.15W
Suitable for general use
Ambient temperature +5°C to +40°C
1. Remove all packaging before commencing installation.
gniriwEROFEBdeggatdnadekcol,ffodenrutneebsahtiucricylppusehterusnE.2
the accessory.
3. Fit appropriate mounting hardware to the wall allowing for the minimum
mounting depth as specified.
4. Terminate the Active, Neutral and Earth wire from the supply circuit into the
appropriate terminals.
5. The product must be connected to a supply circuit protected by an appropriate
isolating device.
SPECIFICATIONS
INSTALLATION
Voltex Product Code Product Description
SLPP2HUSB Shadowline Power Point 2 Socket 2 Switch, 2.1x 2 USB White
SLPP2HUSBB Shadowline Power Point 2 Socket 2 Switch, 2.1x 2 USB Black
CPP2HUSB Classic Power Point 2 Socket 2 Switch 2.1x 2 USB White
CPP2HUSBB Classic Power Point 2 Socket 2 Switch 2.1x 2 USB Black
SLPP2HUSBS Shadowline Power Point 2 Socket 2 Switch, 2.1x 2 USB White, NZ
SLPP2HUSBBS Shadowline Power Point 2 Socket 2 Switch, 2.1x 2 USB Black, NZ
CPP2HUSBS Classic Power Point 2 Socket 2 Switch 2.1x 2 USB White, NZ
CPP2HUSBBS Classic Power Point 2 Socket 2 Switch 2.1x 2 USB Black, NZ

© Voltex Electrical 2019. All Rights Reserved.
®
WARNING:
This is a solid-state electronic device.
A low reading will be obtained during Insulation Resistance test (Megger test).
Please indicate at the switchboard which circuit this accessory has been
installed on.
The USB outlet is designed for charging batteries in rechargeable USB devices only.
Any other application can damage the USB supply unit or the attached equipment.
The dual USB outlet must not be connected to a total load greater than the rated
load of 2 x 2.1A.
Never insert anything except a USB cable plug in the USB outlet. In the event of a
short-circuit condition, the fuse inside the USB supply unit will blow and the supply
unit will be rendered inoperative.
The USB outlet is not meant to provide power to operate electronic devices. Do not
plug USB flash drives or disk drives into the USB Outlet.
Electrical installations periodically receive transient over voltages. The USB
outlet has been designed to minimise the effect of such voltages on connected
equipment. It may not give full protection for extreme over voltage transients such
as those resulting from a close lighting strike.
Regular cleaning of the accessory is recommended. To clean the accessory:
1. WARNING: Ensure the accessory is switched off from the mains power supply
first.
2. The decorative cover can be simply removed and wiped over using a damp cloth.
3. The faceplate and aperture panel may be cleaned with a dry cloth.
CAUTION: To prevent damage to the accessory do not use alkaline cleaning agents
or solvents when cleaning, use a soft cloth and a mild detergent.
USE
CARE INSTRUCTIONS

Voltex Electrical reserves the right to make improvements or changes to all
information, drawing, data etc contained and/or described herein at any time and
at its own discretion without prior notice.
Voltex warrants this accessory against defective workmanship and faulty materials
for seven (7) years from the original date of purchase. Please retain proof of
purchase and evidence of installation by a licensed electrician.
Voltex undertakes, at its option, to repair or replace, free of charge, each accessory
or part. Contact Voltex Electrical on 1300 722 275 (Australia) or 0800 55 66 33
(New Zealand) for any warranty claims.
AUSTRALIAN AND NEW ZEALAND STANDARDS
WARRANTY & SERVICE
Regulation Standard Title
Safety
AS/NZS 3112 with
AS/NZS 3100
Approval and test specification -
Plugs and socket-outlets
AS/NZS 61558.2.16 with
AS/NZS 61558.1
Power Transformers - Safety -
Switch mode power supply units
EMC AS/NZS CISPR 32
Electromagnetic compatibility of
multimedia equipment – Emission
requirements
®
P: 1300 722 275 E: [email protected]
