1977 Volvo 242 244 245
1 9 7 7
VOLVO
242, 244, 245
Notice to Owner: Your Volvo has been built to comply with all North American Safety and anti-
pollution regulations and evidence of this can be verified from the certification label on the left wheel
housing in the engine compartment. For further information regarding these regulations, please consult
your local dealer.
Contents
(Index see page 91)
DESCRIPTION Page
Introduction 2
Keys 3
Instruments and controls 4
Instruments 6
Warning lights 7
Ignition switch, parking brake 8
Lighting 9
Turn signals 10
Wipers 11
Clock, cigarette lighter, ash tray 12
Tailgate window wiper, electrically heated rear window, hazard warning
flasher 13
Heating and ventilation 14
Air conditioning 16
Front seats 18
Seat belts 20
Doors and locks 22
Rear doors, trunk lid 23
Hood 24
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (1 of 4)12/22/2006 10:07:28 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Vent windows, rear view mirrors 25
Interior light, sun roof, fuel tank cap 26
Rear seat, model 245 27
Tailgate, model 245 28
START AND DRIVING
Breaking in 31
Starting the engine 32
Gearshift positions 33
Automatic transmission 34
Emergency towing 36
Towing information 37
Trailer hauling 38
Note 39
MAINTENANCE SERVICE
Maintenance services 41
Gas station checks 42
Engine compartment 43
Maintenance schedule 44
Engine oil 48
Cooling system 49
Emission control system 50
Transmission oils 56
Rear axle, power steering, brake fluid 57
Lubrication 58
Coolant 59
Note: alternator 60
Replacing bulbs 60
Fuses 64
Wheels and tires 65
Wheel changing 66
Washing, cleaning 68
Cleaning, anti-rust treatment 69
Paint touch-up 70
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (2 of 4)12/22/2006 10:07:28 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Long distance trips 72
Cold weather 73
Service diagnosis 75
Specifications 80
Consumer information 86
Index 91
pg. 2 General Information
pg. 3 Keys
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (3 of 4)12/22/2006 10:07:28 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Write the key number codes on the inside cover page.
In the event the original keys are lost, duplicates can be ordered from your Volvo dealer.
Top of Page
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_00.htm (4 of 4)12/22/2006 10:07:28 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
1 9 7 7
VOLVO
242, 244, 245

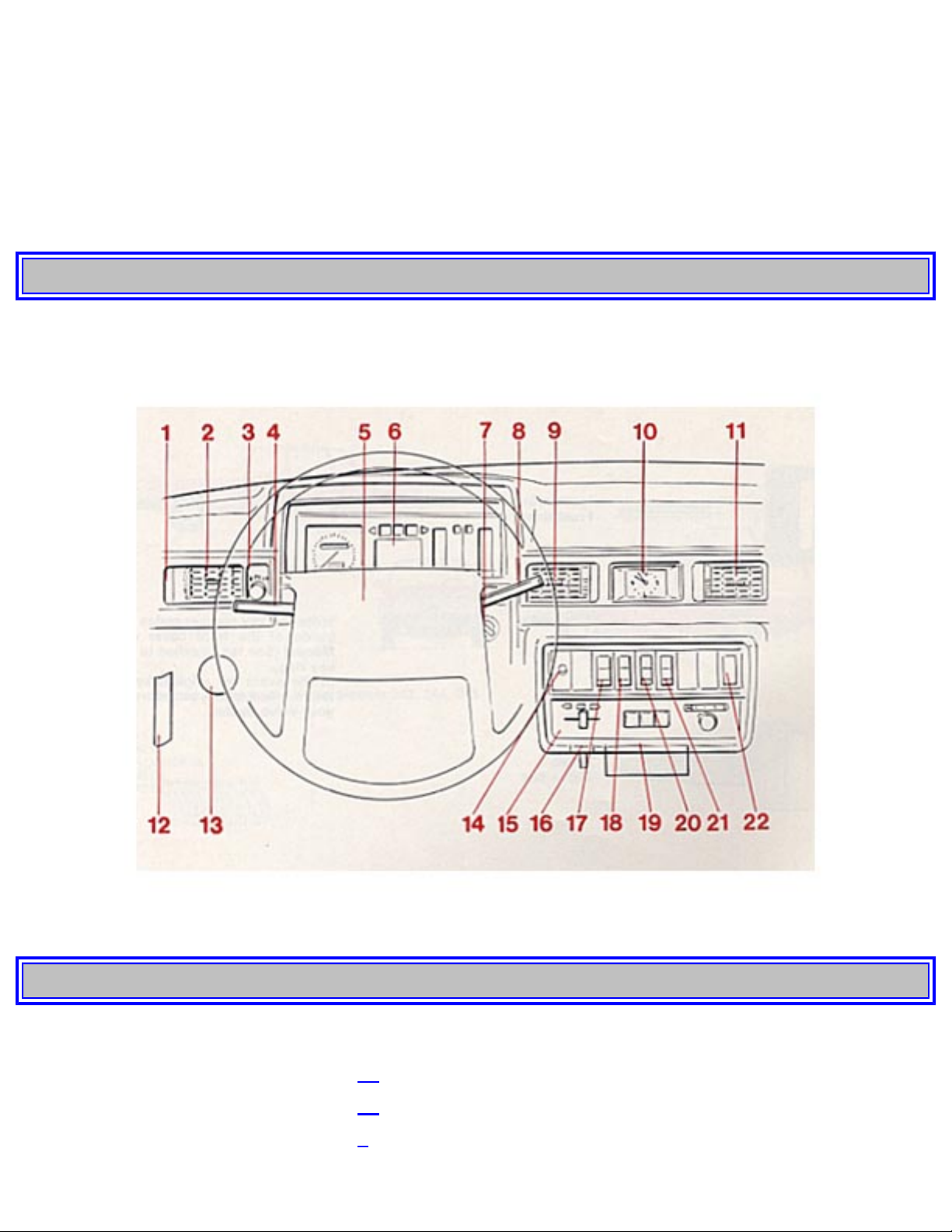

pg. 4 Instruments and controls
pg. 5 Instruments and controls
See page
1 Defroster outlet, side window14
2 Fresh air outlet15
3 Headlights, parking lights9
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (1 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
4 Turn signals10
5 Horn-
6 Instruments6
7 Ignition switch/steering wheel
lock8
8 Wiper/washer11
9 Fresh air outlet15
10 Clock12
11 Fresh air outlet15
12 Fuse box64
13 Hood release handle24
14 Instrument lights9
15 Heating and ventilation14
16 Cigarette lighter12
17 Tail gate window wiper13
18 Electrically heated rear window13
19 Ash tray12
20 Air conditioning16
21 Hazard warning flasher13
22 Seat belt reminder light20
Pages 6-16 will give you a detailed description of the vehicle's instruments and controls.
Note that vehicles may be differently equipped, depending on special legal requirements, etc.

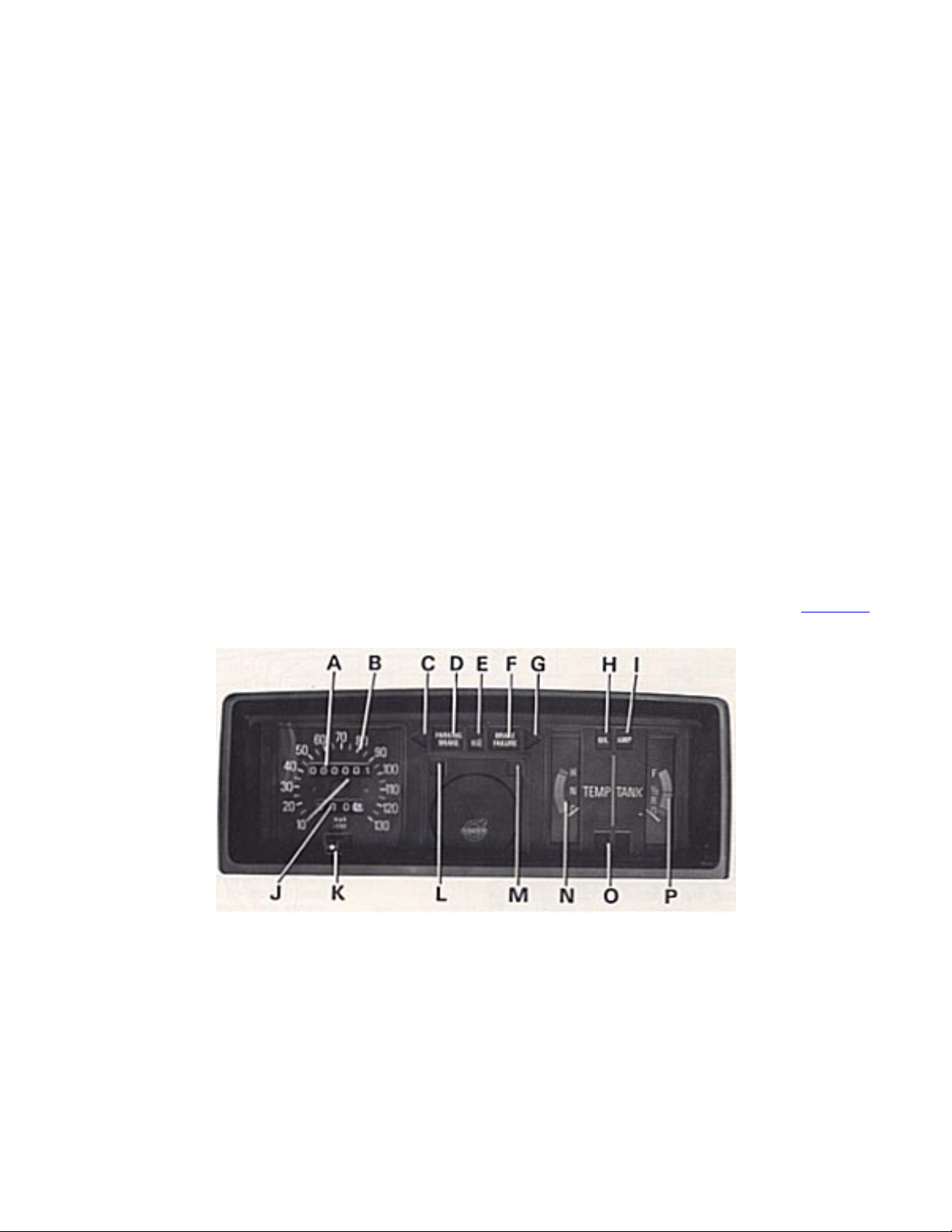

pg. 6 Instruments
A Odometer
Mile reading.
B Speedometer
C Left turn signal indicator (green)
D Parking brake reminder light (red)
E High beam indicator (blue)
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (2 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
F Brake failure warning light (red)
G Right turn signal indicator (green)
H Oil pressure warning light (red)
I Alternator warning light (red)
J Trip odometer
(last figure represents 1/10 mile)
K Trip odometer reset knob
Push in to reset
L Reminder light, EGR Service (red)
M Bulb failure warning light (yellow)
N Temperature gauge
The gauge pointer should normally remain inside the green range.
If the pointer enters the red range repeatedly, check coolant level and fan belt tension, see page 49.
O Overdrive indicator light (green)
Lights when overdrive is engaged.
P Fuel gauge
The fuel tank capacity is approx. 60 liters=15.8 US gals/13.2 Imp. gals
F Full
1/2
R Reserve
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (3 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
O Empty
The red range from R to O represents approx. 8 liters=2.5 US gals/2 Imp. gals.
pg. 7 Warning lights
The warning lights described on this page should never be on
when driving
These lights will come on when the ignition key is turned on, before the engine is started. The lights
should go off once the engine has started. (However, the parking brake reminder light will not go off
until the parking brake is fully released.)
D Parking brake reminder light (red)
This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated
between the front seats.
F Brake failure warning light (red)
If the light comes on while driving and the brake pedal can be depressed further than normal, it is an
indication that one of the brake circuits is not functioning. Proceed cautiously to a Volvo dealer for an
inspection of the brake system.
H Oil pressure warning light (red)
If the light comes on while driving, the oil pressure is too low.
Stop the engine immediately and check the engine oil level, see page 48.
After hard driving, the light will come on occasionally when the engine is idling. This is normal,
provided it goes off when the engine speed is increased.
I Alternator warning light (red)
If the light comes on while the engine is running, check the tension of the alternator drive belt as soon as
possible. See page 49
NOTE:
This warning light is illuminated if the alternator is not charging. However, control lights, parking
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (4 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
brake, brake failure, EGR, and bulb failure will be illuminated at the same time due to the design
of the system.

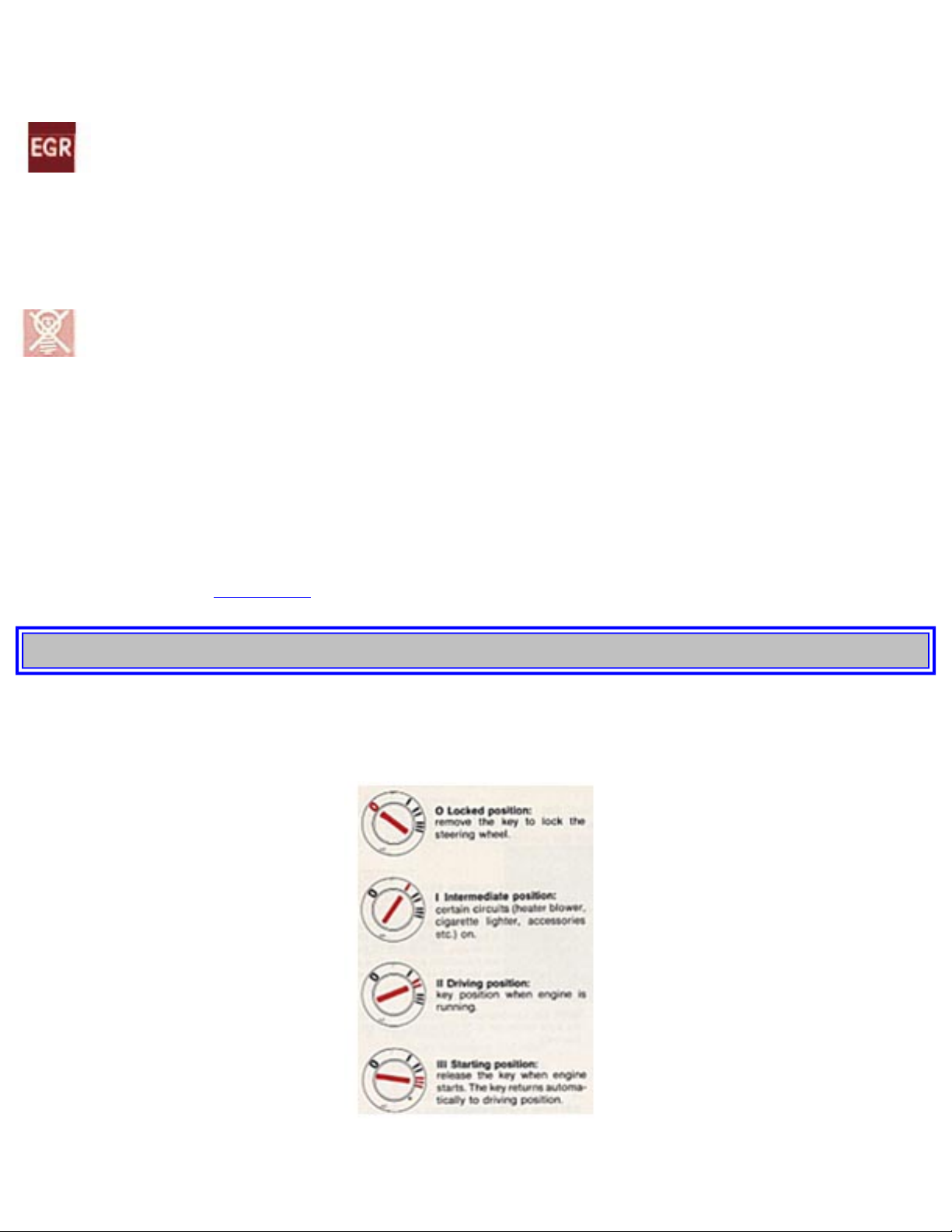

L Reminder light for service of EGR system or oxygen sensor (red)
If the vehicle is equipped with exhaust gas recirculation or oxygen sensor, this light will come on at
15,000 mile intervals, as required by the U.S. Environmental Protection Agency. This is a reminder to
have the EGR valve or the oxygen sensor serviced. The light will stay on until reset by servicing dealer.
M Bulb failure warning light (yellow)
The light will come on if any of the following bulbs are defective:
one of the lower beams
one of the tail lights
one of the license plate lights
one of the brake lights (when the brake pedal is depressed).
Bulb replacement, see page 60-63.
pg. 8 Ignition switch, parking brake
Ignition switch/steering wheel lock
The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (5 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
to free the ignition key.
A buzzer will sound if the ignition key is in the ignition lock and the front door on the driver's side is
open.
The buzzer goes off when the front door is closed.
Parking brake (hand brake)
The lever is situated between the front seats. The brake is applied to the rear wheels.
Parking brake reminder light
The reminder light PARKING BRAKE on the instrument panel comes on whenever the parking brake
lever is not fully released and the ignition is on.
pg. 9 Lighting
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (6 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Headlights and position lights
All lights off
Parking lights on
Headlights and parking lights on
Switch from upper to lower beams, and vice versa, by moving the turn signal switch lever on the left
side of the steering column towards the steering wheel. The lights can be used without switching on the
ignition key.
Instrument light rheostat
Clockwise - brighter
Counterclockwise - dimmer.
pg. 10 Turn signals
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (7 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245

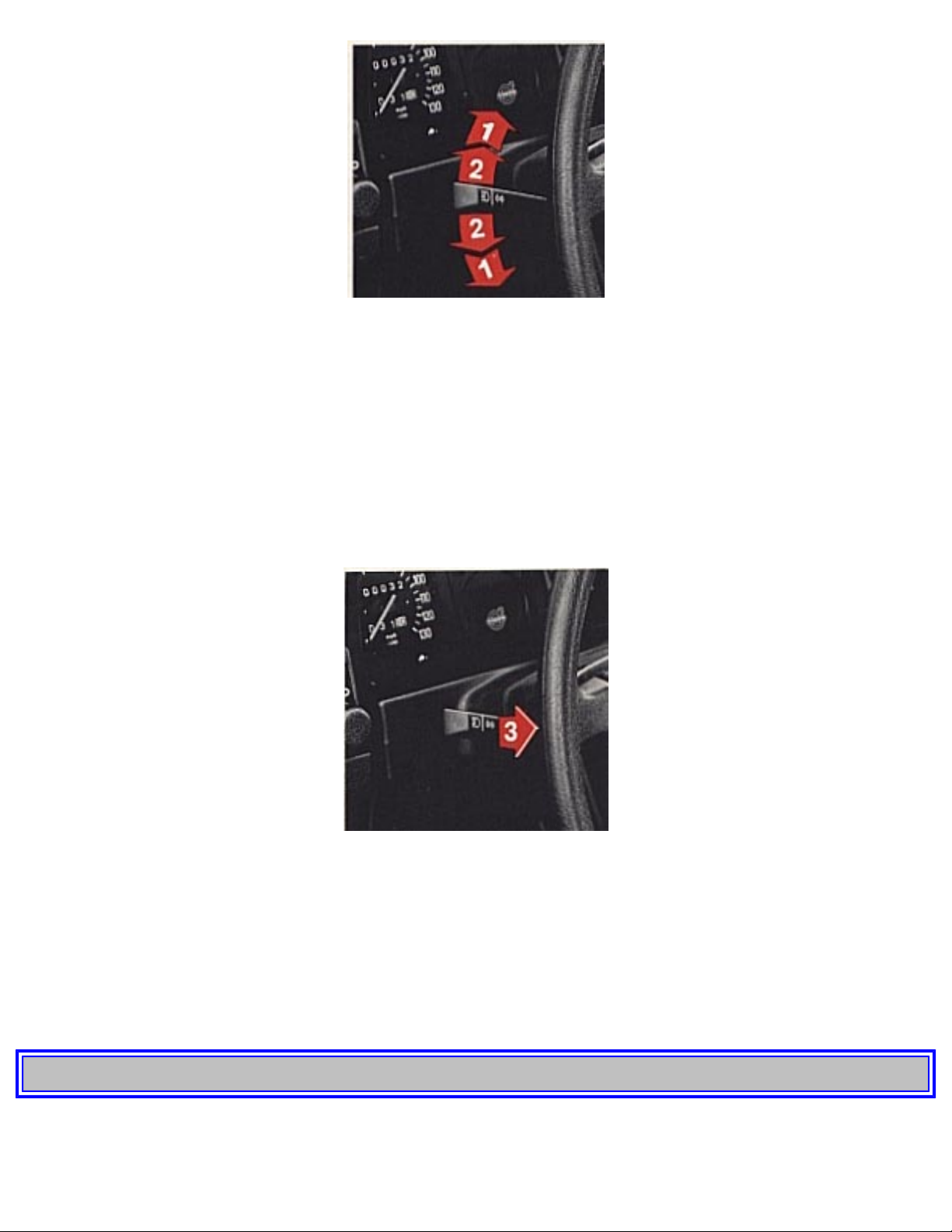

Turn signals
1 Signal lever engaged for normal turns.
2 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by
moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral
position when released.
3 High and low beam switching (headlights on).
Move the lever towards the steering wheel and release it.
3 Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will be on until the lever is
released.
pg. 11 Wipers
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (8 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Wiper/washer
1 "Single stroke" position.
Switch returns automatically when released.
2 Wipers, low speed.
3 Wipers, high speed.
4 Washer.
Adjusting washer nozzles
The nozzle may be adjusted by inserting a needle into the metal insert and rotating the nozzle.
The washer fluid reservoir is located in the engine compartment and holds approx. 6 liters =1.6 US
gals /1.3 Imp gals.
pg. 12 Clock, cigarette lighter, ash tray
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (9 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Clock (some models only)
To reset the hands, push in the reset knob and turn.
Cigarette lighter
To operate, depress the knob fully. When the knob automatically releases, the cigarette lighter is ready
for use.
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (10 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Ash trays
To remove the ash trays depress the center spring and remove.
pg. 13 Tailgate window wiper, el. heated rear window, hazard warning flasher
Tailgate window wiper/washer, (model 245) (17)
0 Off
1 Wiper and washer combined operating.
Move the lever to the first stop and hold it there.
2 Tailgate wiper only
The fluid reservoir is located in the concealed storage area under the floor on the right side of the rear
cargo area. Reservoir capacity is approx. 1.5 qts.
Electrically heated rear window (18)
0 Off
1 On
Switch off the rear window heater when the glass is clear of mist or frost. Otherwise the battery will be
unduly strained.
Do not place items against the inner surface of the rear window that may damage the printed circuit. Do
not scrape the inner surface of the rear window glass with a hard object, otherwise damage to the printed
circuit will occur.
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (11 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Hazard warning flasher (21)
0 Off
1 On
Four-way flashing is used to indicate that the vehicle is at a standstill and has become a traffic hazard
either during daylight or at night.
Note: Regulations regarding the use of the hazard warning flasher may vary from state to state.
pg. 14 Heating and ventilation
Heating system
1 TEMP
Left = cool
Right = warm
2 FLOOR
Out = no air to floor
In = full flow of air to floor
3 DEF (defrost)
Out = low volume air flow to defroster
In = full flow
4 REC (recirculation)
To be used only for cars equipped with air conditioning.
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (12 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Do not use for heating.
5 FAN (Blower motor)
0 = off
1 = low speed
2 = medium speed
3 = high speed
6 Ventilation outlets
The air flow through the ventilation outlets is not influenced by the position of the FLOOR (2) and DEF
(3) controls.
pg. 15 Heating and ventilation
How to . . .
. . . obtain max. heat
1 TEMP >>> WARM
2 FLOOR depressed
5 FAN >>> 2 (or 3)
6 All outlets halfway open.
. . . remove condensation
1 TEMP >>>WARM
3 DEF depressed
5 FAN >>> 2 (or 3)
Always keep front external inlet grille (in front of the windshield) clear of obstructions (snow, ice, etc.).
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (13 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
Fresh air outlets
A Closed
B Open
C Directing air flow horizontally
D Directing air flow vertically
Contents | Top of Page
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01a.htm (14 of 14)12/22/2006 10:07:29 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245
pg. 16 Air conditioning
Air conditioning (optional)
How to use the air conditioner:
1 FAN
Position 3 for rapid cooling.
2 AIR COND
Push in the button to start the compressor.
3 REC (Recirculation)
Push in for rapid cooling.
4 TEMP
Rotate to COOL for rapid cooling, then set to desired temperature.
To obtain rapid cooling, all windows must be closed. Buttons FLOOR and DEF must be released.
The air output will then be discharged through the four dash outlets which should be fully open.
Note: For rapid removal of condensation from inside glass surfaces, the air conditioner can be switched
on. The air conditioner will dehumidify the air inside the vehicle.
Have your Volvo dealer check the system for correct operation yearly.
pg. 17
This page left intentionally blank.
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (1 of 16)12/22/2006 10:07:30 PM

WWW.MANUALS.WS
WWW.MANUALS.WS
1977 Volvo 242 244 245

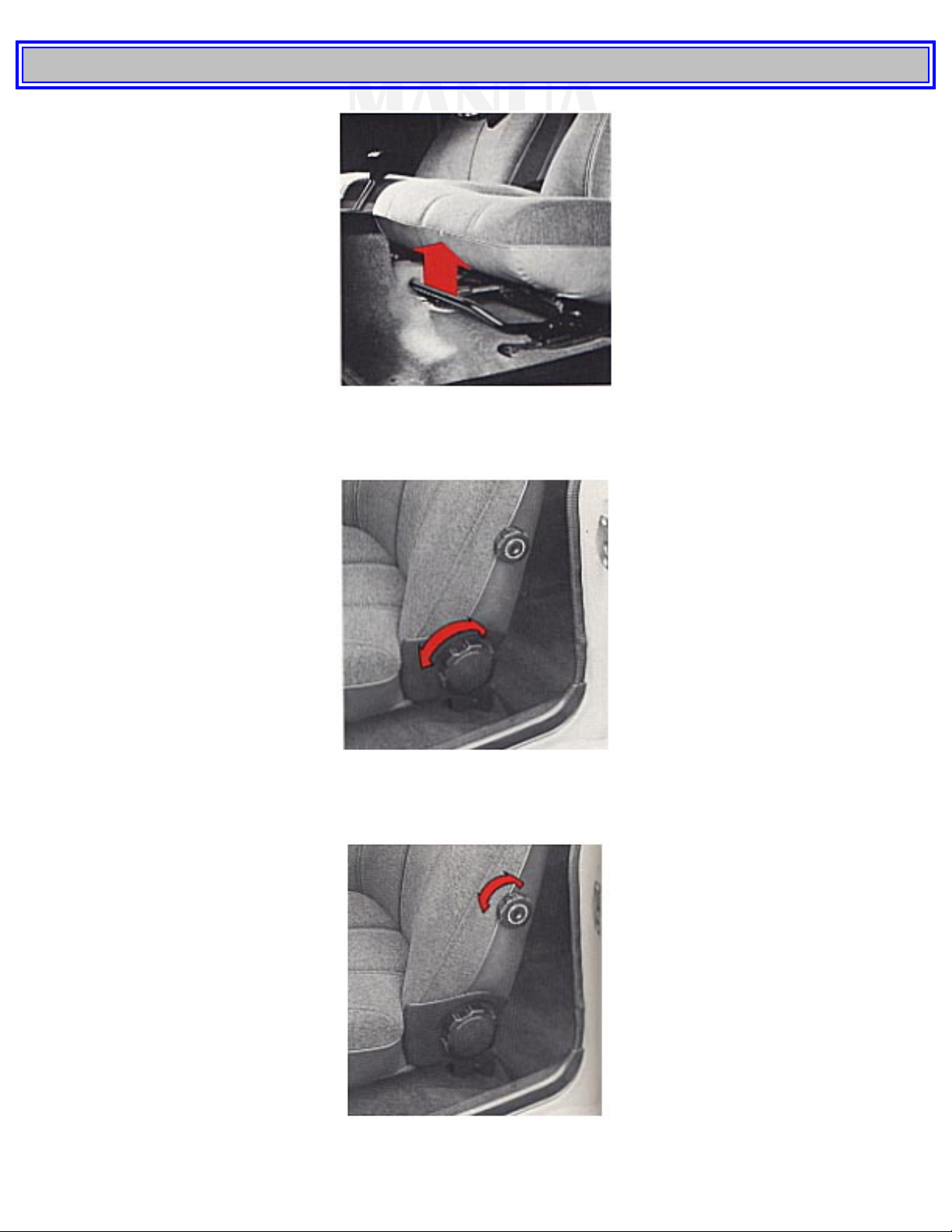

pg. 18 Front seats
Horizontal seat adjustment
Seat back inclination adjustment
Lumbar support adjustment
file:///K|/ownersdocs/1977/1977_242_244_245/77242244245_01b.htm (2 of 16)12/22/2006 10:07:30 PM
