pg. 2 This manual deals with the operation and care of your Volvo
Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe
driving in your Volvo, an automobile designed with your safety and comfort in mind. To ensure your
satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions,
operating instructions and maintenance requirements/recommendations in this manual. We also urge you
file:///K|/ownersdocs/1989/1989_780/89780_00.htm (1 of 4)12/30/2006 8:24:17 AM

1989 Volvo 780
and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course,
please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that
could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the
certification labels attached to the door opening sheet metal and on the left wheel housing in the engine
compartment. For further information regarding these regulations, please contact your dealer.
pg. 3 Seatbelts: "Something We Believe In"
Despite our strongest recommendation, and your best intentions, not wearing a seatbelt is like believing
"it'll never happen to me!". Volvo urges you and all adult occupants of your car to wear seatbelts and
ensure that children are properly restrained, using an infant, car or booster seat determined by age,
weight and height.
Fact: In every state, some type of child-restraint legislation has been passed. Additionally, some states
are seriously considering, or have already made it mandatory for occupants of a car to use seatbelts.
So, urging you to 'buckle up' is not just our recommendation - its becoming the law! The few seconds it
takes to buckle up may one day allow you to say, "Its a good thing I was wearing my seatbelt."
pg. 4 Introduction
This Owner's manual provides information on driving and maintaining your Volvo
It should be noted that there are certain differences among model versions and market requirements;
file:///K|/ownersdocs/1989/1989_780/89780_00.htm (2 of 4)12/30/2006 8:24:17 AM

1989 Volvo 780
thus, you may find features described and/or pictured in this manual that do not appear on your car.
Should you require more detailed information with regard to adjustments or repairs please contact your
Volvo dealer.
Do not export your Volvo to another country before investigating that country's applicable safety
and exhaust emission requirements. In some cases it may be difficult or impossible to comply with
these requirements. Modifications to the emission control system(s) may render your Volvo not
certifiable for legal operation in the U.S., Canada, and other countries.
pg. 5 Keys
The key number codes are stamped on a separate tag supplied with the keys. This tag should be
separated from the key ring and kept in a safe place.
The double-sided tape on the back of the tag can be used to secure it safely.
In the event the original keys are lost, duplicates may be ordered from your Volvo dealer.
The central locking system is described in detail in section "Door and locks".
file:///K|/ownersdocs/1989/1989_780/89780_00.htm (3 of 4)12/30/2006 8:24:17 AM

1989 Volvo 780
Top of Page
file:///K|/ownersdocs/1989/1989_780/89780_00.htm (4 of 4)12/30/2006 8:24:17 AM

1989 Volvo 780
1 9 8 9
VOLVO
780
Instruments and controls
pg. 6 Instruments, Switches and controls
pg. 7 Instruments, Switches and controls
1 Air louver 21
2 Headlights, parking lights 14
3 Turn signals, Cruise Control 14-
16
4 Hazard warning flashers 14
5 Instruments 8
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (1 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
6 Wiper/washer 15
7 Air louvers 21
8 Heating and ventilation 21
9 Audio cassette/tuner 13
10 Cigarette lighter 18
11 Ash tray 18
12 Electrically-heated driver's seat 19
13 Electrically-heated passenger seat 19
14 Parking brake 18
15 Rear fog lamps 17
16 Fog lights 17
17 Power antenna 20
18 Fuel cap cover 43
19 Horn -
20 Starting switch/steering wheel lock 15
21 Electrically operated moon roof 27
22 Rear window/rear view mirror
demister 19
23 Hood release handle 37
24 Electrically operated windows 20
24 Electrically operated rear view mirrors 26
24 Electrically operated door locks 34
25 Electrically operated front seat 39
The pages in this section provide a detailed description of the vehicle's instruments and controls.
Note that vehicles may be equipped differently, depending on special legal requirements, etc.
pg. 8 Instruments
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (2 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
NOTE: Canadian model speedometers/odometers indicate kilometers only.
1 Volt meter
2 Fuel gauge
3 Clock reset knob
4 Quartz crystal clock
5 Speedometer
6 Trip odometer
7 Trip odometer reset knob
8 Odometer
9 Tachometer
10 Instrument panel lamps rheostat
11 Coolant temperature gauge
12 Oil temperature gauge - or Boost gauge (Turbo models)
pg. 9 Instruments
Quartz crystal clock
To reset the hands, push in the reset knob and turn.
Tachometer
Reads thousands of engine rpm. Engine should not be operated in red range.
Trip odometer
Used for measuring shorter distances. Last figure represents 1/10 mile or km. A black number on a white
background = original instrument. A red number on a white background = replacement instrument
Trip odometer reset knob
Push in to reset
Coolant temperature gauge
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (3 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
The pointer should be approximately midway on the gauge face when driving. If the pointer approaches
the red range repeatedly, check coolant level and fan belt tension. See sections "Coolant" and "Drive
belts".
WARNING!
Allow engine to cool before adding
coolant.
If the pointer stays in the red range, do not drive the car. Call Road Assistance.
Fuel gauge
The fuel tank capacity is approx. 21.1 US gals (80 liters).
The red range represents approx. 2.4 US gals. (9 liters). See "Refueling" For further information
Instrument panel lamps rheostat
Clockwise = brighter.
Counterclockwise = dimmer.
Oil temperature gauge (B280F)
This instrument shows the engine oil temperature which varies with the ambient temperature, rpm, load
and speed.
Normal oil temperature: 140-250°F.
The sender is installed in the oil sump drain plug hole.
Voltmeter
The voltmeter indicates the voltage in the electrical system and thereby also the state of the battery.
While the car is being driven the pointer should be within the black field. Should the pointer point to the
upper or lower red field when driving, this may indicate some fault in the electrical system.
Boost pressure gauge
(B230F-Turbo) The boost pressure gauge is divided into sections.
Black section: The engine acts as a normally-aspirated engine. Best fuel economy is achieved while
driving in this range.
Yellow section: The turbo is providing boost pressure.

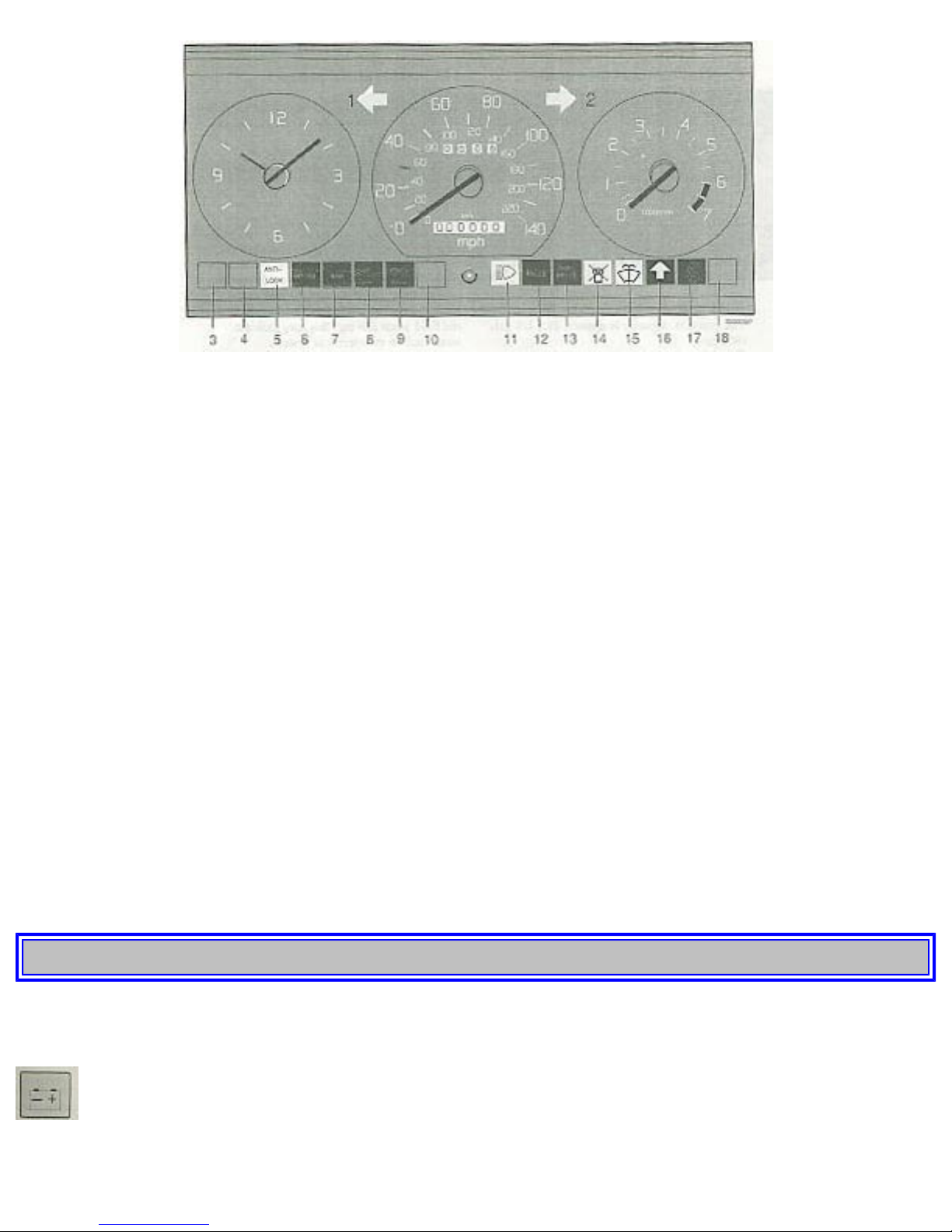

pg. 10 Indicator and warning lights
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (4 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
1 Turn signal, left
2 Turn signal, right
3 (Not connected)
4 (Not connected)
5 ABS malfunction
6 Service reminder light
7 SRS (Supplemental Restraint System)
8 Low engine oil pressure
9 Alternator not charging
10 (Not connected)
11 High beams
12 Brake failure
13 Parking brake applied
14 Bulb failure
15 Low washer fluid level.
If the lamp glows continuously when the engine is running, there is only about 1/2 - 1 US qts. remaining
in the washer fluid reservoir.
16 4th gear disengaged
17 Fasten seat belts
18 (Not connected)
pg. 11 Warning lights
The warning lights described on this page should never stay on when driving
Alternator warning light
If the light comes on while the engine is running, check the tension of the alternator drive belt as soon as
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (5 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
possible.
NOTE: This warning light is illuminated if the alternator is not charging. However, parking brake,
brake failure and bulb failure warning lights will be illuminated at the same time due to the design
of the system.
Brake failure warning light
If the light comes on while driving and the brake pedal can be depressed further than normal, it is an
indication that one of the brake circuits is not functioning.
Stop immediately, open hood and check brake fluid level (see section "Brake fluid, Power steering")
WARNING!
Fluid level below MIN mark": Do NOT drive. Tow car to shop for check/repair of brake
system.
Fluid level between MIN and MAX mark: Proceed immediately and with caution to a Volvo dealer for
an inspection of the brake system.
Oil pressure warning light
If the light comes on during driving, the oil pressure is too low. Stop the car and then stop the engine
immediately. Do not drive the vehicle. See section titled "Engine oil".
After hard driving, the light will come on occasionally when the engine is idling. This is normal,
provided it goes off when the engine speed is increased.
Bulb failure warning light
The light will come on if any of the following bulbs are defective:
one of the low beam headlights
one of the tail lights
one of the brake lights (when the brake pedal is depressed)
Check the fuse and bulb.
See sections titled "Replacing bulbs" and "Fuses".
Should the warning light come on after a defective outside bulb has been replaced, the corresponding
bulb on the other side-of the car should also be replaced.
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (6 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
Parking brake reminder light
This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated
between the front seats.
pg. 12 Warning lights
Anti-lock Brake System (ABS)
The Anti-lock Braking System (ABS) is designed to improve vehicle control (i.e. stopping and steering)
during severe braking conditions by limiting wheel lock-up. When the system "senses" impending wheel
lock-up, braking pressure is automatically modulated in order to help prevent lock-up, which could lead
to a skid. While the system is modulating braking pressure, the driver may detect a pulsation of the
brake pedal. The on/off switching of ABS modulator may also be audible. This is normal.
Please be aware that ABS does not increase the absolute braking potential of the vehicle. Thus, while
control will be enhanced, ABS will not shorten stopping distances on slippery surfaces.
NOTE:
If the warning lamp lights up there is a malfunction of the ABS system (the standard braking system will
however function) and the vehicle should be driven to a Volvo dealer for inspection.
SRS Supplemental Restraint System
If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a
Fault. Take The car to an authorized Volvo dealer for an inspection of the system. See the SRS section
for more information.
Service reminder light
This light will come on at 5000 mile (8000 km) intervals. It is a reminder to the driver that the 5000 mile
(8000 km) service interval has been exceeded. The light will stay on 2 minutes after start until reset by
the servicing dealer.
pg. 13 Audio Cassette/Tuner controls and indicators
Operating instructions
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (7 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
For complete operating instructions, maintenance guidelines, and specifications, please consult your
Audio Cassette/Tuner instruction Booklet. The Booklet also contains information on radio reception and
the radio antenna.
Radio antenna mast
Note: Always lower the antenna mast When entering an automatic car wash.
The antenna should be cleaned and lubricated every 5,000 miles (8,000 km).
Multipath distortion
FM signals are typically "line-of-sight" and very reflective. Their reflectivity to objects such as
buildings, mountains or even other passing vehicles causes the condition known as multipath distortion.
This distortion is the result of the reflected signal and the direct signal reaching your antenna at slightly
different times causing a cancellation of all signals. This condition will sound like hissing or static. Very
little can be done to eliminate this problem, however, lowering the treble on your radio could help mask
these disturbances thereby allowing you to achieve optimum pleasure from your audio system.

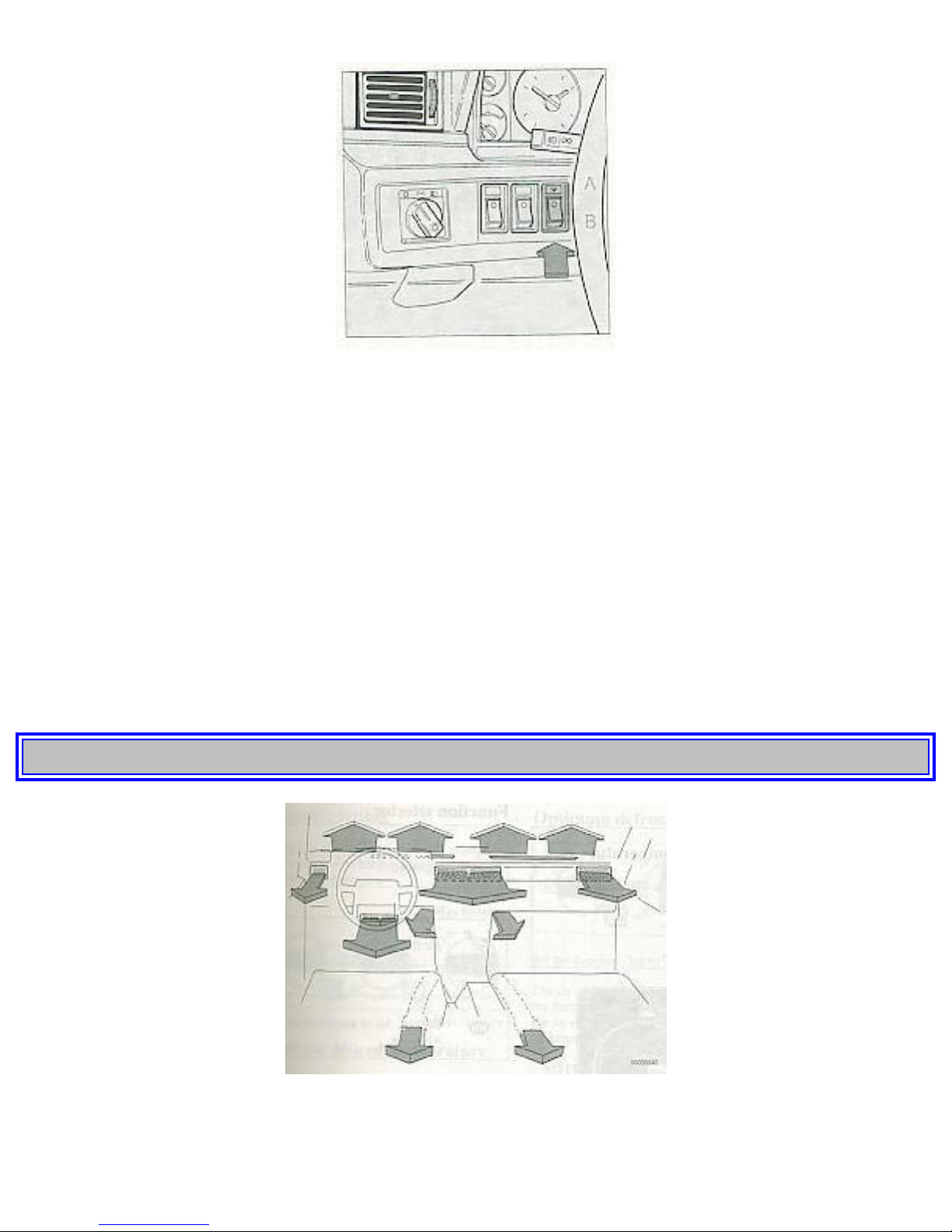

pg. 14 Lighting, Turn signals, Hazard warning flasher

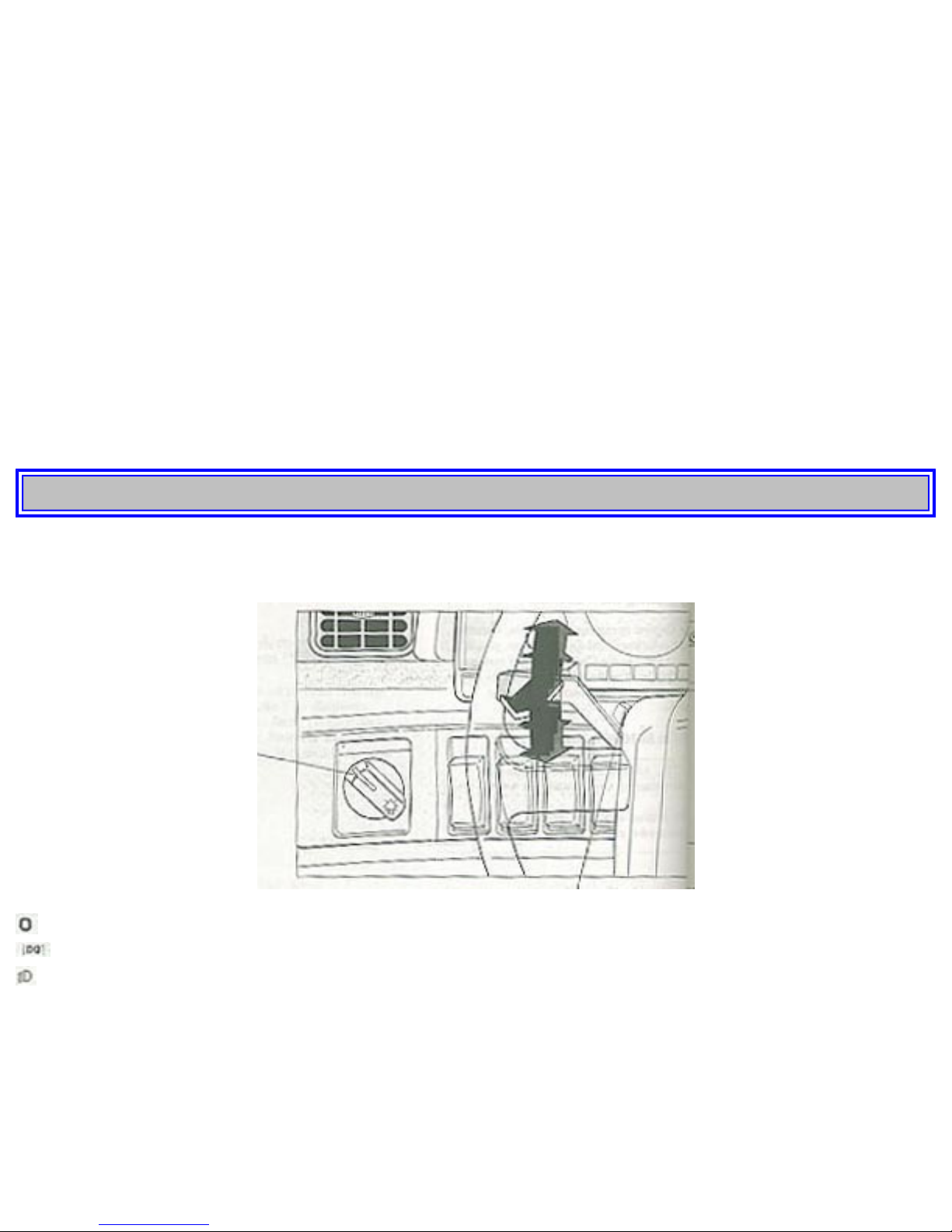

Headlights and parking light
All lights off
Parking lights on
Headlights and parking lights are on if starting (ignition) switch is in position I or II.
If the headlight switch is in position all lights will go out when starting switch is switched off.
With the headlight switch in position the parking lights will stay on.
Switch from high to low beams, and vice versa, by moving the turn signal switch lever on the left side of
the steering column towards the steering wheel.
Turn signals
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (8 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by
moving the turn signal lever to the First stop and holding it there. The lever will return to the neutral
position when released.
2 Signal lever engaged for normal turns.
NOTE: Defective turn signal bulb will cause turn signal indicator and remaining signal lights to flash
more rapidly than normal.
3 High beam/low beam switch (headlights on).
Move the lever towards the steering wheel past the headlight flasher position and release it.
3 Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will be on until the lever is
released.
Hazard warning flasher
The four-way flasher should be used to indicate that the vehicle has become a traffic hazard.
NOTE: Regulations regarding the use of the hazard warning flasher may vary from state to state.
pg. 15 Windshield, wipers/washers, Ignition switch
Wiper/washer
1 Intermittent wiper.
With switch in this position, the wipers will sweep approximately every seventh second.
2 "Single sweep" position.
Switch returns automatically when released.
3 Wipers, low speed.
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (9 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
4 Wipers, high speed.
5 Windshield wiper/washer.
The wiper will make 2-3 complete sweeps after the lever is released.
Starting (ignition) switch/steering wheel lock
The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly
to free the ignition key.
A chime will sound if the starting key is left in the ignition lock and the front door on the driver's side is
opened.
pg. 16 Cruise control
Cruise control
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (10 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
The cruise control switches are located on the turn signal switch lever.
To engage and set desired speed:
1. Set switch (B) to ON.
2. Accelerate to desired cruise speed.
NOTE: The cruise control cannot be engaged at speeds below 22 mph (35 km/h).
3. Depress SET SPEED switch (A).
Operating brake pedal
This will automatically disengage the cruise control. Previously selected cruise speed is retained in the
memory and by momentarily setting the switch to RESUME position that speed will be re-engaged.
NOTE:
The vehicle will accelerate very quickly should there be a substantial speed differential when the switch
is reset to RESUME. It is therefore recommended that the vehicle be accelerated manually and the
switch reset to RESUME once the speed differential has been reduced.
Acceleration
Momentary acceleration, such as for passing, does not interrupt cruise control operation. The previously
selected speed will be maintained without having to set switch to RESUME.
To disengage the cruise control system:
Set switch (B) to position OFF, or depress brake pedal.
Switching off the starting (ignition) switch is will automatically disengage the cruise control system.
WARNING!
The cruise control should not be used in heavy traffic or when driving on wet or slippery roads.
If the gear shift is moved to Neutral while the cruise control is engaged, then depress the brake pedal
momentarily, or set the cruise control switch (B) to OFF. This will disengage the cruise control and
prevent overreving the engine.
NOTE: When driving on a grade, actual vehicle speed may vary slightly from the set cruise control
speed.
pg. 17 Rear fog lights, Front fog lights
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (11 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780
Rear fog lights
The rear fog lights are considerably brighter than the normal tail lights and should be used only when
atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or nighttime visibility
of other vehicle to less than 500 ft. (152 meters). The headlights must be switched on.
Note that local regulations governing the use of these lights may vary.
Auxiliary front fog lights
Auxiliary front fog lights can be switched on only with the low-beam headlights on.
pg. 18 Parking brake, Cigarette lighter, Ash trays
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (12 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780

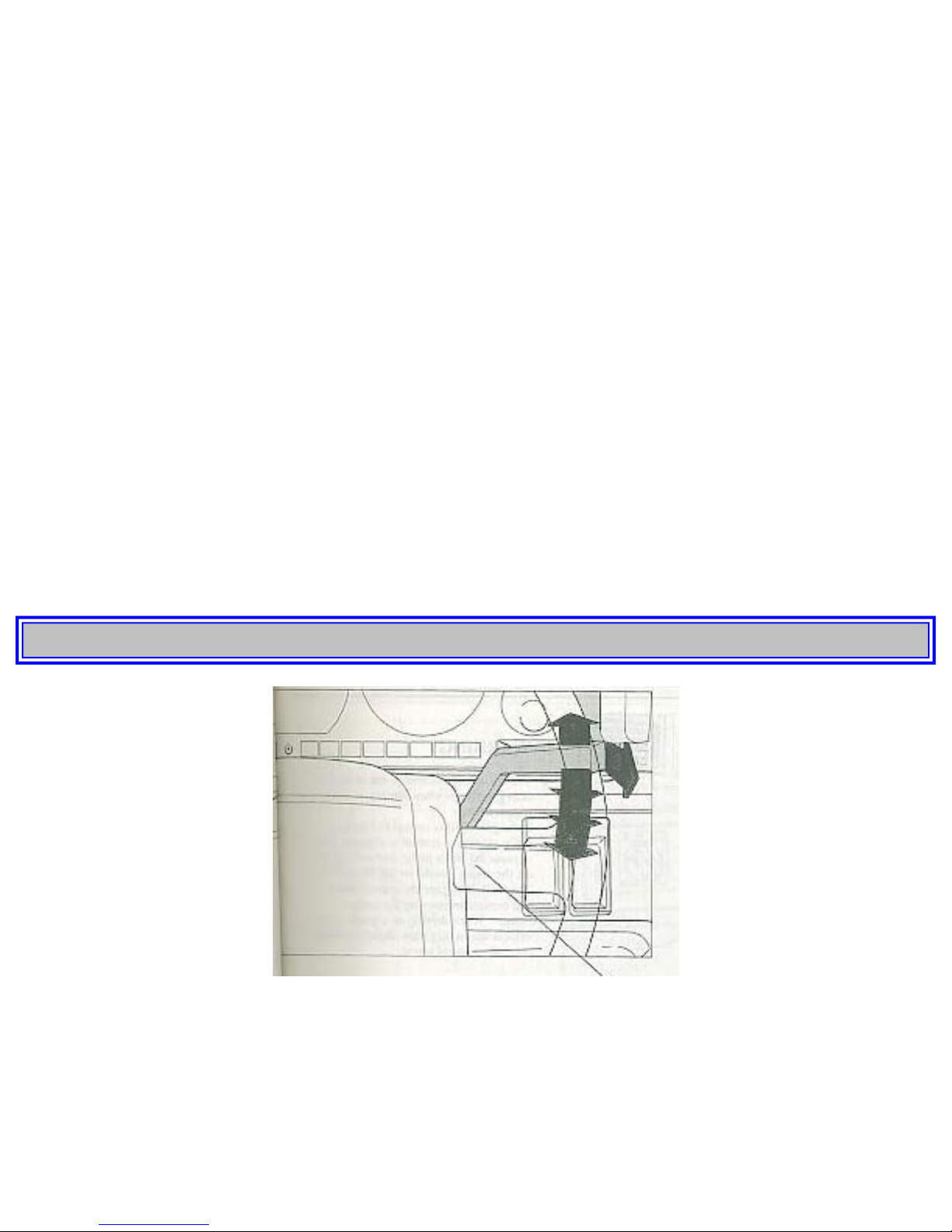

Parking brake (hand brake)
The lever is situated between the front seats. The brake is applied to the rear wheels. Always use the
parking brake (hand brake) when parking. On hills, also turn the front wheels toward the curb.
In order to obtain the best possible performance of the parking brake, the brake linings should be broken
in. See section titled "Brake system".
Cigarette lighter
To operate, depress the knob fully. When the knob automatically releases, the cigarette lighter is ready
for use.
The starting (ignition) switch must be switched on (to position I or II) for the cigarette lighter to
function.
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (13 of 19)12/30/2006 8:24:18 AM

1989 Volvo 780

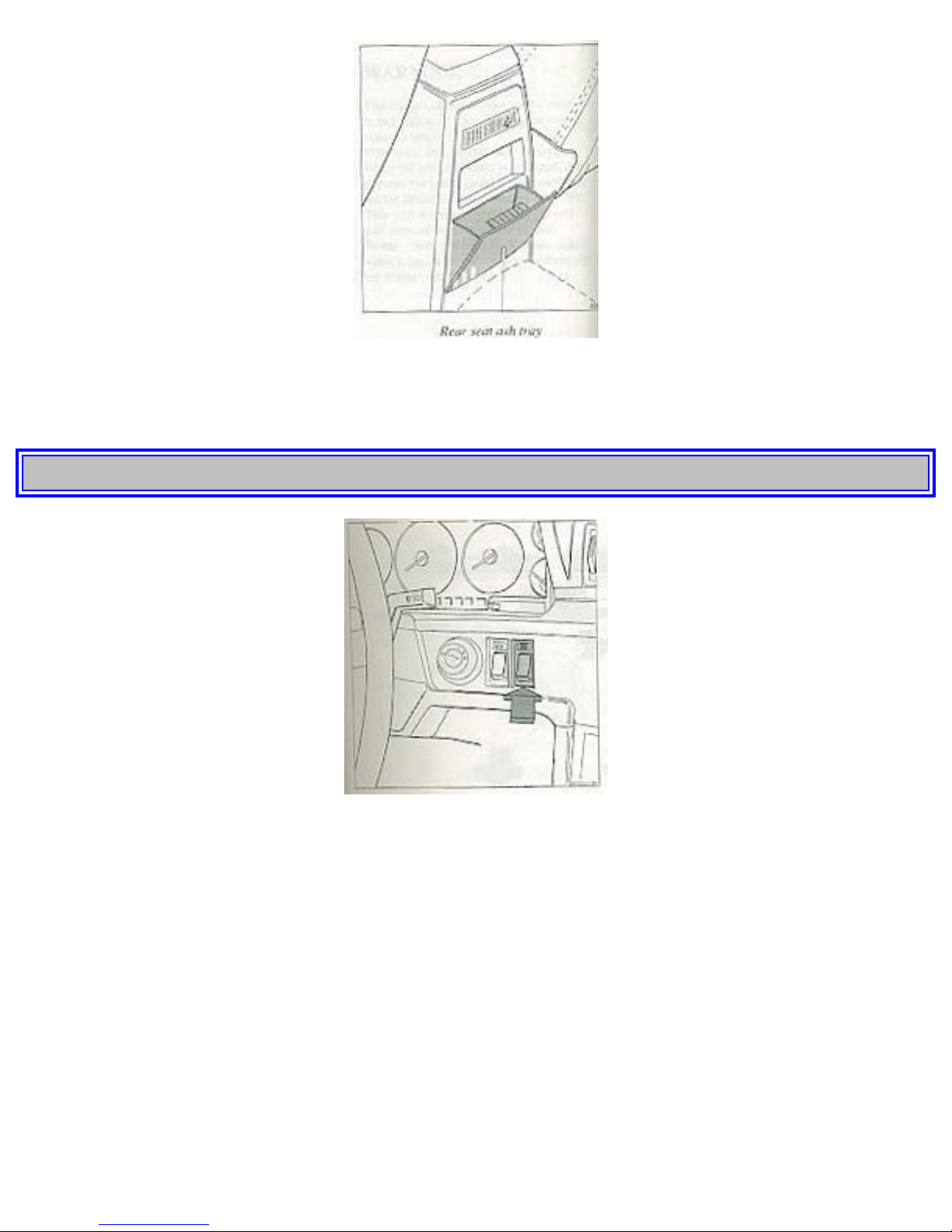

Ash trays
To remove the ash trays depress the center spring and remove.
pg. 19 Rear window demister, Heated front seats
Rear window demister
Heated side-view mirrors
Depress the switch to start heating of rear window and side mirrors. Both orange control lights in the
switch will light.
A timer switches off the side mirror heating after approx. 6 minutes and the rear window demister after
12 minutes or when the ignition key is switched off.
The control lights go out correspondingly.
Depressing the switch while any control light is on will disengage all heating.
Depressing the switch after the control lights have gone out will restart the heating cycle.
CAUTION: Do not place items that may damage the printed circuit against the inner surface of the rear
window.
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (14 of 19)12/30/2006 8:24:19 AM

1989 Volvo 780
Heated front seats
The heated front seats can be switched on or off as required. When switched on, the seats are heated
until the optimal temperature is reached, at which time the heating switches off automatically.
The passenger seat is only heated when occupied.
pg. 20 Electrically operated windows, Power antenna
Electrically-operated windows

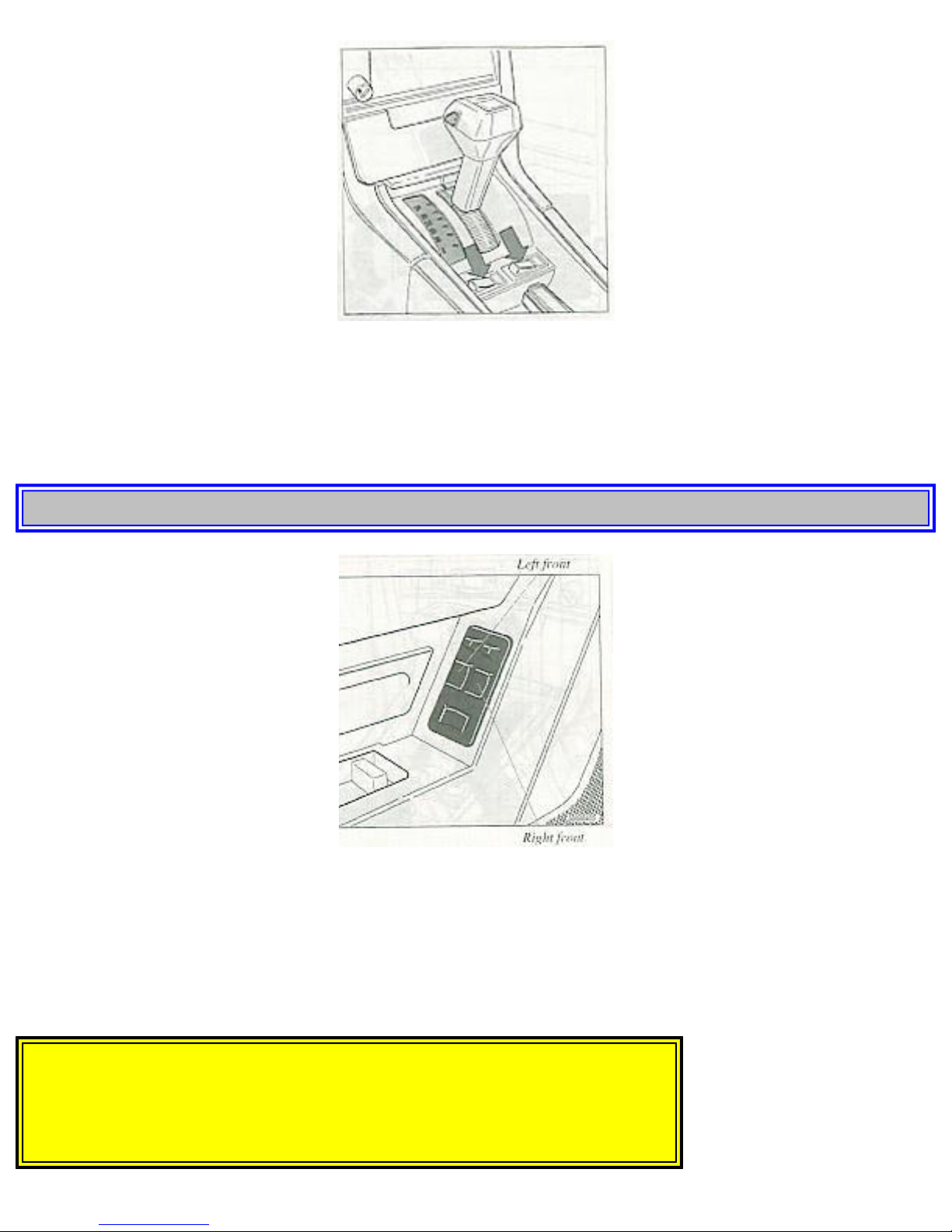

The electrically operated windows are controlled by switches from the driver's armrest as shown in the
above illustration. The starting (ignition) switch must be ON (position II) for the electrically operated
windows to function. The window is lowered if the rear part of the switch is pressed and raised if the
front part of the switch is pressed.
WARNING!
Remove the ignition key when children are left unattended in the
vehicle.
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (15 of 19)12/30/2006 8:24:19 AM

1989 Volvo 780
Power antenna
The power antenna switch can be used to retract the antenna when the audio system is turned on. This
permits operation of the cassette drive with the antenna in the down position.
Position A - The antenna extends when the radio is turned on and retracts when the radio is turned off.
Position B - The antenna remains retracted or retracts if the radio is already on.
NOTE:
Always retract the antenna before driving into automatic car washes or any other areas with low ceilings
to avoid damaging or breaking the antenna off.
The power antenna should be cleaned and lubricated every 5,000 miles (8,000 km)
pg. 21 Heating and ventilation
ECC - Electronic Climate Control
This is an automatic system that also permits manual operation. The in-car temperature is automatically
file:///K|/ownersdocs/1989/1989_780/89780_01.htm (16 of 19)12/30/2006 8:24:19 AM
