QUICK GUIDE

VÄLKOMMEN!
This Quick Guide describes a range of the functions in your Volvo. More detailed owner's information is available in the car, in the app and
on the web.
THE CAR'S CENTRE DISPLAY
The owner's manual is available in the car's centre display, where it can
be accessed via the top view.
MOBILE APP
The owner's manual is available as an app (Volvo Manual) for smart-
phones and tablets. The app also contains video tutorials for selected
functions.
VOLVO'S SUPPORT SITE
The Volvo Cars support site (support.volvocars.com) contains manuals
and video tutorials, as well as additional information and assistance for
your Volvo and your car ownership.
PRINTED INFORMATION
There is a supplement to the owner's manual in the glovebox that
contains information on fuses and specifications, as well as a summary
of important and practical information. A printed owner's manual and
associated supplement can be ordered.
Options in the Quick Guide are highlighted with an asterisk *.

01. GETTING STARTED
Here you will find information that will help you learn about some of the basic functions in your Volvo. Amongst
other things, you can read about the remote control key, the car's three displays as well as how to start the
engine on and switch it off. There is also information on how to control and adjust the seats and climate control.
02. DRIVING AND DRIVER SUPPORT
Here you will find information about drive modes and different driver support functions in the car such as cruise
control, Park Assist Pilot (PAP)*, Blind Spot Information (BLIS)* and City Safety.
03. INSTRUMENTS AND CONTROLS
Here you will find information about how to control lights and wipers as well as how to use the trip computer and
voice control.
04. CONNECTION, ENTERTAINMENT AND SUPPORT
From your Volvo you can connect to the outside world and get access to information, entertainment and support.
This section contains, amongst other things, information on how to connect a phone to your Volvo, connect to the
Internet and use apps.
05. SPECIAL TEXTS
Warning, important and note texts, which must be read.
CONTENTS

REMOTE CONTROL KEY BUTTONS
1Option in certain markets.
One short press locks doors and boot lid and arms the
alarm1. A long press closes the sunroof* and all side windows
simultaneously.
One short press unlocks doors and boot lid and disarms the
alarm. A long press opens all side windows simultaneously.
One short press unlocks and disarms the alarm for the boot
lid only. A long press opens or closes the power operated*
boot lid.
The panic function is used in an emergency to attract
attention. One long press of at least 3 seconds or double
press within 3 seconds activates the direction indicators
and horn. The function is deactivated automatically after
approx. 3 minutes or by pressing the same button after the
function has been activated for at least 5 seconds.
01

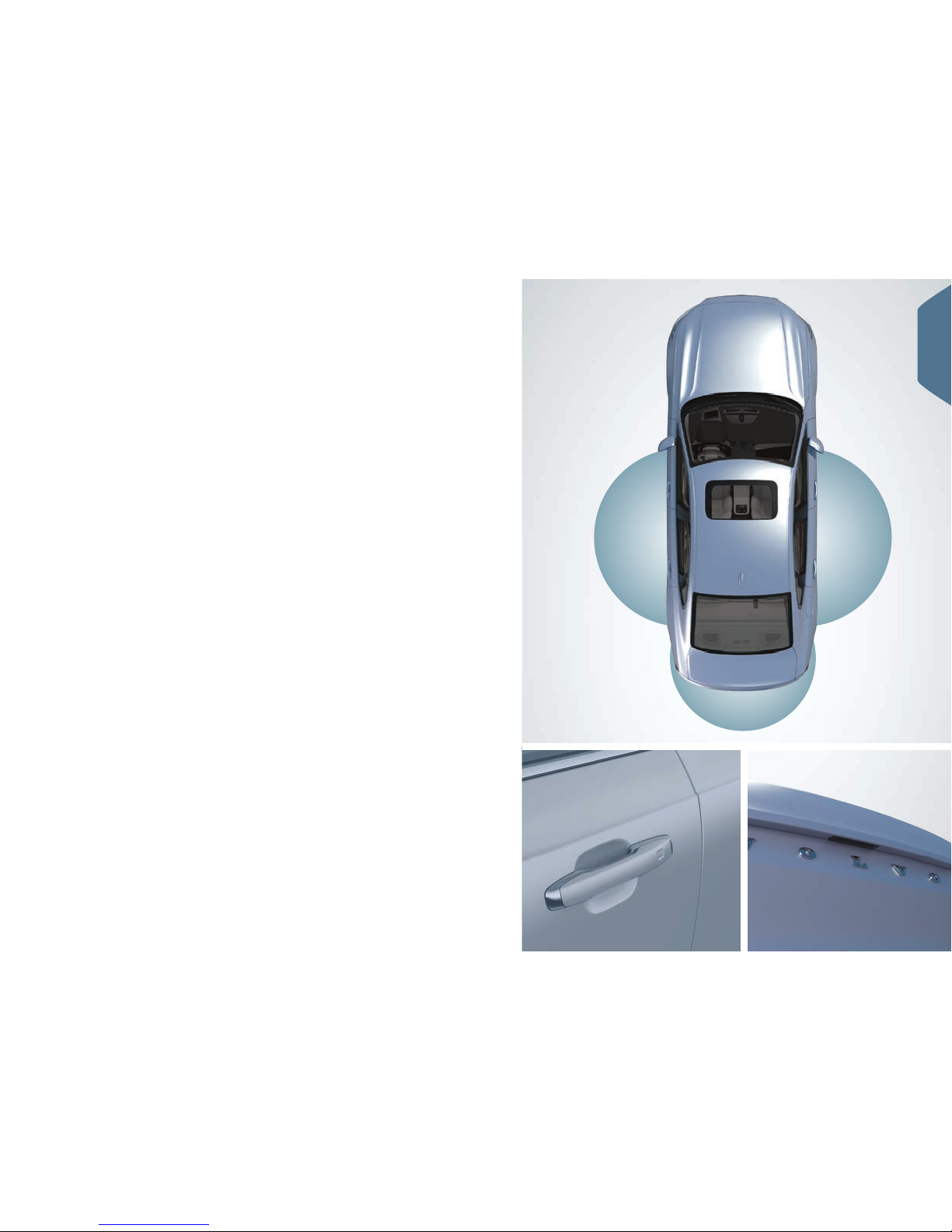

KEYLESS LOCKING/UNLOCKING*
You simply need to have the remote control key with you in a pocket,
for example, in order to lock or unlock the car. The remote control key
must be within a semicircular area of radius approx. 1.5 metres from
both long sides or approx. 1 metre from the boot lid (see illustration).
Unlock and disarm the alarm
1. Grasp a door handle or press the rubberised pressure plate beneath
the boot lid handle in order to unlock the car. Avoid touching two
surfaces at the same time. Unlocking is complete when the car's
hazard warning flashers flash twice and the lock indicator in the
windscreen extinguishes.
2. Open a door or the boot lid.
Lock and arm the alarm
1. Close all doors. The boot lid can be open during locking with the
door handles.
2. Touch the marked surface towards the rear on the outside of an
outer door handle or press the lock button on the bottom edge of
the boot lid before closing it. Avoid touching two surfaces at the
same time. Locking is complete when the car's hazard warning
flashers flash once and the lock indicator in the windscreen starts
flashing.
01

POWER* FRONT SEAT
Adjust the backrest rake by pressing the control forward/backward.
Raise/lower the seat by means of pressing the rear section of the
control up/down. Move the seat forward/backward by pressing the
control forward/backward.
Raise/lower the front edge of the seat cushion by means of pressing
the front section of the control up/down.
Settings for massage*, side support*, lumbar support* and seat cushion
extension are linked to the multi-function control*.
1. Activate seat settings by turning the control up/down. The seat
settings view opens in the centre display.
2. Select the desired function in the centre display by turning the
multifunction control up/down.
3. Change the setting by pressing in the upper/lower/front/rear part
of the multi-function control.
Certain settings can also be selected with a tap directly on the centre
display.
Change the lumbar support by pressing in the upper/lower/front/rear
part of the button.
01

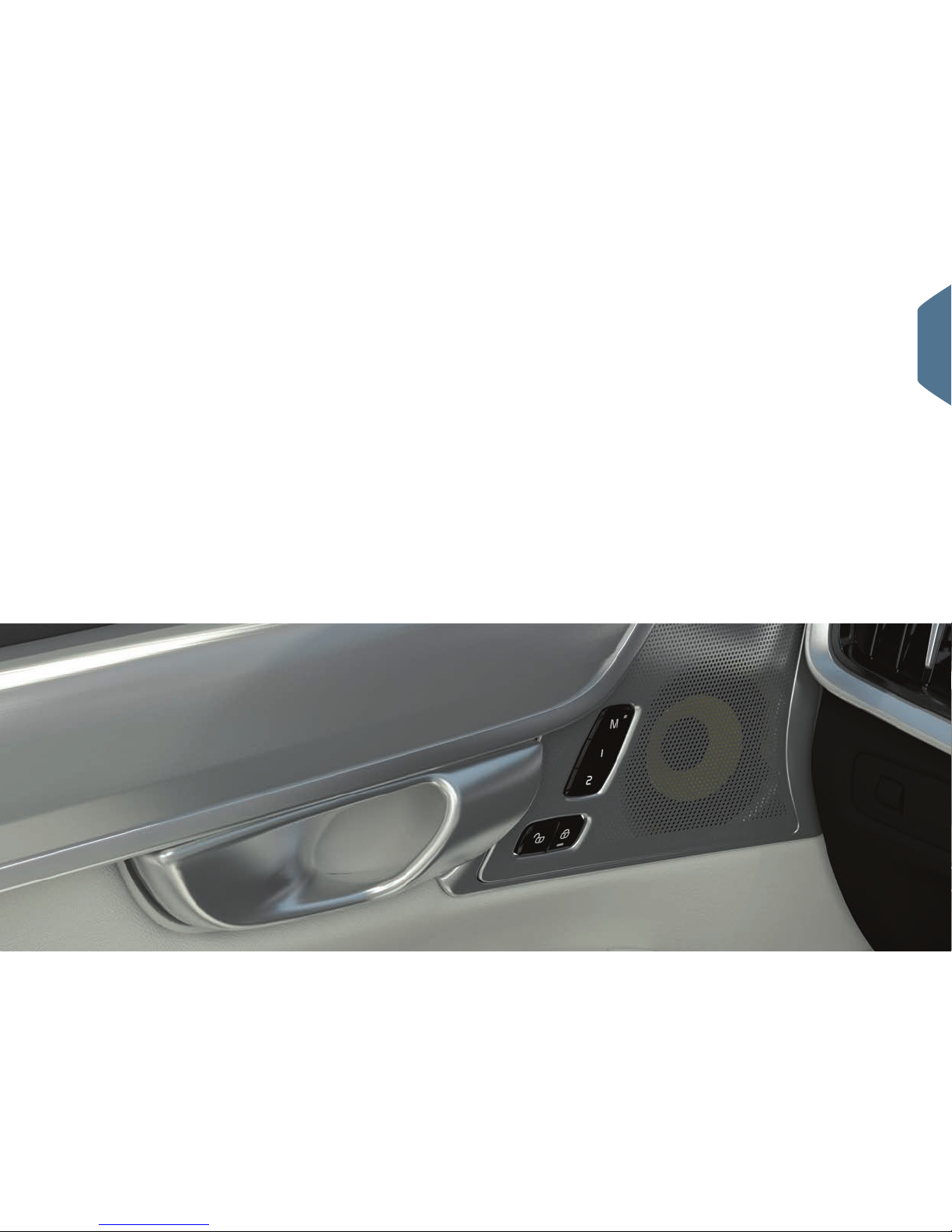

The memory function's keypad is either on one or both front doors.
Store setting
1. Set the seat, door mirrors and head-up display* to the desired
position.
2. Press the Mbutton and release to store settings. The light indicator
in the button illuminates.
3. Within three seconds, depress the memory button 1or 2. When the
position is stored in the selected memory button, an acoustic signal
sounds and the light indicator in the Mbutton extinguishes.
Using stored setting
With door open: Depress one of the memory buttons and release.
With door closed: Hold one of the memory buttons depressed until
the stored position is reached.
MEMORY FUNCTION* IN THE FRONT SEAT
01

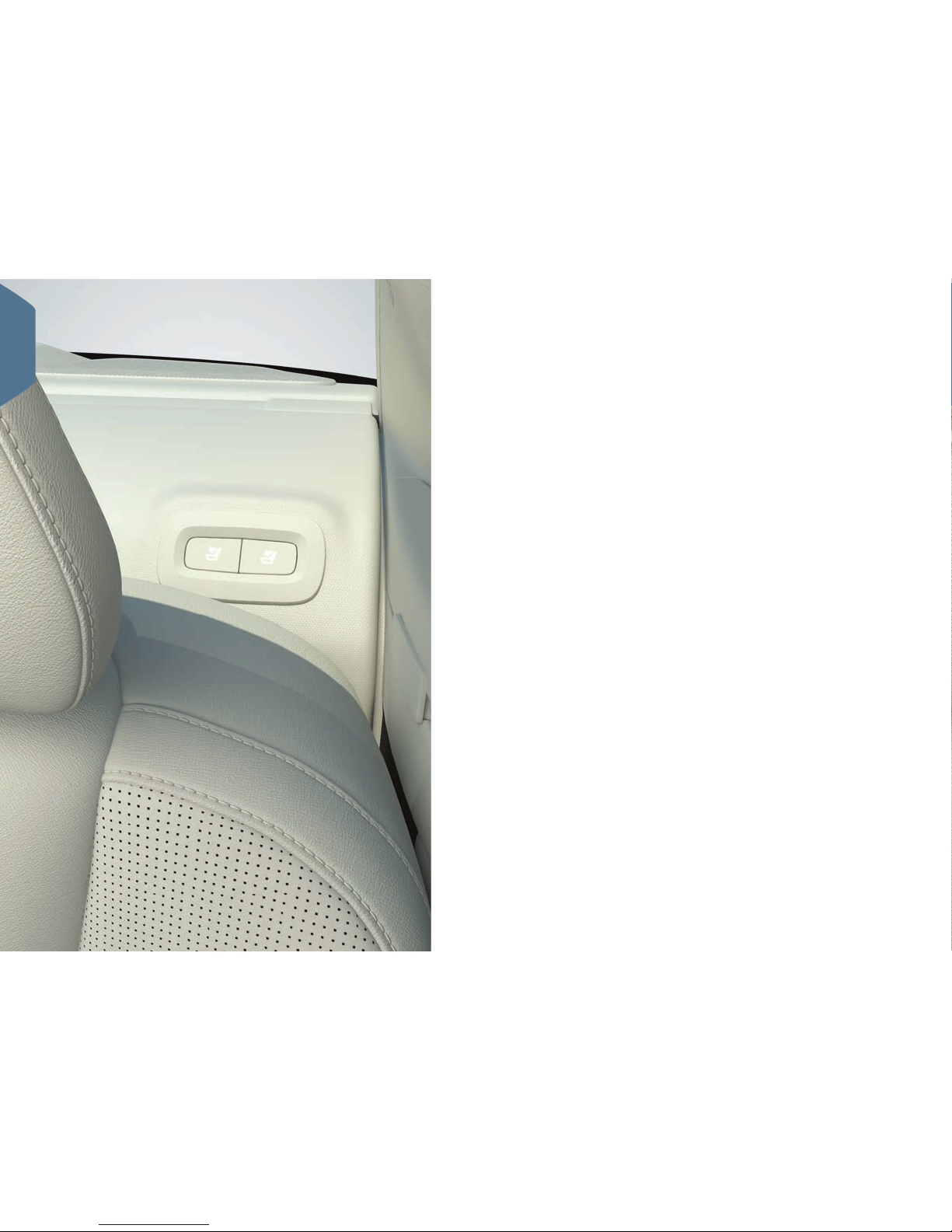

FOLD THE BACKRESTS DOWN IN THE REAR
SEAT*
Ensure that backrests with head restraints do not come into contact
with the rear of the seat in front when lowering. The front seats may
need adjusting in order for the backrests to be lowered.
Folding the backrests
1. Ensure that there are no occupants or objects in the rear seat.
2. Lower the centre seat's head restraint manually.
3. Hold the button depressed. The buttons are located in the parcel
shelf on the left-hand side of the car.
4. The seat is released from the lock but remains in the same position.
The head restraints are lowered automatically*.
5. Lower the backrest manually to the horizontal position.
To allow the folding of the rear seat, the car must be stationary and at
least one rear door open.
Raising the backrests
1. Move the backrest upwards/backwards by hand until the lock
engages.
2. The head restraint is extended manually.
3. If necessary, raise the centre seat's head restraint.
01

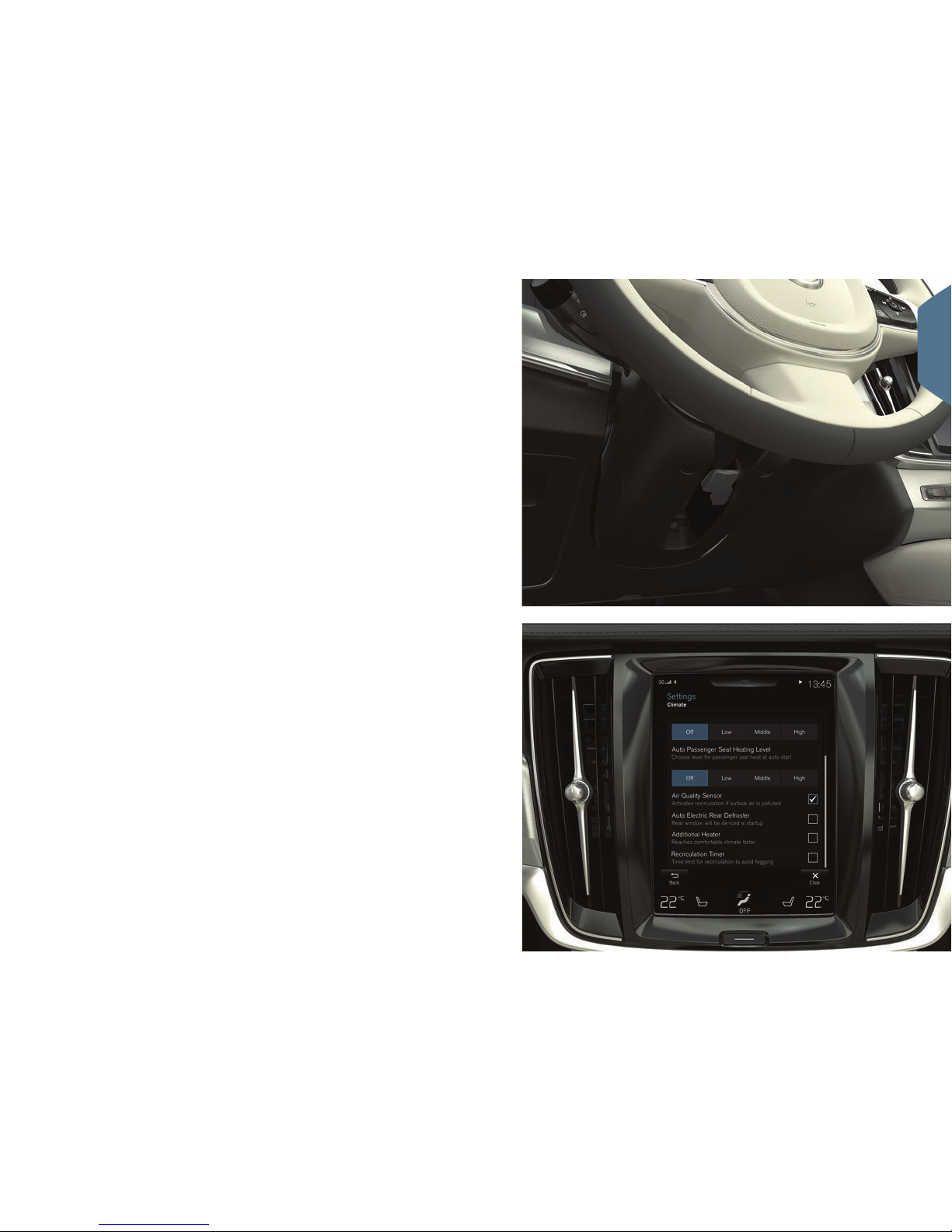

AIR QUALITY SYSTEM IAQS*
The air quality system IAQS is a part of the Clean Zone Interior
Package* and is a fully automatic system that cleans the air in the
passenger compartment from contaminants such as particles, hydro-
carbons, nitrous oxides and ground-level ozone.
1. Tap on Settings in the top view in the centre display.
2. Tap on Climate.
3. Select Air Quality Sensor to activate/deactivate the air quality
sensor.
STEERING WHEEL ADJUSTMENT
The steering wheel can be adjusted for both height and depth.
1. Push the lever under the steering wheel downwards or pull the lever
upwards2in order to release the steering wheel.
2. Adjust the steering wheel to the desired position.
3. Pull the lever back to secure the steering wheel in position.
2Depending on market.
01

STARTING AND SWITCHING OFF THE CAR
Start the car with the start knob that is located behind the gear lever.
In order to start, the remote control key must be in the front section
of the passenger compartment. With the keyless locking/unlocking
option (Passive Entry*) the key can be located anywhere in the car.
Starting
1. Make sure that gear position Por Nis selected.
2. Depress the brake pedal.
3. Turn the ignition dial to START and release. The ignition dial auto-
matically returns to its starting position.
Switching off
1. Move the gear selector to position P.
2. Turn the ignition dial to STOP and release. The ignition dial automa-
tically returns to its starting position.
01

PARKING BRAKE
Activate the parking brake
– Pull the parking brake control in the tunnel console
upward. A symbol in the driver display illuminates when the
parking brake is activated. Check that the car is stationary.
Releasing manually
1. Depress the brake pedal.
2. Push down the parking brake control.
Disengage automatically
1. Fasten the seatbelt and start the engine.
2. Move the gear selector to position Dor Rand depress the
accelerator pedal.
Using the "Automatic braking when stationary" function (Auto
Hold), the brake pedal can be released while maintaining
braking effect when the car has stopped at e.g. traffic lights.
When the accelerator pedal is depressed again, the brakes
are released.
– Depress the button in the tunnel console to activate/deac-
tivate the function.
Automatic car wash
Before switching off the engine: deactivate Auto Hold and "Automatic
application of parking brake" (select in the centre display's top view
Settings > My Car > Electric Parking Brake > Auto Activate
Parking Brake). Following which, select gear position N. Turn the start
knob to STOP and hold for at least 4 seconds to switch off.
01

THE CAR'S THREE DISPLAYS
Driver display
The driver display shows information about the
car and driving. It contains gauges, indicators
and indicator and warning symbols. The driver
display is available in two versions, as 12-inch
screen and 8-inch screen. For 12-inch screen:
shown on the left, amongst other things, are
speedometer and trip meter. In the centre
there is the option to show clock, media player
and navigation map*, amongst other things.
Shown on the right, amongst other things,
are tachometer, selected drive mode and app
menu, which is activated using the steering
wheel's right-hand keypad. Different themes
can be selected to change the appearance of
the driver display.
Centre display
Many of the car's main functions are control-
led from the centre display. For example, the
climate control system, media system and
system updates are controlled from here.
Head-Up Display*
The head-up display is a complement to the
car's driver display and projects information
on the windscreen. Such information can
include e.g. road sign information, information
on speed and navigation*, or incoming phone
calls. Display options, brightness and height
position for the head-up display can be
adjusted via the centre display. The head-up
display is activated from the centre display.
01

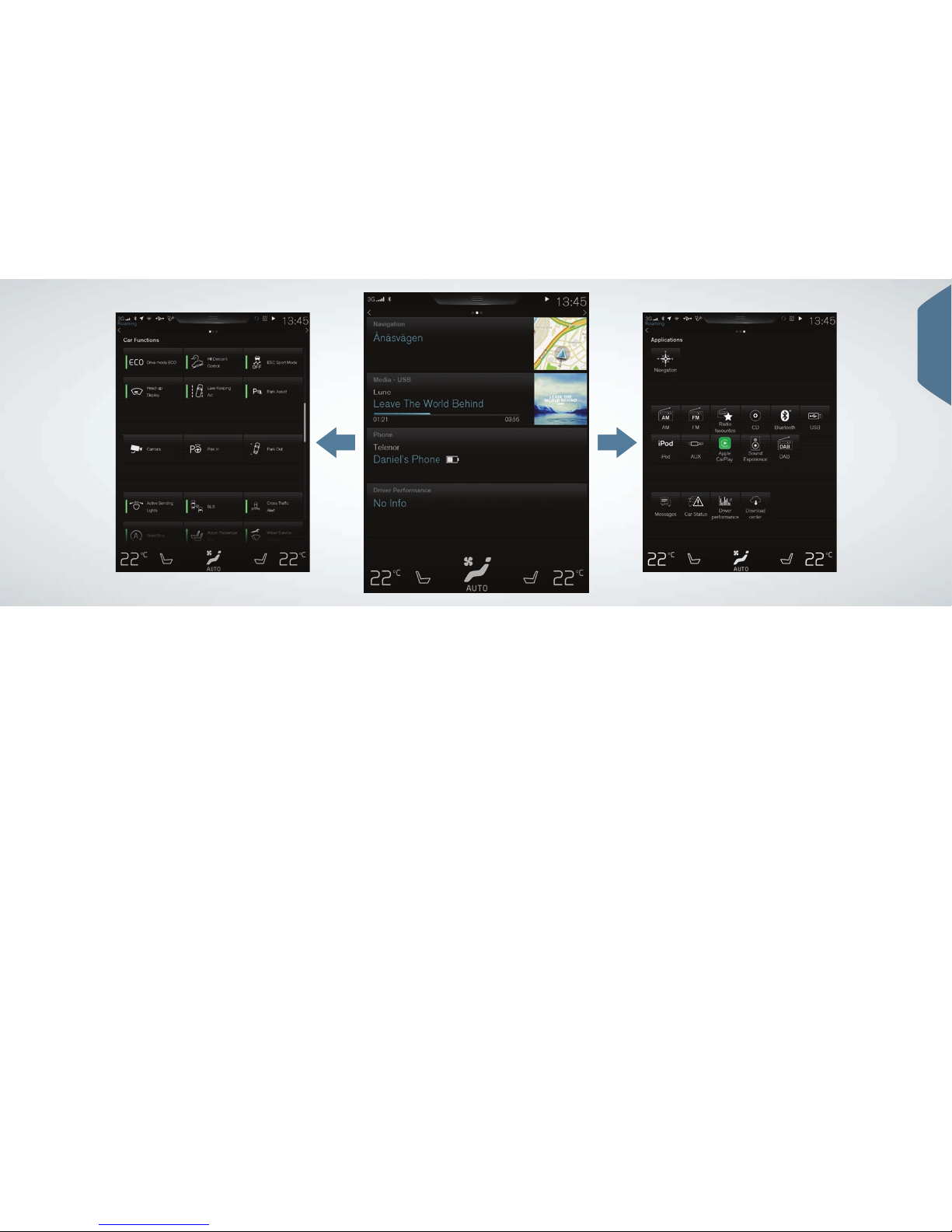

NAVIGATING IN THE CENTRE DISPLAY
Function view
Swipe from left to right3across the screen in
order to access the view. From here you can
activate/deactivate different car functions,
e.g. Head-Up Display*. They are activated/
deactivated with a single tap. Some functions
open in a separate window.
Go back in the menu structure by pressing
the physical home button under the screen.
Application view
Swipe from right to left2across the screen to
access the view with the car's different appli-
cations/apps, e.g. FM radio and CD*. Tap on
an app to open it.
Press the physical home button under the
screen to go back to the home view.
Home view
The home view is shown when the screen is
started, from which the subviews Navigation,
Media, Phone and an extra subview can be
reached.
An app/function selected from the app/func-
tion view starts in the corresponding subview
in the home view. E.g. FM radio starts in the
Media subview.
Tap on a subview to expand it. In expanded
mode, the subview shows more information
about the function/app.
3Applies to left-hand drive cars. For right-hand drive cars - swipe
in the opposite direction.
01

Climate row
The climate row is visible at the bottom of the screen. There, the most
common climate settings can be made directly, such as settings for
temperature, seat heating and fan level. Tap on at the bottom of
the screen to open the climate view with more setting options.
Status bar
The activities in the car are shown in the status bar, at the top of the
screen. Shown on the left is network/connection information; and
media-related information, the time and background activity indicator
are shown on the right.
Top view
There is a tab located in the centre of the status bar, at the top of
the screen, to access the top view. Open it by tapping on the tab or
by swiping from top to bottom across the screen. Settings, Owner's
manual, Profile, and the car's saved messages are accessed from the
top view.
01

CLIMATE SETTINGS
The climate control functions for the front and rear areas of the
passenger compartment are controlled from the centre display, by
physical buttons in the centre console and climate controls* at the rear
of the tunnel console. Some climate functions can also be controlled
with voice control. Some information on the climate is always available
at the bottom of the screen in the climate row. Certain settings can be
made directly here.
The button used to access climate view is shown in the
middle at the bottom of the screen. The graphic on the
button shows activated climate settings. When the text
Clean Zone is blue, this indicates that the conditions have
been met for good air quality in the passenger compart-
ment. Open the climate view by pressing the button and
the view illustrated is shown.
Tap on AUTO to activate/deactivate auto-regulation of air
recirculation, air conditioning and air distribution.
Temperature control for driver and passenger side. Tap the
left or right-hand side's temperature icon and select the
desired temperature. The temperature can be adjusted even
when the climate view is not open.
To synchronise the temperature for all zones with the
temperature on the driver's side - tap on the temperature
icon on the driver's side and on Synchronise temperature.
Controls for heated* and ventilated* driver and front
passenger seat, as well as heated steering wheel*. Tap on
the icon for the seat or steering wheel on the left or right-
hand sides to open the control for the seat or steering
wheel. Repeatedly tap on the corresponding icon to select
the desired position.
01

POWER OPERATED* BOOT LID
Options for opening
• Press and gently pull the boot lid handle upwards.
• Give a long press on the remote control key's button until the
tailgate starts to open.
• Give a long press on the instrument panel's button (next to
the steering wheel) until the tailgate starts to open.
• Make one slow forward kicking motion* under the left-hand section
of the rear bumper (see illustration) and then take a step back.
The bumper must not be touched. The remote control key must be
within range. An acoustic signal is heard when opening is activated.
Options for closing
• Lower edge of the boot lid: Press the button for automatic
closing without locking the tailgate. Press the button* for
automatic closing and locking of both tailgate and doors.
• Give a long press on the remote control key's button.
• Give a long press on the instrument panel's button.
• Make one slow forward kicking motion* under the left-hand section
of the rear bumper and then take a step back. The bumper must
not be touched. The remote control key must be within range. An
acoustic signal is heard when closing is activated.
01

DRIVE MODES*
Select the drive mode most suitable for the current driving conditions.
Not all drive modes can be selected in all situations.
1. Press the drive mode control* DRIVE MODE in the tunnel console –
a pop-up menu opens in the centre display.
2. Roll the drive mode control up/down until the desired drive mode is
highlighted in the centre display.
3. Press the control or tap directly on the centre display to confirm the
selection.
Selectable drive modes
COMFORT – drive mode when the car is started.
ECO – adapts the car for more energy-efficient driving. This drive
mode can also be accessed directly from the function view in the
centre display.
DYNAMIC – the car feels sportier for more active driving.
INDIVIDUAL – customise the Comfort, Eco or Dynamic drive mode
to your own preferences for driving characteristics. The drive mode is
available if it is first activated in Settings in the top view in the centre
display. Select My Car > Individual Drive Mode.
02

START/STOP FUNCTION
This function stops the engine temporarily when the car is stationary
and then starts it again automatically when the journey is resumed.
Start/Stop is available when the engine is started and can be acti-
vated if certain conditions have been met.
Auto-stopping the engine
– Stop the car with the brake pedal and hold your foot on the pedal.
In an 8-inch driver display, a beige symbol is shown, and in
a 12-inch driver display, the tachometer's needle points at
when the engine is auto-stopped. In Comfort or Eco drive mode,
the engine may auto-stop before the car is completely stationary.
Options for auto-starting the engine
– Release the brake pedal. With Auto Hold activated, the accelerator
pedal must be depressed.
– Maintain foot pressure on the brake pedal and depress the accele-
rator pedal at the same time.
– On downhill slopes: Release the brake pedal and allow the car to
start rolling. The engine auto-starts after a small speed increase.
– When Adaptive cruise control or Pilot Assist is activated, depress
the accelerator pedal or press on the steering wheel's left-hand
keypad.
Deactivating the function
– Press the Start/Stop button in the function view in
the centre display. The function is deactivated until it
is reactivated, until the car is started again or until the
Comfort or Eco drive mode is selected.
02

OPERATING DRIVER SUPPORT WITH THE
STEERING WHEEL KEYPAD
The functions Speed limiter*, Cruise control, Adaptive cruise control*
and Pilot Assist* are selected in the driver display with the left-hand
keypad arrows and . When the symbol is white, the function is
active. Grey means that the function is stopped or in standby mode.
Function symbols in the driver display
Speed limiter: Helps to avoid exceeding a selected
maximum speed.
Cruise control: Helps to maintain an even speed.
Adaptive cruise control: Helps to maintain a constant speed,
combined with a preset time gap to the vehicle in front.
Pilot Assist: Helps to maintain a constant speed, combined
with a preset time gap to the vehicle in front and also helps
to drive the car between the lane's side markings at speeds
of up to 140 km/h (80 mph).
Symbols in the steering wheel keypad
Press to start or stop the selected function. Stores the current
speed for the started function.
Increases the stored speed for the started function. Short
press increases the speed by 5 km/h (5 mph). Long press
increases the speed incrementally by 1 km/h (1 mph).
One press also resumes the stored speed for the selected
function.
Reduces the stored speed. Short press reduces the speed by
5 km/h (5 mph). Long press reduces the speed incrementally
by 1 km/h (1 mph).
Adaptive cruise control and Pilot Assist: Reduces the distance
to the vehicle in front.
Adaptive cruise control and Pilot Assist: Increases the distan-
ce to the vehicle in front.
02

DRIVER SUPPORT FUNCTIONS
City Safety
City Safety4warns the driver of obstacles, by means of
visual and acoustic signals. The car is braked automatically
if the driver does not act within a reasonable time. Amongst
other things, City Safety can prevent a collision and assist a
driver at risk of colliding with a vehicle, large animal, pede-
strian or cyclist, for example.
City Safety is activated automatically when the engine is
started.
Park Assist Pilot (PAP)*
Park Assist Pilot assists in parking, or leaving a parking
space, by first scanning the space available and then
turning the steering wheel and steering in the car. The
driver's task is to pay attention around the car, follow the
centre display instructions, select gear, control the speed
and brake/stop.
Parking with PAP
1. Tap on the Park In button in the function view. You
must not be travelling faster than 30 km/h (20 mph) for
parallel parking or 20 km/h (12 mph) for perpendicular
parking. The distance between the car and parking
spaces should be 0.5-1.5 metres while PAP is searching
for a parking space.
2. Stop the car when the graphic and text in the centre
display advise that a suitable parking space has been
found. A pop-up window is shown.
3. In the pop-up window, select Parallel parking or
Perpendicular parking and engage reverse gear.
4. Follow the instructions that are shown in the centre
display. Be prepared to stop the car when the graphics
and text advise this.
4Not available for all markets.
02
