Volvo A0000162 User manual

Instruction No Version Part. No.
30732001 1.2 31339076, 30732000
CD changer
Equipment
A0000162
IMG-222800
Instruction No Version Part. No.
30732001 1.2 31339076, 30732000
CD changer
Equipment
A0000162
IMG-222800
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 1 / 13

IMG-213320
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 2 / 13

INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
1
IMG-214981
Turn the ignition key to position 0.
2
IMG-222805
Remove the panel around the display and the media player:
Press in the catch at one of the panel's upper corners. Use a
small screwdriver. Carefully prize off the radio panel on the
same side. Use a plastic weatherstrip tool.
Carry out the same procedure on the other side. Then fold the
radio panel backward in the vehicle.
Pull up the radio panel until it detaches.
Hint
If there is difficulty removing the panel, press the panel back
into place on both sides and start the removal procedure
again. Start from the opposite side to before.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 3 / 13

3
IMG-222806

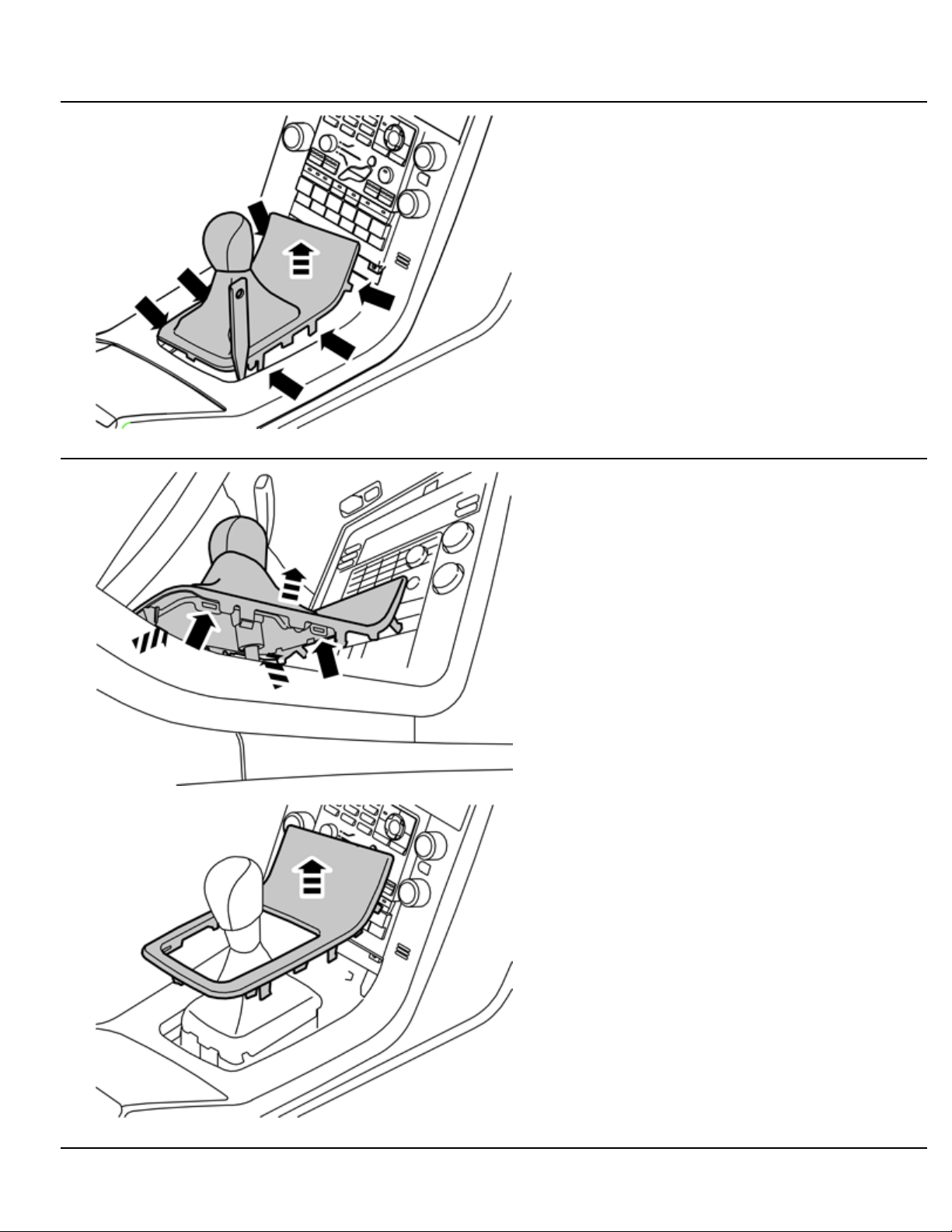

Remove the gear lever panel by carefully prizing it away starting
at the rear edge and then continuing forward. It is fitted with six
catches underneath.
4A
IMG-222807
4B
IMG-222811
Illustrations A and B
Remove the gear lever panel from the gaiter by first pressing in
the four catches at the sides, and then pull the panel up.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 4 / 13

5
IMG-222804
Fold up the cover for the storage compartment in the rear
section of the tunnel console.
6
IMG-222808
Remove the covers and screws in the rear edge of the upper
panel section of the centre console, remove the screws on the
rear of the panel and then remove the remaining screws on the
top, ten in total.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 5 / 13

7
IMG-232205
Remove the edge clip with cable from the lower section of the
centre console.
8
IMG-232206
Carefully angle up the upper section of the centre console at the
front edge so that the edge clip for the large cable harness on
the left-hand side of the centre console is accessible.
Detach the clip with cable harness from its holder.
Note!
Do not damage the fibre optic cables and other cables.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 6 / 13

9
IMG-232207
Angle the upper section further in order to access the four
connectors on the rear of the climate control module (CCM).
Unplug the connectors. The connector (1) has a catch on the
rear in toward the upper section.
10
IMG-222812
Remove the upper section of the panel by moving it backward at
the front edge and then lifting it out from the rear edge of the
tunnel console.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 7 / 13

11
IMG-222813

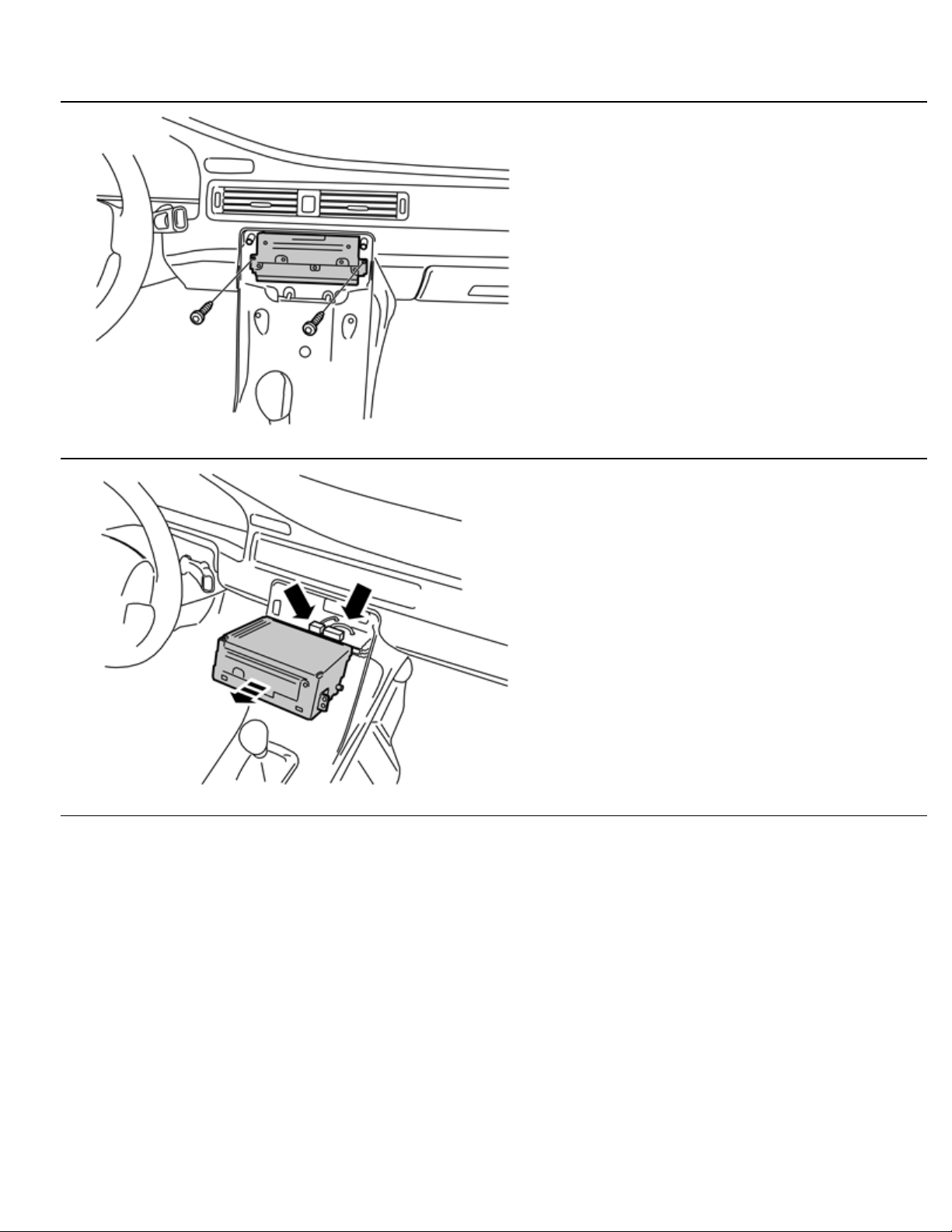

Remove the two screws from the media player.
12
IMG-222814
Pull the media player out fully and unplug the connectors on the
rear. Place the media player to one side, it shall not be used
again.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 8 / 13

13
IMG-222815
Take the new CD changer from the kit and plug the connectors
into the rear.
Insert the CD changer into its location in the dashboard while
making sure that the guide pins at the sides engage in the
corresponding rails in the dashboard.
Guide the CD player in the guide pins on the front and tighten it
in using the existing screws.
14
IMG-222816
Reinstall the upper section of the panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 9 / 13

15
IMG-232284
Plug the connectors into the CCM unit.
Note!
Do not damage the fibre optic cables and other cables.
16
IMG-232285
Reinstall the edge clip with cable harness in the holder.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 10 / 13

17
IMG-232286
Reinstall the edge clip with cable harness in the lower section of
the centre console.
18
IMG-222817
Tighten the panel in using the existing screws.
Reinstall the covers on the screws at the rear edge.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 11 / 13

19
IMG-222821

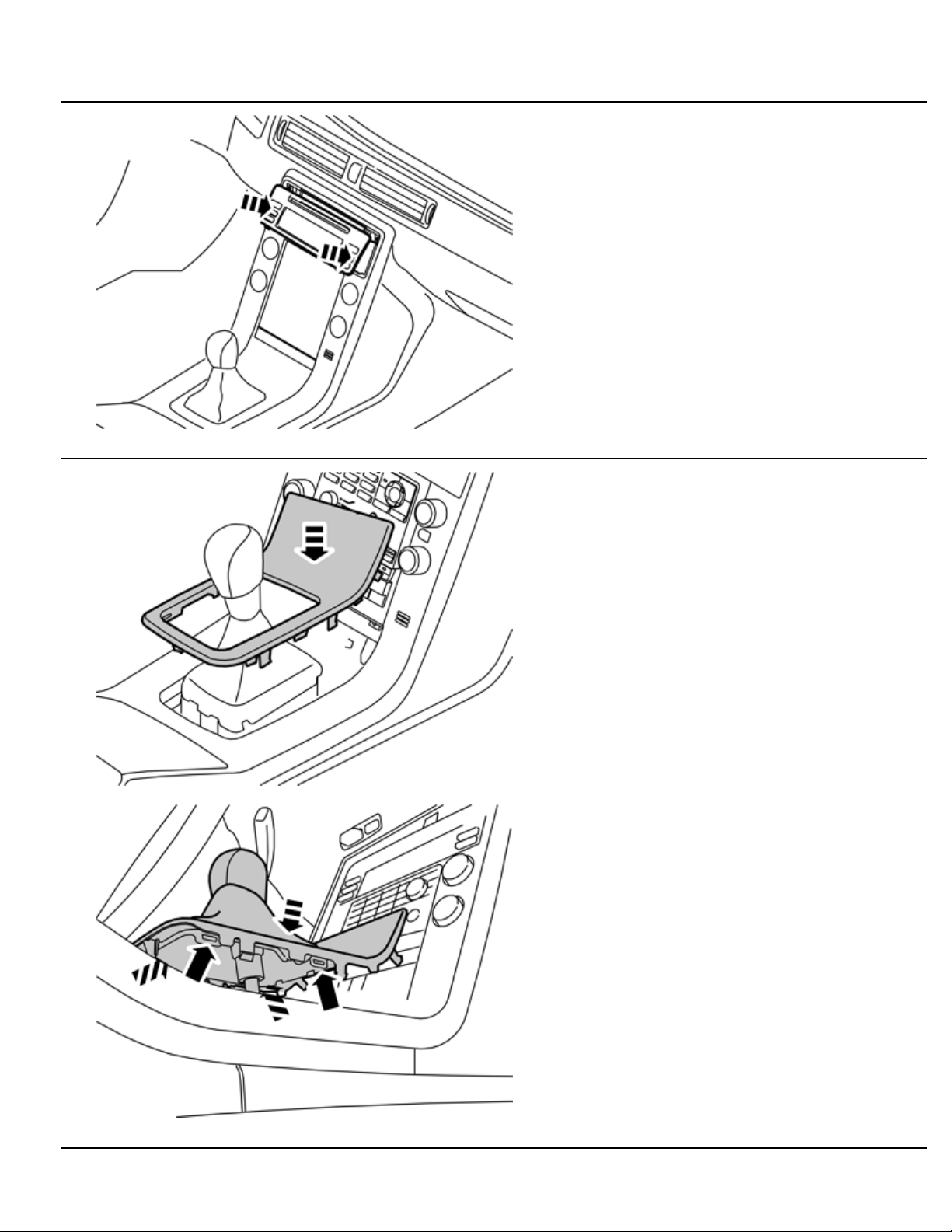

Reinstall the panel for the media player.
20A
IMG-222818
20B
IMG-222819
Illustrations A and B
Reinstall the gear lever panel on the gaiter.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 12 / 13

21
IMG-222820
Reinstall the panel with gaiter in the centre console.
22
IMG-222822
Fold back the cover for the storage compartment.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation CD changer- 30732001 - V1.2
Page 13 / 13
