VonHaus 3500014 User manual

800W
RECIPROCATING
SAW
3500014 - Instruction Manual

CONTENTS
Safety Instructions 1
Safety Instructions 2
Safety Instructions 3
Safety Symbols 4
Specification 5
Fitting/Removing a Saw Blade/Adjusting the Shoe Plate 6
Operation 7
Making Cuts 8
Maintenance/Troubleshooting 9
Warranty 10

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
GENERAL SAFETY INFORMATION.
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Please retain all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
INTENDED USE.
The intended use of this tool is described in this
instruction manual. The use of any accessory or
attachment or performance of any operation with this
tool other than those recommended in this instruction
manual may present a risk of personal injury and/or
damage to property.
This 9 Amp Reciprocating Saw is intended for
domestic use only. Do not use for commercial
purposes.
This tool is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for the their safety.
Children should be supervised to ensure that they do
not play with the tool.
ELECTRICAL SAFETY.
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adaptor
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering the power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep the cord away from heat, oil, sharp edges and
moving parts. Damaged or entangled cords increase
risk of electric shock.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use to reduce the
risk of electric shock.
WORK AREA SAFETY.
Keep your work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive atmospheres
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the
dust or fumes.
Keep bystanders, children and animals away while
operating the power tool. Distractions can cause you
to lose control.
BEFORE USE.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
WARNING! Contact with, or inhalation of, dusts
arising from cutting applications may endanger the
health of the operator and possible bystanders. Wear
a dust mask specifically designed for protection
against dust and fumes and ensure that persons within
or entering the work area are also protected.
Always wear eye protection. Any power tool can throw
foreign objects into your eyes and cause permanent
eye damage. Always wear safety goggles (not glasses)
that comply with ANSI safety standard Z87.1. Every
day glasses have only impact resistant lenses. They are
not safety glasses.
WARNING! Wearing glasses or goggles not in
compliance with ANSI Z87.1 when operating this tool
could cause serious injury.
Dress appropriately. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts to prevent them from becoming
caught in the tool.
Secure your work-piece. Use clamps or a vice to hold
the work-piece as this is safer than using your hand
and frees both hands to operate the tool.
Make sure that there are no nails or foreign objects in
the path of the work-piece to be cut or sanded.
Never use dull blades in the tool. They will cut slower,
leave rough cuts and break easily due to added
pressure and excessive heat. They will also overload
the motor and cause premature failure of the tool.
If devices are provided for the connection of dust
extraction and collection facilities, ensure that these
are connected and properly used to reduce dust-
related hazards.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or key left attached to a
rotating part of the power tool may result in personal
injury.

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
2
IMPORTANT SAFETY INFORMATION FOR USE.
WARNING! Know your 9 Amp Reciprocating Saw. Do
not plug the tool into the power source until you have
read and understand the information in this manual.
Learn the tool’s applications and limitations, as well
as the specific potential hazards related to this tool,
in order to reduce the risk of electric shock, fire or
serious injury.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
WARNING! Use only accessories recommended
for this oscillating tool. Follow the instructions that
accompany the accessories. The use of improper
accessories may result in injury to the operator or
damage the tool.
WARNING! If any part is missing or damaged, do
not plug the tool into the power source or install
any accessory until the missing or damaged part is
replaced. Failure to follow this instruction could result
in serious personal injury.
Prevent unintentional starting. Ensure the switch is
in the off position before connecting to the power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch, or energising power tools that are switched
on, invites accidents.
Do not use the power tool if the switch does not turn
it on and off. A power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
Hold the power tool by the insulated gripping
surfaces when performing an operation where the
cutting accessory may contact hidden wiring or its
own cord. A cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
Use clamps or another practical way to secure and
support the work-piece to a stable platform. Holding
the work by hand or against your body leaves it
unstable and may lead to loss of control.
Keep hands away from cutting area. Never reach
underneath the work-piece for any reason. Do not
insert your fingers or thumb into the vicinity of the
reciprocating blade and blade clamp. Do not
stabilize the tool by gripping the shoe.
When cutting pipe or conduit, make sure that they
are free from water, electrical wiring, etc.
Do not overreach. Keep proper footing and
balance at all times. This will enable better control
of the power tool in unexpected situations.
Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for
which it was designed.
The blade will continue to move after releasing the
switch. Always switch the tool off and wait for the
saw blade to come to a complete standstill before
putting the tool down.
Do not touch the work-piece or the blade
immediately after operating the tool. They can
become very hot.
VIBRATION.
The declared vibration emission values stated
in the technical data and the declaration of
conformity have been measured in accordance with
a standard test method provided by EN 60745 and
may be used for comparing one tool with another.
The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING! The vibration emission value during
actual use of the power tool can differ from the
declared value depending on the ways in which the
tool is used. The vibration level may increase above
the level stated. When assessing vibration exposure
to determine safety measures required by 2002/44/
EC to protect persons regularly using power tools
in employment, an estimation of vibration exposure
should consider the actual conditions of use and
the way in which the tool is used, including taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time.

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
MAINTENANCE & STORAGE.
Disconnect the plug from the power source and/
or the battery back from the power tool before
making any adjustments, changing accessories or
storing. Such preventative safety measures reduce
the risk of starting the power tool accidentally.
Maintain the power tool. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
Keep blades sharp. Dull or damaged blades may
cause the saw to swerve or stall under pressure.
Always use the appropriate type of saw blade for
the work-piece material and type of cut.
Store idle power tools out of reach of children and
do not allow persons unfamiliar with the power
tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of
untrained users.
SERVICE.
Have your power tool serviced by a qualified
repair person using identical replacement parts
only to ensure that the safety of the power tool is
maintained.

Please ensure you understand their meanings before operating this product
in order to prevent personal injury and avoid damage to the tool.

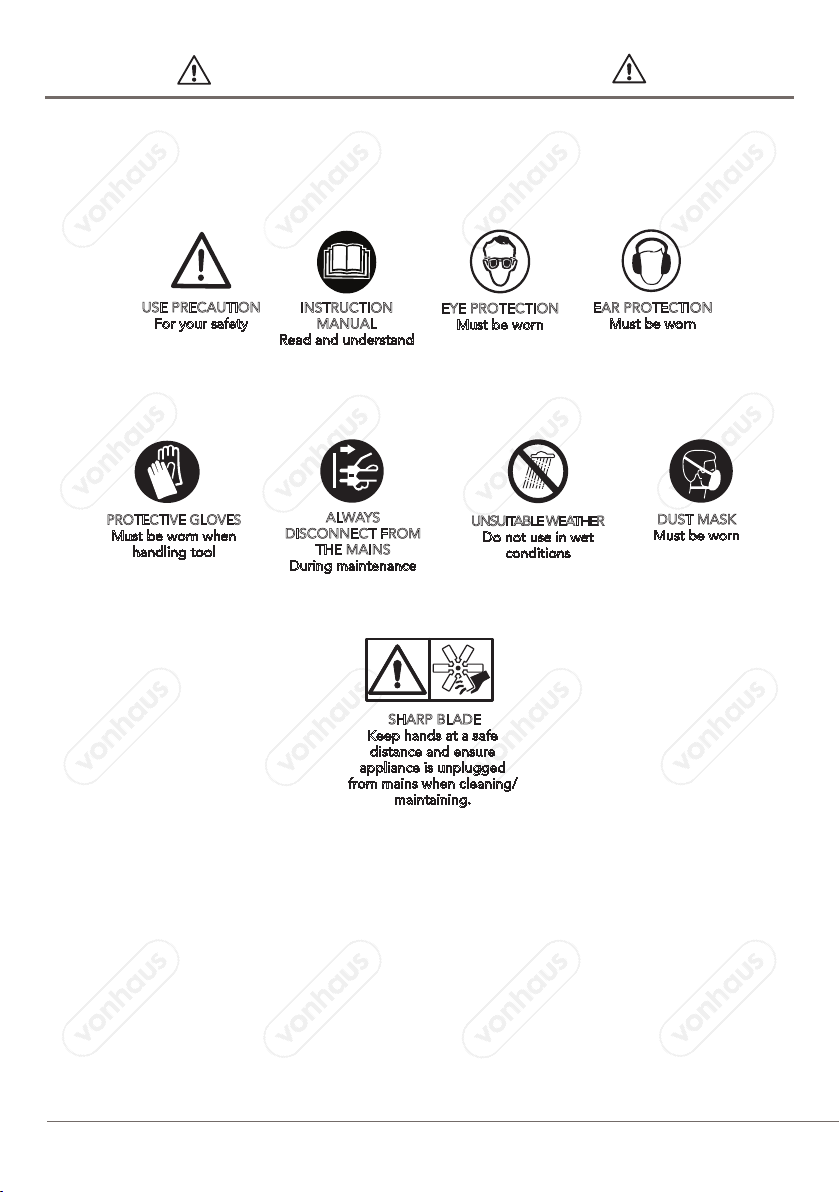

SAFETY SYMBOLS
4
USE PRECAUTION
For your safety
EYE PROTECTION
Must be worn
INSTRUCTION
MANUAL
Read and understand
UNSUITABLE WEATHER
Do not use in wet
conditions
EAR PROTECTION
Must be worn
PROTECTIVE GLOVES
Must be worn when
handling tool
DUST MASK
Must be worn
SHARP BLADE
Keep hands at a safe
distance and ensure
appliance is unplugged
from mains when cleaning/
maintaining.
ALWAYS
DISCONNECT FROM
THE MAINS
During maintenance

SPECIFICATION
50230-240 0 - 2800
HzV min-1
VOLTAGE NO LOAD
SPEED
FREQUENCY
1. Shoe Plate.
2. Chuck Collar/ Blade Holder.
3. Barrel Grip.
4. Lock-On Button.
5. On/Off Trigger.
6. Variable Speed Dial.
7. Hexagonal Shoe Adjustment Screws (x 2).
8. Hex Key.
9. Blade Saw for Metal (x1).
10. Blade Saw for Wood (x1).
1 2 3
4
5
69
8
10
7

6
FITTING/REMOVING A SAW BLADE
CAUTION: Always ensure that the tool is powered off and disconnected from the
mains before performing any adjustments or maintenance.
CAUTION Do not use worn or damaged saw blades
as this can cause injury to the user and/or damage to
the tool.
IMPORTANT Ensure you use the correct type of saw
blade, specific to the material to be cut.
To insert a blade, firstly rotate the Chuck Collar (2) in
an anticlockwise direction. This will retract the pin and
allow the required Saw Blade to be inserted.
Take the saw blade and insert into the centre of the
Chuck Collar (2). Ensure the teeth are facing in the
correct direction before sliding the blade into the slot
on the Chuck Collar as far in as possible.
Release the Chuck Collar (2) to secure, and check that
the blade is in place.
To remove a worn/damage blade, follow the above
steps in reverse.
ADJUSTING THE SHOE PLATE
The Shoe Plate (1) slides in and out to adjust the
effective stroke length for maximum control and
longer blade life.
Loosen the two Hexagonal Shoe Adjustment Screws
(7) with the Hex Key (8) provided.
Pull the Shoe Plate (1) to the desired position, and
re-tighten the Hexagonal Socket Screws with the Hex
Key (8) provided.
CAUTION: Always ensure that the tool is powered off and disconnected from the
mains before performing any adjustments or maintenance.
1
7
WARNING! Always wear protective gloves
when handling blades.
WARNING! Do not remove the blade
immediately after the cutting; the blade may
be very hot.
2
1
8

NEVER under any circumstance, hold the
work-piece by hand as a means of securing it
whilst cutting. This may cause serious personal
injury and damage to the tool.
OPERATION
IMPORTANT Always wear eye protection while
operating this power tool.
CAUTION Before attempting to cut any wooden
work-piece, first ensure that the material is free from
any foreign objects, screws or nails.
IMPORTANT Ensure that the blade is suitable for the
material to be cut, and never use blunt or damaged
blades.
Ensure the work-piece (A) to be cut has been safely
secured into position with the appropriate clamps,
then connect the tool to the mains power supply.
Hold the tool securely with one hand on the Handle
and the other on the Barrel Grip (3), making sure that
the tool is not in contact with the work-piece before
starting it up.
Squeeze the On/Off Trigger (5) to power on the Saw,
and allow the Blade to reach full speed before cutting
the material.
NOTE The On/Off Trigger (5) is pressure-sensitive in
order to adjust the speed of the cut. Always adjust the
speed using the Variable Speed Dial (6) according to
the material being cut.
NOTE When using the tool for a particularity long cut,
or for extended periods of time, use of the Lock-On
Button (4) may be required.
For continuous operation, activate the On/Off Trigger
(5), then push in the Lock-On Button (4); the tool will
now run on maximum speed without the need to keep
hold of the On/Off Trigger (5).
To release the Lock-On Button (4), squeeze the
On/Off Trigger (5) fully.
WARNING! Always make sure that you wear adequate safety equipment when using the tool.
A
A
56
4
WARNING Always ensure the work-piece
has been safely secured into position with
the appropriate clamps before switching on,
and using the saw.
WARNING! When sawing into walls, floors
or where “live” electrical wires may be
encountered, always hold the tool by the
plastic Handle and Housing to prevent
electric shock if you saw into a live wire.

PLUNGE CUTTING
Mark the line ready for the cut.
Choose a point inside the area to be cut and place
the tip of the blade over that point.
Rest the front edge of the work-piece so that the
blade does not make contact with the work-piece
surface.
Hold the tool securely with one hand on the Handle
and the other on the Barrel Grip (3), making sure
that you have full control at all times.
Squeeze the On/Off Trigger(5) fully for maximum
speed, and allow the blade to come to full speed.
METAL CUTTING
NOTE This 800W Reciprocating Saw is suitable for
cutting such materials as sheet steel, pipe, steel rods,
aluminium, brass and copper.
IMPORTANT Ensure you have the correct blade fitted
to cut the material.
CAUTION Take care not to bend or twist the blade
and do not force cut.
Always use a suitable cutting fluid when sawing soft
metals and steel; this will ensure that the blade keeps
cool and help to prolong the life of the blade to
achieve a more efficient cut.
Make sure that the work-piece is firmly clamped into
place to minimise vibration.
When cutting angle iron or conduit pipe, clamp the
work-piece in a vice where possible, and cut as close
to the vice as possible.
To cut thin sheet metal, clamp the sheet in between
hardwood or plywood to prevent vibration and
tearing of the material.
MAKING CUTS
8
Squeeze the On/Off Trigger (5) fully for maximum
speed, and allow the blade to come to full speed.
Slowly lower the blade until it makes contact with the
work-piece and continue to cut slowly, until the blade
has fully penetrated the thickness of the work-piece.
WARNING! Plunge cutting is an advanced
technique with a higher risk. Only more
competent and experienced users should
use this method of cutting.
WARNING! Only attempt this method on
softer materials such as wood, plasterboard
or similar.
WARNING! Inspect both sides of the
material to be plunge cut for foreign
objects on the underneath, or objects
that could be damaged, and be aware
of hidden pipe work or power cables. If
plunge cutting into drywalls, ensure that
all electrical supply has been isolated
and switched off and that water and gas
supplies have been shut off.

MAINTENANCE
TROUBLESHOOTING
PROBLEM SOLUTION
Ensure the tool is switched on and connected to
mains power.
Activate the On/Off Trigger to power on.
Check the fuse and replace if necessary.
TOOL DOES NOT POWER ON
BLADE DOES NOT MOVE
POOR CUTTING PERFORMANCE
MOTOR BECOMES HOT
BLADE IS JUDDERING OR
VIBRATING ABNORMALLY
The tool has been heavily used. Reduce the force
applied to the tool. Do not exert extra pressure, let the
tool do the work.
Air vents may have become blocked. Clean the air vents
using compressed air or a clean dry cloth.
The blade is not mounted correctly. Check the blade
and replace if necessary.
Machine bearings may be worn. Contact DOMU Brands
Customer Services.
CAUTION Ensure the 800W Reciprocating Saw is
disconnected from the mains power supply before
attempting any maintenance.
Keep the tool’s ventilation slots clean and free from
obstructions. If available, blow compressed air into
the vents to clear any internal dust.
IMPORTANT Safety goggles must be worn when
undertaking this task.
Keep the outer casing of the appliance clean and free
from grease.
CAUTION Do not wash with water or use solvents
or abrasives. Use only mild soap and a damp cloth to
clean the tool.
Always store your appliance in a cool, dry place, out
of reach of children.
Drive gear may be broken. Contact DOMU Brands
Customer Services.
The blade may be damaged and will require changing
as outlined in the ‘Fitting a Saw Blade’ section.
The blade may not be suitable for the material used.
WARNING! Do not allow water or any
other liquid to enter the tool. Never
immerse any part of the tool in a liquid for
any reason.
If you are having difficulty using your product and require support, please
contact [email protected]

DECLARATION OF CONFORMITY
We:
DOMU Brands Ltd
5th Floor The Tower
Deva City Office Park
Manchester
M3 7BF
Declare under our sole responsibility that the product:
SKU: 3500014
Description: VonHaus 800W Reciprocating Saw.
2006/42/EC, 2014/30/EU, 2011/65/EU.
10
PRODUCT DISPOSAL INFORMATION
For electrical products sold within the European Community, at the
end of the electrical product’s useful life, it should not be disposed
of with household waste. Please recycle where facilities exist.
Contact your local authority for details of collection schemes in your
area.
In all circumstances:
• Do not dispose of in domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE as unsorted municipal waste.
DISPOSAL INFORMATION
COPYRIGHT
WARRANTY
All material in this instruction manual are copyrighted
by DOMU Brands Ltd.
Any unauthorised use may violate worldwide
copyright, trademark, and other laws.
To register your product and find out if you qualify
for a free extended warranty, go to:
www.VonHaus.com/warranty
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the Warnings page
of this manual, and all other instructions have been
followed accurately. Any abuse of the product or
the manner in which it is used will invalidate the
warranty.
Returned goods will not be accepted unless re-
packaged in its original packaging and accompanied
by a relevant and completed returns form. This does
not affect your statutory rights.
No rights are given under this warranty to a person
acquiring the product second-hand or for commercial
or communal use.

USER NOTES

VonHaus®is a registered trademark of DOMU Brands Ltd
Made in China for DOMU Brands Ltd M24 2RW.
Thank you for purchasing the 800W Reciprocating Saw.
