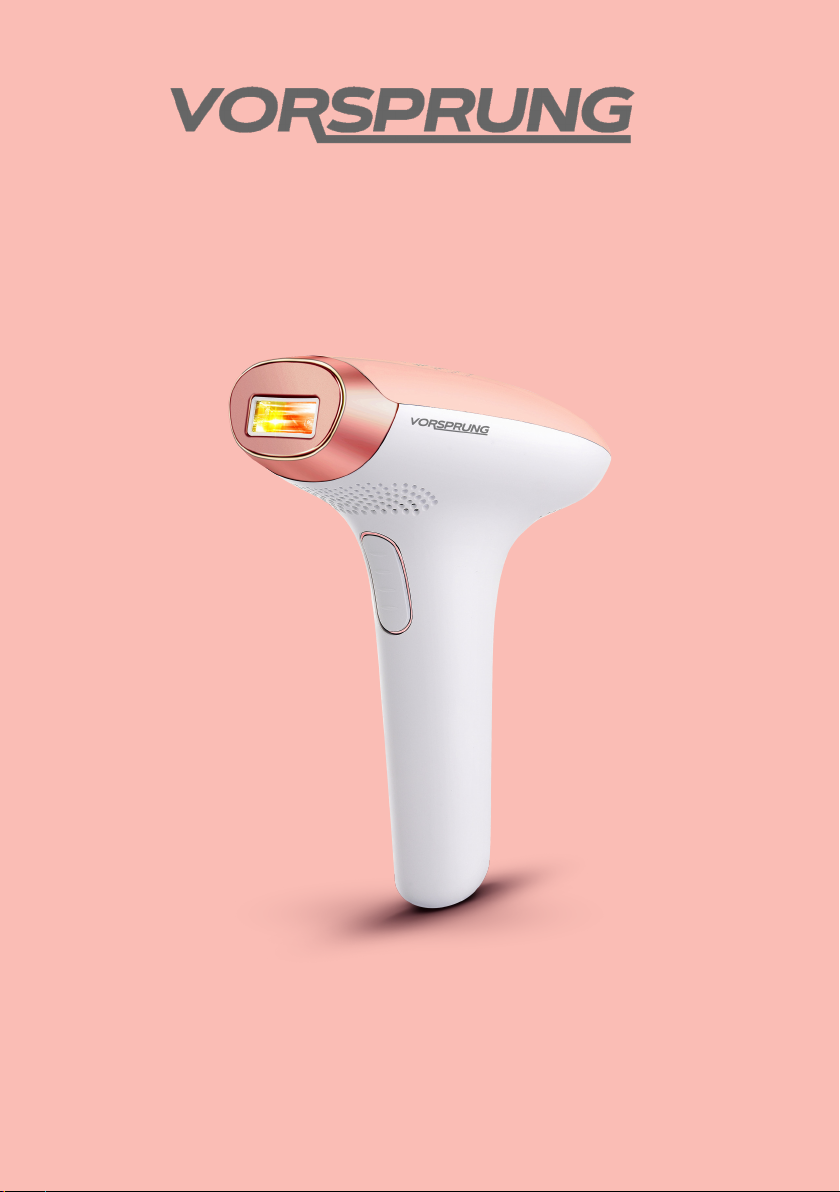

Vorsprung BR2020 User manual

Luminous IPL Hair Removal
Model: BR2020 / SKU: 20099
Instruction Manual

page19. guarantee information
Page 2 - 5. Recommends
Safety Precautions
Warnings
Pre-cautions
EMC Statements
page 6 - 7. Know more about IPL Hair Removal Technology
How Does IPL Work
What to Expect
Applicable Conditions
Body Areas
Skin Tones
Hair Colour
Skin Tone & Body Hair Type Chart
Page 8 - 14. KNOW your IPL Hair Removal Device
Device Overview
Device Technical Specications
Operating your IPL Hair Device
Removal Device
Treatment Modes
Error Code Checklist
Page 15 - 17. Treatment Schedule For your IPL Hair Removal Device

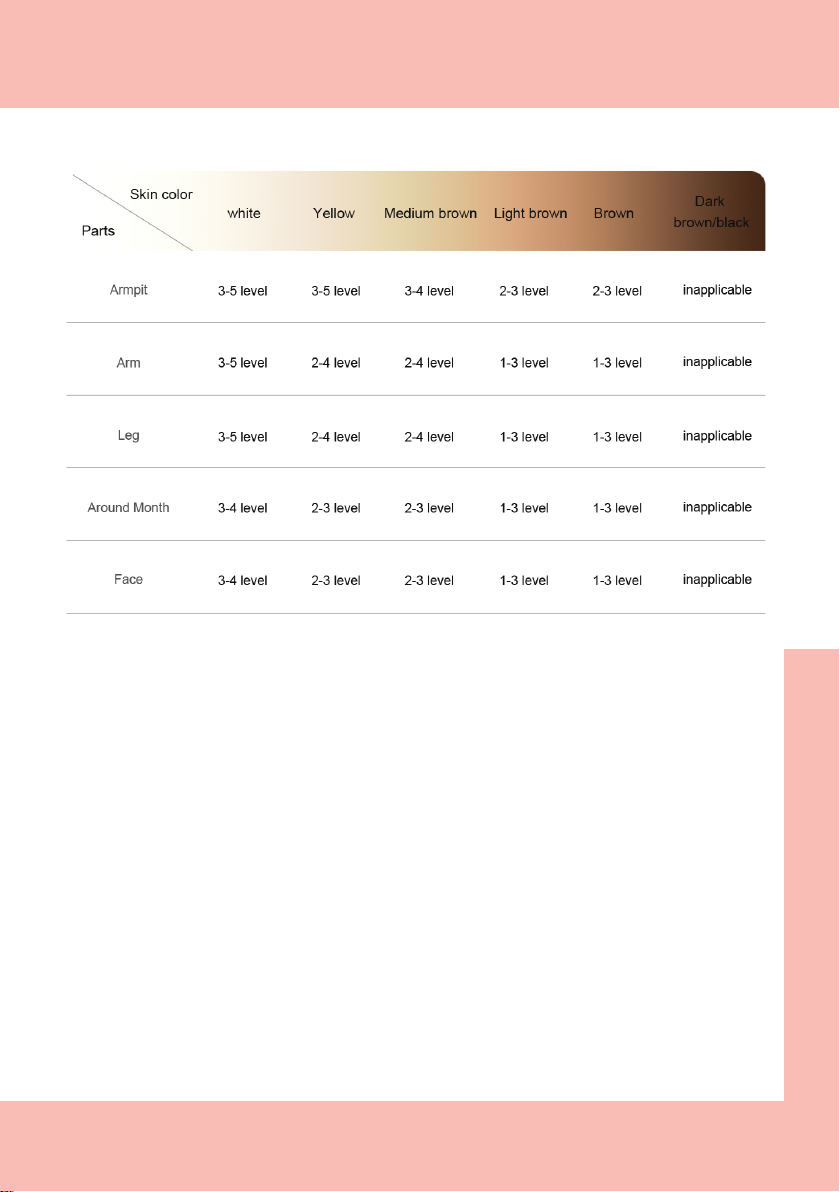

Select an appropriate Energy Level
Use High-Energy Levels with Caution
Treatment Schedule
Aftercare
Possible Side Effects

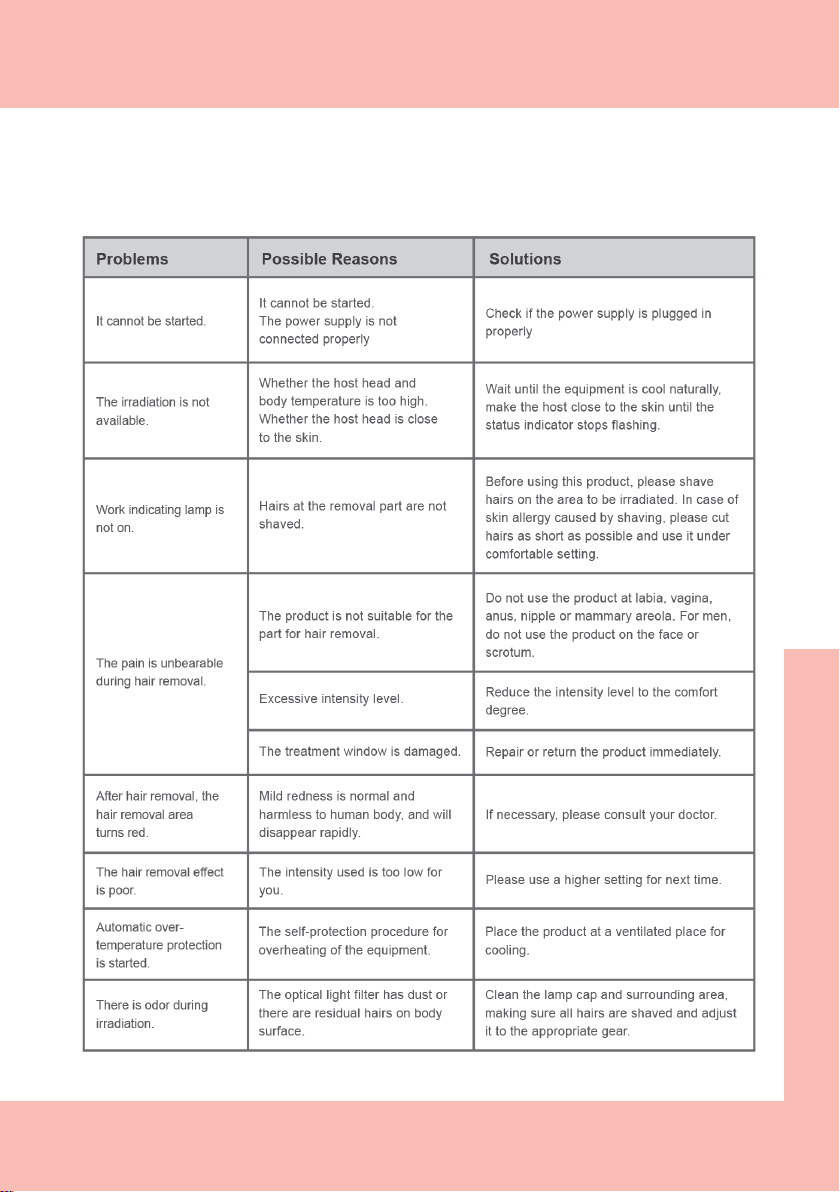

page 18. Troubleshooting
CONTENTS
1

RECOMMENDS SAFETY FIRSt
Safety precautions
We at VORSPRUNG are very safety conscious. We strives to stay ahead of
customer needs by providing high-quality products and services based on its
corporate policies of High level of responsibility and Absolute Credibility. In
addition, we ask that you exercise a degree of care when using the device
and adhere to the following precautions. It is to ensure the operation of the
device is correct and safe. To prevent users or other people from personal
injuries or property damage, please make sure to follow them.
• Minors and children under 18 are prohibited from using this device, as this
device has not been tested on these individuals.
• Not to be used by pregnant or breastfeeding women, or during menstrual
period.
• Do not use device on skin with scars and light-sensitive skin.
• Do not use device if you have varicose veins and vasodilation.
• Do not use if the irradiated skin is infected, simple cell rash, skin lesions,
hematoma, etc.
• Do not use the device on the upper part of the face. (Above the cheekbones),
anus, nipple, or mammary areola. Also note that for men, do not use the
device on the scrotum; for women, do not use the device on the labia or
vagina.
• Do not use on burned skin, folliculitis, malignant tumors, infectious skin
diseases, etc.
• Light damage (sunburned), please wait for the skin to heal before use.
• Do not use on sensitive parts such as mucous membranes.
• Those who use chemical methods for hair removal within 30 days, have used
skin whitening products in a short period of time, or have used cosmetics
containing vitamin A ingredients. Please use device with caution.
• Those who have used isotretinoin within the last 6 months should not use the
device, as this could lead to scarring.
• It cannot be used in the same period as essential oil products. Please make
sure that the illuminated area is clean, dry and free of creams, lubricants and
other cosmetics. If the surface of the skin is not smooth, it may affect the
experience of using the device and may even damage the device.
• It is strictly forbidden to use this device for any type of wound that has not
healed. It is not recommended for patients with hirsutism and other diseases
induced hirsutism.
2

RECOMMENDS SAFETY FIRSt
3
• If your skin tone or hair colour is not suitable, it is prohibited to use this device
(please refer to the skin colour card). (If necessary, please consult your doctor
before use).
• Hair removal by the IPL hair removal device or intense pulsed light sources
can increase hair growth in some individuals. Based upon currently available
data, the highest risk groups for this response are females of Mediterranean,
Middle Eastern, and South Asian heritage treated on the face and neck. This
group should be careful.
• Please keep the device beyond children’s reach. Please do not use this device
near a bathtub, shower basin, washbasin or other xtures containing water.
Please keep the device and the power adapter dry.
• If the device is damaged, please do not use and touch any internal parts to
avoid electric shock.
• Do not insert any objects into the device, and store device safety.
• When you need back hair removal operation, you may need an assistant or
partner. This is our recommendation, because we are concerned that you may
be at risk using it alone.
• If your hair is longer than 1mm, please shave rst. We recommend that you
use a razor. Excessively long hair absorbs heat on the surface of the skin,
which will cause skin redness and swelling, and scorched hair will produce
odor. This will affect your experience with the device.
• If the skin of the irradiated area is not dry or clean, it will affect the use of
effectiveness and may also cause the device to not ash or ash unexpectedly.
• If the power cord is damaged, in order to avoid danger, stop using device.
• Eye Safety: You must wear the safety glasses provided.
The device emits ashes of Intense Pulsed Light. Though the device has been
tested and passed the international standards to ensure that its output are
safe for your eyes, direct exposure is still potentially harmful to your eyes. The
device can only be ashed (light emitted) if both skin sensors (inside the
light-emitting window) detect a valid skin reading.
Warnings

RECOMMENDS SAFETY FIRSt
--DO NOT look directly into the light-emitting window of the device when the
device has electrical power and is switched on.
--DO NOT attempt to ash (emit light) the device towards the eye.
--DO NOT treat areas around the eye (eyebrows or eyelashes).
--DO NOT use this device around the eyes. Protective glasses can indeed
protect the user’s normal operations but, if you operate around the eyes, the
protective glasses may not completely block the energy from being absorbed
by the iris melanin in your eyes at close range.
--ONLY attempt to ash the system when the light-emitting window of the
device is in good contact with the area you wish to treat.
--WE RECOMMEND you look away from the device when ashing onto your
skin. Or We recommend that you wear protective glasses every time you use
them. Although the light will not directly affect the glasses, the high-frequency
ashing light may affect your eyesight.
• The maximum temperature of the treatment head is 110°F / 43°C, which will
not burn the skin when it reaches a certain temperature
Pre-cautions
4
• Some customers will experience slight redness after use, which is normal. It
will disappear within 24 hours normally. If it doesn’t disappear within 24 hours,
please stop using the device and consult your doctor.
• Do not use antiperspirant immediately after irradiating the armpit.
• Please conrm and clean the dirt of the irradiation port regularly to avoid burns
and malfunctions during use.
• Do not use when the vent is blocked, as not to cause smoke and re.
• Do not use on pets to avoid injury.
• Do not use this device around the eyes, as not to cause eye damage.
• After use, please wipe clean the hair and skin care products attached to the
device to avoid any malfunction and skin damage.
• Do not use it near children, the device will emit strong light, which may hurt
the eyes.

RECOMMENDS SAFETY FIRSt
EMC Statements
• After use, if the skin is slightly hot and red, this is normal, the ice compress
function can be turned on to relieve skin discomfort.
• Do not point the irradiation port towards a black object, as not to cause
scorching, discoloration or damage.
• After the device is turned on, it cannot be left unattended. Please turn it off
immediately after use.
• Clean the skin, make sure that there are no hair residues, completely dry and
no oily substances on the skin surface.
• If the environmental temperature difference is more than 70°F / 21°C, please
turn off the device and let it stand for about 2 hours to use again.
• The ambient temperature of this IPL hair removal machine is 40~95°F /
4~35°C, please conrm the room temperature before use.
• Within 24 hours of irradiation, please avoid direct ultraviolet rays on the
irradiated part.
• If the skin on the irradiated area is not dry or clean, it will affect the use of pulsed
light, and may also cause the device to not ash or will ash unexpectedly.
• Please do not touch the light exit port after use, because the light exit port
generates high temperature, it can easily cause burns.
• Do not place the device in the sun or expose it to ultraviolet light for a long
time, which will seriously damage the device.
• If the built-in fan does not work after turning on the power (no buzzing sound
can be heard), please do not use it, so as not to cause smoke, re and other
malfunctions.
5
• IPL hair removal device (model BR2020) conforms to EMC requirements.
• User shall install and use in accordance with EMC information described in the
attached manual.
• The portable and mobile RF communication equipment may affect the
performance of the device, so please avoid strong electromagnetic interference
when using, such as, do not use it near phone, microwave and so on.
• Manual and manufacturer’s statement details are in the end of the article
• (Annex I).

KNOW MORE ABOUT IPL HAIR REMOVAL TECH
How Does Vorsprung Luminous IPL Work
What to Expect
Applicable Conditions
Body Areas
The VORSPRUNG Luminous IPL Hair Removal Device offers hair removal via
the Intense Pulsed Light technology, also known as IPL. Essentially, the device
utilises high-energy light to achieve long-term hair reduction. The absorbed light
energy is converted to heat energy (below the surface of the skin), which disables
the hair follicle. This puts the hair into a resting phase.
Immediately post treatment: You should not see any signicant side effects from
treatment.
In the rst few weeks following the initial treatments: You will still see some
hairs growing. These are likely to be hairs that were missed during treatment i.e.
they were lying dormant and not in their growth phase (Anagen) during treatment,
when IPL is most effective.
Around 2 weeks into the 4 week treatment program: You should see a reduction
in hair growth. However, many hairs may still not have been treated in their growth
phase. It is important to continue the weekly treatments.
After the 5 - 6 week program: You should see a signicant reduction in hairs
within the treated area. Any remaining hairs should be ner and lighter in color.
Continued monthly treatments, or treatments as required, should maintain the
reduction in unwanted hair
Intended use: IPL hair removal device is an over-the-counter device intended
for removal of unwanted hair such as, but not limited to, small areas such as
underarm and facial hair below the chin line and large areas such as legs.
Suitable for persons aged 18+ only.
Women: Legs, arms, underarms, bikini area and face (below the cheek bones)
CAUTION: Do not use the device near the eyes, along the forehead, on the lips or
nostrils. Do not use it in the genital area.
Men: Shoulders and below (chest, back, arms, stomach, legs)
CAUTION: Do not use on the face, neck or genital area. The device is intended
to be used on body hair below the neck, including arms, underarms, bikini line,
stomach and legs. (Use on male beards or facial hair may lead to uneven results).
6

KNOW MORE ABOUT IPL HAIR REMOVAL TECH

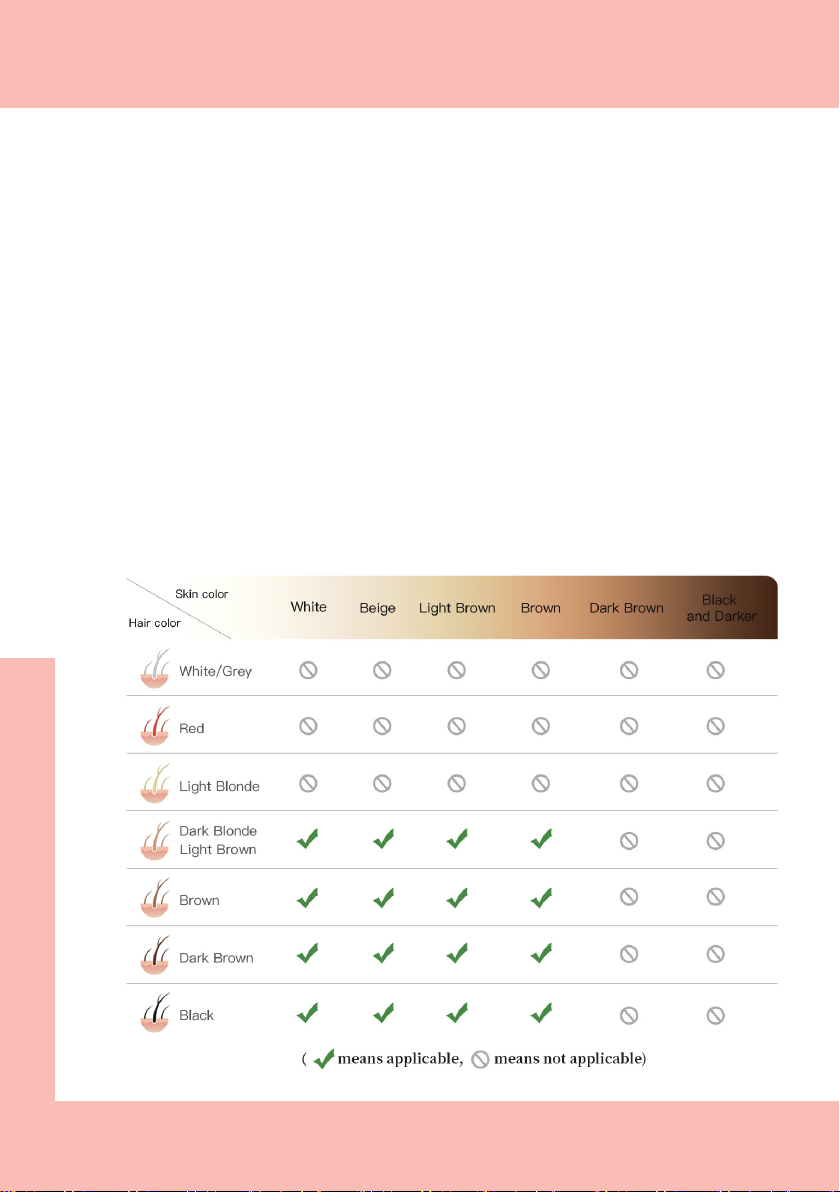

Skin Tone & Body Hair Type Chart
Skin Colour
Hair Colour
The device is intended for use on light, medium and dark skin tones up to and
including skin tone (see Skin tone chart).
The device is intended for use on naturally black or brown hair. It may not be as
effective on white, grey, blonde or red hair.
We recommend choosing on the basis of Fitzpatrick Phototyping Scale
which was developed by Harvard Medical School dermatologist, Thomas
Fitzpatrick, M.D., PhD to class a person’s complexion and their tolerance
of sunlight, and there are six levels of skin tones in the scale. The device
is suitable for the skin tone in Type I to Type IV. Please identify your skin
colour and check the following table to see whether the device is applicable.
7

KNOW YOUR IPL HAIR REMOVAL DEVICE
DEVICE OVERVIEW
If you are not sure of your skin tone and hair type, please refer to the Skin Tone &
Body Hair Type Chart prior to usage.
Note: Different skin sensitivity and exposure settings may lead to different
user experience. Start from Power Level 1 and work your way up as needed.
8

kNOW YOUR IPL HAIR REMOVAL DEVICE
9
2 x 2x2cm
Attachments
1 x 3x2cm Fixed Head
Attachments
1 x 2x1cm
Attachment
Protective Glasses
Razor
Power Cable Storage bag

KNOW YOUR IPL HAIR REMOVAL DEVICE
10
PRODUCT TECHNICAL SPECIFICATIONS
OPERATING YOUR Vorsprung luminous IPL HAIR REMOVAL
Model
SKU Code
Type of Protection
Level of Protection
Dimension
Maximum Shot Counter
Power
Input Voltage
Rated Frequency
Light Wavelength
Spot Size (Window Size of the Light)
Treatment Intensity Level
Energy
BR2020
20099
BF Type, Class II
IP22
142×92×189.7mm
999,999 times
36W (12V 4A)
100-240V
50/60Hz
510~1200nm
3.0 cm²
Level 1 to 5
9-18J
WARNING: Follow each step in the treatment process ensuring you complete all
aspects of each step before progressing to the next.
Remove all visible hair on the skin before using the device. Clean the skin
thoroughly to ensure that the skin is completely dry and is free of residual hairs
and oily substances (perfume, lotion, liquid deodorant, sun cream, etc). This
allows the light to be absorbed by the hair parts below the skin surface to ensure
effective treatment. Do not use hair removal creams, as chemicals may cause
skin reactions.
Before your rst treatment on each new body area, we recommend you identify
whether your skin tone is suitable and test your skin (in that area) for reactions.
Please select a small part to perform skin sensitivity test according to following
requirements:
1) Choose an area close to the area you intend to treat.
2) Switch on the device. Make sure you select level 1 or 2.
3) Put the device against your skin and press the ash button to release a ash.
4) Slide the device over the skin to the next area to be treated.
Step 1: Preparing the Treatment Area
Step 2: Doing a Skin Sensitivity Test

OPERATING YOUR IPL HAIR REMOVAL DEVICE
11
5) Increase the setting by one level, apply a ash and slide the device to the next
area. Repeat this for all levels within the recommended range for your skin type.
6) After the skin test, wait 24 hours and check your skin for any reaction. If your
skin shows reactions, choose the highest setting that did not result in any skin
reaction for subsequent use.
The skin test should be performed in all the areas you want to treat.
1. Attach the power cord to IPL device, then display
screen of the device will be lit up.
2. Long press the Power button to turn on the device.
You will be able to hear the cooling fan inside turn on.
The status indicator will ash 5~6 times.
3. Choose the power level to use (you have ve levels,
and you cycle through them using Power & Energy
Levels Button). The level will be indicated on the screen.
(Start at the lowest setting and do the Skin Sensitivity
Test)
How to Use

4. Press the Ice Cooling Function Button to active
the ice cooling effect.
(Ice Technology, which actively cools the metal
region that comes in contact with your skin).
5. Place the front end of the device against the skin
you are trying to treat and push the ash button.
Note:
If you have a low pain tolerance, we suggest apply Numb
Master Cream 30-45 min prior and right before zapping,
numb with ice (then dry) to reduce the pinching feeling when
the device emits the IPL to kill the hair.
6. After nishing the treatment, press the
power button for 3 seconds to turn off the device.
The screen will display a 10-second countdown.
After the countdown is over, the device will enter
the standby mode, and the screen will display
“OFF”.
7. Use a dry and clean cloth to gently wipe the
device, and then put it and its accessories into
the box and store in a safe place.
12
NOTE: Do not treat the same spot more than once per treatment.
The device will not operate if only the treatment window is in contact with skin
OPERATING YOUR IPL HAIR REMOVAL DEVICE

OPERATING YOUR IPL HAIR REMOVAL DEVICE
13
If you feel intense pain, stop treatment immediately and consult your doctor
before using the device again.
Kindly do not hesitate to contact us if you feel that you need any assistance.
Please contact us or email us at info@vorsprungofcial.com
Depending on the area you wish to treat you can choose between Gliding mode
and Precision mode:
Gliding mode enables fast and efcient treatments and is recommended for large
skin surface areas (e.g. legs, arms, chest and back) while Precision mode is
recommended for treating sensitive or small, hard-to reach areas such as knees,
shins, ankles, bikini line or underarm and face for females.
The area to be treated has to be hair-free, clean and dry.
1. Hold the Flash Button (Long press for 1~2 seconds) and the display screen will
show the symbol of gliding mode ‘ ‘,
2. Place the treatment window against the skin, then glide the device along the
skin between ashes. Try to move the device at a steady speed that gives full
coverage without overlap or missed areas.
TREATMENT MODES
Gliding Mode

14
OPERATING YOUR IPL HAIR REMOVAL DEVICE
1. Place the treatment window against the skin.
2. Press and instantly release the ash button. The device will emit a ash.
3. Lift off the device and place it onto the next adjacent spot to be treated.
Wait for the Status Indicator to show white LCD. Then press and release the
treatment button.
4. Continue treatment spot by spot until you have completed the entire area you
wish to treat.
This is an error code list explaining various common error codes when the device
is running
Error 0: Indicates that the lamp tube is leaking, and the customer needs to contact
the after-sales department.
Please contact us via email at info@vorsprungofcial.com
Error 1: The capacitor does not boost, the customer needs to contact the
after-sales department.
Please contact us via email at info@vorsprungofcial.com
Error 3: Over-temperature protection. When the device temperature exceeds the
highest value, the device will give a AEC reminder. Customers should stop using
the device and wait for the device temperature to cool before the device can be
used normally again.
Precision Mode
eRROR CODE LIST

TREATMENT SCHEDULE FOR YOUR IPL HAIR REMOVAL DEVICE
15
Start at the lowest setting (level 1 or 2) and work your way up as the hair follicles
start to die off. After a few treatments you should notice the pain level decreasing
(the darker coarser hair follicles should be inactivated, the lighter/ner hair won’t
hurt as much) and you can up the power.
Select a Appropriate Energy Level
The VORSPRUNG LUMINOUS IPL device has a high energy output, which means
it might hurt a little more on level 3-5, but it’ll be more effective at reducing hair
growth. The ICE cooling function helps reduce the pain to make it tolerable at the
high energy level.
If you feel intense pain or burn, please treat with lower level.
Use High-Energy Levels with Caution
For optimal results, the IPL hair removal device should be used twice a week for 8
weeks to ensure all hair follicles are treated.
After the initial treatment phase (8 weekly treatments), to maintain treated results
we recommend the IPL hair removal machine is used once a week for 9-12 weeks,
then, once a month.
Note: You can adjust the energy levels according to your pain tolerance and the
growth of the hair. We do not recommend exceeding the suggested treatment
frequency.
Treatment Schedule

16
TREATMENT SCHEDULE FOR YOUR IPL HAIR REMOVAL DEVICE
lntensity Level and Skin Colour
1. After hair removal, apply the gel to hair removal part immediately. It is
recommended to avoid touching water within 6h.
2. Avoid perfumes, deodorants, and hot showers for the rst 24 hours.
3. Avoid ultraviolet ray exposure within 24h after hair removal. Please apply high
factor sun cream to treated skin before any sun exposer.
4. Sunbathing may make skin dark or cause skin surface to sunburn. It is
recommended not to use the device during this period.
Aftercare

TREATMENT SCHEDULE FOR YOUR IPL HAIR REMOVAL DEVICE
17
When using IPL hair removal device according to the instructions for use, side
effects are rare. However, every aesthetic procedure including the usage of
home use devices may cause some degree of side effects. If any of the following
conditions appear and last more than 24 hours, you should consult your doctor or
dermatologist.
Kindly do not hesitate to contact us if you feel that you need any assistance. Please
contact us via email at: info@vorsprungofcial.com
Possible Side Effects
Side Effect Table:

18
TROUBLESHOOTING
This manual outlines the problems encountered when using the device. If you
cannot use the following information to solve these problems, please contact the
aftersales service personnel in time.

guarantee CONTENTS
19
If you have any clarication or queries you wish us to address, please email our
support team with your order details and a description of the fault or damage.
Including photographs of any fault helps in speeding up enquiries.
Email address: info@vorsprungofcial.com
Note: Normal response time is within 72 hours.
Don’t forget to check your spam folder since responses can be mistakenly be
ltered.
According to our research, those who returned the device due to of lack of hair
reduction did not treat the area long enough. This part is unpredictable as there is
nothing you can do to speed up the process due to each individuals growth cycle
and each hair can only be effectively zapped when it is in its right phase of the
cycle. In fact, in the few days following a treatment it can even look like there is
more hair because the zapped hairs are getting pushed out. We are committed to
serving customers with reliable quality products and aftersales service. You are
supported by a one year product guarantee from date of purchase.
Warranty Contents
Customer Support
