1
AOM683
6.8” FLAT PANEL COLOR OBSERVATION
MONITOR OWNER’S MANUAL
AOM683 Features:
– 6.8” High Performance Color LCD
– Water Resistant Design
–Built-in Audio Speaker with Volume Control
and 12V Trigger
– 3 Camera (A/V) Input with Source Select Control
–Backlit Controls and Day/Night Picture Modes
for Nighttime Use
– Auto/Manual Power On
– Sun Visor Included
Visit us at http://www.asaelectronics.com
Patent Pending
PPLICATIONS, L.L.C.UDIOVOX PECIALIZED
R

2
Important! – Please Read This Manual Before Installing!
Congratulations on your purchase of a Voyager AOM683 LCD Observation Monitor.
With proper installation and use, your AOM683 is designed to provide you with years of
trouble-free operation. This manual contains important information required to properly
install and operate the unit. Please read this manual thoroughly before beginning.
All Voyager Observation products are strictly intended to be installed as a supplement aid
to standard rear-view mirror systems that may already exist in your vehicle. Voyager
observation products are not intended for use as substitutes for rear-view mirror devices,
or for any other standard motor vehicle equipment required to be installed on vehicles by
law.
While Voyager observation products contribute to improving the vehicle operator’s field
of view, these products are no substitute for proper defensive driving techniques and
observance of traffic laws and motor vehicle safety regulations.
Warnings!
Installation Location
It is unlawful in most jurisdictions for a person to drive a motor vehicle equipped with a
television viewer or screen located at any point forward of the back of the driver’s seat or
in any location that is visible, directly or indirectly, to the driver while operating the
vehicle. The AOM683 product is designed to be used primarily as a rear observation
device in conjunction with closed circuit cameras. In any installations where the
AOM683 is used to display television broadcasts or recorded video playback, installation
location must adhere to local laws and regulations.
Tampering
To prevent electrical shock, DO NOT OPEN THE MONITOR CASE. There are
potentially harmful voltages inside the monitor. There are no user serviceable parts
inside. If evidence of tampering is detected, the warranty will be considered void.
Moisture
Your Voyager AOM683 was designed to be water-resistant. While it will withstand short
periods of exposure to moisture, this product does contain sensitive electronic
components and exposure to moisture should be limited by the user / installer. This
product is not designed for applications where constant exposure to moisture or
immersion can be encountered. This unit should NEVER be cleaned with a power
washer or used where direct power washer spray may be encountered.

3

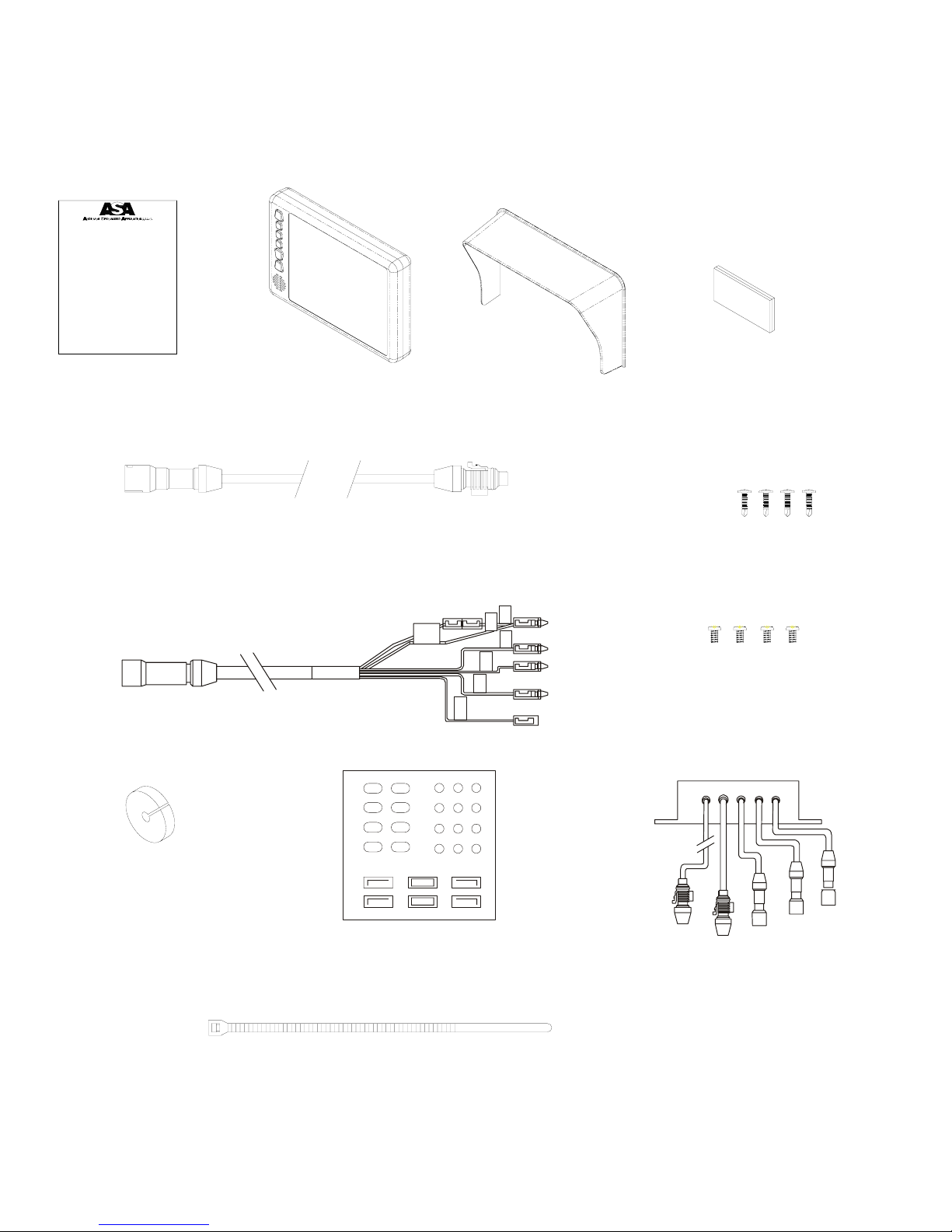

PACKING CONTENTS:
WARRANTY CARD
QTY. 1 LCD MONITOR
Q
TY. 1 SUN SHIELD
QTY. 1 4” X 2” VELCRO QTY. 1
SPLIT GROMMET
1” O.D. 3/16 I.D.
QTY. 1
5’ INTERMEDIATE HARNESS
QTY. 1 #8 X ¾” SELF DRILL BLACK SCREWS (HARDWARE
BAG)
QTY.4
POWER HARNESS QTY. 1
#10 X 5/16” PHP THREAD FORMING BLACK
SCREW (HARDWARE BAG) QTY. 4
4” BLACK WIRE TIE
QTY. 4
DISTANCE MARKER
STICKER
QTY.1 A/V INPUT JUNCTION BOX
QTY.1
90 DAY/ 12 MONTH LIMITED WARRANTY
Audiovox Specialized Aplications, LLC (the company) warrants to t he original retail purchaserof
this product that should this product or any part thereof, under normal use and conditions, be
proven defective in material or workmanship within 90 days from the date of purchase, such
defect(s) will be repaired or replaced (at the company's option) without charge for parts andlabor
repair. After the initial 90 day period and for a period of 12 months from the date of original
purchase, the company will supply at no charge a replacement for any defective part(s) butwill
charge for the labor to repair the product.
To obtain repair or replacement within the terms of this Warranty, ASA must be called and a return
authorization must be given to reference the product when returned. T he product isto be delivered
with proof of waranty coverage (e.g. dated bill of sale), spec ification of the defect(s), transportation
prepaid, and Return Authorization Number clearly written on the outside of the package. The
product must be returned to ASA for repair unless spec ified otherwise by ASA.
This warranty does not cover the elimination of extern ally generated static or noise, to thecorrection
of antenna problems, to costs incurred for removal or reinstallation of the product, or damage to any
tapes, speakers, accessories, or electrical systems.
This warranty does not apply to any product or part thereof w hich in the opinion of the companyhas
been damaged through alteration, improper installation, m ishandling, misuse, neglect or accident.
THE EXTENT OF THE COMPANY'SLIABILITY UNDER THIS WARRANTY IS LIMITED TO THE
REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT SHALL THE COMPANY'S
LIABILITY EXCEED THE PU RCHASE PRICE PAID BY THE PURCHASER FOR THE PRODUCT.
This warranty is in lieu of all other express w arranties or liabilities, ANY IMPLIEDWARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERC HANTABILITY, SHALL BE LIMITEDTO THE
DURATION OF THIS WARRANTY. A NY ACTION OR ANY BREACH OF ANY WARRANTY
HEREUNDER INCLUDING ANY IMPLIED WARRANTYOF MERCHANTABILITY MUSTBE
BROUGHT WITHIN A PER IOD OF 30 DAYS FROM THE DATE OF PURCHASE. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES
OR BREACH OF THIS OR ANY OT HER WARRANTY, EXPRESS OR IMPLIED,W HATSOEVER.
NO person or representative is authorized to assume for the Company any other than expressed
herein connection of the sale of this product. Some states do not allow limitations on how long an
implied warranty lasts or the exclusion of incidental or consequential damages so the above
limitations or exclusions may not apply to you. This gives you specif ic legal rights andyou may also
have other rights which vary from state to state.
Audiovox Specialized Applic ations, LLC
POWER IN A/V 1 A/V 2
LCD
PANEL
A
/V 3
1 • 1 •
2 • 2 •
3 • 3 •
4 • 4 •
•• •
• • •
• • •
• • •
STOP
STOP
STAND
BYR IGHT
TRIGGE
R(+12V)STA
NDB
YLEFT
TRIG
GER(+12V)
STAN
DB
YR E
VER
SE
TR
IGG
ER
(+12V)
G
N
D
AUD
IO
TR
IGGER(+12V)
A
CC
(+12V)

4

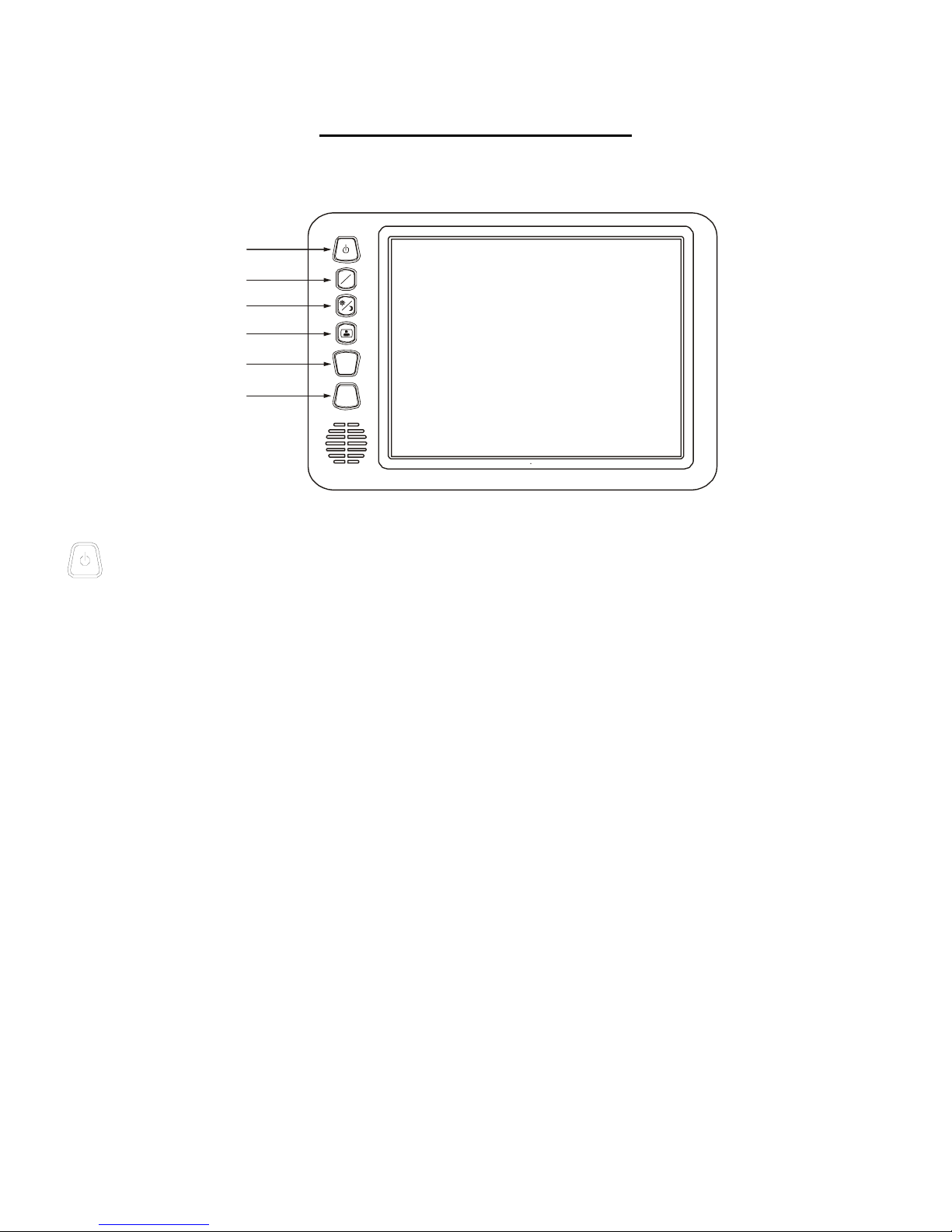

CONTROLS AND OPERATION
1. Power/Stand-By Button
The AOM683 has two possible operation modes for turning the unit on/off. In manual
mode, the power button is used to turn the unit on/off. In stand-by mode, the unit
automatically turns on only when 12V is applied to the stand-by trigger wire.
For MANUAL operation, the AOM683 should be wired as follows:
The ACC (+12V) lead (red) should be wired to the ACC feed of the vehicle (switched +12V).
*Please note that if the unit is in “Stand-by On” mode, the Power Button will appear to
have no effect (it will switch from “on” to “on” in this case).
For STAND-BY operation, the AOM683 should be wired as follows:
The ACC (+12V) lead (red) should be wired to the ACC feed of the vehicle (switched
+12V). The stand-by reverse, left, right trigger should be wired to the ACC feed of the
vehicle (+12V when the vehicle is in reverse or left signal or right signal). The unit will
automatically turn ON whenever the stand-by trigger is +12V with below condition:
–when Stand-By Reverse trigger is +12v, unit will active AV1
display image on screen.
–when Stand-By Left trigger is +12V, unit will active AV2
display image on screen.
–When Stand-By Right trigger is +12V, unit will active AV3
display image on screen.
–
* Note : The unit will not be turn ON during the harzard condition and the three stand-by
trigger is in +12V at the same time.
SS
+
–
1
2
3
4
5
5

5
The power button features dual-illumination (bright and dim). In installations where the
unit is not wired for Stand-by operation and power is applied to the unit, the Power
Button will dimly glow when the unit is off, allowing the user to easily find the control in
low light. Illumination switches to full intensity when the unit is turned on.
2. Source Input Select Button
This control toggles the active display image back and forth between AV1, AV2 or AV3
inputs.
3. Day/Night Mode Button This control toggles the unit between “Day” and “Night”
LCD illumination modes. In the “Day” mode, the LCD backlight intensity is at
maximum. In “Night” mode, the LCD backlight is dimmed to a preset level that is more
suitable for low light operation.
4. Picture Adjustment Menu Button
This control accesses an On-Screen-Display (OSD) menu for four LCD picture
adjustments (Brightness, Contrast, Color, and Tint). The first depress of the button
accesses the “Brightness” adjustment. The Volume +/- controls adjust the level, which is
indicated by the bar graph at the bottom of the screen. Each consecutive depress of the
Picture button accesses the adjustment screen for each picture adjustment. If no buttons
are pressed within 6 seconds or controls other than the Picture and Volume buttons are
pressed, the unit will exit the Picture Adjustment mode.
5. Volume +/- Buttons
This 2-button set of controls adjusts the output volume of the built-in audio speaker when
the audio function is enabled *(see typical system connection diagram). The “+” button
increases output volume. The “-“ button decreases output volume. Volume level is
indicated by the OSD bar graph at the bottom of the screen.
These buttons also serve as adjustment controls while in the Picture Adjustment Menu
mode (see above section for details).
*Note: The AOM683 requires +12V to be applied to the “Audio Enable” trigger input in
order to activate the built-in speaker. If no audio output is heard from the speaker
regardless of the volume level adjustment, check this connection.
SS

6
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN INSTALLATION:
Before drilling, be sure that no cable or wiring is on the other side. Clamp all wires
securely to reduce the possibility of them being damaged during installation and use.
Keep all cables away from hot or moving parts, and electrically noisy components.
Wiring Definitions:
Power connection: Pin 1 ACC +12V (Red)
Pin 2 Standby Reverse Trigger (Blue wire)
Pin 3 Ground (Black wire)
Pin 4 Audio Trigger (Blue w/white stripe wire)
Pin 5 Standby Left Trigger (Blue/Orange stripe wire)
Pin 6 Standby Right Trigger (Blue/Yellow stripe wire)
Camera A input: Connection for camera or camera extension cable
Camera B input: Connection for camera or camera extension cable
Camera C input: Connection for camera or camera extension cable
LCD panel: 13-pin DIN cable connection: junction box to monitor.
Procedure:
1. Choose the monitor, junction box, and camera mounting locations.
2. Install all required cables in vehicle. A ¾” (19mm) hole should be drilled for passing
cables through vehicle walls, barriers, etc. After the intermediate cable is passed
through the hole, install the split grommet (included). If additional cable protection is
required install convoluted tubing over the cable.
3. After cable/wiring has been routed and components are in place, temporarily make all
system connections and perform a system function check. If system does not operate
properly, see the troubleshooting section of this manual.
4. If using an optional PanaVise®stalk mount (available separately), use the mounting
template provided on page 11. Install the PanaVise®mount to the LCD monitor
using the #10 self-drilling screws (included).
**Important: Do not use screws other than those provided with the AOM683.
Void of warranty and serious product damage will occur.

7

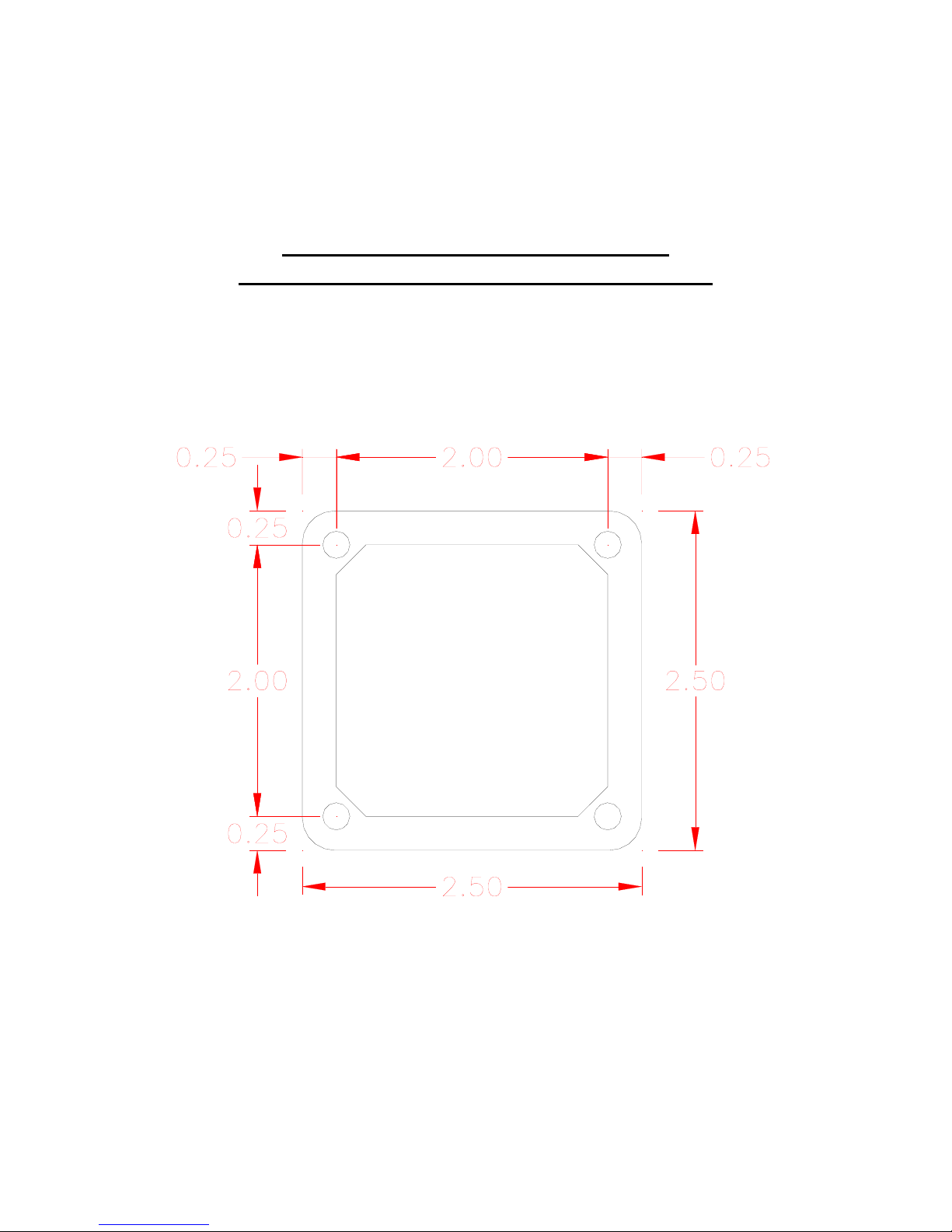

5. Use the template provided on page 10 for proper placement of the junction box
mounting holes. Use the #8 self-drilling screws (included) to secure the junction box
in the desired location. The junction box can also be mounted using the 2”x 4” velcro
strip (included).
6. There are 2 options for connecting the LCD monitor to the junction box. If the
application is such that the monitor is in close proximity to the junction box, the
AOM683 monitor can be connected directly to the junction box. If the junction box
is mounted further from the monitor, use the 5’ intermediate cable included with the
AOM683 to connect the monitor to the junction box. If more cable length is needed,
additional 5’ lengths of the intermediate cable can be purchased. (See the accessory
list at the back of this manual for part number details.)
7. Connect the 6-pin power harness to vehicle. (See system connection illustration page
8)
8. Plug camera extension cable (available separately P/N CEC25) into AV1, AV2 or
AV3 input connector on the junction box. Plug observation camera into camera
extension cable.
9. Make sure all cables are routed away from hot or moving parts, and away from sharp
edges. Secure cables with wire ties.
10. For rear observation applications, range marker stickers have been included with this
product. These markers are designed to adhere to your LCD monitor and provide a
reference for gauging distance. See page 9 for illustration showing proper use and
installation of the range markers

8
TYPICAL SYSTEM CONNECTION
A/V 2
SS
+
–
POWER A/V1
ACCESSORY ITEM MULTI-AXIS BASES (2 AVAILABLE) 72704 - 4” 2-AXIS BASE MOUNT 72706 - 6” 3-AXIS BASE MOUNT
# 10 X5/16”
TYPE B
SCREWS
AOM683 LCD MONITOR
8510681 5’ INTERMEDIATECABLE
JUNCTION BOX
# 8 X3/4” SELF DRILLING SCREWS
ACCESSORY ITEMS
CEC2 - 750mm CAMERA CABLE
CEC15 - 4500mm CAMERA CABLE CEC18 - 5490mm CAMERA CABLE
CEC25 - 25 FT. CAMERA CABLE CEC50 - 50 FT. CAMERA CABLE CEC75 - 75 FT. CAMERA CABLE
ACCESSORY ITEM (2 AVAILABLE)
AOC100B - COLOR CAMERA SWITCHABLE
STD/MIRROR IMAGE
VCC130 - COLOR CAMERA WITH LOW-LIGHT
ENHANCEMENT LED’s
LCD
PA N EL A/V3
STANDBY RI GHT
TRIGGER (+ 1 2V)
STANDBYLEFT
TRIGGER(+ 12V)
STANDBY REVERSE
TRIGGER(+ 12V)
GND
AUDIO
TRIGGER (+ 12V)
ACC (+ 12V)
(RED) POWER+ 12V
(BLUE) STANDBY REVERSE TRIGGER
(BLUE/ORG) STANDBY LEFT TRIGGER
(BLUE/ YLW) STANDBY RIGHT TRIGGER
(BLACK) GND

9
REAR OBSERVATION INSTALLATION
DISTANCE MARKER USE/INSTALLATION
-PLACE INDICATOR MARKERS (CONE, BOX ANY
REFERENCE OBJECT HANDY) BEHIND VEHICLE
AS IN FIGURE A.
-PLACE RANGE MARKER DECALS ON SCREEN OF
MONITOR OVER IMAGE OF INDICATOR
MARKERS ON GROUND BEHIND VEHICLE, AS
VIEWED ON THE MONITOR SCREEN.
-THIS GIVES YOU A VISUAL REFERENCE OF
ACTUAL DISTANCE BEHIND VEHICLE, AS
OBJECTS ARE VIEWED.
1 FT
2 FT
5 FT
FIGURE B
FIGURE A
WIDTH OF VEHICLE
INDICATOR
MARKERS
SS
+
–
STOP
1
2
5

10
JUNCTION BOX MOUNTING TEMPLATE
175mm
60mm
155mm
30.4mm
10mm10mm
5mm
14.8mm
9mm

11
PANAVISE®MOUNT TEMPLATE
(OPTIONAL ACCESSORY – SEE PAGE 8)

12
TROUBLESHOOTING
SYMPTOM CAUSE SOLUTION
No power No +12V accessory, No
ground, mis-wired/reversed Replace circuit fuse, monitor has protection device built-in/reset, check ground connection,
verify power is being supplied
Video/No audio Blue/white audio trigger wire
not powered, Volume adjust
down
Connect to +12V ACC or reverse light circuit,
turn volume adjustment up
Monitor does not
activate in
Standby reverse
trigger
Blue standby wire not
powered Connect to reverse circuit +12V
Negative/dark
video image Low voltage, Brightness adjustment down Check voltage power and ground connections, turn brightness adjustment up
No video/no audio Camera connection Check camera input selection, connection to
camera and junction box, correct camera
connection/plugged incorrectly
Vehicle battery
drained +12V ACC (red wire) connected to vehicle battery Provide +12V ACC (red wire) power from switched circuit
ACCESSORY LIST
AOC100B – COLOR CAMERA-SWITCHABLE STD/MIRROR IMAGE
VCC130 - COLOR CAMERA W/LOW LIGHT ENHANCEMENT LED’s-MIRROR
IMAGE ONLY
CEC2 – 2 FOOT CAMERA EXTENSION CABLE
CEC15 – 15 FOOT CAMERA EXTENSION CABLE
CEC18 – 18 FOOT CAMERA EXTENSION CABLE
CEC25 – 25 FOOT CAMERA EXTENSION CABLE
CEC50 – 50 FOOT CAMERA EXTENSION CABLE
CEC75 – 75 FOOT CAMERA EXTENSION CABLE
8510681 – 5 FOOT INTERMEDIATE HARNESS
CSW4000 – MANUAL 4 CAMERA SWITCHER
CSW450A – AUTOMATIC 4 CAMERA SWITCHER
FDK681N - FLIP DOWN KIT, AOM683 NEUTRAL
FKD681G – FLIP DOWN KIT, AOM683 GRAY
FDK681PL – FLIP DOWN KIT, AOM683 PEARL
72704 – CELLULAR MOUNT 4” WITH THUMBSCREW
72706 – CELLULAR MOUNT 6” WITH THUMBSCREW

13
PRODUCT SPECIFICATIONS
LCD panel specifications:
Size/Type 6.8” (diagonal) /TFT LCD
Brightness 250 nit (min)
300 nit (typ.)
Contrast Ratio 60 (min)
150 (typ.)
View Angles
(@ CR〈10) Top (12 o’clock): 258(min)
Bottom (6 o’clock): 408(min)
Horizontal: 6558(min)
Response Time Rise: 25ms (typ.) ; 50ms (max)
Fall: 30ms (typ.) ; 60ms (max)
Back light Type CCFL
Back light Life 30k hrs (min) ; 40k hrs (typ.)
Operation Temperature Range: -208C to 658C
Storage Temperature Range: -408C to 808C
Max Humidity: 100%RH
Max Vibration Force: 2.5G
Max Shock Force: 100G
Operating Voltage Range: 9VDC to 28VDC
Current Draw (typical): 50mA (Idle); 1.15A (typ) ; 1.25A (max)
Signal System: NTSC
Video:
2Aspect Ratio: 4:3
2Input format: Composite NTSC
2Input level: 1Vp-p into 75ς
Audio
2Input level: -10dBV nominal (317mV)
Product Weight: 2.8lbs (approximate)
Product Overall Dimensions: 7 ¾” (197mm)W x 5 ¼” (134mm)H x 1 3/16” (29.5mm)D
Visit us at http://www.asaelectronics.com
