VSSL A.3 User manual

vV

VSSL A.3 – Product Guide 2
THE INFORMATION CONTAINED IN THIS DOCUMENT IS ACCURATE AT THE TIME OF
PRINTING. HOWEVER, THIS INFORMATION MAY BE CHANGED OR UPDATED AT ANY TIME
WITHOUT NOTICE.
This document is protected under the copy write laws of the United States and other
countries. All rights are reserved. No part of this publication may be reproduced, copied, or
transmitted in any form or by any means, electronic or mechanical, including but not limited
to photocopying, recording, information retrieval systems, or computer networks without the
express written permission of VSSL LLC.
VSSL™ is a registered trademark of VSSL, LLC, registered with the U S Patent and Trademark
Office. Additionally VSSL has other product names and slogans that are protected under U S
Trademark laws, which may not be used without the express written permission of VSSL, LLC.
Please take notice that VESSL™ products may also be protected by one or more patents
issued by the U S and other countries.
Android, Google Play and Chromecast are trademarks of Google Inc.
iPhone®, iPod®, iPad®, AirPlay®, iTunes®, Mac®, OS X®, macOS™ and Apple Music™ are
trademarks of Apple Inc., registered in the U.S. and other countries.
Windows® is a trademark of Microsoft Corporation registered in the U S and other countries.
November, 2017
© 2017 by VSSL, LLC. All rights reserved.

VSSL A.3 – Product Guide 3
WELCOME TO VSSL
VSSL is the music system you always wanted.
§ Out of sight.
§ No other apps.
§ Just the music you love.
VSSL strives to deliver you the best music listening experience based on your music
ecosystem. By incorporating Apple Airplay, Google Chromecast, and Spotify Connect to
every zone, you can choose your favorite music app, device, and ecosystem.
Note:
Your favorite music apps are maintained outside of the VSSL system. These apps
may be subject to updates or changes and could affect the performance of your music
system.
PRODUCT OVERVIEW

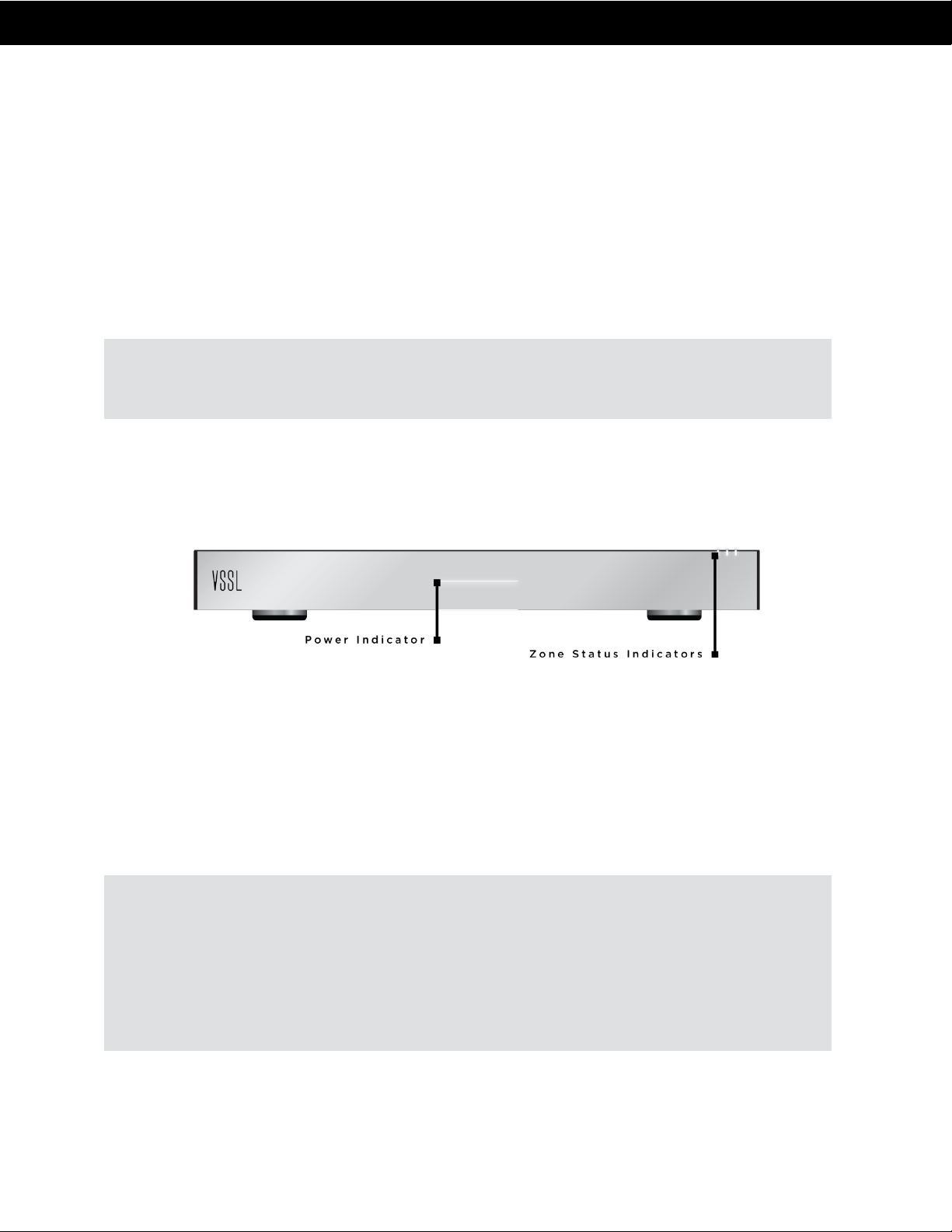

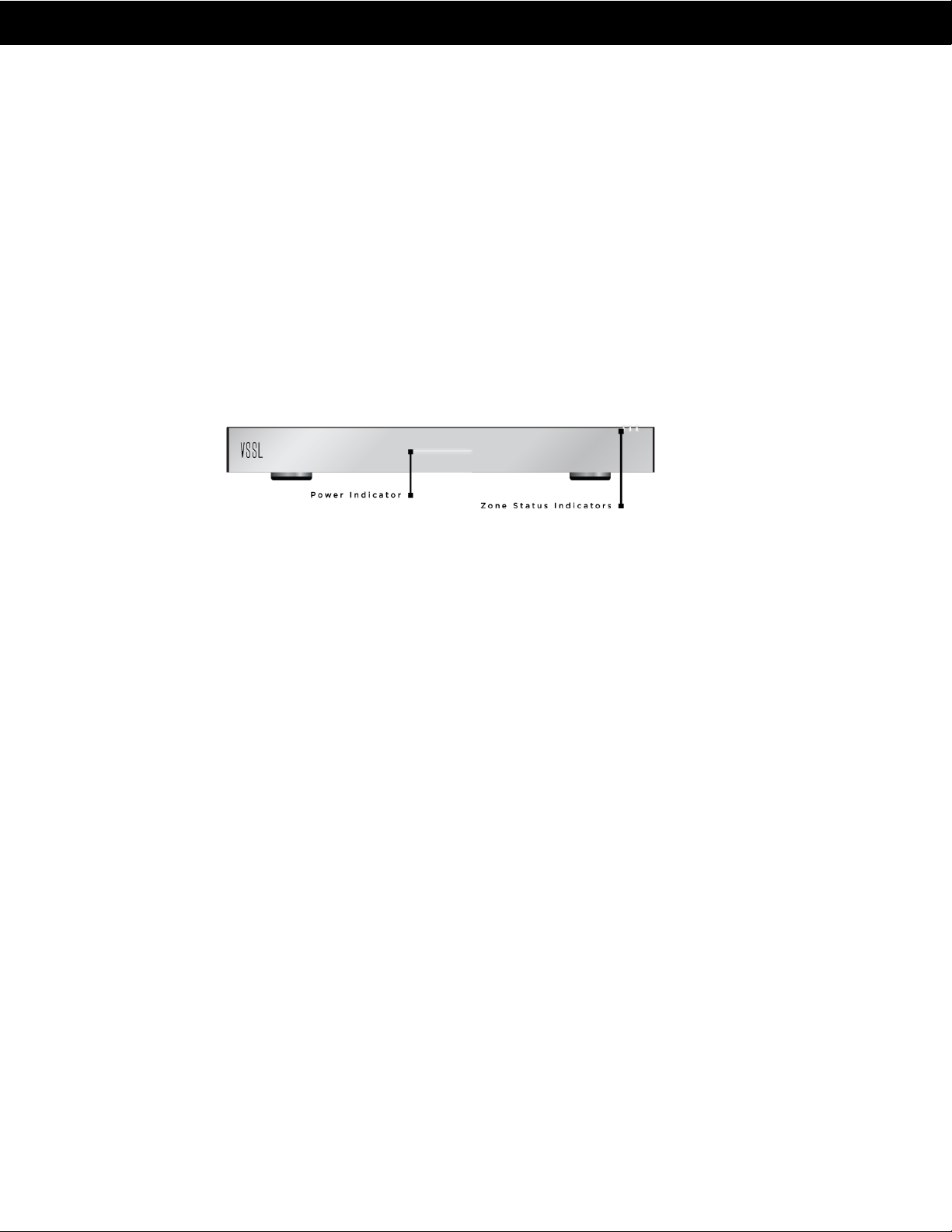

Front
Power Indicator
Indicates the power state of the device. There are 2 power states,
on and sleep.
Solid bright - device is on
Solid dim - device is in sleep
Zone Status Indicators
Indicates the status of the zones. See the Device Status section
for more details.
Flashing red - zone is powering up and connecting to network
Solid red - zone has a connection error
Solid white - zone is active with audio playing via analog input or
streaming
Off - zone is not active

VSSL A.3 – Product Guide 4
Rear
Bus Inputs (1)
Analog RCA global inputs. Any of the zones can be set to play either
of the two inputs. Can be set up using the VSSL app.
Local Inputs (3)
Local analog RCA inputs.
Network Input
Ethernet LAN connection. Use a standard ethernet cable to connect
your A.3 to a high speed data network.
Network Output
Ethernet connection to extend the network to other devices.
Optical Input
A global digital input. Use a TOSLINK cable.
Power Input
100-120/220-240 VAC 50/60 Hz
Use the power cord supplied with the unit. Adapters can be used for
international power connections.
Speaker Output
Use the phoenix connectors supplied, 1 connecter for each zone.
Output is not bridgeable. The L+, L- are positive and negative
outputs for the left channel speaker while the R+, R- are the positive
and negative outputs for the right channel speaker.
Bus Outputs (1)
Analog RCA outputs. The output can be variable or fixed and is
designed to work with external amplified systems like subwoofers,
home theater receivers, or higher powered amplifiers for outdoor
audio.

VSSL A.3 – Product Guide 5
Accessories
Rack Ears
Used for installation in a standard equipment rack.
Phoenix Connectors (3)
Can accept size 14-20 gauge speaker wire.
Power Cord
Standard 3 prong power adapter for the US.
SPECIFICATIONS
Zones
3
Channels
6
Amplifier
Class D - 50 watts/ch RMS @ 8/4 ohm
Inputs
(1) Network input, (1) bus line level, (3) local line level, (1) optical
Wireless Inputs
3 - Airplay/Chromecast built-in/Spotify Connect
Outputs
(1) selectable line level, (1) Network output
EQ
7 band parametric adjustable
S/N Ratio
>100 dB A-weighted
Frequency Response
20 - 20,000 Hz
Rack Space
1U
Dimensions No Feet
17” W x 3.37” H x 14” D
Dimensions With Feet
17” W x 4.15” H x 14” D
Shipping Weight
10.3 lbs
NETWORK REQUIREMENTS
High-speed data network
VSSL needs to be installed with a high-speed network switch, router, or Wi-Fi/router combo.
High-speed internet connection
In order to access all of the internet music services and receive automatic updates, you need
to have a high-speed internet connection, such as a high-speed DSL/Cable modem, fiber-to-
the-home broadband, or a high-speed wireless internet provider.

VSSL A.3 – Product Guide 6
Wi-Fi / WLAN
For VSSL to work with your wireless phone, tablet, laptop or computer, you must have a
wireless router or wireless access point installed. To ensure proper function, you should
ensure that a strong wireless signal from your network is present to all the areas/zones you
want to use VSSL.
DEVICE STATUS
There are several ways to determine the status of your device. The VSSL app can be
referenced to see the real time status of your A.3 system. There are also several indicators on
the A.3 meant to indicate the status of the system. See the Quick Reference section below.
Boot Up Sequence
1. During boot up, the zone indicators will flash pink as the device initializes.
2. After the device initializes, all of the zone indicators will flash red. The zone indicators
flash red while the streaming services for each zone are started.
3. The zone indicator will briefly show white to indicate the zone is ready and connected to
the network.
4. The zone indicators then turn off until streaming or audio is started in the zone.
5. If there is an error, the zone indicator will display solid red.
6. If no network is connect, all the zone indicators will show solid red.
7. If a system update is available the device will enter update mode. See the ‘System
Updates’ section for more details on updates.
Power Modes
The A.3 is equipped with the HiNA functionality of a network switch. The A.3 device is a
networking device with high network availability and provides network switching when
operational.
The A.3 device has two power modes, ‘Always On’ and ‘Auto’. These modes can be changed
by using the VSSL iOS or Android app.
Always On
When in ‘Always On’ mode, the device will never go into network standby mode or a low
power sleep mode.

VSSL A.3 – Product Guide 7
Auto
The ‘Auto’ mode allows the device to network standby mode after 15 minutes of no music
output. To wake the device from network standby mode, the user can start a music stream to
the device.
While in network standby mode, if the network is disconnected, the device will immediately
enter a lower-power mode. To wake the device from the lower-power mode, the user can
turn off the power switch on the back of the unit, wait 5 seconds, then turn power switch on.
Network standby mode and low-power mode are indicated by the power indicator on the
front of the device.
Updating
During system updates the zone indicators will flash red from left to right. See the ‘System
Updates’ section for more details on updates.
LED Status Quick Reference
All zones blinking red
The device is booting up.
All zones are solid red
The device has lost connection to the network,
check the ethernet cable or networking device.
See the troubleshooting section of this guide.
A single zone is solid red
The zone has a connection error, see
troubleshooting section of this guide.
A single zone is solid white
The zone is active.
Zone indicators flashing from left to
right
The device is in FW update mode.
Power indicator is solid bright
The device is on and ready.
Power indicator is solid dim
The device is in a low power sleep mode, to wake
the device start a music stream, or turn on an
analog source.
Ethernet connection indicator is solid
green
The network connection is good.
Ethernet connection indicator is
flashing orange
There is network activity on the connection.

VSSL A.3 – Product Guide 8
INSTALLATION
Tabletop Installation
For cabinet or countertop installation, ensure the location has adequate ventilation and at
least 1.75” of headroom above the device.
Rack Installation
For rack installation, the A.3 comes with rack ear adapters and can be installed in a standard
19” wide equipment rack. The device requires 2U of space for mounting and 1U for ventilation
above the device. Remove the feet before installing into the rack space.
Connecting
1. Leaving the power switch in the off position, make
all of the connections to the A.3. First terminate the
speaker cables to the included phoenix connectors.
2. Connect all phoenix connectors, auxiliary audio
sources, and external audio subsystems.

VSSL A.3 – Product Guide 9

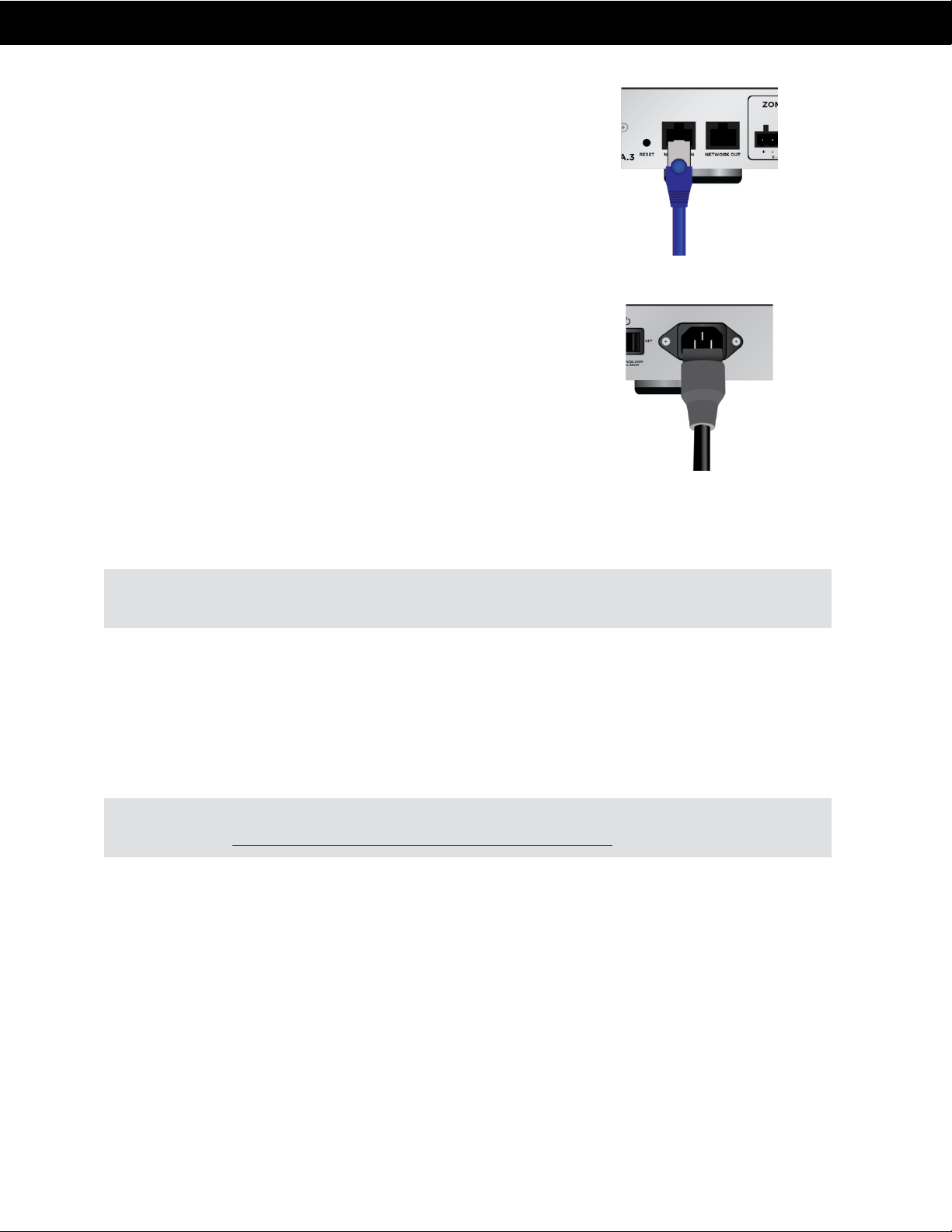

3. Use an ethernet cable to connect the device to a
high speed data network.
Make sure to connect to
the ‘Network In’ port.
4. Once all the connections are made, power the
device on.
5. See the Device Status section of this guide for
details about the boot up sequence.
Note:
For any unused zones, you can use the VSSL app to disable the streaming services
for that zone. This will make it so you can’t inadvertently connect to a zone that is not used.
Configuration
First download the Google Home and VSSL app from Google Play store or Apple App store.
Set up first with Google Home app, then sse the VSSL app to adjust all settings for the VSSL
system. Using the VSSL app you can set the inputs, and configure zone output settings like
EQ, max volume, or mono/stereo output.
Video Guide:
For a video walk through on set up on in the VSSL and Google Home app
follow this link: https://www.youtube.com/watch?v=vf4ptjJ-GcE
Connecting to External System
External Amplifier (Output)
You can connect your A.3 to an external amplifier system, for example a home theater
receiver, powered subwoofer or passive subwoofer with separate amplifier.

VSSL A.3 – Product Guide 10
1. Connect the external amplifier to the bus output.
2. The output from the bus output is variable, which
allows you to control the volume of the external
system from your phone or other streaming
device.
3. See the Connecting Subwoofer section for more
info on connecting a sub.
Note:
The A.3 outputs should only be connected to another amplifier system and not a
system that redistributes the signal, such as an audio matrix. Doing so may cause
unintended consequences and cannot be guaranteed.
External Audio Source (Input)
Add external audio inputs by connecting the
audio source to the analog inputs on the A.3. You
can wire the output of any RCA analog source,
like a Satellite TV box, to any of the local inputs or
bus inputs. Each zone can select one of the local,
bus 1, or bus 2 inputs.
Note:
The analog source selection can only be adjusted in the settings of the VSSL app.
Once chosen in the settings, the A.3 will always play the analog input until a stream is
started. Streams override the analog, but once it stops the A.3 will switch back to the
analog input.
Connecting to an Automation System
You can extend the functionality of your A.3 by connecting it to an automation system. The
automation system can control the matrixing abilities of the amplifier. Through the
automation driver, any of the 6 local inputs or 2 global bus inputs can be routed to any of the
speaker outputs. The streaming inputs are always set to the same zone and cannot be
changed.
Use with AppleTV
Through AirPlay on the VSSL A.3 you can connect a zone of your A.3 directly to an AppleTV.
This is an easy way to get audio from the TV to inceiling speakers. However, this will only
work when using the AppleTV as a source.
In the settings of the Apple TV, you can navigate to the audio settings to select an Airplay
speaker as the audio output device. From this menu, you can select an zone on the VSSL A.3
to output to. Please reference the AppleTV manual for details on the audio settings of the
AppleTV.

VSSL A.3 – Product Guide 11
Connecting a Subwoofer
A subwoofer is a great way to add more bass to your VSSL system. To connect a subwoofer,
you can use one of the bus outputs or the speaker outputs.
To use the bus outputs, use the VSSL app to set the bus
output to the zone you wish to add the subwoofer to. From
the bus output use an RCA cable to connect to the RCA
input on a subwoofer amplifier. You can also use a Y RCA
adapter to combine the stereo inputs to a mono RCA input
on the subwoofer amplifier. The bus outputs are full range
outputs. For best results, reference the subwoofer amplifier
manual to ensure the RCA input is passed through the local
cross over on the subwoofer.
To connect a sub to the high level speaker outputs, you need
to use an amplifier that is capable of receiving a high level
input signal. Reference the subwoofer amplifier manual to
ensure proper connection and settings on the amplifier.
PLAYING MUSIC
Listening to music with VSSL is easy. Use your favorite music app and connect to VSSL using
AirPlay, Chromecast built-in, or Spotify Connect.
AirPlay®
iOS® Device
1. Connect your iOS device to the same Wi-Fi network as the VSSL A.3.
2. On your iOS device swipe up from the bottom of your screen to open Control Center.
3. In Control Center, swipe horizontally to find the Now Playing screen.
4. Tap to open a list of available AirPlay devices.
5. Select the zone/room you wish play to.
macOS™/OS X® Device
1. Connect your computer to the same Wi-Fi network as the VSSL A.3.
2. In the menu bar find the speaker icon .
3. Hold down the option key and clidk the icon .
4. Select the zone/room you wish play to.
iTunes®
1. Connect your computer to the same Wi-Fi network as the VSSL A.3.
2. Open iTunes on your computer.

VSSL A.3 – Product Guide 12
3. To the right of the volume slider in iTunes, click . You'll see this icon only when an
AirPlay-enabled device is on the same Wi-Fi network.
4. Click the zone/room you wish play to. Each VSSL zone will have speaker icons next to
them.
Note:
There are slight variations to the AirPlay instructions depending on your OS version.
For details please see the Apple Support website. https://support.apple.com/
Chromecast built-in
Chromecast built-in is a platform that lets you cast your favorite music from your phone,
tablet or laptop right to your speakers. Easily control your speakers with apps you already
know and love from your iPhone®, iPad®, Android phone or tablet, Mac® or Windows® laptop,
or Chromebook.
With Chromecast built into your VSSL A.3, your phone becomes your remote. Simply tap the
Cast button from the app you already know and love to stream music/tunes/podcasts/
playlists from your phone, tablet or laptop to your VSSL A.3.
Note:
Go to the Chromecast built-in website for a full list of Chromecast enabled apps
https://www.google.com/cast/apps
Android™
1. Connect your Android device to the same Wi-Fi network as the VSSL A.3.
2. Go to your favorite Chromecast-enabled music app and play music.
3. While in the music app look for the Cast button and press.
4. Select the zone/room/group you wish play to.
Mirror your Android phone or tablet
You can hear anything playing on your Android device on your speakers connected to a VSSL
A.3 zone.
1. From your Android phone or tablet, open the Google Home app.
2. Tap the left hand navigation to open the menu.
3. Tap “Cast screen/audio” and select the zone/room/group you wish to play to.
iOS
1. Connect your iOS device to the same Wi-Fi network as the VSSL A.3.
2. Go to your favorite Chromecast-enabled music app and play music.
3. While in the music app look for the Cast button and press.
4. Select the zone/room/group you wish play to.
Mac®/PC
1. Connect your Mac or PC device to the same Wi-Fi or wired network as the VSSL A.3.

VSSL A.3 – Product Guide 13
2. Make sure you have the latest version of Chrome installed.
3. In the top right corner of your Chrome browser, press the Cast button .
4. Select the zone/room/group you wish play to.
Note:
For configuring groups and volume control of Chromecast sessions, you must use the
Google Home app. The Google Home app is available on iOS and Android in the Apple App
Store and the Google Play store.
Spotify Connect®
You’ll need Spotify Premium to use Connect. See: https://www.spotify.com/us/premium/.
1. Connect your phone, tablet, or PC/Mac to the same Wi-Fi network as the VSSL A.3.
2. Open the Spotify app on your phone, tablet or PC/Mac, and play any song.
3. If you’re using the app on a phone - tap the song image in the bottom left of the screen.
For tablet and PC move to step 4.
4. Tap the Connect icon
5. Select the zone/room you wish play to. If you can’t see it, just check it’s connected to the
same wifi network as your phone, tablet or PC.
Note:
The Spotify software is subject to third party licenses found here:
www.spotify.com/connect/third-party-licenses
Local Music Library
For local music you can use any DLNA based streaming app to play content to your VSSL
A.3. You can also use a DLNA streaming app to access local music from a NAS drive.
VSSL APP
Use the VSSL app for:
§ Volume control of all zones.
§ Quickly see the system and errors.
§ Groupings with local content or DLNA sources.
§ Adjust system settings like zone mono/stereo output, EQ, and max volume.
VSSL App (iOS)
Available in the Apple App store for iPhone, iPad, and iPod touch with iOS 7.0 or later.
VSSL App (Android)
Available in the Google Play store for all Android devices with Android 5.0 or later.
Note:
When using Chromecast built-in, you must use the Google Home app for zone

VSSL A.3 – Product Guide 14
groups, volume, and set up.
SYSTEM UPDATES
Your VSSL system will update automatically. This ensures delivery of important updates and
will keep your system running bug free. When the A.3 is in update mode, the zone status
indicators will flash a single light red from left to right. Each zone will update one by one.
For the first time out of the box or after factory reset, if there is an update available each
zone is updated after setting up the Chromecast Built-in for the zone in the Google Home
app.
LED notification details:
1. Zone indicators flash from left to right while the update is downloading.
2. When finished downloading, the zone indicators flash left to right to indicate the update is
processing.
3. The power LED will flash on and off during installation.
4. After installation, the zone’s indicator LED of the zone that was updated will flash white
and red.
5. When complete the device will reboot.
The system will check for updates on reboot and at night. If an update is available at night,
the system will only update if there is no music playing.
TROUBLESHOOTING
No music output
1. First ensure the device is powered on by checking the power indicator light or opening
the VSSL app.
2. Make sure the device is connected to the local network and check to see the network
indicator light is solid green.
3. Check your speaker connections. Make sure all the cables are properly terminated in the
phoenix connectors and that there or wires touching other ports.
4. You can use a toner to ensure the wire connections are not cut to the speaker in the zone.
5. Open the VSSL app to make sure the zone you're playing to is not muted or the volume is
turned up.
6. Check your internet connection by loading web pages on a computer/phone/tablet or
checking status indicators on your internet modem (see you modem manual to identify
the proper status indicator).
7. Check the
8. If these suggestions don’t solve the issue contact VSSL support.

VSSL A.3 – Product Guide 15
Poor Playback
Poor playback can be caused by high network traffic or other networking issues.
1. Check your internet connection by loading web pages on a computer/phone/tablet.
2. Try reducing wireless interference by moving closer to the Wi-Fi router or access point.
3. If these suggestions don’t solve the issue contact VSSL support.
Check the Music App
Playback issues can be caused from the music app installed on your phone, tablet, computer,
or other device.
1. Restarting the app by closing and reopening the app to solve playback issues.
2. Check the music services online site to find reports of service outage.
3. If these suggestions don’t solve the issue contact VSSL support.
System Status Screen
You can use the system status screen to get an overview of the status of all the devices in
your network.
1. On the system status screen, if any of the devices show red, this indicates an error.
2. To resolve the issue verify your network connection and if needed reboot the device.
Device Reboot
You can reboot your A.3 through the VSSL app.
1. In the VSSL app navigate to the device settings.
2. Under device settings you will see an option to restart the device.
3. You can also do a hard reset by toggling the power switch on the back of the A.3.
Restore Factory Defaults
You can restore the factory settings of your A.3 through the VSSL app.
1. In the VSSL app navigate to the device settings.
2. Under device settings you will see an option to restart the device.
3. You can also perform a factory reset by holding the ‘Reset’ button on the back of the A.3
for 10 sec.
Note:
For more support and other questions please see vssl.com/support

VSSL A.3 – Product Guide 16
NETWORK STANDBY MODE AND OFF
MODE
The A.3 is equipped with HiNA functionality of a network switch.
The A.3 is a networking device with high network availability function and provides network
switching function when operational.
The device can enter the network standby mode or the off mode when the device is not in
use.
The A.3 enters the network standby mode and the power consumption is 4,84W after 15
minutes of no music output.
When in network standby mode, to wake the device, the user can start a music stream to the
device.
When in network standby mode, if the network is disconnected, the device will immediately
enter off mode and the power consumption will be only 0,31W.
When in off mode, to wake the device, the user can turn off the power switch on the back of
the unit, wait 5 seconds, then turn on the power switch.
Network standby mode and off mode are indicated by the power indicator on the front of the
device.

VSSL A.3 – Product Guide 17
IMPORTANT SAFETY INFORMATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warning.
4. Follow all instructions
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cold or plug is damaged, liquid has
been spilled or object have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
WARNING
▪To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture
▪The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus
▪An appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.

VSSL A.3 – Product Guide 18
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement
de l’appareil est sujetaux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences néfastes, et
(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de
provoquer un fonctionnement indésirable.
Note: This product has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This product generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this product does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
