VTC Pro Audio V44 User manual

www.vtcproaudio.com
Service Manual
V44
MODEL TYPE:YS4040
U.S.A.
Yorkville Sound Inc.
4625 Witmer Industrial Estate
Niagara Falls, New York
14305 USA
Voice: [phone]
Fax: [phone]
CANADA
Yorkville Sound
550 Granite Court
Pickering, Ontario
L1W-3Y8 CANADA
Voice: [phone]
Fax: [phone]
Power
V44
POWER AMPLIFIER
Protect
Power
-
00 0
-
00 0
-
21
-
30
-
15
-
18
-
6
-
12
-
9
-
3
dB
-
00 0
-
00 0
-
21
-
30
-
15
-
18
-
6
-
12
-
9
-
3
dB
Clip
Signal
Channel A
Clip
Signal
Channel B
Protect
Power

The exclamation point within an equilatereal triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Le point d’exclamation à l’intérieur d’un triangle équilatéral
est prévu pour alerter l’utilisateur de la présence
d’instructions importantes dans la littérature accompag-
nant l’appareil en ce qui concerne l’opération et la
maintenance de cet appareil.
This lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
Ce symbole d’éclair avec tête de flèche dans un triangle
équilatéral est prévu pour alerter l’utilisateur de la présence d’un
« voltage dangereux » non-isolé à proximité de l’enceinte du
produit qui pourrait être d’ampleur suffisante pour présenter
un risque de choque électrique.
IMPORTANT SAFETY INSTRUCTIONS
safety-4v7 • May 7/2008
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
FOLLOW ALL INSTRUCTIONS SUIVEZ TOUTES LES INSTRUCTIONS
Instructions pertaining to a risk of fire,
electric shock, or injury to a person
Read Instructions: The Owner’s Manual should be read and understood before operation
of your unit. Please, save these instructions for future reference and heed all warnings.
Clean only with dry cloth.
Packaging: Keep the box and packaging materials, in case the unit needs to be
returned for service.
Warning: To reduce the risk or fire or electric shock, do not expose this apparatus to rain or
moisture. Do not use this apparatus near water!
Warning: When using electric products, basic precautions should always be followed,
including the following:
Power Sources
Your unit should be connected to a power source only of the voltage specified in the
owners manual or as marked on the unit.This unit has a polarized plug. Do not use
with an extension cord or receptacle unless the plug can be fully inserted. Precau-
tions should be taken so that the grounding scheme on the unit is not defeated. An
apparatus with CLASS I construction shall be connected to a Mains socket outlet with
a protective earthing ground. Where the MAINS plug or an appliance coupler is used
as the disconnect device, the disconnect device shall remain readily operable.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or table. The
product may fall, causing serious personal injury and serious damage to the product.
Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer
or sold with the product. Follow the manufacturer’s instructions when installing the
product and use mounting accessories recommended by the manufacturer. Only use
attachments/accessories specified by the manufacturer
Note: Prolonged use of headphones at a high volume may cause
health damage on your ears.
The apparatus should not be exposed to dripping or splashing water; no objects
filled with liquids should be placed on the apparatus.
Terminals marked with the “lightning bolt” are hazardous live; the external wiring
connected to these terminals require installation by an instructed person or the use of
ready made leads or cords.
Ensure that proper ventilation is provided around the appliance. Do not install near
any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong.The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.The AC supply cord should be routed so that it is unlikely that it will be
damaged. Protect the power cord from being walked on or pinched particularly at plugs. If
the AC supply cord is damaged DO NOT OPERATE THE UNIT. To completely disconnect
this apparatus from the AC Mains, disconnect the power supply cord plug from the AC
receptacle.The mains plug of the power supply cord shall remain readily operable.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Service
The unit should be serviced only by qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
AVIS: AFIN DE REDUIRE LES RISQUE DE CHOC
ELECTRIQUE, N’ENLEVEZ PAS LE COUVERT (OU LE
PANNEAU ARRIERE) NE CONTIENT AUCUNE PIECE
REPARABLE PAR L’UTILISATEUR.
CONSULTEZ UN TECHNICIEN QUALIFIE
POUR L’ENTRETIENT
Instructions relatives au risque de feu,
choc électrique, ou blessures aux personnes
Veuillez Lire le Manuel: Il contient des informations qui devraient êtres comprises avant
l’opération de votre appareil. Conservez. Gardez S.V.P. ces instructions pour consultations
ultérieures et observez tous les avertissements.
Nettoyez seulement avec le tissu sec.
Emballage: Conservez la boite au cas ou l’appareil devait être retourner pour réparation.
Avertissement: Pour réduire le risque de feu ou la décharge électrique, n'exposez pas
cet appareil à la pluie ou à l'humidité. N’utilisez pas cet appareil près de l’eau!
Attention: Lors de l’utilisation de produits électrique, assurez-vous d’adhérer à des
précautions de bases incluant celle qui suivent:
Alimentation
L’appareil ne doit être branché qu’à une source d’alimentation correspondant au
voltage spécifié dans le manuel ou tel qu’indiqué sur l’appareil. Cet appareil est équipé
d’une prise d’alimentation polarisée. Ne pas utiliser cet appareil avec un cordon de
raccordement à moins qu’il soit possible d’insérer complètement les trois lames. Des
précautions doivent êtres prises afin d’eviter que le système de mise à la terre de
l’appareil ne soit désengagé. Un appareil construit selon les normes de CLASS I
devrait être raccordé à une prise murale d’alimentation avec connexion intacte de mise
à la masse. Lorsqu’une prise de branchement ou un coupleur d'appareils est utilisée
comme dispositif de débranchement, ce dispositif de débranchement devra demeurer
pleinement fonctionnel avec raccordement à la masse.
Risque
Ne pas placer cet appareil sur un chariot, un support, un trépied ou une table instables.
L’appareil pourrait tomber et blesser quelqu’un ou subir des dommages importants.
Utiliser seulement un chariot, un support, un trépied ou une table recommandés par le
fabricant ou vendus avec le produit. Suivre les instructions du fabricant pour installer
l’appareil et utiliser les accessoires recommandés par le fabricant. Utilisez seulement
les attachements/accessoires indiqués par le fabricant
Note: L'utilisation prolongée des écouteurs à un volume élevé peut
avoir des conséquences néfastes sur la santé sur vos oreilles. .
Il convient de ne pas placer sur l’appareil de sources de flammes nues, telles que
des bougies allumées.
L’appeil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures
et qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.
Assurez que lappareil est fourni de la propre ventilation. Ne procédez pas à
l’installation près de source de chaleur tels que radiateurs, registre de chaleur, fours
ou autres appareils (incluant les amplificateurs) qui produisent de la chaleur.
Les dispositifs marqués d’une symbole “d’éclair” sont des parties dangereuses
au toucher et que les câblages extérieurs connectés à ces dispositifs de
connection extérieure doivent être effectivés par un opérateur formé ou en utilisant
des cordons déjà préparés.
Cordon d’Alimentation
Ne pas enlever le dispositif de sécurité sur la prise polarisée ou la prise avec tige de
mise à la masse du cordon d’alimentation. Une prise polarisée dispose de deux lames
dont une plus large que l’autre. Une prise avec tige de mise à la masse dispose de
deux lames en plus d’une troisième tige qui connecte à la masse. La lame plus large ou
la tige de mise à la masse est prévu pour votre sécurité. La prise murale est désuète si
elle n’est pas conçue pour accepter ce type de prise avec dispositif de sécurité. Dans
ce cas, contactez un électricien pour faire remplacer la prise murale. Évitez
d’endommager le cordon d’alimentation. Protégez le cordon d’alimentation. Assurez-
vous qu’on ne marche pas dessus et qu’on ne le pince pas en particulier aux prises.
N’UTILISEZ PAS L’APPAREIL si le cordon d’alimentation est endommagé. Pour
débrancher complètement cet appareil de l’alimentation CA principale, déconnectez le
cordon d’alimentation de la prise d’alimentation murale. Le cordon d’alimentation du
bloc d’alimentation de l’appareil doit demeurer pleinement fonctionnel.
Débranchez cet appareil durant les orages ou si inutilisé pendant de longues périodes.
Service
Consultez un technicien qualifié pour l’entretien de votre appareil. L'entretien est
nécessaire quand l'appareil a été endommagé de quelque façon que se soit. Par exemple
si le cordon d’alimentation ou la prise du cordon sont endommagés, si il y a eu du liquide
qui a été renversé à l’intérieur ou des objets sont tombés dans l'appareil, si l'appareil a été
exposé à la pluie ou à l'humidité, si il ne fonctionne pas normalement, ou a été échappé.
S2125A

VTC V44 Parts List 5/4/2010
YS # Descriptio
n
Qty. YS # Descriptio
n
Qty. YS # Descriptio
n
Qty. YS # Descriptio
n
Qty.
5906 RED 3MM LED 1V9 20MA.4SPCER T&R 3 4390 _10K AUD 16MM DETENT P22 2 4854 1/4W 1K2 5% T&R RES 1 8629 10-32 X 1/4 SPACER PHENOLIC 16
5908 GRN 3MM LED 1V9 20MA.4SPCER T&R 3 4520 _10K TRIM POT 2 4988 1/4W 1K5 5%MINI T&R RES 6 3751 SNAP IN 5/16 SPACER RICHCO 3
6419 BRIDGE 35A 400V WIRE LEAD GI3504 2 2448 15.00 AMP CIRCUIT BREAKER 1 4791 1/4W 1K54 1% T&T RES 4 8657 6-32 X 3/8" HEX SPACER ALUMINUM 2
6425 BAV21 200V 0A25 DIODE T&R 4 714 1.5 MIL X 36" CLEAR POLY SHEETING 4 4808 1/4W 2K 5% T&R RES 6 3743 SNAP ON 0.5" SPACER RICHCO 5
6438 1N4007 1000V 1A0 DIODE T&R 15 3820 ___4UH COIL 14AWG ZOBEL HORIZONTAL 2 6113 1/4W 2K 5%MINI T&R RES 2 3851 1/2 PCB PLASTIC SPACER 4
6825 1N4148 75V 0A45 DIODE T&R 52 3485 CLIP 250X032 18-22AWG RIGHT ANGL 4 4847 1/4W 2K2 5% T&R RES 2 3859 1/2 PLASTIC HEX SPACER #4 2
6934 MR854 400V 3A0 DIODE FASREC 20 3486 CLIP 250X032 22-18AWG DISCO-LOK 14 6124 1/4W 3K 5%MINI T&R RES 6 3502 NYLON FLAT WASHER OD.158ID.110H.070 2
6429 1N4747A 20V0 1W0 ZENER 5% T&R 1 3489 CLIP 250X032 18-22AWG DISCO/INSL 3 4826 1/4W 3K3 5% T&R RES 2 8667 SHOULDER WASHER SWS-229 LENGTH 1/8 4
6432 1N5248B 18V0 0W5 ZENER 5% T&R 2 3490 CLIP 250X032 14-16AWG DISCO/INSL 4 6136 1/4W 3K3 5%MINI T&R RES 2 3511 #6 FLAT WASHER NYLON 2
6433 1N5257B 33V0 0W5 ZENER 5% T&R 4 3601 RING TERMINAL 16AWG WIRE & #8 SCREW 1 4744 5.0W 3K6 5% BLK RES 8 8485 #6 SPLIT WASHER ZINC 4
6439 1N5225B 3V0 0W5 ZENER 5% T&R 2 3918 1/4" JCK PCB MT HORZ SLIM W/SCREW 2 4681 1.0W 4K7 5% T&R RES 2 8818 3/4 OD X 3/8 ID X .080 THICK WASHER 2
6440 1N750ARL 4V7 0W5 ZENER 5% T&R 9 3628 SPKON 4C PCB MT VERT 250TAB GRY #4 2 4943 1/4W 4K7 5% .2"U T&R RES 1 3517 NYLON WASHER #8 0.062 4
6450 1N5242B 12V0 0W5 ZENER 5% T&R 4 3417 6-32 SCREW TERMINAL PC MNT SNAP-IN 1 4982 1/4W 4K7 5%MINI T&R RES 17 8850 #10 INT TOOTH LOCKWASHER BO 4
6461 1N5240BRL 10V0 0W5 ZENER 5% T&R 1 3657 XLR FEML PCB MT HORZ NO SHELL 2 4887 1/4W 7K5 5% T&R RES 5 8921 #3MM ID3.2MM OD7.0MM THICK 5MM 4
6463 1N5251BRL 22V0 0W5 ZENER 5% T&R 1 3451 EYELET SMALL 0.089 OD PLATED 68 4990 1/4W 8K2 5%MINI T&R RES 2 3705 4P3T SLID SW PCMT H 1
6465 1N5250B 20V0 0W5 ZENER 5% T&R 1 9198 FAN 80MM X 80MM 40CFM 12VDC 1 4762 1/4W 9K760 0.1% *** T&R RES 8 3436 DPDT PUSH SW PCMT H BREAK B4 MAKE 3
6822 1N4745A 16V0 1W0 ZENER 5% T&R 4 3894 AAVID 5972-B H/S W/TAB B.O. 8 4800 1/4W 10K0 1% T&R RES 2 3587 DPDT ROKR SW QUIK 250"AC/PWR ON-OFF 1
6824 1N5246B 16V0 0W5 ZENER 5% T&R 2 3501 B52200F006 COMP WASH #4 SMALL 23 4829 1/4W 10K 5% T&R RES 2 3682 250 MALE PCB TAB REEL 36
5101 BC550C TO92 NPN TRAN T&R TB 14 3803 NYLON SECUR-A-TACH MINI PLASTIC TIE 1 4983 1/4W 10K 5%MINI T&R RES 9 CH1197 AP4040 117VAC-IMPORT T'RD 1
5102 BC560C TO92 PNP TRAN T&R TB 14 3810 4" NYLON CABLE TIE 12 6116 1/4W 10K0 1%MINI MF T&R RES 8 4069 JST XH CONNECTOR: CONTACT 2
5103 MPSA06 TO92 NPN TRAN T&R TA 3 3827 SQUARE BUMPER BUTTON BLACK 11 4856 1/4W 12K 5% T&R RES 4 4070 JST XH CONNECTOR: 2 CIRCUIT HOUSING 1
5105 MPSA13 TO92 NPN DARL T&R TA 2 3852 STICK ON CABLE WRAP ANCHOR 1 5008 1/4W 14K7 1% T&R RES 2 4056 2 CIR XH-HEADER 0.098IN 1
5106 MPSA63 TO92 PNP DARL T&R TA 1 8433 KNOB AP SERIES PLASTIC 2 4630 1/2W 15K 5% T&R RES 2 2328 8 CIR XH-HEADER 0.098IN 4
5108 2N5401 TO92 PNP TRAN T&R TA 2 8661 KNOB BUTTON FLAT GREY 3 4830 1/4W 15K 5% T&R RES 12 2329 12 CIR XH-HEADER 0.098IN 2
5113 MPSA42 TO92 NPN TRAN T&R TA 2 8437 FAN FILTER LABEL 1 5057 1/4W 16K5 1% T&R RES 4 3035 PATCH 08 22AWG 05.0 XH FLAT 1
5114 MPSA92 TO92 PNP TRAN T&R TA 2 3468 8' 3/16 SJT AC LINE CORD STRIP 17" 1 4771 1/4W 17K8 1% T&R RES 2 3036 PATCH 08 22AWG 09.0 XH FLAT 1
6854 2N6517 TO92 NPN TRAN TA 3 3821 STRAIN RELIEF HEYCO #1200 1 6125 1/4W 18K 5%MINI T&R RES 2 3037 PATCH 12 22AWG 15.0 XH FLAT 1
6752 MTP10N15L TO220 NCH MFET TN 2 8261 GE VELVET/MATTE LEXAN .007"X12"X24" 0.333 6123 1/4W 20K0 1%MINI MF T&R RES 4
6814 MJF6668 T221D PNP TRAN DARL TJ 1 8263 METALIZED POLYESTER .005 X 12"X 24" 0.02 4777 1/4W 21K5 1% T&R RES 2
6815 MJF6388 T221D NPN TRAN DARL TJ 2 8701 4-40 KEPS NUT ZINC 20 4632 1/2W 22K 5% T&R RES 8
6873 MJE340 TO126 NPN TRAN TG 6 8793 4-40 HEX NUT ZINC 3 6118 1/4W 22K 5%MINI T&R RES 1
6874 MJE350 TO126 PNP TRAN TG 6 8666 6-32 X 1/4" PEM THRD SPACER 0.213 2 4833 1/4W 27K 5% T&R RES 6
6925 MTP8P20 TO220 PCH MFET TN 2 8760 6-32 KEPS NUT TIN PLATED 64 4840 1/4W 33K 5% T&R RES 3
6909 MJ21196 TO3 NPN TRAN TH 16 8800 6-32 KEPS NUT ZINC 5 6122 1/4W 33K 5%MINI T&R RES 1
6910 MJ21195 TO3 PNP TRANSISTOR TH 16 8854 6-32 X 1/4" 0.D. HEX NUT ZINC CLEAR 4 4878 1/4W 43K 5% T&R RES 2
7004 2SA2121-0 TO3P PNP TRAN TK 2 8797 5/16-18 KEPS NUT JS500 1 6119 1/4W 47K 5%MINI T&R RES 9
7005 2SC5949-0 TO3 NPN TRANSISTOR TK 2 3797 TO-247 THERMO CONDUCTIVE PAD 4 4835 1/4W 56K 5% T&R RES 8
6745 LM13600N IC XCONDUCTANCE AMP 2 3846 TO220 THERMO PAD LARGE HOLE 56359B 8 6139 1/4W 62K 5%MINI T&R RES 2
6840 MC33078P IC DUAL OP AMP 5 3916 TO3 SIL-PAD REPLACES MICA 32 5007 1/4W 78K7 1% T&R RES 2
5190 MBS4992 TO92 8V5 DIAC T&R 2 4060 SILPAD 1500ST 0.900 X 0.725BERQUIST 4 4586 1/4W 82K 5%MINI T&R RES 2
6489 __5R 20% THERMISTOR-SURGR NTC 2 4597 22AWG STRAN TC WIR JMP 23 4898 1/4W 91K 5% T&R RES 4
6517 STM-BTB-600BRG TO220 ??A TRIAC 600V 2 4599 22AWG SOLID SC WIR T&R JMP 120 4838 1/4W 100K 5% T&R RES 2
6880 4N35 OPTO-COUPLER 4 5299 24AWG SOLID SC WIR RAD JMP 10 6120 1/4W 100K 5%MINI T&R RES 2
5401 _10P 500V 5%CAP T&R RAD CER.2NPO 4 4745 5.0W 0R1 5% BLK RES 12 4851 1/4W 120K 5% T&R RES 2
5197 220P 100V 2%CAP T&R RAD CER.2NPO 3 4749 5.0W 0R15 5% BLK RES 4 4886 1/4W 200K 5% T&R RES 1
5203 _47P 100V 2%CAP T&R RAD CER.2NPO 2 2005 1.0W 0R47 5%FLAME PROOF T&R RES 2 4668 2.0W 220K 5%10MM BODY T&R RES 2
5410 100P 100V 10%CAP T&R BEAD NPO 2 2006 1.0W 1R 5%FLAME PROOF T&R RES 4 6126 1/4W 220K 5%MINI T&R RES 10
5412 220P 100V 10%CAP T&R BEAD NPO 13 4677 1/2W 1R 5% T&R RES 4 6127 1/4W 470K 5%MINI T&R RES 2
5201 470P 100V 5%CAP T&R RAD CER.2NPO 2 4688 1/2W 2R2 5% T&R RES 3 4844 1/4W 1M 5% T&R RES 1
5208 __2N2 400V 5%CAP T&R RAD .2FLM 12 4911 1/4W 2R2 5% T&R RES 8 4948 1/4W 1M 5% .2"U T&R RES 1
5273 __1N5 200V 5%CAP T&R RAD CER.2NPO 2 4748 2.0W 3R9 5% T&R 4 4951 1/4W 4M7 5% .2"U T&R RES 2
5416 470P 50V 10%CAP T&R BEAD NPO 2 4733 5.0W 5R6 5% BLK RES 2 6132 1/4W 8M2 5%MINI T&R RES 2
5422 __1N 50V 10%CAP T&R BEAD NPO 2 2009 1/4W 10R 2%FLAME PROOF T&R RES 2 4751 1/4W 22M 5% T&R RES 4
5209 __4N7 250V 5%CAP T&R RAD .2FLM 2 2037 1/4W 10R FUSIBLE T&R RES 6 3604 21" 14C-28AWG DIP HDR CABLE .05" 1
5210 _22N 100V 10%CAP T&R RAD .2FLM 11 4605 1/8W 10R 5% T&R RES 1 3699 RELAY 1C 02AMP DC48 006MA PC-S 1
5834 _10N 250V 20%CAP BLK RAD POLY FLM 2 4875 1/4W 10R 5% T&R RES 2 3735 RELAY 1A 16AMP DC48 011MA PC-C 1
6435 _22N 275V 20%CAP BLK 'X2' 15MM AC 2 4930 1/4W 10R 5% .2"U T&R RES 1 8870 #4 X 1/4 PAN PH TYPE A ZINC 2
6451 __4N7 250V 20%CAP BLK 'Y' 10MM AC 1 2039 1/4W 22R0 FUSIBLE T&R RES 2 8865 4-40 X 5/16 PAN PH MS JS500 2
5212 100N 63V 5%CAP T&R RAD .2FLM 4 2014 1/6W 33R 2%FLAME PROOF T&R RES 4 8729 #4 X 3/8 FLAT QUAD TYPE A JS500 BLK 4
5226 _68N 100V 5%CAP T&R RAD .2FLM 4 2016 1/6W 39R 2%FLAME PROOF T&R RES 2 8742 4-40 X 3/8 PAN PH TAPTITE JS500 2
5228 100N 100V 5%CAP T&R RAD .2FLM 3 2041 1/4W 39R0 FUSIBLE T&R RES 10 8861 4-40 X 3/8 PAN PH MS JS500 8
5229 150N 63V 10%CAP T&R RAD .2FLM 4 4899 1/4W 39R 5% T&R RES 6 8741 4-40 X 1/2 PAN PH MS JS500 3
5231 220N 63V 10%CAP T&R RAD .2FLM 2 2042 1/4W 47R0 FUSIBLE T&R RES 4 8871 4-40 X 5/8 PAN PH MS JS500 12
5234 470N 63V 10%CAP T&R RAD .2FLM 4 4811 1/4W 68R 5% T&R RES 2 8902 4-40 X 3/4 PAN PHIL MS B/O & WAX 4
5314 100N 50V 10%CAP T&R BEAD X7R 2 4984 1/4W 150R 5%MINI T&R RES 4 8799 #6 X 1/4 PAN PH TYPE B JS500 2
5882 220N 250VDC 10%CAP BLK RAD PLY FLM 4 2045 1/4W 150R FUSIBLE T&R RES 8 8832 6-32 X 1/4 PAN PH TAPTITE JS500 1
5255 __1U 63V 20%CAP T&R RAD .2EL 3 2021 1/4W 200R0 1%FLAME PROOF T&R RES 6 8801 6-32 X 3/8 PAN PH TAPTITE JS500 4
5258 __4U7 63V 20%CAP T&R 8X7MM .2EL 2 2023 1/6W 220R0 1%FLAME PROOF T&R RES 4 8829 6-32 X 3/8 FLAT PH TAPTITE BO#C HEA 60
5259 __4U7 63V 20%CAP T&R RAD .2 4 4857 1/4W 220R 5% T&R RES 2 8761 6-32 X 1/2 PAN PHIL MS ZINC CLEAR 64
5269 __4U7 100V 20%CAP T&R RAD LESR2 2 4977 1/4W 220R 5%MINI T&R RES 7 8837 6-32 X 1/2 ROUND PH MS JS500 2
5260 _22U 50V 20%CAP T&R RAD .2EL 8 2024 1/6W 249R 2%FLAME PROOF T&R RES 12 8796 6-32 X 5/8 PAN PH TAPTITE ZINC 2
5282 _10U 16V 20%CAP T&R 5X7MM .2NP 2 4867 1/4W 270R 5% T&R RES 2 8830 6-32 X 7/8 PAN PH MS JS500 2
5629 _10U 160V 20%CAP BLK 10X13MM EL 4 4986 1/4W 270R 5%MINI T&R RES 2 8999 8-32 X 5/8 PAN PH TAPTITE JS500 17
5945 _10U 63V 20%CAP T&R RAD .2EL 2 4855 1/4W 330R 5% T&R RES 2 8815 8-32 X 3/4 PAN PH TAPTITE JS500 5
5961 _33U 16V 20%CAP T&R RAD .2 12 4980 1/4W 470R 5%MINI T&R RES 9 8809 10-32 X 1/4 PAN PH TAPTITE JS500 4
5267 100U 25V 20%CAP T&R RAD .2EL 3 4891 1/4W 620R 5% T&R RES 2 8740 5/16-18 X 3 GRD 5 HEX BOLT JS500 1
5619 330U 100V 20%CAP BLK 12X25MM EL 4 5019 1/4W 620R 5%MINI T&R RES 2 8869 8-18 X 1/2 THRD CUTTING FOR PLASTIC 4
5621 470U 63V 20%CAP BLK 12X25MM EL 1 4873 1/4W 680R 5% T&R RES 1 8731 10-16 X 5/8 TYPE B HEX W/SLOT JS500 12
5630 330U 25V 20%CAP BLK 10X13MM EL 6 4934 1/4W 1K 5% .2"U T&R RES 1 3570 14 PIN SCKT CLOSED FRAME DIP ONLY 1
5896 4700U 80V 20%CAP BLK 25X50MM ELS 16 4981 1/4W 1K 5%MINI T&R RES 15 8663 11/64 NYLON SPACER (MICRO PLASTIC
)
66

17 17
16 16
15 15
14 14
13 13
12 12
11 11
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
1 1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
N
N
O
O
P
P
Q
Q
R
R
S
S
T
T
U
U
V
V
Product
Date:
Filename:
PCB# ofSheet
Rev: 11 V11
M1146v11sch.sch2002
POWER AMP
Fri Sep 10, 2010 M1146AP4040
Product
Date:
Filename:
PCB# ofSheet
Rev: 11 V11
M1146v11sch.sch2002
POWER AMP
Fri Sep 10, 2010 M1146AP4040
C18A 50V22U
4148
D18A
C23A 500V10P
4148
D22A
C26A 63V4U7
C28A 160V10U
C17 200V220P
4148
D1
1N5242B 12V0
ZD50W5
C8 63V1U
R74
1/4W
.
330R
C25 80V4700U C23 80V4700U
4148
D2
R22
1/4W
MINI
3K
MR854
D17
8
W1:H 8
6
W1:F 8
5
W1:E 8
3
W1:C 8
2
W1:B 8
1N4745A 16V0
ZD91W0
MR854
D18
MR854
D19
R72
1.0W
.
4K7
7
W1:G 8
1
W1:A 8
4
W1:D 8
C19A 50V22U
4148
D16A
4148
D13A
4148
D14A
R38A
1/4W
.
56K
C24 80V4700U C27 80V4700U
R56A
1/4W
.
17K8
R55A
1/4W
.
21K5
R68
1/2W
.
22K R71A
1/8W
FLMP
33R
C22A 500V10P
4148
D17A
R72A
1/8W
FLMP
33R C30A 16V33U
R69A
1/4W
.
3K3
R58A
1/4W
FUSIBLE
39R0
R67A
1/4W
MINI
10K
MJE350
6874
Q19A
TO126
.
R61A
1/4W
FUSIBLE
47R0 R59A
1/4W
FUSIBLE
10R
R17
1/4W
FUSIBLE
151R
TO92
BC550C
Q4
5101
R15
1/4W
MINI
150R
R4
1/4W
.
2R2
R10
1/4W
MINI
4K7
R3
1/4W
.
2R2
TO92
BC550C
Q1
5101
C2 50V1N
R5
1/4W
FUSIBLE
151R
C5 50V22U R13
1/4W
.
43K C3 50V22U
4148
D4
4148
D3
1N750ARL 4V7
ZD120W5
C7 25V330U C6 25V330U
R88
1/4W
MINI
220K
R46
1/4W
MINI
1K
R23
1/4W
MINI
4K7
4148
D5
R21
1/4W
.
2K2
R45
5.0W
.
3K6
C15 400V2N2
R54
5.0W
.
3K6
R49
1.0W
FLMP
1R
R43
1/4W
MINI
470R
R41
1/4W
.
2R2
R42
1/4W
MINI
4K7
R27
1/4W
.
2R2
1N5246B 16V0
ZD70W5
C12 100V22N
1N750ARL 4V7
ZD110W5
C16 100V470P
C31 100V22N
4148
D9
R37
1/4W
.
27K
R36
1/4W
.
91K
R35
1/4W
MINI
1K
4148
D7
1N4745A16V0
ZD8 1W0
4007
D30
1N750ARL4V7
ZD10 0W5
R50
1/4W
.
270R
BAV21
D10
BAV21
D11
R34
1/4W
MINI
270R
MJ21195
Q24
6910
TO3
{Function}
R57
5.0W
.
0R1
R56
5.0W
.
0R1
MJ21196
Q16
6909
TO3
{Function}
MJ21196
Q15
6909
TO3
{Function}
R59
5.0W
.
0R1
R58
5.0W
.
0R1
MR854
D20
R61
5.0W
.
0R1 R62
2.0W
.
3R9
MR854
D21
EY1
.
.
BLK
R65
1/4W
.
10R
2+
2_
J2:B
3628
SPEAKON 4C
Function
C32 63V10U
1N5257B 33V0
ZD130W5
R39A
1/4W
.
7K5
R40A
1/4W
MINI
220R
4148
D15A
C26 80V4700U C29 80V4700U
C22 80V4700U
C28 80V4700U
R205
1/4W
MINI
47K
R43A
1/4W
MINI
3K
R67
1/2W
.
22K C31A 16V33U
R63A
1/4W
FUSIBLE
39R0
R70A
1/4W
MINI
10K
R68A
1/4W
MINI
3K3
4148
D23A
R65A
1/4W
FUSIBLE
10R
C25A 63V4U7
R66A
1/4W
FUSIBLE
10R
R62A
1/4W
FUSIBLE
47R0
C27A 160V10U
MJE340
6873
Q18A
TO126
.
TO92
BC560C
Q2
5102
C4 50V470P R7
1/4W
MINI
150R
TO92
BC560C
Q3
5102
C29A
25V 330U
MT2
N/C
MT1
MBS4942
R19
1/8W
FLMP
249R
R11
1/4W
FLMP
22R R87
1/4W
MINI
470R
BC
TO-92
MPSA63
MPSA43
2N5551
E
MPSA56
MPSA13
2N5401
2N6517
2SA2121-0
TO3P
7004
Q6
R85
1.0W
FLMP
0R47
R83
1/4W
FLMP
200R0
R20
1/4W
MINI
3K
1N5242B 12V0
ZD40W5
C14 250V220N
R30
1/4W
.
620R
R89
1/4W
MINI
220K
R44
1/2W
.
1R
1
2
4N35
U2:A
6880
C9 250V4N7
C11 250V220N
1
2
4N35
U1:A
6880
R40
1/4W
MINI
1K
C10 400V2N2
R28
1/2W
.
1R
R51
1/8W
FLMP
220R0
MR854
D13
MR854
D14
MR854
D22
C21 10U 16V
C19 250V10N
MR854
D15
R64
1/4W
.
33K
{Voltage}
TO92
5190
Q29:A
MBS4992
G
MT1 MT2
TO220
STM-BTB-600BRG Q30
6517Function
1+
1_
J2:A
3628
SPEAKON 4C
Function
2+
2_
J1:B
3628
SPEAKON 4C
Function
1+
1_
J1:A
3628
SPEAKON 4C
Function
CEB
R86
1/4W
MINI
470R
R69
1/2W
.
22K
R64A
1/4W
FUSIBLE
151R
GND
VCC OUTAS35FN
TO-92
{Watts}
Q31
6478
{Function}
R42A
1/4W
.
56K
R51A
1/4W
MINI
1K5
TO92
BC550C
Q17A
5101
R41A
1/4W
.
7K5
TO92
MPSA92
Q13A
5114
R71
1/4W
MINI
100K
4148
D21A
R44A
1/4W
MINI
1K
TO92
MPSA42
Q12A
5113
C20A 400V2N2
4148
D19A
4148
D20A
R47A
1/4W
MINI
1K5
R57A
1/4W
FUSIBLE
151R
R49A
1/4W
.
2K
R18
1/4W
MINI
10K0
R84
1/4W
FLMP
200R0
R16
1/4W
.
12K
R2
1/4W
.
68R
R14
1/4W
.
39R
R9
1/8W
FLMP
249R
R60A
2.0W
10MM
220K
R82
1/4W
FLMP
200R0
MJE340
6873
Q40
TO126
{Function}
TO92
BC550C
Q20A
5101
C18
200V 220P
R6
1/4W
MINI
10K0
R81
1/4W
MINI
220R
R47
1/4W
.
39R
C13 100V22N
TO92
BC550C
Q8
5101
R40B
1/4W
MINI
20K0
R70
1/4W
MINI
18K
R35A
1/4W
MINI
20K0
R25
1/4W
MINI
220K
R24
1/4W
MINI
220K
TO92
2N6517
Q7
6854
R33
1.0W
FLMP
1R R26
1/4W
MINI
470R
R29A
5.0W
.
3K6
R29
5.0W
.
3K6
R80
1/4W
MINI
220R
R48
1/4W
FUSIBLE
39R0
MJ21195
Q23
6910
TO3
{Function}
MJ21195
Q21
6910
TO3
{Function}
MJ21195
Q27
6910
TO3
{Function}
MJ21195
Q25
6910
TO3
{Function}
MJ21195
Q22
6910
TO3
{Function}
MJ21195
Q26
6910
TO3
{Function}
MJ21195
Q28
6910
TO3
{Function}
R52
5.0W
.
0R15
R38
1/4W
.
27K
R39
1/4W
.
91K
R60
5.0W
.
0R1 R53
5.0W
.
0R15
C30 100V22N
MJ21196
Q14
6909
TO3
{Function}
MJ21196
Q18
6909
TO3
{Function}
MJ21196
Q20
6909
TO3
{Function}
G
D
S
IRF630NPBF
NQ11 6752
TO220
Function MJ21196
Q13
6909
TO3
{Function}
MJ21196
Q17
6909
TO3
{Function}
MJ21196
Q19
6909
TO3
{Function}
R63
5.0W
.
5R6
L13820
4UH
EY2
.
.
RED
R66
1/2W
.
22K
R73
1/4W
.
2K
R50A
1/4W
MINI
4K7
R53A
1/4W
MINI
2K
MJE340
6873
Q16A
TO126
.
R45A
1/4W
MINI
1K R46A
1/4W
MINI
4K7
TO92
BC560C
Q14A
5102
MJE350
6874
Q15A
TO126
.
BE
TO-92
BC560C
C
BC550C
TO92
BC560C
Q21A
5102
C1 200V1N5
MJE350
6874
Q41
TO126
{Function}
R12
1/8W
FLMP
39R
R1
1/4W
FUSIBLE
39R0
R8
1/4W
.
12K
M
Lin
RT1
4520
10K
BIAS TRIM
AS35
IN
OUT
REF
VIEW
BOTTOM
BE
YS6909
TO92
BC560C
Q10
5102
4
6
5
4N35
U2:B
6880
R31
1/4W
.
39R
TO92
BC550C
Q9
5101
4
6
5
4N35
U1:B
6880
4007
D31
DS
G
P
MTP8P20
Q12
6925
TO220
Function
MR854
D16
R55
1/8W
FLMP
220R0
R32
1/4W
FUSIBLE
39R0
GDS
MJL21194
MJL1302A
MJL3281A
MJL21193
2SA2121-0
2SC5949-0
B C E ECB
2SC5949-0
7005
TO3P
Q5
13
10
7
4
1
9
11
12
8
#
2
3
5
6
VER#
MODEL(S):-
DATE DESCRIPTION OF CHANGE
R13 27K-<43K,C18 1N->220P,R87 100R->470R
PC#6517 Q13->20 #6900->#6909. Q21-Q28 #6927->#6910
PC#6438 ADD R88,R89 AT U1, U2
PC#6429 ADD R87,C18 AT Q40
PC#6278 ADD R86,C17 AT Q41. PC#6083 REDO GND TRA
.
8.10
8.00
7.00
6.00
SEP/18/01
.
MAY/03/02
AUG/28/01
OCT/12/00 CORRECT ERROR IN SPKONS
SPKON JACKS RE-CONFIGURED
PC#5908 U1,U2 4N35 TO TLP621
-R72A,C31A,R71A
PC#5806 ADD 33R, 33u/16V ACROSS R57A,R64A,C30A,
PC#5798 R72 4K7 1/2W TO 4K7 1W
PC#5767 C10,C15,C20A 2N2 TO PT#5427
5.00
4.00
3.00
.
2.00
1.20
1.10
1.00
JUL/08/99
JAN/27/99
.
SEP/10/98
JUL/4/98
JUN/19/98
AP4040 M1146 Database History
DERIVED FROM M1126FEB/12/98
AUG/12/99
MT2
MT1
G
STM-BTB-600BRG
12
9
6
3
13
10
11
7
4
1
2
5
8
D
D
.
APR/25/06
MAY/16/03
N
N
Q6 #6990 WITH #7005
PC#7007 MAC-224-4 TO STM-BTB-600BRG
PC#6607 C10,C15, C20A #5427->#5208
D
D
10-SEP-2010
MAY/02/06
SEP/2004
FEB/09/04
N
N
Replace ribbon with XH conn GG
Solder Updates
HA, PC#7076, REPLACE Q5 #6989 WITH #7004
PC#7083 MTP10N15L TO IRF630NPBF
CONVERT TO PCAD2002
PC#6658 CHANGE BREAKAWAY AND ROUTE
V
V
.
9.10
8.20
V
V
V11
10.00
9.30
9.20
9.00
8.30
APR/03/07
NOV/18/08

VCD
CLINCH
ORIGIN LONG AXIS
SHORT AXIS
INSERT
ORIGIN
v11.00M1146
ClinchRepeats - [email protected]@0.000
BlankSize - 15000x11000
StepAndRepeat - [email protected]@0.000
Pcb Mech
TAB
NORMAL
SOCKET
SOCKET WITH DIRECTION
NORMAL LARGE
SOCKET UPSIDE DOWN
19"
YEL
SPACER
USED AS A
THIS CAP IS
2.5"
v11.00M1146
YEL
BLK 14"
BLK 4"
RED 13"
RED 2.5"
BLK 18"
BLK 3.5"
Top Assy
DO NOT STUFF WIRES OR SPEAKON
JACKS FOR SERVICE BOARDS.
SEE LAYOUT DOCUMENTATION
AP4040 / V44 LAYOUT
V
T
R
V
T
R
V
T
R
V
T
R
V
T
R
V
T
R
V
T
R
V
T
R
V
T
RV
T
R
V
T
R
V
T
R
V
T
R
E B
C
E B
C
V
T
R
V
T
R
V
T
R
8
1
1-
2+
1+
2+
2-
2-
NL4MP-1
1-
1+
SPEAKON 4C
1-
2+
1+
2+
2-
2-
NL4MP-1
1-
1+
SPEAKON 4C
..
..
..
BIAS TRIM
5882
6517
6880
6925
6874 6873
5896
5834
6874 6873
5882
6874
3820
6880
6752
5896
5896
5896
5896
5896
6873
5896
2328
3628
3628
7004 7005
5896
10R
33K
56K
4148
4148 4N7
1K
MPSA92 39R
4148
1K5
3K3
10K
47R0
4148
4148 4007
4148 220K
4148
470P
BC550C
4148 249R
22U
50V
151R
10K0
1N
150R
22N 1R
1.0W
4148
68R
4V7
10R
7K5
620R100K
2N2
2N2
4K7
BC550C 16V0
39R0
220N
250V
2N2
39R0 16V0
39R
470P
4V7
10R 91K 39R0
20K0
2K2
1U
63V
150R
4K7
151R
16V0
12V0
3K
220P
470R
20K0 4148
2R2 1K
470R 249R
220R0 39R
2R2
39R0 2R2
220R0
330R
22U
50V
10P 10P
200R0
470R
STM-BTB-600BRG
TO220
10U
16V
MR854
4K7
MPSA42
1K
4148
1K5
4148
10R
4U7
63V
4U7
63V
2K
33R
220K 2.0W
1R
1/2W
1K TO-92
AS35FN
33U
16V
4148
47R0
220K
220R
4N35
BAV21 27K
1R
1/2W
TO220
MTP8P20
47K
2N6517
4K7 12K
10K0
220K
MJE350
TO126
MR854
25V
330U
4148
12K
MJE340
TO126
BC550C 4148
39R
BAV21
91K
1R
1.0W
MR854
1N5
22N
270R
270R
MR854
BC560C BC550C
4700U
80V
10N
MR854
7K5
56K
22U
50V
4148
3K
17K8
220R
BC560C
MJE350
160V
10U
151R
5.0W
3K6
22N 4K7
1.0W
16V
33U
BC560C
MJE340
220N
250V
4148
10K
MJE350
220R
4V7
25V
330U
4007
21K5
18K
4148
220K
470R
3K
220P
5.0W
0R1
5.0W
0R1
1K
BC560C
200R0
25V
330U
22N
2R2
27K
22R
BC560C
4K7
1.0W
0R47
5.0W
0R15
5.0W
0R15
5.0W
3K6
5.0W
3K6
2K
33R
2K
22N
43K
200R0
MBS4992
TO92
4UH
22K
1/2W
1/2W
22K
1/2W
22K
1/2W
22K
MR854
MR854
151R
39R0
3K3
4N35
33V0
TO220
IRF630NPBF
MR854
MR854MR854
12V0
22U
50V
4700U
80V
4700U
80V
4700U
80V
4700U
80V
4700U
80V
5.0W
0R1
5.0W
0R1
MJ21196 Body
MJ21195
Body
MJ21195Body
10U
63V
5.0W
3K6
MJE340
BC550C
160V
10U
4700U
80V
5.0W
0R1
5.0W
0R1
MJ21195Body
MJ21195
Body
MJ21196 Body
BC550C 10K
MJ21195Body
MJ21195
Body
MJ21196 Body
MJ21196
Body
MJ21196
Body
MJ21196
Body
TO3P
2SA2121-0
TO3P
2SC5949-0
3R9
2.0W
4700U
80V
MJ21196Body
MJ21195
Body
MJ21195Body
5.0W
5R6
MJ21196
Body
CLIP
TSENS
GND
GND
SIG
PRTCT
NFB
CLIM
AP4040/V44
M1146
v11.00
v11.00
M1146
AP4040/V44
INTO WAVE
R65
R64
X3
R42A
D16A
D13A
C9
R44A
Q13A
R31
D17A
R51A
R69A
R70A
X1
X4
R61A
D22A X2 D21A D30
D23A
X19
R89
D7
X14 C4
Q8
D5 R19
X38
C3
R5
R6
C2
X15 R7
X32
C13 R49
D4
R2
ZD12
X6
R59A
R39A
R30
R71
C20A
C10
R46A
Q17A ZD8
R32
C14
C15
R63A ZD9
R47
C16
ZD10
R66A X11
R36 R48
R35A X22
R21
C8
R15
R23
R17X23
ZD7
ZD4
R20
C18
R26
R40B D9
R27 R40
R43 R9
X16
R51 R12
R4
R1 R3
R55
X10
R74
C18A
C22A C23A
R84
R87
X18
X24
W8
_
Q30
W4
GND
BLK 8in
C21
W5
+
WHT 7in
W9
-78V
D20
EY10
BLU
R50A
Q12A
R45A
D14A
R47A
D18A R65A
C25A
C26A
R53A
R71A
R60A
X9 R28
R46
Q31
LOC
BEC
C30A
D20A
R62A
R88
R81
U1
R37
R44
X20
Q12
R205 X13
Q7
R42
R16
R18
R25
Q41
D18
BLK
EY6
EY2
RED
EY5
RED
X12
C7
D2
X37
R8
Q40
X7
YEL
EY7
BLK
EY3
Q9 D1
R14
D10 R39
R33
D14
C1
TP8
C30
R34
X8
D16
Q2
Q1
W6
RED 12in
+145V
X5
C23
C19
D21
R41A
R38A
C19A
D15A
R43A
R56A R40A
Q14A
Q15A
C28A
R64A
R45
XC38 R72
C31A
Q21A
Q16A
C11
YEL
WC7
D19A
R67A
Q19A
R80
ZD11
C29A
X36
R55A
R70
D3
X30
R24
R86
R22
C17
R60
R59
R35
Q3
X26
R82
C6
EY1
BLK
C12
R41
R38
R11
Q10
R10
X17
R85
TP9
R52 R53
R29
R29A
R73
R72A
R49A
C31
R13
R83
X21
Q29
L1
R69
R68
R66
R67
D17
D13
R57A
R58A
R68A
U2
ZD13
Q11
D19
D15D22
YEL
EY9
YEL
EY4
BLK
EY8
ZD5
C5
W7
+78V
YEL 10in
C24
C27
C22
C29 C28
R56
R57
Q16
Q24
Q23
C32 R54
Q18A
Q20A
C27A
-145V
W10
BLU 6in
C25
W1
R61 R58
BLU
W11
Q27
Q28
Q18
Q4
J1
J2
RT1
Q21
Q22
Q14
Q15
Q17
Q13
Q6 Q5
R62
C26
Q20
Q26
Q25
R63
Q19

3
2
#3501
PCB
Z234 CLAMP
#8485 ZINC #6 WASHER
TORQUE 4 INCH/LB
1/4"
#8835 BOLT
1
#8701 4-40 KEPS NUT
PCB
T-220 DEVICE
#8741 4-40X 1/2" BOLT
#8865 4-40 SCREW
WASHER
#4060 SIL THERMO PAD
PCB
#3797 THERMO PAD
#8663 SPACER
T126 TYPE DEVICE
BEND DOWN 1/4" FROM BODY OF THE TRANSISTOR
#8701 4-40 HEX NUT
#8800 6-32 KEPS NUT
TO-3 TRANSISTOR
#3501 BELL WASHER
#3896 HEATSINK
HEATSPREADER
HEATSPREADER
Z234 CLAMP
#3517 #8 NYLON WASHER
T264 DEVICE
#8902 - 4-40 X 3/4 PAN PHIL
USE #8799 TO MOUNT TRIAC Q30
HEATSPREADER
#3916 THERMAL PAD
#3846 MICA
CLAMP DETAIL - SEE NOTES 2 AND 3.
PLACE CLAMP PIC HERE
7. MOUNTING DETAILS FOR Q30 TRIAC
FINAL TORQUE AFTER HEATSINK HAS
3. MOUNTING HARDWARE FOR Q40 AND Q41.
TORQUE 4 INCH/LB
HEATSPREADER
4. MOUNTING HARDWARE FOR Q11,Q12
11. CHECK THE TRANSISTORS FOR ANY SHORT.
10. MOUNTING HARDWARE FOR Q15A AND Q16A.
IMPORTANT: AFTER MOUNTING DEVICE DO NOT CUT LEGS
BEND LEGS IN DIRECTION SHOWN
IT IS IMPRATIVE THAT LEG ARKED 2 AND 3 ARE
BENT FLAT AGAINST THE COPPER SURFACE.
COOLED FROM WAVE SOLDER IS 6 INCH/LB
INITIAL TORQUE FOR TO-3'S IS 8 INCH/LB
6. USE #2006 SMALL BODY 1R 1W FOR R33 AND R49.
#3851 1/2 PCB PLASTIC SPACER
5. MOUNTING HARDWARE FOR TO3 OUTPUTS
#8701 4-40 KEPS NUT
#8667 SHOULDER WASHER
2. MOUNTING HARDWARE FOR Q5 AND Q6.
1. MOUNTING DETAILS FOR 5W ADD #8629 SPACERS ONLY ON
5 WATT RESISTORS R29 AND R45. ENSURE SPACERS ARE UNDER
RESISTOR BODY ENOUGH TO RAISE IT OFF THE BOARD SURFACE.
SEE LAYOUT DIAGRAM
12.. FOR CONNECTOR W1 USE YSPART 2328.
TO PLACE THE CONNECTOR BEND RESISTOR R55A TO THE LEFT
SO THAT THE CONNECTOR SITS FLUSH AGAINST THE BOARD.
9. Q31 IS HAND INSERTED AND BENT OVER WITH FLAT SIDE
UP AS SHOWN.
8. TAB WIRE COLOURS: TAB 1 RED 16AWG TAB 2 YEL 16AWG
TAB 3 BLK 16AWG TAB 4 WHT 16AWG
TAB 5 BLU 16AWG TAB 6 OUTPUT +
TAB 7 OUTPUT -
M1146 - AP4040 / V44 PRODUCTION NOTES
#8902
440- SCREW
#3851
SPCR #8485
WASHER
#4060
SIL-PAD
#3517
WASHER
Z234
CLAMP

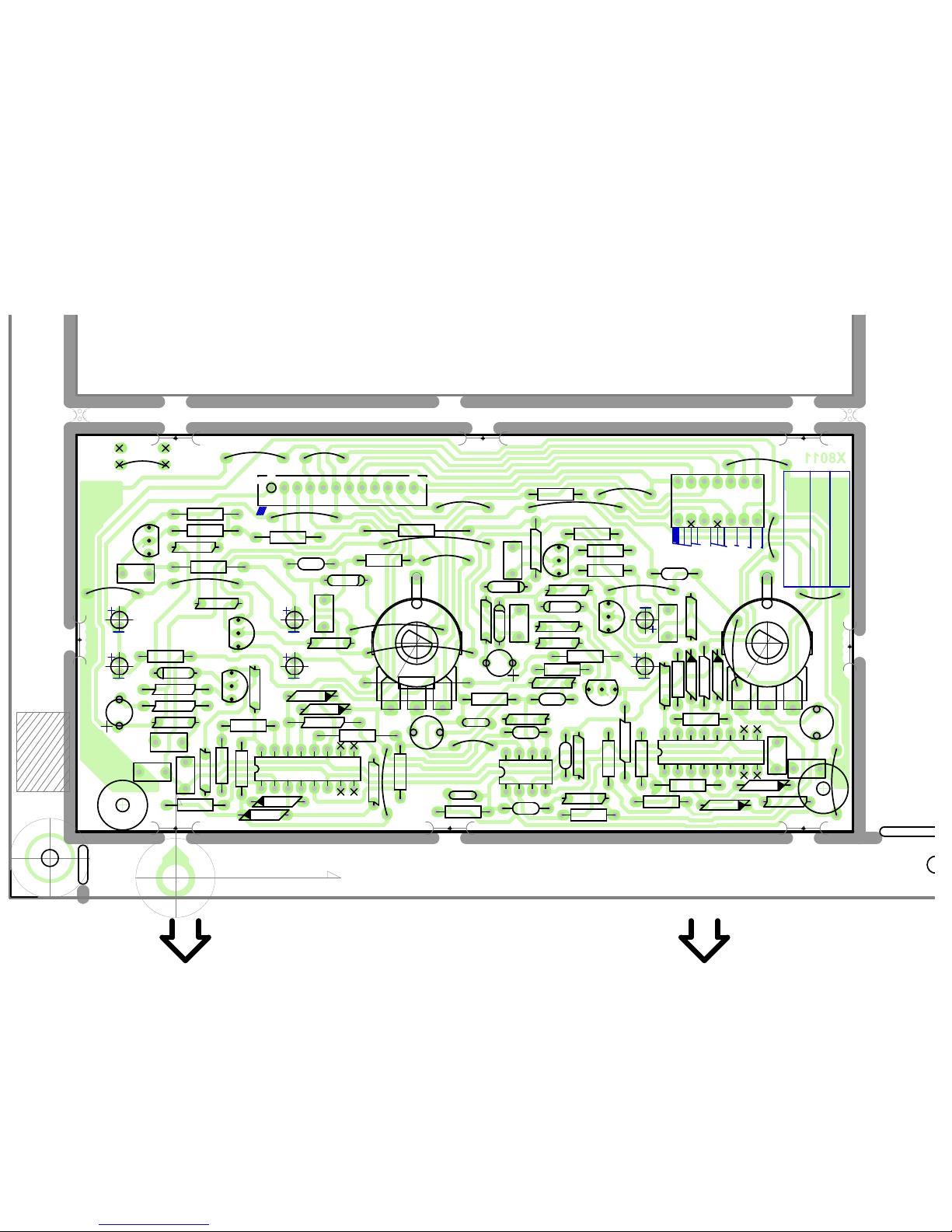

SEE LAYOUT DIAGRAM
BD139
BD237
BD238
MJE340
MJE350
MJE271
MJE270
BD140
EBC
OUT
REF
IN
AS35
G
BCE
MAC224
MT2
MT1
CEB
TO-92
BC560C
BC550C
ECB
TO-92
MPSA63
MPSA43
MPSA13
2N5551
MPSA56
2N5401
2N6517
BF872
BF871
2N6556
2N6553
BEC
N/C
MT1
MT2
MBS4942
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
D
D
DV
V
V
V
V
D
D
N
N
N
N
N
D
D
DV
V
V
AP4040
V
2.20
V
V
V
APR/25/06
MAY/02/06
D
D
D
M1146.SCH_DATABASE_HISTORY
N
N
N
PC#7083 MTP10N15L TO IRF630NPBF
PC#7007 MAC-224-4 TO STM-BTB-600BRG
N
N
N
B C E
MJL21194
MJL1302A
MJL3281A
MJL21193
2SA2121-0
2SC5949-0
IRF830
MTP12P10
MTP10N15L
IRL2910
IRF5210
MTP2P50E
MTP8P20
IRF720
MTP23P06
IRF822
IRF4905
GSD
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
D
D
DV
V
V
V
V
D
D
N
N
N
N
N
D
D
DV
V
V
{MODEL}
V
V
V
V
V
D
D
D
D
DN
N
N
N
N
N
N
N
Mnnnn Drilling History
VIEW
BOTTOM
BE
MJ21196
MJ21195
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
SEP/18/01
AUG/28/01
OCT/12/00 6.00
7.00
8.00
8.10
.
MAY/03/02
.
PC#6278 ADD R86,C17 AT Q41. PC#6083 REDO GND TRA
PC#6429 ADD R87,C18 AT Q40
PC#6438 ADD R88,R89 AT U1, U2
PC#6517 Q13->20 #6900->#6909. Q21-Q28 #6927->#6910
R13 27K-<43K,C18 1N->220P,R87 100R->470R
AUG/12/99
JUL/08/99
JAN/27/99 3.00
4.00
5.00
1.00
1.10
1.20
2.00
.
FEB/12/98
JUN/19/98
JUL/4/98
SEP/10/98
. -R72A,C31A,R71A
PC#5806 ADD 33R, 33u/16V ACROSS R57A,R64A,C30A,
PC#5798 R72 4K7 1/2W TO 4K7 1W
PC#5767 C10,C15,C20A 2N2 TO PT#5427
DERIVED FROM M1126
PC#5908 U1,U2 4N35 TO TLP621
SPKON JACKS RE-CONFIGURED
CORRECT ERROR IN SPKONS
M1146 Database History
AP4040 / V44
11
8
5
2
12
9
6
13
10
7
3
4
1
D
SEP/2004
V
9.00
N
CONVERT TO PCAD2002
D
D
D
APR/25/06
MAY/16/03
FEB/09/04
V
V
V
9.10
8.20
8.30
N
N
N
PC#7083 MTP10N15L TO IRF630NPBF
PC#7007 MAC-224-4 TO STM-BTB-600BRG
PC#6658 CHANGE BREAKAWAY AND ROUTE
PC#6607 C10,C15, C20A #5427->#5208
..
MAY/02/06 9.20
9.30 HA, PC#7076, REPLACE Q5 #6989 WITH #7004
Q6 #6990 WITH #7005
APR/03/07
10.00 Solder UpdatesNOV/18/08
10-SEP-2010 V11 Replace ribbon with XH conn GG

11 11
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
1 1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
N
N
O
O
P
P
Q
Q
of
Filename:
PCB# Sheet 11
Product
Date: Rev: YsType:YS
X8012V1200sch.sch2002
-
Wed Feb 03, 2010
Sheet1
12V00
AP4040/V44
of
Filename:
PCB# Sheet 11
Product
Date: Rev: YsType:YS
X8012V1200sch.sch2002
-
Wed Feb 03, 2010
Sheet1
12V00
AP4040/V44
C216 25V100U
4148
D218
R245
1/4W
.
1M
C209 100V330U C207 100V330U
4007
D213
1N5251BRL 22V0
ZD2020W5
1N5240BRL 10V0
ZD2130W5
C210 100V330U C208 100V330U
1N5248B 18V0
ZD2090W5
C202B 16V33U
1N5248B 18V0
ZD2080W5
C203
100V 4U7
WHITE
8
8W37:H
5
8W37:E
3
8W37:C
1
8W37:A
C215
100V 4U7
R225
1/4W
MINI
470R
R243
1/4W
.
27K
10
12W35:J
8
12W35:H
6
12W35:F
5
12W35:E
3
12W35:C
1
12W35:A
TO92
MPSA06
Q201
5103
3700
K1:C
4007
D203
3700
K1:A
BLACK
6
8W37:F
7
8W37:G
2
8W37:B
4
8W37:D
4007
D206
4148
D205
4148
D204
R209
1/4W
MINI
1K5
R208
1/4W
MINI
1K5
C2 250V4N7
R252
1/4W
MINI
47K
R251
1/4W
MINI
47K
4148
D219
TO92
MPSA06
Q240
5103
4007
D240
NTC
5R0
R2
6489 NTC
5R0
R1
6489
R254
1/4W
MINI
10K
R250
1/4W
.
27K
R253
1/4W
.
680R
R236
1/4W
MINI
8K2
R235
1/4W
MINI
8K2 4148
D212
TO92
BC550C
Q241
5101 R244
1/4W
MINI
220K
R242
1/4W
MINI
47K
TO92
2N6517
Q211
6854
R234
1/4W
MINI
4K7 C212 63V1U
1N750ARL 4V7
ZD2100W5
C213 63V470U
C204 100V22N
R226
1/4W
MINI
22K
4007
D215
4007
D214
1N750ARL 4V7
ZD2070W5
11
12W35:K
12
12W35:L
4
12W35:D
7
12W35:G
9
12W35:I
2
12W35:B
2N6517
R214
1/2W
.
15K
R213
1/2W
.
15K
R216
1/4W
MINI
1K
R215
1/4W
RAD
1K
R202B
1/4W
16K5
C206 25V100U
R204B
1/4W
MINI
10K0
C214B 100V220P
R204A
1/4W
MINI
10K0
C214A 100V220P
R203A
1/4W
MINI
10K0
4148
D202B
4148
D201B
4148
D201A
4148
D202A
3700
K1:B
TO92
BC550C
Q203
5101
R219
1/4W
.
7K5
R255
1/4W
MINI
10K
4148
D211
TO92
MPSA06
Q208
5103
FAN
{C_Type}
FAN1
FAN
R229
1/2W
.
2R2
R228
1/2W
.
2R2
MJF6388
6815
Q207
T221D
.
BC
TO-92
MPSA63
MPSA43
2N5551
E
MPSA56
MPSA06
MPSA13
2N5401
R218
1/4W
FLMP
10R
R217
1/4W
FLMP
10R
C205 25V100U
R203B
1/4W
MINI
10K0
C202A 16V33U
1N5250B 20V0
ZD2010W5
1N5257B33V0
ZD206 0W5 1N5257B33V0
ZD205 0W5
8
V+
4V-
U201:C
4007
D222
4007
D223
8
8W36:H
6
8W36:F
5
8W36:E
3
8W36:C
1
8W36:A
R211
1/4W
MINI
220K
14 W39:A 2
4W39:B
4148
D210
R202A
1/4W
16K5
C201A 16V33U R201A
1/4W
16K5
4007
D221
4007
D220
7
8W36:G
4
8W36:D
2
8W36:B
R237
1/4W
RAD
1M
R210
1/4W
MINI
10K
R206
1/4W
MINI
10K
4148
D207
TO92
2N5401
Q202
5108
R240
1/4W
MINI
33K1N4747A 20V0
ZD2111W0
3721
K2:A
C1 275V22N
Thermal Breaker
S1 S2
DPDT Switch
3
4W39:C 44 W39:D
W38:A2W38:B 2
R238
1/4W
.
200K
R227
1/4W
MINI
220R
TO92
2N5401
Q210 5108
4007
D216
BRIDGE
D2
Flat
6419
MJF6388
6815
Q204
T221D
.
U201:B
MC33078P
R207
1/4W
RAD
4K7
K2:B
3721
7
6
1
2
3
4
5
GENERIC_XF_2S_1P
T1
R230
1/2W
.
2R2
TO92
MPSA13
Q212
5105
R256
1/4W
MINI
10K
MJF6668
6814
Q205
T221D
.
3700_DRW 3721_DRW
BE
TO-92
BC560C
C
BC550C
C
TO-221D
MJF6388
BE
MJF6668
U201:A
MC33078P
C201B 16V33U R201B
1/4W
16K5
6840_PC
BRIDGE
D1
Flat
6419

VCD
CLINCH
ORIGIN LONG AXIS
SHORT AXIS
INSERT
ORIGIN
Pcb Mech 12V0X8012
BlankSize - 14000 x 8000 C
l
StepAndRepeat - [email protected]@0.000
ON
N
M1134 V44
KEEP COPPER FILLS AND ROUTING OF AC NETS AWAY FROM THIS AREA TO COMPLY WITH EUROPEAN SAFETY STANDARD EN60065.
BY WIRING
Top Assy 12V0
BY WIRING
SEENOTE1.
X8012
BRIDGE MOUNTED
BRIDGE MOUNTED
SEE LAYOUT DOCUMENTATION
V
T
R
V
T
R
1 2
BR
V
T
R
V
T
R
V
T
R
V
T
R
NC NOC
1612
5R0
5R0
V
T
R
8
1
-C2 NO2
C1 NO1
8
1
.
.
.
.
.
FAN
.
4056
6815
6435
3700
2329
6815
6489
6489
6814
2328
3538
6419
6451
6419
2328
8K2
4148
33K
220K
1M
4148
4148 20V0
4K7
220P
10R
1K
10R
4V7
4K7
33V0
4007
1K5
4148
1/2W2R2
220R
4007
27K
33U
16V
4007
10K
10K
4007
8K2
2R2
1/2W2R2
1/2W
2N5401
200K
25V
100U
27K
4U7
100V
MPSA06 4V7
4007 4007
47K
10K
4148
100V
330U
MPSA06
20V0
10K
15K
1/2W
10K0
MC33078P
MJF6388
1K
680R
4007
10K
10V0
25V
100U
4007
16V
33U
33U
16V
22K
470R 4007
470U
63V
275V
22N
4007
1K5
330U
100V
4148
RELAY 2C
10K0
MPSA13
25V
100U
16V
33U
220K
1M
4007
22N
22V0
4148
4148
15K
1/2W
18V0
47K
47K
220P
10K0
4148
{Watts}
MJF6388
BC550C
2N5401
4U7
100V
7K5
33V0
4148
1U
63V
MPSA06
4148
100V
330U
MJF6668
18V0
2N6517
10K0
4148
BC550C
RELAY 1A
PC-C
250V
4N7
100V
330U
PRI
-18
LREF
LSIG
ACT
RSIG
BRPRTCT
X8012
M1134-V44
RCLIP
RCLIM RDRV
ROG
RTSENS
ROSIG ROG
LCLIP LCLIM
LOG
LTSENS
LOG
LOSIG
+18
12V0
RCLIP
PRTCT
LVGND
TOP AMP
M1147
M1134
RNFB
RREF
LCLIP
TO
LNFB
LDRV
M1147-AP4040
AP4040
V44
TO BOTTOM
AMP
R236 D211 TP9
R240
R244 R245
D212
D218 ZD211
X42
W9
BLK
X6 X21 X8
R207 X10
C214B
R218
R216
R217
ZD210
R234
ZD205
X38 X36
D215
R209
D202B
X35 X31
R230
R227
X12
D203
R250
C202B
D222
R255
R254
D223
X25
R235
W38
R228
R229
Q210
R238 C216
R243
C215
TP10
W34
.
GRN
W30
WHT/AC
.
Q208 ZD207
D216 D213
R242
W13
BRIDGE
.
W4
YEL
W3
YEL
W7
RED
W8
RED
W25
YEL
XFMR CT
W24
BRIDGE
R210
D207
W2
WHT
W1
WHT
W15
XF_SEC_HI
RED
W5
BLU
C207
W10
BLK
Q201
ZD201
R206
X11
R214
R203B
U201
W27 DUMMY
.
Q204
R215
R253
D221
R256
ZD213
C206
D220
C202A
C201A
X40
R226
R225 D240
C213
C1
W31
BLK/AC
.
W19
BRIDGE
.
W17
BRIDGE
.
LOC
BEC
D214
R208
W6
BLU
X37
C210
D201B
K1
R204B
X34
W28
DUMMY
.
Q212
C205
C201B
W35
X32 X33 X30
R211
R237
D206
C204
ZD202
D210
D205
W23
.
BRIDGE
R213
ZD209
X13
R251
R252
X14X15
X18
X19
C214A
R204A
D201A
X22
X24
Q207
Q203
Q202X7
C203
R219
ZD206
D219
X9
R2
R1
W20
.
BRIDGE
X5
C212
W14
BRIDGE
.
Q240
D204
W33
GRN
.
W32
XFMR_PRI
BLK
W29
BLK
XFMR
W26 BLK
.
C208
W22
GRY
XF SEC MID
Q205
ZD208
X16
Q211
X17
R203A
D202A
W36
W16
RED
XF_SEC_HI
Q241
W21
XF_SEC_MID
GRY
W18
BRIDGE
.
W39
D2
K2
C2
C209
D1
W37
X23
X26
R202A
R201B
R202B
R201A
16K5
16K5
16K5
16K5

M1134 V44
3. PC#7717 ONLY FOR V44
CHANGE R201A,R201B,R202A AND R202B
FROM 10K0 TO 16K5 1% 1/4W #5057
PCB
RELAY RTV
2. ADD RTV UNDER RELAY AND BEND LEADS FLAT TO PCB.
X8012 PRODUCTION NOTES:
SEE LAYOUT DIAGRAM
1. FOR C1 USE 22N FOR NORTH AMERICAN AND 680N FOR EURO.

2N6517
SEE LAYOUT DIAGRAM
PIN CONFIGURATION
NO
COM
3721_DRW
NO1
NC1
NO2
NC2
COM1 COM2
3700_DRW ECB
TO-92
MPSA63
MPSA43
MPSA13
2N5551
MPSA56
MPSA06
2N5401
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
SEP/2004 7.00 CONVERT TO PCAD2002
JAN/15/02
DEC/04/01
APR/03/00 4.00
5.00
6.00
1.00
2.00
.
2.10
3.00
FEB/12/98
MAR/30/98
APR/07/98
JUL/15/98
OCT/27/99 PC#5695 ADD TP9,10 . ENLARGE AC TRACES
PC#5798 REPLACE ZD212 WITH JUMPER
PC#5664 ADD EXTRA PROTECT CIRCUIT
REPLACE R233&THERMISTOR WITH SURGISTORS
DERIVED FROM M1127
PC#6218 UPDATE REL2 SYMBOL (HOLE LOCATIONS)
REPLACE JUMPERS FOR BRIDGE WITH TABS AND WIRES
NEW SOLDERMASK FOR TABS
X8012 Database History
REDO AC FOR CE COMPLIANCE8.009-MAY-2006
23 Nov, 2006 . Imported test node locations from MD database.
08 Feb, 2007 9.00
..
CHANGED ROUTE FILE, FIX SPACING SNAPIN CLOSE W36
CHANGE C213 FROM 470U 25V #5618 TO 470U 63V #5621
AP4040 AND V44
CEB
TO-92
BC560C
BC550C
BEC
TO-221D
MJF6388
MJF6668
11
8
5
2
12
9
6
13
10
7
3
4
1
D
D
V
V
N
N
D
D
03-FEB-2010
D
D
D
V
V
.
V
V
V
N
N
PC7935: Change C203, C215 from #5259 to #5269 GG
N
N
N
10.00 Solderability Update, corrected AC clearances.23-JAN-2008
17-FEB-2009 . R202B FROM 10K0 TO #5057 16K5 1% 1/4W.. PC#7717,ONLY FOR V44. CHANGE R201A,R201B,R202A
20-MAY-2009 11.00 CREATED X8012 FOR NEW CABLES, PC#7717 and 7738
OCT/21/09 12.00 PC#7885: Span change on X30-X35
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
D
D
DV
V
V
V
V
D
D
N
N
N
N
N
D
D
DV
V
V
V
V
V
V
V
D
D
D
D
DN
N
N
N
N
N
N
N
X8012 PCB_DATABASE_HISTORY
AP4040 AND V44
4
1
6
5
3
#
2
MODEL(S):-
PC#
*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY
PENDING CHANGE
X
X
X
X
PC
PC
PC
PC
PC
PC X
X8012 PENDING CHANGES
X
AP4040 AND V44

11 11
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
1 1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
N
N
O
O
P
P
Q
Q
Product
POT PCB
Date:
Filename:
PCB#
X8011V800sch.sch2002
AP-VX-VTC POT PCB
Tue Mar 03, 2009 X8011 ofSheet
Rev: 21 8V00
Product
POT PCB
Date:
Filename:
PCB#
X8011V800sch.sch2002
AP-VX-VTC POT PCB
Tue Mar 03, 2009 X8011 ofSheet
Rev: 21 8V00
C3 63V470N
C40 100V100P
R63
1/4W
MINI
4K7
R23
1/8W
FLMP
249R
R24
1/8W
FLMP
249R
11 12 W1:K
912 W1:I
712 W1:G
512 W1:E
312 W1:C
112 W1:A
RED
LD5
{Function}
5906
R34
1/4W
.
2K
BC560C
Q3
5102
TO92
R47
1/4W
.
2K
R50
1/4W
.
15K
4V7
D20W5
1N750ARL
C37 100V220P
C25 16V33U
R8
1/4W
MINI
4K7 4148
D9
R31
1/4W
MINI
62K
C38 100V220P
R43
1/4W
MINI
82K
R7
1/4W
MINI
4K7 4148
D6
R51
1/4W
MINI
62K
R40
1/4W
.
14K7
R29
1/4W
MINI
620R
C35 63V4U7
C41 100V100P
C36 63V4U7
R38
1/4W
.
15K
1/4W
22M
R57
.
R59
1/4W
.
15K
R54
1/4W
MINI
4K7
R20
1/4W
.
15K
C17 100V47P
1/4W
22M
R16
.
R19
1/4W
.
15K
R18
1/4W
MINI
4K7
R60
1/8W
FLMP
249R R55
1/4W
.
15K
R58
1/8W
FLMP
249R
R37
1/8W
FLMP
249R R62
1/4W
.
15K
R22
1/8W
FLMP
249R
R21
1/8W
FLMP
249R R26
1/4W
.
15K
R25
1/4W
.
15K
R64
1/4W
MINI
47K
R56
1/4W
MINI
47K
R28
1/4W
MINI
47K
63VC6
100N
RED
LD3
{Function}
5906
GRN
LD4
{Function}
5908
63VC8
100N
R3
1/4W
MINI
470K R36
1/4W
MINI
8M2
(VCC)LM13600N
Dual VCA
6745
U3:C
{Function}
1N5225B 3V0
D10W5
12 12 W1:L
10 12 W1:J
612 W1:F
812 W1:H
212 W1:B
412 W1:D
BE
TO-92
BC560C
C
BC550C
W2
3604
M
AUD
P1
4390
10K
Function
R32
1/4W
.
15K
M
AUD
P2
4390
10K
Function
R49
1/4W
.
15K
R33
1/4W
.
10K R48
1/4W
.
10K
R30
1/4W
MINI
1K
TO92
BC560C
Q4
5102
R52
1/4W
MINI
1K
1/4W
22M
R65
.
1/4W
22M
R15
.
R17
1/4W
MINI
4K7
R61
1/8W
FLMP
249R
R27
1/4W
MINI
47K
63VC5
100N
C1 100V220P
U3:E R136
1/4W
.
1K2
C2 100V220P
R5
1/4W
MINI
8M2
U4:E
R4
1/4W
MINI
470K
1N5225B 3V0
D30W5
C18 100V47P
C21 63V220N
R41
1/4W
MINI
1K
R39
1/4W
.
15K
R44
1/4W
MINI
1K
C26 16V33U
RED
LD6
{Function}
5906
C9 63V470N
BC560C
Q6
5102
TO92
R42
1/4W
.
78K7
U2:A
MC33078P
R46
1/4W
MINI
82K
LM13600NU3:A
LM13600NU3:B
C4 63V470N
R35
1/4W
.
78K7
R45
1/4W
.
14K7
U2:B
MC33078P
LM13600NU4:B
TO92
BC560C
Q5
5102
LM13600NU4:A
R53
1/4W
MINI
620R
R2
1/4W
.
100K
TO92
MPSA13
Q1
5105
GRN
LD1
{Function}
5908 GRN
LD2
{Function}
5908
R1
1/4W
.
100K
TO92
MPSA63
Q2
5106
C22
63V 220N
(VCC)LM13600N
Dual VCA
6745
U4:D
{Function}
C10 63V470N
BC
TO-92
MPSA63
MPSA43
2N5551
E
MPSA56
MPSA06
MPSA13
2N5401
63VC7
100N
8
V+
4V-
U2:C
(VCC)LM13600N
Dual VCA
6745
U4:C
{Function}
R55B
1/4W
.
220R
R55A
1/4W
.
220R
(VCC)LM13600N
Dual VCA
6745
U3:D
{Function}

11 11
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
1 1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
N
N
O
O
P
P
Q
Q
Product
POT PCB
Date:
Filename:
PCB#
X8011V800sch.sch2002
AP-VX-VTC POT PCB
Tue Mar 03, 2009 X8011 ofSheet
Rev: 22 8V00
Product
POT PCB
Date:
Filename:
PCB#
X8011V800sch.sch2002
AP-VX-VTC POT PCB
Tue Mar 03, 2009 X8011 ofSheet
Rev: 22 8V00
X11 X12 X13 X14 X18
X17
X19 X20
X1
X21
XC1 XC4
TJH2TJH1
1BEC1
EC24EC23
X22
XC11XC10XC9
EC29EC28
1EC25
X23
XC13XC12 XC34
EC32EC31 EC33
1EC50
X4
XC36 XC37
EC35
XC14
XC40
EC38 EC39 EC40
X7
EC42
X8
X24
X9 X10
1EC2 1EC1
EC36 EC37
EC6EC5EC4
EC44EC43
EC9EC8EC7
EC46
X15 X16
X5
XC35XC8 XC38
EC30EC27 EC34
X6
EC41
EC45
EC3
12
9
6
3
13
10
11
7
4
1
2
5
8
V
V
V
8.00
V
V
V
V
.
.
V
.
7.00
D
D
D
03-MAR-2009
N
N
N
CREATE X8011, M1128 FOR AP, VX AND M1133 FOR VTC
D
D
D
D
.
.
.
JUN/23/08
D
N
N
N
N
PC#7717, M1133,V42 AND V44 CHNAGE R34 AND R47
REPLACE R4 WITH #6127 470K 1/4W
N
FROM 470R TO 2K #4808
Removed shear, solder update, std board size
6
3
5
2
4
1
# PENDING CHANGEPC#
MODEL(S):-
*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY
PC
PC
PC
PC
PC
PC
X
X
X
X
X
X
AP4020 AND AP4040/VX2400 AND VX2402/V42 AND V44
X8011 PENDING CHANGES
6
3
#
4
5
1
2
VER#DATE
MODEL(S):- DESCRIPTION OF CHANGE
V
V
V
V
V
V
D
D
N
N
D
D
D
D
N
N
N
AP4020 AND AP4040/VX2400 AND VX2402/V42 AND V44
N
X8011 DRILL HISTORY
13
10
7
4
1
9
11
12
8
#
2
3
5
6
VER#
MODEL(S):-
DATE DESCRIPTION OF CHANGE
.
6.00
4.00
3.00
1.00
.
.
5.00
4.10
3.10
.
.
2.00
.
JUN/05/06
JUL/09/02
DEC/09/98
OCT/97
REPLACE R31 AND R51 WITH #6139 62K 1/4W
PC#7138:GT:CONVERT TO PCAD2002. CHANGE OPTO
PC#6401 PARTS MOVED NEAR P2
PC#5736 TRACES CHANGED POT SUPPORT SCREWS
FIRST PRODUCTION
AP4020 AND AP4040/VX2400 AND VX2402/V42 AND V44
.
.
APR/15/05
OCT/25/02
NOV/20/01
.
.
APR/17/98
REPLACE C3,C4,C9 AND C10 WITH #5234 470N 63V
LIMITER TO 13600 #6745 LIMITERS FOR ROHS
PC#6873 REDO SOLDERMASK
PC#6568 R44/R41 10K->1K
PC#6466 LD7,LD8 NSL28AA->NSL32SR2
ADDED
PROTECT CIRCUIT
#5664 RIBBON CABLE CONNECTIONS CHANGED FOR
X8011 PCB_DATABASE_HISTORY

VCD
CLINCH
ORIGIN LONG AXIS
SHORT AXIS
INSERT
ORIGIN
BlankSize - 14000x11000
StepAndRepeat - [email protected]@3.300
M1133 V42/V44
SEE LAYOUT DOCUMENTATION
+
-
+
-
+
-
+
-
1612
+
-
+
-
R Activity
R Clip
L Activity
Power
To Power Supply Pcb
L Clip
Protect
Channel A Channel B
5908
3604
5906
5908
5908
2329
5906
5906
4K7
4K7
22M
249R
15K
22M
220N
47K
15K
220P
15K 15K
8M2
22M
470N
8M2
10K
4K7
470K
3V0
100P
47P 220P
82K
3V0
4148
100K
22M 249R
220P
63V
4U7 1K
BC560C
15K
15K
249R
33U
16V
100K
1K
620R
78K7 100P
4U7
63V 470N
470K
BC560C
15K
249R
47K
15K
4K7
GRN
21in 14C
33U
16V
100N
MPSA13
4K7
4V7
470N
1K
62K
1K
MC33078P
220N
4K7
LM13600N
RED
100N
249R
249R 78K7 14K7
100N
62K 47K 15K
249R
620R 220R
220R1K2
470N
15K
15K
15K
47K
249R
47P 82K
14K7
4148
GRN
BC560C
GRN
10K
BC560C
220P
RED
MPSA63
RED
LM13600N
10K AUD
100N
10K AUD
M1128
M1133
LCLP
BRPRTCT LREF RREF
RSIG V-
V+
LIMABLE
M1128-AP-VX
M1133-VTC
LREF RREF ACT
AP-VX
VTC
LVGND
V+
V800
PRTCT V-
RSPOST
LSPRE
RSPRE
X8011
RSIG LSPOST LSPOST
RCLP
R17
R8
R57
R58
X22
X19
R25
R15
C21
R28
R19
C37
R55
R59
R36
X20
R16
C3
R5
X8
R48
R7
R3
D1
X12
C40
C17 C38
R43
D3
D9
R1
R65 R61
C2
C36
R52
Q5
R26
R49
R21
C26
R2
R44
R29
R35 C41
C35
C10
R4
Q3
R38
R37
R56
R62
R54
LD2
W2
C25
X21
C5
Q1
R18
X18
X11
D2
C4
R41 R31
R30
U2
C22
R63
U3
LD5
C8
R24R23 R42 R40
C6
X16
R51 R27
R20
R22
R53 R55B
R55A
X6
R136
C9
X15 R32
R39
R50
X13
X1X9
R64
R60
X14
C18 R46
R45
D6 LD1
Q4
LD4
X10
X4
X23
R33
Q6
W1
C1
LD6
Q2
LD3
U4
P2
C7
P1
X24
X17
R47 R34
2K 2K

M1133 V42/V44
2.
3511
POT
1. P22
PT#3739
SCREW
SPACER
LED
8870
WASHER
0.4"
PCB
SEE LAYOUT DIAGRAM
X8011 PRODUCTION NOTES -

LEAD/PIN REFERENCE
SEE LAYOUT DIAGRAM
ECB
TO-92
MPSA63
MPSA43
MPSA13
2N5551
MPSA56
MPSA06
2N5401
CEB
TO-92
BC560C
BC550C
11
8
5
2
12
9
6
13
10
7
3
4
1
D
D
V
V
N
N
D
D
D
D
D
D
V
V
V
V
V
V
N
N
N
N
N
N
REPLACE R4 WITH #6127 470K 1/4W..
JUN/23/08 7.00 Removed shear, solder update, std board size
.. CREATE X8011, M1128 FOR AP, VX AND M1133 FOR VTC8.00
.. AND R47 FROM 470R TO 2K #4808
28-MAY-2009 PC#7717, 7718 - M1133,V42 AND V44 CHANGE R34
5
2
#
6
3
4
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
DVN
D
D
D
V
V
V
N
N
N
X8011 DRILL HISTORY
AP4020 AND AP4040/VX2400 AND VX2402/V42 AND V44
N
NV
V
D
D
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
OCT/97 1.00 FIRST PRODUCTION
APR/17/98 2.00 #5664 RIBBON CABLE CONNECTIONS CHANGED FOR
PROTECT CIRCUIT..
DEC/09/98 3.00 PC#5736 TRACES CHANGED POT SUPPORT SCREWS
ADDED..
NOV/20/01 3.10 PC#6466 LD7,LD8 NSL28AA->NSL32SR2
JUL/09/02 4.00 PC#6401 PARTS MOVED NEAR P2
OCT/25/02 4.10 PC#6568 R44/R41 10K->1K
APR/15/05 5.00 PC#6873 REDO SOLDERMASK
JUN/05/06 6.00 PC#7138:GT:CONVERT TO PCAD2002. CHANGE OPTO
.. LIMITER TO 13600 #6745 LIMITERS FOR ROHS
. . REPLACE C3,C4,C9 AND C10 WITH #5234 470N 63V
REPLACE R31 AND R51 WITH #6139 62K 1/4W..
X8011 PCB_DATABASE_HISTORY
AP4020 AND AP4040/VX2400 AND VX2402/V42 AND V44
4
1
6
5
3
#
2
MODEL(S):-
PC#
*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY
PENDING CHANGE
X
X
X
X
X
X
PC
PC
PC
PC
PC
PC
X8011 PENDING CHANGES
AP4020 AND AP4040/VX2400 AND VX2402/V42 AND V44

17 17
16 16
15 15
14 14
13 13
12 12
11 11
10 10
9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
1 1
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
L
L
M
M
N
N
O
O
P
P
Q
Q
R
R
S
S
T
T
U
U
V
V
Product
Date:
Filename:
PCB# ofSheet
Rev:
21
v6.00
M1129-6v00.sch2002
{Drawing Number}
Tue May 02, 2006
M1129{Title}
Product
Date:
Filename:
PCB# ofSheet
Rev:
21
v6.00
M1129-6v00.sch2002
{Drawing Number}
Tue May 02, 2006
M1129{Title}
3657_OBS
J2
J1
LINE XLR
Copper
TieHere
1/4W
.
R25
1K54
C11
220P 100V
1/4W
.
R27
1K54
C1
22N 275V
220P
C5
100V 220P
C6
100V
1/4W
R26
0.1%
9K76
1/4W
R22
0.1%
9K76
100V 220P
C7
1/4W
0.1%
9K76
R14
100V 220P
C8
1/4W
0.1%
9K76
R15
C27
150N 63V
1/4W
.
R19 56K
1/4W
.
R37
10K0
1/4W
.
R10 56K
C28
150N 63V
1/4W
R109A
4M7
4148
D4
1/4W
.
R38
10K0
3436
LIMITER
S2:B
1/4W
R109B
4M7
C39
100N 100V
U3:B
MC33078P
C23
33U 16V
Copper
TieHere
Tie-netName
C12
220P 100V
S4:B
S4:A
GND LIFT
U1:A
MC33078P
C31
68N 100V
1/4W
.
R28 56K
1/4W
.
R18
120K
C32
68N 100V
LIMITER
S2:A
FILTER SW
S1:A
C24
33U 16V
C29
150N 63V
C30
150N 63V
C14
100N 100V
1/4W
.
R11
1K54
1/4W
.
R13
1K54
8
V+
4V-
U1:C
1/4W
0.1%
9K76
R12
1/4W
0.1%
9K76
R16
1/4W
.
R9
56K
COM MR
L
MONO-STEREO-BRIDGED3705
S3:B
1/4W
RAD
R111
10R
1/4W
.
R20
120K
1/4W
R24
0.1%
9K76
C10
220P 100V
S1:B
FILTER SW
C33
68N 100V
C34
68N 100V
1/4W
R23
0.1%
9K76
C9
220P 100V
4148
D7
U3:A
MC33078P
8
V+
4V-
U4:C
8
V+
4V-
U3:C
MC33078P
U4:B
C13
100V100N
S TR
-
--
J4
S TR
-
--
J3
C15
100N 50V
COM MR
L
MONO-STEREO-BRIDGED3705
S3:D
1/4W
.
R6
33K
U4:A
MC33078P
1/8W
.
R112
10R
C16
100N 50V
W1
3570
U1:B
MC33078P
COM MR
L
3705
S3:A
MONO-STEREO-BRIDGED
13
10
7
4
1
9
11
12
8
#
2
3
5
6
VER#
MODEL(S):-
DATE DESCRIPTION OF CHANGE
V
V
V
2.10
1.00
V
V
V
V
3.00
2.20
.
2.00
D
D
D
APR/22/98
OCT/1997
N
N
N
PC#5694 ADD NETS BRPRTCT, LVGND-28 TO BRG SW
FIRST PRODUCTION
AP4020 / AP4040 / AP2020 / AM1CE
D
D
D
D
JUL/2005
SEP/06/01
DEC/02/97
NOV/12/97
N
N
N
N
CONVERT TO PCAD2002
DELETE R119
C27, C28, C29, C30 TO 150n
REVERSED INPUT POLARITY. MODIFIED FOR AP2020
M1129.sch_schematic-DATABASE_HISTORY
13
10
7
4
1
9
11
12
8
#
2
3
5
6
VER#
MODEL(S):-
DATE DESCRIPTION OF CHANGE
V
.
4.10
.
1.00
V
V
6.00
5.00
4.00
3.00
.
2.00
D
AUG-15-2005
SEP/06/01
DEC/02/97
OCT/97
N
PC#6914:ADD TARGETS
PC#6436 REPLACE R119 (10K0) WITH JUMPER X119
CHANGE C27, C29, C28, C30 TO 150N
FIRST PRODUCTION
AP2020 AP4020 AP4040 AM1CE
D
D
JUL/2005
APR/15/05
JUL/01/98
APR/16/98
.
NOV/97
N
N
CONVERT TO PCAD2002, PC#6944:ROUTE GAUGE,
PC#6873 REDO SOLDERMASK
ISOLATE PIN OF S3
PC#5694 PINS 10-12 OF MC2 CONNECTED TO BRG SWT
LSPRE AT 14 PIN CONNECTOR. INPUT TO NONINVERTING
SWITCH NETS RREF WITH LREF AND RSPRE WITH
M1129 Database History
COM MR
L
MONO-STEREO-BRIDGED3705
S3:C

VCD
CLINCH
ORIGIN LONG AXIS
SHORT AXIS
INSERT
ORIGIN
12 13 14
123
91011
456
8
7
V
T
R
AL
CL AM ARAC CMCC CR BL BC DCDL BR DR
BM
DM
TIP
RING
SLEEVE
TIP-SW
SL-SW
RING-SW
7
TIP
RING
SLEEVE
TIP-SW
SL-SW
RING-SW
7
LIMITER
GND LIFT
FILTER SW
LINE_IN
LINE_IN
LINE XLR
3436
3657
3436
6435
3705
3436
3417
3657
9K76
10K0
9K76 220P
120K
9K76
9K76
9K76
120K
56K 56K
150N
220P
220P
10K0
10R
68N
4M7
1K54
100N
100N
220P
1K54
100N
9K76
220P
MC33078P
10R
33U
16V
16V
33U
220P
MC33078P
4148
56K
4M7
150N
68N
4148
56K
150N
9K76
68N
MC33078P
150N
1K54
220P
100N
9K76
68N
33K
1K54
220P
14 PIN SCKT
100N
275V
22N
V+
V- LIMABLE
RIGHT
RSPOST
RSIG
LSPOST
LSPRE
RREF
AP2020 / AP4020 / AP4040
RSPRE
LREF
M1129
LEFT V6.00
FROM POTS
BRIDGED - STEREO - MONO
R14
W4
R37
R24
C10
R18
X31
R12 X29
X26
X119
X23
R22 X43
R26
R20
R28
R10
X19
C30
X50
C5 C8
TP4
R38
X35
X10
R112
X32
C32
R109A
R11
C14
C13
W3
C6
R13
X17
C15
R15
C7
TP3
U1
R111
TP5
C23
C24
X42
X36
C9
U4
TP1
D7
R9
R109B
C29
C31
D4
R19
C28
X30 X25 X24 X27 X28
R16
X37 X20 X22
C34
LOC
BEC
U3
C27
S2
X18
J2
X33
R25
C12
C16
R23
X15
X38 X40
X11
C33
X9
R6
X34
R27
C11
X16
X13
X39
X41
X12
W1
TP2
C39
S4
C1
S3 S1 W2
J3
-
-
-
J4
-
-
-
J1

ADD WIRES IN BOARD ASSEMBLY
UP THROUGH THE BOTTOM
1 FOR XLR #3657 USE SCREW PT#8829
2 FOR M1129B VX1200/2400/J/2402
DO NOT STUFF X40 AND X41
M1129 PRODUCTION NOTES
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
D
JUL/2005 6.00
V
V
V
D
D
N
N
N
APR/15/05
SEP/06/01
JUL/01/98 4.00
4.10
5.00
AP2020 AP4020 AP4040 AM1CE
1.00
2.00
.
.
3.00
OCT/97
NOV/97
.
DEC/02/97
APR/16/98 PC#5694 PINS 10-12 OF MC2 CONNECTED TO BRG SWT
CHANGE C27, C29, C28, C30 TO 150N
LSPRE AT 14 PIN CONNECTOR. INPUT TO NONINVERTING
SWITCH NETS RREF WITH LREF AND RSPRE WITH
FIRST PRODUCTION
ISOLATE PIN OF S3
PC#6436 REPLACE R119 (10K0) WITH JUMPER X119
PC#6873 REDO SOLDERMASK
M1129 Database History
CONVERT TO PCAD2002, PC#6944:ROUTE GAUGE,
PC#6914:ADD TARGETS.AUG-15-2005
4
1
6
5
3
#
2
MODEL(S):-
PC#
*PLACE IMPLEMENTED CHANGES INTO BOARD HISTORY
PENDING CHANGE
X
X
X
X
X
X
PC
PC
PC
PC
PC
PC
M1129 PENDING CHANGES
AP2020/AP4020/AP4040/AM1CE
12
9
6
3
#
13
11
10
5
4
8
7
2
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
D
D
JUL/2005
DEC/02/97
V
V
3.00
.
N
N
CONVERT TO PCAD2002
C27, C28, C29, C30 TO 150n
D
D
D
D
D
APR/22/98
SEP/06/01
OCT/1997
NOV/12/97
V
V
V
V
V
2.10
2.20
1.00
2.00
N
N
N
DELETE R119
PC#5694 ADD NETS BRPRTCT, LVGND-28 TO BRG SW
N
N
REVERSED INPUT POLARITY. MODIFIED FOR AP2020
FIRST PRODUCTION
AP4020 / AP4040 / AP2020 / AM1CE
M1129.sch_schematic-DATABASE_HISTORY
5
2
#
6
3
4
1DATE
MODEL(S):- VER# DESCRIPTION OF CHANGE
DVN
D
D
D
V
V
V
N
N
N
M1129 DRILL HISTORY
APR-03-2003 V06 N
AUG-15-2005 V07 CONVERT TO PCAD2002
AP2020/AP4020/AP4040/AM1CE
