CD DOCKING MICRO SYSTEM – INSTRUCTION MANUAL
8014858
– 2–
CONTENTS
Important Safety Instructions ......................................................... 3
Features ........................................................................... 4
Package Contents .................................................................. 4
Functions .......................................................................... 5
Connections ........................................................................ 6
Remote Control ..................................................................... 7-8
Basic Playback ..................................................................... 9-11
Troubleshooting..................................................................... 12
Specications....................................................................... 13

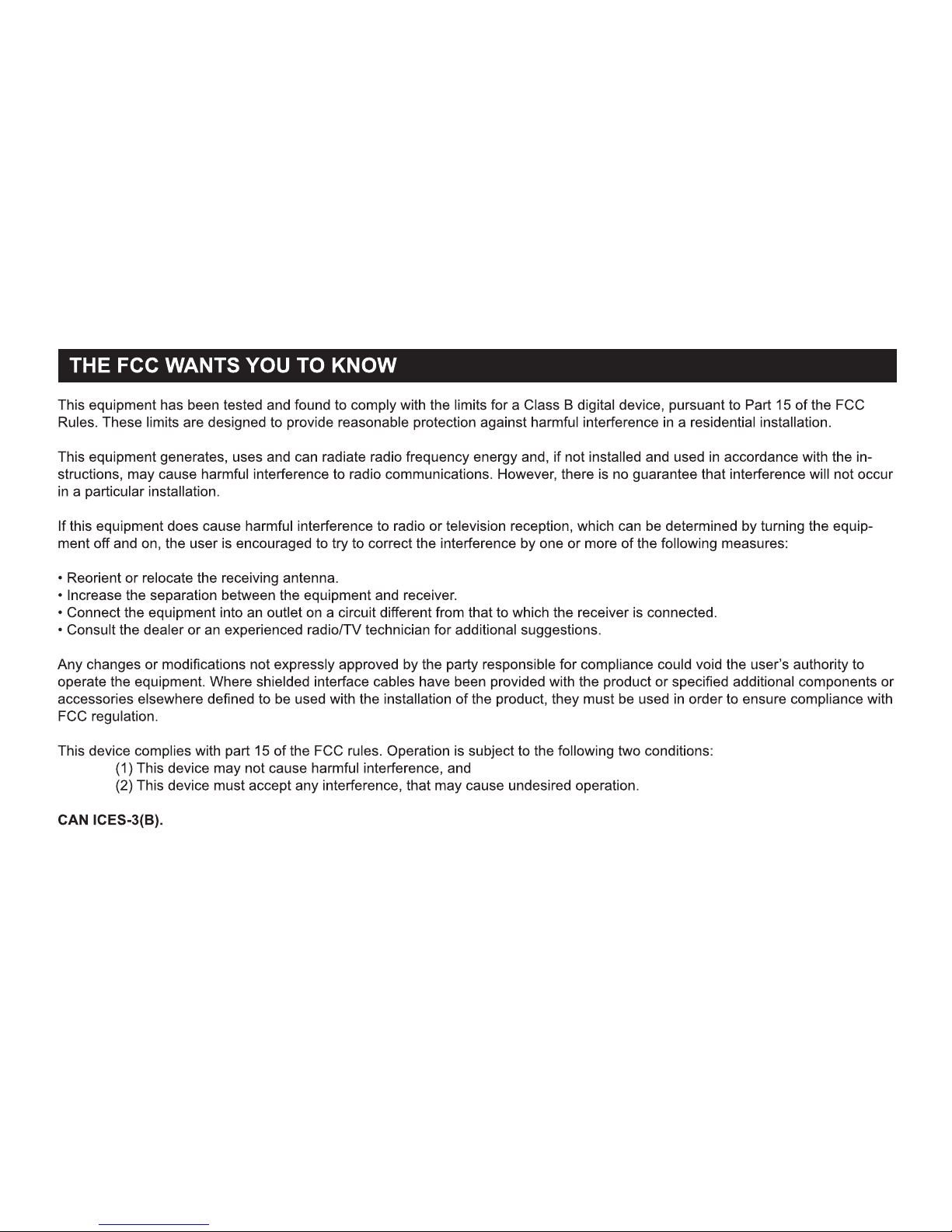

The FCC Wants You To Know ........................................................ 14

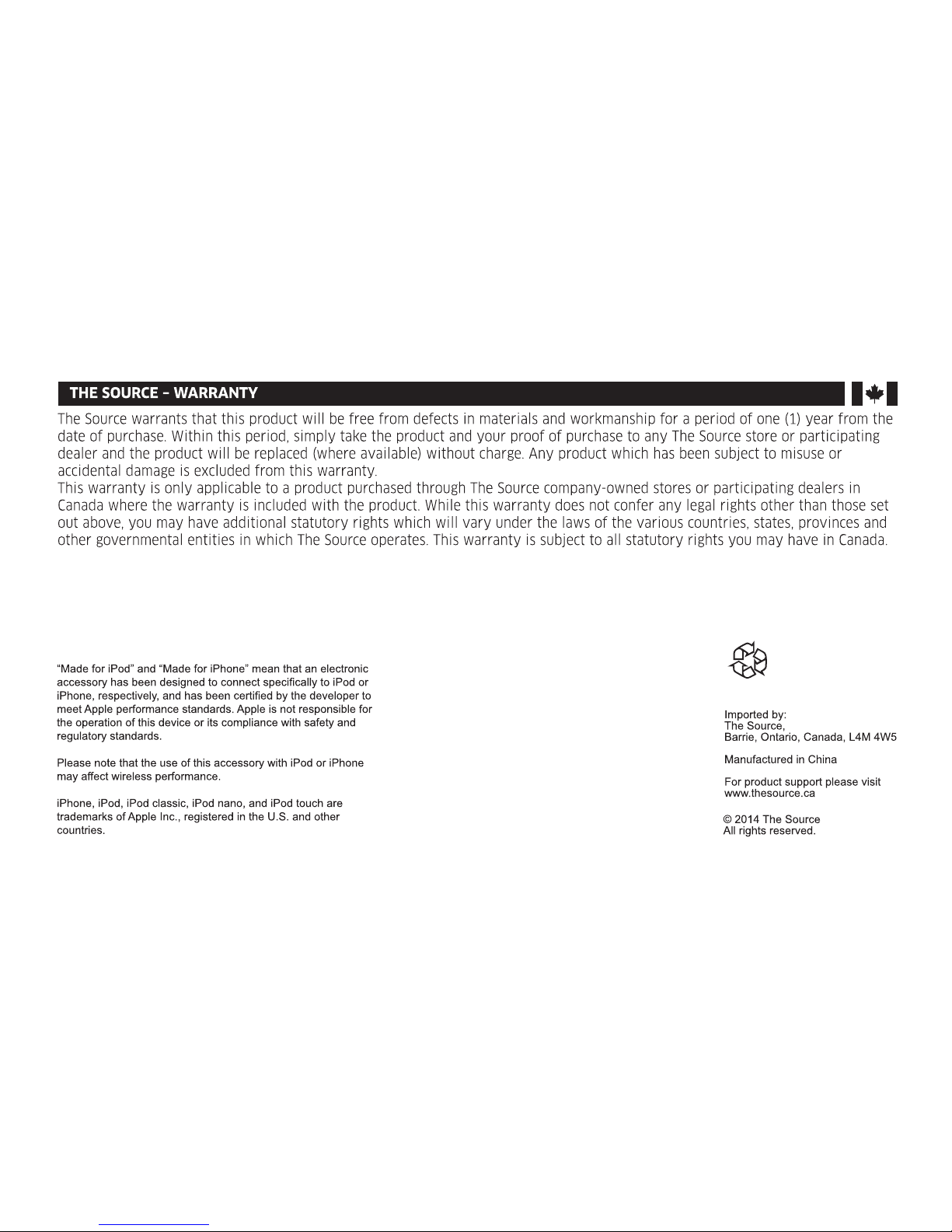

Warranty ........................................................................... 15
– 3–
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE SCAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK),
NO USER SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION!
HAZARDOUS LASER RADIATION
WHEN OPEN AND INTER LOCK
FAILED OR DEFEATED. AVOID
EXPOSURE TO BEAM
CLASS 1 LASER PRODUCT
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions – All the safety and operating instructions should be read before this product is operated.
2) Keep these instructions – The safety and operating instructions should be retained for future reference.
3) Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4) Follow all instructions – All operating and use instructions should be followed.
5) Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacture’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug the apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualied personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) Please keep the unit in a well-ventilated environment.
16) WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing
and that objects lled with liquids, such as vases, shall not be placed on apparatus.
17) WARNING: The wall socket plug is used as disconnect device, the disconnect device shall remain readily operable.
18) WARNING: The batteries shall not be exposed to excessive heat such as sunshine, re or any other source of heat.
19) This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock.
- WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualied personnel.
- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature
accompanying the appliance.
20) The apparatus should be connected to an electrical wall outlet with a protective grounding connection.
– 4–
FEATURES
Please read through this manual before operating this product.
Retain this manual for future reference.
• Compatible with CD, CD-R, CD-RW, etc.
• Full function remote control.
• FM stereo radio tuner.

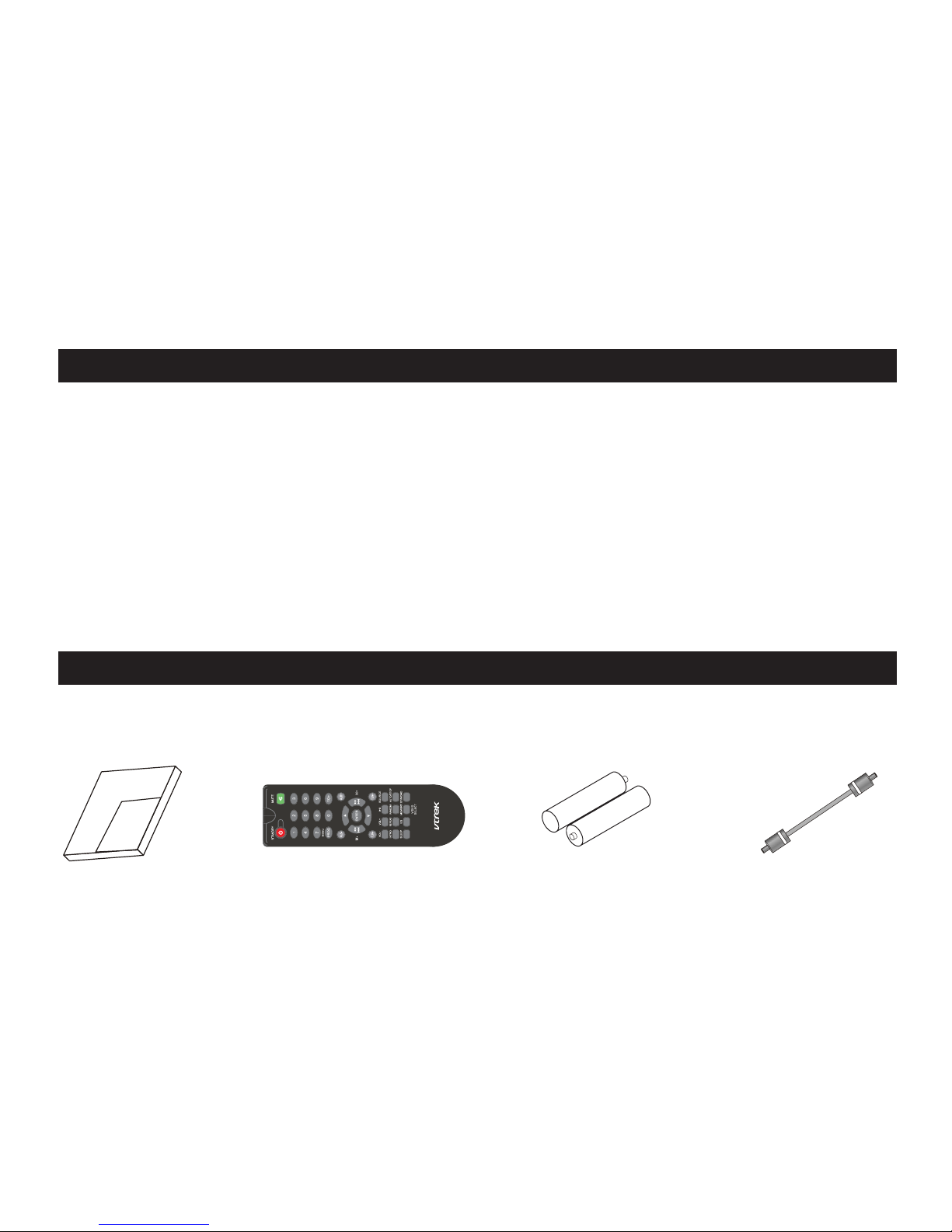

PACKAGE CONTENTS
User Manual
User Manual
BatteriesRemote Control Video Cable
– 5–
FUNCTIONS
Front Panel:
Top Panel:
Rear Panel:
11
9
10
12
13
1 DISPLAY SCREEN
2 VOLUME +
3 NEXT/FAST FORWARD
4 PLAY/PAUSE
5 VOLUME -
6 LINE INPUT
7 PREVIOUS/FAST REWIND
8 STANDBY/SOURCE
9 SPEAKER OUTPUT
10 VIDEO OUTPUT
(available for iPhone )
11 FM ANTENNA JACK
12 PUSH
(push to open the cover)
13 IPHONE DOCKING
CONNECTOR
2
3
4
1
5
68 7
– 6–
CONNECTIONS
TV/Monitor Video Input
Composite Video Input
Composite Video Output
CD Player Video Output
VIDEO
VIDEO
Video System
Connection
The following video outputs
are available for this unit.
Composite Video
Use the video cable with a
yellow plug to connect the
composite video output of
this unit to the video input
of a TV/monitor.
Audio System Connection
This model’s analog audio output
system is a 2 channel stereo output.
Speaker Output
Connect the speakers to the speaker
output terminals with their attached
speaker cables (white +, black -).
Line In
This unit has an extra group of audio
input terminals. You can input the
analogue stereo audio signals from
extra devices such as VCD, CD,
VCR,MP3 player, etc.
Use the audio cable to connect the
stereo audio output terminals of a
VCD, CD, VCR player to the stereo
input terminals (LINE IN) of this unit.
Its corresponding signal source is
LINE IN which can be available by
pressing [SOURCE ] on the remote
control.
Amplier Audio Input
Speaker
Speaker Output
CD Audio Output
R
R L
L
– 7–
REMOTE CONTROL
Remote Control Operation
Insert the batteries into the remote control. Point the remote control at the remote sensor on the front panel. The remote control
works within a distance of about 8 metres from the sensor and within an angle of about 30 degrees from the left and right side.
Battery Installation
1. Remove the battery
compartment cover on the
back of the remote control.
Note:
• Remove the batteries when you do not intend to use the remote control for a long time. Do not mix new and used batteries,
or different types of batteries.
• Weak batteries can leak and severely damage the remote control.
• The batteries must not be exposed to excessive heat source, such as sunshine, re or any other heat sources.
• Be environmentally friendly and dispose of batteries according to your government regulations.
2. Load two AAA/1.5V batteries into the battery compart-
ment making sure that the batteries have been inserted
with the correct polarities matching the symbols +, - as
indicated inside the battery compartment.
3. Replace the cover.
– 8–
REMOTE CONTROL
1 STANDBY
2 DIGIT KEYS
3 PROGRAM/MENU
4 ALB- (Album)
5 UP
6 PREVIOUS/
FAST REWIND
7 DOWN
8 TUNER-
9 VOLUME+
10 VOLUME-
11 REPEAT
12 INTRO
13 EQ
14 SLEEP
15 MUTE
16 ALB+ (Album)
17 ENTER
18 NEXT/FAST FORWARD
19 TUNER+
20 PLAY/PAUSE
21 SOURCE
22 RANDOM
23 AUTO/STOP
24 MEMORY/VIDEO SELECT
25 ST/MONO
– 9–
BASIC PLAYBACK
Basic Operation
• In Standby mode, press [STANDBY/SOURCE] button to power on the player.
• In working mode, press [STANDBY/SOURCE] button to switch the signal source, hold down [STANDBY/SOURCE]
button for longer than 3 seconds to put the player in Standby mode.
• Press [STANDBY/SOURCE] repeatedly to select a signal source among iPhone, CD, LINE IN and FM modes.
• In iPhone playback mode, press to enter the previous menu for content of iPhone.
• Press to insert an item in the menu or to conrm and execute a selection.
• The digit keys can be used to input numbers or make selection for a track, etc.
• Press to stop a playback .
• Press to temporarily stop a playback. Press it again to resume playback.
• Press to skip to the next chapter/track;
• Hold down for fast forward.
• Press to return to the previous chapter/track.
• Hold down for fast rewind.
• In iPhone playback list, press to select a track.
/
AUTO/STOP
– 10 –

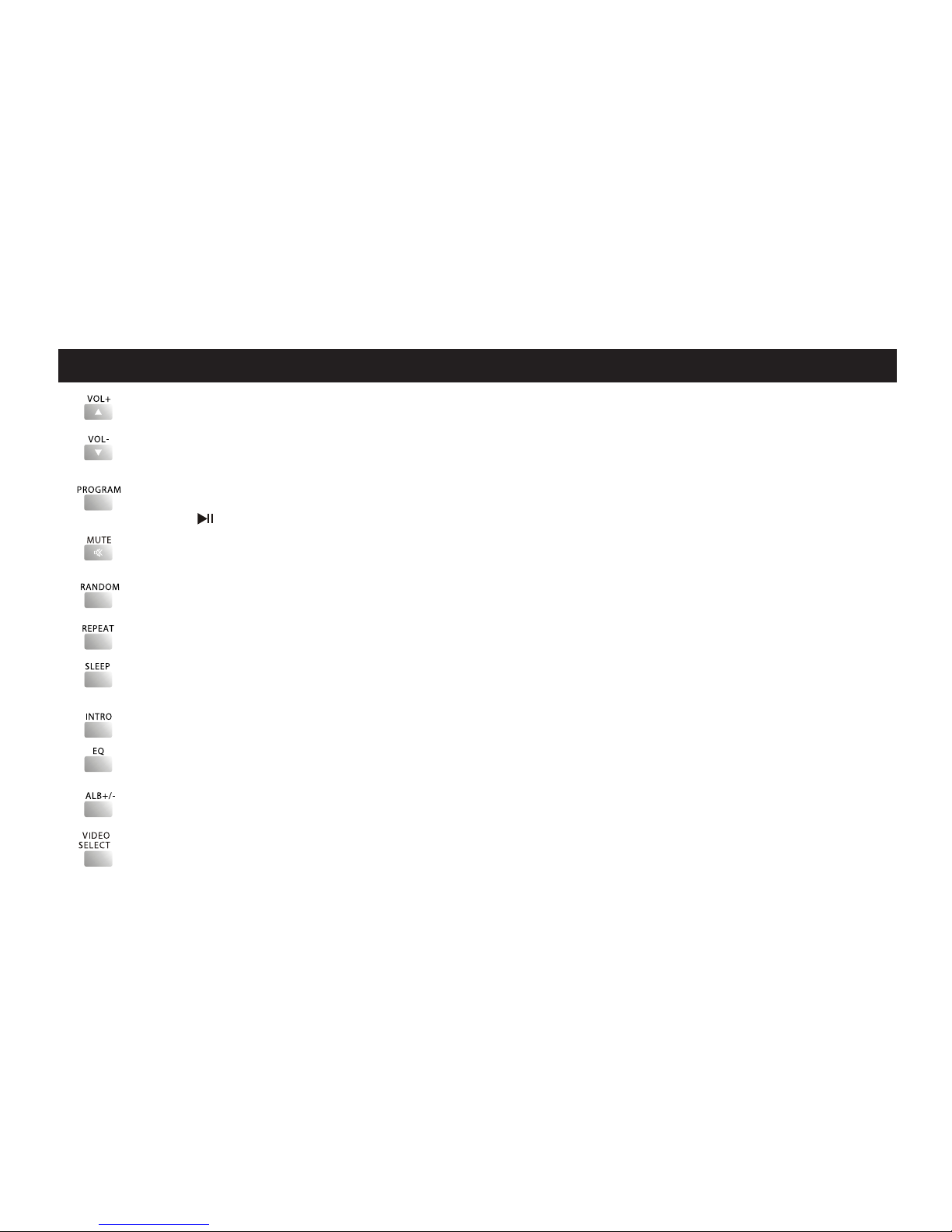

BASIC PLAYBACK
• Press [VOLUME+] to increase the volume.
• Press [VOLUME-] to decrease the volume
• In stop mode, press [PROGRAM] and input a number to select a track, press [PROGRAM] again to conrm it, then
press [ ] to play (for CD disc only).
• Press to temporarily silence the audio. Press it again to restore it.
• Press to switch to the random play mode.
• Press repeatedly to switch to the repeat modes.
• Press repeatedly to select a sleep time and choose option SLEEP OFF to disable the sleep function , after which the
unit will go into standby mode automatically. Then press [STANDBY] to wake it up.
• Press to set tracks in order on the disc, it takes approximately ten seconds for each track.
• Press to switch between the equalizer modes.
• Press to skip the catalogue; only available for MP3 discs.
• Press [VIDEO SELECT] to divert to a TV or a display device. (this button is only available for iPhone streaming)
– 11 –
BASIC PLAYBACK
Tuner Operation
The following buttons are used in tuner mode. Press [SOURCE] to select tuner mode.
• Press to switch between Mono and Stereo reception of the broadcast signal in FM mode.
• TUN+: press to ne tune (increase) the frequency;
• TUN-: press to ne tune (decrease) the frequency.
• Hold down [TUN+/-] to increase/decrease the frequency continuously.
• After tuning to a new frequency, press [MEMORY] then press [10+], (two icons will appear on the screen:[-]
indicates to input one digit and [--] indicates to input double digits). Next, select a preferred station by inputting the
corresponding numbers, then press [MEMORY] again to save it as a preset station.
• The digit keys can be used to select a preset station.
For example, press [0] and [2] to select channel 02; press [10+] rst then [1] and [5] to select channel 15.
Press [10+] rst then [0] and [1] from channel 15 and return to channel 01.
• Press to skip to the next preset station.
• Press to skip to the previous preset station.
Note:
In Tuner mode, [VOLUME+/-], [MUTE] buttons are also active. For details, please refer to the introduction of the CD operation in
this chapter.
– 12 –
TROUBLESHOOTING
Symptom Causes Remedy
Before resorting to maintenance service, please kindly check by yourself with the following chart.
No Power
Unable to play a disc
Sound
There is no sound or the
sound is distorted.
The buttons on the unit
doesn’t work.
The remote control does
not function.
• The AC power cord is not connected to the
power supply or is not connected to a power
supply securely.
• This disc is placed in the disc tray in a wrong way.
• The rating of the disc is higher than the rate set in
the parental control item.
• The unit isn’t compatible with the disc. The disc
is dirty.
• The audio cables aren’t connected securely.
• The volume is set to the minimum level.
• The sound is switched off.
• The unit is being interfered with static
electricity etc.
• There is no battery in the remote control.
• The batteries are out of charge.
• The remote control isn’t pointed to the
remote sensor.
• The remote control is out of its operating area.
• The unit is shut down.
• Please check that the AC power cord is
connected securely.
• Check that the disc is placed in the disc tray with
its label side upwards.
• Reset the settings in the parental control item.
• Clean the disc.
• Connect the audio cables securely.
• Turn up the volume.
• Press [MUTE] on the remote control to
switch on the sound.
• Press [PLAY/PAUSE].
• Switch off and unplug the unit.
• Then connect the plug to the power supply and
switch it on again.
• Install two AAA/1.5V batteries in it.
• Replace the batteries with new ones.
• Make sure that the remote control is pointed to
the remote control sensor.
• Make sure the remote control is within the
operating area.
• Switch off the unit and disconnect it from the AC
outlet. Then power on the unit again.
– 13 –
SPECIFICATIONS
Power supply 100-240V~50/60Hz
20Hz~20kHz
Below the limit of apparatus measure
-10~+35ºC
≥70dB (1kHz)
5WX2
25W
>80dB (1kHz)
87.5MHz-108MHz
5%~90%
≤ -60dB (1kHz)
±3dB (20Hz~20kHz)
Frequency Response
Disc Output
WOW FLUTTER
Working
environment
Frequency Range
Power Output (Max)
Tuner
Power consumption
S/N Ratio
FM Band Range
Relative Humidity
Temperature
THD+ Noise
Frequency Response
– 14 –
– 15 –
Please Recycle
Table of contents
