1. Introduction
1.1 Product Brief
The series NVR is designed especially for security and defense field which is an outstanding digital
surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces
standard .264mp video compressed format which insures the high quality image, low coding ratio and
single frame playing. It introduces TCP/IP network technology which achieves the strong network
communication ability and telecommunication ability.
This device can be used individually, but also form a powerful security monitoring network, with professional
network video surveillance platform software, which fully reflects its strong networking and remote
monitoring capabilities.
The series NVR are widely used in power systems, telecommunications sector, banking security, industrial
enterprises, intelligent buildings, intelligent community, urban roads, airports, railway stations and other
surveillance applications.
1.2 Main Functions
Real-time surveillance
Spot interface、analog output interface、VGA interface and HDMI interface，surveillance function through monitor
or display.
Storage
Non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the
life-span
Special storage format which insures the data safety
Compression
Real-time compression by individual hard disk which insures the audio and video signal stable synchronization
Backup
Through SATA interface and USB interface such as USB equipment, removable hard disk and so on
Through net download the files in the hard disk
Playback
Individual real-time video recording as well as searching, playback, network surveillance, recording check,
downloading and so on
Multi-playback mode
Zoom at arbitrary region
Net operating
Real-time monitoring can be carried out remotely via the network (including mobile phone)
Remote PTZ control
Remote video search and real-time playback
Alarm linkage

6
Alarm recording, round robin, the screen prompts, beep, mail, FTP
Communication interface
With RS485 interface, alarm input and PTZ control
With RS232 interface, scalable keyboard connection to the master, and connected to the computer serial port for
system maintenance and upgrades, and matrix control
With standard Ethernet interfaces, network remote access feature
Intelligent operating
Mouse action function
Fast copy and paste operating for the same setting

7
2. Unpacking and cable connection
2.1 Unpacking
When you receive the product:
First, check whether the packaging equipment has obvious damage. Selection of protective packaging materials
during transport can cope with most of the unexpected hit;
Then, remove the device, remove the plastic protective film NVR, check whether there is any visible damage to
the outside;
Finally, open the case, check the front panel data cable, power cable, power supply and motherboard fan connector
is loose.
Front panel and rear panel
Various interfaces on the front panel and the rear panel of the various key functions are described in detail
in the specification;
Please check carefully whether the product model on the front panel with foil products you ordered the
same model;
Label affixed to the rear panel, has a very important significance for our service work, please protect. In the
company's after-sales service when you contact us, you will need to provide the model and serial number to
order the label.
Check
In addition to checking for any obvious signs of damage, but please pay attention to check the front panel
data cable, power cable and the motherboard connection is loose.
2.2 Hard disk installation
When you use, first install the hard drive, the machine can install two hard drives inside (capacity no limit).
disassemble the screw disassemble the cover fix the screw of hard disk
fix the screw of hard disk connect the data wire connect the power wire

8
cover the machine fix the cover
2.3 Shelf Installation
This product chassis specification is standard 1u, so it can be installed in the standard shelf.
Installation steps and attention items:
1. Make sure the temperature in the room lower then 35℃ (95°f).
2. Keep the equipment has 15cm (6 inches) space around in order to air's circulation.
3. From bottom to shelf installation.
4. When multiple components install in the frame，please take preventive measures to avoid power socket
overload.
2.4 Front Panel
NO. Function NO. Function NO. Function NO. Function
1 Exit 2 HDD
indicator
3 Mode 4 Record indicator
5 Rec 6 Alarm
indicator
7 PTZ Control 8 Shift indicator
9 Menu 10 Power
indicator
11 IR Receiver 12 Shift
13 Power Switch 14 Next file 15 Play 16 Fast Play
17 Last file 18 Stop 19 USB interface 20 Null
21 Jog wheel 22 Direction 23 CD-ROM
switch
24 OK

9
2.5 Rear panel
2. .1 rear panel interface diagram
NO. Function NO. Function NO. Function
1 AC Input 6 USB interface 11 RS485 interface
2 Power stitch 7 Alarm output 12 Audio input
3 VGA output 8 Rs232 interface 13 BNC output
4 HDMI output 9 Alarm input
5 Network port 10 Audio output
2.6 Audio & Video input and output connections
2.6.1 video input
NVR video input port to the BNC input signal requirements: PAL / NTSC BNC (1.0VP-P, 75Ω).
Video signal should comply with national standards, a higher signal to noise ratio, low distortion, low
interference; image must be clear, invisible change, real and natural colour, brightness is appropriate.
Ensure stable and reliable camera signal:
Cameras should be installed in a suitable location, to avoid backlighting, low light conditions, or the use
of good results backlight compensation cameras, low-light cameras.
Camera and NVR power supply should be common ground, and reliable, in order to ensure the normal
operation of the camera.
Ensure stable and reliable transmission line:
Using high-quality, shielded coaxial good video, and based on the transmission distance to choose the
right model. If the distance is too far, should be based on the specific circumstances, the use of twisted
pair, add video compensation equipment, fibber optic transmission and other ways to ensure signal
quality.
Video signal line should avoid strong electromagnetic interference to other equipment and lines,
especially should avoid high-voltage current string into.
Lugs ensure good contact:
Signal and shield lines should be firm, well-connected, avoid Weld, lap welding, to avoid oxidation.
2.6.2 Select and connect the video output device
Video output is divided into PAL / NTSC BNC (1.0VP-P, 75Ω) output and VGA output (VGA is optional)
Choose to use computer to replace the monitor should pay attention to the following questions:
1. Do not keep long boot state to extend the life of the equipment;
2. regular degaussing, which will help maintain the normal operation of the display;

10
3. Away from strong electromagnetic interference devices.
Use TV as a video output device is an unreliable alternative. It also requires minimizing the use of time
and strictly controls the interference power caused by neigh boring devices. Inferior TV leakage risks
may cause damage to other equipment.
2.6.3 SDI video output
Some models support coding for 1080P (720P) SDI video.
2.6.4 Audio input
BNC connector (only one to support intercom function)
Audio input impedance is high, and therefore must be used active pickups.
Similar to the video input audio transmission requires line to avoid interference, avoid Weld, poor
contact, and special attention to prevent a string of high-voltage current into.
2.6. Audio output
Audio output signal parameters is generally greater than 200mv 1KΩ (BNC), you can directly connect
the low impedance headphones, powered speakers or other sound through power amplifier output
devices. In the case of external speakers and microphone cannot be achieved spatial isolation, it is easy
to produce output howling phenomenon. At this point the measures to be taken are:
1. The use of directional better pickups;
2. Adjust speaker volume, making it lower than the threshold to produce the whistle;
3. Multi-use environment using sound-absorbing materials decoration, reduce the reflection of the
sound, improve the acoustic environment;
4. Adjust the layout of pickups and speakers, but also can reduce the occurrence of howling
situations.
2.7 Alarm input and output connections
Before connecting the device, please note the following:
* Note: Some Series devices without alarm input and output functions.
2.7.1 Alarm Input
Alarm input is grounding alarm input;
Alarm input requirements for ground voltage signal;
When the alarm is connected to two NVRs or simultaneously access the NVR or NVR and other devices,
need to be isolated by relay.
2.7.2 Alarm Output
NVR alarm output cannot be connected power load (no more than 1A), should constitute the output
loop current is too large to prevent damage to the relay. Require the use of high-power load contactors
isolation.
2.7.3 PTZ decoder connected
A. must do PTZ decoder and NVR common ground, otherwise there may be common-mode voltage will
lead to control PTZ. Recommended to use shielded twisted pair with shielding for common ground
connection;
B. prevent high voltage in series, rational layout, good lightning protection measures
C. to be incorporated into the 120 ohm resistor in the remote reduced reflection, to ensure signal quality;
D. NVR 485AB line cannot be connected with other 485 output;
E. AB line voltage between the decoder requires less than 5V.
2.7.4 Front-end device requires grounding

11
Poor grounding may cause the chip to burn.
2.7. Any type of alarm input
The alarm output unit interface is a normally open type.
8 external alarm interface schematic:
(1) Alarm input 1,2,3,4
(2) Ground
(3) RS232 serial interface to send and receive
(4) RS485 interface
(5) alarm inputs 5,6,7,8
(6) Ground
(7) alarm output
16 External alarm interface schematic:
⑥⑧ alarm input ②⑦ ground ③ alarm output RS485④RS232
Parameters Meaning
G GND
R、T Send and receive serial interface
A、B 485 communication interface
2.7.6 Alarm Input Port Description
8/16 channel alarm input, input type limitation (can be normally open or normally closed);
Alarm detector ground terminal (GND) and com-side parallel (alarm detectors by external power
supply);
Ground terminal and the ground terminal NVR alarm detector and then;
NC end alarm detector is connected to NVR alarm input terminal (ALARM);

12
When using an external power supply required for alarm equipment and NVR common ground.
2.7.7 Alarm Output Port Description
2 channels alarm output (normally open contact), the need for external alarm device power supply;
To avoid overload and damage the host, please refer to the relay relevant parameters when connecting
relay relevant parameters Annex.
2.7.8 Alarm output Relay terminal parameters
Model: JRC-27F
Shock material Silver
Rated switching capacity 30VDC 2A, 125VAC 1A
Maximum switching power 125VA 160W
Maximum switching voltage 250VAC, 220VDC
Ratings
(Resistive load)
Maximum switching current 1A
between the same polarity Contacts 1000VAC 1 minute
between different polarity Contacts 1000VAC 1 minute
Insulation
Between coil and contacts 1000VAC 1 minute
Surge voltage between the same polarity Contacts 1500VAC (10×160us)
Opening time 3ms max
Turn-off time 3ms max
Machinery 50×106 MIN（3Hz)
Lifetime Electrical 200×103 MIN (0.5Hz)
Work environment
温度
-40~+70℃
2.8 Connect Line 485
8 external alarm 485 Schematic

13
16 external alarm 485 Schematic

14

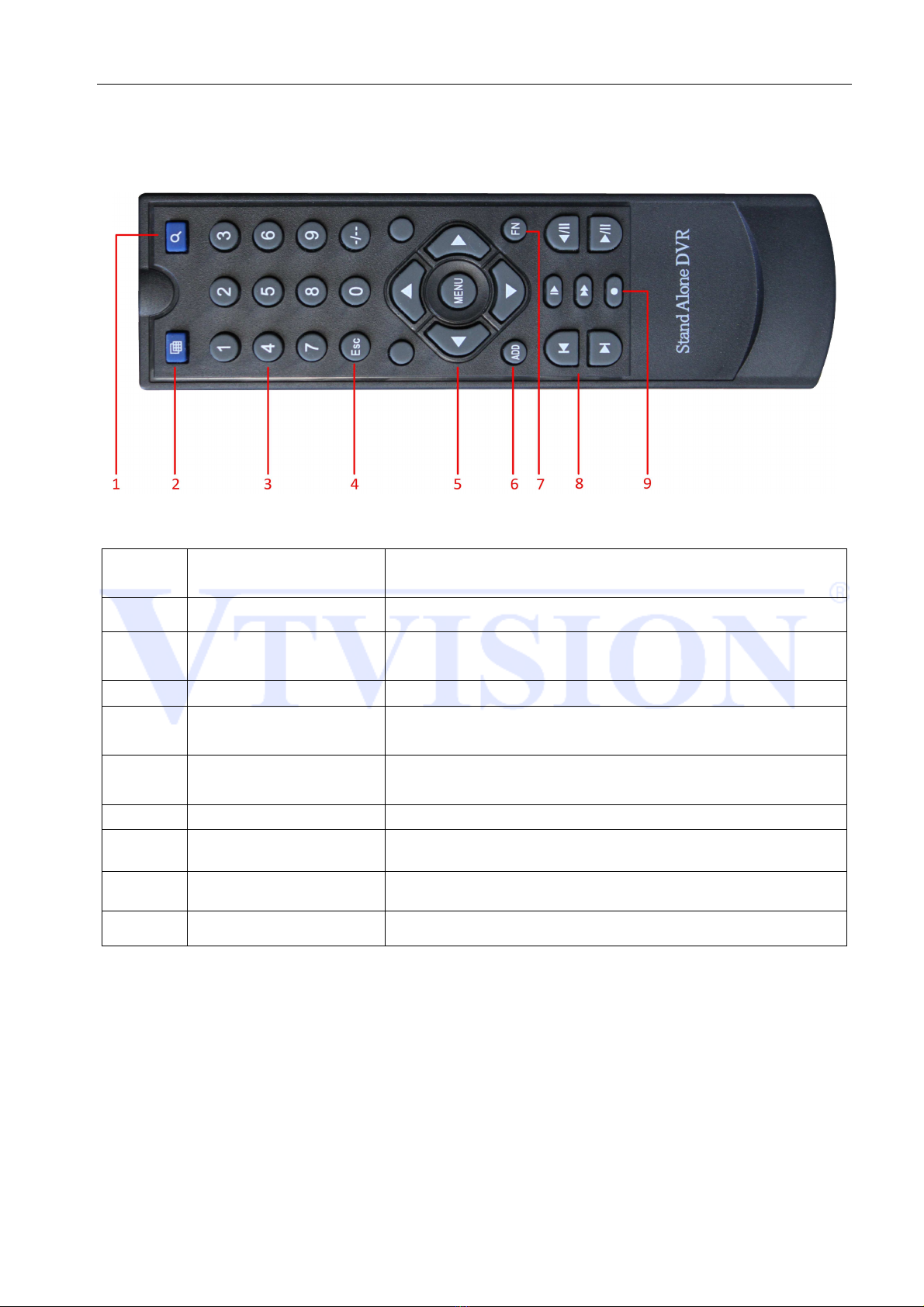

2.9 REMOTE CONTROL
Using the Numeric Buttons
Serial
number
Name Function
1 Search button Video search methods
2 Multi-window button Same function as Multi-window button
in the front panel
3 Numeric button Code input/number input/channel switch
4 <Esc> Same function as<Esc>button in the
front panel
5 Direction button Same function as direction button in
the front panel
6 ADD Input the number of XVR to control it
7 FN Assistant function
8 Record control Control the record
9 Record mode Same function as “Record mode”.
Changing the Remote Control ID
1. Press the <ID> button of the remote control and check the ID displayed on
The NVR screen. The factory default ID of the remote control is 00.
2. Enter 2 digits of your selection in order, while pressing the system <ID>
button.

15
3. When ID input is done, press the system <ID> button again to check the
setting.
NVR connected topology of IPC

16
Calculate the network bandwidth
Resolution 1 tunnel 4 tunnel 9 tunnel
16
tunnel 25 tunnel 36 tunnel
1920×1080（1080P） 4Mbps 16Mbps 36Mbps 64Mbps 100Mbps 144Mbps
1280×960（960P） 3Mbps 12Mbps 36Mbps 48Mbps 75Mbps 108Mbps
1280×720（720P） 2.5Mbps 10Mbps 23Mbps 40Mbps 63Mbps 90Mbps
704×576（D1） 1.5Mbps 6Mbps 14Mbps 25Mbps 38Mbps 54Mbps
352×288(CIF) 512Kbps 2Mbps 4.5Mbps 8Mbps 12.5Mbps 18Mbps
174×144(QCIF) 192Kbps 768Kbps 1.7Mbps 3Mbps 4.68Mbps 6.8Mbps
Calculate the storage space
Storage Space（
（（
（1 tunnel）
））
）
Resolution BPS
1 hour 1 day 30 days
1920×1080（1080P） 4Mbps 1.8G 43G 1.3T
1280×960（960P） 3Mbps 1.3G 31G 1T
1280×720（720P） 2.5Mbps 1.1G 26.5G 0.8T
704×576（D1） 1.5Mbps 0.7G 16.8G 0.5T

17
Chapter 3 Basic operations
Note: Gray button indicates non-support.
3.1 Boot
Plug the power, open the rear panel power switch, power turns on, video recorder starts. Buzzer
beeps after booting .The default video output is multi-screen output mode. When start-up time is within
video setting time, the system will start timer recording automatically , the corresponding channel
recording indicator light turns on, system starts working.
Note:1. Make sure the input voltage corresponds to device power pull-bit switch. Turn on the power
switch after confirming.
2. Power supply demands: 220V±10% /50Hz.
Suggest using the UPS to protect the power supply under allowable conditions, stable voltage value and
less interference power input are recommended.
3.2 Shut down
Soft-switching and hard switching can shut down the device. Soft switch, enter [main menu]> [shut down
system] , Select [shut down]; Hard switch, press the power switch on the rear panel.
Directions:
1、Auto resume after power failure
If the NVR is shut down abnormally, it can automatically backup video and resume previous
working status after re-starting.
2、Replace the HDD
Before replacing, the power supply switch in the real panel must be turned off.
3、Replace the battery
Before replacing, the setting information must be saved and the power supply switch in the real
panel must be turned off. The NVR uses button battery. The system time must be checked regularly.
If the time is not correct you must replace the battery, we recommend replacing the battery every
year and using the same battery type.
Note: The setting information must be saved before replacing the battery otherwise
information will be lost.
3.3 System Login
When the NVR boots up, the user must login and the system provides the corresponding functions
with the user purview. There are three user settings. The names are admin, guest and default and
these names need no password. Admin is the super user purview; guest and default’s permissions are
preview and video playback. User admin and guest’s password can be revised, while their permissions
can’t be revised; user default is the default login user whose permission can be revised but not its
password.

18
Picture 3.1 System Login
Password protection: If the password is continuous wrong three times, the alarm will start. If
the password is continuous wrong five times, the account will be locked. (Through rebooting or
wait half an hour, the account will be unlocked automatically).
For your system security, please modify your password after first login.
3.4 Preview
After login normally, preview screen will be seen. You can click right mouse to choose the switch
between the windows.
The system date, time and channel name are shown in each viewing window. The surveillance video
and the alarm status are shown in each window.
1
Recording status 3 Video loss
2
Motion detect 4 Camera lock
Table 3.1 Preview icon

19
Pic 3.2 Preview interface
(1) Channel name and status display,click
“channel” to pack up (2) Screen switch
(3) Full screen display (4) Pages flip up and down under
non-16-channel mode
(5) Play/shut down full channel (6) Play ull channel video/shut down full
channel video
Note:It’s main stream resolution under single window,and it’s sub-stream resolution under
multi-screen.
3.5 Desktop shortcut menu
Under preview mode you can right click mouse to get a desktop shortcut menu, as the picture 3.2
shows. The menu includes: main menu, boot Guide，
，，
，record mode, playback, PTZ control, High
Speed PTZ, Alarm Output, Output adjust, Logout, full screen(leave full screen).
..
.

20
Non full screen full screen
Picture 3.3 Shortcut Menu
Note:When under non full screen, display”full screen”, and when under full screen display”leave
full screen”.
3.5.1 Main menu
Main menu includes various functions of the device.
Pic 3.4 Main menu
3.5.2 Playback
There are two ways for you to play the video files in the HDD
1.In the desktop shortcut menu
2.Main Menu>Record>playback
Note: The HDD which saves the video files must be set as read-write or read-only state.
