RESTAURANT RANGES
P.O. Box 696 ■Louisville, KY 40201 ■Toll-free: 1-800-814-2028 ■Local: 502-778-2791 ■Quote & Order Fax: [phone]
a division of ITW Food Equipment Group LLC
Item # C.S.I. Section 11420
F38263 (6/10)

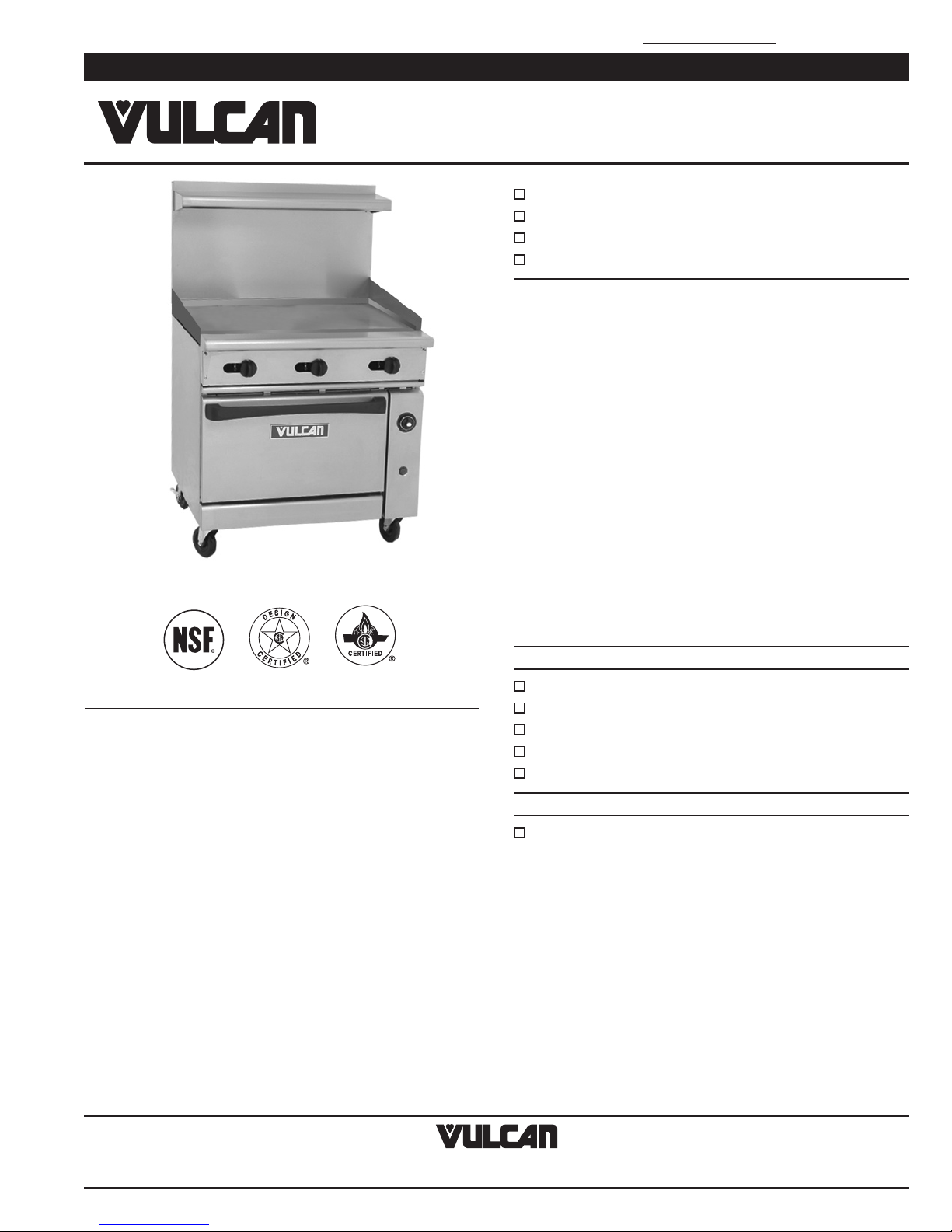

ENDURANCE GAS RESTAURANT RANGE
36" GRIDDLE
36" WIDE GAS RANGE
Model 36-S-36G-N
(shown with optional casters)
SPECIFICATIONS
36" wide gas restaurant range, Vulcan Model No. 36-S-36G-N.
Fully MIG welded aluminized steel frame for added durability.
Stainless steel front, sides, backriser, highshelf and 6" adjustable
legs. Extra deep crumb tray with welded corners. 36" manual
griddle, 7⁄8" thick with 4" wide front grease trough. Burner knobs
are cool to the touch, high temperature material. One oven:
35,000 BTU/hr. standard bakers depth ovens with porcelain oven
bottom and door panel, measures 27"d x 263⁄8"w x 14"h.
Oven thermostat adjusts from 250°F to 500°F with a low
setting. Oven is supplied with two racks, two rack guide sets,
and four rack positions. Oven door is heavy duty with
an integrated door hinge/spring mechanism requiring no
adjustment. 3⁄4" rear gas connection and pressure regulator.
Total input 95,000 BTU/hr.
Exterior Dimensions:
343⁄4"d x 36"w x 58"h on 6" adjustable legs
36-S-36G-N 1 Standard Oven / Natural Gas
36-S-36G-P 1 Standard Oven / Propane
36-C-36G-N 1 Convection Oven / Natural Gas
36-C-36G-P 1 Convection Oven / Propane
STANDARD FEATURES
Fully MIG welded frame■
Stainless steel front, sides, backriser, lift-off high shelf■
6" stainless steel adjustable legs■
36" manual griddle,■7⁄8" thick, 4" wide front grease trough
Extra deep pull out crumb tray with welded corners■
35,000 BTU/hr. baker’s depth standard oven cavity.■
Full size sheet pans t side-to-side or front-to-back.
Oven thermostat adjusts from 250°F to 500°F■
Heavy duty cool touch oven door handle■
Two oven racks and four rack positions■
35,000 BTU/hr. convection oven in place of standard oven■
24"d x 263⁄8"w x 137⁄8"h (115v - 1 phase blower motor
4 amp, 6' cord and plug), includes three oven racks. Full
size sheet pans only t side-to-side in convection oven.
■3⁄4" rear gas connection and pressure regulator
One year limited parts and labor warranty■
ACCESSORIES (Packaged & Sold Separately)
Extra oven rack with rack guides
Casters (set of four)
Flanged feet (set of four)
10" stainless steel stub back
Reinforced high shelf for mounting salamander broiler
OPTIONS (Factory Installed)
Thermostatically controlled griddle (snap action)

P.O. Box 696 ■Louisville, KY 40201 ■Toll-free: 1-800-814-2028 ■Local: 502-778-2791 ■Quote & Order Fax: [phone]
a division of ITW Food Equipment Group LLC
RESTAURANT RANGES
F38263 (6/10)
NOTE: In line with its policy to continually improve its products, Vulcan reserves the right to change materials and specications without notice.
ENDURANCE GAS RESTAURANT RANGE
36" GRIDDLE
36" WIDE GAS RANGE
INSTALLATION INSTRUCTIONS
Clearances5. Rear Sides
Combustible 6" 10"
Standard Oven Non-combustible 0" 0"
Convection Oven Non-combustible Min. 4" 0"
For proper combustion, install equipment on adjustable6.
legs or casters provided with unit.
NOTE: In line with its policy to continually improve its
product, Vulcan reserves the right to change materials
and specifications without notice.
Specify type of gas when ordering.
Specify altitude when above 2,000 feet.
A pressure regulator sized for this unit is included.1.
Natural gas 5.0" W.C., propane gas 10.0" W.C.
Gas line connecting to range must be2. 3⁄4" or larger.
If exible connectors are used, the inside diameter
must be 3⁄4" or larger.
An adequate ventilation system is required for commercial3.
cooking equipment. Information may be obtained by
writing to the National Fire Protection Association,
1 Batterymarch Park, Quincy, MA 02269, www.NFPA.org.
When writing, refer to NFPA No. 96.
These units are manufactured for installation in4.
accordance with ANSZ223.1A (latest edition), National
Fuel Gas Code. Copies may be obtained from The
American Gas Association, 400 N Capitol St. NW,
Washington, DC 20001, www.AGA.org.
TOP
CONFIGURATION
MODEL
NUMBER DESCRIPTION
TOTAL INPUT
BTU / HR
SHIPPING WEIGHT
LBS / KG
36-S-36G-N 1 Standard Oven / 36" Griddle / Natural Gas 95,000 610 / 277
36-S-36G-P 1 Standard Oven / 36" Griddle / Propane 95,000 610 / 277
36-C-36G-N 1 Convection Oven / 36" Griddle / Natural Gas 95,000 660 / 299
36-C-36G-P 1 Convection Oven / 36" Griddle / Propane 95,000 660 / 299
This appliance is manufactured for commercial use only and is not intended for home use.
