Vu+ Zero 4K Quick start guide

English │Slovensky │Polski │Česky

English
What's included ?
RCU Battery RCU
Easy Setup Guide
External IR
Cable
HDMI
Cable Power
Adapter

English
What's included ?
RCU Battery RCU
Easy Setup Guide
External IR
Cable
HDMI
Cable Power
Adapter
11

Front Panel
Standby LED
Rear Panel
DVB-S/S2
/S2X Tuner
USB 2.0
Connects to TV using a HDMI
Cable for both audio
and video signals.
HDMI
RS232
/ External IR
CISmart Card
Power Adaptor Input
On/O Switch
Gigabit Ethernet
Connects to a digital audio
system using S/PDIF cable.
S/PDIF
22

Front Panel
Standby LED
Rear Panel
DVB-S/S2
/S2X Tuner
USB 2.0
Connects to TV using a HDMI
Cable for both audio
and video signals.
HDMI
RS232
/ External IR
CISmart Card
Power Adaptor Input
On/O Switch
Gigabit Ethernet
Connects to a digital audio
system using S/PDIF cable.
S/PDIF
33

Remote Control
TV Power
Navigation Keys
Navigates up/down and left/right
on the menu options.
Up/down keys are used to call up
the channel list.
Teletext
Displays the teletext information of
the current channel if the channel
provides subtitles.
Subtitle
Displays the subtitle of
the current channel
if the channel provides subtitle.
AV
This button is used
when selecting video source of TV.
EPG
Displays the Electronic Program
Guide (EPG) information
if provided.
CHANNEL+/-
Color Keys
• Red – mainly used for REC,
Cancel, etc.
• Green – mainly used for OK.
• Yellow
• Blue
Volume+/-
EXIT
Numeric Keys
STB Power
Mute
Connecting Cable
2. Connect ZERO 4K to the TV
One HDMI cable is included in the accessory box. Connect one end of the cable to the HDMI
input of TV. Connect the other end to the HDMI output of ZERO 4K.
1. Connect a Satellite signal cable to the tuner input.
44

Remote Control
TV Power
Navigation Keys
Navigates up/down and left/right
on the menu options.
Up/down keys are used to call up
the channel list.
Teletext
Displays the teletext information of
the current channel if the channel
provides subtitles.
Subtitle
Displays the subtitle of
the current channel
if the channel provides subtitle.
AV
This button is used
when selecting video source of TV.
EPG
Displays the Electronic Program
Guide (EPG) information
if provided.
CHANNEL+/-
Color Keys
• Red – mainly used for REC,
Cancel, etc.
• Green – mainly used for OK.
• Yellow
• Blue
Volume+/-
EXIT
Numeric Keys
STB Power
Mute
Connecting Cable
2. Connect ZERO 4K to the TV
One HDMI cable is included in the accessory box. Connect one end of the cable to the HDMI
input of TV. Connect the other end to the HDMI output of ZERO 4K.
1. Connect a Satellite signal cable to the tuner input.
55

Connecting Cable
3. Power Up
A power cord and an adapter are provided in the accessory box.
Plug the round end of the adapter power cord into the power input of ZERO 4K.
DC input condition
• 12V 2A
NOTE
Run First Time Installation
Step 1. Video Input Selection
HDMI
Video input selection
Please press OK if you can see this page on your TV or
select a dierent input port.
The next input port will be automatically probed in 20 seconds.
Step 2. Video Mode Selection
720p
1080i
1080p
2160p
576p
480p
576i
Video mode selection
66

Connecting Cable
3. Power Up
A power cord and an adapter are provided in the accessory box.
Plug the round end of the adapter power cord into the power input of ZERO 4K.
DC input condition
• 12V 2A
NOTE
Run First Time Installation
Step 1. Video Input Selection
HDMI
Video input selection
Please press OK if you can see this page on your TV or
select a dierent input port.
The next input port will be automatically probed in 20 seconds.
Step 2. Video Mode Selection
720p
1080i
1080p
2160p
576p
480p
576i
Video mode selection
77

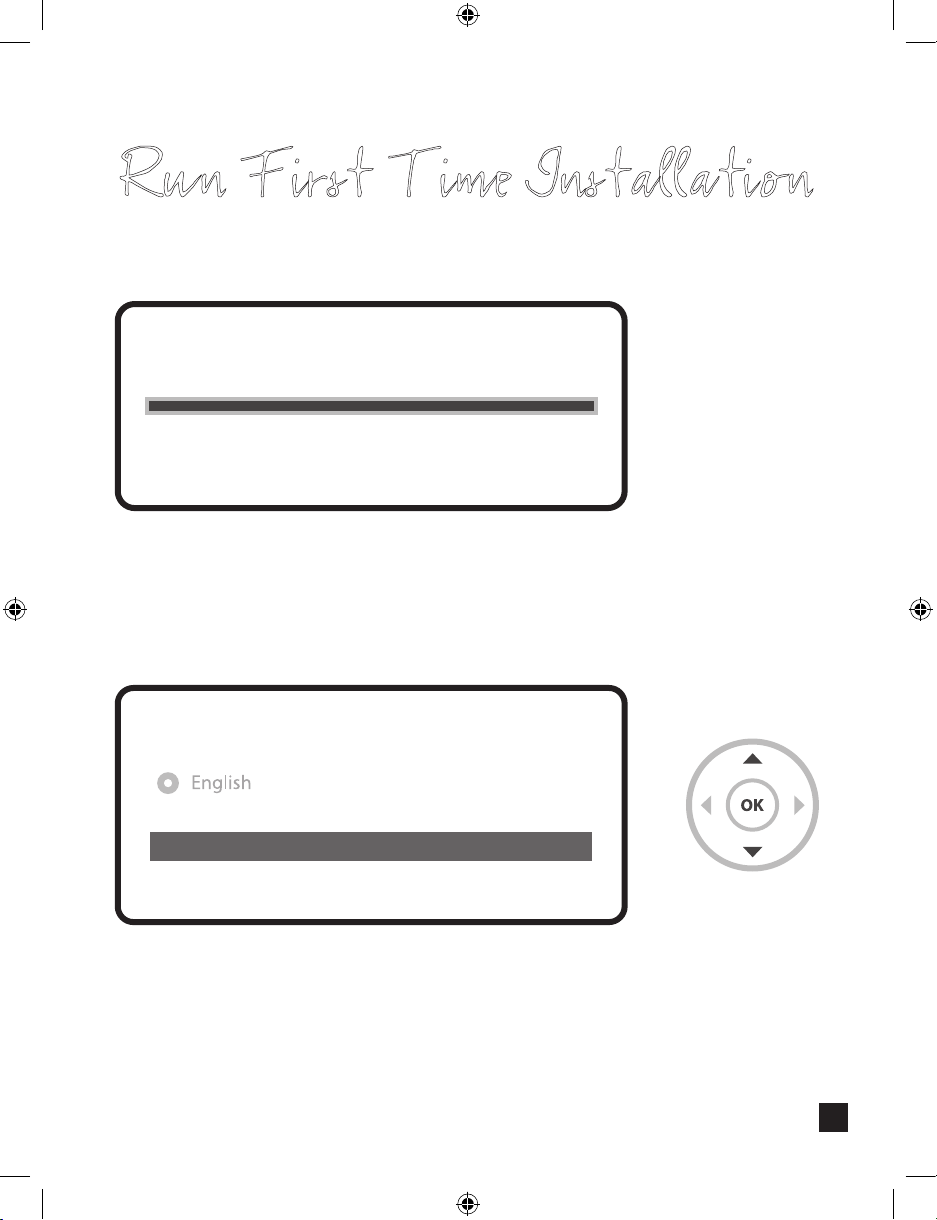

Run First Time Installation
Step 3. Language Selection
Step 4. Conguring Satellite Connection
Welcome.
This start wizard will guide you through the basic setup
of your STB.
Press the OK button on your remote control to move to the
next step.
English
German
Catalan
Croatian
Please use the UP and DOWN keys to select your language.
Afterwards press the OK button.
Run First Time Installation
Using LEFT/RIGHT keys, you can choose one of the following Conguration Modes:
• Nothing connected
• Simple
• Advanced: for an advanced user conguration.
Use the up/down keys on your remote control to select an
option. After that, press OK.
Use wizard to set up basic features
Exit wizard
Use the left and right buttons to change an option.
Conguration Mode not congured
88

Run First Time Installation
Step 3. Language Selection
Step 4. Conguring Satellite Connection
Welcome.
This start wizard will guide you through the basic setup
of your STB.
Press the OK button on your remote control to move to the
next step.
English
German
Catalan
Croatian
Please use the UP and DOWN keys to select your language.
Afterwards press the OK button.
Run First Time Installation
Using LEFT/RIGHT keys, you can choose one of the following Conguration Modes:
• Nothing connected
• Simple
• Advanced: for an advanced user conguration.
Use the up/down keys on your remote control to select an
option. After that, press OK.
Use wizard to set up basic features
Exit wizard
Use the left and right buttons to change an option.
Conguration Mode not congured
99

Run First Time Installation
If you choose Simple conguration mode, the following picture will appear.
For the other modes, please refer to the user manual of ZERO 4K.
Do you want to install default sat lists?
No
Yes
Use the left and right buttons to change an option.
Please set up tuner A.
Mode
Port A
Port B
Set Voltage and 22KHz
Send DiSEqC only on satellite change
Conguration Mode
DiSEqC A/B
Astra(19.2E)
Hotbird(13.0E)
yes
no
Simple
Here you will be asked whether you want to install the default satellite lists. Press OK and
the following image appears:
Step 5. Channel Scan
(Selecting Scan Mode - Automatic Scan / Manual Scan)
• Automatic Scan
If you choose Automatic Scan, you will be asked whether to erase all the existing channels
before scanning.
Run First Time Installation
What do you want to scan?
Yes, ScanTuner A(DVB-S2)
Yes, Clear before scan
• If you press No, following image will appears.
Channel scanning is possible either in Automatic Scan mode or Manual Scan mode.
Do you want to do a service scan?
Yes, do a manual scan now
No, scan later manually
Yes, do an automatic scan now
1010

Run First Time Installation
If you choose Simple conguration mode, the following picture will appear.
For the other modes, please refer to the user manual of ZERO 4K.
Do you want to install default sat lists?
No
Yes
Use the left and right buttons to change an option.
Please set up tuner A.
Mode
Port A
Port B
Set Voltage and 22KHz
Send DiSEqC only on satellite change
Conguration Mode
DiSEqC A/B
Astra(19.2E)
Hotbird(13.0E)
yes
no
Simple
Here you will be asked whether you want to install the default satellite lists. Press OK and
the following image appears:
Step 5. Channel Scan
(Selecting Scan Mode - Automatic Scan / Manual Scan)
• Automatic Scan
If you choose Automatic Scan, you will be asked whether to erase all the existing channels
before scanning.
Run First Time Installation
What do you want to scan?
Yes, ScanTuner A(DVB-S2)
Yes, Clear before scan
• If you press No, following image will appears.
Channel scanning is possible either in Automatic Scan mode or Manual Scan mode.
Do you want to do a service scan?
Yes, do a manual scan now
No, scan later manually
Yes, do an automatic scan now
1111

Run First Time Installation
Press OK to initiate the channel scan.
• Channel Scanning
The scanned channels will be displayed if the previous congurations
have been done correctly.
scan done! 2 services found!
ANIXE HD
ASTRA HD+
Service Scan
Step 6. Install Default Service List
Please choose the default services lists you want to install.
Astra(19.2E)
Hotbird(13.0E)
no
no
Step 7. Parental Control Option
Here you can choose whether to enable the parental control option. If you press OK,
you will be asked to enter PIN number.
New PIN
Reenter new PIN
****
****
Change pin code
Do you want to enable the parental control feature
on your STB?
No
Yes
You need to set a PIN code and hide it from your children.
Do you want to set the pin now?
No
Yes
1212

Run First Time Installation
Press OK to initiate the channel scan.
• Channel Scanning
The scanned channels will be displayed if the previous congurations
have been done correctly.
scan done! 2 services found!
ANIXE HD
ASTRA HD+
Service Scan
Step 6. Install Default Service List
Please choose the default services lists you want to install.
Astra(19.2E)
Hotbird(13.0E)
no
no
Step 7. Parental Control Option
Here you can choose whether to enable the parental control option. If you press OK,
you will be asked to enter PIN number.
New PIN
Reenter new PIN
****
****
Change pin code
Do you want to enable the parental control feature
on your STB?
No
Yes
You need to set a PIN code and hide it from your children.
Do you want to set the pin now?
No
Yes
1313

For more information about ZERO 4K
By long pressing 'Help' button, you can also access to On-Screen Manual page.
The content in this Easy Setup Guide is subject to change without notice.
1414

For more information about ZERO 4K
By long pressing 'Help' button, you can also access to On-Screen Manual page.
The content in this Easy Setup Guide is subject to change without notice.

Slovenský
Rýchly sprievodca inštaláciou
Obsah balenia?
DO Batérie DO
Rýchla príručka
Externý IR
Kábel
HDMI
Kábel Napájací
adaptér

Slovenský
Rýchly sprievodca inštaláciou
Obsah balenia?
DO Batérie DO
Rýchla príručka
Externý IR
Kábel
HDMI
Kábel Napájací
adaptér
1717

Zadný Panel
DVB-S/S2
/S2X Tuner
USB 2.0
Pripojenie k TV pomocou
HDMI Kábla pre oba Audio
aj Video signál.
HDMI
RS232
/ Externé IR
CISmart Karta
Vstup Sieťového Adaptéra
Zap/Vyp Vypínač
Gigabitový LAN port
Pripojenie k digitálnemu audio
systému pomocuo S/PDIF kábla.
S/PDIF
Standby LED
Predný panel
1818
