VWR International 1470 Quick start guide

VACUUM OVENS
MODEL: 1470,1480, & 1490
02/11
4861644
INSTALLATION AND OPERATIONAL MANUAL
Sheldon Manufacturing Inc. P.O. Box 627 Cornelius, Oregon 97113
EMAIL: [e-mail] INTERNET: http://www.Shellab.com/~Shellab
1-800-322-4897 [phone] FAX [phone]

2
TABLE OF CONTENTS
SECTION 1.0 RECEIVING AND INSPECTION
SECTION 2.0 GRAPHIC SYMBOLS
SECTION 3.0 INSTALLATION
SECTION 4.0 CONTROLS OVERVIEW
SECTION 5.0 PRECAUTIONS
SECTION 6.0 VACUUM OPERATION
SECTION 7.0 OPERATION
SECTION 8.0 MAINTENANCE
SECTION 9.0 TROUBLESHOOTING AND SERVICE
SECTION 10.0 PARTS LIST
UNIT SPECIFICATIONS
SCHEMATICS
This unit is a special purpose oven for professional, industrial or educational use where the preparation
or testing of materials is done at approximately atmospheric pressure and no flammable volatile or
combustible materials are being heated or placed near or on top of unit. This unit is not intended for
hazardous or household locations or use.

3
RECEIVING AND INSPECTION
Your satisfaction and safety require a complete understanding of this unit. Read
the instructions thoroughly and be sure all operators are given adequate training
before attempting to put the unit in service. NOTE: This equipment must be used
only for its intended application; any alterations or modifications will VOID your
warranty.
1.1 Inspection: The carrier, when accepting shipment, also accepts responsibility
for safe delivery and is liable for loss or damage. On delivery, inspect for visible
exterior damage, note and describe on the freight bill any damage found, and
enter your claim on the form supplied by the carrier.
1.2 Inspect for concealed loss or damage on the unit itself, both interior and exterior.
If necessary, the carrier will arrange for official inspection to substantiate your
claim.
1.3 Return Shipment: Save the shipping crate until you are sure all is well. If for
any reason you must return the unit, first contact your customer representative
for authorization. Supply nameplate data, including model number and serial
number. Please see the manual cover for information on where to contact
Customer service.
1.4 Accessories: Verify that all of the equipment indicated on the packing slip is
included with the unit. Carefully check all packaging before discarding. The
1470 have two deep shelves and one shallow shelf. The 1480 has two deep
shelves, one shallow shelf and four adjustable feet. The 1490 has three
adjustable shelves and four adjustable feet.
Section
1

4
GRAPHIC SYMBOLS
Your oven has been provided with a display of graphic symbols which should help in
identifying the use and function of the available user adjustable components.
2.1 Indicates “AC Power”.
2.2 Indicates “I/On and O/Off”.
2.3 Indicates “Vacuum Gauge”.
2.4 Indicates “Vent (Gas)”.
2.5 Indicates “Vacuum”.
2.6 Indicates “Temperature”.
2.7 Indicates "Over-temperature safety".
2.8 CIndicates ”Degrees Centigrade”
2.9 Indicates “Heating”.
2.10 Indicates “Consult Your Manual For Further Instructions”.
2.11 Indicates “Unit should be recycled” (Not disposed of
in land-fill)
Section
2

5
INSTALLATION
Local city, county or other ordinances may govern the use of this equipment. If you have any questions
about local requirements, please contact the appropriate local agency. Installation may be performed by
the end user.
Under normal circumstances this unit is intended for use indoors, at room temperatures between 5and
40C, at no greater than 80% Relative Humidity (at 25C) and with a supply voltage that does not vary by
more than 10%. Customer service should be contacted for operating conditions outside of these limits.
3.1 Power Source: The electrical supply circuit to the oven must conform to all national and local
electrical codes. Consult the oven’s serial data plate for the voltage, cycle wattage and ampere
requirements before making connection. VOLTAGE SHOULD NOT VARY MORE THAN 10%
FROM THE SERIAL PLATE RATING. This unit is intended for 50/60 Hz application. A separate
circuit is recommended to prevent possible loss of product due to overloading or failure of other
equipment on the same circuit.
3.2 Location: When selecting a site for the oven, consider all conditions which may affect
performance, such as extreme heat from steam radiators, stoves, ovens autoclaves, etc. Avoid
direct sun, fast-moving air currents, heating/cooling ducts, and high traffic areas. To ensure air
circulation around the unit allow a minimum of 30 cm between any walls or partitions and the unit
which might obstruct free airflow.
3.3 Lifting / Handling: These units are heavy and care should be taken to use appropriate lifting
devices that are sufficiently rated for these loads. Units should only be lifted from their bottom
surfaces. Doors, handles and knobs are not adequate for lifting or stabilization. The unit should
be completely restrained from tipping during lifting or transport. All moving parts, such as shelves
and trays should be removed and doors need to be positively locked in the closed position during
transfer to prevent shifting and damage.
3.4 Leveling: The unit must sit level and solidly. The Model 1470 has rubber feet that are already
attached to the unit and are not adjustable. Leveling feet are supplied with Models 1480 and
1490, and must be installed in the four holes in the bottom corners of the unit. With the unit
standing upright, turn the leveling foot counterclockwise to raise the level of that corner. Adjust
the leveling foot at each corner until the unit stands solid and level. If the unit must be moved,
turn the leveling feet in all the way (clockwise) to prevent damage while moving.
3.5 Cleaning: The oven interior was cleaned at the factory, but not sterilized. Remove shelves and
shelf clips and clean with a disinfectant that is appropriate for your application. DO NOT USE
chlorine-based bleaches or abrasives as they will damage stainless steel surfaces. DO NOT USE
spray cleaners that might leak through openings and cracks and get on electrical parts or that may
contain solvents that will harm the coatings. A similar periodic cleaning is recommended.
WARNING: Never clean the unit with alcohol or flammable cleaners with the unit connected to the
electrical supply. Always disconnect the unit form the electrical service when cleaning and assure all
volatile or flammable cleaners are evaporated and dry before reattaching the unit to the power
supply.
3.5 Shelves: See Figure 1 for proper orientation of shelves within the individual model chambers.
DO NOT place items directly on the floor of the chamber.
Section
3

6
FIGURE 1
Shelf Placement for 1470, 1480, 1490 Series
1490 SERIES
1480 SERIES
1470 SERIES

7
CONTROL PANEL OVERVIEW
4.1 Power Switch: The main power I/O (on/off) switch
controls all power to the unit and must be in the I/ON
position before any systems are operational.
4.2 Main Temperature Control: This control is marked
C and consists of the digital display and UP/DOWN arrow
pads for inputting set point temperatures and calibration.
4.3 Heating: This indicator is ON when the Temperature
Control has activated the heating elements to reach and
maintain set point.
4.4 Circuit Breaker / Fuse: This control, mounted on
the rear wall next to the power cord, provides protection for
the unit’s electrical circuitry against power fluctuations. The
circuit breaker, when tripped, must be reset by pushing in
the extended button for the unit to continue operation. The
fuse (on CE units in place of the circuit breaker) when
blown, must be replaced before the unit can continue
operation.
4.5 Vacuum Gauge: This component indicates the
chamber operating pressure in inches of mercury.
4.6 Vacuum: This adjustment valve allows opening and
closing of the piping system to an external vacuum pump or
system.
4.7 Vent: This adjustment valve controls the vacuum
release to return the chamber to atmospheric pressure.
4.8 Over Temperature Safety Control (OTP):
Located front left of the control panel, this is a
hydraulic thermostat that is wired between the Main
Temperature Controller and the heating element and
functions as an override control. If at any time the
Main Temperature Control fails in the ON position and
the temperature in the chamber rises above its set
point, the OTP is activated and maintains temperature
at its own set point.
Section
4

8
PRECAUTIONS
NOTE: THIS IS NOT AN EXPOLOSION PROOF OVEN.
5.1 The bottom surface of the chamber should not be used as a work
surface.
5.2 Do not place or use explosive, combustible, or flammable materials in the oven.
5.3 Do not use sealed containers in the oven chamber.
5.4 Do not cut or remove the ground prong from the power cord or use a 2-prong
adapter plug.
5.5 Disconnect the unit from electrical power source before attempting to make any
repairs or component replacements.
5.6 If a mercury thermometer is used and breakage should occur, all spilled mercury
must be completely removed from the chamber.
5.7 This oven IS NOT suitable for use in Class I, II, or III locations as defined by
the National Electrical Code NFPA 70.
5.8 This oven is not intended, nor can it be used, as a patient, connected device.
Section
5

9
VACUUM OPERATION
6.1 IT IS IMPORTANT TO USE VACUUM TUBING FOR ALL THE VACUUM
HOOKUPS. OTHER TYPES OF TUBING MAY COLLAPSE AND PREVENT
EVACUATION.
6.2 A pump with a pumping capacity four times greater than the chamber volume is
recommended. For example, 1470 has a chamber volume of one (1) cubic foot,
so a pump with a pumping capacity of four (4) cubic feet per minute is
recommended. When working below 1mm, a diffusion type pump will be needed.
See Unit Specifications for chamber capacities.
6.3 Vacuum: To apply vacuum to the chamber, attach a hose from the vacuum
pump to the larger 3/8” hose connection on top of the oven. Close the VENT
valve and open the VACUUM valve. Latch the door shut and start the vacuum
pump. Be certain the vacuum valve is open and the VENT valve is closed. This
action will hold the door shut and against the gasket until the pump creates a
vacuum in the chamber. Once a good vacuum seal is accomplished, the door
will hold itself shut and sealed until the chamber is returned to atmospheric
pressure.
6.4 Watch the VACUUM GAUGE and when the required vacuum is obtained, close
the VACUUM valve and turn the pump off. The VACUUM GAUGE is calibrated
from zero to 30 inches of Hg (762mm of Hg) with zero representing atmospheric
pressure. The oven can be evacuated to pressures as low as 10 microns.
A KF-25 Flange is provided at the back of the unit. This access can be used to
plumb the chamber to a larger, faster roughing pump or as a conduit for other
service applications. Any use of this flange requires the end user to assure the
attachment is vacuum tight.
6.5 These ovens are not intended for use as pressure chambers. Pressure above
atmospheric will blow by the door gasket and not allow build up of pressure.
6.6 Vacuum Release: To return the chamber to atmospheric pressure, open the
VENT valve slowly and allow the chamber to re-pressurize. The speed or re-
pressurizing can be controlled by how much the valve is opened.
6.7 Vacuum Gauge: To zero the gauge, simultaneously press the UP and DOWN
keys on the gauge until “000” is displayed.
Section
6

10
OPERATION
NOTE: Slight vapor or smoke may occur in the initial heat-up. This is the
dissipation of protective coatings that have been added to the oven elements.
7.1 Power Supply: Connect the service cord to a grounded outlet and push the
power switch to the I/On position. If supplied with a detachable cord set, plug the
female end into the inlet of the unit and the male plug into the supply. Assure
that the units requiring a fuse have a fuse installed. This fuse may be at the inlet
or part of the cord set male plug.
7.2 Place a certified reference thermometer inside the chamber where it can be
easily viewed through a window. Vacuum down the chamber as described in
Section 6.0.
7.3 Set Main Temperature Control: To enter the desired set point temperature
press either the Up or Down arrow pad one time. The digital display will start to
blink from bright to dim. While blinking, the digital display can be changed by
pushing the Up or Down arrow pads until the desired set point is obtained. If no
arrow pads are pressed within five (5) seconds, the display will return to the
indicating mode. During normal operation the set point can be checked by using
this procedure and making no adjustments during the blinking mode. Allow
several hours for the temperature to stabilize.
7.4 Calibrating the Main Temperature: Calibrating the Main Temperature: It is
recommended that calibration is done once the unit is installed in its working
environment. The unit should be stable at set point for several hours and under
vacuum. Compare the reading of the reference thermometer with the digital
display. If there is an unacceptable difference, put the display into calibrate mode
by pressing both the UP and DOWN buttons at the same time until the decimal
points start to blink. While blinking, the display can be changed to match the
reference thermometer by pushing the UP or DOWN buttons until the display reads
the correct value. If no buttons are pushed for five (5) seconds the display will
revert back to reading the temperature in the chamber. Allow for the oven
temperature to stabilize again and recalibrate if necessary.
7.5 Setting the Over-Temperature Control: After the Main Temperatures are set and
adjusted, the Overtemperature Safety Control needs to be set. Do this by turning
the OTP Control Knob counterclockwise until the Overtemperature Light comes on
(this will blink in sequence with Heating Activated Light). Next, slowly turn the knob
clockwise until the light goes off, then turn the knob another 8 degrees
approximately. This should set the Overtemperature 1 degree above the Main
Temperature set point.
Section
7

11
MAINTENANCE
NOTE: Prior to any maintenance or service on this unit, disconnect the service
cord from the power supply.
8.1 Cleaning: Disinfect the oven interior on a regular basis. To prepare the oven for
cleaning remove the shelves and door gasket. The shelves and door gasket are
autoclavable.
A. First clean removed parts and interior with soap and water. To
decontaminate use a disinfectant that is suitable for your application. DO
NOT use chlorine based bleaches or abrasives as this will damage
stainless steel surfaces. DO NOT USE spray cleaners that might leak
through openings and cracks and get on electrical parts or that may contain
solvents that will harm the coatings. A thorough, periodic cleaning is
strongly recommended.
B. When washing the gasket, handle carefully so as not to impair the positive
seal.
WARNING: Never clean the unit with alcohol of flammable cleaners with the unit
connected to the electrical supply. Always disconnect the unit from the electrical service
when cleaning and assure all volatile or flammable cleaners are evaporated and dry
before reattaching the unit to the power supply.
8.2 If the oven is to be shut down for storage or transporting, clean and described
above. Remove shelves and latch the door closed. Screw the leveling feet in on
the 1480 / 1490.
8.3 There is no maintenance required on the Temperature Controller or Temperature
Probe. If the oven fails to maintain temperature, see Troubleshooting before
calling for service.
Section
8

12
TROUBLESHOOTING
FOR PERSONAL SAFETY, ALWAYS DISCONNECT THE POWER BEFORE
SERVICING.
Always make a visual inspection of the oven and control console when troubleshooting.
Look for loose or disconnected wires or tubing, which may be the source of the trouble.
The oven is designed so that no internal electrical servicing should be required under
normal conditions. If electrical servicing is necessary, it should be performed by
qualified service personnel.
TEMPERATURE
Temperature too high
1/ controller set too high-see Section 7.3
2/ controller failed on –call Customer Service
3/ wiring error –call Customer Service
Display reads "HI" or "400"+
probe is unplugged, is broken or wire to sensor is broken –trace wire
from display to probe; move wire and watch display to see intermittent
problems
Chamber temp spikes over set point and
then settles to set point
recalibrate –see section 7.4
Temperature too low
1/ controller set too low –see section 7.3
2/ unit not recovered from door opening –wait for display to stop
changing
3/ unit not recovered from power failure or being turned off
4/ element failure –see if heating light is on; compare current draw to
data plate
5/ controller failure –confirm with front panel light that controller is calling
for heat
6/ wiring problem –check all functions and compare wiring to wiring
schematic in manual - especially around any areas recently worked on
7/ loose connection –check shadow box for loose connections
Display reads "LO"
1/ sensor is plugged in backwards –reverse sensor wires to controller
2/ if ambient room temperature is lower than range of unit –compare set
points and ambient temperature to rated specifications in manual Unit
Specifications
Unit will not heat over a temperature that
is below set point
1/ check connections to sensor
2/ check calibration –using independent thermometer, follow instructions
in section 7.4
Unit will not heat up at all
1/ verify that controller is asking for heat by looking for heating light –if
pilot light is not on continuously during initial start up, there is a problem
with the controller
2/check amperage –amperage should be virtually at maximum rated
(data plate) amperage
Section
9

13
3/ do all controller functions work?
4/ has the fuse or circuit breaker blown?
5/Units will need at least some vacuum in chamber to keep unit air tight -
verify with control panel vacuum gage
Indicated chamber temperature unstable
1/ ±0.1 may be normal
2/ is ambient room temperature radically changing –either door opening
or room airflow from heaters or air conditioning? –stabilize ambient
conditions
3/ sensor miss-located, damaged or wires may be damaged - check
mounts for then trace wires or tubing between sensors and controls
4/ calibration sensitivity –call Customer Service
5/ electrical noise –remove nearby sources of RFI including motors,
arcing relays or radio transmitters
6/ bad connection on temperature sensor or faulty sensor –check
connectors for continuity and mechanical soundness while watching
display for erratic behavior; check sensor and wiring for mechanical
damage
Will not maintain set point
1/ assure that set point is at least 5 degrees over ambient room
temperature
2/ see if ambient room temperature is fluctuating
Display and Reference thermometer
don’t match
1/ calibration error –see section 7.4
2/ temperature sensor failure –evaluate if pilot light is operating correctly
3/ controller failure –evaluate if pilot light is operating correctly
4/ allow at least two hours to stabilize
5/ verify that reference thermometer is certified
Can't adjust set points or calibration
1/ turn entire unit off and on to reset
2/ if repeatedly happens, call Customer Service
Calibrated at one temperature, but not at
another
This can be a normal condition when operating temperature varies widely.
For maximum accuracy, calibration should be done as close to the set
point temperature as possible.
MECHANICAL
Glass door not sealing
1/ check physical condition of gasket
2/ assure that gasket clamps are in original location
Outer door not sealing
1/ adjust hinge blocks
2/ Confirm that unit has not been damaged and body is not out of square.
unit won’t hold vacuum
1/ check door gasket for alignment and damage, wear or lack of
compliance
2/ assure all vent and feed valves are closed tightly
3/ assure tight connections to pump
OTHER
Controller on at all times-"locked-up"
1/ turn unit off and on to reset
2/ if cannot change any condition on the front panel, call Customer
Service
front panel displays are all off
1/ check connections to the temperature display control board and assure
that all are tight and in the correct orientation.
2/ Check for wire damage.
unit or wall fuse/circuit breaker is blown

14
1/ check wall power source
2/ compare current draw and compare to specs on data plate
3/ see what other loads are on the wall circuit
unit will not turn on
1/ check wall power source
2/ check fuse/circuit breaker on unit or in wall
3/ see if unit is on, e.g., heater, and just controller is off
4/ check all wiring connections, esp. around the on/off switch
Unit is smoking –Out of box
This is not uncommon during initial operation. Put unit under vent and run
at full power for one hour.
Contamination in chamber
1/ see cleaning procedure in operator’s manual
2/ develop and follow standard operating procedure for specific
application; include definition of cleaning technique and maintenance
schedule
SERVICE
If this product should require service, contact your service representative. If return of the product be
necessary, a return authorization number must be obtained along with proper shipping instructions. To
insure prompt handling, the return authorization number should be placed on the outside of the package
or container. Make sure a detailed explanation of the reason for return is enclosed with the unit. For
information on where to contact customer service, please see the manual cover.

15
PARTS LIST –115V
Description
1470
1480
1490
Door Gasket, Standard Silicone
3450706
3450707
3450719
Door Glass
3550542
3550540
3550586
Element
9570739
9570728
9570815 ( sides)
9570816 (top/bottom)
Feet
2700513
2700512
2700512
Pilot Light (Red)
4650553
4650553
4650553
Pilot Light (Green)
4650554
4650554
4650554
Power Cord
1800516
1800516
1800516
Power Switch
7850532
7850532
7850532
Sensor Clip
5080536
5080536
5080536
Solid State Relay
7030527
7030527
7030527
Temperature Control
1750604
1750606
1750608
Temperature Sensor
6600520
6600520
6600520
Vacuum Gauge
7850555
7850555
7850555
Vacuum Gauge Power Supply
6750507
6750507
6750507
Vacuum Valve
8600571
8600571
8600571
Vent Valve
8600566
8600566
8600566
Section
10

16
PARTS LIST –220V
Description
1470
1480
1490
Door Gasket, Standard Silicone
3450502
3450503
3450504
Door Glass
3550542
3550540
3550586
Element
9570739
9570728
9570815 ( sides)
9570816 (top/bottom)
Feet
2700513
2700512
2700512
Pilot Light (Red)
4650553
4650553
4650553
Pilot Light (Green)
4650554
4650554
4650554
Power Cord, Euro
1800500
1800500
1800500
Power Cord, USA
1800537
1800537
1800537
Power Switch
7850532
7850532
7850532
Sensor Clip
5080536
5080536
5080536
Solid State Relay
7030527
7030527
7030527
Temperature Control
1750605
1750607
1750609
Temperature Sensor
6600520
6600520
6600520
Vacuum Gauge
7850555
7850555
7850555
Vacuum Gauge Power Supply
6750507
6750507
6750507
Vacuum Valve
8600571
8600571
8600571
Vent Valve
8600566
8600566
8600566
Additional Gaskets Sold:
1470
1480
1490
Hi –Temp Silicone
3450508
3450509
3450510
Buna –N -Solvents
3450712
3450708
3450724

17
UNIT SPECIFICATIONS
Weight
Shipping
Net
1470
67 lbs.
55 lbs.
1480
240 lbs.
115 lbs.
1490
315 lbs.
275 lbs.
Dimensions
Exterior WxDxH (in.)
Interior WxDxH (in.)
1470
20.5x17x16.3
9x12x9
1480
25.5x25x21
12x20x12
1490
30.5x28.5x25.5
18x24x18
Capacity
Cubic Feet
1470
0.6
1480
1.7
1490
4.5
Temperature
Range
Uniformity
Sensitivity
1470
Amb. +10to 240C
+3.5@ 100C
1.0C
1480
Amb. +10to 240C
+3.5@ 100C
1.0C
1490
Amb. +10to 240C
+3.5@ 100C
1.0C

18

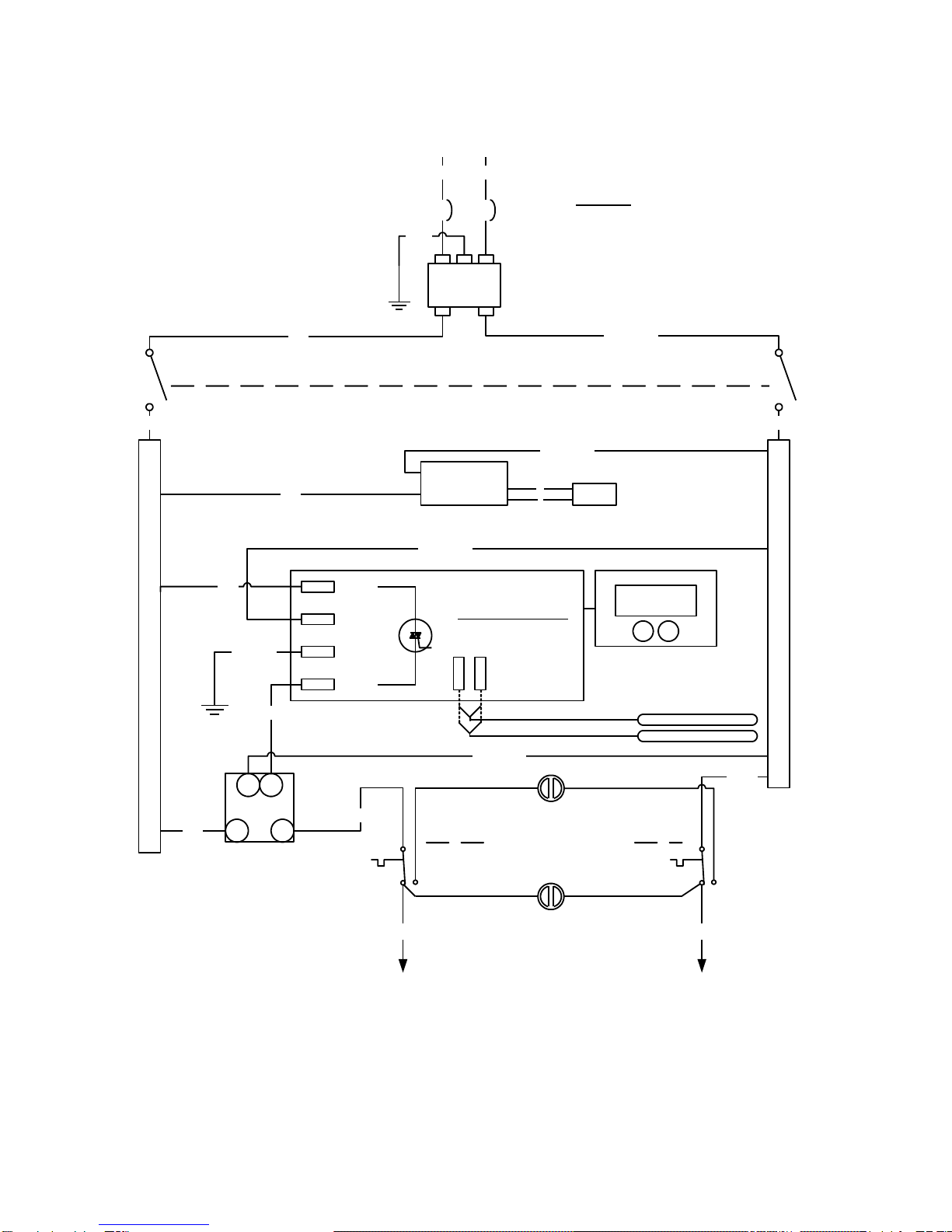

WIRE DIAGRAM
½
T
B
½
T
B
EMI FILTER
2800502
BLK (WHT) RED
GRN/
YEL
BLK (WHT) RED
(WHT) REDBLK
12VDC POWER
SUPPLY -
+
BLK
(WHT) RED
HOT
NEUTRAL
GROUND
LOAD
PROBE
37.0
BLK
(WHT) RED
21
4 3
BLK
(WHT) RED
BLK
1100505
CKT BKR 15A
*
**NOT USED ON 115V MODELS.
TEXT IN ( ) REFER TO 115V MODELS.
example: ( 115V MODELS ) 230V MODELS
NOTES:
DIGITAL
VACUUM GAUGE
BLK
(WHT)
RED
1
24
1
24
RTD PROBE #1
RTD PROBE #2
GRN/YEL
“OVER TEMP ACTIVATED”
“HEATING ACTIVATED”
TO HEATING ELEMENTS
SEE FIGURE 2
9851074 1/21/09
FIGURE 1
MICRO-A CONTROLLER
MAIN POWER SWITCH
7850532 (ROUND)
ALL WIRES ARE HIGH TEMP.
THESE OVEN MODELS INCORPORATE A HARD-
WIRED POWER CORD. PART NUMBERS ARE
LISTED BELOW:
120V DOMESTIC 1800516
240V DOMESTIC 101990
SOLID STATE RELAY
101168 ½ 1750648
½ 1750648
RTD PROBES (x2)
103070
1750604
(RTD CONNECTION
POLARITY IS NOT
CRITICAL)
RED
GREEN
“SET OVER TEMPERATURE”
CONTROL
200020
200021
6750507
7850555
“SET TEMPERATURE”
TAN TAN

19
MODEL 1470 (0.6 cu ft)
MODEL 1480 (1.6 cu ft)
MODEL 1490 (4.5 cu ft)
220-240V WIRING 110-120V WIRING
110-120V WIRING220-240V WIRING
220-240V WIRING 110-120V WIRING
9851074 1/21/09
FIGURE 2
ELEMENT STATS
ASSEMBLY P/N: 9570739 x2 (1 LEFT & 1 RIGHT)
COIL RESISTANCE COLD: 35.7ea. COIL P/N: 2350509
DESIGN WATTAGE: 375W ea. DESIGN VOLTAGE: 120V ea.
ELEMENT STATS
ASSEMBLY P/N: 9570739 x4 (2 LEFT & 2 RIGHT)
COIL RESISTANCE COLD:  ea. COIL P/N: 2350509
DESIGN WATTAGE: 250W ea. DESIGN VOLTAGE: 60V ea.
ELEMENT STATS
ASSEMBLY P/N: 9570855 x4 (2 TOP & 2 BOTTOM)
COIL RESISTANCE COLD:  ea. COIL P/N: 2350511
DESIGN WATTAGE: 250 W ea. DESIGN VOLTAGE: 60V ea.
ASSEMBLY P/N: 9570856 x (2 RIGHT SIDE & 1 LEFT SIDE BOTTOM)
COIL RESISTANCE COLD:  ea. COIL P/N: 2350511
DESIGN WATTAGE: 125 W ea. DESIGN VOLTAGE: 60V ea.
ASSEMBLY P/N: 9570913 x1 (RIGHT SIDE TOP)
SAME SPECIFICATIONS AS 9570856 BUT HAS A MOUNTING STUD FOR THE
PROBE.
TOPTOP BOTTOM BOTTOM
UPPER LEFTLOWER LEFTLOWER RIGHTUPPER RIGHT
TOPTOP
BOTTOM BOTTOM
LOWER RIGHTUPPER RIGHT
UPPER LEFTLOWER LEFT
LOWER RIGHTUPPER RIGHT
UPPER LEFT LOWER LEFT
LOWER RIGHTUPPER RIGHT
UPPER LEFT LOWER LEFT
RIGHT LEFT
RIGHT
LEFT

20
SHELDON MANUFACTURING, INC.
LIMITED WARRANTY
Sheldon Manufacturing, Inc., (“Manufacturer”) warrants for the original user of this product in the U.S.A. only that this product (parts only
if outside of the U.S.A.) will be free from defects in material and workmanship for a period of two years from the date of delivery of this
product to the original user (the “Warranty Period”). During the Warranty Period, Manufacturer, at its election and expense, will repair or
replace the product or parts that are proven to Manufacturer’s satisfaction to be defective, or, at Manufacturer’s option, refund the price or
credit (against the price of future purchases of the product) the price of any products that are proven to Manufacturer’s satisfaction to be
defective. This warranty does not include any labor charges if outside of the U.S.A. This warranty does not cover any damage due to
accident, misuse, negligence, or abnormal use. Use of Manufacturer’s product in a system that includes components not manufactured by
Manufacturer is not covered by this warranty. This warranty is void in the event that repairs are made by anyone other than Manufacturer
without prior authorization from Manufacturer. Any alteration or removal of the serial number on Manufacturer’s products will void this
warranty. Under no circumstances will Manufacturer be liable for indirect, incidental, consequential, or special damages. The
terms of this warranty are governed by the laws of the state of Oregon without regards to the principles of conflicts of laws thereof. If any
provision of this limited warranty is held to be unenforceable by any court of competent jurisdiction, the remainder of this limited warranty
will remain in full force and effect.
This warranty is in lieu of and excludes all other warranties or obligations, either express or implied. Manufacturer expressly
disclaims all implied warranties, including without limitation, the warranties of merchantability and fitness for a particular
purpose.
For fast and efficient support, please have the following information available anytime you request service:
Model __________
Serial No. __________
Part No. __________
