VWR 17LREEVWA Owner's manual

VWR General Purpose Refrigerators
and Freezer
Installation and Operation
329688H01 • Rev B• February 2019

IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in 
damage to the unit, injury to operating personnel, and poor equipment performance.
CAUTION All internal adjustments and maintenance must be performed by qualified service personnel.
Material in this manual is for informational purposes only. The contents and the product it describes are 
subject to change without notice. VWR makes no representations or warranties with respect to this manual.
In no event shall VWR be held liable for any damages, direct or incidental, arising from or related to the use of
this manual.
© 2019 VWR Inc. All rights reserved.
For your future reference and when contacting the factory, have the following information readily available.
It will be found on the dataplate attached to your unit.
Model Number:
Serial Number:
The following information, if available, is helpful for contacting the factory.
Date Purchased:
Purchase order number:
Source of Purchase:
(manufacturer or specific agent/representative organization)

Contents
Models......................................................................... 1
Safety Information........................................................ 2
Alert Signals ............................................................. 2
Intended Use Statement........................................... 2
Laboratory Refrigerators/Freezers ................................ 3
Overview .................................................................. 3
Unpacking ................................................................... 4
Shipping Carton ....................................................... 4
Unpacking................................................................ 4
Installation.................................................................... 5
Location................................................................... 5
Leveling the Unit....................................................... 5
Clearance................................................................. 5
Be Advised............................................................... 5
Installation Instruction for 17LREEVWA..................... 5
Installation Instruction for 18LCEEVWA .................... 6
Installation Instruction for 25LCEEVWA .................... 9
Electrical Connection................................................ 11
Operation..................................................................... 12
Environmental Operating Conditions......................... 12
Start-Up Procedure.................................................. 12
How to Save Energy................................................. 12
Safety Tips ............................................................... 12
Replacing the Light Bulb .......................................... 12
Operation Instruction for 25LCEEVWA ..................... 13

Troubleshooting........................................................... 14
Maintenance ................................................................ 16
Cleaning of Units ...................................................... 16
Interior/Exterior and Door Gaskets............................ 16
Condenser Cleaning (17LREEVWA).......................... 17
Cleaning Toe Grille (18LCEEVWA) ............................ 17
Ordering Procedures.................................................... 18
Replacement Parts................................................... 18
Wiring Diagram (25LCEEVWA) ..................................... 19
Warranty ...................................................................... 20

VWR General Purpose Refrigerators and Freezers Models | 1
Models
The table below shows the units covered in this operation and installation manual by model number.
Table 1. Applicable Models and Specifications
17LREEVWA 18LCEEVWA 25LCEEVWA
Size (Cu. Ft.) 17 18 25
Exterior Dimension
(H x W x D)
67.7 x 34 x 28.5 in
(171.9 x 86.4 x 72.4 cm)
66.63 x 30 x 30.13 in
(169.24 x 76.2 x 76.5 cm)
69.75 x 32.75 x 32.38 in
(177.17 x 83.19 x 82.25 cm)
Shipping Weight 190 lbs (86.2 kg) 205 lbs (93 kg) 315 lb (142.8 kg)
Plug Type NEMA 5-15P NEMA 5-15P NEMA 5-15P
ElectricPower 115 V/60 Hz 115 V/60 Hz 115 V/60 Hz
Rated Current (Amps) 5.0 6.0 11.6
Defrost Manual Automatic Automatic

2 | Safety Information VWR General Purpose Refrigerators and Freezers
Safety Information
Your satisfaction and safety are important to VWR and a
complete understanding of these units is necessary to attain
these objectives.
As the user of these products, it is your responsibility to
understand its proper function and operational
characteristics. This instruction and operation manual should
be thoroughly read and all operators given adequate training
before attempting to place these unit in service. Awareness of
the stated cautions and warnings, and compliance with
recommended operating parameters – together with
maintenance requirements – are important for safe and
satisfactory operation. The units should be used for its
intended application; alterations or modifications will void the
Warranty.
Alert Signals
ON
OFF
Safety Alert: Important operating instructions.
To reduce the risk of injury or poor performance
of the unit. Read the user manual before putting
the equipment into operation.
WARNING: Indicates an immediately hazardous
situation, which if not avoided, will result in death
or serious injury.
CAUTION: Indicates an immediately hazardous
situation, which if not avoided, may result in
minor to moderate injury.
Shock Hazard: Use of this equipment involves
power supplies which convert line voltage to low
voltage power. Do not modify or use power
supplies other than OEM equipment. Connection
of the power supply may require a properly
grounded receptacle. Potential for electrical
shock or equipment damage exists if
precautions are not followed.
Frost bite/ Low Temperature: Avoid contact
with cold freezer surfaces potential for cold
burns or skin sticking to cold surfaces.
DANGER: RISK OF CHILD ENTRAPMENT 
Before you throw away your old refrigerator or
freezer:
• Take off doors.
• Leave the shelves in place so that children
may not easily climb inside.
If the equipment is used in a manner not
specified by the manufacturer, the protection
provided by the equipment may be impaired.
Intended Use Statement
The Refrigerators/Freezers described in this manual are for
professional use only. These products are intended for use in
research for the storage of samples or inventory in the
following temperature ranges:
For: 17LREEVWA:
Refrigerators: 32°F to 46.4°F (0°C to 8°C)
For 18LCEEVWA:
Refrigerators: 32°F to 46.4°F (0°C to 8°C)
Freezers: 21.2°F to -4°F (-6°C to -20°C)
For 25LCEEVWA:
Refrigerators: 33.8°F to 53.6°F (1°C to 12°C)
Freezers: 10.4°F to -4°F (-12°C to -20°C)
Only Explosion Proof Units or Flammable Material
Storage Units are to be used for the storage of
flammable inventory/samples.
These units are not considered medical devices and therefore
have not been registered with a medical device regulatory
body (e.g. FDA): that is, they have not been evaluated for the
storage of samples for diagnostic use or for samples to be 
re-introduced to the body.

VWR General Purpose Refrigerators and Freezers Laboratory Refrigerators/Freezers | 3
Laboratory Refrigerators/Freezers
Overview
These are general-purpose units available in all refrigerator,
freezer and combination refrigerator/freezer models. These
units are intended for basic laboratory use only. Storage of
high-value, life science materials or clinical biological may
require alarm, monitoring, back-up and temperature
performance features. The need to add these features should
be determined by your industrial hygienist or safety officer.
These units are not suitable for corrosive, flammable and
explosive environments.
WARNING: DO NOT store flammable materials
in General Purpose Laboratory Refrigerator/
Freezers. Risk of explosion, fire and injury may
occur.
For flammable materials use either a Flammable
Material Storage Unit or an Explosion Proof Unit.
Note: Do not store corrosive materials in this units. Any
damage which occurs due to storage of corrosives will not be
covered under warranty claims.

4 | Unpacking VWR General Purpose Refrigerators and Freezers
Unpacking
Shipping Carton
This should be inspected upon delivery. When received,
carefully examine for any shipping damage before unpacking.
If damage is discovered, the delivering carrier should both
specify and sign for the damage on your copy of the delivery
receipt.
Open the carton carefully making certain that all parts are
accounted for before packaging materials are discarded.
After unpacking, if damage is found, promptly report it to the
carrier and request a damage inspection promptly.
IMPORTANT: Failure to request an inspection of damage
within a few days after receipt of shipment absolves the
carrier from any liability for damage. You must call for a
damage inspection promptly.
DO NOT – FOR ANY REASON – RETURN THIS UNIT
WITHOUT FIRST OBTAINING AUTHORIZATION.
Unpacking
Use the list below when unpacking to verify that the complete
unit has been received. Do not discard packing materials until
all is accounted for.
The following items are included in the shipment:
• Refrigerator/Freezer
• Operation Manual

VWR General Purpose Refrigerators and Freezers Installation | 5
Installation
Location
Locate your unit in the most convenient place and near a
grounded electric outlet. Do not use an extension cord or an
adapter plug.
The cabinet should be level at the front and the rear. The
sides should tilt 1/4 inch (6 mm) from front-to-back to ensure
the doors. Close and seal properly. Doors should align each
other.
If possible, locate your unit out of direct sunlight and away
from heat sources such as a radiator or heat duct.
Leveling the Unit
Unit must have all bottom corners resting firmly on a solid
floor. The floor must be strong enough to support a fully
loaded unit.
After discarding crating screws, use a carpenters level to level
the unit from front-to-back. Adjust the plastic leveling feet in
front, ½ bubble higher, so that the door closes easily when left
open about halfway. To adjust the leveling legs, turn the legs
clockwise to raise the refrigerator, counterclockwise to lower
it.
Clearance
Position the unit so that there is at least
• 3/8" on the sides, 1" at the rear, 3/8" at the top,
It is recommended to leave more space at the back of unit in
case maintenance is required.
Be Advised
WARNING: Unless unit is specifically designed
for combustible or flammable atmospheres. 
DO NOT use in the presence of flammable or
combustible materials or explosive gases. 
DO NOT use in the presence of pressurized or
sealed containers−fire or explosion may result in
death.
CAUTION: Before connecting the final power
supply, check the electrical characteristics of the
unit dataplate to see that it is in agreement with
the power supplied. In addition, power should be
wired to the unit according to the electrical
schematic and all applicable codes. Only
qualified electricians should work on the
electrical portion of any unit installation.
CAUTION: Storage by user of any materials in
the product that may cause a deterioration of the
product shall be deemed to constitute.
WARNING: RISK OF CHILD ENTRAPMENT!
Before you discard your old refrigerator or
freezer:
• Remove door(s),
• Leave the shelves in place so that children
may not easily climb inside.
Installation Instruction for
17LREEVWA
Shelves
Shipped inside each cabinet are three adjustable shelves.
Multi position adjustable interior shelves can be moved to any
position for larger or smaller packages. Shipping spacers that
stabilize the shelves for shipping should be removed and
discarded.
To install the shelf grommet to the
shelf
1. With the wire shelf installed, press the shelf grommet
down onto the wire that is anchored into the appliance
wall. Be sure to keep the larger end of the shelf grommet
away from the wall.

6 | Installation VWR General Purpose Refrigerators and Freezers
2. Push the shelf grommet onto the wire until it snaps in
place.
3. Slide the shelf grommet into the grommet already in the
unit wall until it is flush.
To install the handle clips to the basket
1. Place the basket on a firm, flat surface.
2. With the narrow side of the handle clip on the inside of
the basket, snap the handle clip to the recessed area in
the basket.
3. Once the inside surface snaps in place, continue the
process by rolling the handle clip slightly outward and
pressing down firmly to snap onto the outside surface. If
installed incorrectly, the handle clip will not lay flat.
Installation Instruction for
18LCEEVWA

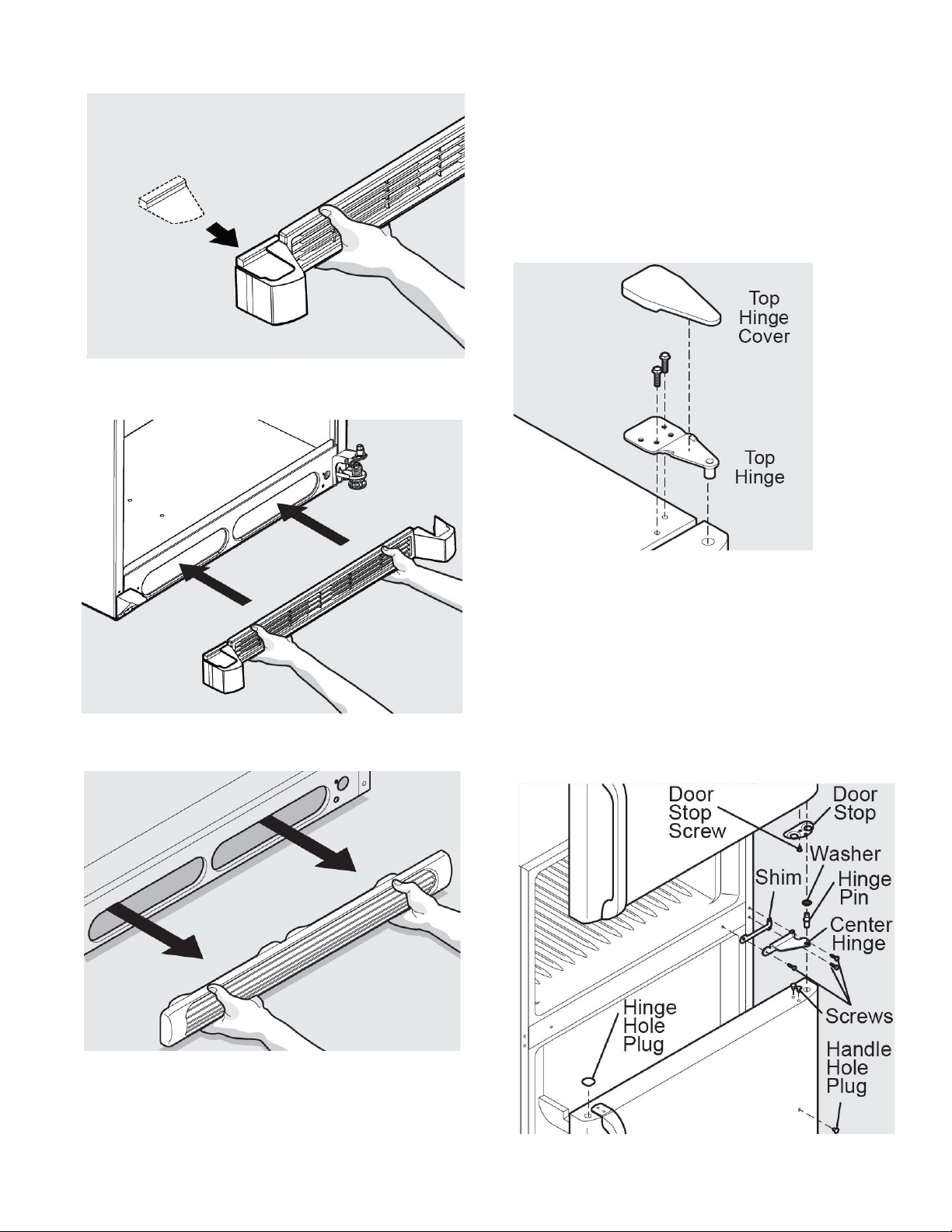

To install the Toe Grille
1. Attach toe grille support bracket to cabinet using 3 bolts
supplied.

VWR General Purpose Refrigerators and Freezers Installation | 7
2. Install left toe grille cover onto slot on left side of toe grille.
3. Attach toe grille to cabinet.
or
Door Removal and Reversal
Instructions
1. Remove toe grille.
2. Remove top hinge cover. Trace around the hinge with a
soft lead pencil. This makes re-installation easier. Remove
top hinge and lift door off center hinge pin. Set door
aside.
3. Unscrew center hinge pin using adjustable wrench and
save for reassembly. Ensure plastic washer stays on
hinge pin.
4. Lift refrigerator door off of bottom hinge and set aside.
5. Remove center hinge and shim by removing inside screw
and loosening two outside screws enough to allow hinge
and shim to slide out. Tighten screws.
6. Loosen two outside screws on opposite side of
refrigerator, remove inside screw and install center hinge.

8 | Installation VWR General Purpose Refrigerators and Freezers
7. Remove three screws on bottom hinge and anti-tip
bracket (if equipped) with 3/8" socket wrench.
8. Install bottom hinge and anti-tip bracket (if equipped) on
opposite side with the three screws removed from step 7.
9. Unscrew bottom hinge pin using adjustable wrench.
Move hinge pin to other hole in hinge and tighten with
adjustable wrench.
10. Reverse door handles (see section Attach Refrigerator
Handle).
11. Move freezer and refrigerator door stops to opposite
side. Before starting screws, use an awl to puncture the
foam.
12. Position refrigerator door onto bottom hinge pin and
screw center hinge pin through center hinge into top of
door. Close refrigerator door to help align hinge hole.
or
13. Tighten center hinge pin with adjustable wrench.
14. Remove cabinet and hinge hole plugs and move to
opposite side.
15. Lower freezer door on-to center hinge pin.
16. Close freezer door. Have an assistant lift up on opposite
side of door while tightening screws to install top hinge.
17. There are two toe grille covers provided in your literature
packet; one for the right side and one for the left side.
Install the appropriate cover over the opening on the side
opposite the anti-tip bracket, (see A & B in below image).
18. Flip toe grille and reinstall (some models).
19. Plug in electrical power cord and turn refrigerator
temperature control to center position. Adjust setting as
necessary.
Note: In case of future door reversals, save the
toe grille cover not being used.
WARNING: When reversing the door swing: You
MUST move the anti-tip bracket to align with the
hinges of the door and install the toe grille
support for proper balance. Failure to do so will
result in injury.

VWR General Purpose Refrigerators and Freezers Installation | 9
Installation Instruction for
25LCEEVWA
Door Seal
CAUTION: Door seal integrity is critical for
refrigerators and freezers. A loose fitting gasket
allows moist air to be drawn into the cabinet,
resulting in quicker frost build-up on the
evaporator coil, longer running time, poor
temperature maintenance, and increased
operation cost.
To check the door seal, complete the following steps:
1. Open the refrigerator door.
2. Insert a strip of paper (a couple of inches wide) between
the door gasket and the cabinet flange and close the
door.
3. Slowly pull the paper strip from the outside. You should
feel some resistance.
4. Repeat this test at 4 inch intervals around the door. If the
door does not seal properly, replace the gasket.
5. Check the freezer door seal, repeating steps 1 to 4.
Rearranging the Shelves
Shelves in the refrigerator compartment are adjustable.
To remove:
1. Remove all items from the shelf.
2. Tilt the shelf up at the front.
3. Lift the shelf up at the back and bring the shelf out.
Refrigerator Compartment
To replace:
1. While tilting the shelf up, insert the top hook at the back
of the shelf in a slot on the track.
2. Lower the front of the shelf until the bottom of the shelf
locks into place.
Adjustable Bins on the Door
Adjustable bins can easily be carried from refrigerator to work
area.
To remove:
• Lift bin straight up, then pull out.
To replace or relocate:
• Slide in the bin just above the molded door supports, and
push down. The bin will lock in place.
The snugger helps prevent tipping, spilling or sliding of small
items stored on the door shelf. Grip the finger hold near the
rear of the snugger and move it to fit your needs.
Non-Adjustable Bins on the
Door

10 | Installation VWR General Purpose Refrigerators and Freezers
To remove:
• Lift the bin straight up, then pull out.
To replace or relocate:
• Engage the bin in the molded supports on the door and
push down. It will lock in place.
Basket Removal
Note: Do not fill baskets higher than the rim. This may cause
basket to stick or jam when opening or closing.
Top Basket Removal
To remove the top full-width basket on freezer drawer
models:
1. Pull the basket out to the stop location.
2. Lift basket up to release it from the slides.
When replacing the basket,make sure that the basket
remains mounted on the side rails and over the slides of the
bottom basket.
Note: Always be sure to fully close this basket.
Bottom Basket Removal
To remove the bottom full-width basket on freezer drawer
models:
1. Open the bottom freezer drawer until it stops.
2. Remove the top freezer basket.
3. The bottom freezer basket rests on the inside tabs on the
drawer slides.
4. Lift the front of the basket and pull forward.
5. Release the pin from the slot to remove the basket.
When replacing the bottom full-width basket, tilt the
basket back and lower it into the drawer. Rotate the basket to
a horizontal position and press down. Make sure to place the
pin back into the slot.
Note: Always be sure that the basket is seated on the bracket
tabs before sliding the drawer back into the freezer.
Attach Refrigerator Handle
To attach the refrigerator handle, use a 3/32" hex key to fix
the two setscrews located on the side of each handle. Push
the handle straight into the door. See the following image.

VWR General Purpose Refrigerators and Freezers Installation | 11
Attach Freezer Handle
To attach the freezer handle, use a 3/32" hex key to fix the
two setscrews located on the side of each handle. Push the
handle straight into the drawer. See the following image.
Electrical Connection
CAUTION: Be sure that the power supply is the
same voltage that is specified on the refrigerator/
freezer’s data plate.
CAUTION: DO NOT REMOVE, under any
circumstance, the grounding prongs from the 
3-prong power cord supplied with all units.
CAUTION: DO NOT USE electrical extension
cords that may result in voltage loss and possible
hazardous operation.
WARNING: For personal safety and trouble-free
operation, this unit must be properly grounded
before it is used. Failure to ground the equipment
may cause personal injury or damage to the
equipment. Always conform to the National
Electrical Code and local codes. Do not connect
unit to already overloaded power lines.
Note: The unit should always be connected to a dedicated
power source.
The frequency and nominal voltage requirements these unit
are specified on the data plate, which is located on the upper
left side of the interior. Only plug the unit into a power source
that meets these requirements. Low line voltage is often the
cause of service complaints. With the unit running, check that
the line voltage is within ±10% of that specified on the data
plate.
The power cord of these unit is equipped with a three prong
(grounding) plug (NEMA 5-15P). This plug mates with a
standard three prong (grounding) wall receptacle (NEMA
5-15R) to minimize the potential of an electrical shock hazard.
The customer should have the wall receptacle and circuit
checked by a qualified electrician to verify the receptacle is
properly grounded and is connected to a minimum 15 Amps
service. If you are not sure about the outlet, you should
contact a qualified electrician for assistance.

12 | Operation VWR General Purpose Refrigerators and Freezers
Operation
Environmental Operating
Conditions
Pollution Degree* 2
Installation Category II
Altitude 2000 Meters MSL (Mean Sea
Level)
Humidity 80% maximum, 
non-condensing
Electrical Supply 115 V/60 Hz
Voltage Tolerance ±10% of normal rated line
Ambient Operating
Temperature
59ºF to 89.6ºF
(15ºC to 32ºC)
Product Usage This product is intended for
use indoors only
*Refer to IEC 664-1
Start-Up Procedure
Rotate the control knob clockwise to lower the temperature
and counter-clockwise to raise it. Adjust the freezer
temperature by adjusting the temperature from cold to
coldest in small increments.
Figure 1. Control Knob
Because the markings on the dial do not indicate specific
temperatures, use them AS REFERENCE POINTS ONLY for
any future settings of the temperature.
How to Save Energy
• Be sure to follow location suggestions as mentioned in
section Installation.
• Wipe moisture from glassware or other materials before
placing them in a unit.
• Don’t overcrowd the unit. Too many items can increase
electrical energy demand in order to keep everything
cool.
• Close the door as soon as possible in hot, humid
weather.
• Make certain that the door is closed tightly.
• Set operating temperature no colder than necessary for
the items being refrigerated.
Safety Tips
After a unit is in operation, do not touch the cold
surfaces, particularly when hands are damp. Skin
may adhere to the extremely cold surfaces.
Never disconnect your unit by pulling on the
power cord. Always grip the plug securely and
pull straight out from the outlet.
Do not use a power cord that shows cracks or
abrasions. Have a qualified electrician repair or
replace damaged cords immediately.
Replacing the Light Bulb
The lights comes on automatically when the door is opened.
To replace the light bulb, turn the temperature control to OFF
and unplug the electrical cord. Replace the old bulb with a
bulb of the same wattage.
CAUTION: Light bulbs may be hot.
Note: An authorized technician will be needed to
replace the LED light.

VWR General Purpose Refrigerators and Freezers Operation | 13
Replacing the Light Bulb for
25LCEEVWA
For refrigerator and freezers, LED lights are located at the top
of the compartment.
1. Unplug the refrigerator or disconnect power.
2. Remove the light shield on top of the refrigerator
compartment - Slide the light shield toward the back of
the compartment to release it from the light assembly.
Figure 2. Light bulb light shield
3. Replace the burned-out LED bulb(s) with a bulb of the
same size, shape and wattage.
Note: Some LED replacement bulbs are not recommended
for wet/damp environments. The refrigerator and freezer
compartments are considered to be wet/damp environments.
If using a brand of LED bulb other than the recommended
LED bulb, before installation, read and follow all instructions
on the LED packaging.
4. Replace the light shield.
5. Plug in refrigerator or reconnect power.
Operation Instruction for
25LCEEVWA
The temperature controls are located at the top front of the
compartments for both refrigerator and freezer.
For optimum performance, follow the recommended settings
shown in the following figure.
Note: Adjusting the refrigerator and freezer temperature
controls to a colder than recommended setting will not cool
the compartments any faster.
Freezer and Temperature
Control
Temperatures for freezer and refrigerator compartment can
be modified independently as desired. After setting the unit to
desired temperatures, allow 24 hours for temperature to
stabilize to the desired settings.
Figure 3. Control Panel (25LCEEVWA)
To Turn ON/OFF
Press both Minus Sign touch pads repeatedly until a dash (-)
appears in both the refrigerator and freezer displays. It will
turn off the unit and neither compartment will cool.
Defrosting
This freezer defrosts automatically and there should be no
significant frost build up in the freezer compartment.
During a defrost period, a thermostat will turn the defrost
heater off when all the ice has melted from the evaporator.

14 | Troubleshooting VWR General Purpose Refrigerators and Freezers
Troubleshooting
In the event that your unit is not operating properly, check the following before calling for service assistance—this may save you
the cost of unnecessary service calls.
Symptoms Probable Cause Action
Unit not operating Unit unplugged
Temperature control is in OFF position
Plug in unit
Refer to Figure 1 where knob position is
shown
Noise problems This can be caused by contents of unit
being set too close and rattling against
each other
Hissing or gurgling sound is caused by
refrigerating fluid circulating and is
normal
Noise can result if unit is not level on
floor
Re-arrange content as needed



Check with level
Insufficient cooling Thermostat set too high
Unit frosted
Samples placed against air vents
obstructing airflow.
Reduce thermostat setting
Wait for 30 minutes for defrost cycle to
end
Relocate the sample
Unit warms up Door is Open

Door is Seal
Warm product recently loaded in unit
Compressor
Make sure the door is completely
closed
Check the door seal
Allow ample time to recover from
loading warm product
If the compressor is not running, have
an electrician check for proper voltage
to the unit
If the compressor is running, contact an
authorized service provider or call the
technical support hot line for assistance
Longer sound levels when
compressor comes on
Unit operates at high pressures during
the start of the “ON” cycle
This is normal. Sound will level off or
disappear as unit continues to run
Fan runs when room temperature
is below 45°C (113°F)
Exterior thermostat has activated heater
and fan
This is normal

VWR General Purpose Refrigerators and Freezers Troubleshooting | 15
External temperature is too warm The external walls can be as much as
–1ºC (30ºF) warmer than room
temperature
This is normal while the compressor
works to transfer the heat from inside
the cabinet
Temperature fluctuates Cold control
Condenser
Make sure that the cold control is set
correctly
Make sure the condenser is clean. Refer
section Maintenance
Unit warms up Door is Open

Door is Seal
Warm product recently loaded in unit
Compressor
Make sure the door is completely
closed
Check the door seal
Allow ample time to recover from
loading warm product
If the compressor is not running, have
an electrician check for proper voltage
to the unit
If the compressor is running, contact an
authorized service provider or call the
technical support hot line for assistance
Moisture forms on outside of
refrigerator
Not unusual during periods of high
humidity
Wipe surface dry and reset the
refrigerator control to one setting
colder.
Unit runs continuously Door is open



Temperature set too cold
Ambient temp too high (above 109ºF or
43ºC)
A leak around the door gasket will allow
cold air to escape. This causes unit to
work harder than necessary to maintain
cold temperatures. Re-seat or replace
the gasket if worn
Check optimum running temperature
Move the unit to a different location
Symptoms Probable Cause Action

16 | Maintenance VWR General Purpose Refrigerators and Freezers
Maintenance
Cleaning of Units
Note: Make no attempt to void the warranty
period, such consultation is still advised,
especially when the repair may to service or
repair product under warranty before consulting
your dealer. After be technically sophisticated or
difficult. If assistance is needed beyond what the
distributor can provide, please call Customer
Service at [phone]. No merchandise
should be returned directly to the factory without
obtaining a Return Materials Authorization (RMA)
number from Customer Service.
WARNING: When servicing the unit, disconnect
from the electrical power source.
• Disconnect power cord from its outlet.
• Set the temperature control to the OFF position.
• The unit designs permit easy and rapid cleaning and
should not take more than a few minutes. Remember to
wear protective gloves to prevent frost bite, especially
when removing items from freezer units.
• Do not use abrasive scouring powders, waxes, solvents,
furniture polish, undiluted detergents or cleansers
containing petroleum products on the surfaces of units.
• Use 2 table spoons of baking soda in 1 quart of warm
water. Be sure to remove excess water out of sponge or
cloth before cleaning around controls, light bulb or any
electrical parts.
Cleaning 25LCEEVWA
Cleaning the Outside
The door handles and trim:
Clean with a cloth dampened with soapy water. Dry with a
soft cloth. Do not use wax on the door handles and trim.
The stainless steel panels, door handles and trim:
Do not use appliance wax, polish, bleach, or other products
containing chlorine on stainless steel. Stainless steel can be
cleaned with a commercially available stainless steel cleaner.
A spray-on stainless steel cleaner works best.
Silver-accented plastic parts:
Wash parts with soap or other mild detergents. Wipe clean
with a sponge, damp cloth or paper towel. Do not use
scouring pads, powdered cleaners, bleach or cleaners
containing bleach because these products can scratch and
weaken the paint finish.
Should spill tray need cleaning use lime remover.
Do not wipe the refrigerator with a soiled dish cloth or wet
towel. These may leave a residue that can erode the paint. Do
not use scouring pads, powdered cleaners, bleach or
cleaners containing bleach because these products can
scratch and weaken the paint finish.
Cleaning the Inside
WARNING: Unplug the refrigerator before
cleaning.
Use an appliance wax polish on the inside surface between
the doors.
Use warm water and baking soda solution about a
tablespoon (15 ml) of baking soda to a quart (1 liter) of water.
This both cleans and neutralizes odors. Rinse and wipe dry.
CAUTION: Avoid cleaning cold glass shelves
with hot water because the extreme temperature
difference may cause them to break. Handle
glass shelves carefully. Bumping tempered glass
can cause it to shatter.
Interior/Exterior and Door
Gaskets
A solution of mild soap and water can be used for cleaning
the interior, exterior and door gaskets with a soft, clean cloth.
Rinse with clean water and dry thoroughly before
reconnecting and turning on the unit.
