Vyaire SprintPack User manual

Print the attached pages according to the printing instructions.
Do not print this page.
Printing Instructions
Doc. Files: 32328-001-A_OpMnl_SprintPack_EN.pdf - This file contains the
SprintPack Li-Ion Power System Operator's Manual, with
embedded high resolution graphics and multiple languages.
•Print high resolution, black & white, double sided,
5.5” W X 8.5“ H, white, 20 lb (or equivalent) paper.
32328-001-A_CoverPage_SprintPack.pdf - This file contains the
manual’s cover page with embedded high resolution color
graphics.
•Front and back page of manual, print high resolution color, on
5.5” W X 8.5“ H, white, 100# (or equivalent) paper for front and
back cover.
Fulfillment: 5.5” W X 8.5” H Cover pages and Text, Perfect Binding.
Ink: Text - Black.
Cover pages - Color copied or 4CP (at buyer’s discretion) from
Adobe Acrobat.
Artwork: Graphics files embedded “high-resolution” digital format (ai., .jpg,
.tiff, etc.).
Proofs: Printer to provide two proof” copies to Vyaire Medical for review
and approval before printing production order quantities.
•One copy to be retained by Vyaire Medical to use as a control
copy.
•Second copy to be returned to the printer to use as the vendor
control copy.
Note: All files and/or materials supplied are Vyaire Medical confidential
information, and remain its sole and exclusive property and may
not be used, disclosed, copied or reproduced without the prior
written permission of Vyaire Medical.
Versions
Ver.
Change Order
Description
A
101632
Initial release.
Vyaire Medical, Inc.
Cover
Sheet
Title: SprintPack Li-Ion Power System
Part no.: 32328-001
Ver.: A

32328-001 Version A Operator’s Manual – SprintPack™i
Contact Information
Vyaire Medical, Inc.
26125 North Riverwoods Blvd.
Mettawa, IL 60045
USA
www.vyaire.com
Customer and Clinical Support
Product, Accessories, and Parts Ordering
1-833-327-3284
[e-mail]
LTVand SprintPack are trademarks belonging to Vyaire Medical.
©2019 Vyaire. Vyaire, the Vyaire logo and all other trademarks or registered
trademarks are property of Vyaire Medical, Inc., or one of its affiliates.

ii Operator’s Manual – SprintPack™32328-001 Version A
Notice to Operators
Unsafe Operation - Operating the SprintPack™Li-Ion Power System without
a complete and thorough understanding of its attributes is unsafe. It is
important that this manual be read and understood in its entirety before
operating the SprintPack Li-Ion Power System.
Warnings and Cautions Section - Read the section on Warnings and
Cautions carefully before operating the SprintPack Li-Ion Power System.
Use and Maintenance - Any questions regarding installing, operating, or
maintaining the SprintPack Li-Ion Power System, should be directed to
Vyaire Medical.
Warranty
The SprintPack Li-Ion Power System, a Vyaire Medical product, is warranted
to be free of defects in material and workmanship for a period of six months
from the date of purchase.
Vyaire Medical will, at its discretion, either repair, replace, or issue credit for
products that prove to be defective during the warranty period.
For warranty service or repair, the product must be returned to Vyaire
Medical, shipping prepaid by the Buyer.
LIMITATION OF WARRANTY
Normal maintenance, as specified in the SprintPack Li-Ion Power System
Operator’s Manual, is not covered under the foregoing warranty.
The foregoing warranty does not apply to defects resulting from:
1) Improper or inadequate maintenance of the unit.
2) Improper use or misuse of the unit.
3) Unauthorized modifications or repair to the unit.
4) Use of the unit with unauthorized accessories.
5) Operation of the unit outside the specified environment.
LIMITATION OF LIABILITY
Vyaire Medical shall not be liable for loss of profits, loss of use,
consequential damages, or any other claim based on breach of warranty.
Vyaire Medical’s liability for damages of any kind shall be limited to the
purchase price of the defective unit.

32328-001 Version A Operator’s Manual – SprintPack™iii
Table of Contents
CHAPTER 1: INTRODUCTION 1-1
Operator’s Safety Information 1-1
Warnings 1-2
Cautions 1-3
Symbols 1-4
Notices 1-5
CHAPTER 2: SPRINTPACK™OVERVIEW 2-1
Principles of Operation 2-1
Intended Use 2-2
Getting Assistance 2-2
CHAPTER 3: SPRINTPACK™ACCESSORIES 3-1
SprintPack™Battery (P/N 19444-001) 3-1
SprintPack™Power Manager (P/N 19333-001/19333-201) 3-2
Transport Pack (P/N 19102-001) 3-2
CHAPTER 4: CHARGING THE SPRINTPACK™4-1
Inserting / Removing SprintPack™Batteries 4-1
Powering the SprintPack™Li-Ion Power System 4-2
Battery Charge Level 4-3
Expected Charge Time 4-5
Expected Number of Lifetime Cycles 4-5
Expected Battery Duration 4-6
Battery Disposal 4-6
CHAPTER 5: POWERING THE LTV™VENTILATOR 5-1
Connecting the SprintPack™to an LTV™Ventilator 5-1
External Power and the LTV™Ventilator 5-2
Battery Run Time 5-3
Troubleshooting 5-4
CHAPTER 6: CLEANING 6-1
Power Manager, Batteries and Cords 6-1
CHAPTER 7: STORAGE AND MAINTENANCE 7-1
Recommended Maintenance 7-1
Storage and Transport 7-1
CHAPTER 8: SPRINTPACK™SPECIFICATIONS 8-1

iv Operator’s Manual – SprintPack™32328-001 Version A
This page intentionally left blank

32328-001 Version A Operator’s Manual – SprintPack™1-1
Chapter 1: INTRODUCTION
This manual describes how to set up and operate the SprintPack™Li-Ion
Power System, and contains what you need to know to perform the
following:
•Recharge the SprintPack Batteries using approved power sources
•Power an LTV™Ventilator using the SprintPack Li-Ion Power System
•Perform simple troubleshooting on the SprintPack Li-Ion Power System
For service tests and major maintenance operations, contact Vyaire Medical.
Operator’s Safety Information
All Operators are to read and understand the following information about
Warning, Caution, and Note statements before operating the LTV
SprintPack Li-Ion Power System.
WARNING
“Warning” statements alert the reader to potentially hazardous situations
which, if not avoided, could result in death or serious injury.
CAUTION
“Caution” statements alert the user to potentially hazardous situations
which, if not avoided, could result in equipment damage.
NOTE
“Note” statements contain additional information to assist in the
proper operation of the SprintPack Li-Ion Power System.

1-2 Operator’s Manual – SprintPack™32328-001 Version A
Warnings
These warnings apply any time you handle or operate the SprintPack Li-Ion
Power System.
WARNING
•LTVVentilator power input - The LTV Ventilator
accepts approved power sources with a voltage rating of
11 –15 Volts DC (VDC). Do not apply more than 15
VDC to an LTV Ventilator, as damage to internal
components may occur.
•Read instructions - Before operating the SprintPack
Li-Ion Power System, read all instructions, warnings,
cautions, and notes.
•Risk of electric shock - To reduce the risk of electrical
shock and damage to the SprintPack Li-Ion Power
System, do not expose it to snow, rain, or liquid of any
kind. Do not operate the SprintPack Li-Ion Power
System if any part has been dropped or damaged in
any way. Contact Vyaire Medical for service or support.
•Unauthorized repairs - Do not disassemble the
SprintPack Li-Ion Power System, or any connectors, or
use the SprintPack Li-Ion Power System if any piece
is damaged. Do not try to repair any part of the
SprintPack Li-Ion Power System.Contact Vyaire
Medical for service or support.
•Disconnect before cleaning - To reduce the risk of
electrical shock, always disconnect the SprintPack Li-
Ion Power System from the ventilator and/or input
power source before cleaning.
•Alternate power supply - It is recommended that an
alternative means of supplying external power to the
ventilator be available at all times.

32328-001 Version A Operator’s Manual – SprintPack™1-3
Cautions
These cautions apply any time you handle or operate the SprintPack Li-Ion
Power System.
CAUTION
•Unauthorized accessories - Do not use parts or accessories
unless they have been authorized for use with the SprintPack Li-Ion
Power System. Using unauthorized parts or accessories may
damage the SprintPack Li-Ion Power System and void the
warranty.
•Positioning of equipment - Do not position the SprintPack Li-Ion
System, power source or any cord in a way that it may be tripped
over, stepped on, or dislodged from other equipment.
•Possible damage to the LTV SprintPack - Never lift or handle the
SprintPack Li-Ion System by its power cords. Damage to the
SprintPack Li-Ion Power System could result.
•Connecting to the ventilator -When connecting the SprintPack
Li-Ion Power System to the ventilator, use only the approved
method and connectors specified in this LTV SprintPack Operator’s
Manual.
•Cleaning agents - Do not use cleaning agents that contain phenols,
ammonium chloride, chloride compounds, or more than 2%
glutaraldehyde. These agents may damage plastic components.
•Harsh abrasives -Do not use harsh abrasives when cleaning the
SprintPack Li-Ion Power System as they may damage the
components. Clean the batteries and Power Manager with a
damp, lint free cloth.
•Immersion in liquids - Do not immerse the SprintPack Li-Ion
Power System in liquid sterilizing agents or liquids of any kind.
•Safe handling of chemicals - Check with the manufacturer of all
cleaning chemicals to ensure safe handling procedures are followed.

1-4 Operator’s Manual – SprintPack™32328-001 Version A
Symbols
Symbol Compliance1Title Application
ISO 3864
(Prev. IEC
348)
Symbol No.
B.3.1
Caution (refer to
accompanying
documents)
Used to direct the user
to the instruction manual
where it is necessary to
follow certain specified
instructions where safety
is involved.
Operating
Temperature
SprintPack Li-Ion Power
System operating
temperature.
(5º C to 40º C)
WEEE
Directive
2002/96/EC
Waste Container
To identify Waste
Electrical and Electronic
Equipment (WEEE) that
is not to be disposed of
as unsorted municipal
waste and is to be
collected separately.
No. 417-IEC-
5031
Direct Current
Indicates that the
equipment is suitable for
direct current.
1Reference IEC Medical Electrical Equipment, 2nd. Edition 1988

32328-001 Version A Operator’s Manual – SprintPack™1-5
Notices
The SprintPack Li-Ion Power System may emit and receive electromagnetic
interference. Avoidance of this exposure is recommended whenever
possible.
European Regulatory Requirements per 93/42/EEC Medical
Device Directives
Vyaire Medical’s European Representative for vigilance reporting within the
European Community is:
Authorized Representative in the
European Community
Emergo Europe
Prinsessegracht 20
2514 AP The Hague
The Netherlands
Any product malfunctioning issues that fall under Medical Device Directives
Essential Requirements should be directed to Emergo Europe.

1-6 Operator’s Manual – SprintPack™32328-001 Version A
This page intentionally left blank

32328-001 Version A Operator’s Manual – SprintPack™2-1
Chapter 2: SprintPack™OVERVIEW
The SprintPack Li-Ion Power System is a portable, rechargeable external
power source and charger for the Vyaire Medical line of LTV Ventilators. The
SprintPack Li-Ion Power System consists of two batteries and one Power
Manager.
The SprintPack Li-Ion Power System offers the following features:
•A comprehensive package that provides up to five hours of
mobile power for the LTV Ventilator
•Easy set-up, operation, and maintenance
•Two rechargeable 6.6 amp-hour, sealed, no-maintenance
SprintPack Batteries
•SprintPack Power Manager for recharging the batteries and
providing power to an LTV Ventilator
Principles of Operation
The SprintPack Li-Ion Power System accepts approved power sources (see
Table 4.1 for list of approved power sources) to recharge the batteries and
provide an external power source to an LTV Ventilator.
The SprintPack Li-Ion Power System utilizes a Power Manager to recharge
and hold the SprintPack batteries. The Power Manager has an automatic
charging control circuit that will recharge the batteries and provide external
power to an LTV Ventilator when an approved power source is connected.
The SprintPack Li-Ion Power System may also be used as a portable
external power source using the included batteries.
•When the input to the Power Manager is 11 –29 Volts DC (VDC),
power output to an LTV Ventilator will be 15 VDC.
•When the input to the Power Manager is less than 11 VDC, the LTV
Ventilator is powered using the SprintPack Batteries inserted in the
Power Manager. When two SprintPack Batteries are present, the
battery with the lower charge level will be used first. When the first
battery becomes depleted, the SprintPack Power Manager
automatically switches to the second battery to maintain a constant
power output until both batteries are depleted.

2-2 Operator’s Manual – SprintPack™32328-001 Version A
Intended Use
The SprintPack Li-Ion Power System is a portable, easy to operate, and
reusable extended power source for the LTV Ventilator. It is intended to
enhance the versatility of the already mobile LTV Ventilator to provide
support for the care of individuals who require mechanical ventilation.
The SprintPack Li-Ion Power System and LTV Ventilator are suitable for use
in institutional, home care, and transport settings.
Getting Assistance
If a problem occurs while operating the SprintPack Li-Ion Power System or if
you require additional information, contact Vyaire Medical at:
Vyaire Medical Respiratory Systems
26125 North Riverwoods Blvd.
Mettawa, IL 60045, USA
Customer Care Center: 1-833-327-3284
Email: [e-mail]
Website: www.vyaire.com

32328-001 Version A Operator’s Manual – SprintPack™3-1

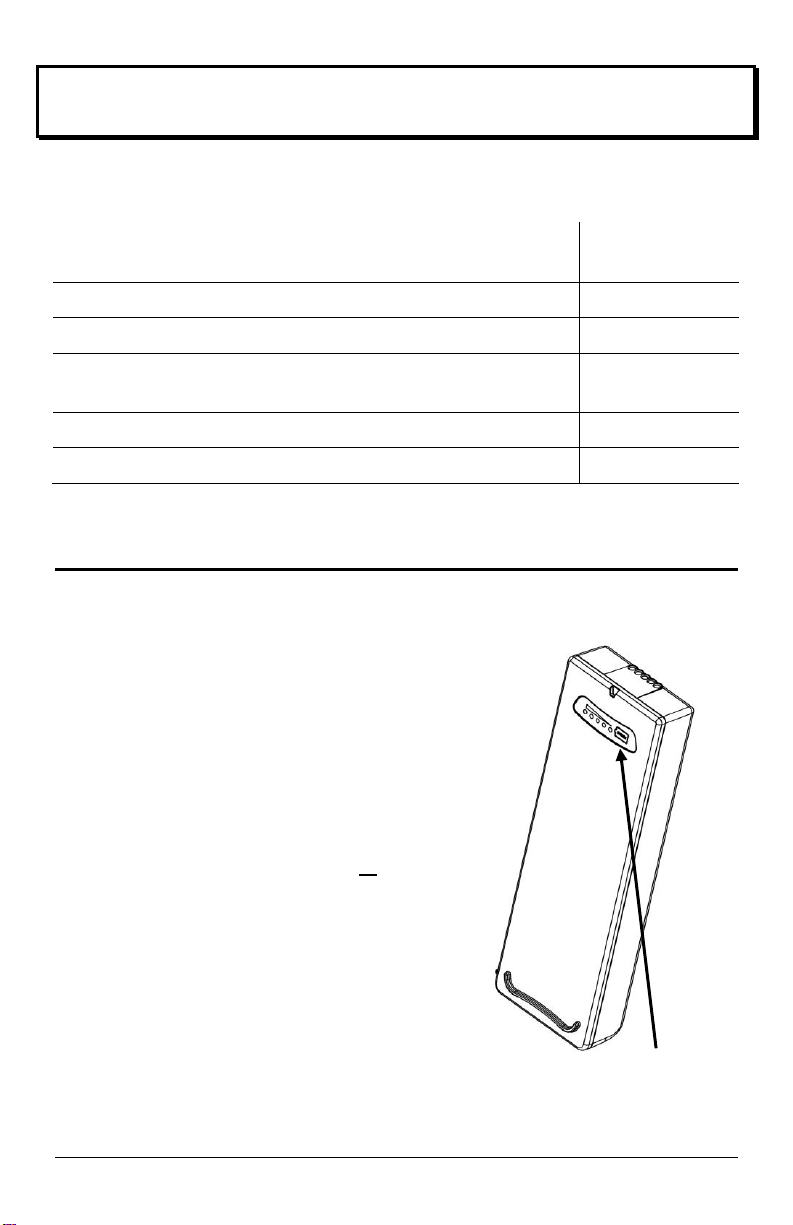

Chapter 3: SprintPack™ACCESSORIES
This section describes the SprintPack Li-Ion Power System Accessories.
Description
Packaged
Assembly P/N
SprintPack Operator’s Manual
32328-001
SprintPack Battery
19444-001
SprintPack Power Manager
19333-001/
19333-201
Transport Pack for SprintPack (optional accessory)
19102-001
SprintPack LTV Floor Stand Mount (optional accessory)
19096-001
SprintPack™Battery (P/N 19444-001)
An electronic Charge Status Indicator
located on the battery consists of five LEDs
and displays the charge level.
The charge level is displayed for a brief
period under the following conditions:
•When the TEST button is pressed
•When a battery is initially inserted
into the SprintPack Power Manager
•When power is applied to or
removed from the Power Manager
input
The battery is a Lithium Ion type battery and
does not need to be completely discharged
prior to recharging.
Charge Status
Indicator
Charge Status
Indicator

3-2 Operator’s Manual – SprintPack™32328-001 Version A

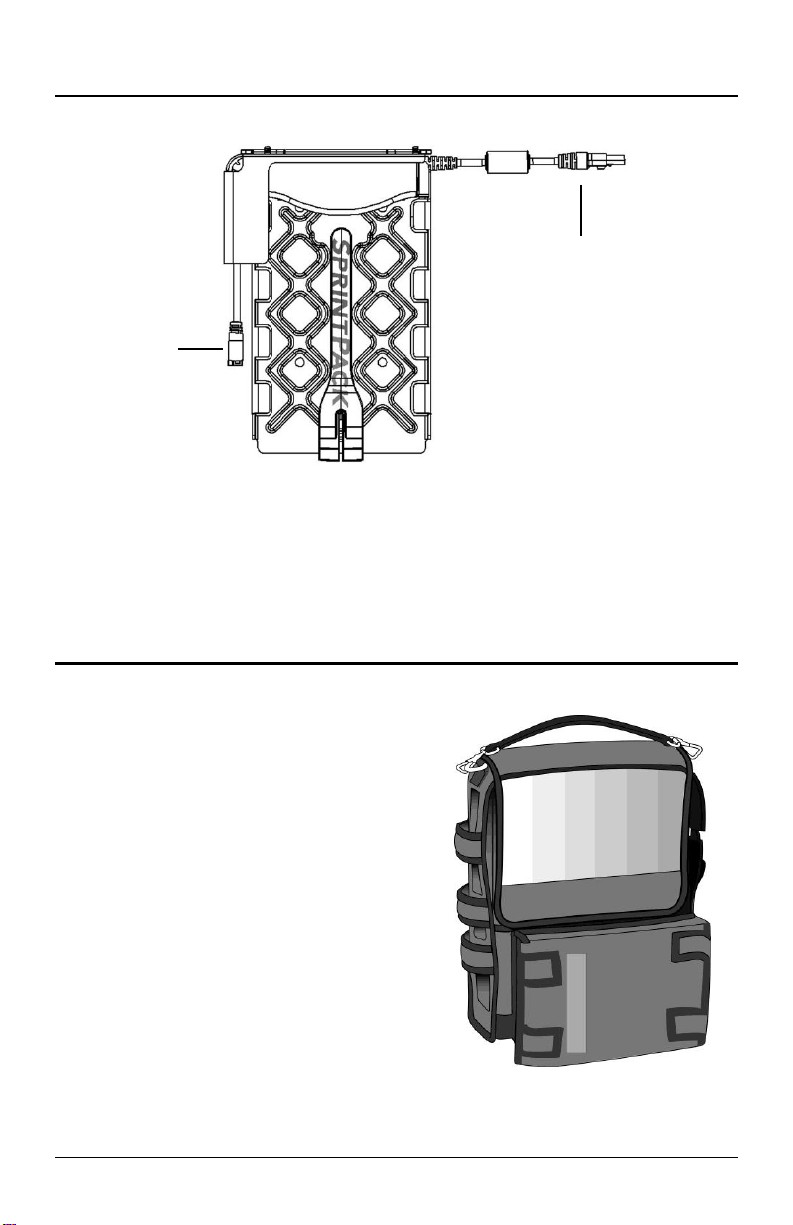

SprintPack™Power Manager (P/N 19333-001/19333-201)
The SprintPack Power Manager holds two batteries.
The Power Manager has two pigtail connectors. One is used to connect an
input power source and the other is connected to the LTV Ventilator as an
external power source.
The SprintPack Power Manager accepts approved power sources at the
Power Input connector. (See Table 4.1 for list of approved power sources.)
Transport Pack (P/N 19102-001)
The Transport Pack accommodates the LTV Ventilator with protective boots
attached. It also includes an external
pouch for the SprintPack Li-Ion System,
a shoulder strap, a hand strap, D-rings,
and a bed rail attachment.
Power output
(To the ventilator)
Power input
(To the approved
power source)

32328-001 Version A Operator’s Manual – SprintPack™4-1
Chapter 4: CHARGING THE SPRINTPACK™
This section explains how to insert the batteries into the Power Manager and
provides a list of approved power sources to power the SprintPack
Li-Ion Power System.

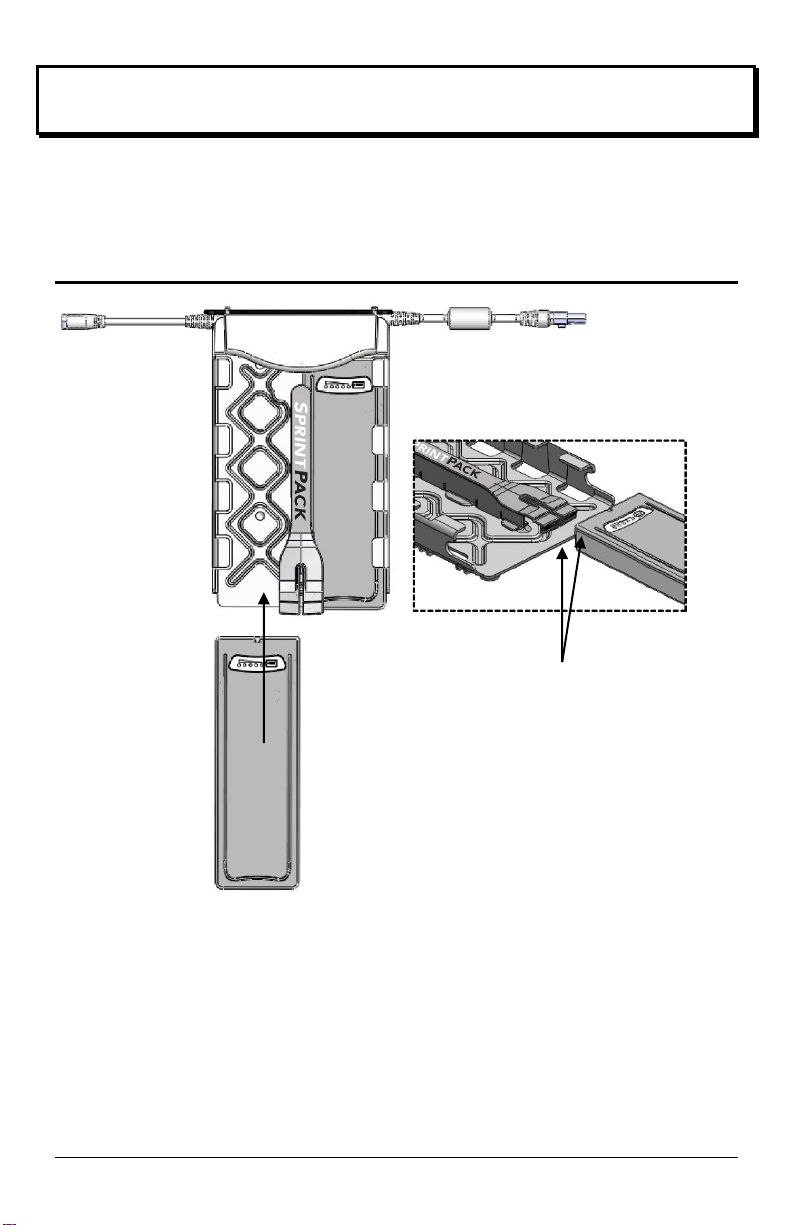

Inserting / Removing SprintPack™Batteries
To Remove a SprintPack Battery
Push up on the desired Locking Latch, then slide battery out.
To Insert a SprintPack Battery
1) Align the battery as shown into
the SprintPack Power Manager.
2) Gently push up the desired
Locking Latch and slide the
battery into the Power Manager.
The battery will “click” when it is
locked in place.
Locking Latches
(right and left)
Power Input
Connect to an
approved power
source
Power Output
Connect to the LTV
Ventilator

4-2 Operator’s Manual – SprintPack™32328-001 Version A
Powering the SprintPack™Li-Ion Power System
Connect an approved power source to the Power Input connector on the
Power Manager.
Table 4.1 SprintPack Approved Power Sources
When an approved power source is connected, the SprintPack Batteries will
begin to charge (unless 100% charged).
NOTE
Charging time -The charging time for the SprintPack Batteries varies
depending on the power capability of the approved input power source used.
Utilize the LTV AC power adapter for best charge time results.
WARNING
LTV Ventilator power input - The LTV Ventilator accepts approved power
sources with a voltage rating of 11 –15 Volts DC (VDC). Do not apply more
than 15 VDC to an LTV Ventilator as damage to internal
components may occur.
2 Connected to a DC power source with 11 –29 Volts DC (VDC).
Description
Part Number
AC Power Adapter
11448
External Battery Kit, 9 hours
10800
External Battery Kit, 3 hours
10900
Universal Power Supply (UPS)
14546-001
Automotive Lighter Power Cord2
11544
External Battery DC Cord Set2
10802

32328-001 Version A Operator’s Manual – SprintPack™4-3
Battery Charge Level
The LED Charge Status Indicator displays the charge level of each battery.
The charge level may be checked at any time by pressing the TEST button
and reading the number of illuminated LEDs. Each LED indicates
approximately 20% of the charge level. All five LEDs will illuminate when the
Battery has 81 –100% power capacity. (See Table 4.2 for more information.)
•After a battery is inserted into the Power Manager, wait a minimum
of five (5) seconds for the Power Manager to verify an approved
power source is present. After this automatic verification, the LED
display on each battery will illuminate reflecting the current level of
charge. When a battery is being recharged, the LED indicating the
current charge level will flash approximately one time per second
(1 Hz).
•When a battery is fully charged (100% capacity), all fiveLEDs will
illuminate for a brief period, and then extinguish.
•The 1st (yellow) LED will flash approximately two times per second
(2 Hz), without pressing the TEST button,when the battery has
10% or less capacity while inserted in the SprintPack Power
Manager.
•When two SprintPack Batteries are present, the battery with a lower
charge level will be used first. When the first battery becomes
depleted, the SprintPack Power Manager automatically switches to
the second battery to maintain a constant power output until both
batteries are depleted.
Charge Status
Indicator
TEST
Button

4-4 Operator’s Manual – SprintPack™32328-001 Version A
Table 4.2 LED Charge Status Indicators

32328-001 Version A Operator’s Manual – SprintPack™4-5
Expected Charge Time
Battery charge time depends upon the level of discharge and ventilator
settings. Generally, one battery should be fully recharged within three hours3.
Two batteries should be fully recharged within five hours3. Charging two
SprintPack Batteries simultaneously will result in a quicker charge time.
The charging time for the SprintPack Batteries varies depending on the
power capability of the approved power source used.
NOTE
Charging time -The specified charging time for the SprintPack Batteries is
one full charge cycle from 0% to 95% capacity.
Batteries above 80% charge level - The Power Manager does not charge
a battery that is at or above 80% charge level if the battery had not been
removed from the Power Manager since the last use. This feature
maximizes battery cycle life.
Expected Number of Lifetime Cycles
ACycle is a full discharge of a battery followed by a full recharge. The cycle
life (number of cycles) of each battery is determined by the depth of
discharge each battery continually encounters along with storage or
operating environment. A full cycle for each battery is from 95% to 0%
capacity (discharge) then recharged from 0% to 95% capacity (recharge).
Each SprintPack Battery has a lifetime of 400 cycles. After a battery has
undergone 400 cycles, replace it with Vyaire Medical SprintPack Battery, P/N
19444-001.
3 Utilize the LTV AC power adapter for best charge time results.
