W Box Technologies 0E-HDMISPL8 User manual

4K UHD HDMI
SPLITTER
0E-HDMISPL8

Introduction
Congratulations and thank you for purchasing W Box
Technologies 0E-HDMISPL8.
0E-HDMISPL8 is a 1:8 splitter for HDMI with Ultra HD 4K
support. It reliably distributes one HDMI source signal to eight
HDMI outputs. It supports HDMI 1.4a specification features
including data rates up to 10.2 Gbps, 3D, Lip Sync, and HD
lossless Audio/Video formats. It features HDCP management,
which continuously authenticates HDCP encryption between all
devices, ensuring the simultaneous distribution of source
content to all outputs.
The splitter ensures signal integrity by equalizing and
regenerating the incoming signal. It is ideal for applications,
such as offices, schools, conferences rooms, shopping malls,
hotels or museums, which require the distribution of an HDMI
source signal to multiple outputs.
It offers integrator-friendly features, including input cable
equalization, signal regeneration, pre-emphasis and
de-emphasis compensation. Automatic input cable equalization
reduces the need for additional signal conditioning equipment
by compensating for signal loss when using long input cable
assemblies. HDMI signals are regenerated to eliminate noise
and reduce jitter for a strong, stable digital signal.
Please follow the instructions in this manual to assure proper
installation and to achieve the full performance and satisfaction
you would expect from W Box Technologies.
1

Features
Slim appearance and space saving
HDMI 1.4a and HDCP compliant
Supports HD resolutions up to 4K@30Hz
Distribute one HDMI source to eight HDMI displays
Automatically input cable equalization and signal
regeneration compensation
Supports signal transmission distance up to 50 feet (15
meters) at 4K when used with standard HDMI cables
Reshapes marginal or noisy HDMI signals, ensuring a
strong, stable digital signal
Supports EDID management
Provides RS232 port for updating firmware, controlling
device and viewing device operation and communication
information
Rack-mountable 0.6U metal enclosure
Package Contents
Before you start the installation of the product, please check the
package contents.
1 x 0E-HDMISPL8
1 x 12V 1A DC Power Supply
2 x Mounting Bracket
2

Panel

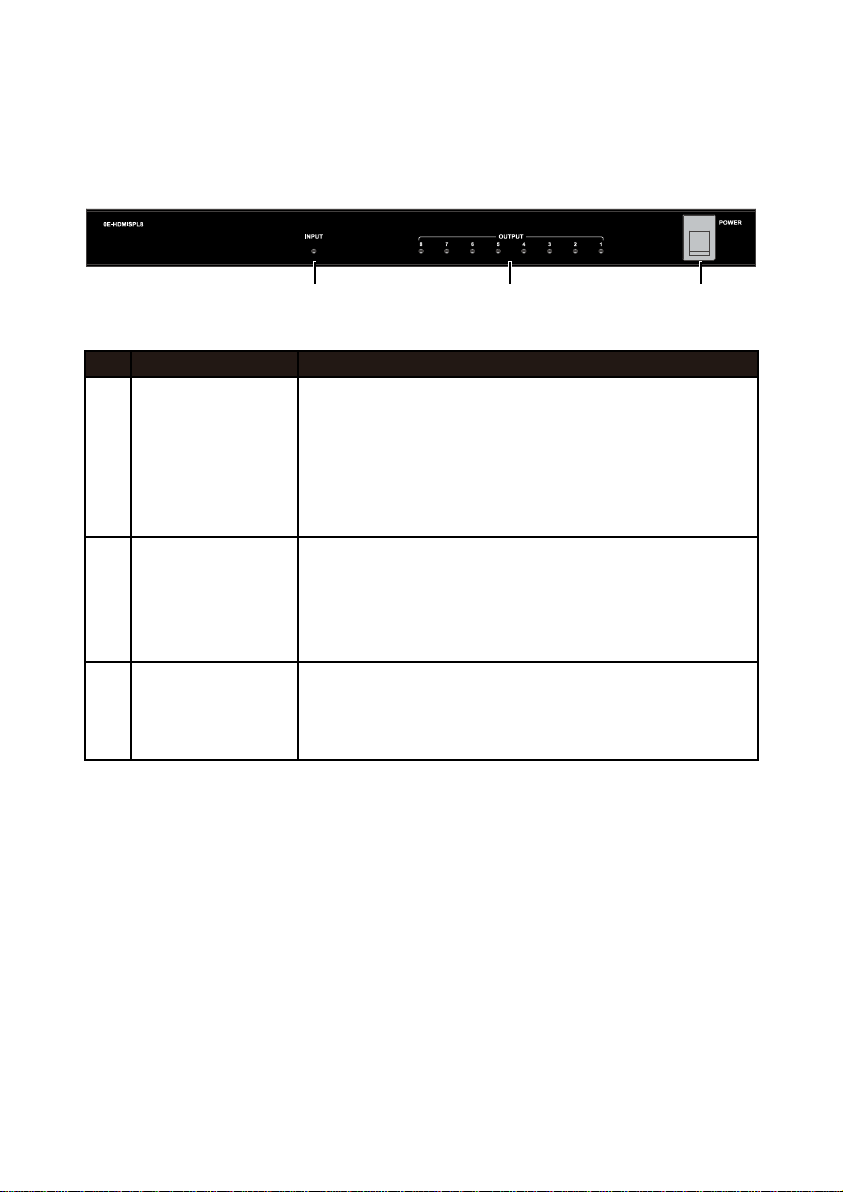

Front Panel
1 2 3
ID
Name
Description
1 INPUT LED
Steady blue: Both source device and
display device are connected.
OFF: Only source is connected
but no
display device, or no source device is
connected.
2 OUTPUT
LED 1~8
Steady blue: When the correspondingly
numbered outputs 1~8 is connected to a
display device.
OFF: No display device is connected.
3 Power Switch
and LED
Power Switch: Powers on/off the splitter.
Power Switch LED: Steady red when
the splitter is on.
3

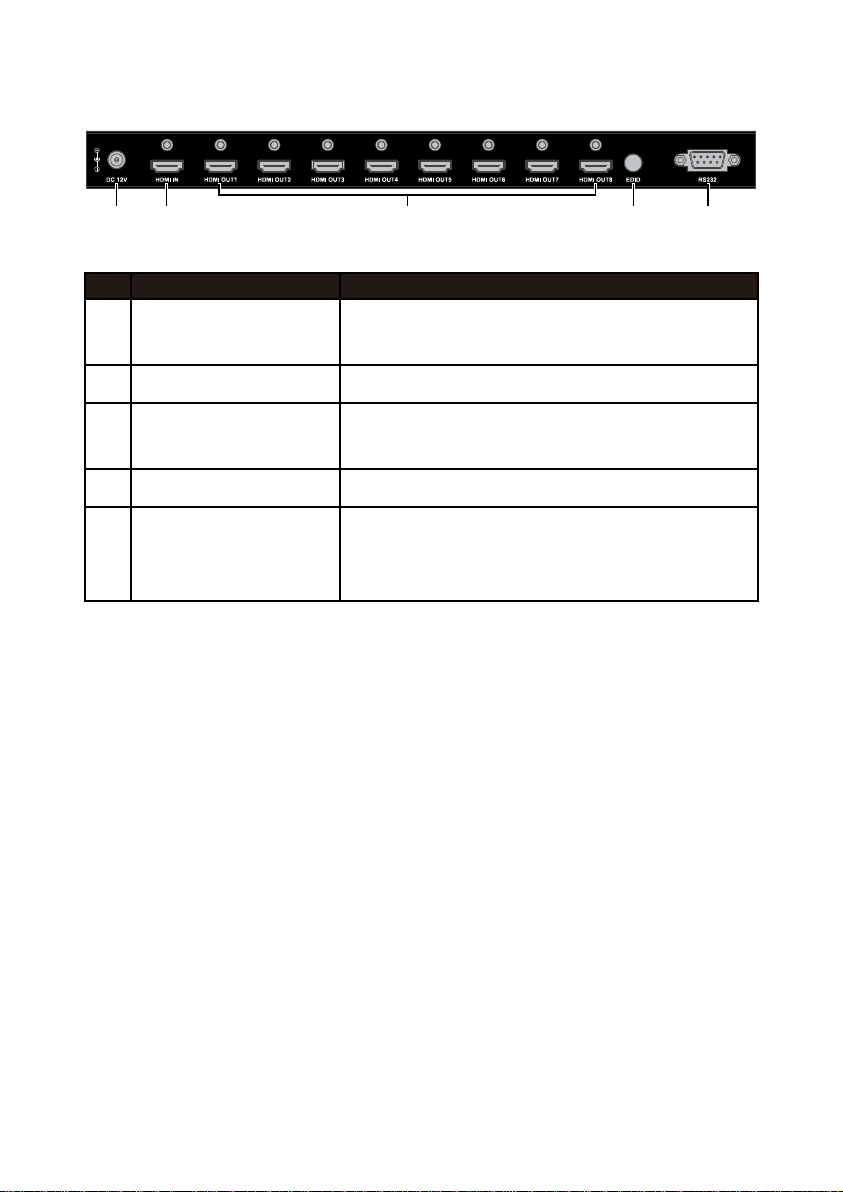

Rear Panel
1 2 3 4 5
ID
Name
Description
1 Power connector Connects to a 12 VDC 1 A power
adapter.
2 INPUT Port Connects to an HDMI source device
3 OUTPUT Ports
1~8 Connects to eight HDMI display
devices
4 EDID DIP Switch Adjusts EDID settings
5 RS232 Connects to a RS232 device, such as
a computer, for updating firmware, or
display version information.
4

Installation Instructions
1. Connect an HDMI source device (such as a DVD Player) to
the splitter.
2. Connect eight HDMI displays (such as HD monitors) to the
splitter.
3. Connect all the devices to their power supplies, power them
on and start the operation.
HDMI
HDMI
HDMI HDMI HDMI HDMI HDMI HDMI HDMI
Note: When splitter is working with an amplifier, power off the
splitter first, then connect to the amplifier, power on the splitter
again. Besides, the splitter audio output doesn't support Hot
Swap. After you Hot Swap, reboot the splitter to enable audio
output.
5

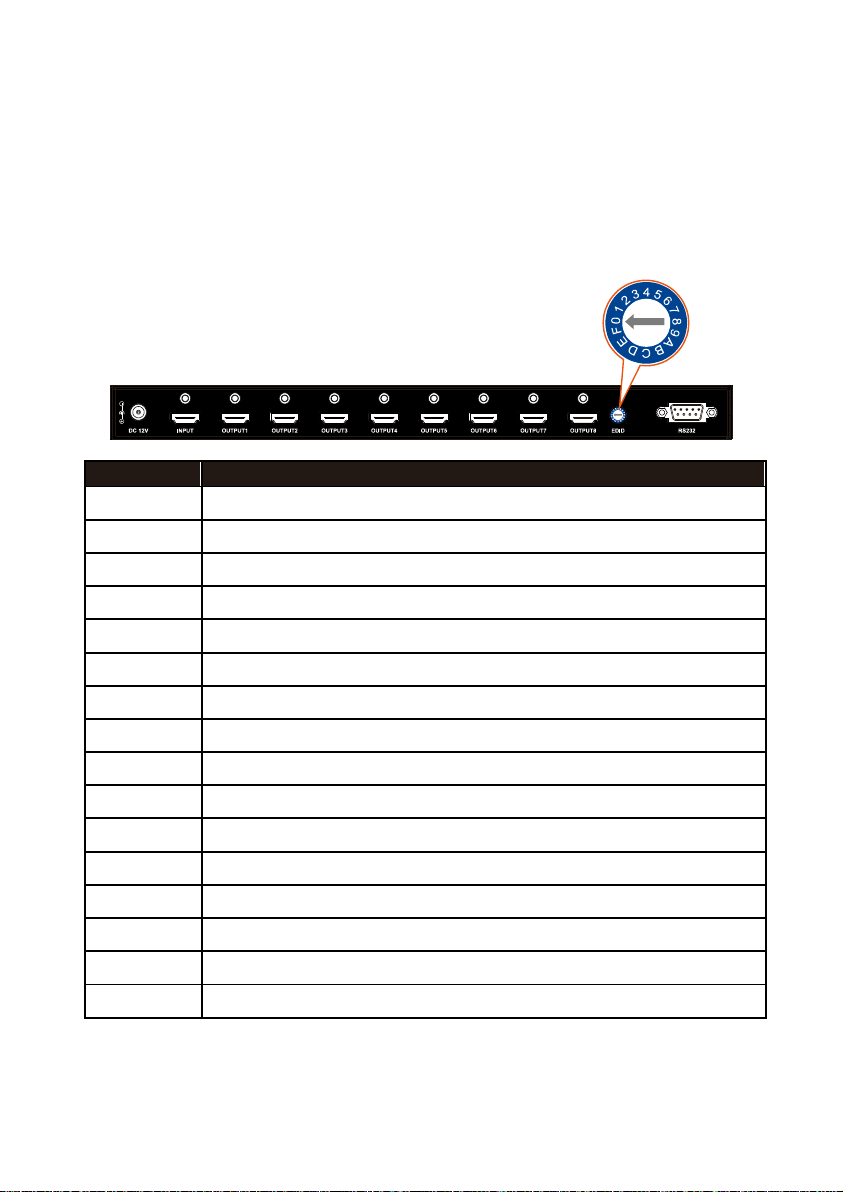

EDID Management
The following table lists the EDID information built in the splitter.
You can toggle the switch to a certain position to read EDID
from a specific output or to directly use the EDID information.
EDID DIPSwitch
Position
Description
0
Copy EDID from HDMI Output 1
1
Use 1080i, Stereo
2
Use 1080i, Dolby Digital, DTS Digital
3
Use 1080i, Dolby TrueHD, DTS-HD Master Audio
4
Use 1080p, Stereo (Default EDID)
5
Use 1080p, Dolby Digital, DTS Digital
6
Use 1080p, Dolby TrueHD, DTS-HD Master Audio
7
Use 3D, Stereo
8
Use 3D, Dolby Digital, DTS Digital
9
Use 4K, Stereo
A
Use 1280 x 1024 DVI
B
Use 1920 x 1080 DVI
C
Use 1920 x 1200 DVI
D
Copy EDID from HDMI Output 4
E
Copy EDID from HDMI Output 3
F
Copy EDID from HDMI Output 2
6

Reading EDID from Specific Outputs
To read EDID from output 1:
1. Ensure that the output display is powered on and
connected to splitter's output 1.
2. Locate the EDID DIP switch (outlined in the figure above)
3. Move the switch to the position 0. Repower the splitter for
the changes to take effect.
Note:
If no output device has been connected to the unit, it uses
the factory default resolution (1080p, stereo)
You can read EDID from output 2, 3 and 4, corresponding
to the F, E and D position, using the same method above.
Using the Fixed EDID
To directly use the fixed EDID:
1. Locate the EDID DIP switch (outlined in the figure above).
2. Ensure that the display device supports the EDID resolution,
otherwise no picture shows. Toggle the switch to a position
from 1~C (see the table above for detailed EDID
information).
3. Repower the splitter for the changes to take effect no matter
whether an output device is connected.
7

Troubleshooting
W Box Technologies products are designed to function
trouble-free. Most problems that occur are due to simple issues.
If you have trouble, please check the list of simple fixes below.
SPLITTER TROUBLESHOOTING
PROBLEM
SOLUTION
POWER LED OFF Ensure the power is on.
Check the cables are qualified and
connected properly.
NO PICTURE Verify that all the devices are on, all the
cables are qualified and connected
properly.
Verify that the display device works properly and that the source device has
normal signals output.
Check the length of HDMI cable.
NO AUDIO
OUTPUT WHEN
WORKING WITH
AN AMPLIFIER
Repower the splitter.
The splitter audio output doesn't
support Hot Swap. After you Hot Swap,
repower the splitter to enable audio
output.
8

Specification
Technical
Input 1 x HDMI INPUT
Output 8 x HDMI OUTPUT
Input/Output Signal Type HDMI 1.4a, 3D and DVI 1.0
Input/Output Resolution
Support
3840 x 2160@30Hz
1920 x 1080@60/50/30/25
1280 x 720@60/50
720 x 576@60/50/30/25
720 x 480@60/50/30/25
Maximum Data Rate 10.2 Gpbs
Maximum Pixel Clock 340 MHz
Input Video Signal 0.5~1.2 V p-p
Input DDC Signal 5 V
Video Impedance 100 Ω
9

General
Power Supply 12 VDC 1 A
Power Consumption 1080p: 3.5 W (Maximum)
4K: 4.7 W (Maximum)
Operating Temperature
32°F to 95°F
(0°C to 35°C)
10% to 90%, non-condensing
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
10% to 90%, non-condensing
ESD Protection
Human-body model:
±
4 kV (Contact discharge)
Dimension
12.3" x 4.1" x 1.1"
(312 mm x 105 mm x 27 mm)
Weight 2.12lb / 0.96kg
Certification CE, FCC, RoHS
10

Limited Warranty
1. Limited Warranty
a. General
Subject to the terms and conditions of this Limited Warranty,
from the date of sale through the period of time for product
categories specified in Section 1(b), ADI warrants its W Box
Technologies products to be free from defects in materials and
workmanship under normal use and service, normal wear and
tear excepted. Except as required by law, this Limited Warranty
is only made to Buyer and may not be transferred to any third
party.
ADI shall have no obligation under this Limited Warranty or
otherwise if:
(i) The product is improperly installed, applied or maintained;
(ii) The product is installed outside of stated operating
parameters, altered, or improperly services or repaired;
(iii) Damage is caused by outside natural occurrences, such as
lightning, power surges, fire, floods, acts of nature, or the
like.
(iv) Defects resulting from unauthorized modification, misuse,
vandalism, or other causes
(v) Unrelated to defective materials or workmanship, or failures
related to batteries of any type used in connection with the
products sold hereunder.
ADI only warrants those products branded as W Box
Technologies products and sold by ADI. Any other products
branded by third parties are warranted by the third party
11

manufacturer for a period as defined by the third party
manufacturer, and ADI assigns to Buyer those warranties and
only those warranties extended by such third party
manufacturers or vendors for non-ADI branded products. ADI
does not itself warrant any non-ADI branded product and sells
only on an as is basis in accordance with ADI’s terms and
conditions of sale.
b. Specific Warranties for product categories are as
follows:
Product Categories
Warranty Period
Soundbars
12 months
Walk Through Metal Detectors
12 months
Intrusion Wireless Communication
Accessories
12 months
Analog Cameras
24 months
HD TVI Cameras and HD TVI DVR’s
24 months
Televisions
24 months
CCTV Power Supplies
24 months
In Ceiling Speakers
24 months
Amplifiers
24 months
Magnetic Locks
24 months
Request to Exit Devices
24 months
Surge Protection
24 months
UPS (uninterruptible power supplies)
24 months
Volume Controls
24 months
HDMI Distribution
24 months
Intrusion Audio Devices
30 months
Monitors
30 months
Power and Relays
30 months
Hold-up Buttons
30 months
12

Product Categories
Warranty Period
Video Baluns
30 months
DVR's, NVR's
60 Months
IP Cameras
60 Months
Racks
60 months
TV Mounts
60 months
PIR’s
60 months
Analog Cables
Limited Lifetime
B Connectors
Limited Lifetime
Bus Terminals
Limited Lifetime
Extension Cords
Limited Lifetime
HDMI Cables
Limited Lifetime
Jacks, Cords and Intrusion
Communication Accessories
Limited Lifetime
Patch Cables
Limited Lifetime
Patch Panels
Limited Lifetime
Raceway Conduit
Limited Lifetime
Wire Ties
Limited Lifetime
Magnetic Contacts
Limited Lifetime
2. EXCLUSION OF WARRANTIES, LIMITATION OF
LIABILITY
THERE ARE NO WARRANTIES OR CONDITIONS, EXPRESS
OR IMPLIED, OF MERCHANTABILITY, OR FITNESS FOR A
PARTICULAR PURPOSE OR OTHERWISE, WHICH EXTEND
BEYOND THE DESCRIPTION ON THE FACE HEREOF. TO
THE FULLEST EXTENT PERMITTED BY LAW, IN NO CASE
SHALL ADI BE LIABLE TO ANYONE FOR ANY (I)
CONSEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, OR
PUNITIVE DAMAGES ARISING OUT OF OR RELATING IN
13

ANY WAY TO THE PRODUCT AND.OR FOR BREACH OF
THIS OR ANY OTHER WARRANTY OR CONDITION,
EXPRESS OR IMPLIED, OR UPON ANY OTHER BASIS OF
LIABILITY WHATSOEVER, EVEN IF THE LOSS OR DAMAGE
IS CAUSED BY ADI’S OWN NEGLIGENCE OR FAULT AND
EVEN IF ADI HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH LOSSES OR DAMAGES. Any product description
(whether in writing or made orally by ADI or ADI’s agents),
specifications, samples, models, bulletin, drawings, diagrams,
engineering sheets, or similar materials used in connection with
the Buyer’s order are for the sole purpose of identifying ADI’s
products and shall not be construed as an express warranty or
condition. Any suggestions by ADI or ADI’s agents regarding
use, applications or suitability of the products shall not be
construed as an express warranty or condition unless
confirmed to be such in writing by ADI. ADI does not represent
that the products it sells may not be compromised or
circumvented; that the products will prevent any personal injury
or property loss by burglary, robbery, fire or otherwise, or that
the products will in all cases provide adequate warning or
protection. Buyer understands and will cause its customer to
understand that a properly installed and maintained product is
not insurance or guarantee that such will not cause or lead to
personal injury or property loss. CONSEQUENTLY ADI SHALL
HAVE NO LIABILITY FOR ANY PERSONAL INJURY,
PROPERTY DAMAGE OR OTHER LOSS BASED ON ANY
CLAIM AT ALL INCLUDING A CLAIM THAT THE PRODUCT
FAILED TO GIVE WARNING. However, if ADI is held liable
whether directly or indirectly for any loss or damage with
respect to the products it sells, regardless of cause or origin, its
maximum liability shall not in any case exceed the purchase
price of the product, which shall be fixed as liquidated damages
14

and not as a penalty and shall be the complete and exclusive
remedy against ADI.
3. Limitation on Liability to Buyer’s Customers.
Buyer agrees to limit liability to its customers to the fullest
extent permitted by law. Buyer acknowledges that ADI shall
only be deemed to give consumers of its products such
statutory warranties as may be required by law and at no time
shall Buyer represent to its customers and/or users of ADI
products that ADI provides any additional warranties. By
accepting the products, to the fullest extent permitted by law,
Buyer assumes all liability for, and agrees to indemnity and hold
ADI harmless against and defend ADI from, any and all suits,
claims, demands, causes of action and judgments relating to
damages, whether for personal injury or to personal property,
suffered by any person, firm, corporation or business
association, including but not limited to, Buyer’s customers
and/or users of the products because of any failure of the
products to detect and/or warn of the danger for which the
goods were designed or any other failure of the products
whether or not such damages are caused or contributed to by
the sold or joint concurring negligence or fault of ADI.
4. Returns
Subject to the terms and conditions listed below, during the
applicable warranty period, ADI will replace Product or provide
a credit at purchase at its sole option free of charge any
defective products returned prepaid. Any obligations of ADI to
replace Limited Lifetime warranty products pursuant to this
warranty which result from defect are limited to the availability
15

of replacement product. ADI reserves the right to replace any
such products with the then currently available products, or
provide a credit in its sole discretion. In the event Buyer has a
problem with anyADI product, please call your localADI branch
for return instructions:
For US call 1-800-233-6261
For Canada call 877-234-7378
For Puerto Rico call 787-793-8830
Be sure to have the model number and the nature of the
problem available. In the event of replacement, the return
product will be credited to Buyer’s account and a new invoice
issued for the replacement item. ADI reserves the right to issue
a credit only in lieu of replacement.
If any W Box Technologies product is found to be in good
working order or such product’s inability to function properly is a
result of user damage or abuse, the product will be returned to
Buyer in the same condition as received and Buyer shall be
responsible for any return freight changes.
5. Governing Law
The laws of State of New York apply to this Limited Warranty.
16

6. Miscellaneous
Where any term of this Limited Warranty is prohibited by such
laws, it shall be null and void, but the remainder of the Limited
Warranty shall remain in full force and effect.
17

Limited Warranty
1. Garantie limitée
a. Généralités
Sous réserve des modalités de la présente garantie limitée, à
compter de la date de vente et pendant la période de garantie
applicable aux catégories de produits précisée au
paragraphe 1b), ADI garantit que ses produits W Box
Technologies sont libres de tout vice de matériaux et de
fabrication dans des conditions d’utilisation et d’entretien
normales, sauf l’usure normale. Sauf si les lois l’exigent, la
présente garantie limitée est offerte uniquement à l’acheteur et
ne peut être transférée à un tiers.
ADI n’a aucune obligation aux termes de la présente garantie
limitée ou autrement dans les circonstances suivantes :
i. le produit est mal installé, appliqué ou entretenu;
ii. le produit est installé de manière non conforme aux
paramètres d’exploitation indiqués, modifié ou mal entretenu
ou réparé;
iii. le produit est endommagé par des phénomènes naturels
extérieurs comme la foudre, une surcharge, un incendie, une
inondation, une force majeure ou un phénomène similaire;
iv. les défectuosités du produit résultent d’une modification non
autorisée, d’une mauvaise utilisation, d’un acte de vandalisme
ou d’autres causes non liés aux vices de matériaux ou de
fabrication, ou à une défaillance des piles de quelque type
que ce soit utilisées avec les produits vendus aux termes des
présentes.
18

ADI ne garantit que les produits portant la marque W Box
Technologies qu’elle vend. Les autres produits portant une
marque de tiers sont garantis par le fabricant tiers pendant une
période définie par ce dernier, et ADI cède à l’acheteur ces
garanties et uniquement les garanties offertes par ces
fabricants tiers ou vendeurs à l’égard de produits ne portant pas
ses marques. ADI ne garantit pas de produits ne portant pas
ses marques et vend ces produits tels quels, conformément à
ses modalités de vente.
b. Les garanties particulières applicables aux catégories
de produits sont les suivantes :
Catégories de produits
Période de la garantie
Marcher à Travers les Détecteurs de
Métaux
12 mois
Accessoires de communication
d’intrusion sans fil
12 mois
Barres de son 12 mois
UPS (systèmes d’alimentation sans
coupure)
24 mois
Téléviseurs 24 mois
Caméras analogiques
24 mois
Caméras HD TVI, HD DVR’s
24 mois
Blocs d’alimentation CCTV
24 mois
Contrôles du volume 24 mois
Protection contre les surcharges
24 mois
Haut-parleurs pour le plafond
24 mois
Modules de requête de sortie
24 mois
Mise à jour des serrures magnétiques
24 mois
Distributeurs HDMI 24 mois
19
