Waeco CoolFreeze CDF-18 User manual

CDF18, CDF25, CDF35,
CDF45
CDF18 CDF25
CDF35
CDF45
DE 4 Kompressor-Kühlbox
Bedienungsanleitung
EN 17 Compressor Cooler
Instruction Manual
FR 30 Glacière à compression
Manuel d’utilisation
ES 44 Nevera por compresor
Instrucciones de uso
IT 58 Frigorifero a compressore
Istruzioni per l’uso
NL 72 Compressorkoelbox
Gebruiksaanwijzing
DA 85 Kompressor-køleboks
Betjeningsvejledning
SV 98 Kylbox med kompressor
Bruksanvisning
NO 111 Kjøleboks med kompressor
Bruksanvisning
FI 124 Kompressori-kylmälaatikko
Käyttöohje
PT 137 Geleira com compressor
Manual de instruções
RU 151 Компрессорный
холодильник
Инструкция по эксплуатации
PL 166 Lodówka kompresorowa
Instrukcja obsługi
CS 179 Kompresorový chladicí box
Návod k obsluze
SK 192 Chladiaci box s kompresorom
Návod na obsluhu

CoolFreeze
2
1
2
1
ERROR
TEMPERATUR MONITORBATTERY
LOW O HIGH
COLD FREEZE
POWER
12 3 4
2
CDF25, CDF35, CDF45
12/24V DC
5
3
CDF25, CDF35, CDF45

CoolFreeze
3
12/24V DC
COLD FREEZE
ERROR
POWER
HIGH
0
LOW
TEMPERATURE BATTERY MONITOR
1 2 3 4
5
4
CDF18
1
5
1 2 3
4
5
6
6
1 2
7
CDF25

EN
CoolFreeze Explanation of symbols
17
Please read this operating manual carefully before starting the
device. Keep it in a safe place for future reference. If the device
is passed on to another person, this operating manual must be
handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from
improper usage or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
1 Explanation of symbols
DDANGER!
Safety instruction: Failure to observe this instruction will cause
fatal or serious injury.
!WARNING!
Safety instruction: Failure to observe this instruction can cause
fatal or serious injury.
!CAUTION!
Safety instruction: Failure to observe this instruction can lead to
injury.

EN
Safety instructions CoolFreeze
18
ANOTICE!
Failure to observe this instruction can cause material damage and
impair the function of the product.
INOTE
Supplementary information for operating the product.
➤Action: This symbol indicates that action is required on your
part. The required action is described step-by-step.
✓This symbol describes the result of an action.
fig. 15, page 3: This refers to an element in an illustration. In this
case, item 5 in figure 1 on page 3.
2 Safety instructions
2.1 General safety
DDANGER!
On boats: If the appliance is powered by the mains, ensure that
the power supply has a residual current circuit breaker.
!WARNING!
Do not operate the device if it is visibly damaged.
This device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Persons (including children) whose physical, sensory or mental
capacities or whose lack of experience or knowledge prevent
them from using this product safely should not operate it without
the supervision or instruction of a responsible person.
Electrical devices are not toys.
Always keep and use the device out of the reach of children.
Children must be supervised to ensure that they do not play with
the device.
If this device's power cable is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified
person in order to prevent safety hazards.

EN
CoolFreeze Safety instructions
19
Do not store any explosive substances such as spray cans with
propellants in the device.
!CAUTION!
Disconnect the device from the mains
– before cleaning and maintenance
–afteruse
Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Only connect the device to a DC plug socket in the vehicle (e. g.
cigarette lighter) with the DC cable.
Check that the voltage specification on the type plate
corresponds to that of the energy supply.
The cooling device is not suitable for transporting caustic
materials or materials containing solvents.
Never pull the plug out of the socket by the cable.
Disconnect the cooler and other power consuming devices from
the battery before connecting the quick charging device.
Disconnect the cooler or switch it off when you turn off the
engine. Otherwise you may discharge the battery.
2.2 Operating the device safely
DDANGER!
Do not touch exposed cables with your bare hands.
!CAUTION!
Before starting the device, ensure that the power supply line
and the plug are dry.
ANOTICE!
Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
Do not place the device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).

EN
Scope of delivery CoolFreeze
20
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that arises during operation does not build up. Make sure
that the device is sufficiently far away from walls and other
objects so that the air can circulate.
Ensure that the ventilation slots are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the device in water.
Protect the device and the cable against heat and moisture.
3 Scope of delivery

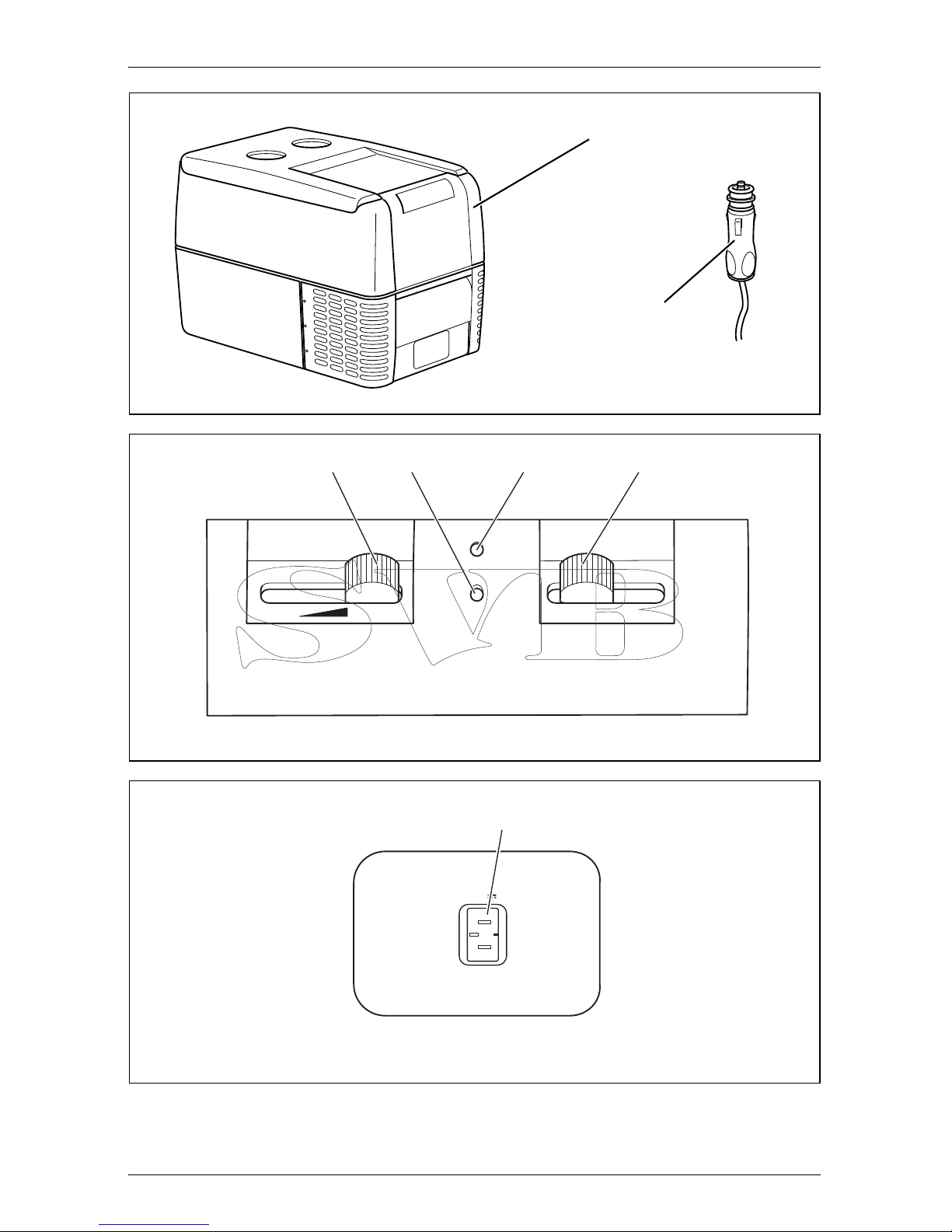

fig. 1, page 2, shows the scope of delivery.
3.1 Accessories
To operate the device at the AC mains supply, we recommend
using one of the following WAECO rectifiers.
Available as accessory (not included in scope of delivery):
– 220–240 V: CoolPower EPS100 or EPS817
– 110–240 V: CoolPower MPS35
Item Quantity Description
1 1 Cooler
2 1 Connection cable for 12/24 VDC connection
– 1 Operating manual

EN
CoolFreeze Intended use
21
4 Intended use
The cooler is suitable for cooling and freezing foods. The device is
also suitable for use on boats.
The device is designed to be operated from a 12 Vgor 24 Vgon-
board supply socket of a vehicle (e. g. cigarette lighter), boat or
caravan.
INOTE
To operate the device at the AC mains supply, we recommend us-
ing one of the following WAECO rectifiers:
220–240 V: CoolPower EPS100 or EPS817
110–240 V: CoolPower MPS35
!CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for
storing the food or medicine you wish to cool.
5 Function description
The cooler can chill products, keep them cool as well as freeze
them. A maintenance-free, CFC-free refrigerant circuit with com-
pressor provides the cooling. The extra strong CFC-free insulation
and powerful compressor ensure especially fast cooling.
The cooler is designed for mobile use.
When used on boats, the cooler can be withstand a constant heel
(inclination) of 30°.
An integrated dual-level battery monitor prevents your vehicle bat-
tery from being discharging too low.

EN
Function description CoolFreeze
22
5.1 Operating and display elements
Operating panel and connection socket
(fig. 2, page 2, fig. 3, page 2, fig. 4, page 3):
Lock for lid: fig. 5, page 3
Ite
mDescription Explanation
1 TEMPERATURE Temperature controller,
cooling temperature at the end positions:
COLD: +10 °C
FREEZE: CDF18, CDF25:
–18 °C
CDF35, CDF45:
–15 °C
2 POWER Operating display
LED is lit green: Device is switched
on and ready for
operation
CDF18 only:
LED is lit yellow:
Set temperature has
been reached
3 ERROR LED flashes red: Switched on device
is not ready for
operation
4BATTERY
MONITOR
Switch-on device/battery monitor:
0: Device is switched
off
HIGH: Device is switched
on, battery monitor
is in HIGH mode
LOW: Device is switched
on, battery monitor
is in LOW mode
5 12/24V DC Connection socket DC voltage supply

EN
CoolFreeze Operation
23
6 Operation
6.1 Before initial use
INOTE
Before starting your new cooler for the first time, you should clean
it inside and outside with a damp cloth for hygienic reasons (please
also refer to the “Cleaning and maintenance” on page 27).
6.2 Energy saving tips
Choose a well ventilated installation location which is protected
against direct sunlight.
Allow warm food to cool down first before placing it in the device
to keep cool.
Do not open the cooling device more often than necessary.
Do not leave the cooler unit open for longer than necessary.
Defrost the cooler once a layer of ice forms.
Avoid unnecessary low temperatures.
6.3 Connecting the cooler
The cooler can be operated with 12 V or 24 V DC.
ANOTICE! Danger of damaging the device!
Disconnect the cooler and other consumer units from the battery
before you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
For safety reasons the cooler is equipped with an electronic system
to prevent the polarity reversal. This protects the cooler against
short-circuiting when connecting to a battery.
➤Plug the 12/24-V connection cable (fig. 12, page 2) into the
DC voltage socket and also into the cigarette lighter or a 12 V
or 24 V socket.

EN
Operation CoolFreeze
24
6.4 Using the battery monitor
If the cooler is operated when the vehicle ignition is switched off,
the cooler switches off automatically as soon as the supply voltage
falls below a set level. The cooler will switch back on once the bat-
tery has been recharged to the restart voltage level.
ANOTICE! Danger of damage!
When switched off by the battery monitor, the battery will no longer
be fully charged. Avoid starting repeatedly or operating current
consumers without longer charging phases. Ensure that the battery
is recharged.
In “HIGH” mode, the battery monitor responds faster than at the
levels “LOW” and “MED” (see the following table).
INOTE
When the cooler is supplied by the starter battery, select the battery
monitor mode “HIGH”. If the cooler is connected to a supply battery,
the battery monitor mode “LOW” will suffice.
If you wish to operate the cooler from the AC mains, set the battery
monitor to the “LOW” position.
Battery monitor mode LOW HIGH
Switch-off voltage at 12 V 10.2V±0.3V 11.2V±0.3V
Restart voltage at 12 V 11.2 V ± 0.3 V 12.2 V ± 0.3 V
Switch-off voltage at 24 V 22.0 V ± 0.3 V 23.9 V ± 0.3 V
Restart voltage at 24 V 23.3 V ± 0.3 V 25.1 V ± 0.3 V

EN
CoolFreeze Operation
25
6.5 Using the cooler
ANOTICE! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the
heat that generated during operation can dissipate. Ensure that
the ventilation slots are not covered. Make sure that the device
is sufficiently far away from walls and other objects so that the
air can circulate.
➤Place the cooler on a firm foundation.
Make sure that the ventilation slots are not covered and that the
heated air can dissipate.
➤Close the cooler, see “Connecting the cooler” on page 23.
ANOTICE! Danger from excessively low temperature!
Ensure that the only those objects are placed in the cooler that are
intended to be cooled at the selected temperature.
Locking the cooler
➤Close the lid.
➤Press the lock (fig. 51, page 3) down, until it latches in
place audibly.
Switching on the cooler
➤Slide the sliding switch “BATTERY MONITOR” to HIGH if you
wish to operate from a starter battery or to “LOW” if you want to
operate from a supply battery.
INOTE
If you wish to operate the cooler from the AC mains, set the battery
monitor to the “LOW” position.
✓The “POWER” LED is lit green.
✓The cooler starts cooling the interior.
➤Set the cooling temperature with the temperature controller
“TEMPERATURE”.
✓CDF18 only: When the cooling temperature has been reached,
the “POWER” LED is lit yellow.

EN
Operation CoolFreeze
26
Switching off the cooler
➤Empty the cooler.
➤To Switch the cooler off: Slide the sliding switch “BATTERY
MONITOR” to “0”:
➤Pull out the connection cable.
If you do not want to use the cooler for a longer period of time:
➤Leave the cover slightly open. This prevents odour build-up.
6.6 Defrosting the cooler
Humidity can form frost in the interior of the cooling device or on the
vaporiser. This reduces the cooling capacity. Defrost the device in
good time to avoid this.
ANOTICE! Danger of damaging the device!
Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.
To defrost the cooler, proceed as follows:
➤Take out the contents of the cooling device.
➤If necessary, place them in another cooling device to keep them
cool.
➤Switch off the device.
➤Leave the cover open.
➤Wipe off the defrosted water.
6.7 Replacing the plug fuse (12/24 V)
➤Pull the adapter sleeve (fig. 64, page 3) off of the plug.
➤Unscrew the screw (fig. 65, page 3) out of the upper half of
the housing (fig. 61, page 3).
➤Carefully raise the upper half of the housing from the lower
(fig. 66, page 3) half.
➤Take out the contact pin (fig. 63, page 3).
➤Replace the defective fuse (fig. 62, page 3) with a new one
that has the same rating (8A 32V).
➤Re-assemble the plug in the reverse order.

EN
CoolFreeze Cleaning and maintenance
27
6.8 Replacing the light bulb (CDF25 only)
➤Press the switch pin (fig. 72, page 3) downwards so that the
transparent part (fig. 71, page 3) of the lamp can be removed
at the front.
➤Replace the light bulb.
➤Press the lamp back into the housing.
7 Cleaning and maintenance
!WARNING!
Always disconnect the device from the mains before you clean and
service it.
ANOTICE! Risk of damage
Never clean the cooler under running water or in dish water.
Do not use abrasive cleaning agents or hard objects during
cleaning as these can damage the cooler.
➤Occasionally clean the device interior and exterior with a damp
cloth.
8 Guarantee
The statutory warranty period applies. If the product is defective,
please contact the manufacturer's branch in your country (see the
back of the instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following
documents when you send in the device:
A copy of the receipt with purchasing date
A reason for the claim or description of the fault

EN
Troubleshooting CoolFreeze
28
9 Troubleshooting
Fault Possible cause Suggested remedy
Device does not
function, LED does
not glow.
There is no voltage
present in the 12/24 V
socket (cigarette lighter)
in your vehicle.
The ignition must be switched on in most
vehicles to apply current to the cigarette
lighter.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The device does not
cool (plug is inserted,
“POWER” LED is lit).
Defective compressor. This can only be repaired by an
authorised customer services unit.
The device does not
cool (plug is inserted,
“ERROR” LED
flashes).
Battery voltage is too
low.
Test the battery and charge it as needed.
When operating from
the 12/24-V socket
(cigarette lighter):
The ignition is on
and the device is not
working and the LED
is not lit.
Pull the plug out of the
socket and make the
following checks.
The cigarette lighter
socket is dirty. This
results in a poor electrical
contact.
If the plug of your cooler becomes very
warm in the cigarette lighter socket,
either the lighter socket must be cleaned
or the plug has not been assembled
correctly.
The fuse of the 12/24 V
plug has blown.
Replace the fuse (5 A) in the cigarette
lighter plug, see “Replacing the plug fuse
(12/24 V)” on page 26.
The vehicle fuse has
blown.
Replace the vehicle’s 12/24 V socket fuse
(usually 15 A). Please refer to your
vehicle’s operating manual.
“ERROR” LED flashes
for longer than 2 min-
utes, as follows: 3
flashes, pause, 3
flashes, pause, ...
Device is defective. This can only be repaired by an author-
ised customer services unit.

EN
CoolFreeze Disposal
29
10 Disposal
➤Place the packaging material in the appropriate recycling waste
bins wherever possible.
MIf you wish to finally dispose of the product, ask your local recycling
centre or specialist dealer for details about how to do this in
accordance with the applicable disposal regulations.
11 Technical data
INOTE
At ambient temperatures above 32 °C (90 °F) the minimum tem-
perature cannot be achieved.
The coolant circuit contains R-134a.
WAECO CoolFreeze
CDF18 CDF25 CDF35 CDF45
Art.-Nr.: 9105100002 9105100003 CDF-035DC CDF-045DC
Overall capacity: 18 l 23 l 31 l 39 l
Connection
voltage:
12/24 Vg
Rated current:
– 12 Vg: 4.0 A ± 0.5 5.0 A ± 0.5 5.0 A ± 0.5 5.0 A ± 0.5
– 24 Vg: 1.7 A ± 0.5 2.5 A ± 0.5 2.5 A ± 0.5 2.5 A ± 0.5
Cooling
capacity:
+10 °C to –18 °C +10 °C to –15 °C
Dimensions
(WxHxD) in mm:
456x414x300 550x425x260 560x380x340 560x475x340
Weight: 11.5 kg 12 kg 12.5 kg 13.5 kg
Test/certificates:

AUSTRALIA
Dometic Australia Pty. Ltd.
1 John Duncan Court
Varsity Lakes QLD 4227
[phone]
[phone]
Mail: [e-mail]
AUSTRIA
Dometic Austria GmbH
Neudorferstrasse 108
2353 Guntramsdorf
[phone]
[phone]
Mail: [email protected]
BENELUX
Dometic Benelux B.V.
Ecustraat 3
NL-4879 NP Etten-Leur
[phone]
[phone]
Mail: [email protected]
DENMARK
Dometic Denmark A/S
Nordensvej 15, Taulov
DK-7000 Fredericia
[phone]
[phone]
Mail: [email protected]
FINLAND
Dometic Finland OY
Mestarintie 4
FIN-01730 Vantaa
[phone]
[phone]
Mail: [e-mail]
FRANCE
Dometic S.N.C.
ZA du Pré de la Dame Jeanne
F-60128 Plailly
[phone]
[phone]
Mail: [e-mail]
HONG KONG
WAECO Impex Ltd.
Suites 2207-2211 · 22/F · Tower 1
The Gateway · 25 Canton Road,
Tsim Sha Tsui · Kowloon
Hong Kong
[phone]
[phone]
Mail: [e-mail]
ITALY
Dometic Italy S.r.l.
Via Virgilio, 3
I-47100 Forlì
[phone]
[phone]
Mail: [email protected]
NORWAY
Dometic Norway AS
Skolmar 24
N-3232 Sandefjord
[phone]
[phone]
Mail: firmapo[email protected]
POLAND
Dometic Poland Sp. z o.o.
Ul. Puławska 435A
02-801 Warszawa
Poland
[phone]
[phone]
Mail: [email protected]
RUSSIA
Dometic RUS LLC
Komsomolskaya square 6-1
107140 Moscow
Russia
[phone]
[phone]
Mail: [email protected]
SLOVAKIA
Dometic Slovakia s.r.o.
Tehelná 8
SK-98601 Fiľakovo
[phone]
[phone]
Mail: [email protected]
SPAIN
Dometic Spain S.L.
Avda. Sierra del Guadarrama, 16
E-28691 Villanueva de la Cañada
Madrid
[phone]
[phone]
Mail: [email protected]
SWEDEN
Dometic Scandinavia AB
Gustaf Melins gata 7
S-42131 Västra Frölunda (Göteborg)
[phone]
[phone]
Mail: [email protected]
SWITZERLAND
Dometic Switzerland AG
Riedackerstrasse 7a
CH-8153 Rümlang (Zürich)
[phone]
[phone]
Mail: [e-mail]
TAIWAN
WAECO Impex Ltd.
Taipei Office
2 FL-3 · No. 56 Tunhua South Rd, Sec 2
Taipei 106, Taiwan
[phone]
[phone]
Mail: [e-mail]
UNITED KINGDOM
Dometic UK Ltd.
Dometic House · The Brewery
Blandford St. Mary
Dorset DT11 9LS
[phone]
[phone]
Mail: [email protected]
UNITED ARAB STATES
Dometic AB
Regional Office Middle East
P O Box 74775
Dubai, United Arab Emirates
[phone]
[phone]
Mail: [e-mail]
UNITED STATES OF AMERICA
Dometic Marine Division
2000 N. Andrews Ave. Extension
Pompano Beach, FL 33069 USA
[phone]
[phone]
Mail: [e-mail]
GERMANY
Dometic WAECO International GmbH
Hollefeldstraße 63 · D-48282 Emsdetten
[phone] · [phone]
Mail: [e-mail] · Internet: www.dometic-waeco.de
www.dometic-waeco.com
4445100068 09/2012
