Wagan 2287 User manual

User’s Manual—Read before using this equipment
Emergency Impact Wrench Kit by Wagan Tech
Thank you for purchasing the Emergency Impact Wrench Kit by Wagan Tech. With
normal care and proper treatment it will provide years of reliable service. Please
read all operating instructions carefully before use. Save this manual for future |
reference. 4
Intended Usage
The Emergency Impact Wrench Kit is designed to help fix a flat tire. It is intended for
occasional emergency use, not commercial purposes:
Includes:
1x 12V impact wrench
2x Double sided wrench sockets
2x Spare 15A fuses
1x Rechargeable Mini LED flashlight
2x Work gloves (1 pair)
3x Tire repair strings
1x Tube rubber cement
1x Thondle rasp tool
Ix Thandle plug tool
2x Scrubbing wipes
1x Travel tarp
1x Heavy duty carrying case .
pa WAGAN
www.wagan.com
Caution
e Waning: Read all safety warnings and instructions before use. Use the
Emergency Impact Wrench Kit in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of
the power tool for operations different than those intended could result in a
hazardous situation and serious injury.
e Keep children and bystanders away while operating the tool. Distractions
can cause the operator to lose control
© Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts that they can get caught on
© Screws, nuts and bolts that have been tightened to a specific torque should
be tightened with a torque wrench once the vehicle has been fitted in place.
If you are in doubt as to the correct torque stipulated for your vehicle, consult
your car manufacturer. The nuts should be tightened once more after driving
a distance of approximately 50 kilometers.
Safety Warnings
* Do not use the power tool if the switch does not turn off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
© Do not operate the tool if the Impact Wrench or the power cord shows
visible signs of damage
© Only connect the tool to a correctly installed cigarette lighter socket with 12V
power.
© Do not let the tool or power cord get wet. Never use the tool in the rain.
Water penetrating an electrical device increases the risk of electrical shock.
© Do not use the tool in potentially explosive environments containing
combustible liquids, gases or dust. Electrical tools generate sparks that can
©2010 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation

Emergency Impact Wrench Kit by Wagan Tech
User’s Manual—Read before using this equipment
ignite the dust or vapors. Do not throw the tool into an open fire or water.
Do not overload the tool. Do not apply excessive pressure to the Mighty
Impact Wrench. If the screws cannot be moved and the wrench freezes,
stop operation. Either use a more powerful tool or continue with a manual
wrench. Do not attempt to continue to turn the screw manually with the
Mighty Impact Wrench
Do not operate the tool without a load at full speed for any length of time.
Product Care
Handle the tool and accessories with care and keep them clean to ensure a
long service life
Do not make any modifications to the tool. Repairs to the tool or power cord
should be carried out by an authorized service technician. Modifying the
tool in anyway will void product warranty
Disconnect the plug from the cigarette lighter before cleaning parts of the
tool, or if there is a problem with the tool.
Do not use caustic, abrasive or solventbased products for cleaning,
Use a soft, dry cloth to wipe the tool clean.
Prevent oil or oil products from entering the plastic casing. The chemicals they
contain could corrode or damage the plastic. Grease and oil-based grime
must be immediately wiped off the tool and accessories with a slightly damp
cloth
Store idle power tools out of reach of children and do not allow people
unfamiliar with the power tool or these instructions to operate it. Power tools
are dangerous in the hands of untrained users.
Disposal of this product should only be done’in accordance with the current
regulations
pa WAGAN
www.wagan.com

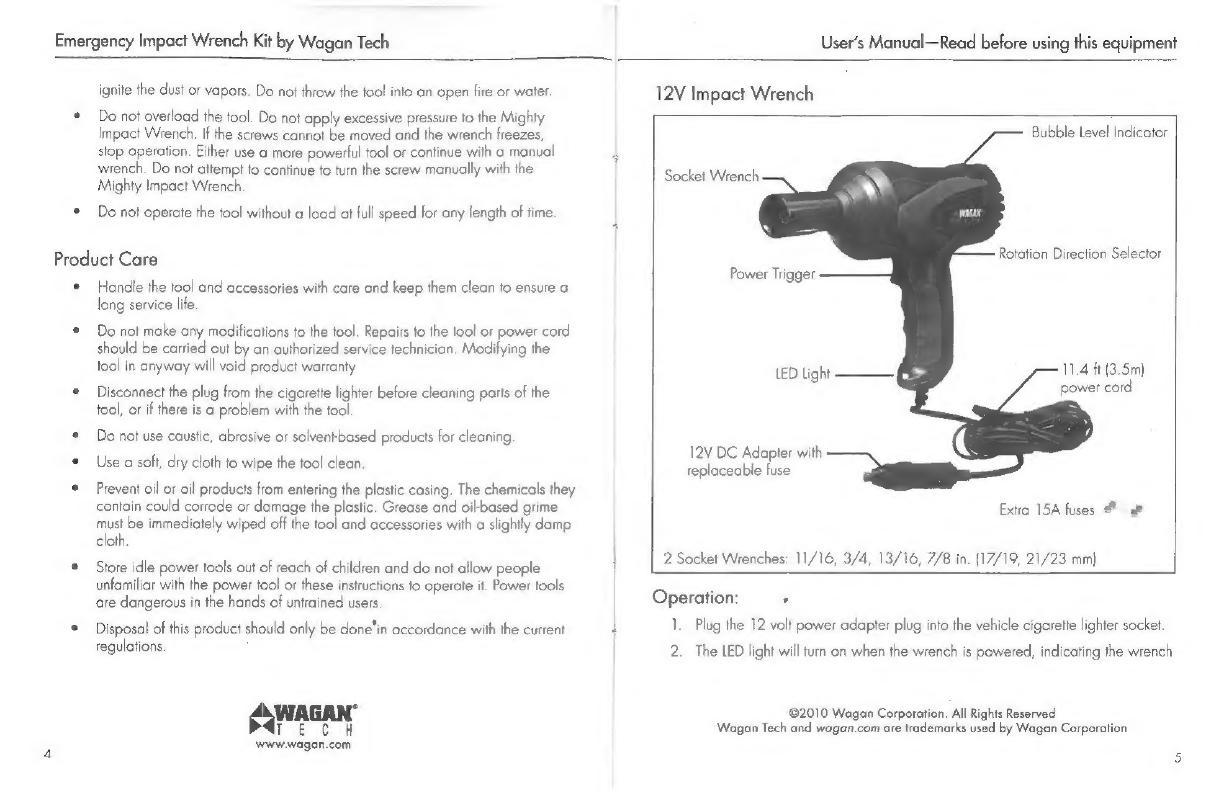

12V Impact Wrench
Bubble Level Indicator
Socket Wrench
Rotation Direction Selector
Power Trigger
11.4 ft (3.5m)
LED light ——
power cord
12V DC Adapter with
replaceable fuse
Extra 15A fuses # æ
2 Socket Wrenches: 11/16, 3/4, 13/16, 7/8 in. (17/19, 21/23 mm)
Operation: ,
1. Plug the 12 volt power adapter plug into the vehicle cigarette lighter socket.
2. The LED light will turn on when the wrench is powered, indicating the wrench
©2010 Wagan Corporation. All Rights Reserved
Wagon Tech and wagan.com are trademarks used by Wagan Corporation

Emergency
Impact
Wrench
Kit
by
Wagan
Tech
User’s Manual—Read before using this equipment
is running and also functioning as a small work light.
3. Thread a screw/nut on by hand. Note: always thread a screw or nut by
hand
to
start
it
before
tightening
with
the
Mighty
Impact
Wrench
4. Attach an appropriately sized socket wrench on the square retainer. The 2
socket wrenches can be flipped to use 4 different diameters.
5. Set the rotation selector to FWD for clockwise or REV for counter-clockwise
rotation,
6. Pull the ON/OFF trigger switch to turn the tool on. Release the trigger switch
to turn the tool off.
7. Do not operate the tool for longer than 10 minutes continuously. Afterwards,
take 10 minutes to allow the wrench to cool down.
8. After tightening, check the screw connections for visible signs of damage
Replacing the Fuse in the 12V Adapter
1, Twist off the upper cover of the 12V adapter tip.
2. Remove the faulty fuse.
3. Insert a new fuse of the same type (spare fuses are included in the case]
4. Twist the cover back onto the Adapter.
Note: To prevent powering on the tool by accident: ensure the switch is in the OFF
position before connecting to the power source, and picking up or carrying the
tool. This 12V impact wrench can only be used on small/midsize cars & SUVs! It
CANNOT be used on trucks.
f WAGAN®
TE CH
www.wagan.com
it

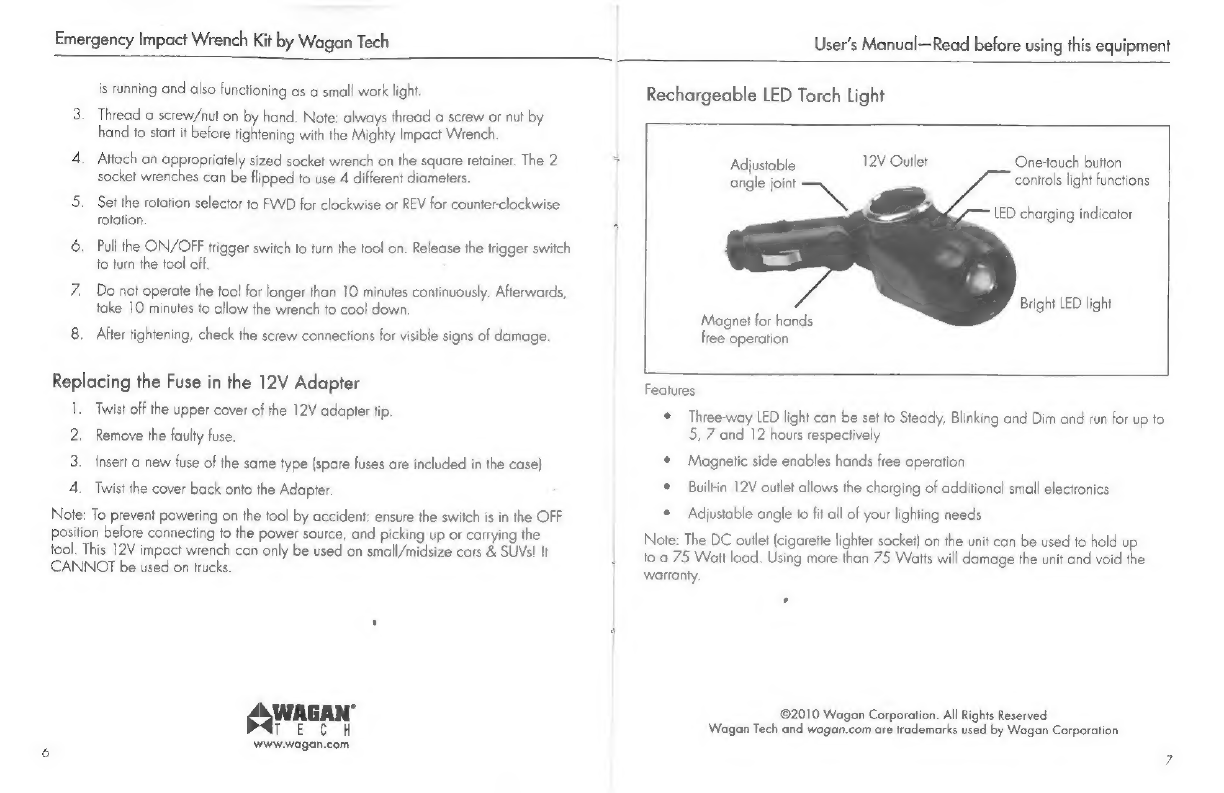

Rechargeable LED Torch Light
One-touch button
controls light functions
Adjustable 12V Outlet
angle joint NK
LED charging indicator
Bright LED light
Magnet for hands
free operation
Features
© Three-way LED light can be set to Steady, Blinking and Dim and run for up to
5,7 and 12 hours respectively
* Magnetic side enables hands free operation
© Builtin 12V outlet allows the charging of additional small electronics
e Adjustable angle to fit all of your lighting needs
Note: The DC outlet (cigarette lighter socket] on the unit can be used to hold up
to a 75 Watt load. Using more than 75 Watts will damage the unit and void the
warranty.
©2010 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation

Emergency Impact Wrench Kit by Wagan Tech
User’s Manual—Read before using this equipment

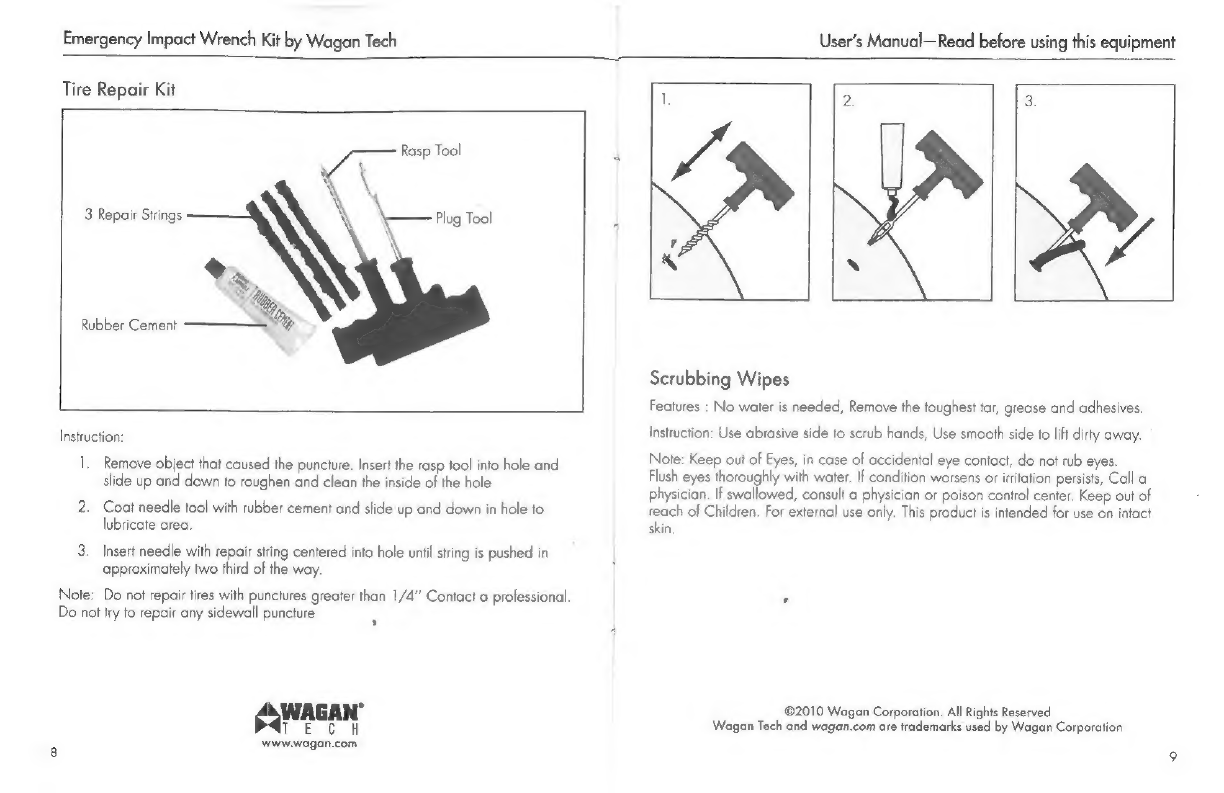

Tire Repair Kit
Rasp Tool
3
Repair
Strings
\-——
Plug
Too!
Rubber Cement ———=
t
Instruction:
1. Remove object that caused the puncture. Insert the rasp tool into hole and
slide up and down to roughen and clean the inside of the hole
2. Coat needle tool with rubber cement and slide up and down in hole to
lubricate area
3. Insert needle with repair string centered into hole until string is pushed in
approximately two third of the way.
Note: Do not repair tires with punctures greater than 1/4” Contact a professional.
Do not try to repair any sidewall puncture è
f WAGAN’
TECH
www.wagan.com
F s
A N
Scrubbing Wipes
Features : No water is needed, Remove the toughest tar, grease and adhesives.
Instruction: Use abrasive side to scrub hands, Use smooth side to lift dirty away.
Note: Keep out of Eyes, in case of accidental eye contact, do not rub eyes.
Flush eyes thoroughly with water. If condition worsens or irritation persists, Call a
physician. If swallowed, consult a physician or poison control center. Keep out of
reach of Children. For external use only. This product is intended for use on intact
skin.
©2010 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation

Emergency
Impact
Wrench
Kit
by
Wagan
Tech
User’s Manual—Read before using this equipment

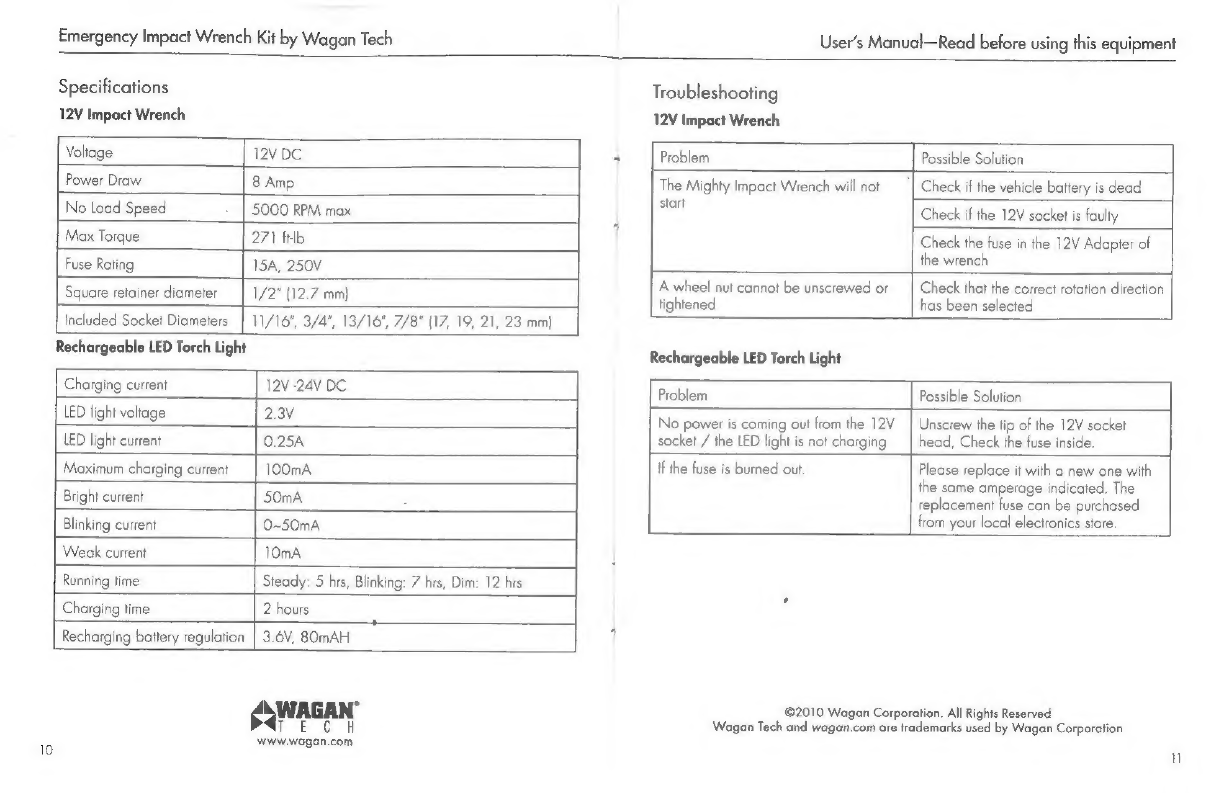

Specifications
12V Impact Wrench
Voltage 12V DC
Power Draw 8 Amp
No load Speed 5000 RPM max
Max Torque 271 fHb
Fuse Rating 15A, 250V
Square retainer diameter 1/2* (12.7 mm}
Included Socket Diameters | 11/16", 3/4", 13/16", 7/8" (17, 19, 21, 23 mm)
Rechargeable LED Torch Light
Troubleshooting
12V Impact Wrench
Problem
Possible Solution
The Mighty Impact Wrench will not
start
Check if the vehicle battery is dead
Check if the 12V socket is faulty
Check the fuse in the 12V Adapter of
the wrench
A wheel nut cannot be unscrewed or
tightened
Check that the correct rotation direction
has been selected
Rechargeable LED Torch Light
gamana
www.wagan.com
Chorging
current
12V
-24V
DC
Problem
Possible
Solution
LED
light
voltage
2.3V
No
power
is
coming
out
from
the
12V
|
Unscrew
the
tip
of
the
12V
socket
LED
light
current
0.25A
socket
/
the
LED
light
is
not
charging
head,
Check
the
fuse
inside.
Maximum
charging
current
100mA
If
the
fuse
is
burned
out.
Please
replace
it
with
a
new
one
with
:
the
same
amperage
indicated.
The
Bright
current
SOMA
replacement
fuse
can
be
purchased
Blinking
current
0~50mA
i
from
your
local
electronics
store.
Weak
current
1OmA
Running
time
Steady:
5
hrs,
Blinking:
7
hrs,
Dim:
12
hrs
Charging
time
2
hours
'
+
Recharging battery regulation | 3.6V, 80mAH
©2010 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation

row ym
Fa
ae
gS
a
39
jos joulBo ay
=
=
a}
>
Z
o
z0} jdiaces sə)
40438188) ajajd
A
io} uo
Y} 91001390 O} as0y>Ind Jo si
ja) Əq snw sjoNPolg UCYDIOdJO
‘Ayuouom si
pavaysiB
ysn
tYSYó YD 'PIomÃOH
jo Adoo o yım Buojo '
WS ajuəw
ae) uns 8801€
100 NVOVM
uoyD0
SDIAIAS JEWOISN “Uy
ainjouBlg
aspyping Jo 9j0q
BUWIDKY 810S
SNES O ee PEARES
NID
ewDN
ssoippy ||OW-J
2 =
a rey
a =
i 5
R é
2 Žž
8 &
2 3
9 a
‘dio0 NVOVM 19} Ajuouom pajiwi| Aw SDAD aspa|g a
Pe|DOIPU! ssaippo Əy; oj WO} AyUOIOM wna PUD YODIEq

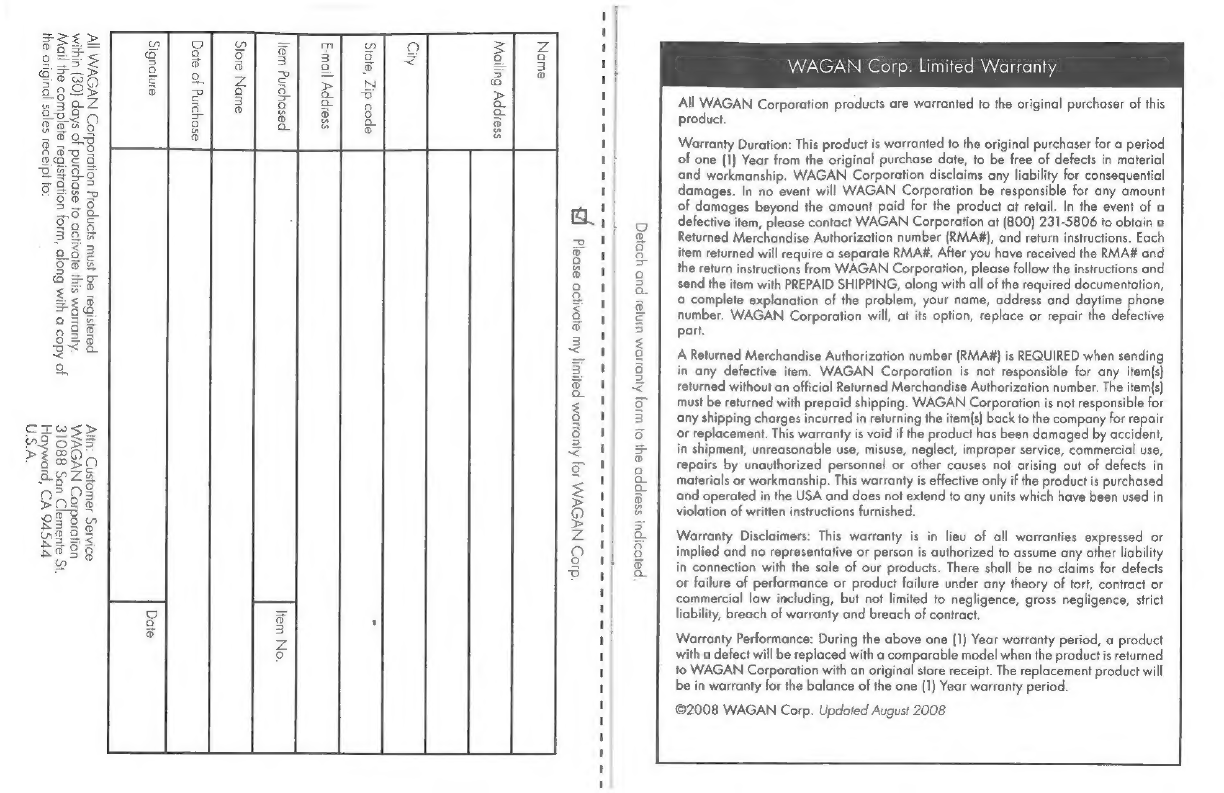

WAGAN Corp. Limited Warranty
All WAGAN Corporation products are warranted to the original purchaser of this
product.
Warranty Duration: This product is warranted to the original purchaser for a period
of one (1) Year from the original purchase date, to be free of defects in material
and workmanship. WAGAN Corporation disclaims any liability for consequential
damages. In no event will WAGAN Corporation be responsible for any amount
of damages beyond the amount paid for the product at retail. In the event of a
defective item, please contact WAGAN Corporation at [phone] to obtain a
Returned Merchandise Authorization number (RMA#), and return instructions. Each
item returned will require a separate RMA#. After you have received the RMA# and
the return instructions from WAGAN Corporation, please follow the instructions and
send the item with PREPAID SHIPPING, along with all of the required documentation,
a complete explanation of the problem, your name, address and daytime phone
number. WAGAN Corporation will, at its option, replace or repair the defective
part.
A Returned Merchandise Authorization number (RMA#) is REQUIRED when sending
in any defective item. WAGAN Corporation is not responsible for any item(s}
returned without an official Returned Merchandise Authorization number. The item(s)
must be returned with prepaid shipping. WAGAN Corporation is not responsible for
any shipping charges incurred in returning the item(s) back to the company for repair
or replacement. This warranty is void if the product has been damaged by accident,
in shipment, unreasonable use, misuse, neglect, improper service, commercial use,
repairs by unauthorized personnel or other causes not arising out of defects in
materials or workmanship. This warranty is effective only if the product is purchased
and operated in the USA and does not extend to any units which have been used in
violation of written instructions furnished.
Warranty Disclaimers: This warranty is in lieu of all warranties expressed or
implied and no representative or person is authorized to assume any other liability
in connection with the sale of our products. There shall be no claims for defects
or failure of performance or product failure under any theory of tort, contract or
commercial law including, but not limited to negligence, gross negligence, strict
liability, breach of warranty and breach of contract.
Warranty Performance: During the above one (1) Year warranty period, a product
with a defect will be replaced with a comparable model when the product is returned
to WAGAN Corporation with an original store receipt. The replacement product will
be in warranty for the balance of the one (1) Year warranty period.
©2008 WAGAN Corp. Updated August 2008
