Wagan IMPACT DRIVER - IMPACT WRENCH 2257 User manual

Item no. 2257
User’s Manual
12V Impact Wrench

©2009 Wagan Corporation
All Rights Reserved
Wagan and wagan.com are trademarks used by Wagan Corporation 1
User’s Manual—Read before using this equipment

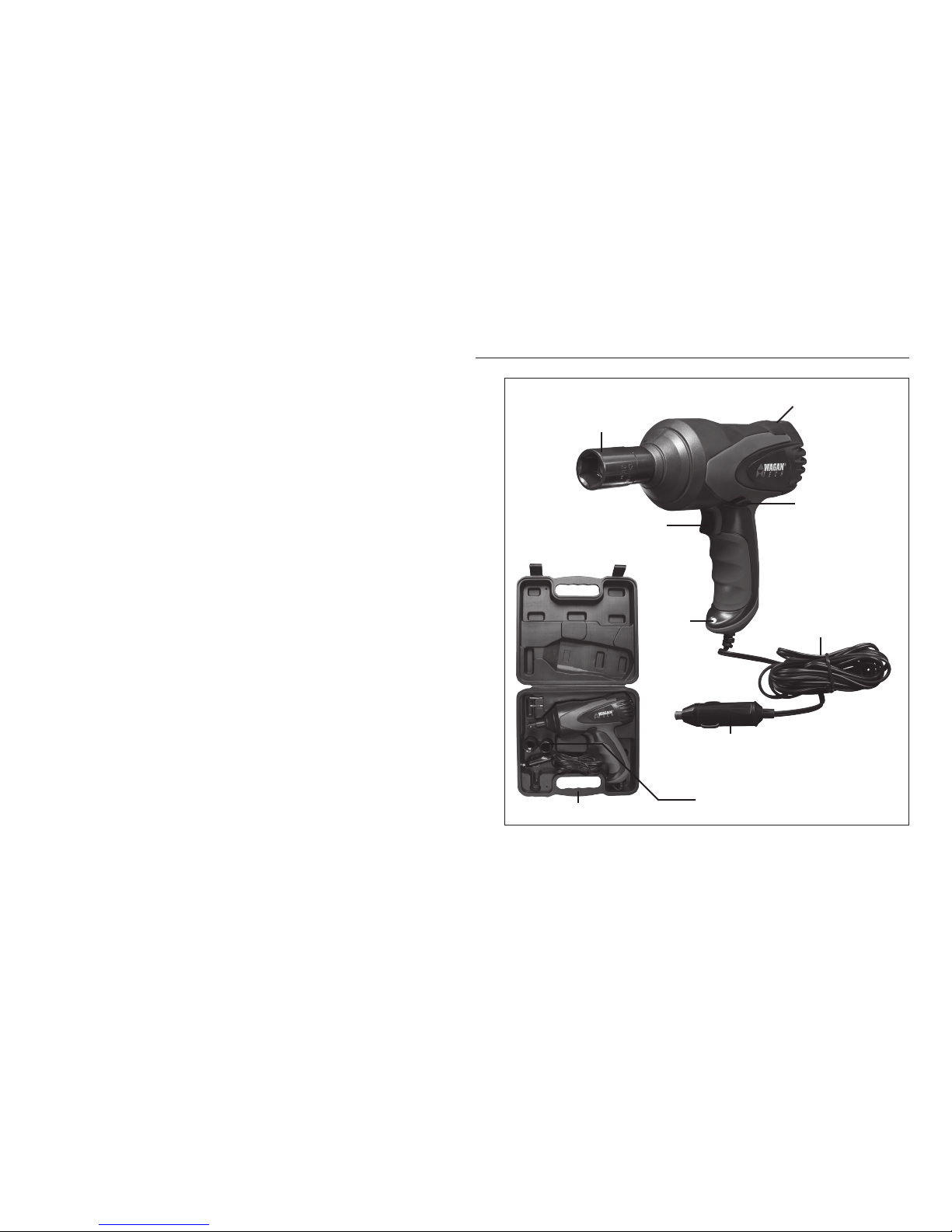

Bubble Level Indicator
Rotation Direction
Selector
13 foot power cord
LED Light
12V DC Adapter
with replaceable
fuse
Power Trigger
Socket Wrench
(attached to
square retainer)
Plastic Case Extra fuses, 2 Socket Wrenches
(17/19, 21/23 mm)

www.wagan.com
2
12V Impact Wrench by Wagan Tech
©2009 Wagan Corporation
All Rights Reserved
Wagan and wagan.com are trademarks used by Wagan Corporation 3
User’s Manual—Read before using this equipment
Safety Warnings
Do not use the power tool if the switch does not turn off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
Do not operate the tool if the 12V Impact Wrench or the power cord shows
visible signs of damage.
Only connect the tool to a correctly installed cigarette lighter adapter with
12V power.
Do not let the tool or power cord get wet. Never use the tool in the rain.
Water penetrating an electrical device increases the risk or electrical shock.
Do not use the tool in potentially explosive environments containing
combustible liquids, gases or dust. Electrical tools generate sparks that can
ignite the dust or vapors. Do not throw the tool into an open fire or water.
Do not overload the tool. Do not apply excessive pressure to the 12V
Impact Wrench. If the screws cannot be moved and the wrench freezes,
stop operation. Either use a more powerful tool or continue with a manual
wrench. Do not attempt to continue to turn the screw manually with the 12V
Impact Wrench.
Do not operate the tool without a load at full speed for any length of time.
Operation
Note: To prevent powering on the tool by accident: ensure the switch is in the OFF
position before connecting to the power source, and picking up or carrying the
tool.
Plug the 12 volt power adapter plug into the vehicle cigarette lighter socket.
The LED light will turn on when the wrench is powered, indicating the
wrench is running and also functioning as a work light.
•
•
•
•
•
•
•
1.
2.
Thank you for purchasing the 12V Impact Wrench by Wagan Tech. With normal
care and proper treatment it will provide years of reliable service. Please read all
operating instructions carefully before use. Save this manual for future reference.
Intended Usage
The 12V Impact Wrench is designed to loosen or tighten vehicle lug nuts for tires. It
is intended for occasional intermittent use, not commercial purposes.
Caution: This 12V Impact Wrench can only be used on small/midsize cars & SUVs!
It CANNOT be used on trucks.
Caution
Warning: Read all safety warnings and instructions. Use the 12V Impact
Wrench in accordance with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool for operations
different then those intended could result in a hazardous situation and serious
injury.
Keep children and bystanders away while operating a power tool.
Distractions can cause the operator to lose control.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts that they can get caught on.
Screws, nuts and bolts that have been tightened to a specific torque should
be tightened with a torque wrench once the vehicle has been fitted in place.
If you are in doubt as to the correct torque stipulated for your vehicle, consult
your car manufacturer. The nuts should be tightened once more after driving
a distance of approximately 50 kilometers.
•
•
•

www.wagan.com
4
12V Impact Wrench by Wagan Tech
©2009 Wagan Corporation
All Rights Reserved
Wagan and wagan.com are trademarks used by Wagan Corporation 5
User’s Manual—Read before using this equipment
Thread a screw/nut on by hand. Note: always thread a screw or nut by
hand to start it before tightening with the 12V Impact Wrench.
Attach an appropriately sized socket wrench on the square retainer. The 2
socket wrenches can be flipped to use 4 different diameters.
Set the rotation selector to FWD for clockwise or REV for counter-clockwise
rotation.
Pull the ON/OFF trigger switch to turn the tool on. Release the trigger switch
to turn the tool off.
Do not operate the tool for longer than 10 minutes without interruption.
Afterwards, take 10 minutes to allow the wrench to cool down.
After tightening, check the screw connections for visible signs of damage.
Product Care
Handle the tool and accessories with care and keep them clean to ensure a
long service life.
Do not make any modifications to the tool. Repairs to the tool or power cord
should be carried out by an authorized service technician.
Disconnect the plug from the cigarette lighter before cleaning parts of the
tool, or if there is a problem with the tool.
Do not use caustic, abrasive or solvent-based products for cleaning.
Use a soft, dry cloth to wipe the tool clean.
Prevent oil or oil products from entering the plastic casing. The chemicals
they contain could corrode or damage the plastic. Grease and oil-based
grime must be immediately wiped off the tool and accessories with a slightly
damp cloth.
Store idle power tools out of reach of children and do not allow people
3.
4.
5.
6.
7.
8.
•
•
•
•
•
•
•
unfamiliar with the power tool or these instructions operate it. Power tools
are dangerous in the hands of untrained users.
Disposal of this product should only be done in accordance with the current
regulations.
Replacing the Fuse in the 12V Adapter
Twist off the upper cover of the 12V adapter tip.
Remove the faulty fuse.
Insert a new fuse of the same type (spare fuses are included in the case)
Twist the cover back onto the Adapter.
Troubleshooting
Problem Possible Solution
The 12V Impact Wrench will not start Check if the vehicle battery is dead
Check if the 12V socket is faulty
Check the fuse in the 12V Adapter of
the wrench
A wheel nut cannot be unscrewed or
tightened
Check that the correct rotation
direction has been selected
•
1.
2.
3.
4.

www.wagan.com
6
12V Impact Wrench by Wagan Tech
Specifications
Voltage 12V DC
Power Draw 8 Amps
No Load Speed 6000 RPM ± 10%
Max Torque 271 ft-lbs
Fuse Rating 15A, 250V
Square retainer diameter 1/2” (12.7 mm)
Included Socket Diameters 17/19 mm, 21/23 mm
(11/16”, 3/4”, 13/16”, 7/8”)

Detach and return bottom portion to the address below.
All WAGAN Corporation products are warranted to the original purchaser of
this product.
Warranty Duration: This product is warranted to the original purchaser for a
period of one (1) Year from the original purchase date, to be free of defects in
material and workmanship. WAGAN Corporation disclaims any liability for
consequential damages. In no event will WAGAN Corporation be responsible
for any amount of damages beyond the amount paid for the product at retail.
In the event of a defective item, please contact WAGAN Corporation at
[phone] to obtain a Returned Merchandise Authorization number
(RMA#), and return instructions. Each item returned will require a separate
RMA#. After you have received the RMA# and the return instructions from
WAGAN Corporation, please follow the instructions and send the item with
PREPAID SHIPPING, along with all of the required documentation, a complete
explanation of the problem, your name, address and daytime phone number.
WAGAN Corporation will, at its option, replace or repair the defective part.
A Returned Merchandise Authorization number (RMA#) is REQUIRED when
sending in any defective item. WAGAN Corporation is not responsible for
any item(s) returned without an official Returned Merchandise Authorization
number. The item(s) must be returned with prepaid shipping. WAGAN
Corporation is not responsible for any shipping charges incurred in returning
the item(s) back to the company for repair or replacement. This warranty is
void if the product has been damaged by accident, in shipment, unreasonable
use, misuse, neglect, improper service, commercial use, repairs by
unauthorized personnel or other causes not arising out of defects in materials
or workmanship. This warranty is effective only if the product is purchased and
operated in the USA and does not extend to any units which have been used in
violation of written instructions furnished.
Warranty Disclaimers: This warranty is in lieu of all warranties expressed or
implied and no representative or person is authorized to assume any other
liability in connection with the sale of our products. There shall be no claims
for defects or failure of performance or product failure under any theory of
tort, contract or commercial law including, but not limited to negligence, gross
negligence, strict liability, breach of warranty and breach of contract.
Warranty Performance: During the above one (1) Year warranty period, a
product with a defect will be replaced with a comparable model when the
product is returned to WAGAN Corporation with an original store receipt. The
replacement product will be in warranty for the balance of the one (1) Year
warranty period. ©2008 WAGAN Corp. Updated August 2008
