Wahoo KICKR BIKE Assembly instructions

OWNER’S MANUAL AND
ASSEMBLY INSTRUCTIONS
smart bike

ENGLISH
1
Thank you for purchasing the Wahoo
KICKR BIKE!
DOWNLOAD THE WAHOO APP TO COMPLETE SETUP AND FOR ESSENTIAL NEW
PRODUCT UPDATES AND OPTIMIZED PERFORMANCE
LEARN MORE:
For instructional videos, compatible apps, FAQs, or to submit a support request
please visit: www.wahoofitness.com/support
PLEASE CONTACT US WITH
QUESTIONS OR CONCERNS AT:
Wahoo Fitness
90 W. Wieuca Rd NE , Suite 110
Atlanta, GA 30342 United States
[email protected]om
TELEPHONE:
United States: 1-877-978-1112
Germany: [phone]
United Kingdom: [phone]
Phone Hours: Monday - Friday
10am-7pm Eastern Time Zone
For safety, read this manual and all safety information thoroughly before
assembly and use.
• Assemble the KICKR BIKE only as stated in the information contained in this
manual.
• Do not modify the KICKR BIKE.
• All instructions can be viewed on our website:
www.wahoofitness.com/instructions.
• Images may not reflect final product exactly.
The following instructions must be observed at all times in order to prevent
personal injury and physical damage to equipment and surroundings. The
instructions are classified according to the degree of danger or damage which
may occur if the product is used incorrectly:
Failure to follow the instructions will result in death or serious injury.
Failure to follow the instructions will result in death or serious injury.
Failure to follow the instructions could cause personal injury and/or physical
damage to equipment or surroundings.
IMPORTANT NOTICE
DANGER
WARNING
CAUTION

2
SAFTEY INFORMATION
• Improper or excessive exercise can result in serious injury. Always consult your physician
before beginning or modifying any exercise program.
• The Wahoo App KICKR BIKE Fit algorithm(s) do not guarantee injury prevention.
• Contact with the moving parts of the KICKR BIKE could result in serious injury.
- Do not put hands or objects near moving parts of the KICKR BIKE.
- Keep children and pets away from the KICKR BIKE.
- Do not dismount the KICKR BIKE while the flywheel is in motion.
- Do not wear loose clothing or shoes with loose laces that could result in unintended
contact with moving parts.
• Do not exceed the maximum rider weight of 250 lbs. (113.5 KG).
• Instability of the KICKR BIKE could result in serious injury. Only use the KICKR BIKE on
stable, level surfaces.
• The KICKR BIKE is intended for indoor use only. Do not store outdoors or near water.
• The KICKR BIKE may become hot to the touch when used for extended periods of time.
Allow components to cool before touching.
• To avoid risk of fire or electric shock, only use the included power adapter with the
KICKR BIKE.
• Unplug the KICKR BIKE when not in use and prior to cleaning and/or maintenance.
• Device alterations, improper and/or incomplete use, assembly or operation can
result in serious injury.
ENSURE PROPER ASSEMBLY
• Follow the instructions provided in the manual when assembling the product.
• Read all safety information and ensure understanding of assembly instructions before
assembling and using the KICKR BIKE.
• Keep this manual for future reference.
• Improper assembly, maintenance or use will void the warranty.
• The KICKR BIKE may be placed on a mat to protect floor or carpet if desired.
• Wahoo Fitness is not liable for improper or incomplete assembly of the KICKR BIKE.
CAUTION

ENGLISH
3
BEFORE EACH RIDE
• Check to ensure that stem bolts are tight and that handlebars cannot rotate.
• Confirm that your saddle is properly installed and all bolts are properly tightened.
• Ensure that both the levers for adjusting reach and setback are fully closed.
• Check that the seatpost and steer tube quick release clamps are tightened
and fully closed.
• Ensure that the standover height pin is properly seated and resting in the
corresponding height position hole and that the lever is fully closed.
• That your pedals are properly installed and adequately tightened.
• Refer to this manual for proper torque specs.
• Before each ride ensure that the area is clear and that the KICKR BIKE has full range
of tilt motion.
• Level the KICKR BIKE’s feet and make sure the floor is clear of any debris.
• Check the power cord and brick for any damage before plugging it in.
• Ensure the KICKR BIKE is in locked mode before starting your ride.
MAINTENANCE AND STORAGE
It is important to follow the below maintenance tips to ensure optimal performance
of your KICKR BIKE:
After each training session:
• Use a soft cloth to wipe the KICKR BIKE dry or remove any sweat or water.
• Unplug the KICKR BIKE when stored or plug into surge protector.
• Routinely check for signs of rust, corrosion, or excessive wear.
• Inspect all bolts and screws for rust or damage.
To move and store your KICKR BIKE, use the casters to move the KICKR BIKE to a safe
place for storage:
• Grab the handlebars and lift, then grab the front foot. Hold the front foot to navigate
to place of storage.

4
(a)
(2)
(b)
(f)
(e)
(1)

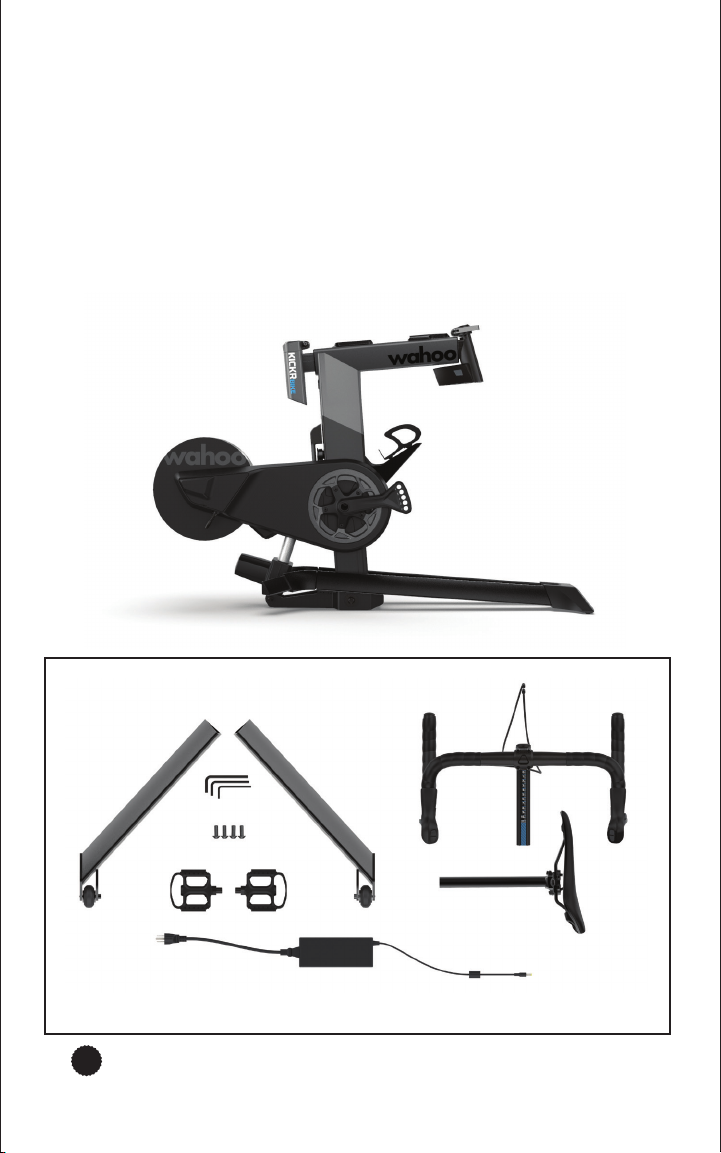

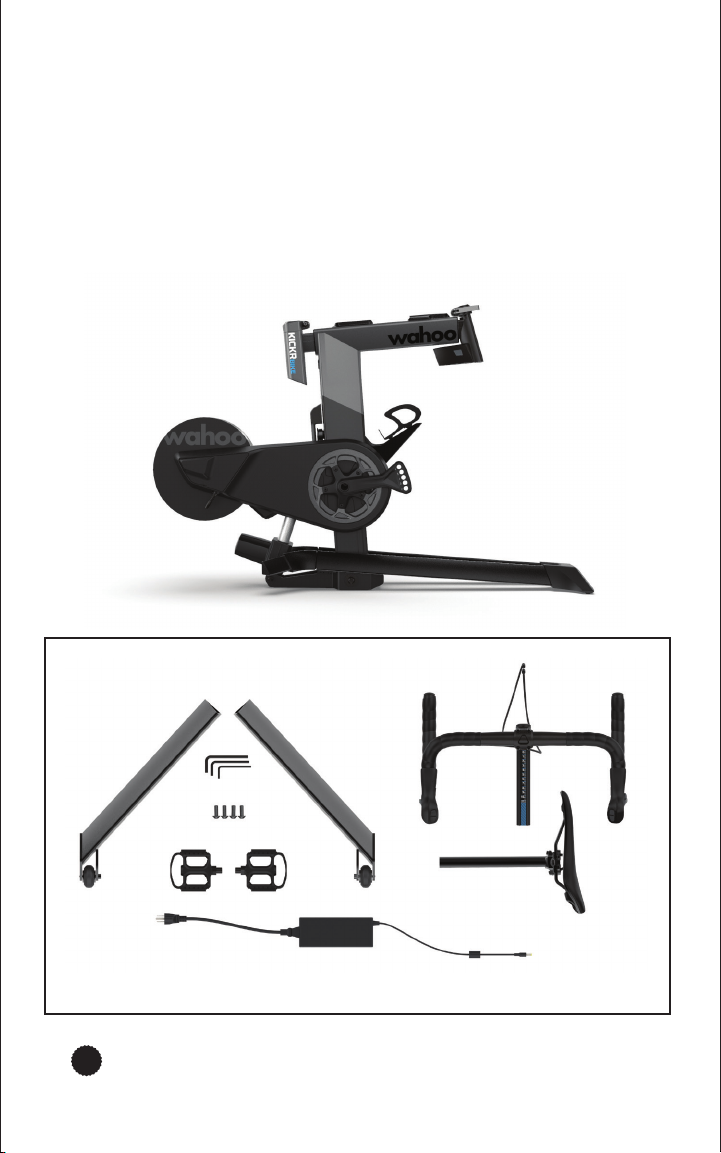

BOX CONTENTS
(1) KICKR BIKE main assembly
(2) ACCESSORY BOX
(a) Rear stabilizer legs (2)
(b) Handlebar Assembly
(c) Seatpost Assembly
(d) Pedals
(e) 5mm Hex Bolts (X4)
(f) Allen Wrenches (4,5,6mm)
(g) AC Power Adapter
(c)
(d)
(g)
PPROTIP: Save all packaging and protective material for transportation
and storage

ENGLISH
1
235
6
7
8
4
9
10
11
13
12
14
16 15
1
23
4
56
7
8
9
13
12 11
10
14
1516
5

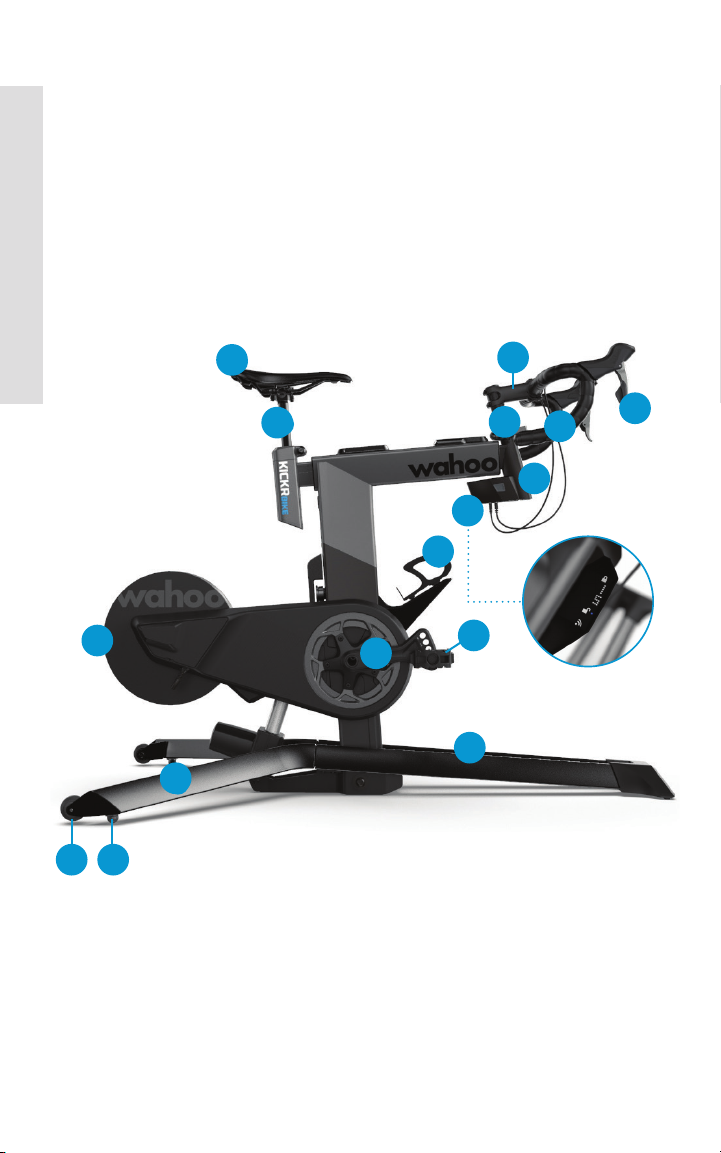

KICKR BIKE PARTS
(1) Saddle
(2) Seatpost
(3) Steer Tube
(4) Stem
(5) Handlebars
(6) Shifters
(7) Head Tube
(8) LED Display
(9) Water Bottle Cage
(10) Crank Arms
(11) Pedals
(12) Flywheel
(13) Base
(14) Rear Stabilizer Leg
(15) Leveling Feet
(16) Castors

2
1
6

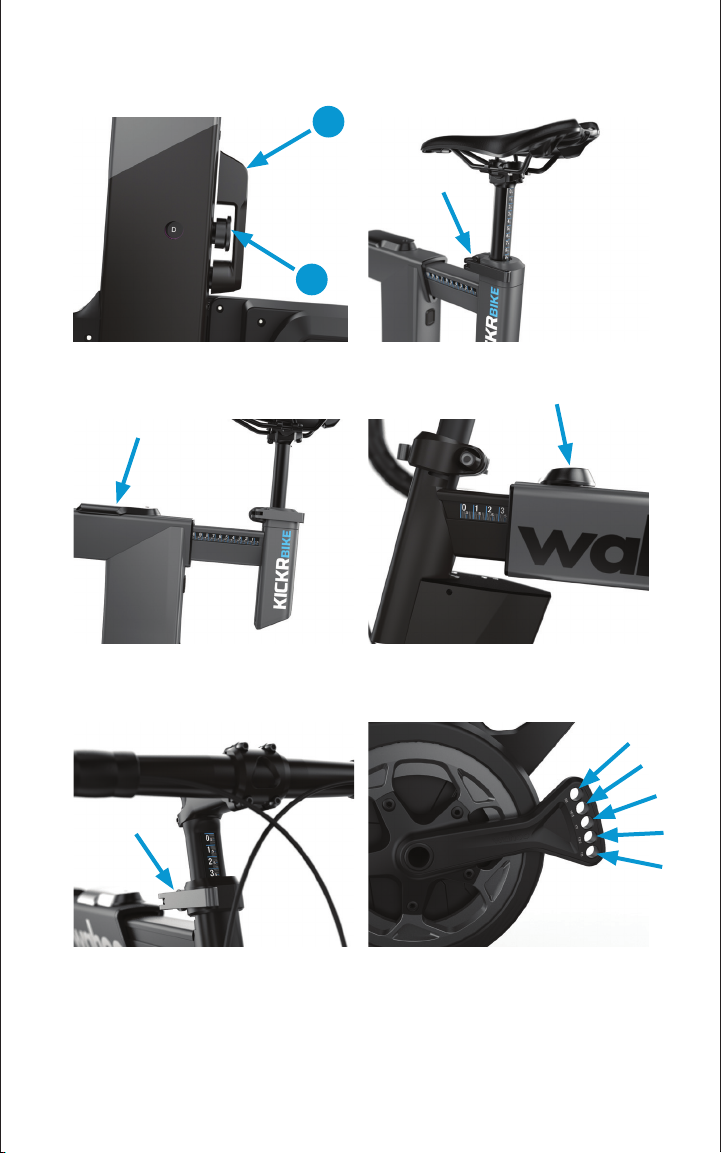

KICKR BIKE ADJUSTMENT POINTS
Standover Height Adjustment
Setback Adjustment
Stack Height Adjustment
Saddle Height Adjustment
Reach Adjustment
Crank Length Adjustment

ENGLISH
1
2
5
mm
24 - 28 N- m
Tightening torque
CAUTION
Heavy object.
Two person lift
required.
7

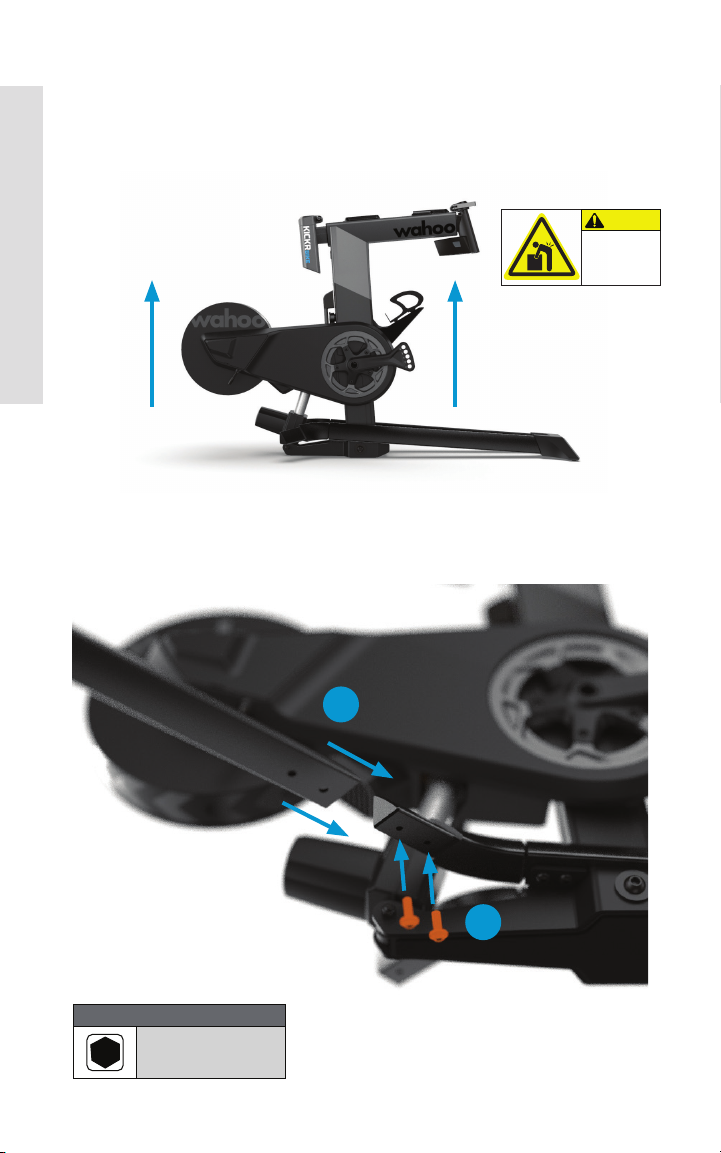

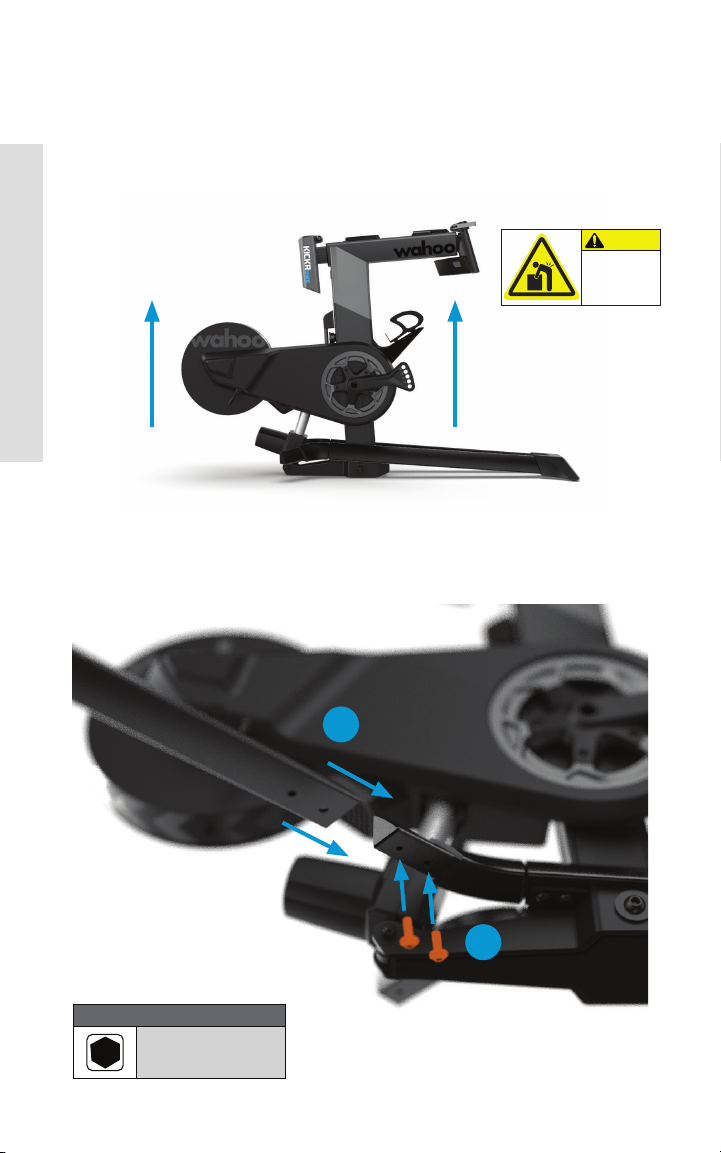

KICKR BIKE SETUP
KICKR BIKE assembly requires two people.
Remove and lay out all items from the accessory box, ensuring all items are included.
To begin, team lift the KICKR BIKE to remove it from the box.
With one person tilting the frame for access,
assemble stabilizer leg to lower frame with
supplied 5mm hex bolts. Repeat process for
opposite side.

1
2
3
3
1
2
2
The handlebars will be tipped down. Use a 4mm Allen wrench to loosen (but do
not remove) the stem bolts on the face plate. Rotate the handlebars to your desired
position. Tighten stem bolts evenly on the face plate.
4
mm
05 - 06 N- m
Tightening torque
8
KICKR BIKE ASSEMBLY
Attach the handlebar
assembly to the KICKR BIKE
using front reach extension
quick release.

ENGLISH
1
2
3
9

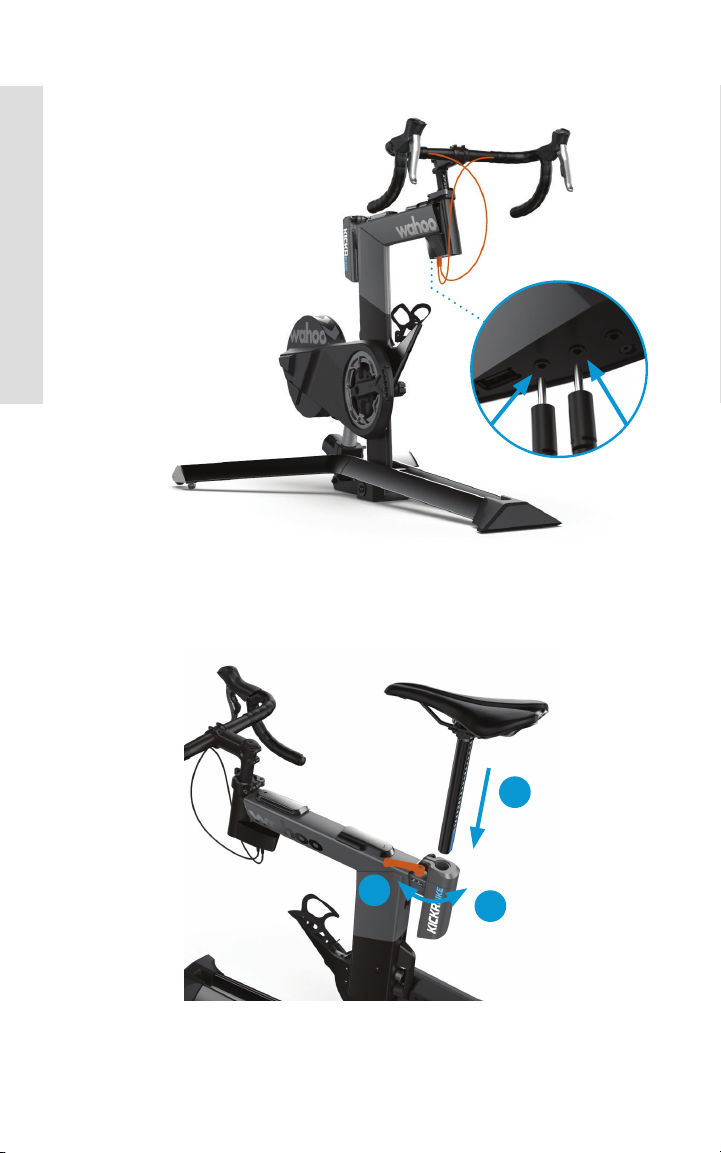

KICKR BIKE ASSEMBLY continued
(7) Plug both of the shifter cords into
the bottom of the LED display screen.
Shifter cords may be connected to any
of the 3 available ports. The LED display
also features a USB port for device
charging.
Insert the seatpost assembly into the
KICKR BIKE by loosening/tightening the
rear extension quick release.

6
mm
30 - 35 N- m
Tightening torque
10
KICKR BIKE ASSEMBLY continued
Attach included pedals(or your own, if
preferred) to the crank arms.
Some pedal axles may require the use
of washers (included) for necessary
clearances to KICKR BIKE housings.
The KICKR BIKE crank arm is designed for
you to customize your bike fit. This design
accommodates 165mm, 167.5mm,
170mm, 172.5mm and 175mm crank
lengths by simply moving your pedal to
the corresponding hole on the crank arm.
Identify the left and right pedals. Grease
the threads on both pedals. Thread the
right pedal into the drive side crank using
washer for correct spacing (if needed).
Use a wrench to ensure snug fit. Thread
the left pedal into non drive side crank
using washer for correct spacing (if
needed). Use a wrench to ensure snug fit.
The included pedals require a 6mm Allen
wrench.
NOTE: Pedal threads are different from left to right. Right side pedals
have right-hand threads (removes counterclockwise, installs clockwise).
The left side pedal has left-hand threads (removes clockwise, installs
counterclockwise). Improper installation or cross threading can cause
damage to the KICKR BIKE’s cranks.
Use the included AC power adapter to
connect the KICKR BIKE to a standard
wall outlet.

ENGLISH
11
KICKR BIKE LED DISPLAY
KICKR BIKE includes a built in LED Display
providing you with data on demand. The
LED Display will show the following data:
• Whether your KICKR BIKE is currently
in LOCKED or UNLOCKED Mode
• What gears you are currently in.
• Your current grade percentage after
you manually change grades.
• Connection status of your KICKR BIKE
to indicate if it is currently paired to
an external device.
LOCKED AND UNLOCKED MODES
Use the button (11) on the side of the
LED Display to toggle between modes.
Locked Mode: Use the shifter’s manual
controls for direct tilt control. While the
lock LED is illuminated, external software
will not move the KICKR BIKE.
Unlocked Mode: The KICKR BIKE reacts
to grade changes from external software
like Zwift and Sufferfest or from your
ELEMNT GPS bike computers. If the
shifters are used to change the grade
manually in Unlocked Mode, the KICKR
BIKE will automatically switch to
Locked Mode.
(11)

12
CONNECTIVITY
Wahoo offers the most connected ecosystem for indoor and outdoor cycling.
Complete your KICKR BIKE experience with an ELEMNT Bike Computer,
TICKR Heart Rate Monitor, KICKR Mat, and KICKR HEADWIND.
COMPATIBILITY
• ELEMNT GPS Bike Computers
• Apple devices running iOS 10.0 or newer
• Android 5.1 or newer (with ANT+ or Bluetooth® enabled)
• Mac computers (with an ANT+ USB adapter or Bluetooth® enabled)
• Windows PCs (with ANT+ USB adapter)
For a full list of KICKR compatible apps visit:
www.wahoofitness.com/fitness-apps#kickr
LEVEL: Just like riding
on a fluid or wind trainer,
the faster you go, the
harder it gets. The level
you select determines
the progression of your
power curve.
ERG: Set your desired
power, the KICKR BIKE
will increase or decrease
the resistance to maintain
a constant power output,
regardless of speed.
SIM: Enter your weight,
bike type, riding position,
headwind and grade
and the KICKR BIKE will
accurately model the
power curve just as if you
were riding outdoors.
USING THE WAHOO APP
From the Wahoo App you will be able to complete your setup, fit,
customize, update and control your KICKR BIKE. Download the Wahoo App
for free from the Apple App Store or from the Android Google Play Store.
SETUP: The Wahoo App offers step by step KICKR BIKE assembly instructions as well
as account login and product registration. This ensures you will get all the latest
information regarding your KICKR BIKE.
FIT: The Wahoo App ensures you get the best fit on your KICKR BIKE. The in-app fit
calculation walks you through recreating your outdoor bike fit indoors.
CUSTOMIZE: Once your fit is dialed in, use the Wahoo App to further customize your KICKR
BIKE. From number of speeds to gear ratio and shifter configuration, the KICKR BIKE is
designed to mirror your outdoor bike.
UPDATE: Use the Wahoo App to make sure your KICKR BIKE is always up to date with
the latest firmware to ensure accuracy and get the latest features.
CONTROL: The Wahoo App has the following workout modes that you can use to
control the KICKR BIKE.

ESPAÑOL
13
¡Muchas gracias por adquirir la bicicle-
ta Wahoo KICKR BIKE!
DESCARGA LA APLICACIÓN WAHOO PARA COMPLETAR LA CONFIGURACIÓN Y
PARA OBTENER ACTUALIZACIONES DE PRODUCTOS ESENCIALES Y UN REN-
DIMIENTO OPTIMIZADO
OBTÉN MÁS INFORMACIÓN:
Para ver vídeos instructivos, aplicaciones compatibles, preguntas frecuentes o
para enviar una solicitud de asistencia, visita: www.wahoofitness.com/support
PONTE EN CONTACTO CON NOSOTROS
SI TIENES PREGUNTAS O DUDAS EN:
Wahoo Fitness
90 W. Wieuca Rd NE, Suite 110
Atlanta, GA 30342 Estados Unidos
[email protected]om
TELÉFONO:
Estados Unidos: 1-877-978-1112
Alemania: [phone]
Reino Unido: [phone]
Horario de asistencia telefónica:
Lunes a viernes
10:00-19:00, zona horaria del este
Por seguridad, lee detenidamente este manual y toda la información de seguri-
dad antes del montaje y uso.
• Monta la bicicleta KICKR BIKE solo como se indica en la información contenida en
este manual.
• No modifiques la bicicleta KICKR BIKE.
• Puedes ver todas las instrucciones en nuestro sitio web:
www.wahoofitness.com/instructions.
• Es posible que las imágenes no reflejen exactamente el producto final.
Deben observarse las siguientes instrucciones en todo momento para
evitar lesiones personales y daños físicos al equipo y a los alrededores. Las
instrucciones se clasifican en función del grado de peligro o daño que pueda
producirse si el producto se utiliza incorrectamente:
Si no se siguen las instrucciones, puede producirse una lesión grave o la muerte.
PELIGRO
Si no se siguen las instrucciones, puede producirse una lesión grave o la muerte.
ADVERTENCIA
Si no se siguen las instrucciones, podrían producirse lesiones personales o daños
físicos en el equipo o en el entorno.
PRECAUCIÓN
AVISO IMPORTANTE

14
INFORMACIÓN DE SEGURIDAD
• El ejercicio inadecuado o excesivo puede provocar lesiones graves. Consulta siempre a tu
médico antes de empezar o modificar cualquier programa de ejercicios.
• Los algoritmos de la aplicación Wahoo KICKR BIKE Fit no garantizan la prevención
delesiones.
• El contacto con las partes móviles de la bicicleta KICKR BIKE puede provocar lesiones
graves.
- No pongas objetos o las manos cerca de partes en movimiento de la bicicleta KICKR BIKE.
- Mantén a los niños y las mascotas lejos de la bicicleta KICKR BIKE.
- No desmontes la bicicleta KICKR BIKE mientras el volante de inercia esté en movimiento
- No utilices ropa suelta o zapatos con cordones sueltos que puedan provocar un contacto
no deseado con las piezas móviles.
• No excedas el peso máximo de ciclista de 113,5kg.
• La inestabilidad de la bicicleta KICKR BIKE podría provocar lesiones graves. Utiliza la
bicicleta KICKR BIKE exclusivamente sobre superficies estables y planas.
• La bicicleta KICKR BIKE se ha diseñado para su utilización exclusiva en interiores. Nola
guardes al aire libre o cerca del agua.
• Cuando se usan durante largos períodos de tiempo, ciertos componentes de la bicicleta
KICKR BIKE pueden calentarse y quemar. Deja que los componentes se enfríen antes de
tocarlos.
• Para evitar el riesgo de incendio o de descargas eléctricas, utiliza únicamente el adaptador
de corriente que se incluye con la bicicleta KICKR BIKE.
• Desenchufa la bicicleta KICKR BIKE cuando no esté en uso y antes de la limpieza
omantenimiento.
• Las alteraciones del dispositivo y un uso, ensamblaje u operación inadecuados o
incompletos pueden provocar lesiones graves.
ASEGÚRATE DE QUE EL MONTAJE SEA ADECUADO
• Sigue las instrucciones proporcionadas en esta guía para montar el producto.
• Lee toda la información de seguridad y asegúrate de que comprendes las instrucciones de
ensamblaje antes de montar y usar la bicicleta KICKR BIKE.
• Conserva este manual para futuras consultas.
• El montaje, mantenimiento o uso inadecuados anularán la garantía.
• La bicicleta KICKR BIKE puede colocarse sobre una estera para proteger el suelo o la
alfombra si se desea.
• Wahoo Fitness no se hace responsable de los daños causados por un montaje incorrecto o
incompleto de la bicicleta KICKR BIKE.
PRECAUCIÓN

ESPAÑOL
15
ANTES DE CADA RECORRIDO
• Verifica que los pernos del vástago estén apretados y que el manillar no pueda girar.
• Confirma que el sillín esté instalado correctamente y que todos los pernos estén
bienapretados.
• Asegúrate de que ambas palancas de ajuste del alcance y el retroceso estén
completamente cerradas.
• Verifica que las abrazaderas del tubo de dirección de liberación rápida y del sillín estén
apretadas y completamente cerradas.
• Asegúrate de que el pasador de altura de la base esté asentado correctamente y
descansa en el orificio de posición de altura correspondiente y de que la palanca esté
completamente cerrada.
• Asegúrate de que ambos pedales estén bien instalados y apretados.
• Consulta este manual para ver las especificaciones de par de apriete adecuadas.
• Antes de cada recorrido, asegúrate de que el área esté despejada y la KICKR BIKE tenga un
rango completo de movimiento de inclinación.
• Mantén siempre niveladas las patas de la bicicleta KICKR BIKE y asegúrate de que no haya
suciedad en el suelo.
• Revisa el cable y el bloque de alimentación por si hay daños antes de enchufarlo.
• Asegúrate de que la bicicleta KICKR BIKE esté en modo de bloqueo antes de iniciar
turecorrido.
MANTENIMIENTO Y ALMACENAMIENTO
Es importante seguir los siguientes consejos de mantenimiento para garantizar un
rendimiento óptimo de tu KICKR BIKE:
Después de cada sesión de entrenamiento:
• Utiliza un paño suave para secar la bicicleta KICKR BIKE o eliminar el sudor o el agua.
• Desenchufa la bicicleta KICKR BIKE cuando la almacenes o conectarlo al protector contra
sobretensiones.
• Comprueba de manera rutinaria que no haya señales de óxido, corrosión o desgaste
excesivo.
• Revisa todos los pernos y tornillos en busca de óxido o daños.
Para mover y guardar tu KICKR BIKE, usa las ruedecitas para transportar la bicicleta
KICKR BIKE hasta un lugar seguro para guardarla:
• Agarra el manillar y levántalo; después, agarra la pata delantera. Sujeta la pata delantera
para desplazarte hasta el lugar de almacenamiento.

16
(a)
(2)
(b)
(f)
(e)
(1)
CONTENIDO DE LA CAJA
(1) Cuerpo principal de la bicicleta KICKR BIKE
(2) CAJA DE ACCESORIOS
(a) Patas estabilizadoras tras-
eras(2)
(b) Conjunto del manillar
(c) Conjunto del sillín
(d) Pedales
(e) Pernos hexagonales de 5mm (X4)
(f) Llaves Allen (4,5,6mm)
(g) Adaptador de alimentación de CA
(c)
(d)
(g)
PCONSEJO: Guarda todo el embalaje y material protector para el transporte y
el almacenamiento

ESPAÑOL
1
235
6
7
8
4
9
10
11
13
12
14
16 15
1
23
4
56
7
8
9
13
12 11
10
14
1516
17
PIEZAS DE LA BICICLETA KICKR BIKE
(1) Sillín
(2) Asiento
(3) Tubo de dirección
(4) Vástago
(5) Manillar
(6) Cambios
(7) Tubo de cabeza
(8) Pantalla LED
(9) Soporte para botella
deagua
(10) Brazos de manivela
(11) Pedales
(12) Volante de inercia
(13) Base
(14) Pata estabilizadora
trasera
(15) Pies niveladores
(16) Ruedecitas

2
1
18
PUNTOS DE AJUSTE DE KICKR BIKE
Ajuste de altura de la base
Ajuste del retroceso
Ajuste de altura del cuadro (stack)
Ajuste de altura del sillín
Ajuste del alcance
Ajuste de longitud de la biela

ESPAÑOL
1
2
5
mm
24 - 28 N·m
Par de apriete
PRECAUCIÓN
Objeto pesado.
Levantar entre
dos personas.
19
CONFIGURACIÓN DE LA BICICLETA KICKR BIKE
Se necesitan dos personas para montar la bicicleta KICKR BIKE.
Retira y coloca todos los artículos de la caja de accesorios para asegurarte de que no
faltaninguno.
Para comenzar, levanta con alguien más la bicicleta KICKR BIKE para sacarla de la caja.
Con una persona inclinando el cuadro para el
acceso, monta la pata estabilizadora en la parte
inferior del cuadro con los pernos hexagonales
de 5mm suministrados. Repite elproceso para el
lado opuesto.
