Waiwela SCT200X User manual
!FOR YOUR SAFETY!
Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of this
or any other appliance. To do so may result
in an explosion or fire.
WHAT TO DO IF YOU SMELL GAS
● Do not try to light any appliance.
● Do not touch any electrical switch; do not
use any phone in your building.
● Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
● If you cannot reach your gas supplier, call
the fire department.
● Do not return to your home until authorized
by the gas supplier or fire department.
Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, personal injury or death.
Refer to this manual. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result, causing property damage, personal injury or death.
!
The purpose of this manual is twofold: one, to provide the installer with
the basic directions and recommendations for the proper installation
and adjustment of the water heater; and two, to the owner–operator,
to explain the features, operation, safety precautions, maintenance and
troubleshooting of the water heater. This manual also includes a parts
list.
It is very important that all persons who are expected to install, operate
or adjust this water heater read the instructions carefully so they may
understand how to perform these operations. If you don’t understand
these instructions or any terms within it, seek professional assistance.
Any questions regarding the operation, maintenance, service or warranty
of this water heater should be directed to the seller from whom it was
purchased. If additional information is required, refer to the section on
If You Need Service.
Do not destroy this manual. Please read carefully and keep in a safe
place for future reference.
!
Recognize this symbol as an indication of Important Safety
Information!
!
California Proposition 65 Warning:This product contains
chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
Tankless
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
!Warning: This water heater is not suitable
for use in manufactured (mobile) homes!
Safety Information
Installation Instructions
Operating Instructions
Care and Cleaning
Troubleshooting Tips
Customer Service
You can find them on a label on the appliance.
Proof of the original purchase date is needed to obtain service
under the warranty.
Inside you will find many helpful hints on how to use and
maintain your water heater properly. A little preventive care
on your part can save you time and money over the life of your
water heater.
You’ll find many answers to common problems in
the Troubleshooting Guide. If you review the chart of
Troubleshooting Tips first, you may not need to call for service.
Your safety and the safety of others are very important. There
are many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
!This is the safety alert symbol. Recognize this symbol
as an indication of Important Safety Information!
This symbol alerts you to potential hazards that can
kill or hurt you and others.
All safety messages will follow the safety alert symbol and
either the word “DANGER”, “WARNING”, “CAUTION”
or “NOTICE”.
These words mean:
!DANGER
An imminently hazardous situation
that will result in death or serious
injury.
!WARNING
A potentially hazardous situation that
could result in death or serious injury
and/or d amage to property.
!CAUTION A potentially hazardous situation that
may result in minor or moderate
injury.
Notice: Attention is called to observe a
specified procedure or maintain
a specific condition.
Qualified Installers Only!
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this
water heater. It may save you time and money. Pay particular attention to the Safety Instructions. Failure to
follow these warnings could result in serious bodily injury or death. Should you have problems understanding
the instructions in this manual, or have any questions, STOP, and get help from a qualified service technician,
or the local gas utility.
Failure to install and properly vent the water heater to the outdoors as outlined in the
Venting Section of the Installation Instructions in this manual can result in unsafe operation
of the water heater. To avoid the risk of fire, explosion or asphyxiation from carbon
monoxide, never operate this water heater unless it is properly vented and has an adequate
air supply for proper operation.
Be sure to inspect the vent outlet for proper installation at initial start-up; and at least
annually thereafter. Refer to the Care and Cleaning section of this manual for more
information regarding vent system inspection.
Gasoline, as well as other flammable materials and liquids ( which include, but are not
limited to adhesives, solvents, paint thinners etc.), and the vapors they produce are
extremely dangerous. DO NOT handle, use or store gasoline or other flammable or
combustible materials anywhere near or in the vicinity of a water heater or any other
appliance. Be sure to read and follow the labels on the water heater, as well as the warnings
printed in this manual. Failure to do so can result in property damage, bodily injury or
death.
DANGER
FLAMMABLES
Flammable Vapors
Water heater has a main
burner flame.
The main burner flame:
1. which can come on
at any time and
2. will ignite flammable
vapors.
Vapors:
1. cannot be seen,
2. are heavier than air,
3. go a long way on the
floor and
4. can be carried from
other rooms to the
main burner flame by
air currents.
Vapors from flammable
liquids will explode and
catch fire causing death or
severe burns.
Do not use or store flammable
products such as gasoline,
solvents or adhesives in the
same room or area near the
water heater.
Keep flammable products:
1. far away from heater,
2. in approved containers,
3. tightly closed and
4. out of children's reach.
Installation:
Do not install water heater
where flammable products will
be stored or used unless the
main burner flame is at least
18" above the floor. This will
reduce, but not eliminate, the
risk of vapors being ignited
by the main burner flame.
Read and follow water heater warnings and instructions. If
owners manual is missing, contact the retailer or manufacturer.
Time/Temperature Relationship in Scalds
120°F (49°C) More than 5 minutes
125°F (52°C) 11/2 to 2 minutes
130°F (54°C) About 30 seconds
135°F (57°C) About 10 seconds
140°F (60°C) Less than 5 seconds
145°F (63°C) Less than 3 seconds
150°F (66°C) About 11/2 seconds
155°F (68°C) About 1 second
DANGER: Households with small children, disabled
or elderly persons may require a 120°F (49°C) or lower
temperature setting to prevent contact with “HOT” water.
Notice:
Notice:
DANGER
!
HOT
Water temperature over 125°F can
cause severe burns instantly or
death from scalds.
Children, disabled and elderly are
at highest risk of being scalded.
See instruction manual before
setting temperature at water
heater.
Feel water before bathing or
showering.
Temperature limiting valves are
available, see manual.
BURN
!
Safety and energy conservation are factors to be considered when selecting the water
temperature setting of a water heater’s remote control. Water temperatures above
125°F (52°C) can cause severe burns or death from scalding. Be sure to read and follow
the warnings outlined on the label pictured below.
!
°F
PRIORITY
POWER
ON/OFF
Higher (Hotter) Lower (Cooler)
100 102 104 106 108 110 112 114 116 118 120
38 39 40 41 42 43 44 46 47 48 49
85
29
125* 130* 140* °F
52* 54* 60* °C
Notice:
Display
shows
°F only.
Both LP and natural gas have an odorant added to aid in detecting a gas leak. Some
people may not physically be able to smell or recognize this odorant. If you are unsure or
unfamiliar with the smell of LP or natural gas, ask the gas supplier. Other conditions, such as
“odorant fade”, which causes the odorant to diminish in intensity, can also hide or camouflage
a gas leak.
● Water heaters utilizing LP gas are different
from natural gas models. A natural gas
water heater will not function safely on LP
gas and vice versa.
● No attempt should ever be made to
convert the water heater from natural gas
to LP gas. To avoid possible equipment
damage, personal injury or fire, do not
connect the water heater to a fuel type not
in accordance with the unit data plate;
propane for propane units and natural gas
for natural gas units. These units are not
certified for any other fuel type.
● LP appliances should not be installed below
grade (for example, in a basement) if such
installation is prohibited by federal, state
and/or local laws, rules, regulations or
customs.
● Propane or LP gas must be used with great
caution. It is heavier than air and will
collect first in lower areas, making it hard
to detect at nose level.
● Before attempting to light the water heater,
make sure to look and smell for gas leaks.
Use a soapy solution to check all gas fittings
and connections. Bubbling at a connection
indicates a leak that must be corrected.
When smelling to detect a gas leak, be sure
to sniff near the floor also.
● Gas detectors are recommended in LP
and natural gas applications and their
installation should be in accordance
with the detector manufacturer’s
recommendations and/or local laws,
rules, regulations or customs.
● It is recommended that more than one
method, such as soapy solution, gas
detectors, etc., be used to detect leaks
in gas applications.
Notice: If a gas leak is present or suspected:
● Donotattempt to find the cause yourself.
● Donot try to light any appliance.
● Donot touch any electrical switch.
● Donot use any phone in your building.
● Leave the building immediately and make
sure your family and pets leave also.
● Leave the doors open for ventilation and
contact the gas supplier, a qualified service
agency or the fire department.
● Stay away from the building until the
service call has been made, the leak is
corrected and a qualified agency has
determined the area to be safe.
!
For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury or
loss of life.
California Law requires that water heaters must be braced, anchored or strapped to resist
falling or horizontal displacement due to earthquake motions. For water heaters up to 52
gallon capacity, a brochure with generic earthquake bracing instructions can be obtained from:
Office of the State Architect, 1102 Q Street, Suite 5100, Sacramento, CA 95814 or you may call
916-445-8100 or ask a water heater dealer.
However, applicable local codes shall govern installation. For residential water heaters
of a capacity greater than 52 gallons or tankless-style, consult the local building jurisdiction
code for acceptable bracing procedures.
Have the installer show you the location of the gas shut-off valve and how to shut it off
if necessary. Turn off the manual shut-off valve if the water heater has been subjected
to overheating, fire, flood, physical damage or if the gas supply fails to shut off.
● Read this manual entirely before installing
or operating the water heater.
● Use this appliance only for its intended
purpose as described in this Use and Care
Manual.
● Be sure your appliance is properly installed
in accordance with local codes and the
provided installation instructions.
● Do not attempt to repair or replace any
part of your water heater unless it is
specifically recommended in this manual.
All other servicing should be referred to a
qualified technician.
Installing the water heater:
This water heater must be installed in accordance with these instructions, local codes, utility company
requirements and/or in the absence of local codes, use the latest edition of the American National Standard/
National Fuel Gas Code. A copy can be purchased from either the American Gas Association, 400 North
Capitol Street Northwest, Washington, DC 20001 as ANSI standard Z223.1 or National Fire Protection
Association, 1 Batterymarch Park, Quincy, MA 02269 as NFPA 54. In Canada, the latest edition of the CSA
B149.1 Natural Gas and Propane Installation, and the Canadian Electrical Code, CSA C22.1 Part 1, in the
absence of local codes.
Location of the water heater
This water heater is for OUTDOOR
installation ONLY!
This water heater is an outdoor model
and must be mounted vertically. It
must not be installed indoors or in an
enclosure.
The water heater should be installed
close to the most frequently used outlet
and its position chosen with safety and
service in mind.
Make sure people (particular children,
disabled, and elderly) will not touch the
hot water outlet or the flue terminal.
The flue terminal and air inlet must be
clear of obstruction and shrubbery.
The water heater should not be located
in an area where leakage of the heat
exchanger or connections will result
in damage to the area adjacent to it
or to lower floors of the structure.
●
●
●
●
● Do not
● Do not
● Do not
●
!WARNING: Combustible
construction refers to
adjacent walls and ceilings
and should not be confused
with combustible or
flammable products and
materials. Combustible
and/or flammable products
and materials should never
be stored in the vicinity of
this or any gas appliance.
min.
1/2 "
(1.3 cm)
min.
1/2 "
(1.3 cm)

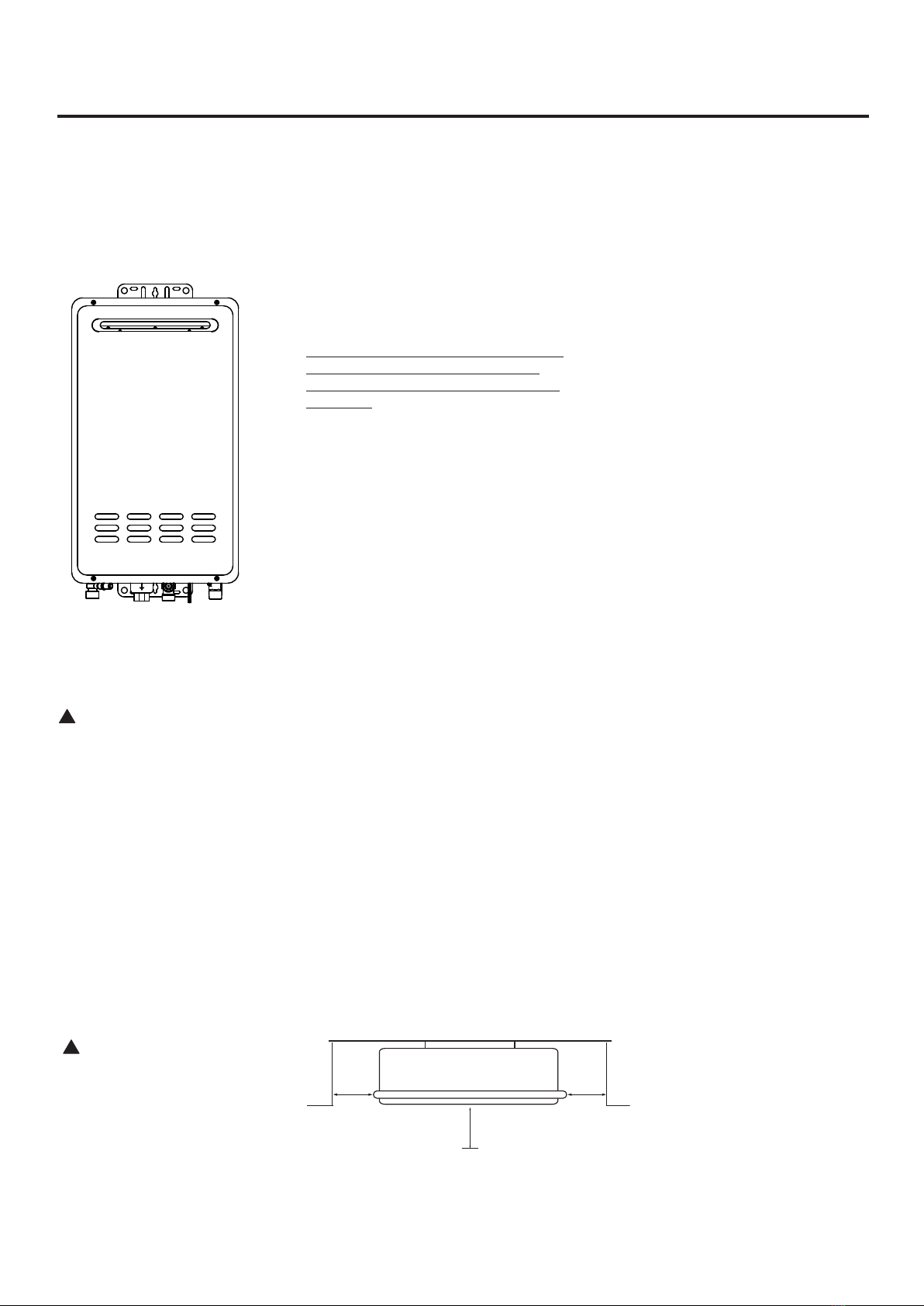

min. 12" (30 cm)
(24" (61 cm) minimum is
recommended for service)
Front = 12" (30 cm)
Back = 0" (with support bracket)
Side = 1/2" (1.3 cm)
Bottom = 12" (30 cm)
Minimum Clearance from Combustible and
Non-Combustible Construction.
Top: Do not install this water
heater under an overhang less
than 36” (91 cm) from its top.
The area under the overhang
must be open on 3 sides.
!
CAUTION:
Protect plastic, paint or
other items sensitive to heat
using non-combustible
insulation if these are
exposed to the flue exhaust
even though they may be
more than 24” (61 cm) away
from the water heater.
Manual Appliance
Gas Shut-off Valve
Wood Screw x 5pcs.
Washer x 4 pcs.
Use & Care Manual
Tankless Unit
FOR YOUR SAFETY!
—Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of this or
any otherappliance. To do so may result in an
explosion or fire.
—WHATTO DO IF YOU SMELL GAS
●Do not try to light any appliance.
● Do not touch any electrical switch; do not
use any phone in your building.
● Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
● If you cannot reach your gas supplier, call
the fire department.
● Do not return to your home until authorized
by the gas supplier or fire department.
— Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, personal injury, or death .
Referto this manual. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
!
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage, personal injury or death.
!
The purpose of this manual is twofold: one, to provide the installer with
the basic directions and recommendations forthe proper installation and
adjustment of the water heater; and two, to the owner–operator, to
explain the features, operation, safety precautions, maintenance and
troubleshooting of the water heater. This manual also includes a parts
list.
It is imperative that all persons who are expected to install, operate or
adjust this water heater read the instructions carefully so they may
understand how to perform these operations. If you don’t understand
these instructions or any terms within it, seek professional advice.
Any questions regarding the operation, maintenance, service or
warranty of this waterheater should be directed to the seller from whom
it was purchased. If additional information is required, refer to the
section on How to Obtain Service Assistance.
Do not destroy this manual. Please read carefully and keep in a safe
place for future reference.
Recognize this symbol as an indication of Important Safety
Information!
California Proposition 65 Warning: This product contains
chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
!
!
Use & Care Manual
With Installation Instructions for the Installer
Printed in USA
Water Heaters
Residential Gas
Warning: This water heater is not suitable for
use in manufactured (mobile) homes!
Tankless
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
°F
PRIORITY
POWER
ON/OFF
Remote Control
Assembly Kit
fo etacifitreC
detimiL
ytnarraW
Warranty
Remote Control Cable
Installing the water heater:
Combustion and Ventilation Air
Corrosive Atmospheres
NOTICE: The water heater
should not be installed near
an air supply containing
halogenated hydrocarbons
and/or corrosives.
Inspect Shipment
!
D
V
V
E
FIXED
CLOSED
O
P
ERA
BL
E
O
PE
R
A
BL
E
FIXE
D
CLOSED
v
v
B
L
F
C
B
v
vv
X
B
B
B
A
J
B
I
H
X
v
M
K
v
G
A
VVENT TERMINAL XAIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
Horizontal Vent Terminal Location
Canadian Installations 1
Outdoor
US Installations 2
Outdoor
Installing the water heater:
Additional Considerations
(1.8 m)
If soffit vent is too close,
block off and install new
vent at another location
Inside
corner
Caulk
Caulk
Caulk
6' (1.8 m)
caulk zone or
to edge of
window etc., starting
within 6' (1.8 m)
Rising moisture will collect under eaves
4'
6' (1.8 m) caulk
zone
6'
(1.2 m) 12” (30 cm)
WARNINGMoisture in the flue gas will condense as
it leaves the vent terminal. In cold weather this condensate
can freeze on the exterior wall, under the eaves and on
surrounding objects. Some discoloration on the exterior of
the building is to be expected. However, improper location
or installation can result in severe damage to the structure
or exterior finish of the building.
Outdoor Water Heater
Water Supply Connections
IMPORTANT: Do not
apply heat to the HOT or
COLD water connections. If
sweat connections are used,
sweat tubing to adapter
before fitting adapter to
the water connections on
heater. Any heat applied
to the water supply fittings
will permanently damage
the internal components
of the water heater.
Mounting the Water Heater
Upper Bracket
Washer
Washer
Wood
Screw
Wood
Screw
Wood
Screw Lower Bracket
1/8" (.32 cm)
Clearance
●
●
●
●
●
●
Gravity water pressure is
not recommended
CAUTION:
Reinforcement of the wall is
required in case the wall is
not strong enough to hold
the appliance.
Installing the water heater:
Thermal Expansion
Notice: Due to cold
environments, ice may
potentially accumulate at
the water connections. In
this case, please insert the
power cord of the water
heater into an electrical
outlet. The ice should melt
within approximately 10
minutes and at this time the
water connections can be
made.
Water Supply Connections, continued
Notice:
Notice:
Notice: If multiple water heaters are
installed in a manifold system, the
water piping must be in “Parallel”. A
water pressure of 40 psi (276 kPa) is
recommended for each water heater for
proper operation of the water heaters.
Alternate Water Piping Arrangement
with Optional Valve Kit
●
●
●
Notice
Notice
Water Filter
Check Valve
Water Inlet
Clean the
Water Filter
Water
Nipple
Air
Relief
Valve
Hot
Wa
ter
Tap
Drain Valve
CAUTION: This water
heater must only be used with
the following water supply
system conditions:
● With clean, potable water
free of corrosive chemicals,
sand, dirt or other
contaminates.
● With inlet water
temperatures above 32°F
(0°C), but not exceeding
120°F (49°C).
● With recommended water
quality(See the chart below).
● DO NOT reverse the hot
and cold water connections.
The water heater will
not operate.
Notice: Use only teflon tape on
cold and hot water connections
and lines.
This appliance is not intended
for space heating application.
Do not connect this heater to
waterlines previously used for
space heating or non-potable
water distribution. All water
piping and components shall be
suitable for potable water.
pH TDS (Total
Dissolved Solids)
Free Carbon
Dioxide (CO2)
Total
Hardness Aluminum Chlorides Copper Iron Manganese Zinc
6.5 to 8.5 Up to 500 mg/L Up to 15mg/L
Up to 200
mg/L
Up to 0.2
mg/L
Up to 200
mg/L
Up to 1.0
mg/L
Up to 0.3
mg/L
Up to 0.05
mg/L
Up to 1.0
mg/L
Relief Valve
A new pressure relief valve, complying
with the Standard for Relief Valves and
Automatic Gas Shut-Off Devices for Hot
Water Supply Systems, ANSI Z21.22/
CSA 4.4, must be installed at the hot water
outlet connection of the water heater at
the time of installation. Local codes shall
govern the installation of relief valves.
●
●
●
●
●
●
●
Notice
Notice
Notice
Notice
Installing the water heater:
Relief
Valve
Pressure
Relief
Valve
Discharge
Water
Shutoff
Valve
Hot Water
Supply
Union
Outlet Cold
Water
Supply
Inlet
Line
WARNING: Do not attempt to convert this water heater for use with a different type of gas other than the type shown
on the rating plate. Such conversion could result in hazardous operating conditions.
Gas Supply
NOTICE:
Manual
Gas
Supply
Line
Shutoff
Manual Gas
Appliance
Shutoff
Union
Sediment Trap
Cap
(Valve)
(Supplied)
Leak Testing
WARNING: Never use
an open flame to test for
gas leaks, as property
damage, personal injury,
or death could result.
Pressure Testing the Gas Supply System
WARNING: Install a gas
pressure regulator, in the
gas supply line, which does
not exceed the maximum
supply pressure.
DO NOT use an industrial
type gas regulator.
NOTICE: For installations above 3,280
feet (1,000 m) elevation, contact a quaili-
fied service technician to make the proper
altitude adjustment. See page 31 for ad-
ditional information.
Do not install this water heater at eleva-
tions above 3,280 feet (1,000 m) without
making the proper adjustment. Please
contact your installer, local gas supplier,
place of purchase or the Customer Service
phone number as listed in this Use & Care
Manual for more information.
High Altitude
Remote Control Installation
● DO NOT
●
●
●
●
●
●
●
NOTICE: Only one of each type of remote
controls can connect to the water heater.
Therefore, a maximum of three controls
can connect to the water heater.
No other manufacturer’s controls are
suitable for use with this water heater.
DO NOT attempt to disassemble the
remote control.
WARNING: Field wiring connections and electrical grounding must comply with local codes, or in
the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70, or
in Canada, Canadian Electrical Code, CSA C22.1 Part 1.
°F
PRIORITY
POWER
ON/OFF
MAIN
Control
Base Plate
Control screw
Mounting Screw x 2
NOTICE: The provided
remote control will allow
a maximum temperature
setting of 120°F (49°C).
Temperatures of up to
140°F (60°C) for residential
products can be achieved
with the MAIN (UMC-
117) remote control. Only
qualified service personnel
should perform this
adjustment.
Installing the Main Remote Control:
NOTICE: An optional
cable (EZ Link Cable™) can
be purchased separately
to manifold two heaters
together.
Remote
Control
Model
Number
Remote
Control
Description
Temperature
Set Point
Range
Availability
WARNING: Field wiring connections and electrical grounding must comply with local codes, or
in the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70,
or in Canada, Canadian Electrical Code, CSA C22.1 Part 1.
NOTICE: Extension cable
can be any Type-T 18 AWG
wire similar to a thermostat
wire and need not be polarity
sensitive.
Do Not apply sealant to the
remote control cable.
It is not recommended to
have wiring exposed.
Use only 18 AWG
Thermostat wire.
Do not use network cable,
telephone wire or any twisted
pair cable.
Remote Control Installation
Connecting the MAIN (UMC-117 ) remote
control to the water heater:
●
●
●
●
●
●
●
●
Connecting the remote control to the water
heater:
●
●
●
NOTICE: The remote control connection
terminals are not polarity sensitive.
●
●
●
●
●
Remote
Control
Pro
j
ect
i
ons
Suitable
Wall Anchors
Base Plate
Screws
Control
Screw
Remote Control
Cable Wall
Penetration
Installing the Main Remote Control:
Electrical Connection
POWER CORD
●
●
●
●
●
HARDWIRING
THE ELECTRICAL CONNECTIONS
●
●
●
●
●
●
●
WARNING: Shock
hazard line voltage is
present. Before servicing
the water heater, turn off
the electrical power to the
water heater at the main
disconnect or circuit
breaker. Failure to do so
could result in severe
personal injury or death.
CAUTION: Label
all wires prior to
disconnection when
servicing controls. Wiring
errors can cause improper
and dangerous operation.
Verify correct operation
after servicing.
31-93618 0
VERT/JAUNE
G/Y:GREEN/YELLOW,
AC
120V
O:ORANGE,ORANGE
CODE DE COULEUR
COLOR CODE
MIN BUTTON
BOUTON MIN.
G/YorG
W
BOUTON MAX.
BL
BL BL
LED
G G
MAX BUTTON
ADJUSTER BUTTON
BL
BOUTON DE RÉGLAGE
BL
1
2
3
4
5
A
FOR INDOOR,DIRECT-VENT
MODEL ONLY
POUR MODÈLE INTÉRIEUR À
ÉVENT DIRECT SEULEMENT
4 3 2
1
Y
W
R
BK BL
W
BL
R O Y
FOR DIRECT-VENT MODEL ONLY
POUR MODÈLE À ÉVENT DIRECT SEULEMENT
SW3SW2
SW1
U
2
1
S
1
3
2
W
W
1
234
I
J
H
F
W
W
234
1
B
R
Y
O
W
BR
BK
1
2
3
4
5
6
7
8
R
Y
O
W
BR
BK
1
2
3
4
5
6
7
8
C
9
R
BR
BK
BK
W
BK
W
1
23
4
Y
W
BK
1
23 K
SV0
SV1
SV2
SV3
W
BK
W
G/Y
GY
BK
IG
1
23456
G
FM
5
GY
W
Y
R
R
BK
BK
R
1
2
3
4
5
6
7
+
PSV
R1
R2
R3
R4
BK
BK
-
WIRING DIAGRAM
SCHÉMA DE CÂBLAGE
MOTEUR DU
VENTILATEUR
FAN MOTOR
ELECTRODE
IGNITER
FUSE(3A)
(UMC-117)
CIRCUIT BOARD
PLAQUE DE CIRCUIT
ÉLECTRODE ALLUMEUR
ANTI-FROST HEATER
CHAUFFAGE ANTI-GIVRE
FUSIBLE(3A)
ON
MARCHE
OFF
ARRÉT
CONTACTEUR DIP 1
DIP SWITCH 1
DIP SWITCH 2
CONTACTEUR DIP 2
ON
MARCHE
OFF
ARRÉT
ÉLECTROVALVE DE DÉRIVATION D'EAU
WATER VOLUME CONTROL MOTOR
WATER BY-PASS CONTROL MOTOR
MOTEUR DE CONTRÔLE DU VOLUME D'EAU
R:RED,ROUGE
W:WHITE,BLANC
BR:BROWN,BRUN
BL:BLUE,BLEU
BK:BLACK,NOIR
GY:GRAY,GRIS
G:GREEN,VERT
Y:YELLOW,JAUNE
BK
(USC1-117)
(USC2-117)
WW
LIMITER
LIMITEUR
MOTOR
MOTEUR
LIMITER
LIMITEUR
MOTOR
MOTEUR
45678
GY
R
BL
SV4
BK
BK
BK
BK
1
2
3
V
T
BL
M
W
FLAME ROD 1
ÉLECTRODE DE
DÉTECTION
DE FLAMME 1
FLAME ROD 3
ÉLECTRODE DE
DÉTECTION
DE FLAMME 3
FOR INDOOR,DIRECT-VENT
MODEL ONLY
POUR MODÈLE INTÉRIEUR À
ÉVENT DIRECT SEULEMENT
RÉSISTANCE
USUALLY
DISCONNECTED
NORMALEMENT
DECONNECTE
BK
GND
GND
RESISTOR
SOLENOID VALVE 3
ÉLECTROVALVE 3
SOLENOID VALVE 2
ÉLECTROVALVE 2
ÉLECTROVALVE 1
SOLENOID VALVE 1
ÉLECTROVALVE DANS
ADMISSION DE GAZ
GAS INLET
SOLENOID VALVE 0
OVER HEAT LIMITER
LIMITEUR DE SURCHAUFFE
WATER FLOW SENSOR
D'EAU
CAPTEUR DE DÉBIT
P.G.F.R VALVE
AMBIENT AIR
THERMISTOR
D'AIR AMBIANT
THERMISTOR
DE SORTIE D'EAU CHAUDE
D'ECHANGEUR DE CHALEUR
HOT WATER OUTLET
THERMISTOR
THERMISTOR
HEAT EXCHANGER
THERMISTOR
D'ADMISSION D'EAU
THERMISTOR
WATER INLET
THERMISTOR
THERMISTOR
GAS TYPE
CIRCUIT BOARD
PLAQUE DE CIRCUIT
IMPRIMÉ DE TYPE Â GAZ
MAIN REMOTE
CONTROL
TÉLÉCOMMANDE
<<MAIN>>
BATH REMOTE
CONTROL 1
BATH REMOTE
CONTROL 2
TÉLÉCOMMANDE 1
TÉLÉCOMMANDE 2
<<BATH>> <<BATH>>
SOLENOID VALVE 4
ÉLECTROVALVE 4
GG BL BLBK R Y O
W
BR
8
BK R Y O
W
BR
8
WARNING: Field wiring connections and electrical grounding must comply with local codes, or
in the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70,
or in Canada, Canadian Electrical Code, CSA C22.1 Part 1.
Installing the water heater:
Typical Installation of Water Heater
NOTICE: The National Fuel Gas Code (NFGC) and B149 mandates a manual gas shut-off valve: See
NFGC/B149 for complete instructions. Local codes or plumbing authority requirements may vary from
the instructions or diagrams provided and take precedent over these instructions.
Vacuum Relief Valve
(Not Supplied)
If required, install per local codes
and valve manufacturer’s
instructions.
Outdoor Models
Discharge
Line
(To Suitable Drain)
To Hot Water
Faucet(s)
Relief
Valve
Union
Drain Valve
6" (15 cm) Air Gap
Manual Gas
Appliance
Shut-off
(supplied)
Flue Terminal
Trap
Manual
Gas Supply Line
Shut-off
Va lve
Union
Cap
Cold Water
Supply
Shut-off
Va lve
Check
Va lve
Water Filter
Drain Valve
On/Off
Switch
Conduit
for wir-
ing to
unit.
Optional: Hard wired
or plug in to wall
¥F
PRIORITY
POWER
ON/OFF
Remote
Control
Water Inlet
Water Outlet
To Drain
Water Inlet
Cold Water
Service Valve
Hot Water
Service Valve
Pressure
Relief Valve
Alternate Water Piping Arrangement
with Optional Valve Kit
Installing the water heater:
Do not
Do’s
❑Do
❑Do
❑Do
❑Do
❑Do
❑Do
❑Do
Don’ts
❑Don’t
❑Don’t
❑ Don’t
❑ Don’t
During Installation of this water heater…
Hot and Cold Pipe Insulation Installation
Insulation Blankets
CAUTION: If local codes require the
application of an external insulation
blanket to this water heater, pay careful
attention to the following so as not to
restrict the proper function and operation
of the water heater:
●
WARNING: If local
codes require external
application of insulation
blanket kits the
manufacturer’s
instructions included
with the kit must be
carefully followed.
NOTICE: The hot and cold
pipes should be insulated as
shown to provide additional
freeze protection.
Water Inlet
Water Outlet
To Drain
Water Inlet
Cold Water
Service Valve
Hot Water
Service Valve
Pressure
Relief Valve
Pipe Insulation
WARNING: In case the
pipe insulation is not rated
for the appropriate
weather conditions install
electric heat tracing or
equivalent to prevent
freezing of the pipes. Do
not insulate or block drain
valve on the hot outlet
fitting. If the pipes are
allowed to freeze, the water
heater and the pipes may
malfunction or leak due to
freezing water.
A. Outdoor Water Heater Location
❑
❑
❑
❑
❑
❑
❑
❑
❑
B. Water Supply
❑
❑
❑
❑
❑
❑
C. Gas Supply
❑
❑
❑
❑
❑
❑
D. Relief Valve
❑
❑
E. Electrical Wiring
❑
❑
❑
Installation Check List
This manual suits for next models
8
Table of contents
Other Waiwela Water Heater manuals
Waiwela
Waiwela Rheem EcoSense RTGH-95DVN User manual
Waiwela
Waiwela MiniTank WM-2.5 User manual
Waiwela
Waiwela WET-12 T User manual
Waiwela
Waiwela MiniTank WM-1.0 Supplement
Waiwela
Waiwela PH-28R IFSN Supplement
Waiwela
Waiwela PH2-20R OFN (Natural Gas) User manual
Waiwela
Waiwela PH2-20R DVSN (Natural Gas) User manual
Waiwela
Waiwela PH-28R IFSN User manual
Waiwela
Waiwela MiniTank WM-2.5 Supplement
Popular Water Heater manuals by other brands
Raritan
Raritan 1700 Series Installation and maintenance instructions
Lochinvar
Lochinvar Knight 81 instructions
Shivaki
Shivaki SH WH 2.0 100 user manual
PrecisionTemp
PrecisionTemp RV-550EC operating instructions
Rinnai
Rinnai Circ-Logic RU98i installation manual
REVENTON
REVENTON FARMER HCF Series Technical documentation
Flofab
Flofab RLU series Operation, maintenance & installation manual
AER
AER KC Series user manual
RED-RING
RED-RING AV3S Installation and user guide
Sunsystem
Sunsystem SWP Series Installation and operation manual
Sunsystem
Sunsystem PS Series Installation & operation manual
Eco-Smart
Eco-Smart ECO 21 installation instructions
