Walkdesk WTD200 User manual

1
WALKDESK WTD200
OWNER’S MANUAL
Stadsheide 3 | 3500 Hasselt | Belgium | T [phone]
[e-mail] | www.bodysolid-europe.com
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL

1
ATTENTION
This treadmill is intended for residential use only and is warranted for this application.
Any other application voids this warranty in its entirety.
TABLE OF CONTENTS
Important Safety Instructions 2
Important Electrical Instructions 3
Grounding Instructions 3
Important Operation Instructions 4
Desk Assembly Instructions 5
Folding/Transport Instructions 10
Console Operation 11
General Maintenance 15
Service Checklist – Diagnosis guide 18
Exploded View Diagram/Parts List 19

2
IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on
a flat level surface with access to a 230~volt, 10-amp grounded outlet with only the treadmill plugged into
the circuit.
DO NOT USE AN EXTENSION CORD UNLESS IT IS A 14AWG OR BETTER, WITH ONLY ONE
OUTLET ON THE END.
The treadmill should be the only appliance in the circuit in which it is connected.
DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER
ADAPTERS, OR IN ANY WAY MODIFY THE CORD SET. A serious shock or fire hazard may result
along with computer malfunctions. See Grounding Instructions.
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet
and treadmill may result.
Do not block the rear of the treadmill. Provide a minimum of 3 1/2 feet clearance between the
rear of the treadmill and any fixed object.
Keep children away from the treadmill. There are obvious pinch points and other caution areas
that can cause harm.
Keep hands away from all moving parts.
Never operate the treadmill if it has a damaged cord or plug.
If the treadmill is not working properly, call your dealer.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being
administered. Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.
Do not use outdoors.
To disconnect, turn all controls to the off position, then remove the plug from the outlet.
Do not attempt to use your treadmill for any purpose other than for the purpose it is intended.
The hand pulse sensors are not medical devices. Their purpose is to provide you with an
approximate measurement in relation to your target heart rate. Use of a chest transmitter strap
is a much more accurate method of heart rate analysis. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended
only as exercise aids in determining heart rate trends in general.
Use handrails provided; they are for your safety.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on
your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
SAVE THESE INSTRUCTIONS - THINK SAFETY

3
IMPORTANT ELECTRICAL INSTRUCTIONS
WARNING !
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance
with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the
treadmill including the elevation mechanism and transport wheels.
NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%)
or more, the performance of your treadmill may be affected. Such conditions are not covered under your
warranty. If you suspect the voltage is low, contact your local power company or a licensed electrician for
proper testing.
NEVER expose this treadmill to rain or moisture. This product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment. The operating temperature specification is 40 to
120 degrees Fahrenheit, and humidity is 95% non-condensing (no water drops forming on surfaces).
Circuit Breakers: Some circuit breakers used in homes are not rated for high inrush currents that can
occur when a treadmill is first turned on or even during use. If your treadmill is tripping the house circuit
breaker (even though it is the proper current rating) but the circuit breaker on the treadmill itself does not
trip, you will need to replace the home breaker with a high inrush type. This is not a warranty defect.
This is a condition we as a manufacture have no ability to control. This part is available through most
electrical supply stores. Examples: Grainger part # 1D237, or available online at
www.squared.com part # QO120HM.
GROUNDING INSTRUCTIONS
This product must be grounded. If the treadmill should malfunction or breakdown, grounding provides
a path of least resistance for electric current, reducing the risk of electric shock. This product is equipped
with a cord having an equipment-grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether
the product is properly grounded. Do not modify the plug provided with the product if it will not
fit the outlet; have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 230~volt circuit, and has a grounding plug that looks like the plug
illustrated below. A temporary adapter that looks like the adapter illustrated below may be used to
connect this plug to a 2-pole receptacle as shown below if a properly grounded outlet is not available. The
temporary adapter should be used only until a properly grounded outlet, (shown below) can be installed
by a qualified electrician. The green colored rigid ear-lug, or the like, extending from the adapter, must be
connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by a metal screw.

4
IMPORTANT OPERATION INSTRUCTIONS
 NEVER operate this treadmill without reading and completely understanding the results of any
operational change you request from the computer.
Understand that changes in speed and incline do not occur immediately. Set your desired work
level on the computer console and release the adjustment key. The computer will obey the command
gradually.

NEVER use your treadmill during an electrical storm. Surges may occur in your household power
supply that could damage treadmill components. Unplug the treadmill during an electrical storm
as a precaution.
Use caution while participating in other activities while walking on your treadmill; such as watching
television, reading, etc. These distractions may cause you to lose balance which may result
in serious injury.
Do not use excessive pressure on console control keys. They are precision set to function properly with
little finger pressure.
SAFETY TETHER CORD
A safety tether cord is provided with this unit. It is a simple magnetic design that should be used at all
times. It is for your safety should you fall or move too far back on the tread-belt.
Pulling this safety tether cord will stop tread-belt movement.
To Use:
1. Place the magnet into position on the round metal portion of the console control head.
Your treadmill will not start and operate without this. Removing the magnet also secures the treadmill
from unauthorized use.
2. Fasten the plastic clip onto your clothing securely to assure good holding power.
Note: The magnet has strong enough power to minimize accidental, unexpected stopping.
The clip should be attached securely to make certain it does not come off. Be familiar with its function
and limitations. The treadmill will stop, depending on speed, with a one to two step coast anytime
the magnet is pulled off the console. Use the Stop / Pause switch in normal operation.

5
DESK ASSEMBLY INSTRUCTIONS
!!ATTENTION: IMPORTANT UNPACKING INSTRUCTIONS.
PLEASE READ BEFORE UNPACKING YOUR FOLDING TREADMILL!!
Serious injury could occur if this folding treadmill is not unpacked properly.
There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding
accidentally during shipping. If this strap is not removed properly the treadmill could spring open
unexpectedly and cause injury if someone is standing near the treadmill when the strap is removed.
To ensure your personal safety during removal of the shipping strap please make sure the treadmill is
positioned flat on the ground, in the orientation it would be in if you were using the treadmill. Do not turn
the treadmill up on its side while removing the shipping strap. This could cause the treadmill’s folding
mechanism to spring open. If the end of the Velcro strap (that you need to grab to remove it) happens to be
under the treadmill deck, reach under the deck to grab it, but do not tilt the treadmill up to gain access to
the strap end.
Cut the banding straps with a short box cutter (razor knife); separate the carton from the one underneath it
by prying up on the staples (if applicable). Pull the carton over the treadmill parts and locate the hardware
pack. The hardware pack is separated into five sections; one section containing tools and four sections
labeled steps 1-4 which contain the hardware needed for assembly of each step. The assembly steps
below are numbered one through four and correspond to the hardware in the numbered sections of the
hardware pack. Remove only the hardware for the step you are currently assembling to avoid confusion
and mix ups.
Then remove the treadmill from the carton and lay it on a level surface.
DESK ASSEMBLY TOOLS
#142. M5 Allen Wrench
#141. L Allen Wrench
#139. Phillips Head Screw Driver
#140. Wrench

6
Connect Fixed Upright Assembly(113) with Frame Base Tube(L.R)(116) and use L Allen Wrench
(141) to tighten 16 pcs of 3/8” × UNC16 × 1/2”_Button Head Socket Bolts (135).
HARDWARE
#135. 3/8” × UNC16 × 1/2”
Button Head Socket Bolt
(16 pcs)
1

7
Lay Deck Board (120) on Sliding Upright Assembly (114) with two Nuts(121) to secure with Desk
Board Stand (115). Secure Desk Board Stand (115) on Sliding Upright Assembly(114) by using open
end wrench (140) and Allen wrench (141) to tighten 2pcs of 3/8” × UNC16 × 1-3/4”_Button Head
Socket Bolts (136) and 2pcs of 3/8” × UNC16 × 7T_Nyloc Nuts(137).
HARDWARE
#136. 3/8” × UNC16 × 1-3/4”
Button Head Socket Bolt (2 pcs)
2
#137. 3/8” × UNC16 × 7T
Nyloc Nut (2 pcs)

8
1. Slide Computer Cable(Upper)(46) (DT520-YT55) Use Phillips Head Screw Driver (139) to
tighten 4 pcs of M5 × P0.8 × 12L_Phillips Head Screw (112) to secure Console assembly(66)
DT520-YT55) on Console Bracket Assembly(106).
2. Locate Console Bracket Assembly(106) in the Right Desk Board(120), to secure Console
Bracket Assembly(106) on Brake Tension Knob(107)
HARDWARE
#112. M5 × P0.8 × 12L
Phillips Head Screw (4 pcs)
3

9
Use Allen wrench (142) and open end wrench (140) to tighten four 5/16”×UNC18×2” Button
Head Socket Bolts(70), together with four 5/16”×UNC18×7T(mm) Nyloc Nuts (79) for two Limit
Bracket(R.L) (118.119) through both Frame Base Tubes (116).
HARDWARE
#70. 5/16”×UNC18×2”
Button Head Socket Bolt (4 pcs)
4
#79. 5/16” ×UNC18× 7T
Nyloc Nut (4 pcs)

10
FOLDING INSTRUCTIONS
Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is
secured to avoid possible damage. Use both handrails to maneuver the unit to the desired position.

TO FOLD THE TREADMILL
Make certain the treadmill is at minimum incline.
Lift the treadmill running deck until it is secured
by the locking telescoping tube assembly
in center back of base.


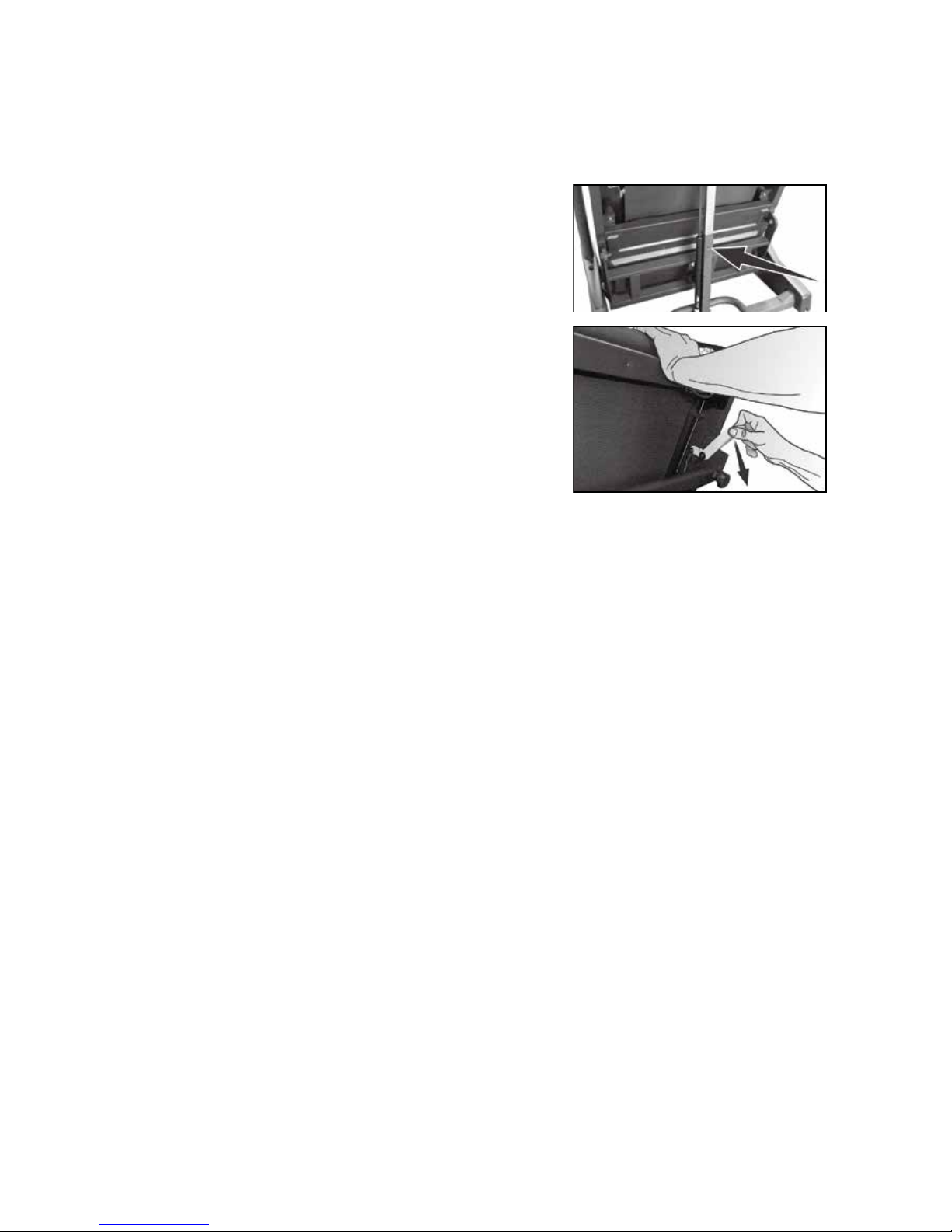

TO UNFOLD THE TREADMILL
Apply slight forward pressure* on the treadmill running
deck with one hand. Pull down on the unlocking lever
and slowly lower the running deck to the floor. The deck will
lower unassisted when it reaches about waist high.
 *At the rear roller area to relieve pressure on the
Locking system.
TRANSPORT
The treadmill is equipped with four transport wheels that are engaged when the treadmill is folded. After
folding simply roll the treadmill away.

11
OPERATION OF YOUR CONSOLE

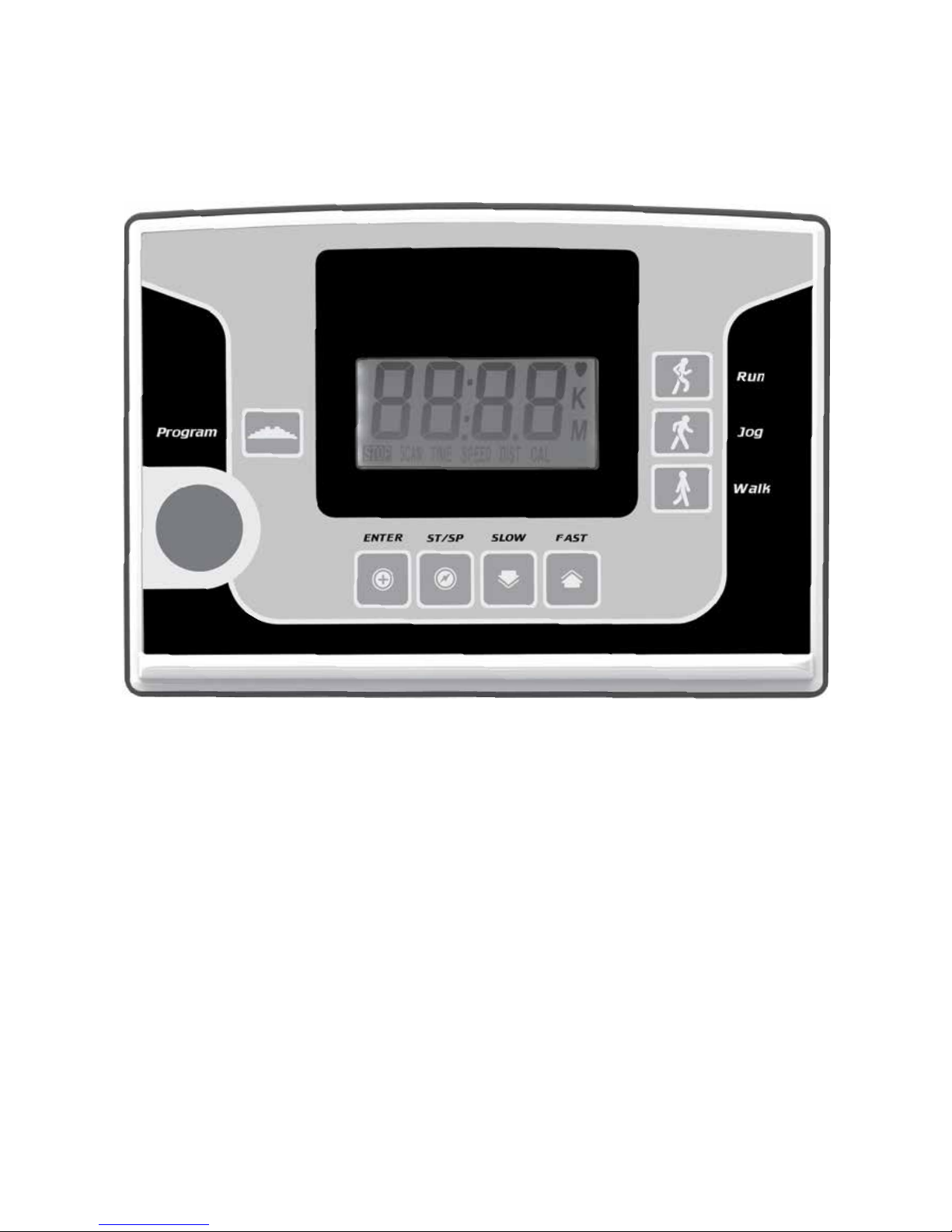

GETTING FAMILIAR WITH THE CONTROL PANEL FUNCTION BUTTON
FUNCTION BUTTON
INITIAL DISPLAY
When the power is turned on, main window will bright and show all parameter, then show the current
software version, how many hours the treadmill has been in use and how many Kilometers (or Miles if the
treadmill is set to imperial readings), above each data will be shown for 2 seconds in order, the treadmill
has gone. The treadmill will enter idle mode and show the P0 (Manual program), which is the starting
point for operation.
WINDOW DISPLAY
SCAN: Each parameter will take turns to display the exercising data for 5 seconds.
SPEED: Displays the current running speed from 0.8 KPH ~ 6.0 KPH.
TIME: Accumulates total workout time from 00:00 to 99:59.
DISTANCE: Accumulates total workout distance from 0.00 to 99.99 Kilometers (99.99Miles).
CALORIES: Accumulates the user’s calories consumption during exercise. Max. Value is 999.9
calories.
Note: This is only a rough guide used for comparison of different exercise sessions,
which cannot be used for medical purposes.
PROGRAM: To choice training program that have P0 (MANUAL) and P1~P5 (PRESET PROGRAMS).

12
FUNCTION BUTTON
ENTER: Press “ENTER” button to set the parameter of count down. When the belt stop
running which press and hold this button for 3 seconds to reset all data which is the
parameter value of accumulating.
START/STOP: Press “ST/SP” button to control start or stop training.
SPEED+: Press “FAST’ button to increase your speed, each increment is 0.1KPH.
SPEED-: Press “SLOW” button to decrease your speed, each decrement is 0.1KPH.
PROGRAM : Program selection button, P0 is the manual mode, P1~P5 are with various speed
of programs.
SAFETY KEY: Attach the safety key in its position to power on the computer. When safety key is
pulled away from its position, the computer will shut down automatically.
DIRECT SPEED KEYS:
3 preset buttons for direct speed: 1kph/1mph, 3kph/2mph, 5kph/3mph . user can press the 3buttons,
mentioned above, at any time, to start treadmill and treadmill will automatically adjust to press speed.
Quick-Start Operation (P0-Manual):
STEP 1: Attach the SAFETY button to wake display up (if not already on) , the main window will
show initial displaying. (Before training, you could enter the setting of count down,
please see the STEP 6.)
STEP 2: Press the START/STOP button to begin belt movement, before training; the console will be
a 3 seconds final count down and a beep sound for short time. Using the SPEED +/- keys
to adjust the desired speed (on console) at any time during training.
STEP 3: Press ENTER button to see the value of parameter, which includes speed, time, distance,
calories or scan. If chooses the scan mode that will take turns to display all value of parameter
every 5 seconds.
STEP 4: While training, you can press ST/S P button to stop your workout or pull safety key away from its
position to shut down the computer. If you want to resume your workout, you can press
ST/SP button again and all previous data will resume counting.
STEP 5: After training, to press ENTER button to display the accumulating data for speed, time,
distance and calories that will be memorize during training. If you want to repeat your workout,
press START/STOP button to start the treadmill again then others parameter will resume
counting.
STEP 6: Before training, press ENTER button to enter the setting of count down which include setting
count down Time whose range is from 10: 00 to 99:00, Distance is from 0.1 to 99.9 or
Calories is from 1.0 to 999. During setting, you could press SPEED+/- to adjust the value or
press ENTER button to enter next step whether you set or not. When you set multi-parameter,
just single parameter can to count down in last setting, press START/STOP to execute the
setting. When parameter has gone to zero, the treadmill will stop immediately, this workout
summary will be showed on screen.

13
To Select a Program:
P1 ~ P5 (PRESET PROGRAM)
Step 1. Press “ P (program) ” button to choose P0 (manual), P1 ~ P5, each program has a preset
speed value.
Step 2. Press ENTER button to set the count down time from 10:00 to 99:00, preset value is
20:00. You can adjust the value by pressing
SPEED + / - or press START/STOP button to start
training immediately.
For example: Time is limited to 20 minutes wherein total segments are 20 and each segment
exercising time is 1 minute. When Time goes to zero, treadmill will stop which could press
START/STOP to repeat and time will count down again, others will to accumulate resuming.
Step 3. Press START/STOP button to stop your workout or pull safety key away from its position to shut
down the computer.
Step 4. When workout is finished, press and hold ENTER button for 3 seconds to reset and initial
software in Manual(P0) program.
LUBE: When accumulated workout time duration is over 90 hours after lubrication, the LUBE warning
shows up. To follow this message lubricates deck.
ERROR MESSAGE:
1. LS: Treadmill doesn’t receive the speed signal for 8 seconds.
2.
E1: Memory of console malfunction or CPU accessing proble

14
P1-P5: PERCENT OF SPEED
14
KPH-------------------------------------------------------------------------------------------------------
Prog
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P_1
1.0
1.5
2.0
2.5
2.5
3.0
3.0
4.0
4.0
3.5
3.5
4.0
4.0
3.0
3.0
2.5
2.5
2.0
1.5
1.0
P_2
1.0 2.0 3.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 3.0 2.0 1.0
P_3
1.5
2.0
3.0
3.0
3.5
4.0
3.0
3.5
4.0
4.5
3.0
3.5
4.0
3.0
4.0
4.0
4.5
3.5
3.0
2.0
P_4
1.5
2.0
2.0
2.5
2.5
3.0
3.0
3.5
3.5
4.0
4.0
4.0
4.5
4.5
5.0
5.0
5.0
3.5
2.5
1.5
P_5
2.0
4.0
4.0
2.0
2.0
4.0
4.0
2.0
2.0
4.0
4.0
2.0
2.0
4.0
4.0
2.0
2.0
4.0
4.0
2.0
MPH-------------------------------------------------------------------------------------------------------
Prog
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P_1
0.5 1.0 1.5 1.5 1.5 2.0 2.0 2.5 2.5 2.0 2.0 2.5 2.5 2.0 2.0 1.5 1.5 1.5 1.0 0.5
P_2
0.5
1.0
2.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.0
1.0
0.5
P_3
0.5
0.5
1.0
1.0
1.5
2.0
1.0
1.5
2.0
2.5
1.0
1.5
2.0
1.0
2.0
2.0
2.5
1.5
1.0
0.5
P_4
1.0
1.0
1.0
1.5
1.5
1.5
1.5
1.5
2.0
2.0
2.0
2.0
2.0
2.5
2.5
2.5
2.5
2.5
1.5
1.0
P_5
1.0 2.5 2.5 1.0 1.0 2.5 2.5 1.0 1.0 2.5 2.5 1.0 1.0 2.5 2.5 1.0 1.0 2.5 2.5 1.0
P0 SPEED PROGRAM

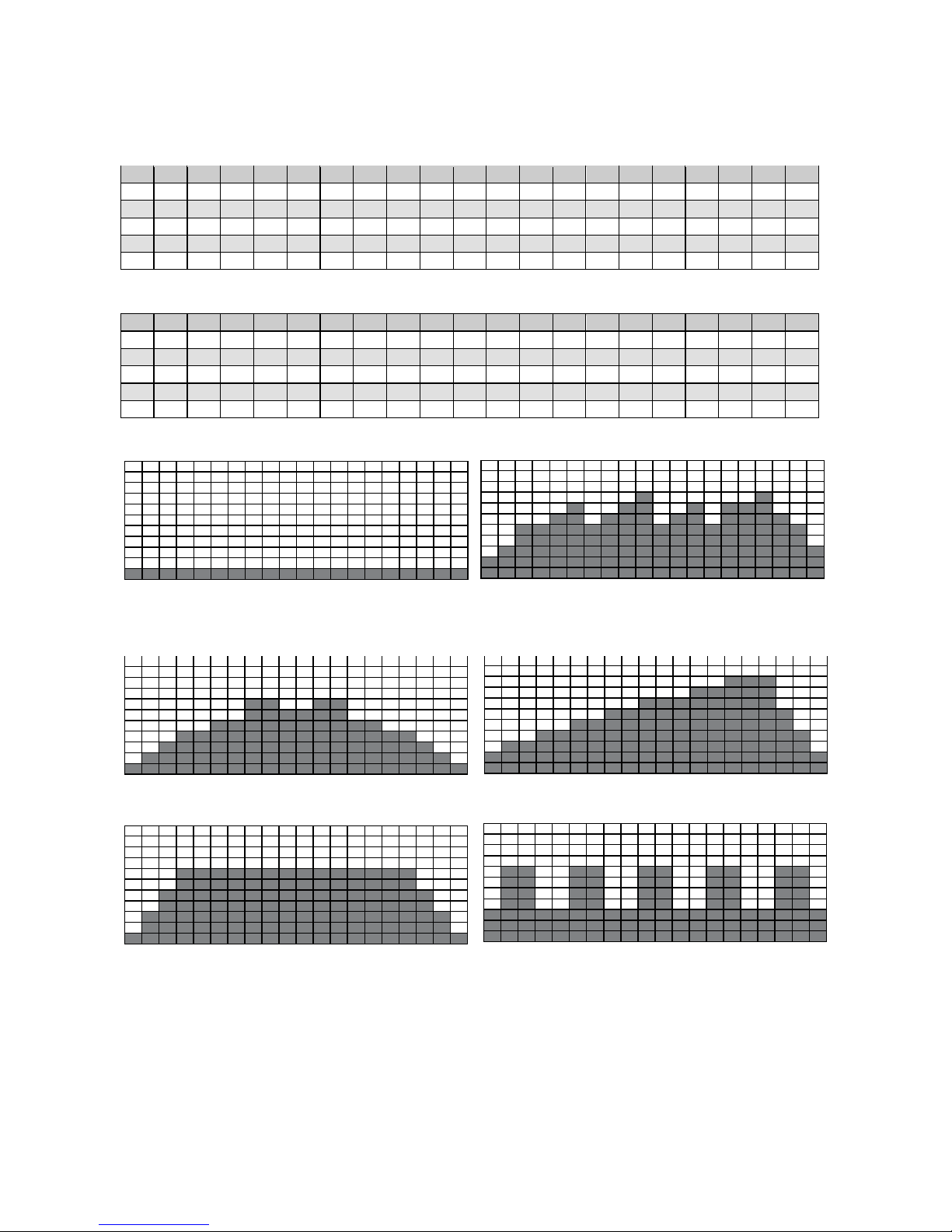

P1 SPEED PROGRAM
P2 SPEED PROGRAM
P3 SPEED PROGRAM
P4 SPEED PROGRAM
P5 SPEED PROGRAM

15
GENERAL MAINTENANCE
BELT/D ECK
Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is
kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area
between the belt edge and the frame. Also reach as far as practical directly under the belt edge. This
should be done once a month to extend belt and deck life. A mild soap and water solution along with a
nylon scrub brush will clean the top of the textured belt. Allow to dry before using.
BE LT/DECK
This occurs during normal break-in or until the belt stabilizes. Sometimes the black dust from the belt will
appear on the floor behind the treadmill, this is normal.
GENERAL CLEANING
Dirt, dust, and pet hair can block air inlets and accumulate on the running belt. Please vacuum underneath
your treadmill on a monthly basis to prevent excess build-up of dirt that can get sucked up and get into the
inner workings under the
motor cover. Once a year, you should remove the black motor hood and vacuum out dirt that may
accumulate. UNPLUG POWER CORD BEFORE THIS TASK.
BELT ADJUSTMENTS
Tread-belt Tension Adjustment - Belt tension is not critical for most users. It is very important though for
joggers and runners in order to provide a smooth, steady running surface. Adjustment must be made from
the rear roller with the 6 mm Allen wrench provided in the parts package. The adjustment bolts are located
at the end of the step rails as shown in the diagram below.
Tighten the rear roller only enough to prevent slippage at the
front roller. Turn the tread-belt tension adjusting bolts 1/4
turn each and inspect for proper tension by walking on the
belt and making sure it is not slipping or hesitating with each
step. When an adjustment
is made to the belt tension, you must be sure to turn the bolts
on both sides evenly or the belt could start tracking to one
side instead of running in the middle of the deck.
DO NOT OVERTIGHTEN – Over tightening will cause belt damage and premature bearing failure. If you
tighten the belt a lot and it still slips, the problem could actually be the drive belt - located under the motor
cover - that connects the motor to the front roller. If that belt is loose it feels similar to the walking belt
being loose. Tightening the motor belt should be done by a trained service person.

16
TREADBELT TRACKING ADJUSTMENT
The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for
some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if
during use the belt continues to move toward one side, adjustments are necessary.
SETTING TREAD-BELT TRACKING
A 6 mm Allen wrench is provided for this adjustment.
Make tracking adjustments on the left side bolt. Set
belt speed at 3 mph ( 5 kmph). Be aware that a small
adjustment can make a dramatic difference which
may not be apparent right away. If the belt is too
close to the left side , then turn the bolt only a 1/4
turn to the right (clockwise) and wait a few minutes for
the belt to adjust itself.
Continue to make 1/4 turns until the belt stabilizes in
the center of the running deck. If the belt is too close
to the right side , turn the bolt counter-clockwise.
The belt may require periodic tracking adjustment
depending on use and walking/running characteristics. Some users may affect tracking differently. Expect
to make adjustments as required to center the tread-belt. Adjustments will become less of a maintenance
concern as the belt is used. Proper belt tracking is an owner responsibility common with all treadmills.
ATTENTION:
DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING /
TENSION ADJUSTMENTS IS NOT COVERED UNDER THE WARRANTY .

17
BELT/DECK LUBRICATION PROCEDURE
Do not lubricate with other than approved lubricant. Your treadmill
comes with one tube of lubricant and extra tubes can be ordered
directly from your authorized dealer. There are commercially available
lube kits, but the only one currently approved is Lube-N-Walk.
These kits come with an application wand that makes applying the
lubrication easier. The kits can be purchased directly from Lube-N-
Walk here: http://www.jadfitness.com/. The proper kit should be silicon
based, NOT paraffin wax.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible for your
treadmill. If the lubricant dries out, the friction between the belt and deck rises and places undue stress on
the drive motor, drive belt and electronic motor control board, which could result in catastrophic failure of
these expensive components. Failure to lubricate the deck at regular intervals may void the warranty.
The belt & deck come pre-lubricated and subsequent lubrication should be performed every 90 hours of
use. The console has a built in lubrication reminder indicator that lights every 90 hours of use.

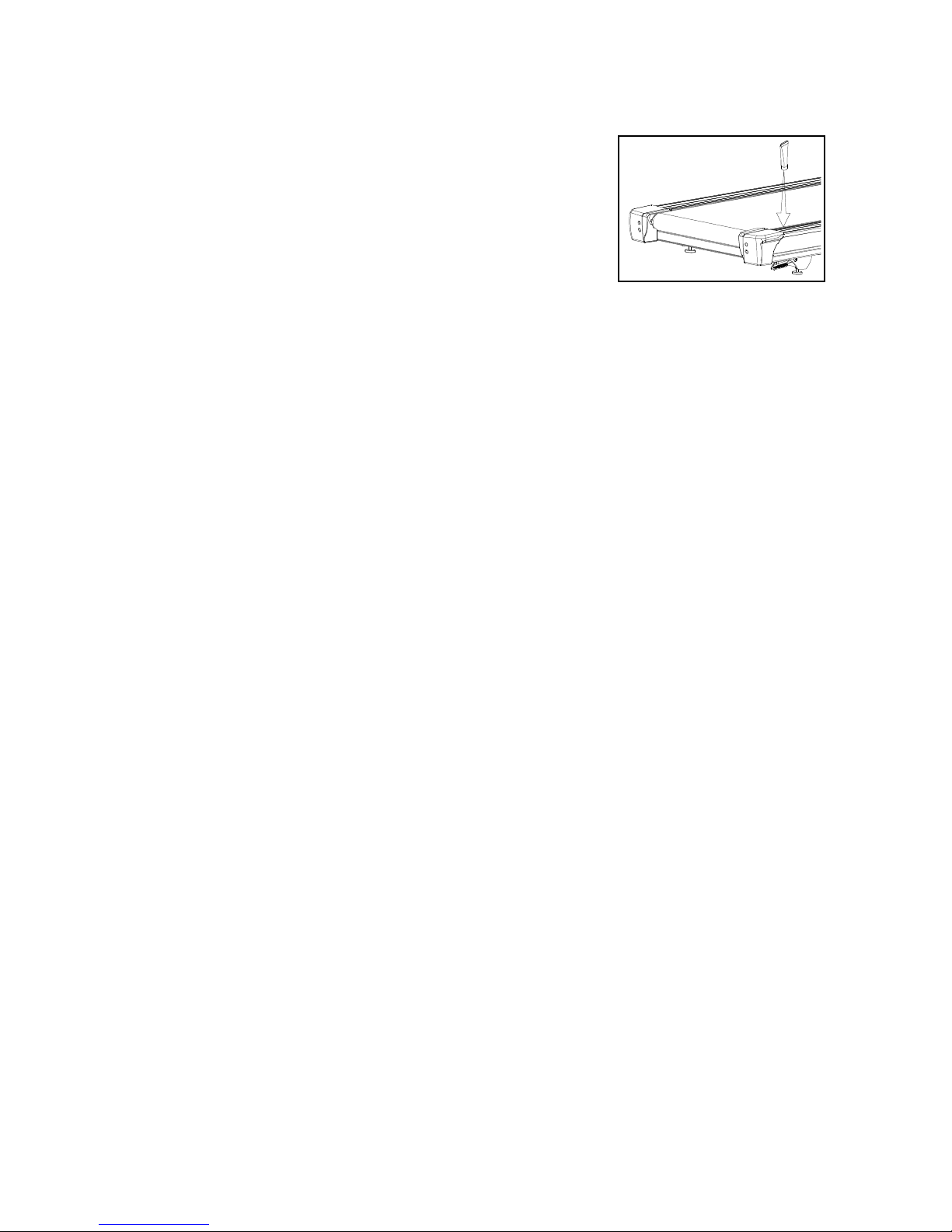

Use the Lubricant to lubricate the deck beneath the belt. If you can reach under the belt approximately
6” on each side, use the following procedure: Unplug the electrical cord. At the middle of the deck, lift up
on the belt and reach under with the tube of lubricant. Squirt most of the lubricant on the deck surface.
Repeat the process on the opposite side. Plug the electrical cord back into the outlet and walk on the belt
at a moderate speed for five minutes.
If unable to perform the above procedure, it will be necessary to loosen the walking belt. Using the 6
mm Allen wrench supplied, loosen the two rear roller adjustment bolts -- located in the rear end caps –
enough to get your hand under the belt (5 –10 turns). Make sure to loosen both bolts the same amount
of turns and also remember how many turns, because when finished you will need to tighten the bolts
back to the point they were before.
Once the belt is loose, wipe the deck with a clean lint free cloth to remove any dirt. Apply the whole tube
of lubricant onto the deck surface about 45 cm (18 inches) from the motor cover. Squeeze out the contents
of the tube across the deck (parallel to the motor cover) in about a one-foot line, like toothpaste on a
toothbrush. The one-foot line should be in the middle of the deck at approximately equal distance from
both side edges of the belt. You want the lubricant to be applied about the spot that your feet would hit the
belt as you are walking. This should be about 18 inches from the motor cover, but you may want to walk
on the treadmill before loosening the belt to note where your feet land on the belt. If you mostly use the
treadmill for running, the spot where your feet land may be different from walking.
Once the lubricant is applied, tighten the rear roller bolts the same amount of turns as when you loosened
them. Run the treadmill at about 5 kmph (3 mph) without walking on it for about a minute or two to
make sure the belt stays in the middle of the deck. If the belt tracks to one side then follow the belt
tracking instructions to remedy. Now the deck is lubricated and you should walk, not run, on the treadmill
immediately for at least 5 minutes to ensure the lubricant is evenly distributed. If you purchase a silicone
based Lube-N-Walk kit, follow the instructions that come with it to apply the lubrication.
17
BELT/DECK LUBRICATION PROCEDURE
Do not lubricate with other than approved lubricant. Your
treadmill comes with one tube of lubricant and extra tubes can
be ordered directly from your authorized dealer. There are
commercially available lube kits, but the only one currently
approved is Lube-N-Walk.
These kits come with an application wand that makes applying
the lubrication easier. The kits can be purchased directly from
Lube-N-Walk here: http://www.jadfitness.com/. The proper kit
should be silicon based, NOT paraffin wax.
Keeping the deck lubricated at the recommended intervals ensures the longest life possible
for your treadmill. If the lubricant dries out, the friction between the belt and deck rises and
places undue stress on the drive motor, drive belt and electronic motor control board, which
could result in catastrophic failure of these expensive components. Failure to lubricate the
deck at regular intervals may void the warranty. The belt & deck come pre-lubricated and
subsequent lubrication should be performed every 90 hours of use. The console has a built in
lubrication reminder indicator that lights every 90 hours of use.
Use the Lubricant to lubricate the deck beneath the belt. If you can reach under the belt
approximately 6” on each side, use the following procedure: Unplug the electrical cord. At the
middle of the deck, lift up on the belt and reach under with the tube of lubricant. Squirt most of
the lubricant on the deck surface.Repeat the process on the opposite side. Plug the electrical
cord back into the outlet and walk on the belt at a moderate speed for five minutes.
If unable to perform the above procedure, it will be necessary to loosen the walking belt. Using
the 6 mm Allen wrench supplied, loosen the two rear roller adjustment bolts -- located in the
rear end caps –enough to get your hand under the belt (5 –10 turns). Make sure to loosen
both bolts the same amount of turns and also remember how many turns, because when
finished you will need to tighten the bolts back to the point they were before.
Once the belt is loose, wipe the deck with a clean lint free cloth to remove any dirt. Apply the
whole tube of lubricant onto the deck surface about 45 cm (18 inches) from the motor cover.
Squeeze out the contents of the tube across the deck (parallel to the motor cover) in about a
one-foot line, like toothpaste on a toothbrush. The one-footline should be in the middle of the
deck at approximately equal distance from both side edges of the belt. You want the lubricant
to be applied about the spot that your feet would hit the belt as you are walking. This should
be about 18 inches from the motor cover, but you may want to walk on the treadmill before
loosening the belt to note where your feet land on the belt. If you mostly use the treadmill for
running, the spot where your feet land may be different from walking. Once the lubricant is
applied, tighten the rear roller bolts the same amount of turns as when you loosened them.
Run the treadmill at about 5 kmph (3 mph)without walking on it for about a minute or two to
make sure the belt stays in the middle of the deck. If the belt tracksto one side then follow the
belt tracking instructions to remedy. Now the deck is lubricated and you should walk, not run,
on the treadmill immediately for at least 5 minutes to ensure the lubricant is evenly distributed.
If you purchase a silicone based Lube-N-Walk kit, follow the instructions that come with it to
apply the lubrication.

18
SERVICE CHECKLIST - DIAGNOSIS GUIDE
Before contacting your dealer for aid, please review the following information. It may save you both time
and expense. This list includes common problems that may not be covered under the treadmill’s warranty.
PROBLEM SOLUTION/CAUSE
Display does not light
1. Tether cord not in position.
2. Circuit breaker on front grill tripped.
Push circuit breaker in until it locks.
3. Plug is disconnected. Make sure plug is firmly
Tread-belt does not stay centered
Treadmill belt hesitates when
walked/run on
The user may be walking while favoring or putting
more weight on either the left or right foot. If this
walking pattern is natural, track the belt slightly
off-center to the side opposite from the belt
movement. See General Maintenance section
on Tread-belt Tension . Adjust as necessary.
Motor is not responsive after
pressing start
1. If the belt moves, but stops after a short time
and the display shows “LS”, run calibration or
check the speed sensor.
2. If you press start and the belt never moves,
Treadmill will only achieve
approximately 5 kmph (3 mph)
but shows higher speed on display
This indicates motor should be receiving power to
operate. Low AC voltage to treadmill. Do not use
an extension cord. If an extension cord is required
it should be as short as possible and heavy duty
Tread-belt stops quickly/suddenly
when tether cord is pulled
High belt/deck friction.
See General Maintenance
section on lubrication.
Treadmill trips on board 7 amp
circuit
High belt/deck friction.
See General Maintenance
Computer shuts off when console
is touched (on a cold day) while
walking/running
Treadmill may not be grounded. Static electricity
is “crashing” the computer.
Refer to Grounding Instructions .
House circuit breaker trips, but not
the treadmill circuit breaker
Need to replace the house breaker with a “High
In- rush current” type breaker.

19
EXPLODED VIEW DIAGRAM
19
EXPLODED VIEW DIAGRAM
