INSTALLATION INSTRUCTIONS
PLOW MOUNTING KIT
Part Number: 80545
Application: Polaris Sportsman XP
WARNING
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys Read the Plow Operator’s Manual, the Winch Operator’s Manual and all warning labels before operating.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys use extreme caution when drilling on any vehicle. Make sure that all fuel lines, brake lines, electrical wires, and other
objects are not punctured or damaged when/if drilling on the vehicle. Thoroughly inspect the area to be drilled (on both sides of
material) prior to drilling, and relocate any objects that may be damaged. Failure to inspect the area to be drilled may result in
vehicle damage, electrical shock, fire or personal injury.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys wear safety glasses when installing this kit. A drilling operation will cause flying metal chips. Flying chips can cause eye
injury.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys use extreme caution when cutting and trimming during fitting.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys remove jewelry and wear eye protection.
NeNe
NeNe
Nevv
vv
verer
erer
er lean over battery while making connections.
NeNe
NeNe
Nevv
vv
ver rer r
er rer r
er routout
outout
oute electrical cables:e electrical cables:
e electrical cables:e electrical cables:
e electrical cables:
oAcross any sharp edges.
oThrough or near moving parts.
oNear parts that become hot.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys insulate and protect all exposed wiring and electrical terminals.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys install terminal boots as directed in installation instructions.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys use appropriate and adequate care in lifting components into place.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys insure components will remain secure during installation and operation.
Alw
Alw
AlwAlw
Alwaa
aa
aysys
ysys
ys tighten all nuts and bolts securely, per the installation instructions.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys operate the vehicle at a walking speed with the blade installed. Never exceed 5 mph (8 km/h), even with blade up.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys plow cautiously, impact with hidden or stationary object may cause the vehicle to stop suddenly or go out of control.
NeNe
NeNe
Nevv
vv
verer
erer
er operate the vehicle on slopes greater than 10 degrees with the plow installed.
NeNe
NeNe
Nevv
vv
verer
erer
er stand or ride on the plow.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys stay clear of moving parts and joints. Always keep others away when operating or adjusting plow.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys perform regular inspections and maintenance on the plow mechanism, fasteners, cable and related hardware.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys replace all worn or damaged parts before operating.
NeNe
NeNe
Nevv
vv
verer
erer
er operate this WARN product with damaged or missing parts.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys drive slowly over bumpy and rough terrain. Driving at speeds that cause the plow to bounce while in the up position can
cause the winch to back-drive, causing the plow to work its way down. This may result in the plow impacting a stationary object
and cause damage to the vehicle and operator injury or death.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys drive at speeds such that the plow does not bounce and be aware of the plow position while driving at all times.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys be aware that the purpose of the j-bolt is to break the connection between the plow and the winch, to prevent serious
damage to the ATV if the plow is raised too high. The plow blade will drop suddenly if the j-bolt breaks, so always be sure there
are no bystanders when you raise and lower the plow.
Ne
Ne
NeNe
Nevv
vv
verer
erer
er raise the top of the plow above the headlights of the ATV, as it may damage the vehicle and plow.
AlwAlw
AlwAlw
Alwaa
aa
aysys
ysys
ys replace a deformed or broken j-bolt with the spare j-bolt included in the kit.
INJURY HAZARD
Failure to observe these instructions could lead to severe injury or death.
Your safety, and the safety of others, is very important. To help you make informed decisions about safety, we
have provided installation and operating instructions and other information on labels and in this guide. This
information alerts you to potential hazards that could hurt you or others. It is not possible to warn you about all
potential hazards associated with this product, you must use your own good judgment.
CARELESS INSTALLATION AND OPERATION CAN RESULT IN SERIOUS INJURY OR
EQUIPMENT DAMAGE. READ AND UNDERSTAND ALL SAFETY PRECAUTIONS AND
OPERATING INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS PRODUCT.
This guide identifies potential hazards and has important safety messages that help you and others avoid personal
injury or death. WARNING and CAUTION are signal words that identify the level of hazard. These signal words
mean:
WARNINGsignals a hazard that could cause serious injury or death, if you do not follow recommenda-
tions. CAUTION signals a hazard that may cause minor to moderate injury, if you do not follow
recommendations.
This guide uses NOTICE to call attention to important mechanical information, and Note: to emphasize general
information worthy of special attention.

WARN INDUSTRIES PAGE 2 80546A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
I. TABLE OF CONTENTS
Tools Required page 2
Parts List page 3
Installation page 4-6
Polaris Winch Mount page 4
WARN Winch Mount page 5-7
Maintenance/Care page 7
CAUTION
Moving Parts Entanglement Hazard
Failure to observe these instructions could lead to minor or moderate injury.
Always take time to fully read and understand the installation and Operations Guide included with this product.
Never operate this product if you are under 16 years of age.
Never operate this product when under the influence of drugs, alcohol or medications.
Read installation and operating instructions thoroughly.
NOTICE
Equipment Damage
Always refer to the Installation and Specification Guide, supplied in the winch kit, for all wiring schematics and specific details on how
to wire this WARN product to your vehicle.
Never overtighten the j-bolt to the bracket. Doing so will pinch the winch cable against the bracket, damaging the cable.
Always put the end of the actuator cable through the slot in the Termination Bracket. Terminating the cable through any other hole in the
bracket will cause the bracket to not function properly and will drastically reduce the life of the actuator cable.
Read installation and operating instructions thoroughly.
II. TOOLS REQUIRED
- 3/8" Rachet with 3-1/2" extension
- Sockets: 10mm, 13mm, 16mm
- Wrenches: 13mm, 16mm, 17mm

WARN INDUSTRIES PAGE 3 80546A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
IMPORTANT: This kit requires either a Polaris or WARN winch mount to be installed. It cannot be mounted if a
winch mount has not been installed on the vehicle
III. PARTS LIST
Ref Description Qty
1 Plow Mount 1
2 M10-1.50 x 25mm Hex Bolts 4
3 Flat Washer 3/8" 2
4 Capscrew M8-1.25 x 20mm 2
5 Plow Retaining Pin 2
6 Plow Tab RH 1
7 Plow Tab LH 1
8 WARN Winch Mount Adapter Brkt. 1
9 Lock Washer M10 2
10 Nut M10x1.50
Use Holes (A) if mounted with a Polaris Brand Winch Mount.
Use Holes (B) if mounted with a WARN Brand Winch Mount.

WARN INDUSTRIES PAGE 4 80546A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
Figure 1
IV. INSTALLATION (Polaris Winch Mount)
Figure 2

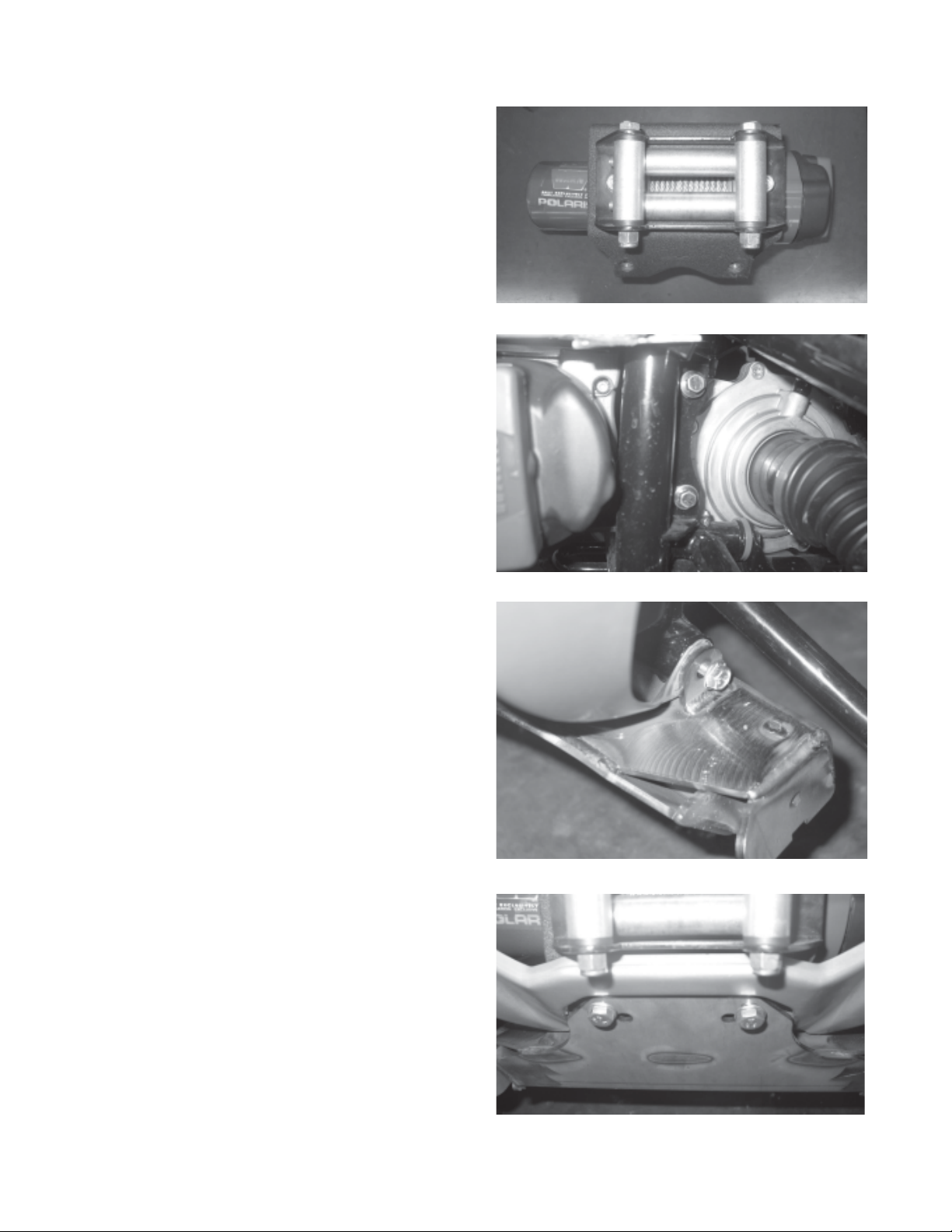

Note: The Polaris winch mount (Figure 1) already
has mounting holes underneath the fairlead rollers
and does not need the adapter bracket.
1. If using the Polaris winch mount, loosen the bolts
securing the mount to the vehicle (Figure 2) so the
winch mount is loosely attached. Remove the lower
skid pan bolts. These will not be used in this kit.
2. Place the plow mount under the vehicle such that the
tabs fit around the frame cross bar that the lower skid
pan bolts thread into. Secure with two M8x20mm
capscrews supplied and a 13mm socket (Figure 3).
Do not tighten these.
Note: It may be necessary to line one side up first,
applying inward pressure on the skid plate
mounting tabs to fit in between the plow mount tabs
and around the cross tubing.
3. Secure the plow mount to the winch mount. Use a
16mm socket with two M10x25mm bolts with 3/16"
flat washers (Figure 4). Do not tighten all the way.
Note: It may be necessary to rotate the winch
mount upward for the mounting holes to line up
with the plow mount holes. Make sure the lower
M8x20mm bolts are not tight, as it will make this
step difficult.
4. Tighten the two lower M8x20mm bolts to 20 N-m
(15 ft-lbs). Tighten the two plow mount to winch
mount M10x25mm bolts to 25 N-m (18.5 ft-lbs).
Tighten the four winch mount to frame bolts to 20 N-
m (15 ft-lbs).
5. Finally install the plow mounting tab to your Plow
Tube Assembly. Install these loosely on the plow
with the fasteners provided with the plow. Tighten
the fasteners after the plow is assembled and installed
in the mount according to the plow assembly
instructions.
Figure 3
Figure 4

WARN INDUSTRIES PAGE 5 80546A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
Figure 5
Figure 6
IV. INSTALLATION (WARN Winch Mount)
Figure 7

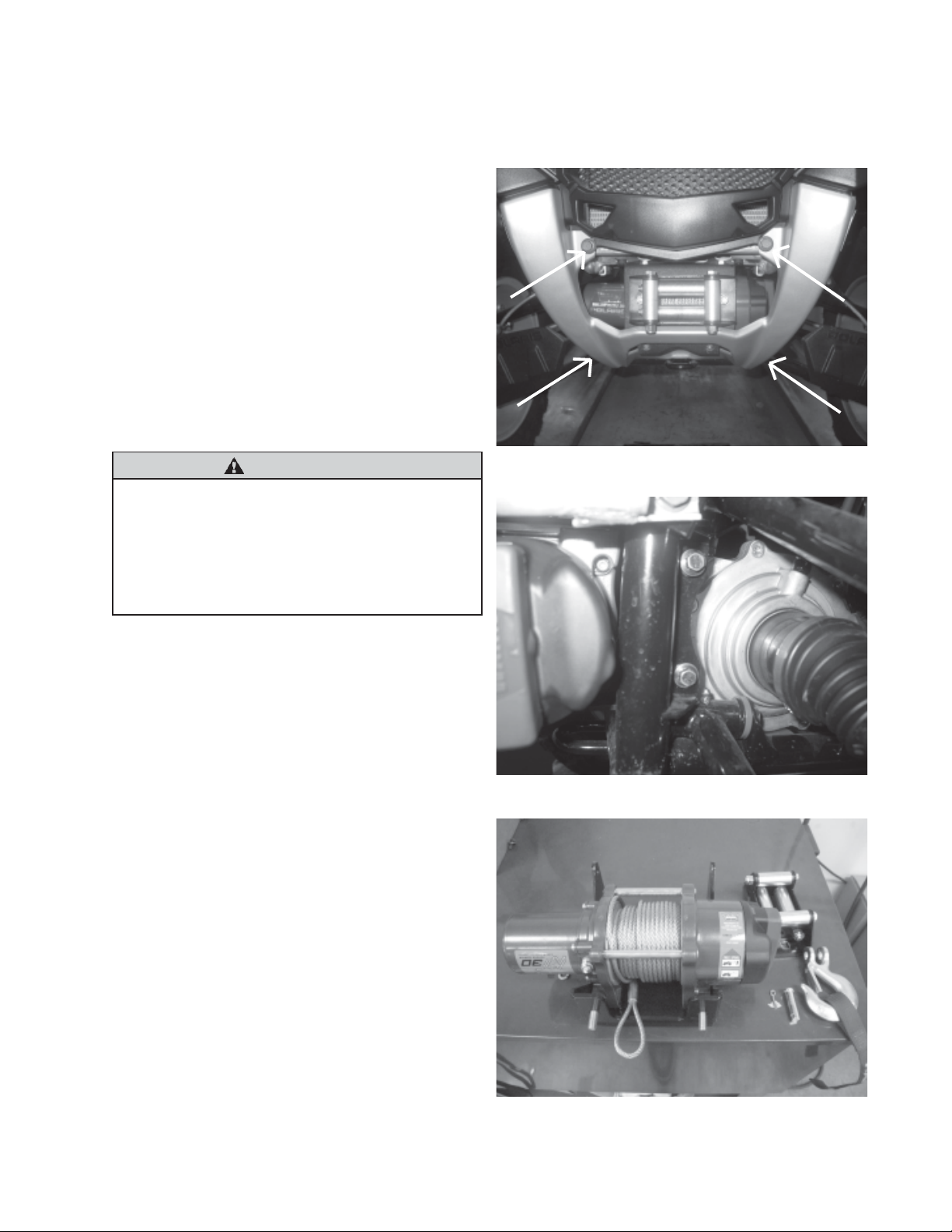

1. Remove the front skid plate (Figure 5). Use a 13mm
socket to remove the four bolts securing the front
skid pan to the front bumper.
2. Remove the WARN winch mount. Use a 13mm
socket and a 13 mm wrench to loosen the four bolts/
nuts that secure the WARN winch mount to the
frame (Figure 6).
3. Remove the hook by pulling the cotter pin from the
clevis pin. Remove the fairlead from the WARN
winch mount. Use a 16mm socket with a 17mm
wrench to loosen the two M10x1.5x20mm bolts that
secure the fairlead to the winch mount. These bolts
will be replaced by longer fasteners provided in this
kit.
4. Place two M10x1.5x25mm bolts through the back of
the face of the WARN winch mount (Figure 7). Then
place the WARN winch mount adapter bracket on the
face of the winch mount feeding the bolts through the
mounting holes on the bracket. (Figure 8)
CAUTION
Once the winch mount is freed from the mount it
can fall from the vehicle. To prevent personal injury
and damage to the winch and its mount, remove the
top two bolts/nuts but only remove the nuts on the
bottom, leave the two bolts in the mounting holes.
Hold the winch mount with one hand, then remove
the last two bolts.

WARN INDUSTRIES PAGE 6 80546A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
INSTALLATION CONT.
5. Place the fairlead over the adapter bracket, feeding
the bolts through the mounting holes on the fairlead.
Tighten two lock washers with two M10 nuts using a
16mm socket and 17mm wrench. Install the hook by
placing the clevis pin through the hook and securing
with cotter pin. (Figure 9)
6. Place the WARN winch mount back on the vehicle
mounting tabs and secure with bolts taken off in step
2. Do not tighten bolts all the way. The winch
mount needs to move slightly to install the plow
mount. (Figure 10)
7. Secure the front skid plate to the frame using only the
upper bolts, the lower bolts will not be used in this
kit. The front of the winch mount may have to be
rotated upward to get the skid plate holes to line up
with the frame.
8. Loosen the bolts securing the mount to the vehicle
(Figure 10) so the winch mount is loosely attached.
Remove the lower skid pan bolts. These will not be
used in this kit.
Figure 8
Figure 9
Figure 10

WARN INDUSTRIES PAGE 7 80546A1
©2009 Warn Industries, Inc.
WARN® and the WARN logo are trademarks of Warn Industries Inc.
INSTALLATION CONT.
V. MAINTENANCE/CARE
•Inspect all metal parts on the plow, plow mount, and related hardware. Replace all parts that appears rusted or
deformed prior to use.
•Inspect all nuts and bolts on the plow, plow mount, and related hardware prior to each use. Tighten all nuts and
bolts that appear to be loose. Stripped, fractured, or bent bolts or nuts need to be replaced immediately.
•Check all cables prior to use. Replace cables that are worn or frayed.
•Check all moving and rotating parts. Remove debris that may inhibit the part from moving freely.
Figure 11
Figure 12
9. Place the plow mount under the vehicle such that the
tabs fit around the frame cross bar that the lower skid
pan bolts thread into. Secure with two M8x20mm
capscrews supplied and a 13mm socket (Figure 11).
Do not tighten these.
Note: It may be necessary to line one side up first,
applying inward pressure on the skid plate
mounting tabs to fit in between the plow mount tabs
and around the cross tubing.
10. Secure the plow mount to the winch mount. Use a
16mm socket with two M10x25mm bolts with 3/16"
flat washers (Figure 12). Do not tighten all the way.
Note: It may be necessary to rotate the winch
mount upward for the mounting holes to line up
with the plow mount holes. Make sure the lower
M8x20mm bolts are not tight, as it will make this
step difficult.
11. Tighten the two lower M8x20mm bolts to 20 N-m
(15 ft-lbs). Tighten the two plow mount to winch
mount M10x25mm bolts to 25 N-m (18.5 ft-lbs).
Tighten the four winch mount to frame bolts to 20 N-
m (15 ft-lbs).
12. Finally install the plow mounting tab to your Plow
Tube Assembly, see Figure 13. Install these loosely
on the plow with the fasteners provided with the
plow. Tighten the fasteners after the plow is
assembled and installed in the mount according to the
plow assembly instructions.
Figure 13
