Warner Shelter Systems Limited MQ2040T User manual

MODEL
MQ2040T
1. Each installation site must be evaluated and the proper securing method determined by the
installer. Some soils require staking or securing different from that which was provided with the
tent.
2. Good judgment and common sense must be used along with installation guidelines. It is the
responsibility of the tent installer/maintainer to anticipate the severity of the weather along with
the proper time and method of setup and take down. Evacuation of the tent is recommended
before weather becomes extreme. A successful event is a safe event.
3. Proper safety equipment, such as hard hats, steel toe shoes, and safety glasses, should be used
to ensure a safe setup and take down.
ASSEMBLY INSTRUCTIONS
PEAK MARQUEE TENT
CAUTION
IMPORTANT:
PLEASE READ INSTRUCTIONS PRIOR TO ERECTING THE TENT.
PROPER INSTALLATION WILL ENSURE MAXIMUM USAGEAND
STABILITY OF THIS STRUCTURE.
IF FURTHER INFORMATION OR CLARIFICATION OF ANY PART OF
THE ENCLOSED INSTRUCTION IS REQUIRED, PLEASE CONTACT:
WARNER SHELTER SYSTEMS LIMITED
1-800-661-6155 OR E-MAIL: [email protected]
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited
PAGE 2
Table of Contents
1.) TENT LOCATION................................................................................................2
2.) PARTS LIST................................................................................................... 3 - 4
3.) FRAME ASSEMBLY ...................................................................................... 4 - 5
Post & Centrepole Assembly .................. Step 2....................... PAGE 4
Upper Frame Assembly ......................... Step 3 - 4 ................. PAGE 4
Cross Cable Installation ......................... Step 5 - 6 ................. PAGE 5
Cable: Slide Wall Installation (optional) .. Step 7....................... PAGE 5
4.) TENT TOP INSTALLATION ........................................................................... 5 - 6
Protecting Tent Top ................................. Step 8....................... PAGE 5
Unfolding Tent Top ................................. Step 9 ...................... PAGE 6
Securing Tent Top to Frame ................... Step 9A/9B & 10 ..... PAGE 6 - 7
5.) ERECTING THE TENT ............................................................................... 7 - 10
Installing Posts ....................................... Step 11 .................... PAGE 7
Installing Centrepole............................... Step 13 - 19............. PAGE 8 - 9
Securing the Structure ........................... Step 18 & 20 ........... PAGE 10
6.) GUY ROPE INSTALLATION............................................................................. 10
7.) WALL INSTALLATION....................................................................................... 11
8.) JOINER INSTALLATION ........................................................................... 12 - 13
9.) SUMMARY........................................................................................................ 14
10.) CARE FOR YOUR VINYL TOPS ..................................................................... 15
11.) MAINTENANCE ............................................................................................... 15
Tent Location
VERY IMPORTANT!
Ascertain tops, guys, and other tent parts are in good operating condition. Any
components showing damage should be replaced immediately.
Before unloading, review the proposed location of the tent. In doing so, take into
account the following:
Hazards Locate, mark, and avoid any overhead or underground electrical, phone, gas,
sprinkler or other lines. Take note and always be aware of any and all hazards. DO
NOT BEGINANY ASSEMBLY UNTIL THE HAZARDS HAVE BEEN MARKED AND
CAN BE SAFELYAVOIDED.
Access Plan the best route for bringing the tent and equipment for the setup onto and off
the site.
Drainage Attempt to influence the location of the tent so that rain or melting snow can drain
away.
Obstacles A clean, level and unobstructed site will provide an easy assembly of the tents.
Weather Do not attempt to setup the tent during thunderstorms, high winds or other extreme
conditions.
Safety Before the set up, instruct the crew on safety procedures. All local safety and fire
regulations must be followed.
ALL SITE PERSONNEL MUST FOLLOW OCCUPATIONAL HEALTH AND SAFETY PROCEDURES.
PAGES
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited
PAGE 3
MQ2040T
MODEL
PEAK MARQUEE TENT
PLAIN
CLEAR
MESH
FRENCH WINDOW
BAY WINDOW
BAY WINDOW W/ ZIP
WALLS
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
ALUMINUM
FRAME
10591 10590
7295
STEEL
FRAME
QTY
4
6
14 10630 7161
1 11565
2 9523
18 10666
10689
110580
11064
2
6
6
10978
04093
08369
10673
ITEM
CROSS CABLE
POST 8'
PART
4
2
3
5EVE TUBE 9’3”
9
TENT TOP MQ2040T
1
FLAG POLE EXT.
13
10
STAKE 3/4" x 34"
11
GUY ROPE
DROP SHEET
12
15
16
17
18
CENTREPOLE
BOLT 5/16-3 NC PL GR 5
NUT 5/16 NC PL NYLOK 610514
BASE; MQ FLAT
7
14
BASE: MQ ADJ. 24”
CABLE: SLIDING WALL 20’
FRAMING
11964 10605
ASSEMBLY #
T-PLUS 2 9465
87843
6LOCKPIN
8MID JOINT 7 10667 7284
10959GUTTER/JOINER 20’
10628CORNER 90° 4
6
as req’d
6
as req’d
2
12
10 11
OPTIONS
FLAG NOT
INCLUDED
OPTIONAL
FLAG POLE
FOR 3'x5'
FLAG
14
1
9
35
17
2
15 12
7
13
85
<
18
4
4
16 6

Warner Shelter Systems Limited
• Check all the parts before
assembling the tent.
• Refer to assembly drawing
on page 3 for part
quantities and part
numbers.
Step 4
Step 1
Step 3
• Assemble Corner 90° 3 , T-plus 7 , Eve
Tube 5 and 6 by slipping one tube to
another.
PAGE 4
Step 2
• Assemble the Post 8’ 3 with the Base 4 using Bolts 10 and Nuts 11 .
• Assemble the Centrepole 7 using the same type of Bolts and Nuts.
• Attach cross Eve Tube 5
CENTRE POLE
DROP SHEET
4CROSS CABLE (4)
3CORNER 90° (4)
5EVE TUBE 9’3” (14)
2POST 8’ (6)
14 BASES (6)
1TENT TOP
9CENTREPOLE (2)
ALUMINUM
(PART#10978)
7T-PLUS (2)
POST
DRAWING 2:1
2.61 m (8’-7”)
3
POST
BASE
11
4
10
8MID JOINTS (7)
15 GUY ROPE (6)
* Bolts, Nuts, and Lockpins not shown.
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
FRAME ASSEMBLY
PRE ASSEMBLY
(NOT INCLUDED)

Warner Shelter Systems Limited
PAGE 5

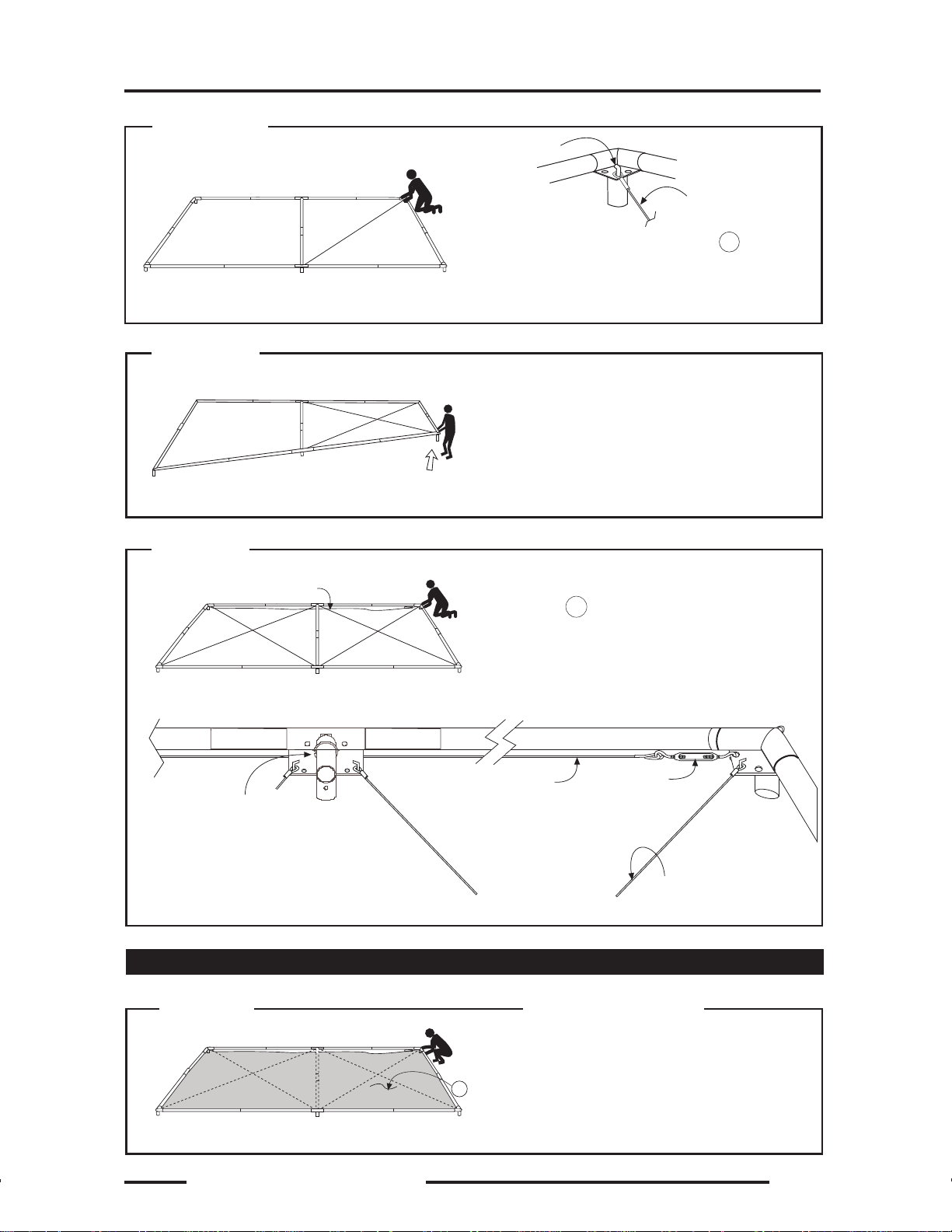

Step 5
Cross Cables
Step 7
Step 8
Step 6 • Install second (top) Cross Cable.
• To install last loop, lift last corner to shorten
the distance and hook the cable in place.
• Lowering the corner causes the corners to
adjust their position and the cables to tighten.
• Repeat steps 5 and 6 for the opposite side of
the tent
•If walls are to be installed, attach Cable for
SlideWall 13 to the Corners and tighten
turnbuckle.
Corner Pin
• Install first (bottom) Cross Cable 4
diagonally in square frame.
• Hook the cable end loop over the corner pin.
Turnbuckle
Cable: Slide Wall
Cable: Slide Wall
T-plus
Cross Cable
PROTECTING TENT TOPPROTECTING TENT TOP
12 Drop
Sheet
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
TENT TOP INSTALLATION
(NOT INCLUDED)
• Unfold Drop Sheet (not included) over
the Cross Cables to protect the Tent Top and
to keep the Tent Top clean.

Warner Shelter Systems Limited
PAGE 6

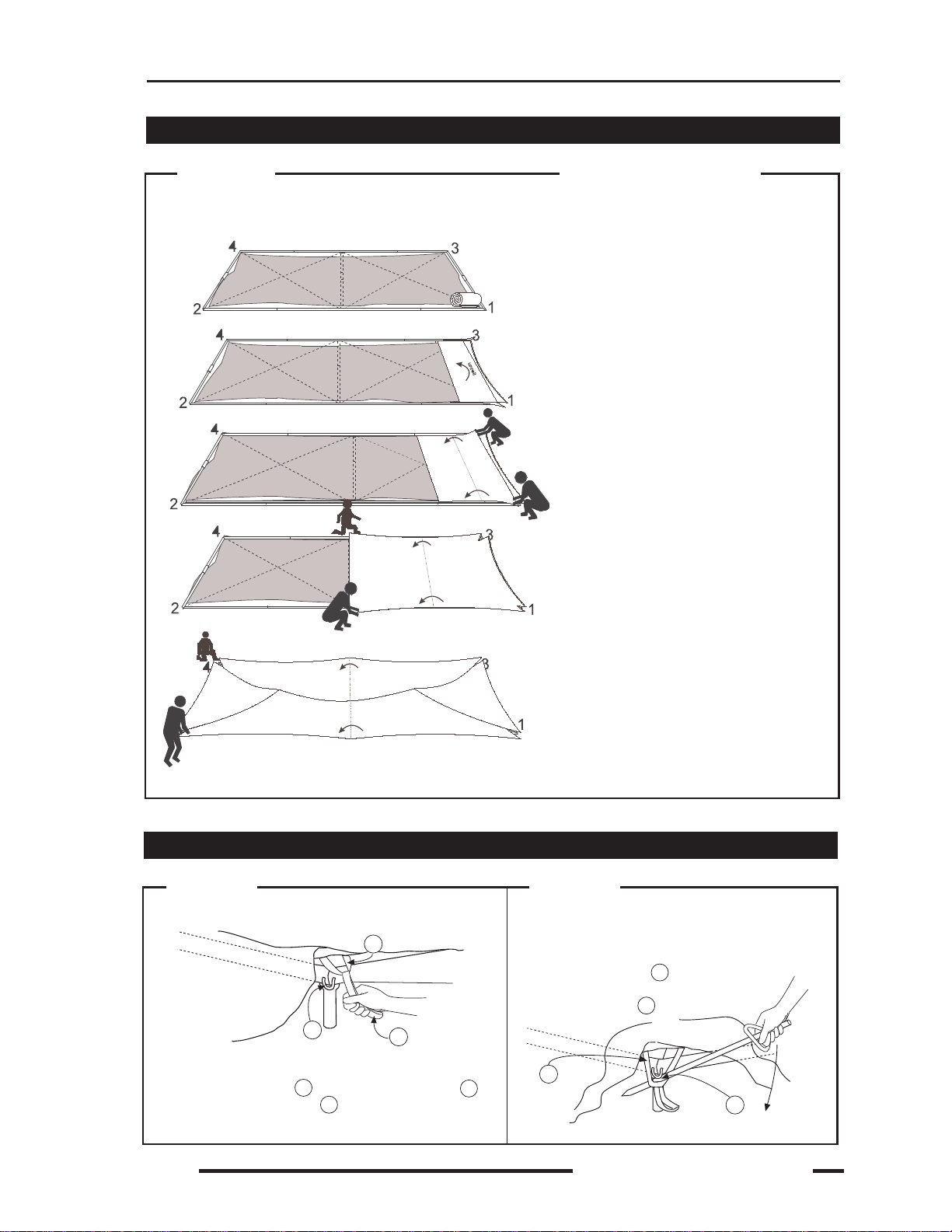

Step 9A
• Attach one corner of the Tent Top to the frame
by pulling handle B to place loop webbing A
under the corner loop C .
CB
• Attach as in 9A. If tight, insert a stake
through webbing A and press down
and under until the webbing slips under
the corner loop C .
ATTACHING THE LAST
Step 9B
Step 9 UNFOLDING THE TENT TOP
C
• Place the Tent Top midway along one
side and unfold fabric toward the
corners.
• Ensure that the valences are against
the outside edge of the frame.
• Attach webbing, as shown in Step 9A,
to corners 1 and 3.
• Pull upper layer towards the opposite
end. Use toggle rope to avoid stepping
on Tent Top.
• Attach webbings, as shown in Step 9B,
to corners 2 and 4.
ERECTING THE TENT
ATTACHING WEBBING TO CORNER LOOP
NOTE: The corners are numbered here
for explanation only.
A
A
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited
PAGE 7

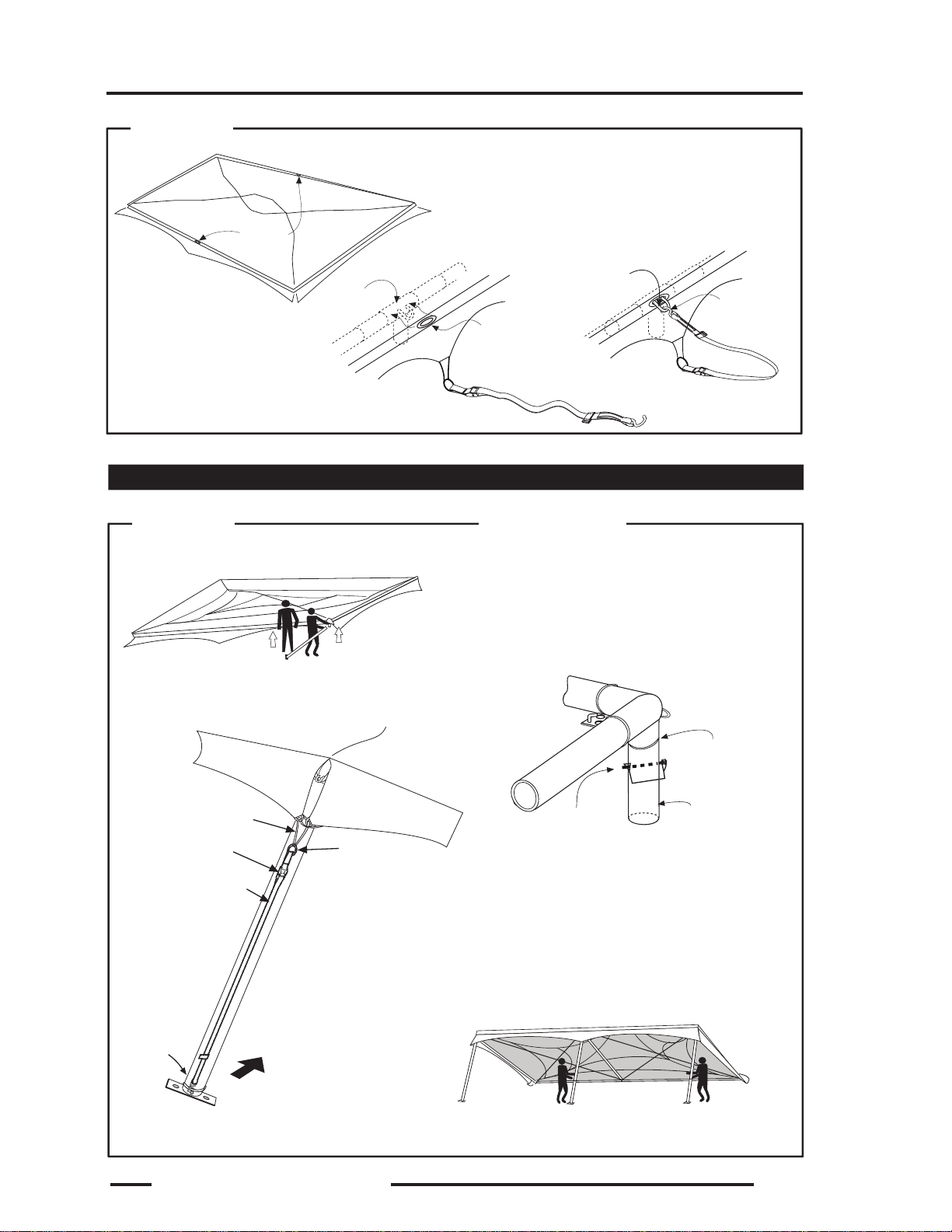

Step 11 INSTALLING POSTS
• Lock post in place using lock-pins
• To install the first Post, lift one corner and
slide the Post into the Corner sleeve.
SEE DRAWING 11:1
• Insert each T-Plus hook through
corresponding grommet on the Tent Top.
• Temporarily hold in place with S-hook of the
Grommets
CORNER
POST
CORNER
POST SIDE
POST
LIFT
DRAWING 11:2
DRAWING 11:1
DRAWING 11:3
IMPORTANT!
Legs must move inward
as other legs are raised.
• Repeating the same procedure, install 2nd
corner post, followed by the side posts of the
same side.
Step 10
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
=>
ERECTING THE TENT
DRAWING 11:4
Lock pin
Corner
Sleeve
Post
T-joint
Tension strap
T-joint
Hook
Grommet
S-hook
Hook
tension strap.
S-hook
Tension strap
Catenary Cord
Quick Link
Cam buckle • Insert s-hook at the bottom of the tension strap
into the hole in the Base. SEE DRAWING 11:3
• Tension strap by pulling the strap down.

Warner Shelter Systems Limited
PAGE 8

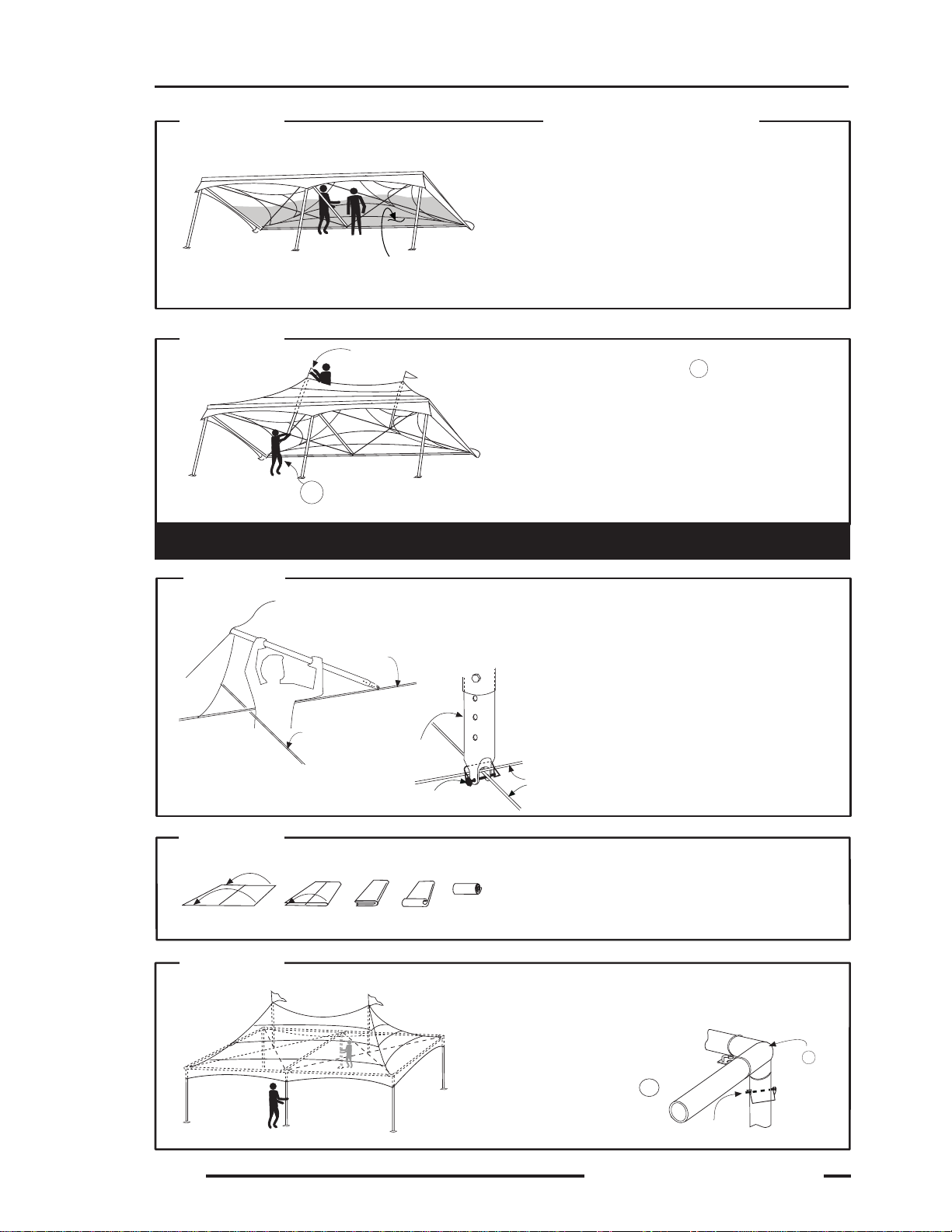

Step 12
• After raising one side, move Drop Sheet
towards the lower half of the frame to
expose the Cable intersection.
CENTREPOLE INSTALLATION
• Install the Flag on the Centrepole
• Insert the Centrepole 9 through the
centre socket of the Tent Top.
Step 13
• Remove Drop Sheet and fold keeping
clean side in.
Step 15
Step 16
Step 14
• Install the remaining Posts, inserting the Corner
Posts first and then the Side Post.
DROP SHEET
Lock pin
3
Corner 90°
• Lock Posts in place
using the Lock-Pins 10 .
12345
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
9Centrepole
* If one must step on fabric, remove shoes to avoid soiling or damaging the Tent Top.
Flag
• Place the Centrepole lower end on the top
Cable and slide it toward the Cross Cable
intersection, wedging the Centrepole
between the cover and the cables.
• At the intersection, push down bottom cable
while pulling up the top cable to set both
cables directly below the Centrepole sleeve.
• Secure the Centrepole to the
cables using the Lock-Pin.
Top Cross
Cable
Bottom Cross
Cable Centrepole
Sleeve
Lock Pin Cross
Cables

Warner Shelter Systems Limited
PAGE 9

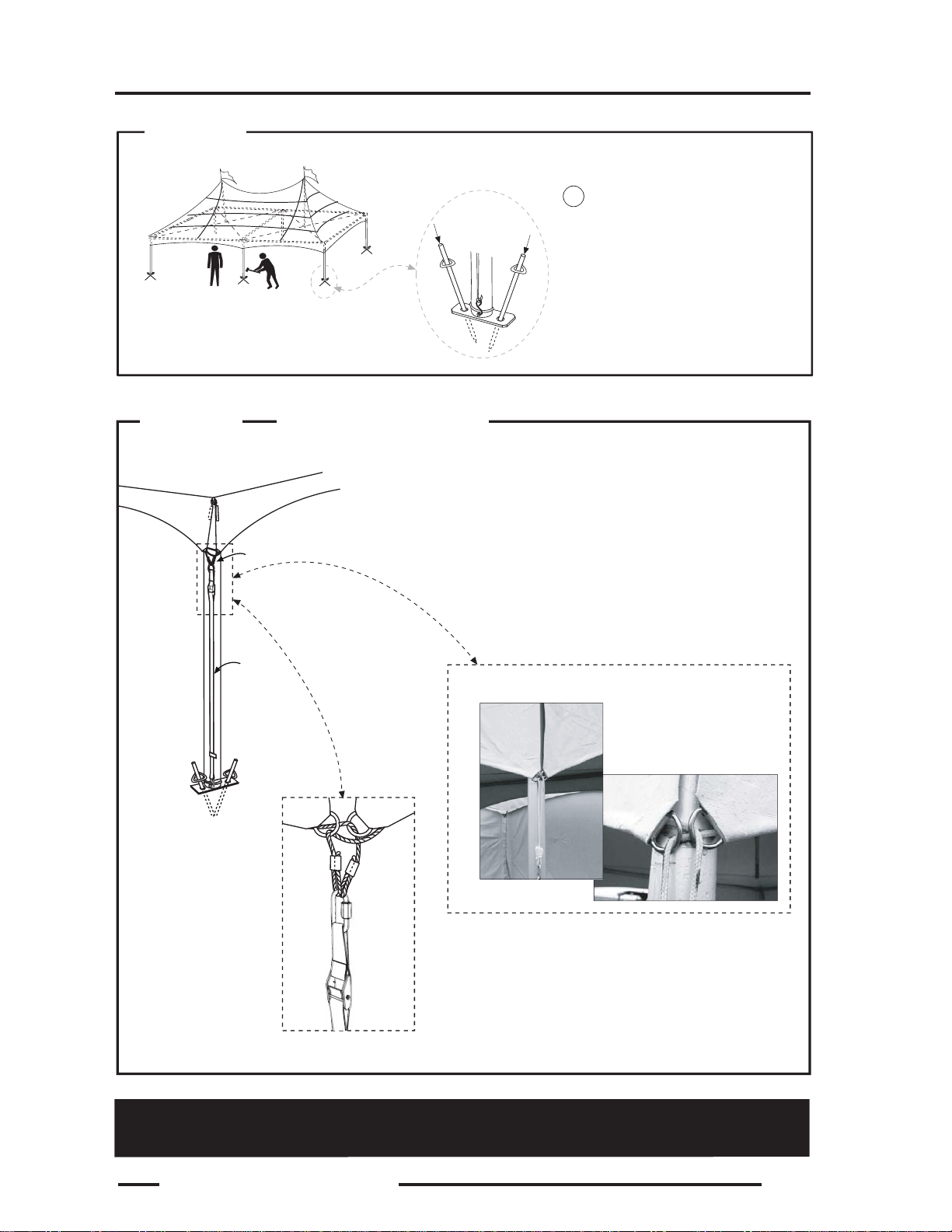

Step 17
• Straighten Posts and drive Stakes
10 at each Post Base.
IMPORTANT
Each installation site must be
evaluated by installer to determine
proper securing method. Site
conditions may require guying and
anchorage different from what was
provided with the tent.
Step 18
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
IMPORTANT: Each installation site must be evaluated by installer to determine proper securing method.
Site conditions may require anchorage different from what was provided with the structure.
SECURING TENSION STRAPS
D-rings
• Tension the Tent Top by tightening each tension strap.
Tie off slack rope tails to main ropes.**
D-rings should overlap
once tension strap is
tensioned.
Catenary cord assembly detail:
Tension
strap
Catenary
Cord

Warner Shelter Systems Limited
PAGE 10
•For inclement weather,
Guy Ropes are recommended.
Summary
Guy Rope Installation
10. Insert Centrepole through the centre socket.
11. Install Flag from outside.
12. Slide Centrepole over the Cross Cable inter-
secting point.
13. Remove and fold Drop Sheet.
14. Install remaining Posts.
15. Drive Stakes through each Post Base.
16. Tension each toggle rope.
17 Install Guy Ropes, Walls, Joiners.
18. Make final inspection to ensure everything
is in operational condition.
19. Clean up site.
1. Check parts.
2. Assemble Corner 90°, 9’3” and 5’ EveTubes,
T-plus and Midjoints to form upper frame.
3. Install Cross Cables.
4. Spread Drop Sheet over Cross Cables to
protect the Tent Top.
5. Unfold Tent Top.
6. Attach Tent Top webbings to corner loops.
7. Insert T-joint hooks through grommets.
Temporarily secure with S-hook.
8. Install Posts. Secure with Lock-Pin and insert
the s-hook of the toggle rope into the hole
in the Post Base.
9. Move Drop Sheet to clear the Cross Cable
intersection area.
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
Attach Guy Ropes to corner loop
(as required)
To take down the tent, reverse the preceding installation steps.
Guy Rope
Attach Guy Rope
to corner loop
as required

Warner Shelter Systems Limited
PAGE 11
BATON
WALL
4. If two or more walls are installed, fasten velcro strips
on the edges of the walls for a wind proof seam.
STANDARD
WALL
Cross Cable
Cable:
Slide Wall
Turnbuckle
Wall Installation
* Before installing walls, make sure toggle ropes
are evenly tensioned and the Tent Top is evenly
positioned on the frame.
Check that Cable for Slide Wall is properly
tensioned. Tighten with turnbuckle if needed.
1. Clip walls to Cable.
2. Secure side wall straps to Posts. =>
3. Secure top wall strap to Eve Tube.
Baton
Post
Side Release Buckles
Steel Buckle
Velcro
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11
PAGE 12
Care for your Vinyl Tops
Care for your vinyl tops as you would to any vinyl surface.
Use mild detergent industrial cleaner with no chlorox.
To clean, spread tent top on clean surface. Try laying fabric on astro turf to wash. Dirt and tiny sharp
particles tend to fall into the carpet pile, away from the fabric. Some renters set up the tents to wash
and dry.
Spray detergent solution onto fabric. Use more concentrated solution on soiled areas.
Rub, scrub or brush; elbow grease is an essential ingredient. Pressure washing may harm your tent
fabric and is not recommended. Rinse with clean water, hang cover and allow to dry thoroughly.
DO NOT put your tent away damp. Mold & mildew will grow and discolour the cover. Always dry the
tent. To speed things up, try fans or carpet air blowers and hanging the canopy.
Trees can be a problem with sap, pollen, etc. Flowers & leaves, sometimes contain powerful natural
organic chemicals capable of staining your beautiful tent. Beware of tents under trees!
- Always use a drop sheet during setup and take down.
- Have some cleaning equipment with you for on-site clean ups.
- Besides being a fire hazard, BBQ's add a lot of grease and grime to the underside of the tent and
are not recommended even with the walls off.
STORAGE - store vinyl canopies and other parts clean and dry.
Maintaining Your Tent
Your WSSL Peak Marquee Tent will serve your needs now and for many years to come. Tighten the
top and walls to avoid wind flap and consequent wear on the fabric. Periodically the fabric should be
cleaned; in place or when dismantled. Using mild detergent, water and a deck mop, clean wipe the
fabric roof or walls. Let dry. Repair any damage to the fabric using a WSSL Fabric Repair Kit. Repair
or replace any possible damaged frame parts.
TENT FABRIC CHARACTERISTICS
MILDEW - If mildew is detected, remove it immediately. Regardless of treatment, there is no way to
absolutely stop fungus growth if it is prevalent in your area. No tent can be guaranteed not to mildew.
Vinyl fabrics may mildew in storage if not properly stored. BE SURE TENT IS CLEAN AND DRY
BEFORE STORING IN A COOL, DRY PLACE.
WATER RESISTANCE - WSSL tents are made of waterproof vinyl/polyester fabrics using waterproof
welded seams. Because these fabrics are impervious to moisture, condensation may occur with
some heaters and if the tent is poorly vented. Do not confuse water condensation with leakage
especially on vinyl tents.
FLAME RESISTANT - All WSSL tent tops and walls are fire retardant. All WSSL tent fabrics satisfy
ULC-S109, NFPA 701, and California fire marshal tests for fire resistance.
FADING-OPACITY - Variable sun conditions, exposures, types of materials and fabric finishes all
influence the weathering of fabrics. WSSL fabrics have been chosen for their colour and opacity
consistency and stability.
COLD CRACK - Chosen for their tolerance to cold cracking, our translucent fabrics remain flexible at
temperatures below 0°F. The opaque fabrics are laminated and therefore become stiffer as the
temperature drops. When the temperature is near 32°F, care should be taken in folding and moving the
fabric to prevent cracking of the vinyl, especially the walls with windows.

Warner Shelter Systems Limited
PAGE 13
Notes
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited
PAGE 14
Notes
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited
PAGE 15
Notes
..\graphicshome\Marquee\Manuals\MQ2040T\MQ2040T Manual 2007.FH11

Warner Shelter Systems Limited creates fabric-clad structures to suit virtually every
purpose, from special events, trade shows, catering and outdoor concerts to
warehousing and industrial use. Our award-winning tents are user-friendly, durable
and set-up quickly.
We have earned a reputation for providing a high level of service to customers since
Copyright © 2010 by Warner Shelter Systems Limited
All rights reserved.
ARABESQUE THEATRE TENT
WSSL TENTS
PEAK POLE TENT
MODULAR CLEARSPAN BUILDING
PEAK MARQUEE TENT
ARABESQUE STAGECOVER DOME STAGECOVER
WSSL GIGA-SPAN TENT -C- CAN WSSL GARAGE TENT-X-SPAN
A favorite for special events, fairs,
trade shows, and food service use.
With its ease of setup and lightweight
frame, the Marquee is user-friendly
as well as attractive.
The Arabesque Theatre with Its high
arched ends allows generous height
over a stage at one end and bleacher
seating at the other. These tents
singularly or joined together, create a
large attractive, clearspan interior.
The WSSL Clearspan
Series structures are
designed, engineered,
and manufactured in
our CWB certified plant.
The open web truss
galvanized steel frames
are assembled to
satisfy the applicable
building code.
The WSSL Tent -C- Can:
For its 40 years anniversary
Warner Shelter Systems
Limited WSSL offers to the
world with a NEW Warner
Innovation.
WSSL Garage come complete
with galvanized steel frame
and fire retardant cover, easy
to relocate structure featuring
clear span truss framing, and
12’ x 12’ sliding door for easy
access.
Sturdy, versatile and portable,
the Tent-X-Span fabric
structures are light weight,
easy to transport, store, and
erect. Box beam aluminum
frame, interchangeable parts,
and easily joins to peak
marquee tents.
The Arabesque Stagecover creates a
striking backdrop for any outdoor
concert with its dramatic curves and
bold stripes. It is renowned for its
superb acoustic projection and
excellent sight lines.
With great acoustics and excellent
sight lines, our attractive SC series is
available in four sizes, with the
SC-70A large enough to accommo-
date a full orchestra.
Modular building Often used for large
special events, but are equally
suitable for warehousing, retail and
industrial use and environmental
projects."MODS" are spacious and
strongly built.
Great Solution for large functions of
all types, combining the nostalgic
appeal of old fashioned circus "big
tops" with the advantages of modern
technology. Available in 40', 60', 80',
and 90' widths.
2012/04/25
1970. It is a pleasure to serve you. Please contact us for further information.
