Wassp WMB-3230 User manual

Doc. P/N: WSP-009-008 Version: V1.3 Issue Date: April 2014
OPERATOR MANUAL
WMB-3230
WMB-5230

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
ii
Revision Date Reason for Change Version
27 February 2013 WMB-X230 Operator Manual First Revision v1.0
28 April 2013 Changes for WMB-X230 v1.1 software release v1.1
12 June 2013 Updated Key Pulse Information v1.1a
11 December 2013 Updates for WMB-X230 software v1.2 v1.2
16 April 2014 Updates for WMB-X230 software v1.3 v1.3
Document Revision History
General Notices
WASSP LTD. RESERVES THE RIGHT TO CHANGE THE CONTENTS OF THIS MANUAL AND ANY SYSTEM
SPECIFICATIONS WITHOUT NOTICE. CONTACT WASSP LTD. REGARDING COPYING OR REPRODUCING THIS
MANUAL.
Disclaimer
WASSP LTD. RESERVES THE RIGHT TO CHANGE THIS MANUAL WITHOUT NOTICE. ALTHOUGH WASSP LTD.
HAS MADE EVERY EFFORT TO ENSURE THE INFORMATION IN THIS MANUAL WAS CORRECT AT PUBLICATION
TIME, WASSP LTD. DOES NOT ASSUME AND HEREBY DISCLAIMS ANY LEGAL LIABILITY OR RESPONSIBILITY
TO ANY PARTY FOR ANY DIRECT, INDIRECT, SPECIAL OR CONSEQUENTIAL LOSS, DAMAGE OR DISRUPTION
CAUSED BY ERRORS OR OMISSIONS, WHETHER SUCH ERRORS OR OMISSIONS RESULT FROM NEGLIGENCE,
ACCIDENT OR ANY OTHER CAUSE.
Copyright and Condentiality Notice
THIS DOCUMENT IS COPYRIGHT WASSP LTD 2014. CIRCULATION OF THIS DOCUMENT IS STRICTLY
PROHIBITED WITHOUT THE WRITTEN PERMISSION OF WASSP LTD.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
iii
Related Documents
Document P/Number Title
WSP-009-009 WMB-X230 Installation Manual
Safety Notices
THE INSTALLER OF THE EQUIPMENT IS SOLELY RESPONSIBLE FOR THE CORRECT INSTALLATION OF THE
EQUIPMENT. WASSP LTD ASSUMES NO RESPONSIBILITY FOR ANY DAMAGE ASSOCIATED WITH INCORRECT
INSTALLATION.
Electrical Safety
►Fire, electrical shock, or equipment damage may occur if the BTxR becomes wet.
►The equipment is rated for operation at:
• BTxR 24 V DC
• WASSP Processor 6 - 30 V DC
►Make sure that the power is switched OFF at the main supply (e.g. switchboard) before beginning the installa-
tion. Fire or electrical shock may occur if the power is left ON.
►Do not open equipment covers unless you are totally familiar with the system’s electrical circuits.
►Make sure all safety precautions for electrical equipment are taken when operating or servicing the equip-
ment. These to be carried out in accordance with local or national regulatory body safety regulations.
►Make sure that the transducer cannot become loosened or insecure due to the vessel’s vibration.
Warnings, Cautions, and Notes
Warnings, cautions, and notes are indicated by the following icons throughout this manual:
A WARNING indicates that if the
instruction is not heeded, the action
may result in loss of life or serious
injury.
A CAUTION indicates that if the
instruction is not heeded, the action
may result in equipment damage or
software malfunction.
A Note indicates a tip or additional information that could be
helpful while performing a procedure.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
iv
Contents
1. Introduction
1.1 Purpose of this Operator Manual................................................................................................................................... 1
1.2 Introducing the WASSP Sonar System.......................................................................................................................... 1
1.3 Main Features........................................................................................................................................................................ 1
1.4 System Overview ................................................................................................................................................................. 3
1.5 Application Startup............................................................................................................................................................. 4
1.6 Splash Screen and Navigator Warning......................................................................................................................... 4
1.7 Monitor Resolution ............................................................................................................................................................. 4
2. Main Menu
2.1 Overview................................................................................................................................................................................. 5
2.2 Info Panel ................................................................................................................................................................................ 6
2.3 Device Connection Indicators......................................................................................................................................... 6
2.4 Mode Button.......................................................................................................................................................................... 6
2.5 Gain Control........................................................................................................................................................................... 7

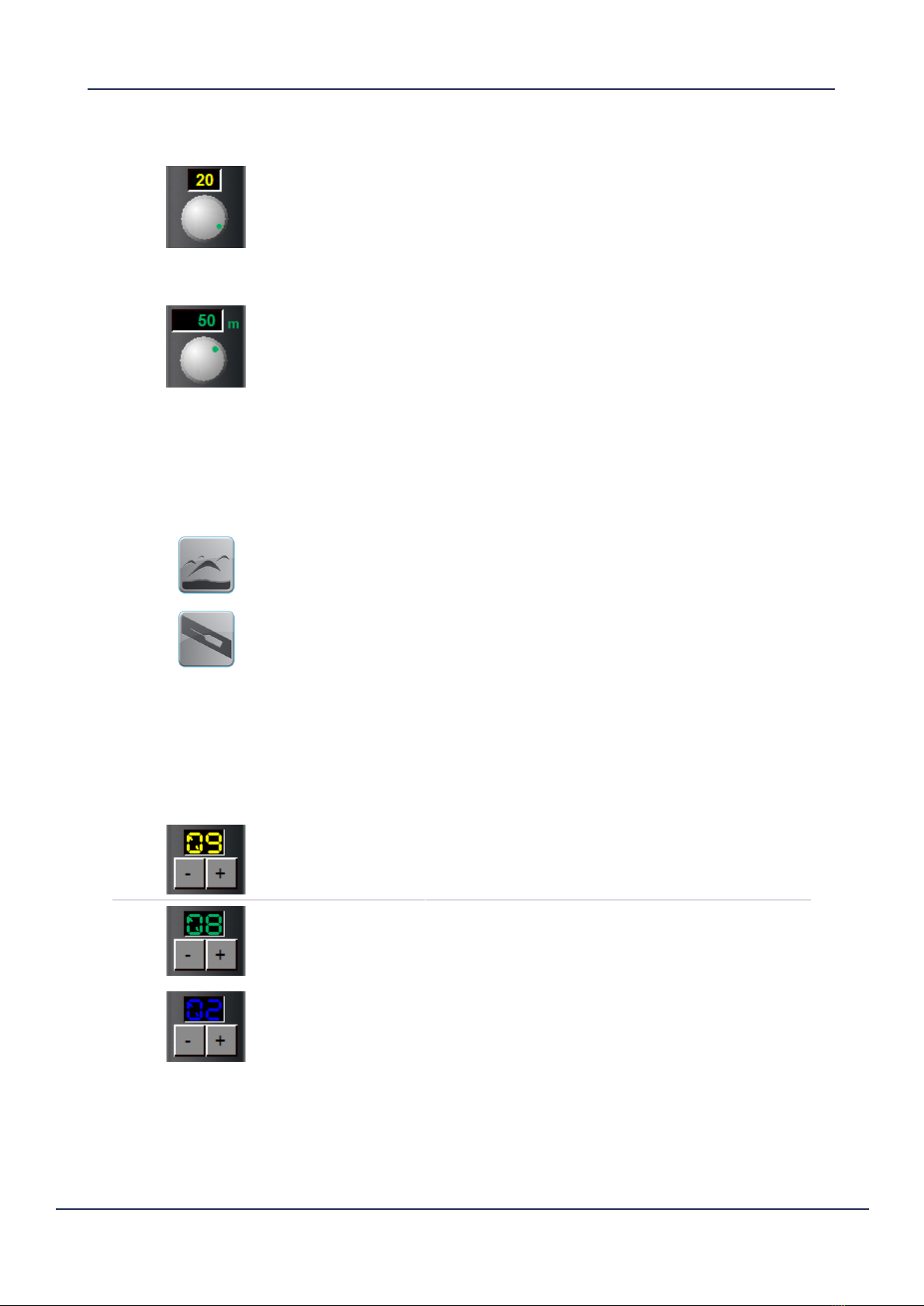

2.6 Range Control ....................................................................................................................................................................... 7
2.7 Layout Selection................................................................................................................................................................... 7
2.8 Power Level Control............................................................................................................................................................ 7

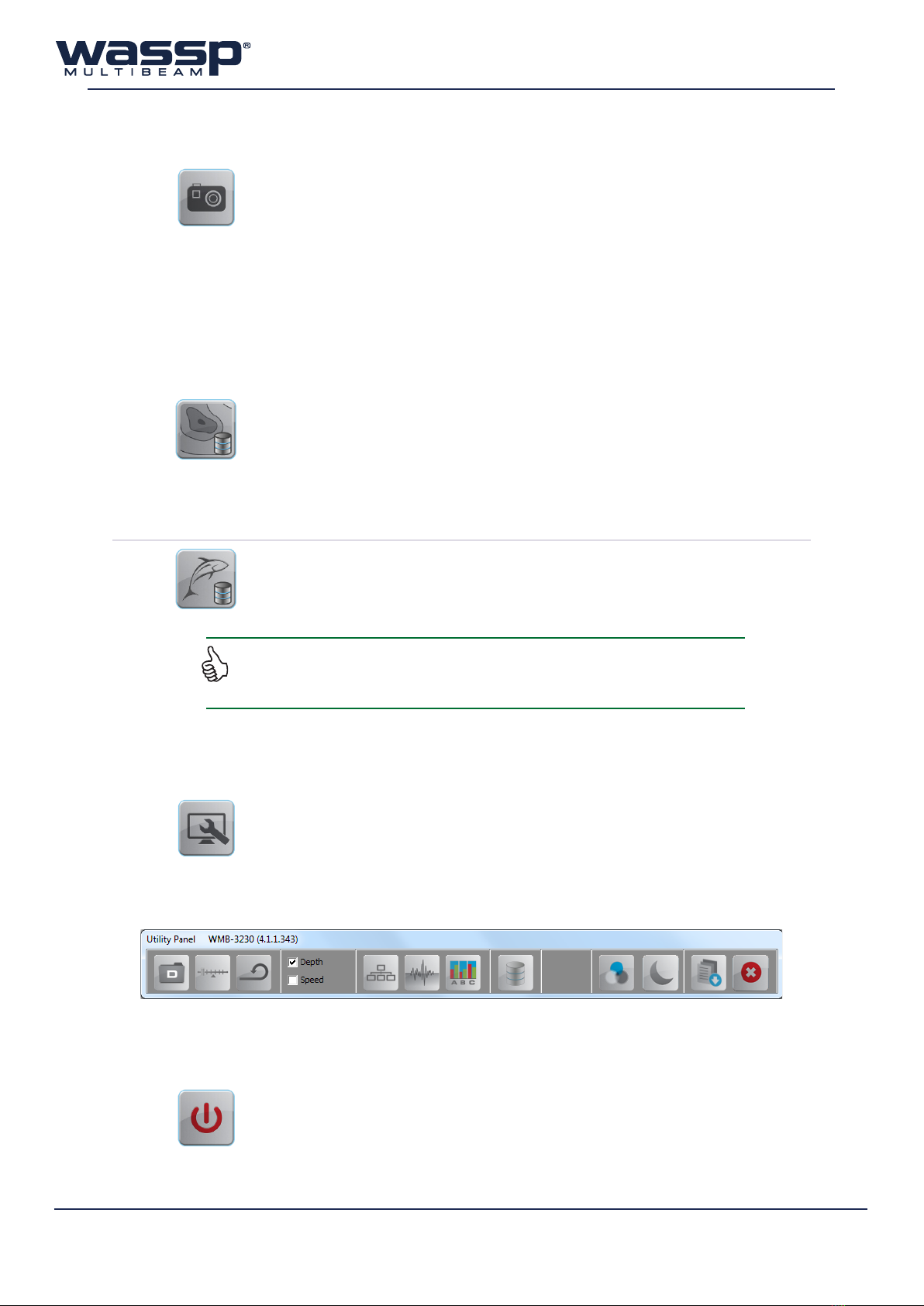

2.9 Snapshots Button ................................................................................................................................................................ 8
2.10 Mapping Options................................................................................................................................................................. 8
2.11 Utility Panel Button ............................................................................................................................................................. 8
2.12 Close Button .......................................................................................................................................................................... 8
3. Acoustic Display Modes
3.1 Sonar Display......................................................................................................................................................................... 9
3.1.1 Conguration ...................................................................................................................................................... 9
3.2 Single / Triple Beam Display...........................................................................................................................................11
3.2.1 Conguration ....................................................................................................................................................11
3.2.2 Display Oset (Shifting).................................................................................................................................13
3.3 Sidescan Display.................................................................................................................................................................14
3.3.1 Conguration ....................................................................................................................................................15
3.3.2 Zooming..............................................................................................................................................................15
3.4 Fish Options .........................................................................................................................................................................16
3.4.1 Fish Display Options........................................................................................................................................16
3.4.2 Fish Threshold ...................................................................................................................................................16
3.4.3 Fish Histogram ..................................................................................................................................................16
3.4.4 Detection Mode................................................................................................................................................17
4. Chart Display Modes

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
v
4.1 2D Display.............................................................................................................................................................................17
4.1.1 Conguration ....................................................................................................................................................18
4.2 3D Display.............................................................................................................................................................................29
4.2.1 Conguration ....................................................................................................................................................30
5. Layout Selection
6. Utility Panel
6.1 Overview...............................................................................................................................................................................32
6.2 Data Recorder......................................................................................................................................................................33
6.3 Advanced Options.............................................................................................................................................................34
6.4 Rescan....................................................................................................................................................................................35
6.5 Depth / Speed Window ...................................................................................................................................................35
6.6 Network Window ...............................................................................................................................................................35
6.7 Raw Signal Data..................................................................................................................................................................37
6.7.1 IQ Raw Data Tab................................................................................................................................................37
6.7.2 Sensor Data Tab ................................................................................................................................................39
6.8 IQ Bars ....................................................................................................................................................................................39
6.9 Database Manager ............................................................................................................................................................40
6.9.1 Adding a new database.................................................................................................................................41
6.9.2 Database Management .................................................................................................................................42
6.9.3 Database File Path ...........................................................................................................................................42
6.9.4 Demo....................................................................................................................................................................42
6.9.5 Show Bookmarks..............................................................................................................................................42
6.10 Hue..........................................................................................................................................................................................43
6.11 Day/Night Mode.................................................................................................................................................................43
7. System Conguration
7.1 System Tab............................................................................................................................................................................44
7.1.1 Units......................................................................................................................................................................44
7.1.2 Language ............................................................................................................................................................44
7.1.3 Conguration Manager .................................................................................................................................44
7.1.4 System..................................................................................................................................................................45
7.2 Ship Setup Tab ....................................................................................................................................................................46
7.2.1 General.................................................................................................................................................................46
7.2.2 Osets ..................................................................................................................................................................46
7.2.3 Sound Speed......................................................................................................................................................46
7.2.4 Sensor...................................................................................................................................................................47
7.2.5 Power....................................................................................................................................................................47
7.3 Tides Tab................................................................................................................................................................................49

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
vi
7.4 Chart Tab ...............................................................................................................................................................................50
7.4.1 Cartography .......................................................................................................................................................50
7.4.2 Overlays...............................................................................................................................................................50
7.4.3 Bathymetry.........................................................................................................................................................51
7.5 Layout Tab ............................................................................................................................................................................52
7.6 Snapshots Tab .....................................................................................................................................................................53
8. Operating Procedures
9. Frequently Asked Questions (FAQs)
9.1 The system is transmitting too slowly, how can I speed it up? .........................................................................57
9.2 Why does the range not change on the display when I move the Range Dial? .........................................57
9.3 Why is no seaoor prole generated on the charting displays after the system initially starts transmit-
ting?........................................................................................................................................................................................57
9.4 Why do gaps appear between the swath footprints on the charting displays? .........................................57
9.5 The system has stopped transmitting without operator intervention. Why?.............................................58
9.6 When I click the MODE button, or run a replay (demo) le I get no picture on the display. Why?.......58
9.7 When I press the MODE button, the button goes red and a number on it counts up, but there is no activ-
ity on the WASSP display. How do I x this?.............................................................................................................58
9.8 What does the error message that appears when I run WASSP mean? Is my WASSP system faulty? .58
9.9 Why is there a ring displayed just above the seaoor? What causes these ‘ring’marks? How can I get rid
of them? ................................................................................................................................................................................60
9.10 What is this constant signal on the sonar/sh nder display? ..........................................................................61
9.11 Why is my WASSP System not tracking the Seaoor?...........................................................................................62
9.12 Why doesn’t the seaoor line up when I go over it again?.................................................................................62
9.13 Why does the seaoor move if the system is motion compensated? ............................................................63
9.14 The MODE button animates as if pinging but nothing happens. What is wrong?.....................................64
9.15 Why is the Key Pulse from my secondary sounder not triggering the WASSP system?...........................64
10. Troubleshooting

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Introduction
1
1. Introduction
1.1 Purpose of this Operator Manual
This Operator Manual contains instructions and information on the operation of the software package
supplied with your WMB-X230 (i.e. WMB-3230 or WMB-5230) system. Installation and Commissioning
procedures are contained within the Installation Manual, also supplied alongside this manual.
Please refer to the Installation Manual for instructions on transducer and BTxR installation, sensor
connection, system configuration and setup, and commissioning steps required to get your WASSP
system up and running.
1.2 Introducing the WASSP Sonar System
The WMB-X230 is a multi-beam sonar system that uses a wide-angle sonar transducer to profile
the water column and seafloor to a high resolution. It is this unique combination of multi-beam
sonar and processing power which provides you with unparalleled information about the underwater
environment. It gives you a wide 120° port-starboard swath of the water column and seafloor, allowing
you to find and position reefs and wrecks, fish schools, seafloor hardness changes, and foreign objects
in the water column or on the seafloor. From the 120° swath, the system processes 112 dynamic
beams, with each beam containing detections from the water column and seafloor.
The information is presented in a user-friendly, mouse controlled, Windows-based operating system.
The intuitive graphical user interface displays both acoustic views and charting views for complete
knowledge of the world beneath with the ability to view both real-time and previously recorded maps
from any part of the globe in 2D and 3D. Depth and backscatter colours can be dynamically changed
while viewing. The system can output data to plotting software packages. For optimal performance,
roll, heave, pitch, heading and position inputs are all required.
The WMB-X230 can be applied to a variety of fishing methods, as well as search and rescue, customs,
and police applications.
1.3 Main Features
The WMB-X230 has the following main features:
►Improved performance.
The use of separate transmit and receive arrays has enabled WASSP to optimise both transmit
performance and receive sensitivity, giving improved performance over traditional sonar and
sounders.
►High detail picture of marine environment.
The transmit beam spreads over a 120° port-starboard swath and covers 4° fore-aft while the receive
beam covers 10° fore-aft, displaying a highly detailed picture of the marine environment.
►Real-time map generation.
Generate new maps in real-time from bottom detections.
►Beam stabilisation.
Beam stabilisation compensates for the movement of the vessel, providing accurate seafloor
profiles and fish school locations.
►Variable beam width.
Unique to the WMB-X230 the single beam view can not only be stabilised, but the beam width
can be varied from 5° to 40°.
►Triple beam view.
With variable width and angle, the port, centre, and starboard beams display together to help
build your understanding of the sea environment.
►Navionics chart overlay.
The charting displays can draw a vector Navionics hydrographic chart overlaid on the WASSP seafloor
data. The displayed chart features can be turned on or o as required. Maps are available from

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
2
Navionics to cover almost every part of the world.
►Bottom lock.
Bottom lock provides a traditional bottom lock mode where the changes in bottom depth are
ignored and the bottom is drawn flat. Fish and other echoes are shown relative to the flat bottom
image, enabling better discrimination between bottom fish and the seafloor.
►Computer based profile storage.
A computer-based system means the WMB-X230 can generate and store very detailed seafloor
profiles.
►Map resolution based on depth.
Your WASSP system dynamically changes the resolution of the stored maps to suit the depth of the
seafloor. Shallow seafloor data is stored at resolutions as high as 250mm to give the maximum detail
available, while deep seafloors have their resolution restricted to 4m to avoid saving spurious fine
detail.
►Database management.
The WASSP system uses one or more databases for storing and displaying WASSP data including the
depth, backscatter and water column information. Additional databases can be created at any time
and incoming data can be assigned to any database. Unnecessarily large databases can be down-
sized to save recording space.
►Digital signal processing (DSP).
Using DSP technology, the WMB-X230 can provide an indication of changes in seafloor hardness,
ideal for scalloping, crayfishing, and trawling where you want to understand and locate small
changes on the seafloor.
►160 kHz operating frequency (WMB-3230).
Operating at a frequency of 160 kHz provides high seafloor definition at depths down to 200m.
►80 kHz operating frequency (WMB-5230).
This frequency provides performance down to 500m with a slight reduction in the shallow water
< 60m performance.
►Depth and seafloor coverage.
Seafloor coverage is determined by the beamwidth in use: For a 90 degree beamwidth, the
seafloor coverage will be approximately twice the water depth. For example, 100m depth gives
200m seafloor coverage with 112 beams - every ping. For a 120 degree beamwidth, the seafloor
coverage is 3.4 x depth. For example 200m depth gives approximately 680m seafloor coverage.
►Unique power management system (14 power levels).
14 power levels provide optimal performance over a wide range of seafloor types and water
depths.
►More accurate seafloor - faster.
Profiles 90 times faster than conventional single beam echo sounders, leading to reduced costs
and improved accuracy.
►Future proof technology.
The computer based operating system and BTxR firmware are both upgradeable as new software
features are developed.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Introduction
3
USB
Power Cable
Ethernet (CAT5) Crossover Cable
USB
29.01.13
423.11.11 ADDED USB
JW SR
WASSP Processor
GPS
BTXR
Keyboard
Mouse
Transducer
Motion Sensor
Monitors (x2 Owner Supply)
WMB-X230
WMB-X230
1
Transducer Cable
Transducer Hull
Position, Time;
RS232/NMEA0183
Pitch, Roll, Heave;
RS232/NMEA0183
Gland Hull
GPS
Power Cable
wassp
Figure 1. Overview of a complete WASSP system
1.4 System Overview
A complete WASSP system is made up of a variety of hardware which all combine to provide the
WASSP software package with all the information required to generate a seafloor profile with water
column information. Figure 1 below shows an overview of a complete WASSP system.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
4
The software package supplied with your WASSP system is your gateway to the world beneath. Modern
computer processing capabilities have provided a means for interpreting the tremendous amount of
data collected by the WASSP system, and it is through this gateway that we are able to see this data in
an arrangement which is easy to understand and use.
Before proceeding with the contents of this Operator Manual, the
user should ensure that the Installation Manual has been read,
and that the commissioning steps contained within it have been
followed through and completed.
1.5 Application Startup
Your WASSP Processor will automatically run the WMB-X230 software as it is powered up. Alternatively,
the software can be run from the Windows Start Menu (Start > All Programs > WASSP) or Desktop.
Figure 2. Start Menu Icon
Figure 3. Desktop Icon
1.6 Splash Screen and Navigator Warning
The splash screen that appears on the application start-up contains a warning to the user. Please read
this warning and take note of what it says.
1.7 Monitor Resolution
The resolution of the monitor you have chosen to use with your WASSP Processor will be automatically
detected and the appropriate display configuration applied.
See “7.1.4 System” on page 46 for more details.
Note: You will require a USB WASSP dongle to operate the software.
You have been supplied one with your system. Ensure it is plugged
into one of the USB ports on the WASSP Processor before continuing.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Main Menu
5
2. Main Menu
The Main Menu is a panel with several buttons, dials and indicators, and is used to control the majority
of the operations of your WASSP system. The following pages contain an overview of what each
control does, with references to further sections in this manual with more detail.
2.1 Overview
Each of the buttons or controls on the Main Menu are talked about in some detail over the following
section. Buttons requiring a more detailed explanation have their own chapter.
Device Connection Indicators
See page 6
MODE button
See page 6
Gain Control
See page 7
Range Control
See page 7
Chart Layout Selection
See page 7
Power Level Selection
See page 7
Acoustic Layout Selection
See page 7
Snapshot button
See page 8
Map Recording Button
See “Mapping Options” on page 8.
Utility Panel
See page 8
Close button
See page 8
Watercolumn Recording Button
See “Mapping Options” on page 8.
Info Panel
See page 6

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
6
2.2 Info Panel
Clicking the button will reveal the information panel. This panel displays error messages and
information important for the user to know.
Hide: Hides the information panel. Click the button again to expand.
Save: Saves the text in the information panel to file.
2.3 Device Connection Indicators
At the top of the Main Menu are three device connection indicators. The indicators are RED when the
WASSP program is unable to read or detect the device, and GREEN when devices are connected and/
or readable.
►Dongle
This is the user dongle supplied with your system. This should always be plugged into
your WASSP Processor.
►Navionics Chart
If you have connected a Navionics chart to use with your WASSP system, this indicator
will be green (see page 62 of the Installation Manual for further information).
►BTxR (Transceiver)
When the BTxR is ON and connected, this indicator will be green.
2.4 Mode Button
This button is used to control the BTxR, and has four modes:
Standby Mode The MODE button is BLACK during start up. The button
turns YELLOW for about 3 seconds while the BTxR self-
calibrates and then turns BLUE, indicating the BTxR has
just calibrated and is ready to go.
Start up Transition
(Self Calibration)
After 3 sec
Cal Cal Cal
A RED counting button indicates a communications
failure. This means that a ping was requested but no data
was received. A new ping is sent at least every 5 seconds.
A communications failure can happen if the BTxR power
is interrupted.
Transmit Mode During transmission, the button animates with each
pulse that the BTxR transmits.
Demo Mode A BLACK button with DEMO displayed indicates the
system started without a valid dongle.
In this mode, only Replay Files can be viewed.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Main Menu
7
2.5 Gain Control
The Gain Control adjusts the display gain of the received information.
Manually adjust by either clicking and then using the scroll wheel on the mouse,
or be using the mouse pointer to drag the knob clockwise to increase and
counter-clockwise to decrease.
2.6 Range Control
Adjusts the depth range of the receiver.
The numeric display is YELLOW for manual and GREEN for automatic adjustment.
Default is green (automatic mode).
Manually adjust by either clicking and then using the scroll wheel on the mouse or
by using the mouse to drag the knob clockwise to increase and counter-clockwise
to decrease. Double clicking on the number causes the control to switch from
manual to automatic and vice versa. Automatic mode is recommended.
2.7 Layout Selection
Acoustic Layout
Select
These buttons cycle through preset display layout
arrangements. Each of the Sonar displays and Chart
displays can be configured in dierent arrangements,
and those arrangements can be cycled through.
Left-click to cycle forwards through the layouts, or
right-click to cycle backwards.
See section “7.5 Layout Tab” on page 54 for information
on configuring the preset layouts.
Chart Layout
Select
2.8 Power Level Control
The transmit power level selector / indicator operates in the manual and auto modes. Initially use auto power by
signal (BLUE) until you are familiar with the operation of the unit.
Manual Mode There are 14 transmit power levels that can be selected.
Click the increment (+) or decrement (–) buttons to
adjust between 01 to 14.
Auto Mode Double-clicking the LED indicator selects the auto mode,
indicated by the LEDs changing to GREEN or BLUE.
GREEN automatically selects the power based on the
current depth. BLUE automatically selects the power
based on the signal level.
Consult the Power Tab of the Ship Setup Options if you
wish to change the Automatic Power settings. See “7.2.5
Power” on page 49 for more details.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
8
2.9 Snapshots Button
Clicking this button creates a snapshot of ≈1000 pings of a selected area.
See “7.6 Snapshots Tab” on page 55 for detailed procedures on how to play
snapshot files.
2.10 Mapping Options
Used for interfacing seafloor and water column data to chart displays (see “4. Chart Display Modes” on page
18) and external viewers. This is useful for users who are recording to a database, but want to stop recording
temporarily, as the interfacing is an easy toggle ON / OFF. Both WASSP seafloor data and watercolumn targets
can be toggled.
These options only aect database recording for the Charting display, and will not stop raw data recording.
This button toggles seafloor detection recording for the Chart displays. When
enabled, the seafloor data as detected by the pinging transducer will be saved
to the current recording database.
When disabled, the charting display will not record the seafloor data detected
by the WASSP sonar.
See “6.9 Database Manager” on page 41 for more information on recording
databases.
This button toggles 3D fish marks recording for the Chart displays. When enabled,
3D fish mark information from the pinging transducer will be recorded for use on
the charting display. When disabled, 3D fish marks will not be recorded for use
on the charting displays.
2.11 Utility Panel Button
This button brings up the Utility Panel, which is a quick-access panel for frequently
used options and displays.
The Utility Panel is also the place for modifying ship settings and configurations,
under the System tab.
This panel is covered in much more detail in section “6. Utility Panel” on page
33.
2.12 Close Button
Clicking this button exits the WMB-X230 program.
After clicking Close, you must then click OK for the program to shut down fully.
See “8. Operating Procedures” on page 56 for detailed procedures.
You may nd that operating in conditions that restrict good seaoor return (such as deep water)
doesn’t allow water column detections such as sh to be passed through to the charting displays.
You will nd an override for this (to pass ALL detections) under section “7.1.4 System” on page 46.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Acoustic Display Modes
9
3. Acoustic Display Modes
The WMB-X230 graphical user interface has three acoustic display modes and two chart display
modes. These display modes all show acquired data in dierent ways, with various settings available
for adjusting each type of display.
Each of these display modes can be viewed in multiple dierent layout configurations. For information
on configuring dierent display layouts, see section “5. Layout Selection” on page 32.
►Each acoustic display can be zoomed by using the mouse wheel - just click on the display and
scroll up or down to zoom in or out.
►The zoom on each acoustic display can be reset by double-clicking on the window.
The following display modes make up the acoustic feature of the WASSP software.
3.1 Sonar Display
The sonar display shows the water column and seafloor profile below the transducer. This represents
a sonar view of the water column and seafloor as seen from behind the vessel. See Figure 4.
A 120° wide by 4° long swath or footprint is covered. The system generates 112 beams over the 120°
footprint to provide a high-resolution sonar view. The swath or footprint is used to develop seafloor
profiles and gives a seafloor coverage of twice the depth (e.g. 100 m depth gives 200 m seafloor
coverage).
Figure 4. The Sonar Display showing a few fish schools and individual fish.
Text Box
Seafloor Line
Fish Echoes
Transducer
Port Side Starboard Side
3.1.1 Conguration
The Sonar Display can be configured by clicking the in the top left corner of the display window.
OptiOns This button opens up the Options for the Sonar Display.
Grid Overlays a grid on top of the sonar view, to enable the user to
quickly judge distances to targets.
Grid size selectable from 5depth units to 100 depth units.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
10
text BOx Provides the option of a Text Box to appear in the top left-hand
corner of the sonar display. The text box provides X and Y axis
information on the location of the cursor within the window.
You can the place the cursor on a target and know the X and Y
distances to the target.
Click to display Text Box options.
Back Takes the user back one menu level.
cOnfiG Settings for the Sonar Display which can be toggled are found
under this menu.
seaflOOr line This button toggles the software-generated line of the profile of
the seafloor. The line is white, and is drawn as an overlay on the
sonar display.
triple Beam
Overlay
Click this button to overlay the current Triple Beam configuration
onto the sonar display. The position (angle) and width of each beam
will be clearly visible. A RED mask for the port beam, grey mask for
the centre beam, and GREEN mask for the starboard beam.
nOrmalise Enable this to normalise the colours on the sonar display for
intensity based on power level, spreading and absorption loss.
Increasing the power will thus decrease the gain by a factor that
should mean the same fish echoes will be the same colour at any
power level.
fish OptiOns This button opens the Fish Options window.
See “3.4 Fish Options” on page 16 for more details.
Advantages
ÃShows an instant snapshot of the area inside the 120° x 4° swath.
ÃShows seafloor profile and fish distribution under the vessel at the
same time.
ÃThe best tool for judging power level and side lobe suppression levels.
ÃShows full resolution of sonar data collected and could allow an
operator to pick up seafloor features too small to appear on the
charting displays.
Disadvantages
ÄNo history. Information from previous snapshots is not shown.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Acoustic Display Modes
11
3.2 Single / Triple Beam Display
The Single / Triple Beam Display shows seafloor and water column information in a similar fashion
to the traditional fish-finder display. Signal returns are drawn vertically in slices, with new information
appearing on the right of the display, and old information dropping o the left side.
In Single Beam mode, only the middle beam is used to draw the information from the seafloor.
In Triple Beam mode, additional port and starboard beams are used to draw information from selectable
areas of the water column through configuration of the beam width and beam angle. See Figure 5.
Figure 5. Single / Triple Beam Display Layouts
Single Beam (Middle Beam) Triple Beam (Horizontal)
Port Beam
Middle Beam
Starboard Beam
Triple Beam (Vertical)
Port
Beam
Starboard
Beam
Middle
Beam
3.2.1 Conguration
The Single / Triple Beam Display can be configured by clicking the in the top left corner of the
display window.
OptiOns This button opens up the Options for the Single / Triple Beam
Display.
Grid Overlays a grid on top of the Single / Triple Beam display, to enable
the user to quickly judge distances to targets.
Grid size selectable from 5depth units to 100 depth units.
Beam anGle This adjusts the angle which the centres of the port and starboard
beams are set from the middle beam. Larger angles move
the beams further from the middle beam, and smaller angles
move the port and starboard beams closer to the middle beam.
The beam angle can be set to 5, 10, 15, 20, 30, or 40°.
Beam Width This adjusts the width of the three individual beams used for the
Single / Triple Beam Display, and can be set to 5, 10, 15, 20, 30,
or 40° widths. Selecting a 10° beam width with a 20° triple beam
angle will therefore give a 50° swath for the Triple Beam view. See
Figure 6.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
12
text BOx Provides the option of a Text Box to appear in the top left-hand
corner of the Single / Triple Beam Display.
Several options are available for display:
►Depth:Overlays the current depth on the display.
►Status: beam properties, current cursor window and zoom
status.
►Roll: current vessel roll.
►Heading: current vessel heading.
►Cursor: depth at the cursor location.
►GPS History: latitude / longitude at cursor.
►Tide Oset: current depth adjustment due to the tides.
advance Changes the pixel width and consequently the rate (from 1 to 5)
at which the Single / Triple Beam information scrolls across the
display. Click to display options and select the rate.
cOnfiG Settings for the Single / Triple Beam Display which can be toggled
are found under this menu.
BOttOm lOck This enables a traditional bottom lock mode where the changes in
bottom depth are ignored and the bottom is drawn flat. Fish and
other echoes are shown relative to this flat bottom image enabling
better discrimination between bottom fish and the seafloor.
seaflOOr line This button toggles the software-generated line of the estimated
profile of the seafloor. The line is white, and is drawn as an overlay
on the Single / Triple Beam Display.
Example 2
Triple
Beam Angle
Set to 30°
Example 1
Port Beam Starboard Beam
Middle
Beam
Beam Width
Set to 20º
Triple
Beam Angle
Set to 20°
Port Beam Starboard Beam Middle
Beam
Beam Width
Set to 10º
Figure 6. Beam Angle and Beam Width examples
Note: While adjusting Beam Angle and Beam Width, it is suggested to set the Acoustic Layout to display
both the Sonar and Triple Beam displays simultaneously, and to enable the Triple Beam overlay on the
Sonar Display so that changes to the beam properties can be seen while changing settings.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
Operator Manual
Acoustic Display Modes
13
smOOthinG Selecting this option enables the smoothing option for the Single
/ Triple Beam display.
nOrmalise Enable this to normalise the colours on the sonar display for
intensity based on power level, spreading and absorption loss.
Increasing the power will thus decrease the gain by a factor that
should mean fish echoes from the same fish will be the same
colour at any power level.
seaflOOr trackinG This is the method used by the program to constantly display the
seafloor during scanning operations regardless of the changes
in seafloor depth. This is indicated by the word (Tracking) being
tagged to the end of the words Manual Zoom in the Text Box
when the text box Status option is enabled.
Seafloor Tracking must be enabled in the Config sub-menu and the
Range Control dial set to automatic (GREEN). If Seafloor Tracking
is disabled in the config sub-menu, the word (Tracking) disappears
from the Text Box. If the Range Control setting is in manual mode
(YELLOW) and the seafloor then drops below the range setting, the
seafloor will stop being tracked (and lost from the screen).
triple Beam This button enables the Triple Beam display. Triple Beam orientation
can be changed between Horizontal and Vertical in the System
Tab of the System Configuration Utility (see “7.1.4 System” on page
46).
fish OptiOns This button opens the Fish Options window.
See “3.4 Fish Options” on page 16 for more details.
3.2.2 Display Oset (Shifting)
Zooming the Single / Triple Beam Display, by default, is centred toward the transducer location (0 m
depth), but the focus of the display can be changed by using a display oset.
With the Bottom Lock mode disabled, left-click on the Single / Triple Beam Display window and keep
holding down the left mouse button. By scrolling the mouse wheel, the zoom centre on the Single /
Triple Beam Display can be shifted from 0 metres depth (centred on the transducer), to deeper down
the water column.
Advantages
ÃShows past information.
ÃWidth and colours of seafloor return can be used to help determine
bottom types.
ÃAdjustable beam width allows optimisation for full coverage or high
resolution to see small detail changes.
ÃDisplay redraws dynamically when range, gain, or zoom change.
Disadvantages
ÄHarder to relate the location of features seen to the vessel’s position.
ÄDoes not show all information seen by the sonar view.
Note: Right-click at a point on the Single /
Triple Beam display to send a mark to the
Charting display at the cursor location.

Doc. P/N: WSP-009-008
Version: V1.3
Issue Date: April 2014
www.wassp.com
14
3.3 Sidescan Display
The sidescan display is another display type for viewing information generated from sonar data
received by the system. The display is drawn on the screen as a waterfall – the newest information
appears at the top of the screen, while the oldest falls o the bottom of the screen. This is similar to
the way the Single / Triple Beam Display operates, except that in their case, the new data appears on
the right and the old data disappears o the left of the display.
The left side of the Sidescan Display shows the signals received from the port side while the right
shows signals received from the starboard side. By default, the sidescan view starts at the centre of
the vessel and works its way out to port and starboard.
As the sidescan image moves further out along the seafloor, the picture shows features on the seafloor.
Objects such as rocks appear as bright white marks followed by a shadow. Harder ground gives strong
returns (lighter on the grey scale), while a patch of mud or kelp causes a dark patch/shadow to appear.
The primary advantage of the sidescan view over the other views is in locating and identifying objects
on the seafloor o to each side of the vessel. Some structures such as a shipwreck may appear like a
large fish school on the sonar view and thus not appear as an object on the other acoustic or chart
displays. Figure 7 shows how a wreck sitting on the seafloor can be distinguished as a clearly shaped
structure by using the Sidescan Display, allowing the user to interpret the sonar information from a
dierent viewpoint.
Due to the nature of the origin of the data, any signals of significant strength register as a faint mirror
on the opposite side of the display.
Area of soft ground Indication of ship wreck Reflection of ship wreck
Rocky area
Shadow
of wreck
Water column
Figure 7. Sidescan Display
Port Side Starboard Side
