Eagle Fish ID 128 User manual

1
®
Fish ID 128Fish ID 128
Fish ID 128Fish ID 128
Fish ID 128
INSTINST
INSTINST
INSTALLAALLA
ALLAALLA
ALLATION AND OPERATION AND OPERA
TION AND OPERATION AND OPERA
TION AND OPERATIONTION
TIONTION
TION
INSTRINSTR
INSTRINSTR
INSTRUCTIONSUCTIONS
UCTIONSUCTIONS
UCTIONS
Fish ID 128

2
Eagle Electronics
PO Box 669
Catoosa, OK 74015
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION..............................................................................................3
SPECIFICATIONS ...........................................................................................3
INSTALLATION ...............................................................................................4
PERMANENT MOUNT TRANSDUCER ..........................................................5
POWER CONNECTIONS ...............................................................................10
FISH ID 128 PORTABLE ................................................................................11
KEYBOARD BASICS ......................................................................................14
DISPLAY .........................................................................................................14
OPERATION ...................................................................................................15
MENUS ...........................................................................................................15
AUTOMATIC ...................................................................................................15
RANGE ...........................................................................................................15
ZOOM .............................................................................................................16
SENSITIVITY ..................................................................................................17
FISH ID ...........................................................................................................17
FISH TRACK™ ...............................................................................................18
CHART SPEED ..............................................................................................19
DISPLAY MODE .............................................................................................19
ALARMS .........................................................................................................20
BACK LIGHT...................................................................................................21
FEET/METER .................................................................................................21
DISPLAY CONTRAST ....................................................................................21
ASP (Advanced Signal Processing) ...............................................................22
SIMULATOR ...................................................................................................22
FISH ARCHES ................................................................................................23
WATER TEMPERATURE AND THERMOCLINES.........................................24
TROUBLESHOOTING ....................................................................................25
WARRANTY ...................................................................................................29
Copyright © 1998, Eagle ElectronicsCopyright © 1998, Eagle Electronics
Copyright © 1998, Eagle ElectronicsCopyright © 1998, Eagle Electronics
Copyright © 1998, Eagle Electronics
All features and specifications in this manual are subject to change
without notice.
All screens in this manual are simulated.

3
SPECIFICATIONS
Dimensions ...................... 5.9" W x 5.35" H x 3.4" D
Input Voltage.................... 10 - 15 vDC
Current Drain ................... 150 ma (lights off)
........................... 250 ma (lights on)
Transmitter
Frequency.......... 192 kHz
Output Power..... 275 watts (peak-to-peak)
........................... 37.5 watts (RMS)
Display ........................... 128 pixels (H) x 64 pixels (W)
........................... Supertwist Liquid Crystal Display
INTRODUCTION
ThankyouforpurchasinganEaglesonar.YourFishID128isahighquality
sonardesigned forboth professionaland novicefishermen. Thisunit has
anautomaticfeaturethatfindsanddisplaysthebottom,fish,structure,and
more! All you have to do is press the on key. However, if you wish to fine
tune the unit, simply press a menu key. This unit has powerful features
available through easy-to-use menus.
TogetstartedwithyourEaglesonar,firstreadtheinstallationsection.This
is where it all begins. Improper installation can cause problems down the
road. After you’ve read the instructions, install the unit, then read the rest
ofthemanual.Themoreyouknowaboutyourunit,thebetteritwillperform
for you. Take this manual for reference when you head for the water.
NOTICE!
The storage temperature for your unit is from -4 degrees to +167 degrees
Fahrenheit (-20 degrees to +75 degrees Celcius). Extended storage in tempera-
tures higher or lower than specified will damage the liquid crystal display in your
unit. This type of damage is not covered by the warranty. For more information,
contact the factory customer service department or your local service center.
5.35"
5.9" 3.4"

4
INSTALLATION - Bracket
You can install the unit on the top of a dash or from an overhead with the
suppliedbracket. Itcan alsobe installedin thedash withanoptionalIDA-
3 or IDA-4 mounting kit. If you use the supplied bracket, you may be
interested in the optional GBSA-1 swivel bracket kit. This converts the
gimbal bracket to a swivel mount which can be used on the dash or
overheadmounting positions.Installation instructionsforthe in-dashand
swivel mounting kits are supplied with the adapter kits.
Mount the unit in any convenient location, provided there is clearance
whenit’stiltedforthebestviewingangle.Holesinthebracket’sbaseallow
woodscreworthroughboltmounting.Itmaybenecessarytoplaceapiece
of plywood on the back side of thin panels to reinforce the panel. Make
certain there is enough room behind the unit to attach the power and
transducer cables.
Attachthe unittothegimbal bracketusingthe suppliedgimbalknobsand
washers as shown above.
Drill a hole in the dash for the power and transducer cables. The best
locationforthisholeisimmediatelyunderthegimbalbracket.Thisway,the
bracket covers the hole. The smallest hole the power/transducer cable
connector can pass through is 5/8". Note: Install the transducer before
wiring the power cable!.After installing the transducer and power cables,
slidethebracketoverthehole,thenroutethetransducerandpowercables
outtheslotinthebackofthebracket.Finally,fastenthebrackettothedash.
GIMBAL KNOB
RUBBER WASHER
FISH ID 128
GIMBAL BRACKET
PLASTIC WASHER
(PORTABLE UNITS ONLY)

5
PERMANENT MOUNT TRANSDUCER INSTALLATION
The HS-WSPC supplied with your sonar is a transom mount transducer.
It can be installed on any outboard or stern-drive (inboard\outboard)
powered boat.
The “kick-up” mounting bracket helps prevent damage if the transducer
strikes an object while the boat is moving. If the transducer does “kick-
up”, the bracket can easily be pushed back in place without tools.
Read the enclosed transducer installation instructions carefully before
attempting the installation. Determine which of the mounting positions is
right for your boat. Use extreme care when mounting the transducer,
since the transducer location is the most critical part of a sonar installa-
tion. If it isn’t done properly, the sonar can’t perform at it’s designed
potential.
Location - General
1. The transducer must be placed in a location that has a smooth flow
of water at all times. If the transducer is not placed in a smooth flow of
water, interference will show on the sonar’s display in the form of ran-
dom lines or dots whenever the boat is moving.
2. The transducer should be installed with it’s face pointing straight
down, if possible.
3. Make certain the transducer's location doesn’t interfere with the
trailer or hauling of the boat. Also, don’t mount it closer than approxi-
mately one foot from the engine’s lower unit. This will prevent cavitation
interference with the propeller. Typically, the transducer should be
mounted as deep in the water as possible. This increases the chance
that it will be in the water in high speed and reduces the possiblity of air
bubble interference.
POOR ANGLEPOOR ANGLE
POOR ANGLEPOOR ANGLE
POOR ANGLE GOOD LOCATIONGOOD LOCATION
GOOD LOCATIONGOOD LOCATION
GOOD LOCATION
POOR LOCATIONPOOR LOCATION
POOR LOCATIONPOOR LOCATION
POOR LOCATION

6
4. If possible, route the transducer cable away from other wiring on the
boat. Electrical noise from engine wiring, bilge pumps, and areators can
be displayed on the sonar’s screen. Use caution when routing the trans-
ducer cable around these wires.
2. Slide the transducer between the two ratchets. Temporally slide the
bolt though the transducer assembly and hold it against the transom.
Looking at the transducer from the side, check to see if it will adjust so
that its face is parallel to the ground.If it does, then the“A” position is
correctforyourhull.Ifthetransducer’sfaceisn’tparallelwiththeground,
DOT
Transducer Assembly and Mounting
The best way to install this transducer is to loosely assemble all of the
parts first, then place the transducer’s bracket against the transom and
see if you can move the transducer so that it’s parallel with the ground.
1. Press the two small plastic ratchets into the sides of the metal bracket
as shown below. Notice there are letters molded into each ratchet.
Place each ratchet into the bracket with the letter“A” aligned with the
dotstamped intothe metalbracket.Thisposition setsthe transducer’s
coarse angle adjustment for a fourteen (14) degree transom. Most
outboard and stern-drive transoms have a fourteen degree angle.
CAUTION!CAUTION!
CAUTION!CAUTION!
CAUTION!
CLAMP THE TRANSDUCER CABLE TOCLAMP THE TRANSDUCER CABLE TO
CLAMP THE TRANSDUCER CABLE TOCLAMP THE TRANSDUCER CABLE TO
CLAMP THE TRANSDUCER CABLE TO
TRANSOM NEAR THE TRANSDUCER. THISTRANSOM NEAR THE TRANSDUCER. THIS
TRANSOM NEAR THE TRANSDUCER. THISTRANSOM NEAR THE TRANSDUCER. THIS
TRANSOM NEAR THE TRANSDUCER. THIS
WILL HELP PREVENT THE TRANSDUCERWILL HELP PREVENT THE TRANSDUCER
WILL HELP PREVENT THE TRANSDUCERWILL HELP PREVENT THE TRANSDUCER
WILL HELP PREVENT THE TRANSDUCER
FROM ENTERING THE BOAT IF IT ISFROM ENTERING THE BOAT IF IT IS
FROM ENTERING THE BOAT IF IT ISFROM ENTERING THE BOAT IF IT IS
FROM ENTERING THE BOAT IF IT IS
KNOCKED OFF AT HIGH SPEED.KNOCKED OFF AT HIGH SPEED.
KNOCKED OFF AT HIGH SPEED.KNOCKED OFF AT HIGH SPEED.
KNOCKED OFF AT HIGH SPEED.
GOOD LOCATIONGOOD LOCATION
GOOD LOCATIONGOOD LOCATION
GOOD LOCATION

7
RATCHETS
NUT METAL
WASHER
RUBBER
WASHERS METAL
WASHER
BOLT
remove the transducer and ratchets from the bracket.Place the ratch-
ets into the holes in the bracket with the letter “B” aligned with the dot
stamped in the bracket.Reassemble the transducer and bracket and
place them against the transom.Again, check to see if you can move
thetransducerso it’sparallelwith theground.If itdoes,thengo tostep
3. If it doesn’t, repeat step 2, but use a different letter until you can
place the transducer on the transom correctly.
3. Once you determine the correct position for the ratchets, assemble
the transducer as shown below.Don't tighten the lock nut at this time.

8
4. Hold the transducer and bracket assembly against the transom.The
transducershould beroughly parallel totheground.The bottomofthe
transducer bracket should be in line with the bottom of the hull. Don't
let the bracket extend below the hull! Mark the center of the slots for
the mounting holes. Drill two 5/32" holes in the marked locations for
the #10 screws supplied with the transducer.
5. Remove the transducer from the bracket and re-assemble it with the
cable passing through the bracket over the bolt as shown below. At-
tach the transducer to the transom. Slide the transducer up or down
until it’s aligned properly on the transom as shown below.Tighten the
bracket’s mountingscrews.Adjustthe transducersothat it’s parallelto
thegroundand tightenthelocknutuntil ittouchesthe flatwasher,then
add 1/4 turn. Don’t over tighten the lock nut! If you do, the transducer
won’t “kick-up” if it strikes an object in the water.
TRANSOM
SIDE VIEW

9
6. Route the transducer cable to the sonar unit. Make certain to leave
some slack in the cable at the transducer as shown at the bottom of
the previous page. If possible, route the transducer cable away from
otherwiring ontheboat.Electrical noisefromthe engine’s wiring,bilge
pumps,VHF radio wires and cables can be picked up by the sonar.
IMPORTANT!
Clamp the transducer cable to the transom close to the transducer.This
can prevent the transducer from entering the boat if it is knocked off at
high speed.
7. Make a test run to determine the results. If the bottom is lost at high
speed, or if noise appears on the display, try sliding the transducer
bracket down.This puts the transducer deeper into the water, hope-
fully below the turbulence causing the noise. Don't allow the trans-
ducer bracket to go below the bottom of the hull!
TRANSDUCER AIMED TOOTRANSDUCER AIMED TOO
TRANSDUCER AIMED TOOTRANSDUCER AIMED TOO
TRANSDUCER AIMED TOO
FAR FORWARDFAR FORWARD
FAR FORWARDFAR FORWARD
FAR FORWARD
PROPER TRANSDUCER ANGLEPROPER TRANSDUCER ANGLE
PROPER TRANSDUCER ANGLEPROPER TRANSDUCER ANGLE
PROPER TRANSDUCER ANGLE
TRANSDUCER AIMED TOO FARTRANSDUCER AIMED TOO FAR
TRANSDUCER AIMED TOO FARTRANSDUCER AIMED TOO FAR
TRANSDUCER AIMED TOO FAR
BACKBACK
BACKBACK
BACK
Fish Arches
If you do not get good fish arches on your display, it could be the
transducer is not parallel with the ground when the boat is at rest in the
water, or at slow trolling speeds. If the arch slopes up, but not back
down, then the front of the transducer is too high and needs to be
lowered. If only the back half the the arch is printed, then the nose of the
transducer is angled too far down and needs to be raised.

10
POWER CONNECTIONS -PERMANENT MOUNT UNITS ONLY
IMPORTANT! INSTALL THE TRANSDUCER BEFORE WIRING THE POWER CABLE!
TheFishID128worksfroma12voltDCsystemonly.Forthebestresults,
run the power cable directly to the boat’s battery. Keep the power cable
awayfromotherboatwiring,especiallytheengine’swires.Thiswillgivethe
bestisolationfromelectricalnoise.Ifthesuppliedcableisnotlongenough
toreachthebattery,splice#18gaugeinsulatedwiretoit.Ifyoudoextend
thepowercable,makecertaintoattachthein-linefuseholdersuppliedwith
the unit to the battery or power source. This will protect both the unit and
the power cable in the event of a short. Use only a 3-amp fuse.
IMPORTANT!
Do not use this product without a 3-amp fuse wired into the power cable!
Failure to use a 3-amp fuse will void your warranty!
You can also attach the power cable to an accessory or power buss,
however,youmayhaveproblemswithelectricalinterference.Thisunithas
reverse polarity protection. No damage will occur if the power wires are
reversed. However, the unit will not work until the wires are attached
correctly.
12 VOLT
BATTERY
BLACK
WIRE
RED
WIRE
3 amp
FUSE
TO
SONAR
UNIT
TO
TRANSDUCER

11
FISH ID 128 PORTABLE ASSEMBLY
INSTALLING THE BATTERIESINSTALLING THE BATTERIES
INSTALLING THE BATTERIESINSTALLING THE BATTERIES
INSTALLING THE BATTERIES
Releasethelatchonthefrontofthebatterycase. Openthecompartment
andinstalleight"D"cellbatteriesintotheadapter. For thelongestlife,we
recommendyouusealkalinebatteries.Thisbatterycasewillalsoholdone
rechargable battery instead of the "D" cells. See the enclosed coupon for
more information on the rechargable battery.
"D" CELL BATTERY
After installing the batteries, close the case and plug the power cable on
the battery case into the sonar unit. Plug the adapter cable into the back
of the sonar unit. Turn the sonar unit on. If it doesn't work, make certain
thebatteryterminalsaremakinggoodcontactagainstthebatterycontacts.
Also check the wiring connections on the D-cell battery adapter. The red
wire on the power cable should be attached to the red wire on the D-cell
battery adapter and the power cable's black wire should be connected to
theblackwireontheD-cellbatteryadapter.Ifitstilldoesn'twork,checkthe

12
WASHER WASHER
NUT
BOLT
TIE
NYLON
CORD
HERE
SCREW
PORTABLE TRANSDUCER ASSEMBLYPORTABLE TRANSDUCER ASSEMBLY
PORTABLE TRANSDUCER ASSEMBLYPORTABLE TRANSDUCER ASSEMBLY
PORTABLE TRANSDUCER ASSEMBLY
Assemble the transducer and bracket as shown below. Attach the
transducerto thebracketwiththe suppliedhardware. Makecertain there
isonewasheroneachsideofthetransducer,insidethebracket. Slidethe
otherwasherovertheendoftheboltandthreadthenutontoit. Screwthe
suctioncupontothebracketusingthesuppliedscrewandflatwasher. Tie
thenyloncordthroughthehole inthetopof thebracket. Whenusingthis
transducer, tie the other end of the nylon cord to the boat. This will help
prevent the loss of the transducer if it comes off the boat.
battery voltage. Most of the complaints we receive about portable units
result from stale batteries. Make certain the ones you buy are fresh.
Alwaysremovebatteriesfromthebatterycompartmentbeforestoringthe
unit as dead batteries can leak and corrode the contacts.
Incold weatherthe efficiencyofdry cellbatteriesdropswiththe tempera-
ture.Wefinditagoodideatohavethesonarunitgoodandwarmalongwith
thebatteriesbeforeweleave home. Ifthebatteriesdoloseacharge,you
cansometimesrestorethembyplacingtheminawarmroomorcarinterior.
A better way is to replace them with batteries that have been kept warm.
Don'teverheatthebatteriesoveranopenflameordirecthotairontothem.
A fire or explosion could result.

13
Cleanthechosenareaofthehullbeforeattachingthesuctioncup. Locate
the transducer on the hull as shown below. Don't allow the bracket to go
below the hull, as water pressure against it can cause the suction cup to
comeoffatspeed. Moistenthecup,thenpressitontothehullasfirmlyas
possible. Tie the nylon cord to the boat and route the transducer cable to
the sonar unit. Plug the transducer connector into the Fish ID 128. Your
portable sonar is now ready for use.
HULL

14
KEYBOARD BASICS
The unit sounds a tone when you
press any key. This tells you the
unit has accepted a command.
PWR/CLEAR
Usethiskeytoturntheunitonand
off. It also clears menu selections
and the menus from the screen.
Note!Toturntheunitoff,pressand
HOLD the PWR/CLEAR down. A
countdown from 3 seconds ap-
pears on the screen when you hold the PWR key down for more than a
coupleof seconds.When thecountdown reacheszero, theunit shutsoff.
This prevents you from accidentally turning the unit off.
MENU FWD/MENU REV
Thissonarhasmanyfeaturesthatareaccessedwiththesekeys.Toscroll
forwardthrough themenus,press theMENUFWDkeyrepeatedly. Togo
backwards through the menus, press the MENU REV key repeatedly.
UP and DOWN ARROWS
Use these keys to adjust virtually every feature and function on the unit.
The up arrow key also stops the chart when no menus are displayed.
DISPLAY - General
The lights flash for about ten seconds when the unit is turned on. Two
menus appear, one after the other. The menus are the lights (BACK
LIGHT) and feet-meter selection (FEET/METER). To turn the lights on,
presstheuparrowkeywhilethebacklightmenuisshowing.Toswitchfrom
feet to meters, press the down arrow key
when the proper menu appears. The menus
disappear after a few seconds. If you don’t
want to wait, press the PWR/CLEAR key to
clear the menus from the screen.
When the unit is first turned on, the display
appearssimilartotheoneatright.Theunitis
in the automatic mode. The depth range
displays on the upper left side of the screen.
Inthe exampleat right,the rangeisfrom 0to
60 feet and the bottom depth is 48.6 feet.
Fish ID 128

15
NOTE: Turning the unit off erases all user settings and it returns to the
systemdefaults.Forexample,ifyouturnthelightson,thenturntheunitoff,
the next time you turn the unit on, the lights will be off, since the default
setting for the lights is off.
MENUS
This sonar unit uses menus to guide you through the unit’s functions and
features. The menu keys accesses these features, allowing you to
customize the unit to your particular needs and water conditions. All you
have to do to leave one menu and enter another is press a menu key
repeatedly.Ifyouevergetlostinthemenus,simplypressthePWR/CLEAR
key. This clears the menus from the screen.
Menus change depending on the mode the unit is in. For example, if the
automatic mode is turned off, the sensitivity menu changes from “AUTO
SENS” to “MAN SENS.” Other messages may appear in menu boxes or
new menus can appear, again depending on previous selections.
Onthescreenshownonthepreviouspage,thebacklightmenuisshowing.
Pressingtheuparrowkeywhilethismenushowsturnsthebacklightson.
OPERATION
AUTOMATIC
When the unit is first turned on, the automatic feature is enabled. This
feature automatically adjusts the unit’s range and sensitivity according to
waterconditions.Italwayskeepsthebottomdisplayedinthelowerportion
of the screen.
To turn the automatic feature off, press a menu key until the AUTO/MAN
menuappears. Now pressthe downarrow key.This highlightsthe letters
“MAN.” The unit is now in the manual mode.
Wait a few seconds and the menu will scroll
off the screen’s left side. Pressing the PWR/
CLEAR key also erases it. To turn the auto-
matic feature on again, repeat the above
steps, except this time press the up arrow
key.

16
RANGE
You can’t adjust the range when the auto-
matic mode is on. It is adjustable when the
unit is in the manual mode, however. To do
so,firstputtheunitinthemanualmode.Now
press a menu key until the “RANGE SEL”
menuappearsasshownatright.Thecurrent
rangeshowsatthebottomofthemenu.Inthis
case, the range is 60 feet. Now press the up
arrow key to decrease the range, the down
arrow key increases the range. After you
select the desired range, press the PWR/
CLEAR key to clear the display. If you wait a
few seconds, it automatically clears.
The Fish ID 128 has the following ranges:
10, 20, 40, 60, 120, 240, 480, and 900 feet.
and
5, 10, 20, 40, 60, 100, 200, and 300 meters.
ZOOM
The zoom feature enlarges all echoes on the screen. If the unit is in the
automatic mode, it tracks the bottom signal, always keeping it near the
bottom of the screen. This lets you see small detail, at the same time
enlargingallechoesthatappearonthescreen.
Remember, however, that the unit doesn’t
track the bottom while in the manual mode.
To zoom the display, first press a menu key
untiltheRANGE/ZOOMmenuappears.Now
press the down arrow key as shown at right.
Thisswitchestheunitintothezoommode.All
echoes are shown at twice their normal size.
To turn the zoom off, select the RANGE/
ZOOM menu, then press the up arrow key.
NOTE: The depth capability of this sonar depends on the transducer
installation, water and bottom conditions, and other factors.

17
SENSITIVITY
Thesensitivitymenu letsyoucontrolthe unit’sabilitytopickup echoes.A
lowsensitivitylevelexcludesmuchofthebottominformation,fishsignals,
and other detail. High sensitivity settings lets you see features, but it can
also clutter the screen with noise and other unwanted signals. Typically,
the best sensitivity level shows a good, solid bottom signal with grayline.
This unit adjusts the sensitivity level to keep a solid bottom signal on the
screen. It adds a little extra when it’s in the automatic mode. This gives it
the capability to show fish and other detail. However, situations occur
whereitbecomes necessarytoincreaseordecreasethe sensitivitylevel.
Typically, this occurs when you wish to see more detail, so you need to
increasethesensitivity.Theproceduretoadjustitisthesamewhetherthe
unit is in the automatic or manual mode.

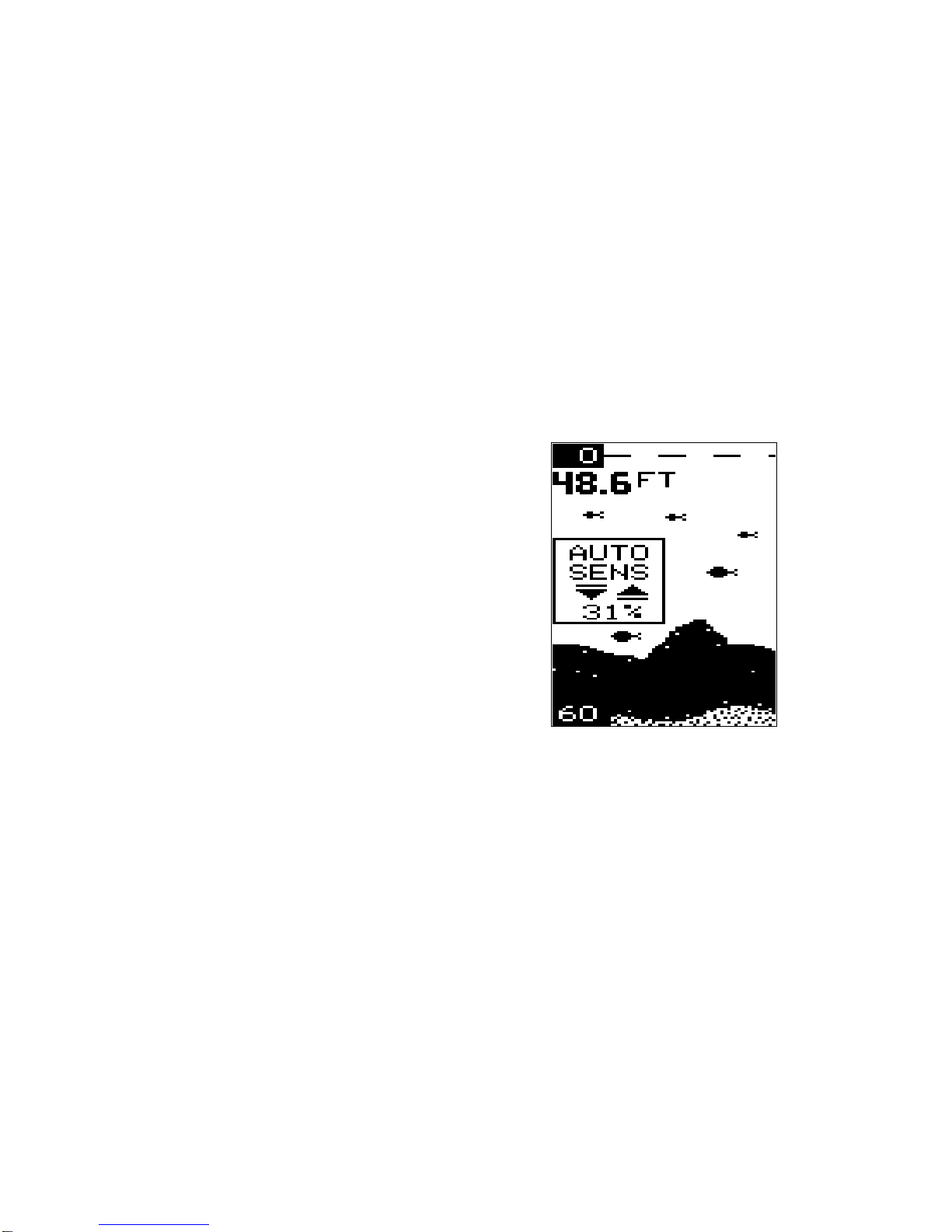

To change the sensitivity level, first press a
menukeyuntil thesensitivitymenuappears.
If the unit is in automatic, the menu shows
“AUTO SENS.” Otherwise, the menu shows
“MANSENS.”Nowpresstheuparrowkeyto
increase the sensitivity, the down arrow to
decreaseit.Echoesscrollingontothescreen
will also show the effects of the sensitivity
change. If you reach the maximum or mini-
mum sensitivity level, a tone sounds alerting
you to the limits.
After you’ve adjusted the unit to the desired
sensitivitylevel,pressthePWR/CLEARkeytoclearthedisplay.Ifyouwait
a few seconds, it will automatically clear.
FISH ID FEATURE
The Fish ID feature identifies targets that meet certain conditions as fish.
The microcomputer analyses all echoes and eliminates surface clutter,
thermoclines,andotherundesirablesignals.Inmostinstances,remaining
targets are fish. The Fish ID feature displays symbols on the screen in
place of the actual fish echoes. There are three symbol sizes: small,
medium,andlarge.Theseshowtherelativesizebetweentargets.Inother
words,itdisplaysasmallfishsymbolwhenitthinksatargetisasmallfish,
a medium fish symbol on a larger target, etc.
Themicrocomputerissophisticated,butitcanbefooled.Itcan'tdistinguish
between fish and other suspended objects such as turtles, submerged

18
floats, air bubbles, etc. Individual tree limbs
extendingoutwardsfromagroupoflimbsare
the hardest objects for the Fish ID feature to
distinguish from fish. You may see Fish ID
symbolsonthescreenwhen,infact,thereare
nofish.PracticewiththeunitwhentheFishID
featureisonand offtobecomemorefamiliar
with Fish ID. To turn this feature off, press a
menu key until the Fish ID feature’s menu
appears as shown at right. Now press the
down arrow key. To turn it on, repeat the
above steps, but press the down arrow key
instead.
The Fish ID feature can’t be used when the unit is in the manual mode. If
youturntheautomaticfeatureoff,theFishIDfeaturewillautomaticallybe
turned off, also.
FISHTRACK™
This sonar automatically displays the depth of a target when the Fish ID
feature places a fish symbol on the screen as shown below left. This
featureisautomaticallyenabledwhentheunitisturnedon.Toturnitoffor
onagain,pressamenukeyrepeatedlyuntiltheFishTrackmenuappears
asshown below.Now pressthe downarrowkey toturn itoff. Remember,
Fish ID must be on in order to use the Fish Track feature.

19
CHART SPEED
The rate echoes scroll across the screen is
called the chart speed. It’s adjustable by
pressing a menu key until the chart speed
menu appears. Chart speed is set to maxi-
mum when the unit is first turned on. To
decreaseit,pressthedownarrowkey.Press
theuparrowkeytoincreasethespeedagain.
Thepercentageofchartspeedalsoshowson
this menu. Echoes scrolling onto the screen
willalsoshowtheeffectsofthechange.Ifyou
reach the maximum or minimum level, an
warning tone sounds.
CHART STOP
To stop the chart, first clear any menu from the screen by pressing the
PWR/CLEARkey.Youcan’tstopthechartwhileamenuisdisplayed.Now
presstheuparrowkey.Thechartwillfreezeandtheword“STOP”appears
atthetoprightportionofthescreen.Tostartthechart,presstheup arrow
key again or the PWR/CLEAR key.
DISPLAY MODE

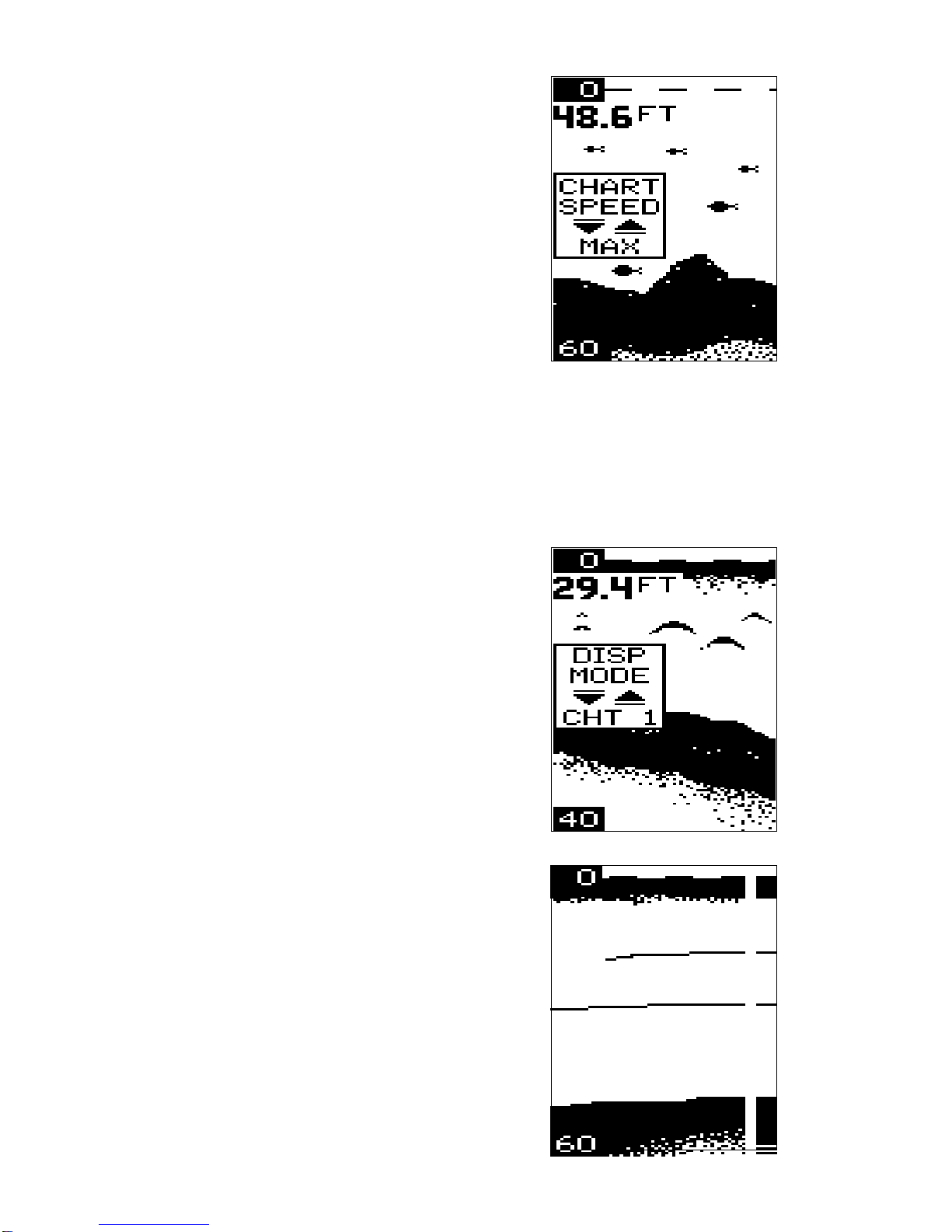

This sonar has two different screen modes -
Chart 1, (shown at right) which is the normal
mode and Chart 2 which is the FasTrak
mode. To change modes, press the MENU
key until the “DISP MODE” (Display Mode)
menu appears. Then press the up or down
arrow keys to change it.
CHT 2 (Chart #2)
ThisistheFasTrakmode.Ithasthefollowing
features:
1. Automatic Off
2. Fish ID Feature Off
3. Digital Depth Display Off

20
ALARMS
FISH ALARM
The Fish Alarm sounds a tone when a fish
symbol appears on the screen. To use the
fish alarm, press a menu key until the “FISH
ALARM” menu appears on the screen. Now
press the up arrow key to turn the alarm on.
Repeatthe abovestepsto turnthealarm off.
SHALLOW ALARM
The shallow alarm is triggered only by the
bottomsignal.Nootherechowillactivatethis
alarm. The shallow alarm sounds an alarm
tone when the bottom goes shallower than the alarm’s setting.
To set the shallow alarm, press a menu key repeatedly until the “SHAL
ALARM”menuappears.Pressthedownarrowkeytoincreasetheshallow
alarm's depth setting, the up arrow key decreases it. The number in the
shallowalarm’smenuboxshowsthe current
shallow alarm setting. When the number
reaches the desired setting, release the ar-
row key. When the bottom depth goes shal-
lower than the alarm’s setting an alarm tone
sounds. At the same time the alarm sounds,
a message box appears on the screen as
shown below.
Press the down arrow key to silence the
alarm. This will turn the alarm sound off until
the shallow alarm is triggered again.
To turn the alarm off, press a menu key until
theshallowalarmmenuappears.Thenpress
the up arrow key until the word “OFF” ap-
pears.
