Watermark Puretec PureMix Z6 User manual

AS/NZS 3497
Licence No. WM 74617
Australian Certication
Services
User Guide
High Flow Inline Water Filter System
PureMix Z6/Z7
For correct operation & installation, it is essential to observe these instructions.JUN2021

2Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
What's Inside
Introduction................................................................................................................................. 2
Operation...................................................................................................................................... 3
Cartridge Replacement ......................................................................................................... 3
Installation................................................................................................................................... 3
Installation Requirements................................................................................................... 4
Installation Procedure ........................................................................................................... 4
Fig. 1 - Installation Diagram.............................................................................................. 6
Fig. 2 - Fitting the Cartridge Correctly ......................................................................... 7
Cartridge Changeout.............................................................................................................. 8
Use Guidelines........................................................................................................................... 8
Warranty .............................................................................................................................................9
Puretec Customer Service
Thank you for purchasing a Puretec PureMix Inline Water Filter System. Your system is a
proven performer manufactured from only quality materials and components and will give
years of ‘spring fresh’ water, if maintained properly.
The Puretec PureMix Inline Water Filter System cartridge needs replacing regularly to
maintain optimum performance. This is a simple procedure when following instructions. For
cartridge replacements contact your nearest Puretec stockist.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand).
What's Inside

3
High Flow Inline Water Filter Systems
Operation
The Puretec PureMix Inline Water Filter System is designed to run economically for many
years, dependent on the initial installation and periodical maintenance.
Flush systems for 10 minutes aer any period of non-use more than 2 days.
The PureMix Z6 Inline Water Filter System is designed to operate with mains water.
The PureMix Z7 Inline Water Filter System is designed to operate with mains, rain, harsh
and rural water.
Cartridge Replacement
To maintain the high quality of the puried water the cartridges need changing every 6 -
12 months, dependent on water quality and usage.
You can obtain replacement cartridges from your local Puretec dealer. To maintain
performance standards and warranty, use only genuine Puretec replacements.
Replacement cartridge code for Z6 model: Puretec Z6-R.
Replacement cartridge code for Z7 model: Puretec Z7-R.
Installation
This system comes complete with an installation kit enabling it to be connected to 15mm
(½”) male thread to an existing tap or mixer tap (cold supply only - hot water should be
ltered prior to heating). Also includes extending kit, where extra length is required.
Installation Note: A water lter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances. To
avoid possible property damage, this product should be regularly examined for leakage
and/or deterioration and replaced when necessary. A drain pan, plumbed to an appropriate
drain or outtted with a leak detector, should be used in those applications where any
leakage could cause property damage, and/or the water supply should be turned o if no
one is home/present.
INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY
OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED
WARRANTY COVERAGE.
Operation

4Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Installation Requirements
Installation Requirements
1. 15mm (½”) cold water exi-connector to tap.
2. Water supply pressure: 200 - 520 kPa.
3. Water supply temperature: 0° - 38 °C (protect from freezing).
Alternative ttings may be required if being connected to anything other than 15 mm (½”)
copper pipe. No electrical or drainage requirements.
Installation Procedure
1. Select suitable location that is close to the existing tap. Remember to allow access
room for changing lter and a suitable place where water spillage will not cause
damage. Location should not be in direct sunlight.
2. Isolate water supply and release water pressure by operating faucet lever. Disconnect
existing braided hose connections from the cold water line.
3. Attach non-return valve to water supply with thread seal tape. Then detach the 1/2"
DR Brass adaptor from the non-return valve, apply thread seal tape as necessary and
reconnect to the non-return valve.
4. Install lter cartridge to the head assembly (see Fig. 1 & 2). Please note the arrow on
the cartridge label indicates Undo and Install directions.
Warning: Ensuring the cartridge is in the correct lock position is critical prior to
operating the system. Not being seated in the correct position can cause the locking
tabs to shear and damage the head and/or water leakage. See Fig 2 for the correct
position.
5. Push the joint stem adaptors into the inlet and outlet of the cartridge head, ensuring
they are pushed in all the way.
6. Install system assembly by positioning it in the desired location, marking the position
of xing holes and xing with mounting screws (PureMix Z Series can be mounted
horizontally and vertically). Allow room for the connecting tubes and for removing the
cartridge (70 mm).
Note: Knocking the cartridge can cause the cartridge to come out of the locking
position. To limit the likelihood of this occurring it is best not to store items too close to
the system to avoid accidental dislodgement of the cartridge.

5
High Flow Inline Water Filter Systems
Installation Procedure
7. Connect the braided hose onto stem adaptor, then connect to the cartridge head
assembly inlet (please note the arrow on the head indicating the direction of the water
ow). A hose extension kit has been provided if necessary, this can be used to extend
the hose either side of the system. Ensure the hose is kink free.
8. Connect the mixer tap's braided hose to the brass adaptor on the head outlet. Make
sure all ttings are tight and braided hose is kink free.
9. Restore the water supply and check for leaks. If leaking occurs then undo cartridge and
check the cartridge is seated properly.
10. Run the system for at least 10 minutes (turn on mixer tap to run cold water) to remove
carbon nes. Water may appear milky, but this is normal and is only tiny air bubbles
that will clear aer a short period.

6Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Figure 1 - Installation Diagram
Head
Assembly
Also includes
Extending Kit
Existing Mixer Tap
Z6-R / Z7-R
Cartridge
HOT COLD
Braided Hose
Non-Return Valve
1/2" DR Brass
Adaptor
Stem Adaptor Stem Adaptor
Minimum 70 mm Clearance
Note: Allow extra free space
around the system to avoid
accidental impact.
Installation Diagram

7
High Flow Inline Water Filter Systems
Fitting the Cartridge Correctly

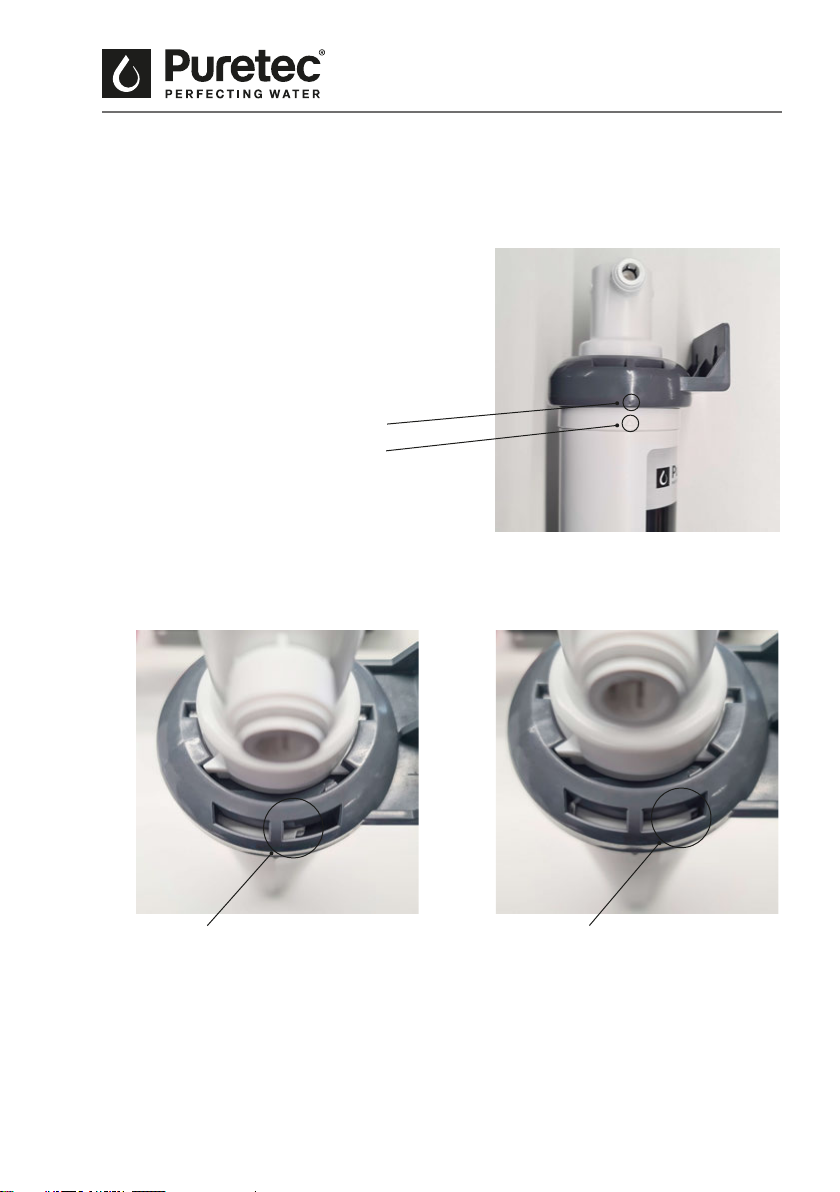

Figure 2 - Fitting the Cartridge Correctly
Ensuring the cartridge is in the correct lock
position is critical prior to operating the system.
Not being seated in the correct position can
cause the locking tabs to shear and damage the
head and/or water leakage.
When the cartridge is seated in the
correct position the arrows on the
cartridge and the head will align.
Cartridge NOT in the correct position. Cartridge is in the lock position and will
not rotate any further. Arrows on the
side of the cartridge are aligned.

8Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Cartridge Changeout
1. Shut o water supply and release the water pressure by opening up the tap.
2. Remove all packaging from the new cartridge, including any wraps or caps (if
applicable).
Replacement cartridge code for Z6 model: Puretec Z6-R.
Replacement cartridge code for Z7 model: Puretec Z7-R.
3. Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it.
4. Insert the new cartridge into the lter head and rotate clockwise 1/4 turn until the
arrows on the head and cartridge align.
5. Turn on the water and check for leaks. If leaks occur, repeat step 2 & 3. If leaks persist,
discontinue use and call your supporting dealer.
6. Flush lter for 5 minutes before use or until water runs clear.
Use Guidelines
• Use for mains water supply.
• Minimum operating pressure 200 kPa.
• Maximum operating pressure 689 kPa. If pressure exceeds 500 kPa an approved
pressure limiting device needs to be tted.
• Do not allow exposure to temperatures below 0 °C, protect from freezing.
• Maximum operating temperature 38 °C.
• Nominal ow rate 9.5 Lpm.
• This system must be installed according to local plumbing codes on the cold water line
only.
• This system requires regular replacement of the lter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may aect
replacement frequency.
• Be sure to change the lter cartridge at least every 60,000 litres for Z6 models and
60,560 litres for Z7 models or 6 months which ever occurs rst; or whenever you
detect a change in taste, odour, or decrease in ow.
Caution: Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before or after the system.
Performance Data

9
High Flow Inline Water Filter Systems
Notes
Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name
you can trust for viable and proven water solutions. The complete range of Puretec products are
developed, rened, made to meet and exceed stringent specications for the worldwide market.
Important: Sales of products are subject to our Terms and Conditions which are available upon request.
All specications, information and photos are a guide only and are subject to change without notice.
Please ring to conrm details. Warning: For correct operation of this appliance it is essential to observe
manufacturer’s instructions.
Warranty
Any claim under this warranty must be made within 10 years of the date of purchase of the product.
This product is warranted to be free of defect of material and workmanship for 10 years from date of
purchase. 10 year warranty is 1 year parts and labour plus 9 years parts only. Excludes cartridges.
To make a claim under the warranty, take the product and proof of purchase to place where you
purchased the product, and they will lodge a Warranty Request with Puretec.
Puretec will pay your reasonable, direct expenses of claiming under this warranty. You may submit
details and proof of your expense claim to place of purchase for consideration.
The warranty only applies if the product was used and/or installed in accordance with the user guide
and/or installation instructions. This warranty is given in lieu of all other express or implied warranties
and manufacturer shall in no circumstance be held liable for damages consequential or otherwise or
delays caused or faulty manufacturing except as excluded by law.
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product
was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s
discretion, including chargeable inspection and labour costs incurred.
All installation and service work should be completed by qualied tradespeople. Faulty operation
due to unqualied persons will result in voided warranty coverage.
Warranty

10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021
Warranty/Australia
