Waudio SR 10 User manual

Order codes:
SPEA71 - White housing
SPEA72 - Black housing
SR 10
Passive Speaker
User Manual

www.prolight.co.uk SR 10 Passive Speaker User Manual 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Immediately upon receiving this product, carefully unpack the carton and check the contents
to ensure that all the parts are present.
• Before initial start-up, please make sure that there is no damage caused during transportation.
• Should there be any damage, consult your dealer and do not use the equipment.
• Retain the carton and all packaging materials.
• In the event that the equipment must be returned to the supplier, it is important that
the equipment is returned in the original carton and packaging.
• To maintain the equipment in good working condition and to ensure safe operation,
it is necessary for the user to follow the safety instructions and warning notes written in this manual.
• Please note that damages caused by user modications to this equipment are not subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and
the warranty becomes void.
In case of malfunction this system should be returned for service or inspection.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and/or property.
• Never remove warning or informative labels from the
equipment.
• Do not open or modify the equipment.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• If the equipment is dropped or damaged, have a qualied
engineer inspect the equipment before operating again.
• If the product fails to function correctly, discontinue use
immediately. Pack securely (preferably in the original
packing material), and return to your dealer for service.
• This xture is for professional use only - it is not designed
for or suitable for household use. The product must be
installed by a qualied technician in accordance with local
territory regulations. The safety of the installation is the
responsibility of the installer. The xture presents risks of
severe injury or death due to re hazards, electric shock
and falls.
• Repairs, servicing and power connection must only be
carried out by a qualied technician. THIS UNIT CONTAINS
NO USER SERVICEABLE PARTS.
• WARRANTY: One year from date of purchase.
CAUTION!
KEEP THIS EQUIPMENT
AWAY FROM MOISTURE,
RAIN AND LIQUIDS, AND
OUT OF DAMP/HUMID
ENVIRONMENTS
DANGER TO LIFE!
BEFORE OPERATING THE
SPEAKER FOR THE FIRST
TIME, THE INSTALLATION
HAS TO BE APPROVED
BY AN EXPERT

www.prolight.co.uk SR 10 Passive Speaker User Manual 3
Safe installation
Make sure that the area below the installation place is blocked when rigging, derigging or servicing
the system. Please note: W Audio cannot be made liable for damages caused by incorrect installations
and excessive noise levels.
Unpacking and transportation:
Unpack the unit and examine it for transport damage.
When boxed in the original packaging the speaker/sub should be carried by two persons of the
same size. Carrying the speaker/sub with one person alone should be avoided as the heavy weight and
strain could lead to back injury.
Please note that speaker systems can move due to bass beats and vibrations.
Furthermore, unintended pushing on the speakers present a further risk. The speaker system
must always be secured to prevent movement or the surrounding area has to be blocked.
Safety advice
DANGER TO LIFE!
A FALLING SPEAKER SYSTEM CAN
CAUSE DEADLY ACCIDENTS, ALL SAFETY
INSTRUCTIONS GIVEN IN THIS MANUAL
MUST BE OBSERVED.
WARNING!
LOUD NOISE HAZARD
EAR PROTECTION
MUST BE WORN

www.prolight.co.uk SR 10 Passive Speaker User Manual 4
Safety advice
The given maximum power of the speaker system describes short term peaks the system can
handle as a maximum. The corresponding RMS power is - as of all comparable systems (also from
other manufactures) - signicantly lower. The maximum power of the speaker system must never be
exceeded. When operating the speaker system, please make sure that the system always sounds clear.
When distortion can be heard, either the amplier or the loud speaker is being overdriven. Overloads
can quickly lead to amplier or speaker damage. In order to avoid damage, please reduce the volume
immediately when distortion can be heard. When speaker systems are damaged by overdriving, the
guarantee becomes void.
• The ambient temperature must always be between -5˚ C and +45˚ C.
Keep away from direct sunlight (particularly in cars) and from heaters.
• The relative humidity must not exceed 50% with an ambient temperature of +45˚ C.
• This speaker system must only be installed at a solid, horizontal, anti-slip,
vibration and oscillation free re resistant location.
• Please note: When using this speaker system in public or industrial areas, a series of safety
instructions have to be followed that this manual can only give in part. The operator must
therefore inform himself on the current safety regulations.
• Before installing the system, make sure that the installation area can hold a minimum
point load of 5 times the systems weight (e.g. weight 20kg - point load 100kg).
• The speaker system must never be installed higher than 100cm with out a secondary attachment.
• For over head installations (mounting height >100cm), always x the speaker system
with an appropriate safety cable.
• The installation area of the speaker system has to be built and constructed in a way that it
can hold 10 times the weight of the speaker for 1 hour without any deformation.
• The installation area of the speaker system has to be built and constructed in a way that it
can hold 10 times the weight of the speaker for 1 hour without any deformation.
These speakers can be mounted on a speaker stand using the supplied adaptors. The carrying capacity
of the extension pole and the speaker stand must never be exceeded.
DANGER TO LIFE - DUE TO FALLING SPEAKERS SYSTEMS!
THE SUBWOOFER MUST NEVER BE SUSPENDED.
THE MID/HIGH SPEAKER MUST ONLY BE SUSPENDED BY
EXPERIENCED AND TRAINED PERSONS.

www.prolight.co.uk SR 10 Passive Speaker User Manual 5

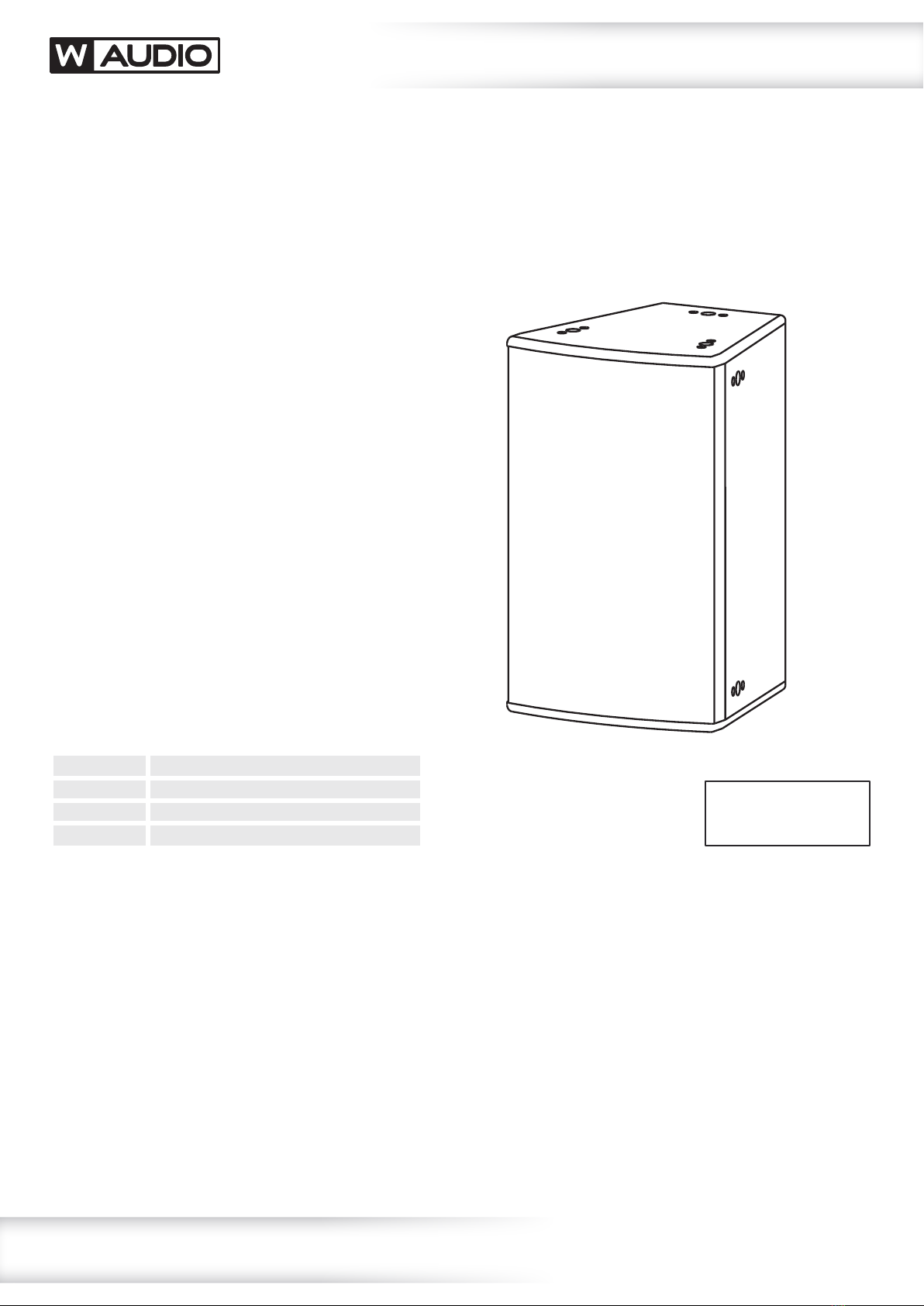

A full range, 2-way passive enclosure which is compact and provides a high output along
with a smooth and dynamic reproduction. The cabinet can be used as a main speaker
in small, near eld applications or as a ll/delay element in multi enclosure systems.
The wide coverage angle and the true constant directivity of the horn makes coverage of
large audiences easy, the crossover design guarantees the perfect pattern matching of
bass and compression drivers, avoiding secondary lobe creation.
• Continuous power (RMS): 250W
• Peak power: 1000W
• Maximum calculated SPL: 125dB
• Sensitivity (1W/1m): 95dB
• Frequency range (-10dB): 60Hz - 20kHz
• Frequency range (-3dB): 80Hz - 20kHz
• Crossover frequency: 2.5kHz
• Horizontal coverage: 90°
• Vertical coverage: 80°
• LF transducer: 10”
• HF transducer: 1”
• Nominal impedance: 8Ω
• Connections: Input and link sockets
• Mounting options: Multiple 10mm rigging
points and pre-prepared mounting points
on rear for BRAC04 bracket
SR 10 Passive Speaker
Specications
Dimensions 490 x 310 x 320mm
Weight 15.7kg
Order code SPEA71 - White housing, SPEA72 - Black housing
Product overview
In the box:
1 x speaker

www.prolight.co.uk SR 10 Passive Speaker User Manual 6
Rear panel
Technical drawings
SR 10
PASSIVE SPEAKER
Power (RMS): 250W
Impedance: 8Ω
SPL (1W/1m): 95dB
INPUT
/THRU
INPUT
/THRU
www.prolight.co.uk
IN/OUT:
Pin 1 + Full Range +
Pin 1 - Full Range -
Pin 2 + Thru
Pin 2 - Thru
Technical specications

www.prolight.co.uk SR 10 Passive Speaker User Manual 7
Technical specications
Block diagram
Frequency response

www.prolight.co.uk SR 10 Passive Speaker User Manual 8
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed of
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government ofce, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
