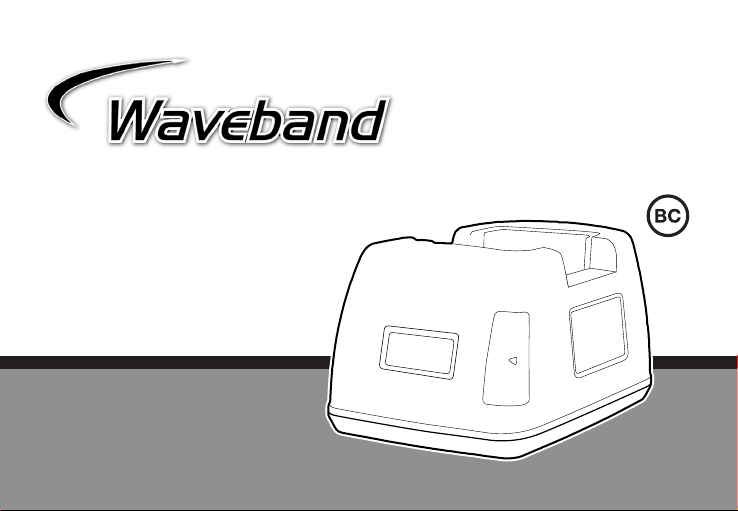

Introduction
Thank you for purchasing a Waveband single unit charger. This model
is for desktop use, but may also be installed in a vehicle with optional
accessories.
The charger is designed for charging two-way radio batteries whether on
or off a radio. Based on the charging pod installed, it will rapid charge these
battery chemistries: lithium ion (Li-Ion), lithium polymer (LiPo), nickel-metal
hydride (NiMH), or nickel cadmium (NiCd).
If you wish to replace the charging pod in the future, check with Waveband
customer service to ensure the replacement pod selected is compatible
with your model. For a complete list of charging pods available, call toll free
800-806-1076.

2
Important
1. Read all Caution statements below and this User Manual before
attempting to charge a battery.
2. Check to make sure a charging pod compatible with your battery is
properly installed before charging a battery or installing the charger
in a vehicle.
3. Always charge new batteries completely before initial use. Recycle
batteries when they can no longer be used. Do not discard unwanted
batteries in the trash or incinerate. Batteries exposed to re or
excessive heat may explode.
4. For best battery performance, charge NiCd and NiMH batteries when
they are fully discharged.

3
Caution
1. Based on the pod selected, the charger may be used with Li-Ion / LiPo
and NiMH / NiCd batteries. If the pod is designed for Li-Ion / LiPo only,
do not attempt to charge NiMH / NiCd batteries. If the pod is designed
for NiMH / NiCd only, do not attempt to charge Li-Ion / LiPo batteries.
Do not charge batteries with other chemistries or batteries that do not
have overcharge protection.
2. Use charger in areas protected from the weather. Do not expose the
charger to rain, any liquids, or excessive moisture.
3. Do not attempt to charge a battery without rst installing the appropriate
charging pod. Use only charging pods designed for this Waveband
charger. Disconnect charger from the power source before installing,
adjusting, or removing the charging pod.

4
Caution (continued)
4. Make sure contacts in charging pod and on the battery are clean. Do
not allow wire or metal objects to touch contacts in charging pod or
any internal part of the charger.
5. Do not remove the charger’s housing or make any modication to the
charger.
6. Use only the power supply provided with the charger. If a replacement
is required, see section Accessories. Use of other power supplies may
damage the charger or batteries you may be attempting to charge.
Replacing A Charging Pod
The charging pod is made from quality materials and designed to provide
years of service when properly used. In most cases, the charging pod will
only be replaced when you want to use the charger with a different battery.

5
Replacing A Charging Pod (continued)
Follow these steps to change the charging pod:
1. Obtain a charging pod made specically for this Waveband charger.
Conrm that the charging pod is compatible with the battery you want
to charge.
2. Unplug the charger from its power source.
3. The charging pod is secured to the base with a single screw. To remove,
turn the locking screw on the bottom of the charging pod counter-
clockwise until it no longer holds the pod. Lift the charging pod from
the charging base.
4. Insert the replacement charging pod into the charger base and secure
with the locking screw. Do not over tighten the screw.
5. Inspect the charging contacts to ensure they are clean and
unobstructed.
6. Connect the power supply or vehicle power adapter to the charger. You
are now ready to charge a battery compatible with the charging pod.

6

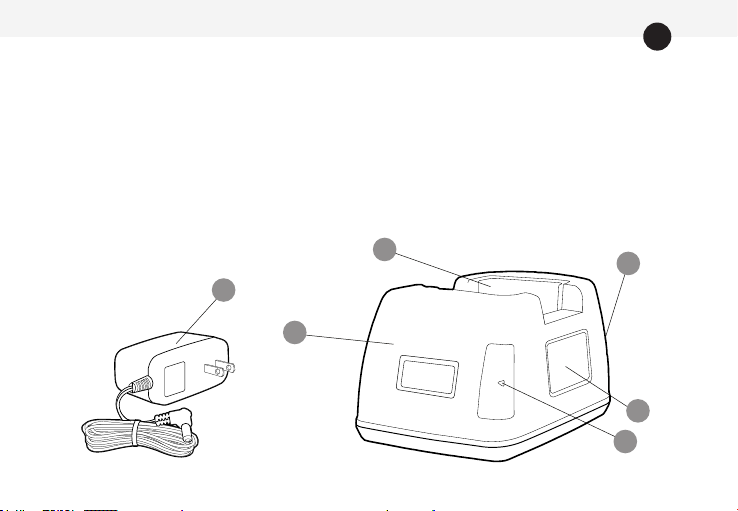

Charger Features
1. Charger base.
2. Removable charging pod.
3. DC power connection –
back of charger.
4. Status LED information – also see
bottom label.
5. Charge status LED – illuminates
green, red, or orange.
6. AC to DC power supply.
1
3
2
6
5
4

7
Charging A Battery
1. Conrm that the charging pod and battery are compatible.
2. Connect the charger to power with the power supply included.
3. Place the battery to be charged in the charging pod. The battery may
also be charged while attached to the radio.
4. When a battery is placed in the charging pod and while charging,
the status LED will illuminate RED with no ashing to indicate normal
charging.
5. If the status LED is red and ashes, a fault has been detected. The
ash pattern represents a specic fault condition. If the status LED
is orange (solid or ashing), an advisement is being provided. See
section Fault Conditions & Advisements for details.
6. When the battery is charged to 80% of capacity, the status LED will
change to GREEN and begin to ash. It is recommended that the
battery be charged to at least 80% capacity before use.

8
Charging A Battery (continued)
7. The charge status LED will illuminate GREEN with no ashing when the
battery is fully charged.
8. After removing a fully charged battery, the charge status LED will
illuminate ORANGE for a few seconds. Allow the charge status LED to
go off before placing another battery in the charging pod.
9. The charger is designed to charge batteries with a temperature
monitoring circuit when the battery temperature is between 0°C and
45°C (32° F – 113° F); batteries outside this temperature will not be
charged. The ambient temperature should be 5°C - 40°C (41° F - 104°
F) while charging a battery.

9
Fault Conditions & Advisements
When the charge status LED ashes RED, a fault condition exists. A fault
condition requires immediate attention. When the status LED is solid or
ashes ORANGE, you are receiving an advisement about the battery.
The ash patterns for fault conditions are as follows:
LED Pattern Fault Description
Flashes RED
1 Time
Indicates (A) low voltage battery failure or (B) battery has a short circuit. If
(A), the battery’s voltage is below the minimum level required and cannot
be charged. If (B), the battery is defective and should be recycled. This
warning is provided after the pre-charge stage is completed.
Flashes RED
2 Times
Indicates battery contact is “open” and current is not passing through the
(+) and (-) contacts on the battery. This warning is provided after the initial
diagnostic stage is complete. Check charging pod to conrm compatibility
with battery.

10
Fault Conditions & Advisements (continued)
The ash patterns for advisements are as follows:
LED Pattern Fault Description
Flashes RED
3 Times
Battery temperature is 45°C (113° F) or above. Charging has terminated,
remove battery from charger. Have battery checked by a qualied
technician.
LED Pattern Advisement
Solid ORANGE
(Battery removed.)
Brief reset period for charger after battery is removed. Allow the LED to go
off before inserting another battery.

11
Solid ORANGE
(Battery inserted.)
Indicates (A) battery is too cold or (B) charger is performing a
temperature diagnostic when the battery is inserted. If (A), the battery
temperature is 0°C (32° F) or below and charging is delayed for up to
two hours. Battery is monitored and charging resumes once it is above
freezing. Monitoring terminates if the battery temperature remains
below freezing for two hours. Remove battery and reinsert once battery
reaches room temperature. If (B), battery type requires additional time
to determine its temperature. This is generally completed within a few
minutes after insertion.
Flashes ORANGE
1 Time
Battery temperature remains at 0°C (32° F) or below after two hours of
monitoring. Remove battery from charger and allow it to warm.
Flashes ORANGE
2 Times
Indicates charging complete, but battery is under charged. Battery
voltage is below minimum level required. This warning is provided
after the rapid charging stage is complete.
Fault Conditions & Advisements (continued)
LED Pattern Advisement

12
Warranty And Service During Warranty
The Waveband single unit charger is made from high quality materials and designed to provide
years of reliable service. The following warranty applies:
Waveband warrants this product to be free from defects in workmanship and materials for one-
year from date of purchase by the end user. This warranty applies to the original purchaser
and is void if the product has been altered, misused, damaged, neglected, or if repair is
required because of normal wear and tear. This is the only warranty made by Waveband. In no
event will Waveband, its afliates, subsidiaries, related entities, or their respective directors,
ofcers, or employees, be liable for any damages beyond repair or replacement as described
above, including without limitation, indirect, incidental, or consequential damages. For
service under warranty, return the product along with dated proof of purchase to Waveband
Communications, 1912 Liberty Road, Unit 14, Eldersburg, MD 21784.
For your protection, we recommend you obtain proof of delivery for your shipment.Include
with your product, dated proof of purchase, your name and daytime telephone number, and
return address.

13
Specifications
Dimensions (W x L x H)
Weight
Compatible Chemistries
Ambient Operating Temperature
Power Supply
Charger Input
Charge Rate
Approvals
Specications subject to change without notice.
(A) Complies with FCC Rules, Part 15, Subpart B, Class B 2016, ANSI C63.4:2014. (B) Complies with California Energy
Commission CEC-400-2011-005. (C) Complies with U.S. Department of Energy 10 CFR, Part 430, PC3 and 4.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
96 x 131 x 77 mm / 3.8 x 5.2 x 3.0 inches
0.25 kg / 0.55 lbs. (charger only)
Li-Ion / LiPo / NiMH / NiCd (based on pod selected)
5° C - 40° C / 41° F - 104° F
Input 100V – 240V AC / 50 Hz – 60 Hz / 0.5A
12V-24V DC / 1.0A (minimum)
900 mA (10.6V-13.5V)
FCCA/ BCB/ DOEC/ CE

14
Part Number Description Information
PS-SSDCH Power supply.
(Included with charger.)
UL listed. Input: 100-240V, 50-60Hz,
0.5A. Output: 15.0V, 1.0A.
PS-SSCC Vehicle power adapter.
(For in-vehicle use.)
Length: 20.0” (cord relaxed).
Replaceable fuse, 2A.
PA-SSCC Heavy duty vehicle power adapter.
(For in-vehicle use.)
Length: 24.0” (cord relaxed).
Replaceable fuse, 6A.
HWKIT-6SCharger
Hardwire kit for in-vehicle
installation.
(For in-vehicle use.)
Length: 13.0’. Components and
cable rated to 15A.
SSCHGMTGBRAC Mounting bracket.
(For in-vehicle use.)
Dimensions: 4.6” x 3.9” x 2.8” (L x
W x H).
Accessories
