USER MANUAL
Six Unit Rapid Charger (V2)

Waveband Six-Unit Charger (V2)
Table of Contents
PageTopic
Introduction
Important (read before use)
Caution (read before use)
Charger Features
Replacing A Charging Pod
Charging A Battery
Fault Conditions & Advisements
Warranty And Service
Specications
Accessories
1
2
3
5
7
8
10
12
13
14

1
Introduction
Thank you for purchasing a Waveband six-unit charger (V2). This model is for desktop
use, but may also be installed in a vehicle with available accessories.
The charger is designed for charging two-way radio batteries whether on or off
a radio. Based on the charging pod installed, it can rapid charge these battery
chemistries: lithium ion (Li-Ion), lithium polymer (LiPo), nickel-metal hydride (NiMH),
or nickel cadmium (NiCd).
If you wish to replace the charging pod in the future, check with Waveband customer
service to ensure the replacement pod selected is compatible with your model. For a
complete list of charging pods available, call toll free 800-806-1076 .

2
Important
1. Read all Caution statements below and this User Manual before attempting to
charge a battery.
2. Check to make sure a charging pod compatible with your battery is properly
installed before charging a battery or installing the charger in a vehicle.
3. Always charge new batteries completely before initial use. Recycle batteries
when they can no longer be used. Do not discard unwanted batteries in the trash
or incinerate. Batteries exposed to re or excessive heat may explode.
4. For best battery performance, charge NiCd and NiMH batteries when they are
fully discharged.

3
Caution
1. Based on the pod selected, the charger may be used with Li-Ion / LiPo and NiMH /
NiCd batteries. If the pod is marked for Li-Ion / LiPo only, do not attempt to charge
NiMH / NiCd batteries. If the pod is marked for NiMH / NiCd only, do not attempt
to charge Li- Ion / LiPo batteries. Do not charge batteries with other chemistries
or batteries that do not have overcharge protection.
2. Use charger in areas protected from the weather. Do not expose the charger to
rain, any liquids, or excessive moisture.
3. Do not attempt to charge a battery without rst installing the appropriate charging
pod. Use only charging pods designed for this Waveband charger. Disconnect
charger from the power source before installing, adjusting, or removing the
charging pod.
4. Make sure contacts in charging pod and on the battery are clean. Do not allow
wire or metal objects to touch contacts in charging pod or any internal part of the
charger.

4
Caution (continued)
5. Do not remove the charger’s housing or make any modication to the charger.
6. Use only the power supply or DC power accessories specied for this Waveband
charger. If a replacement is required, see section Accessories. Use of other
power supplies or DC power accessories may damage the charger or batteries
you may be attempting to charge.
CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER. NO USER SERVICEABLE PARTS ARE INSIDE. REFER ANY SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within the triangle is a warning sign
alerting you of important instructions accompanying the product.
RISK OF ELECTRIC SHOCK
DO NOT OPEN

5

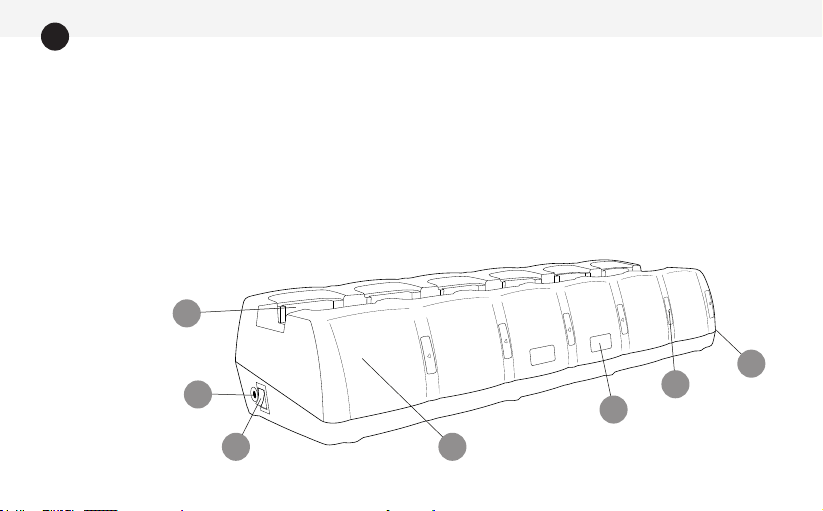

Charger Features
1. Power on / off switch.
2. DC power connection port – for AC
to DC power supply or vehicle power
adapter.
3. Removable charging pod – shown for
one position only.
4. DC power connection port - for hardwire kit.
5. Charge status LED – shown for one position
only.
6. Status LED information – also see bottom
label.
7. Charger base.
3
26
5
7
4
1

6
10 89
Charger Features (continued)
8. AC to DC power supply.
9. DC power plug – connects to charger.
10. Power cord to connect power supply to AC outlet.

7
Replacing A Charging Pod
The charging pod is made from quality materials and designed to provide years of
service when properly used. In most cases, the charging pod will only be replaced
when you want to use the charger with a different battery.
Follow these steps to change the charging pod:
1. Obtain a charging pod made specically for this Waveband charger. Conrm that
the charging pod is compatible with the battery you want to charge.
2. Unplug the charger from its power source.
3. The charging pod is secured to the base with a single screw. To remove, turn the
locking screw on the bottom of the charging pod counter-clockwise until it no
longer holds the pod. Lift the charging pod from the charging base.
4. Insert the replacement charging pod into the charger base and secure with the
locking screw. Do not over tighten the screw.
5. Inspect the charging contacts to ensure they are clean and unobstructed.
6. Connect the power supply or vehicle power adapter to the charger. You are now
ready to charge a battery compatible with the charging pod.

8
Charging A Battery
1. Conrm that the charging pod and battery are compatible.
2. Connect the charger to power with the power supply included.
3. Place the battery to be charged in the charging pod. The battery may also be
charged while attached to the radio.
4. When a battery is placed in the charging pod and while charging, the status LED
will illuminate RED with no ashing to indicate normal charging.
5. If the status LED is red and ashes, a fault has been detected. The ash pattern
represents a specic fault condition. If the status LED is orange (solid or ashing),
an advisement is being provided. See section Fault Conditions & Advisements for
details.
6. When the battery is charged to 80% of capacity, the status LED will change to
GREEN and begin to ash. It is recommended that the battery be charged to at
least 80% capacity before use.
7. The charge status LED will illuminate GREEN with no ashing when the battery
is fully charged.

9
Charging A Battery (Continued)
8. After removing a fully charged battery, the charge status LED will illuminate
ORANGE for a few seconds. Allow the charge status LED to go off before placing
another battery in the charging pod.
9. The ambient temperature should be 5°C - 40°C (41° F - 104° F) while charging a
battery. To prevent battery damage, charge a battery when it is above freezing
(0°C / 32°F) and when not excessively warm to the touch (below 45°C / 113°F).

10
Fault Conditions & Advisements
Flashes RED
1 Time
Indicates (A) low voltage battery failure or (B) battery has a short circuit. If (A), the
battery’s voltage is below the minimum level required and cannot be charged. If
(B), the battery is defective and should be recycled. This warning is provided after
the pre-charge stage is completed.
LED Pattern Fault Description
When the charge status LED ashes RED, a fault condition exists. A fault condition
requires immediate attention. When the status LED is solid or ashes ORANGE, you
are receiving an advisement about the battery.
The ash patterns for fault conditions are as follows:
Flashes RED
2 Times
Indicates battery contact is “open” and current is not passing through the (+) and
(-) contacts on the battery. This warning is provided after the initial diagnostic
stage is complete. Check charging pod to conrm compatibility with battery.

11
Fault Conditions & Advisements (continued)
LED Pattern Advisement
The ash patterns for advisements are as follows:
Solid ORANGE
(Battery removed.)
Brief reset period for charger after battery is removed. Allow the LED to go off
before inserting another battery.
Flashes ORANGE
2 Times
Indicates charging complete, but battery is under charged. Battery voltage is
below minimum level required. This warning is provided after the rapid charging
stage is complete.

12
Warranty And Service During Warranty
The Waveband six-unit charger is made from high quality materials and designed to provide years of
reliable service. The following warranty applies:
Waveband warrants this product to be free from defects in workmanship and materials for one-year from
date of purchase by the end user. This warranty applies to the original purchaser and is void if the product
has been altered, misused, damaged, neglected, or if repair is required because of normal wear and tear.
This is the only warranty made by Waveband. In no event will Waveband, its afliates, subsidiaries, related
entities, or their respective directors, ofcers, or employees, be liable for any damages beyond repair
or replacement as described above, including without limitation, indirect, incidental, or consequential
damages. For service under warranty, return the product along with dated proof of purchase to Waveband
Communications, 1912 Liberty Road, Unit 14, Eldersburg, MD 21784.
For your protection, we recommend you obtain proof of delivery for your shipment. Include with your
product, dated proof of purchase, your name and daytime telephone number, and return address.

13
Specifications
Dimensions (W x L x H)
Weight
Compatible Chemistries
Ambient Operating Temperature
Power Supply
Charger Input
Charge Rate
Approvals
Specications subject to change without notice.
(A) Complies with FCC Rules, Part 15, Subpart B, Class B 2016, ANSI C63.4:2014. (B) Complies with California Energy
Commission CEC-400-2011-005. (C) Complies with U.S. Department of Energy 10 CFR, Part 430, PC3 and 4.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
509 x 148 x 91 mm / 20.0 x 5.8 x 3.6 inches
1.4 kg / 3.1 lbs. (charger only)
Li-Ion / LiPo / NiMH / NiCd (based on pod selected)
5° C - 40° C / 41° F - 104° F
100V – 240V AC / 50 Hz – 60 Hz / 2.0A
12V-24V DC / 4.8A (minimum)
700 mA (10.6V-13.5V)
FCCA/ BCB/ DOEC /CE

14
Part Number Description Information
WV-6SC-PS Power supply.
(Included with charger.)
UL listed. Input: 100-240V,
50-60 Hz, 2.0A. Output: 15.0V, 6.0A.
WV-6SC-PC
Power cord to connect WV-6SC-PS
to AC power.
Length 5.0’. U.S. type plug.
PA-SSCC Heavy duty vehicle power adapter.
(For in-vehicle use.)
Length: 24.0” (cord relaxed).
Replaceable fuse, 6A.
HWKIT-6SCharger Hardwire kit for in-vehicle
installation.
Length: 13.0’. Components
and cable rated to 15A.
WV-6SC-MB Mounting bracket.
(For wall mounting or in-vehicle use.)
Dimensions: 20.2” x 6.6” x
3.9” (W x L x H).
Accessories

1912 Liberty Road Road • Unit 14 • Eldersburg, MD 21784
www.wvbandcoms.com
