WAVES
Eddie Kramer Guitar Channel
User Guide

Waves Eddie Kramer Guitar Channel User Guide
- 2 -
TABLE OF CONTENTS
CHAPTER 1 – INTRODUCTION ......................................................................................3
1.1 WELCOME.................................................................................................................3
1.2 PRODUCT OVERVIEW.................................................................................................3
1.3 CONCEPTS AND TERMINOLOGY..................................................................................3
1.4 AFEW WORDS FROM EDDIE KRAMER ........................................................................4
1.5 COMPONENTS ...........................................................................................................4
CHAPTER 2 – QUICKSTART GUIDE..............................................................................5
CHAPTER 3 – INTERFACE AND CONTROLS ...............................................................6
3.1 INTERFACE................................................................................................................6
3.2 CONTROLS................................................................................................................7
3.3WAVESYSTEM TOOLBAR............................................................................................17

Waves Eddie Kramer Guitar Channel User Guide
- 3 -
Chapter 1 – Introduction
1.1 Welcome
Thank you for choosing Waves! In order to get the most out of your new Waves plugin,
please take a moment to read this user guide.
To install software and manage your licenses, you need to have a free Waves account.
Sign up at www.waves.com. With a Waves account you can keep track of your
products, renew your Waves Update Plan, participate in bonus programs, and keep up
to date with important information.
We suggest that you become familiar with the Waves Support pages:
www.waves.com/support. There are technical articles about installation,
troubleshooting, specifications, and more. Plus, you’ll find company contact information
and Waves Support news.
1.2 Product Overview
The Waves Signature Series is our exclusive line of application-specific audio
processors, created in collaboration with the world’s top producers, engineers, and
mixing engineers. Every Signature Series plug-in has been precision-crafted to capture
the artist’s distinct sound and production style. For experienced and aspiring audio
professionals alike, the Waves Signature Series allows you to dial up the sound you’re
looking for quickly, without interrupting the creative flow.
The Eddie Kramer Collection consists of 5 plug-ins, each designed to handle a specific
production task.
Vocals: Eddie Kramer Vocal Channel (EKramer VC)
Drums: Eddie Kramer Drum Channel (EKramer DR)
Bass: Eddie Kramer Bass Channel (EKramer BA)
Guitars: Eddie Kramer Guitar Channel (EKramer GT)
Effects:Eddie Kramer Effects Channel (EKramer FX)
1.3 Concepts and Terminology
Sensitivity Control/Sensitivity LED
The Sensitivity LED’s colors indicate when appropriate levels are reached:
Green (good)
Yellow (optimal)
Red (very hot)
If the LED is off during playback, your input signal is too low. Move the Sensitivity
Control clockwise until the LED lights up. We recommend adjusting the Sensitivity
Control as soon as you open the plug-in, using the section of your song with the highest
peaks for best results.

Waves Eddie Kramer Guitar Channel User Guide
- 4 -
In most cases, the Sensitivity LED indicates that your levels hit the processor in a way
that will give you the intended output result. However, it’s important to keep in mind that
optimal results may be achieved even when the Sensitivity LED does not display
“optimal” levels (yellow). Depending on your program material, “good” levels (green)
might be best-suited to your needs; in other cases, “very hot” levels (red) might provide
the most appropriate processing.
Often, changing other controls after adjusting the Sensitivity will cause the Sensitivity
LED to turn red. When this occurs, re-adjustment of either the Sensitivity control or the
other control will be necessary. As always, trust your ears.
Type
Each plug-in includes a number of application Types which address a range of source
materials.
FX
FX controls the amount of the signal sent to the effect. Think of it like the Send control
on any DAW.
1.4 A Few Words from Eddie Kramer
"The Guitar Channel plug-in features settings for lead guitars and two types of rhythm
guitars. When it comes to lead guitar, I want it to become a living, breathing organism,
creating a palpable sense of excitement within in the mix. By combining the right
amounts of EQ, compression, delay, reverb, and a touch of flange, these 5 elements,
working together, make it come alive. For rhythm guitar, I try to get it “in your face” as
much as possible, without over-processing the sound with EQ. By adjusting the amount
of compression, and not overdoing the amount of space, I make sure that the guitar
stays up front, where it belongs."
1.5 Components
WaveShell technology enables us to split Waves processors into smaller plug-ins, which
we call components. Having a choice of components for a particular processor gives
you the flexibility to choose the configuration best suited to your material.
The Waves Eddie Kramer Guitar Channel has two components:
•EKramer GT m>s – Mono in to Stereo out component
•EKramer GT stereo – Stereo in to Stereo out component

Waves Eddie Kramer Guitar Channel User Guide
- 5 -

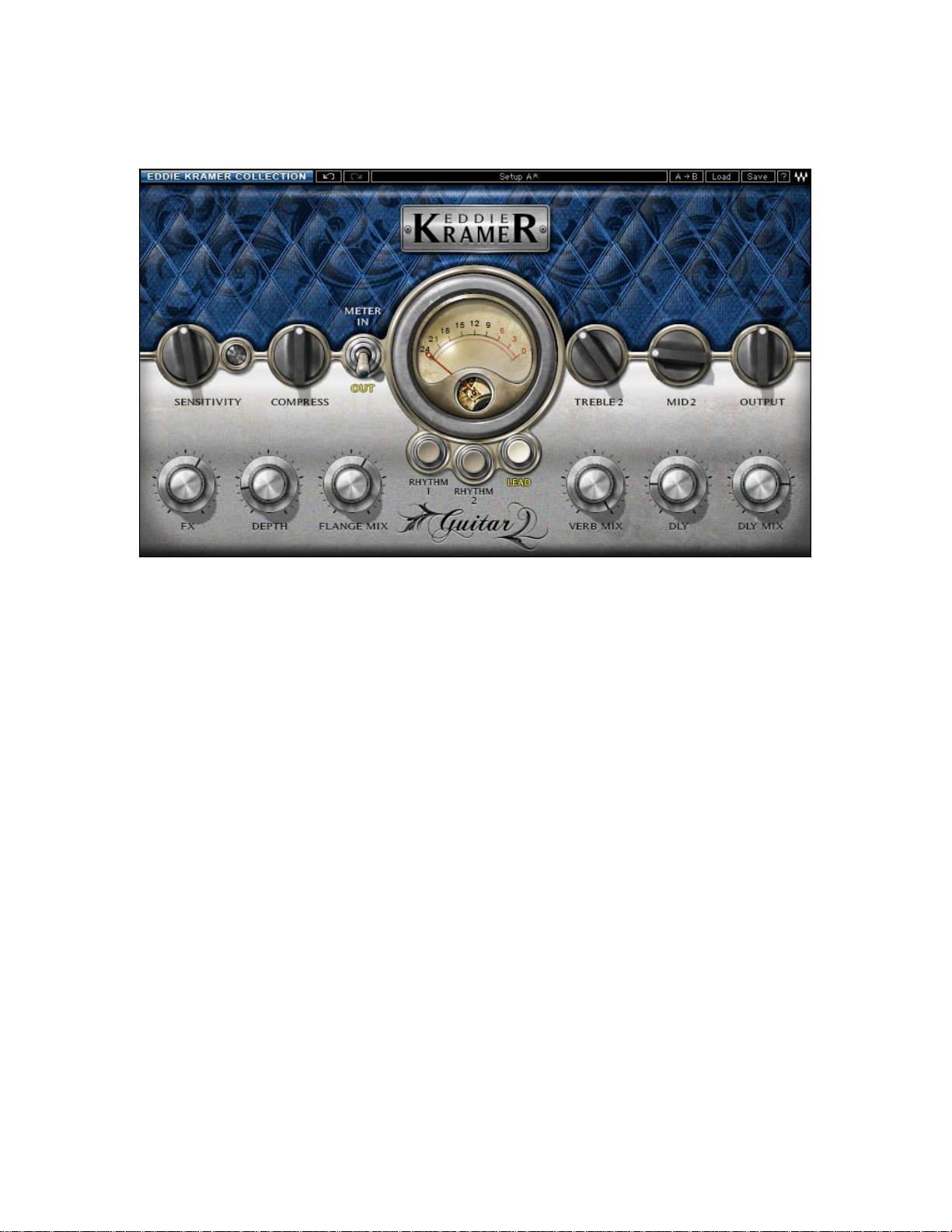

Chapter 2 – Quickstart Guide
•Insert the EKramer GT plug-in on a guitar track.
•Toggle between the different guitar types selecting lead for lead guitars and
Rhythm1 or 2 for rhythm guitars.
•Adjust the Sensitivity control until you achieve proper levels, as indicated by the
Sensitivity LED.
•Adjust the FX control.
•Shape tonality and dynamics using the Mid, Treble, and Compress controls.
•After setting all parameters, check to make sure the Sensitivity LED indicates
proper levels. If it indicates excessive levels, make the necessary adjustments.

Waves Eddie Kramer Guitar Channel User Guide
- 6 -
Chapter 3 – Interface and Controls

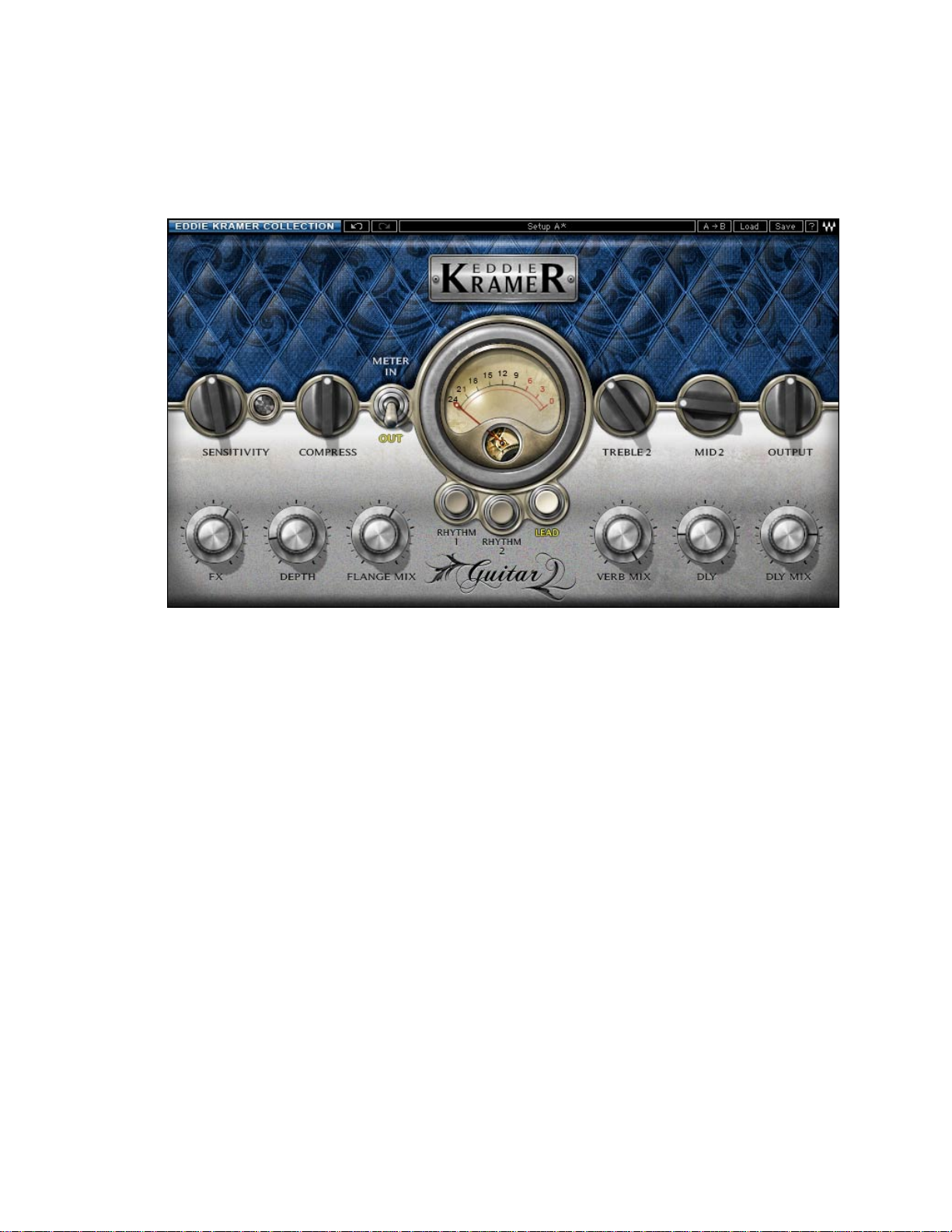

3.1 Interface

Waves Eddie Kramer Guitar Channel User Guide
- 7 -
3.2 Controls
TYPE toggles between the 3 guitar types.
Range: Rhythm1, Rhythm2, Lead
Please note: Changing Types will reset all controls to their initial values.
METER Switch toggles meter display between input and output levels.
Default: Output
METER displays input or output levels.
Range: -24dBFS – 0dBFS

Waves Eddie Kramer Guitar Channel User Guide
- 8 -
Rhythm 1
SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 50
TREBLE 1 controls high frequencies.
Range: 1 - 5 (in steps of 1)
Default: 2

Waves Eddie Kramer Guitar Channel User Guide
- 9 -

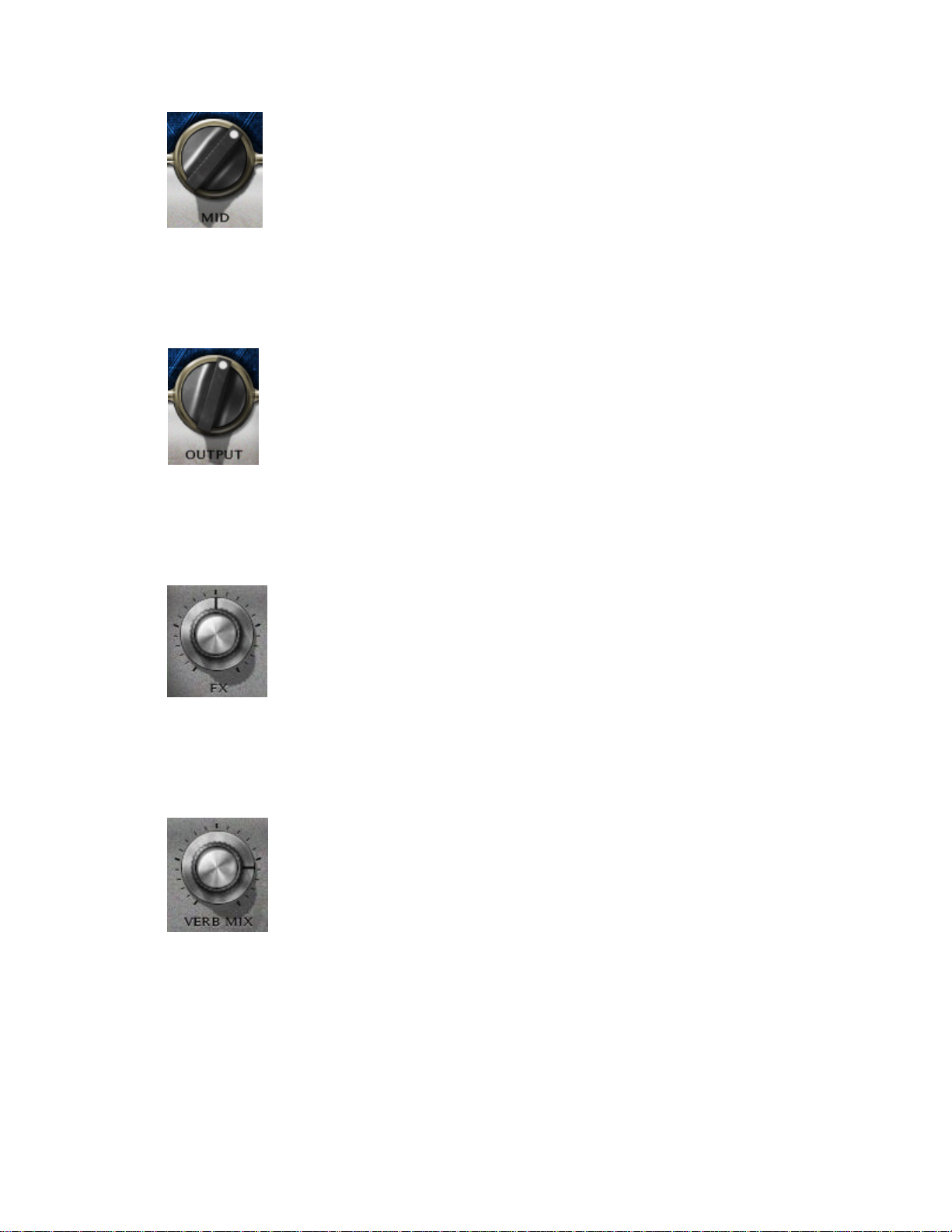

MID 1controls midrange frequencies.
Range: 1 - 5 (in steps of 1)
Default: 2
OUTPUT controls the output level.
Range: +/- 50
Default: 0
FX controls the amount of signal sent to the effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: 50
VERB MIX controls the relative level of the reverb.
Range: Min (0) - Max (100), in 0.1 steps
Default: 80

Waves Eddie Kramer Guitar Channel User Guide
- 10 -

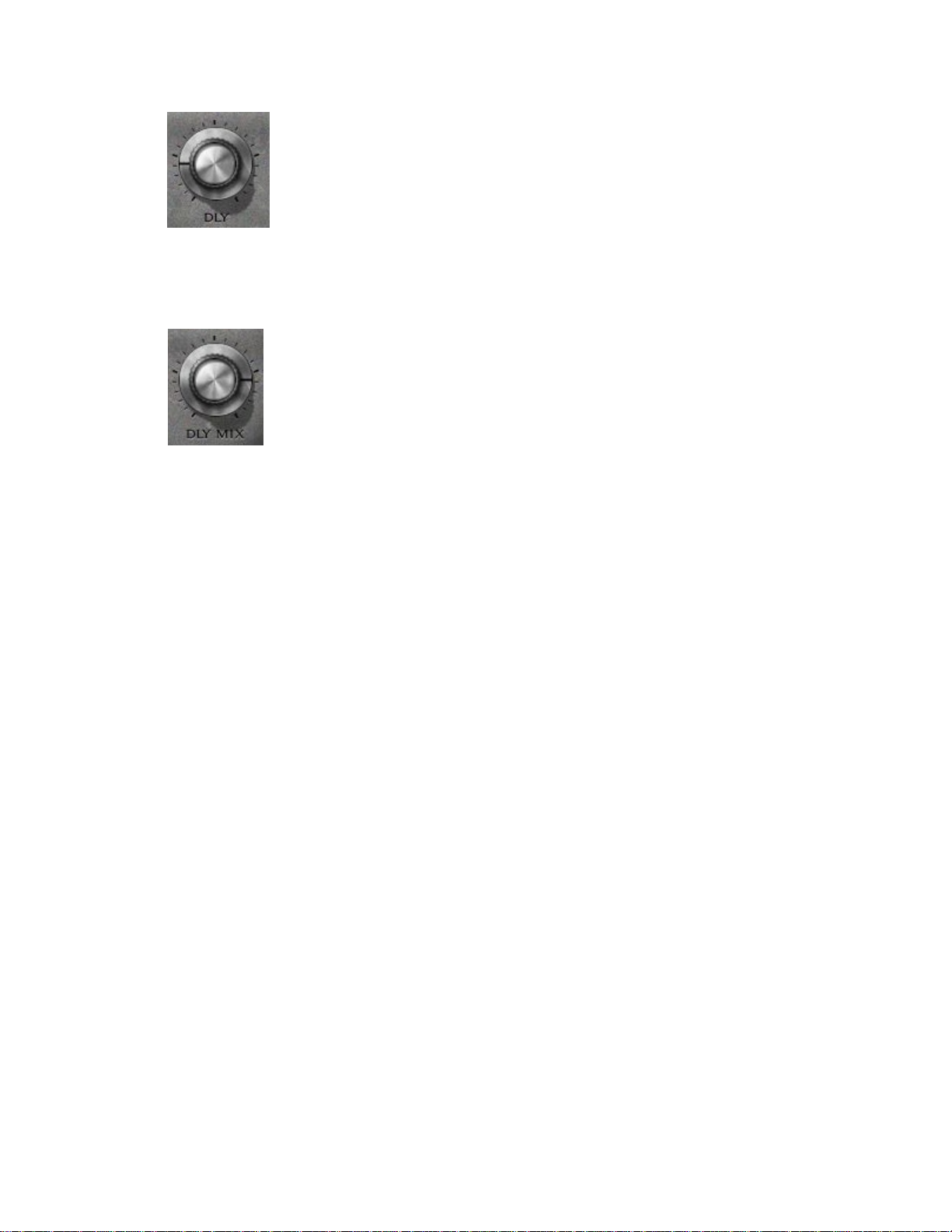

DLY controls delay characteristics.
Range: 50 – 500 (in steps of 1)
Default: 138
DLY MIX controls the amount of audible delay.
Range: Min (0) - Max (100), in 0.1 steps
Default: 80

Waves Eddie Kramer Guitar Channel User Guide
- 11 -
Rhythm 2
SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 32.7
TREBLE 2 controls high frequency range.
Range: Min (0) - Max (100), in 0.1 steps
Default: 33.3

Waves Eddie Kramer Guitar Channel User Guide
- 12 -
MID 2controls midrange frequencies.
Range: Min (0) - Max (100), in 0.1 steps
Default: 22.2
OUTPUT controls the output level.
Range: +/- 50
Default: 0
FX controls the amount of signal sent to the effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: 50
VERB MIX controls the amount of reverb sent to the effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: 80

Waves Eddie Kramer Guitar Channel User Guide
- 13 -
DLY controls delay characteristics.
Range: 50-500 (in steps of 1)
Default: 138
DLY MIX controls the amount of audible delay.
Range: Min (0) - Max (100), in 0.1 steps
Default: 80

Waves Eddie Kramer Guitar Channel User Guide
- 14 -
Lead
SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: -4.2
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 50
TREBLE 2 controls high frequencies.
Range: Min (0) - Max (100), in 0.1 steps
Default: 38.9

Waves Eddie Kramer Guitar Channel User Guide
- 15 -
MID 2 controls midrange frequencies
Range: Min (0) - Max (100), in 0.1 steps
Default: 22.2
OUTPUT controls the output level.
Range: +/- 50
Default: 0
FX controls the amount of signal sent to the effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: 60.5
DEPTH controls the depth of the flange effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: 16.2

Waves Eddie Kramer Guitar Channel User Guide
- 16 -
FLANGE MIX controls mix of flange effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: 59.3
VERB MIX controls amount of reverb sent to the effect.
Range: Min (0) - Max (100), in 0.1 steps
Default: Max (100)
DLY controls delay characteristics.
Range: 50-500 (in steps of 1)
Default: 138
DLY MIX controls the amount of audible delay.
Range: Min (0) - Max (100), in 0.1 steps
Default: 80

Waves Eddie Kramer Guitar Channel User Guide
- 17 -
3.3WaveSystem Toolbar
Use the bar at the top of the plugin to save and load presets, compare settings,
undo and redo steps, and resize the plugin. To learn more, click the icon at the
upper-right corner of the window and open the WaveSystem Guide.
