Williams Sound IR+ User manual

IR +
Infrared and Wi-Fi Assistive Listening System
USER MANUAL
MAN 273A

2
IR Plus Assistive Listening System
Table of Contents
Safety Warnings and Instructions �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4
Avertissements et instructions de sécurité �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4
Recycling Instructions ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6
System Overview ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6
Wi-Fi Network Required �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6
Router and Network Equipment Selection ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6
Quick Setup Guide ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7
Modulator Front and Back Panel ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 7
Front Panel �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7
Back Panel ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������8
Additional Devices ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9
Device Types ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9
Wiring and Cabling �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9

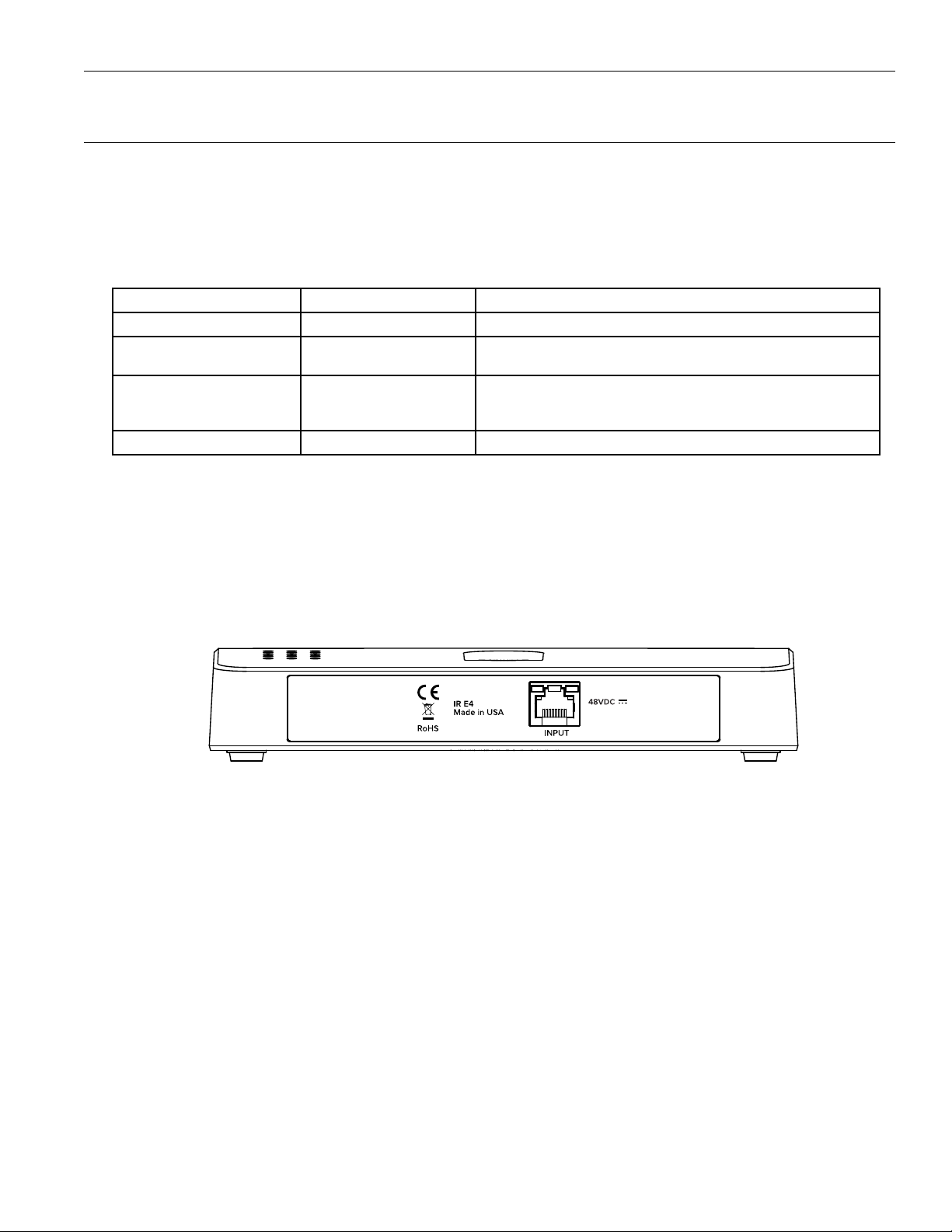

IR E4 ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������9
Installation Instructions �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������10
Determine Coverage Area ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������10
Determine Location ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11
Network Cable Connection ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11
Cable Connection to Emitters ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������11

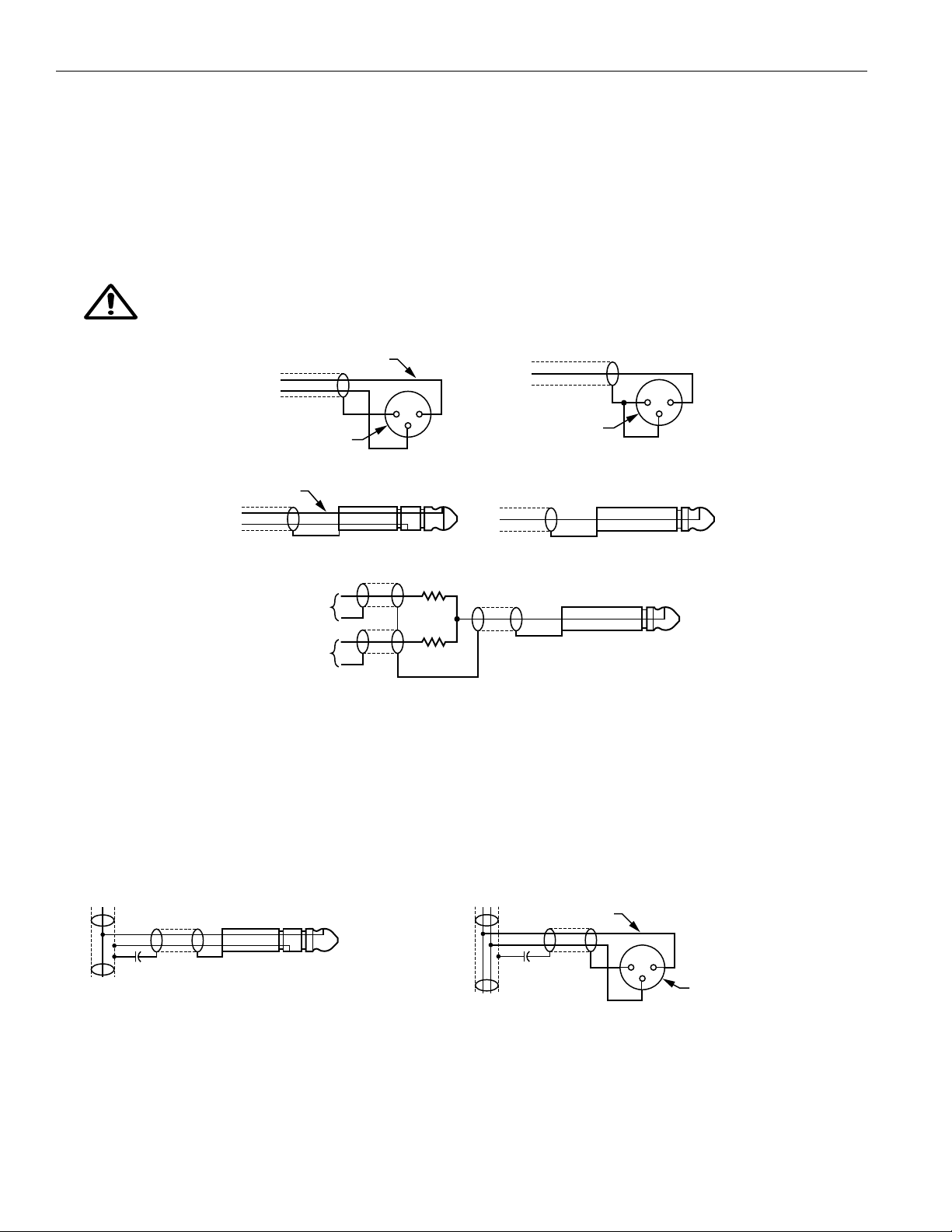

Audio Source Connections �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������12
Multi-Channel Sources ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������12
Avoiding Hum in the Audio (as a Result of a Ground Loop) ���������������������������������������������������������������������������������������������������������������������������������� 12
System Settings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 13
Audio Settings ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 13
Server Description ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14
Audio Channel Name ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14
IR Baseband Output ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14
Network Configuration �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14
Restore Defaults �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 15

3
IR Plus Assistive Listening System
Web Control Interface �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������15
Login Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������15

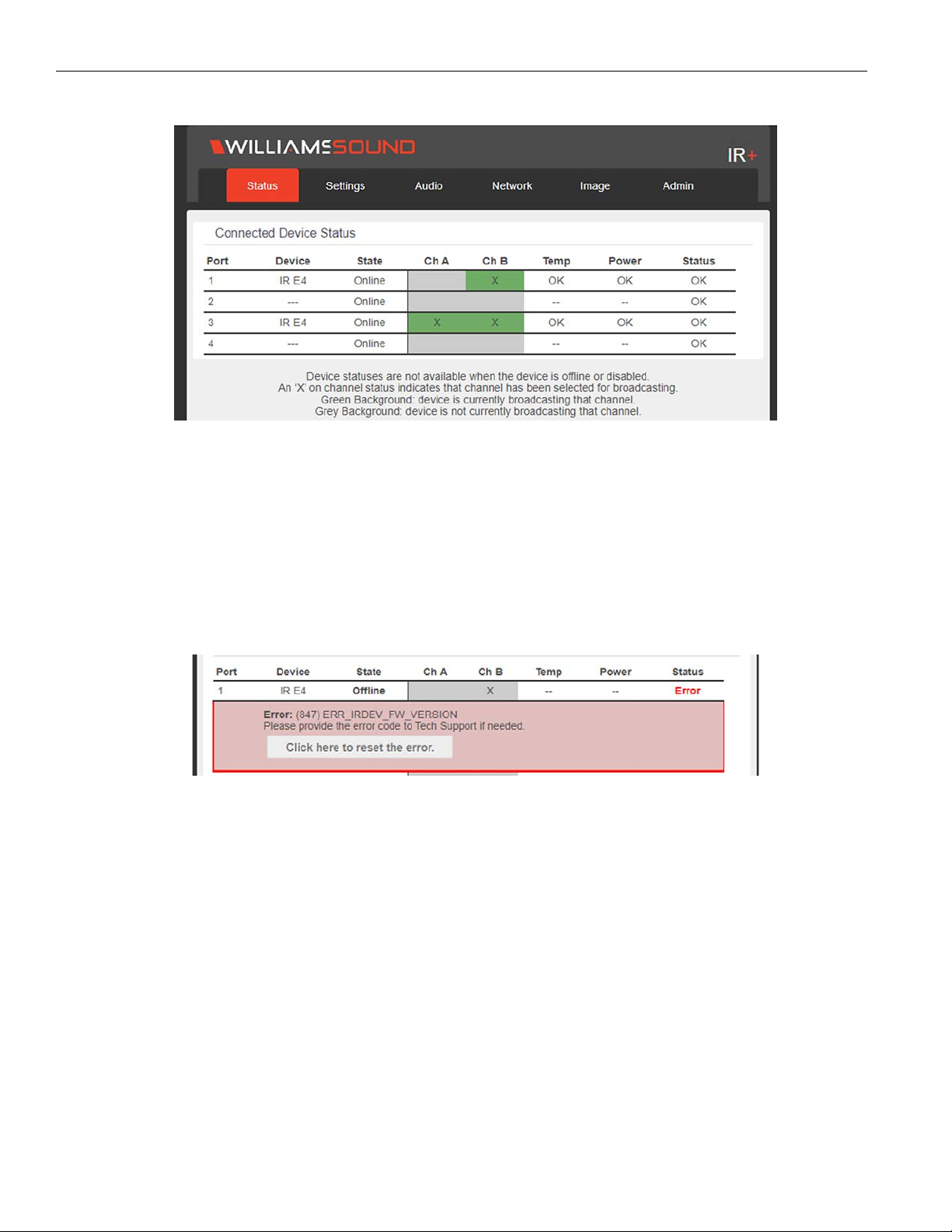

Status Page ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������16

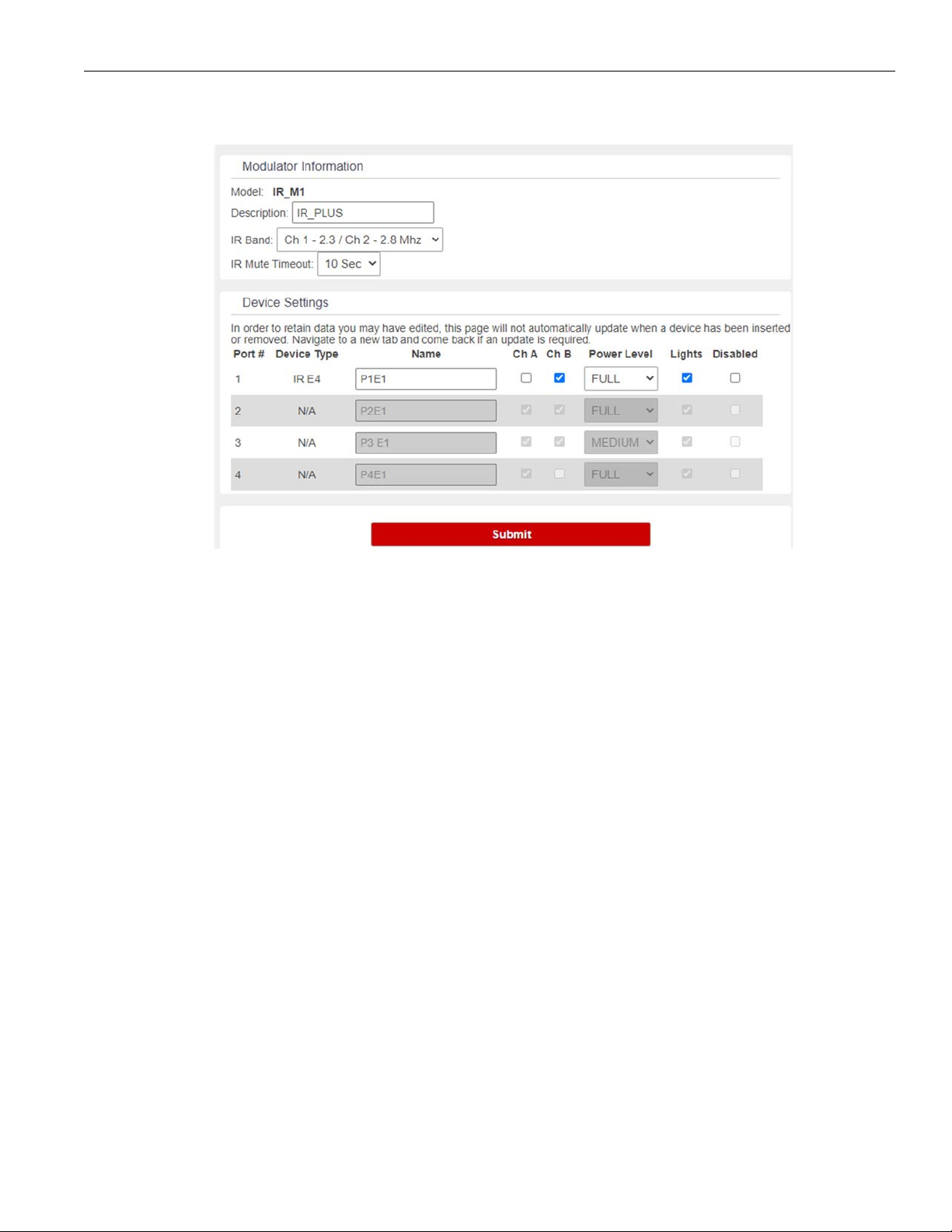

Settings Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 17
Audio Page ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 18
Upload Image �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������19
Network Page ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 20
Administration Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������21
Front Panel Interface �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 22
Main Menu ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 22
Restoring Defaults ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23
Audio Channel Menu ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23
Port Menu �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23
Device Detail Page �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23
Locking the Front Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23
WaveCAST App ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 24
Connect to Wi-Fi Network ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24
Connecting the App to the Channel ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24
Listening via the App ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24
Note on Wi-Fi Assist/Smart Network Switching �������������������������������������������������������������������������������������������������������������������������������������������������������� 24
Troubleshooting ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24
Specifications ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 28
Mounting Options �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 29
Optional Receivers �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 29
Regulatory Statements ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 29
FCC �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 29
ISED ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 29
VCCI ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 29
IR M1: 2-Year Warranty Statement �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 30
IR E4: 2-Year Warranty Statement ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 31

4
IR Plus Assistive Listening System
Safety Warnings and Instruc-
tions
WARNING! TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION! TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
POWER CORD NOTICE FOR INTERNATIONAL
OPERATION - Please call Williams AV Customer Service
at 800.328.6190 to order the appropriate power cord for
the country of use.
Important Safety Instructions:
1. Read and follow these instructions
2. Keep these instructions
3. Clean only with dry cloth.
4. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
appliance (including amplifiers) that produce heat.
6. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong is
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
7. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the appliance.
8. Only use attachments/accessories specified by
the manufacturer.
9. Unplug this appliance during lightning storms or
when unused for long periods of time.
10. Power Sources - The appliance should be
connected to a power supply only of the type
described in the operating instructions or as
marked on the appliance.
11. Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled
into the enclosure through the openings. Do not
use this appliance near water or expose it to
liquids.
12. Servicing - The user should not attempt to service
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
Precautions:
1. Power – WARNING, BEFORE TURNING ON THE POWER
FOR THE FIRST TIME, READ THE FOLLOWING SECTION
CAREFULLY. The unit is designed for use only with the
line cord of the region in which it will be operated.
2. Voltage Label (Rear Panel) – A label located at the rear
panel power connection indicates the DC power input for
the unit. The label will read 48VDC.
3. Do Not Plug in the input, output, Ethernet, or Dante
connections while the power switch is switched to the
ON position.
4. Do Not Touch the IR M1 with wet hands. Do not handle the
IR M1 or power cord when your hands are wet or damp. If
water or any other liquid enters the IR M1 cabinet, take the
IR M1 to qualified service personnel for inspection.
5. Place the IR M1 in a well ventilated location. Take special
care to provide plenty of ventilation on all sides of the
IR M1 especially when it is placed in an audio rack. If
ventilation is blocked, the IR M1 may over heat and
malfunction. Do not expose the IR M1 to direct sun
light or heating units as the IR M1 internal components
temperature may rise and shorten the life of the
components. Avoid damp and dusty places.
6. Care – From time to time you should wipe o the front
and side panels and the cabinet with a soft cloth. Do not
use rough material, thinners, alcohol or other chemical
solvents or cloths since this may damage the finish or
remove the panel graphics.
Avertissements et instructions de
sécurité
AVERTISSEMENT! POUR RÉDUIRE LES RISQUES
D’INCENDIE OU DE CHOC ÉLECTRIQUE, NE PAS EXPOSER
CET APPAREIL À LA PLUIE OU À L’HUMIDITÉ.
MISE EN GARDE! POUR RÉDUIRE LE RISQUE DE
CHOC ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE.
L’APPAREIL NE CONTIENT AUCUNE PIÈCE RÉPARABLE
PAR L’UTILISATEUR. CONFIER LES RÉPARATIONS À UN
RÉPARATEUR QUALIFIÉ.
AVIS CONCERNANT LE CORDON D’ALIMENTATION
POUR UNE UTILISATION HORS DES ÉTATS-UNIS –
Prière d’appeler le service à la clientèle de Williams AV au
800.328.6190 pour commander le cordon d’alimentation
adapté au pays dans lequel l’appareil va être utilisé.
Consignes de sécurité importantes:
1. Lire ces instructions
2. Conserver ces instructions
3. Nettoyer avec un chion sec uniquement.

5
IR Plus Assistive Listening System
4. Ne pas bloquer les évents de ventilation.
Installer conformément aux instructions du
fabricant.
5. Ne pas installer à proximité de sources
de chaleur telles que radiateurs, registres
de chaleur, cuisinières ou autres appareils (y
compris les amplificateurs) qui produisent de
la chaleur.
6. Ne pas supprimer ou contourner la fonction
de sécurité de la fiche polarisée ou de mise
à la terre. Une fiche polarisée a deux broches
dont l’une est plus large que l’autre. Une fiche
de mise à la terre a deux broches et une
troisième broche de mise à la terre. La lame
large ou la troisième broche est fournie à des
fins de sécurité. Si la fiche fournie ne rentre
pas dans la prise, consulter un électricien pour
le remplacement de la prise obsolète.
7. Protéger le cordon d’alimentation contre tout
piétinement ou pincement, en particulier au
niveau des fiches, des prises de courant et de
l’endroit où il sort de l’appareil.
8. Utiliser uniquement les pièces/accessoires
spécifiés par le fabricant.
9. Débrancher cet appareil pendant les
orages ou lorsqu’il n’est pas utilisé pendant de
longues périodes.
10. Sources d’alimentation - L’appareil doit
être connecté à une alimentation électrique
uniquement du type décrit dans le mode
d’emploi ou tel qu’indiqué sur l’appareil.
11. Pénétration d’objets et de liquides - Des
précautions doivent être prises pour que des
objets ne tombent pas et que des liquides ne
soient pas renversés dans le boîtier par les
ouvertures.
11. Réparation et entretien - L’utilisateur ne doit
pas tenter de réparer l’appareil autrement que
de la manière décrite dans le mode d’emploi.
Toute autre tâche d’entretien ou de réparation
doit être confiée à un technicien qualifié.
Précautions:
1. Alimentation – AVERTISSEMENT: AVANT
DE METTRE L’APPAREIL EN MARCHE POUR LA
PREMIÈRE FOIS, LIRE SOIGNEUSEMENT LA
SECTION QUI SUIT. L’amplificateur est conçu
pour être utilisé uniquement avec un cordon
d’alimentation adaptéà la région dans laquelle
il sera utilisé.
2. Étiquette de tension (panneau arrière) - Une
étiquette située au niveau du raccordement
électrique sur le panneau arrière indique
la puissance consommée CA de appareil.
L’étiquette indiquera 48VDC.
3. Ne pas brancher les connexions
d’entrée, de sortie, Ethernet ou USB lorsque l’interrupteur
d’alimentation est sur la position de marche.
4. Ne pas toucher le IR M1 avec les mains mouillées. Ne
pas manipuler le IR M1 ou le cordon d’alimentation avec
les mains mouillées ou humides. Si de l’eau ou tout autre
liquide pénètre dans l’armoire du IR M1, confier l’appareil à
un technicien qualifié pour inspection.
5. Placer le IR M1 dans un endroit bien ventilé. Veiller tout
particulièrement à assurer une ventilation susante de
tous les côtés du IR M1, en particulier lorsqu’il est placé
dans un rack audio. Si la ventilation est bloquée, le IR M1
peut surchauer et dysfonctionner. Ne pas exposer le IR
M1 à la lumière directe du soleil ou à des appareils de
chauage, car la température des composants internes du
IR M1 pourrait augmenter et réduire la durée de vie des
composants. Éviter les endroits humides et poussiéreux.
6. Entretien - De temps en temps, essuyer les panneaux
avant et latéraux et le boîtier avec un chion doux. Ne
pas utiliser un matériel abrasif, des diluants, de l’alcool
ou d’autres solvants ou chions contenant des produits
chimiques, au risque d’endommager la finition ou d’eacer
les indications fournies sur le panneau.
This manual suits for next models
2
Table of contents
