WAVES
Eddie Kramer Drum Channel
User Guide

Waves Eddie Kramer Drum Channel User Guide
- 2 -
TABLE OF CONTENTS
CHAPTER 1 – INTRODUCTION......................................................................................3
1.1 WELCOME .................................................................................................................3
1.2 PRODUCT OVERVIEW.................................................................................................3
1.3 CONCEPTS AND TERMINOLOGY ..................................................................................3
1.4 A FEW WORDS FROM EDDIE KRAMER ........................................................................4
1.5 COMPONENTS ...........................................................................................................4
CHAPTER 2 – QUICKSTART GUIDE..............................................................................5
CHAPTER 3 – INTERFACE AND CONTROLS ...............................................................6
3.1 INTERFACE ................................................................................................................6
3.2 CONTROLS ................................................................................................................7
3.3 WAVESYSTEM TOOLBAR............................................................................................18

Waves Eddie Kramer Drum Channel User Guide
- 3 -
Chapter 1 – Introduction
1.1 Welcome
Thank you for choosing Waves! In order to get the most out of your new Waves plugin,
please take a moment to read this user guide.
To install software and manage your licenses, you need to have a free Waves account.
Sign up at www.waves.com. With a Waves account you can keep track of your
products, renew your Waves Update Plan, participate in bonus programs, and keep up
to date with important information.
We suggest that you become familiar with the Waves Support pages:
www.waves.com/support. There are technical articles about installation,
troubleshooting, specifications, and more. Plus, you’ll find company contact information
and Waves Support news.
1.2 Product Overview
The Waves Signature Series is our exclusive line of application-specific audio
processors, created in collaboration with the world’s top producers, engineers, and
mixing engineers. Every Signature Series plug-in has been precision-crafted to capture
the artist’s distinct sound and production style. For experienced and aspiring audio
professionals alike, the Waves Signature Series allows you to dial up the sound you’re
looking for quickly, without interrupting the creative flow.
The Eddie Kramer Collection consists of 5 plug-ins, each designed to handle a specific
production task.
Vocals: Eddie Kramer Vocal Channel (EKramer VC)
Drums: Eddie Kramer Drum Channel (EKramer DR)
Bass: Eddie Kramer Bass Channel (EKramer BA)
Guitars: Eddie Kramer Guitar Channel (EKramer GT)
Effects:Eddie Kramer Effects Channel (EKramer FX)
1.3 Concepts and Terminology
Sensitivity Control/Sensitivity LED
The Sensitivity LED’s 3 colors indicate when appropriate levels are reached:
 Green (good)
 Yellow (optimal)
 Red (very hot)

Waves Eddie Kramer Drum Channel User Guide
- 4 -
If the LED is off during playback, your input signal is too low. Move the Sensitivity
Control clockwise until the LED lights up. We recommend adjusting the Sensitivity
Control as soon as you open the plug-in, using the section of your song with the highest
peaks for best results.
In most cases, the Sensitivity LED indicates that your levels hit the processor in a way
that will give you the intended output result. However, it’s important to keep in mind that
optimal results may be achieved even when the Sensitivity LED does not display
“optimal” levels (yellow). Depending on your program material, “good” levels (green)
might be best-suited to your needs; in other cases, “very hot” levels (red) might provide
the most appropriate processing.
Often, changing other controls after adjusting the Sensitivity will cause the Sensitivity
LED to turn red. When this occurs, re-adjustment of either the Sensitivity control or the
other control will be necessary. As always, trust your ears.
Type
Each plug-in includes a number of application Types which address a range of source
materials.
FX
FX controls the amount of the signal sent to the effect. Think of it like the Send control
on any DAW.
1.4 A Few Words from Eddie Kramer
"The Drum Channel plug-in really captures the essence of my drum sounds. Whether
you’re trying to achieve a huge Zep-like sound with loads of atmosphere, or are going for
something more dry and down-to-earth like the Stones, or need a heavily-compressed,
squashed, Hendrix-type sound, this is the plug-in that will get you there, quickly and
easily. Since there are individual modes for bass drums, snares, and so on, you can
really mix things up by creating your own hybrid drum kits, using your favorite elements
from each."
1.5 Components
WaveShell technology enables us to split Waves processors into smaller plug-ins, which
we call components. Having a choice of components for a particular processor gives
you the flexibility to choose the configuration best suited to your material.
The Waves Eddie Kramer Drum Channel two components:
•EKramer DR mono – Mono in to Mono out component
•EKramer DR stereo – Stereo in to Stereo out component

Waves Eddie Kramer Drum Channel User Guide
- 5 -
Chapter 2 – Quickstart Guide
• Insert the EKramer DR plug-in on a drum track.
• Select the desired Drum Type.
• Adjust the Sensitivity control until you achieve proper levels, as indicated by the
Sensitivity LED.
• Adjust the Bass, Treble, Gate, and Compress controls to taste.
• After setting all parameters, check to make sure the Sensitivity LED indicates
proper levels. If it indicates excessive levels, make the necessary adjustments.

Waves Eddie Kramer Drum Channel User Guide
- 6 -
Chapter 3 – Interface and Controls

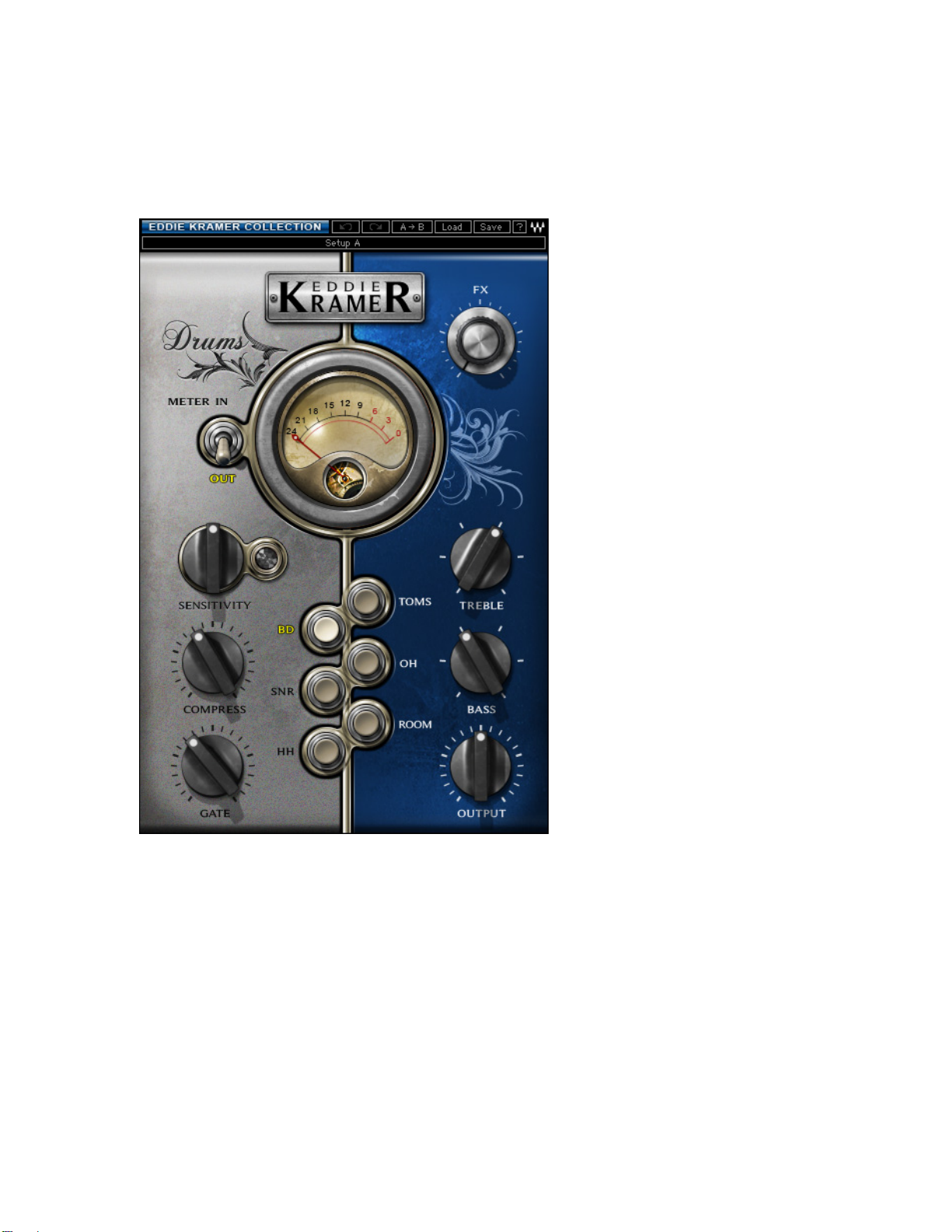

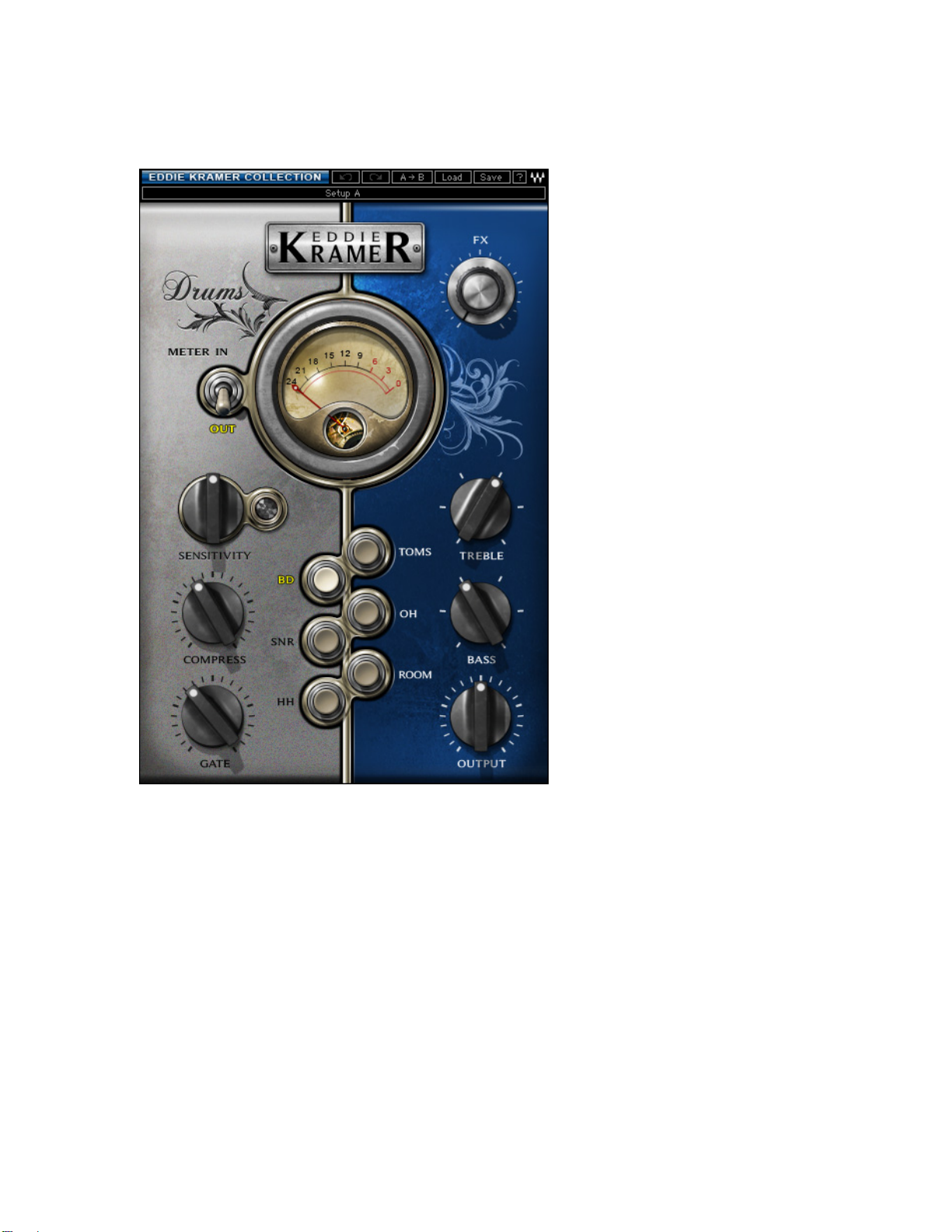

3.1 Interface

Waves Eddie Kramer Drum Channel User Guide
- 7 -
3.2 Controls
TYPE toggles between the 6 drum types.
Range: BD, SNR, HH, Toms, OH, Room
Please note: Changing Types will reset all controls to their initial values.
METER Switch toggles meter display between input and output levels.
Default: Output
METER displays input or output levels.
Range: -24dBFS – 0dBFS

Waves Eddie Kramer Drum Channel User Guide
- 8 -
BD

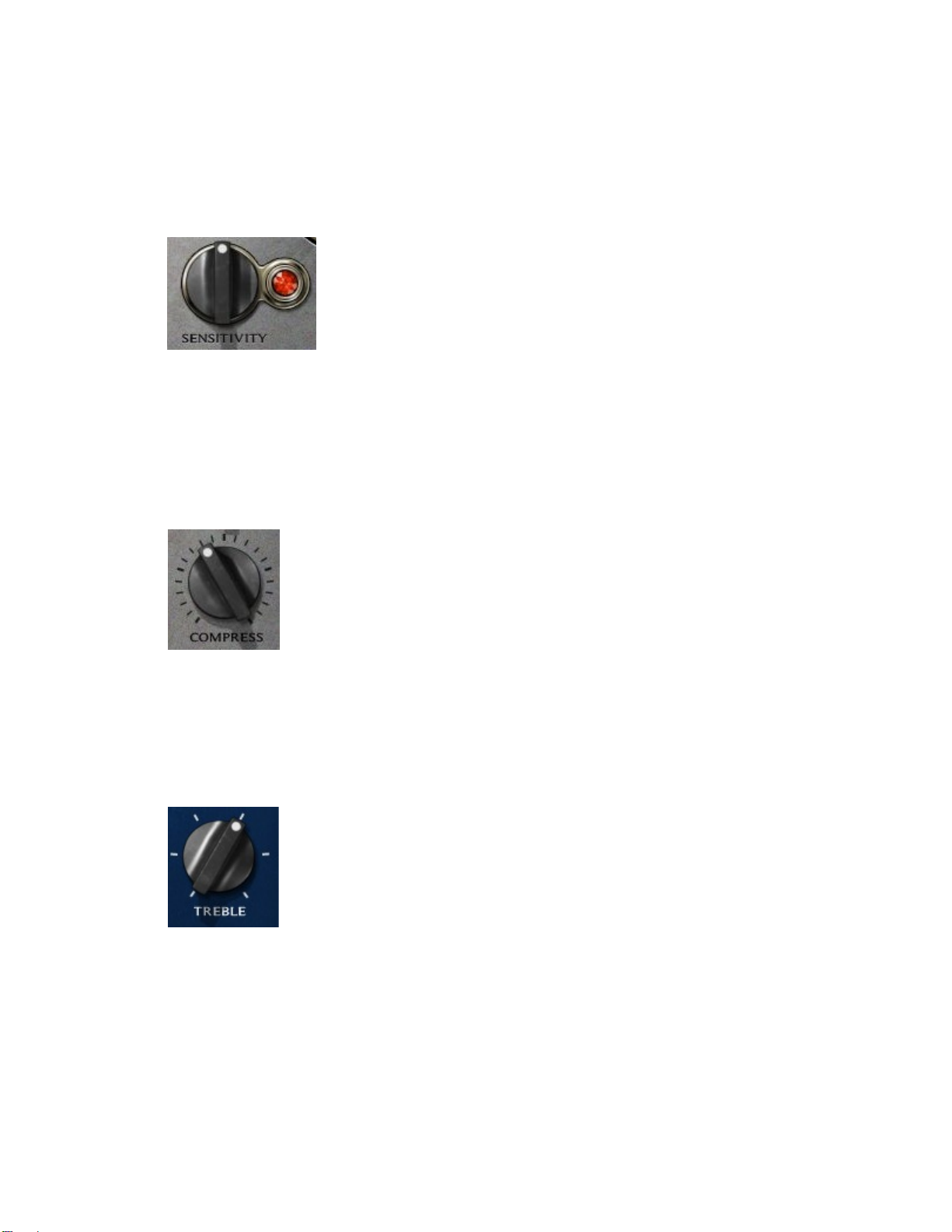

SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls the track’s dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 40.5
GATE controls the gate threshold.
Range: +/- 50 (in 0.1 steps)
Default: -12.7

Waves Eddie Kramer Drum Channel User Guide
- 9 -
FX controls the track’s FX send gain.
Range: Min (0) - Max (100), in 0.1 steps
Default: Min (0)
TREBLE controls the high frequencies.
Range: 0– 5 (in steps of 1)
Default: 3
BASS controls the low frequencies.
Range: 0 – 5 (in steps of 1)
Default: 2
OUTPUT controls the output level.
Range: +/- 50 (in 0.1 steps)
Default: 0

Waves Eddie Kramer Drum Channel User Guide
- 10 -
SNR

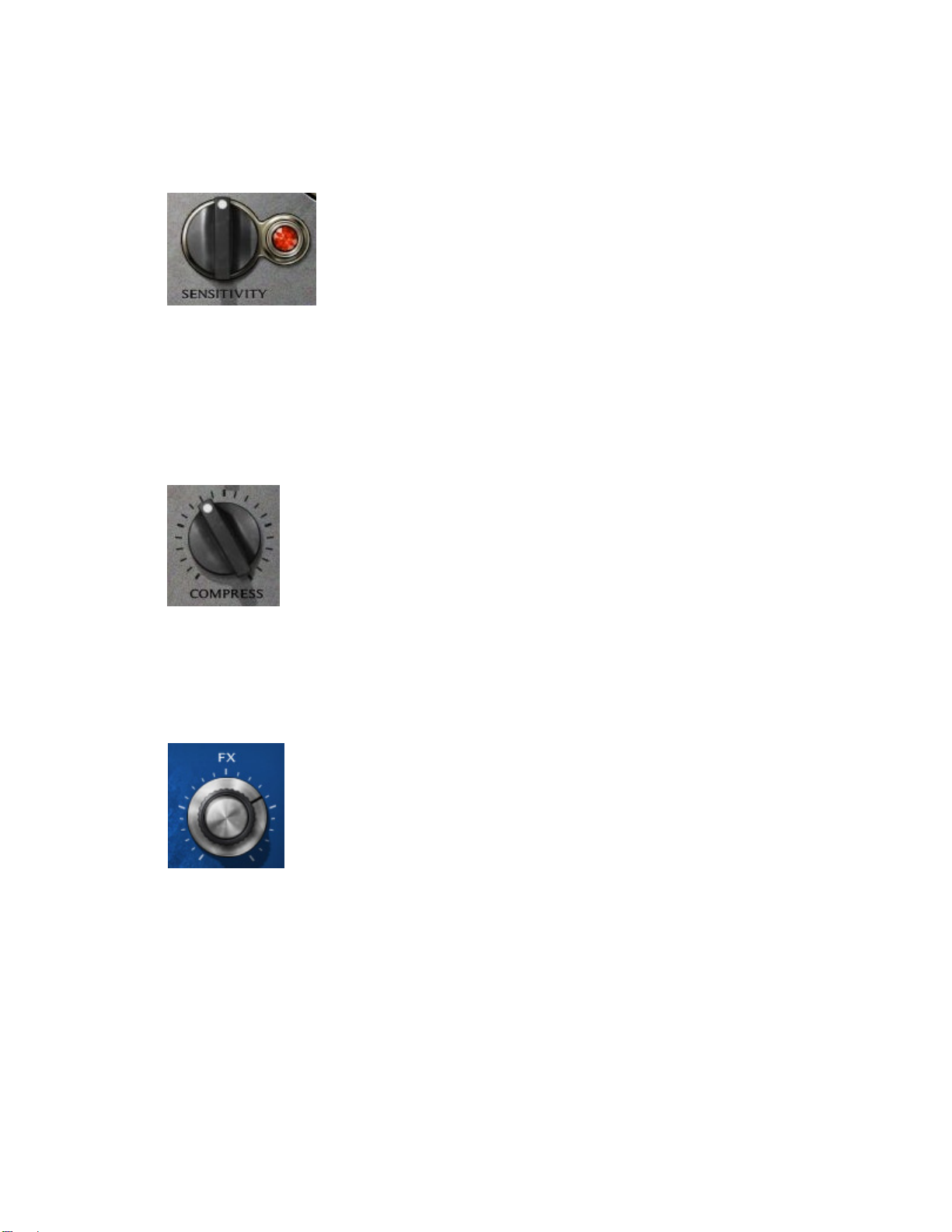

SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls the track’s dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 44.5
FX controls the track’s FX send gain.
Range: Min (0) - Max (100), in 0.1 steps
Default: 30

Waves Eddie Kramer Drum Channel User Guide
- 11 -

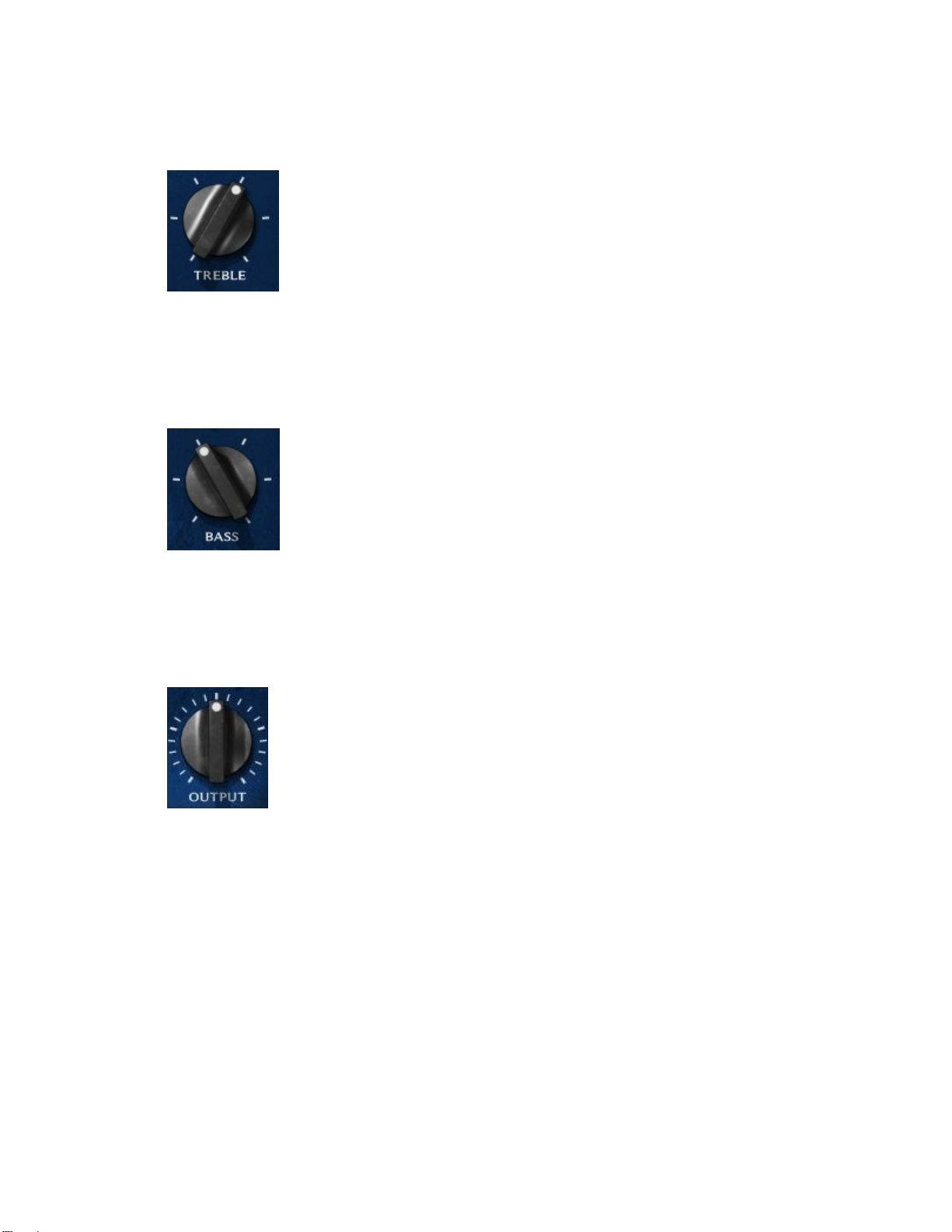

TREBLE controls the high frequencies.
Range: 0 – 5 (in steps of 1)
Default: 2
BASS controls the low frequencies.
Range: 0 – 5 (in steps of 1)
Default: 1
OUTPUT controls the output level.
Range: +/- 50 (in 0.1 steps)
Default: 0

Waves Eddie Kramer Drum Channel User Guide
- 12 -
HH
SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
TREBLE controls the high frequencies.
Range: 0 – 5 (in steps of 1)
Default: 1
BASS controls the low frequencies.
Range: 0 – 5 (in steps of 1)
Default: 3

Waves Eddie Kramer Drum Channel User Guide
- 13 -
OUTPUT controls the output level.
Range: +/- 50 (in 0.1 steps)
Default: 0

Waves Eddie Kramer Drum Channel User Guide
- 14 -
Toms
SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls the track’s dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 85.3
FX controls the track’s FX send gain.
Range: Min (0) - Max (100), in 0.1 steps
Default: 55

Waves Eddie Kramer Drum Channel User Guide
- 15 -
TREBLE controls the high frequencies.
Range: 0 – 5 (in steps of 1)
Default: 1
BASS controls the low frequencies.
Range: 0 – 5 (in steps of 1)
Default: 2
OUTPUT controls the output level.
Range: +/- 50 (in 0.1 steps)
Default: 0

Waves Eddie Kramer Drum Channel User Guide
- 16 -
OH

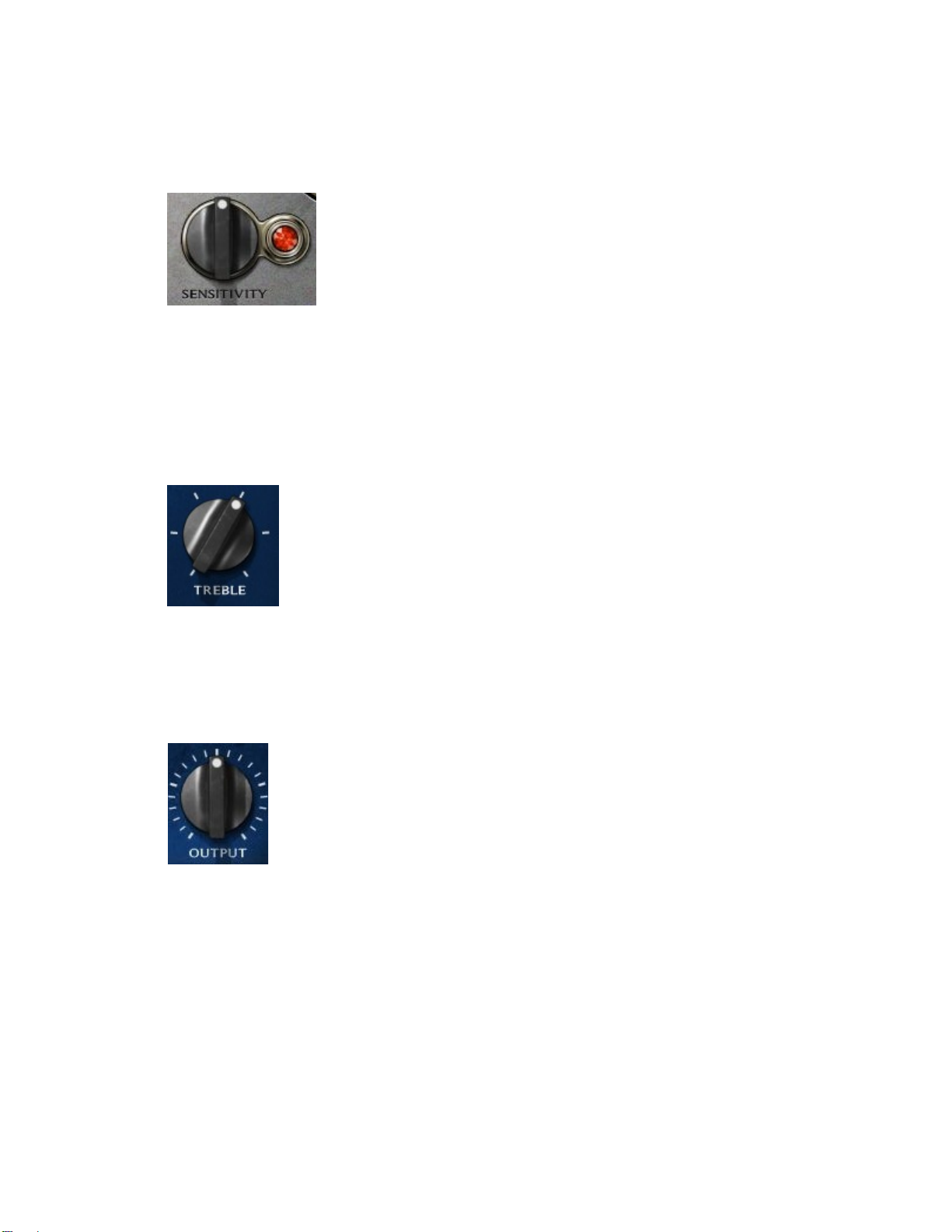

SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
TREBLE controls the high frequencies.
Range: 0 – 5 (in steps of 1)
Default: 2
OUTPUT controls the output level.
Range: +/- 50 (in 0.1 steps)
Default: 0

Waves Eddie Kramer Drum Channel User Guide
- 17 -
Room
SENSITIVITY controls input levels.
Range: +/- 50 (in 0.1 steps)
Default: 0
SENSITIVITY LED indicates the presence of proper levels.
Range: Green (good), Yellow (optimal), Red (very hot)
COMPRESS controls the track’s dynamics.
Range: Min (0) - Max (100), in 0.1 steps
Default: 21.5
TREBLE controls the high frequencies.
Range: 0 – 5 (in steps of 1)
Default: 1

Waves Eddie Kramer Drum Channel User Guide
- 18 -

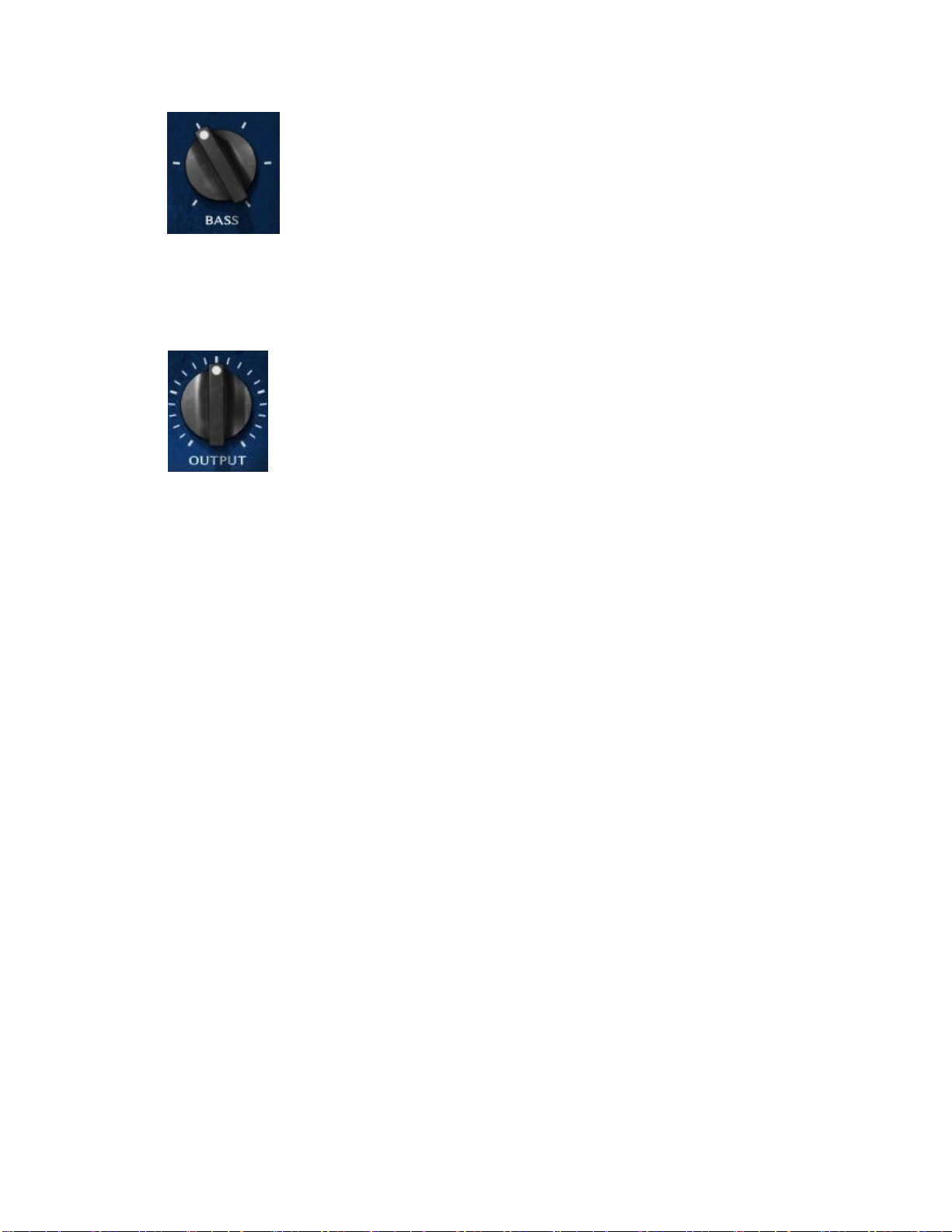

BASS controls the low frequencies.
Range: 0 – 5 (in steps of 1)
Default: 1
OUTPUT controls the output level.
Range: +/- 50 (in 0.1 steps)
Default: 0
3.3WaveSystem Toolbar
Use the bar at the top of the plugin to save and load presets, compare settings,
undo and redo steps, and resize the plugin. To learn more, click the icon at the
upper-right corner of the window and open the WaveSystem Guide.
