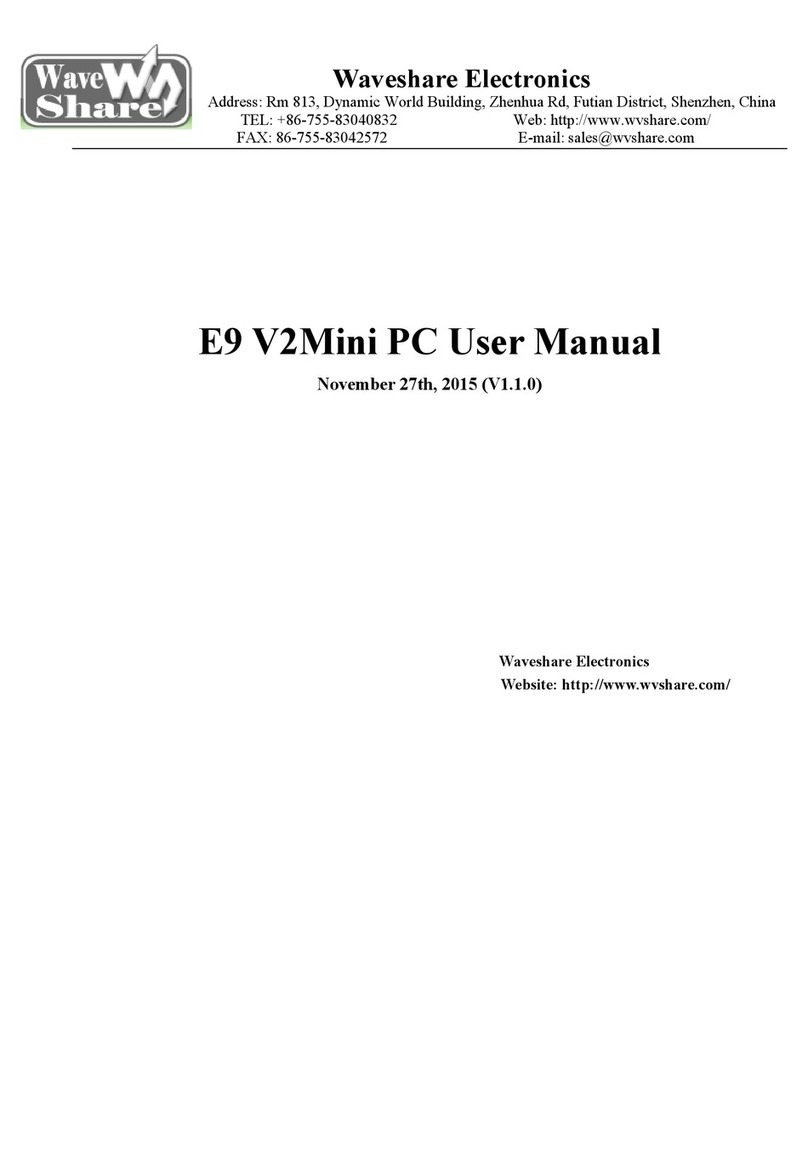

Waveshare E9 User manual

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
E9 Mini PC
Hardware Manual
（2015-11-27 V3.0）
Waveshare Electronics
www.wvshare.com

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 1
Catalogue
Chapter One: Introduction of E9 mini PC....................................................................................................................................... 2
1.1 Brief introduction of E9..................................................................................................................................................... 2
1.2 What's On Board ............................................................................................................................................................... 3
1.3 Dimensions (100 x 72 mm) ............................................................................................................................................... 3
1.4 The Functional Instructions E9 Mini PC........................................................................................................................... 4
Chapter Two: The Introduction of Each Part's Circuit .................................................................................................................... 5
2.1 HDMI High-definition Interface ....................................................................................................................................... 5
2.2 1000M Ethernet Interface.................................................................................................................................................. 6
2.3 Double-deck USB Interface .............................................................................................................................................. 7
2.4 I2S Audio Input/output Interface....................................................................................................................................... 8
2.5 Power_in Interface............................................................................................................................................................. 9
2.6 Switch Interface............................................................................................................................................................... 10
2.7 ON/OFF KEY.................................................................................................................................................................. 10
2.8 MINI-USB Interface........................................................................................................................................................ 11
2.9 VGA Interface ................................................................................................................................................................. 11
2.10 User Keys ...................................................................................................................................................................... 12
2.11 IRDA ............................................................................................................................................................................. 13
2.12 Boot Switch ................................................................................................................................................................... 13
2.13 LCD Interface................................................................................................................................................................ 14
2.14 Camera Interface ........................................................................................................................................................... 15
2.15 Micro SD Card Interface ............................................................................................................................................... 16
2.16 Debug serial port ........................................................................................................................................................... 16
2.17 RTC Circuit ................................................................................................................................................................... 17
2.18 Extension Interface........................................................................................................................................................ 17

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 2
Chapter One: Introduction of E9 mini PC
1.1 Brief introduction of E9
E9 is a new quad-core mini PC. Its biggest advantage is that its size is slightly bigger than common used IC card, but it owns
interfaces are as rich as computer peripherals. Namely, having an E9, you will have a hand-held mini PC.
E9 is the 2nd generation mini PC using Freescale Cortex-A9 I.MX6Q platform. It is mainly used in various kinds of terminal
display devices. Its size is 100 x 72 mm, and supports rich interfaces such as FPC, HDMI, VGA, LVDS, UART, USB, OTG,
SATA, Micro SD CARD, Camera, 3G, CAN Bus, G-Sensor, Wifi, BlueTooth, Ir, RTC and supports other functional modules
for peripheral extension.
Launched by Freescale, i.MX6Q is a new generation application processor for consumer electronics, industrial, automobile
audio entertainment system and many other fields. It uses ARM Cortex-A9 kernel, 40nm process technology, the maximum
operation frequency up to 1.2GHz with ARMv7TM, Neon, VFPV3 and Trustzone support. The processor is 64/32bit bus
structure,32/32KB Internal Cache,1M External Cache, and can realize high performance computing capabilities of
12000DMIPS (1.2 billion instructions set per second). It is with built-in 3D graphics acceleration engine, 2D graphics
acceleration, supports 4096*4096 pixels resolution maximally. Video encoding supports MPEG-4/H.263/H.264 achieving
1080p @ 30fps; video decoding MPEG2/VC1/Xvid achieves 1080p @ 30fps. And it also supports HD HDMI TV output.
I.MX6Q is a kind of high-performance, low-power processor. It’s applied to making Handheld Electronic
Equipment, Communication Equipment, Medical Application Equipment, Learning Machine, Notebook, Video
Surveillance Equipment and a variety of Man-machine interface, etc., such as High-definition Games, Wireless GPS Navigation,
Mobile Video Playback, Intelligent Control, Instrumentation, Navigation Devices, PDA Devices, Remote Monitoring, Game
Development and so on.
E9 mini PC is adopted the powerful I.MX6Q chip and lead out most of I.MX6Q functional interfaces, there are various kinds of
application interfaces on the board to meet the basic requirements of learning, developing. Just connect the corresponding
modules to realize the function you want. With the E9 mini PC, you can create a variety of DIY products as long as having new
fresh ideas.
E9 mini PC’s best advantages on software is that it supports multi-systems switching when start up, it’s similar to PC boot that
you can choose different system to boot. Currently, we provide Ubuntu12.04 and Android 4.2.
Using this board with provided software library and finished product, you can realize the functions and meet your needs easily.
As long as you have E9, you have a Quad hand-held mini-PC. Through it, you can realize:
Simple All-in-one Computer
Auto PC
Smart Set-top Box

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 3
Cloud Terminal Equipment
Advertising Multimedia Terminal Equipment

1.2 What's On Board
1.3 Dimensions (100 x 72 mm)
Unit: mm; Position hole outer diameter: Φ5; inner diameter: Φ3.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 4
1.4 The Functional Instructions E9 Mini PC
Size
100*72*20mm (excluding connection size)
PCB Layers
8 layers board craft processing, layout and wiring are full consideration of EMC and EMI
CPU
Freescale i.MX6Q (Quad) or i.MX6D (Dual) Cortex-A9
Frequency
1 GHz*4 Core or 2 Core
DDR
2GB or 1GB, DDR3,1066MHz
EMMC FLASH
8G or 4GB, can be extent to 16GB
Input Voltage
5V/2A
Power_on/off
One button to power_on or off, sleep and wake
Boot Mode
Support two boot mode: eMMC, Micro SD
Power Consumption
<4W (5V-800mA,the stand-alone boot peak)
USB OTG
1-channel USB_OTG 2.0 download interface
USB Host
2-channel USB_HOST 2.0 interface,2-channel scalable
SPK_output
Support 1W Output Power (8 ohms load)

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 5
HDMI
1-channel HDMI v1.4,1080p@30fps high definition digital output
VGA
1-channel,highly support resolution1920*1200
LVDS
Dual-channel LVDS
Audio
MIC, PHONE, Integrated Amplifier Interface
Ethernet
1-channel RJ45 interface, supports 10M/100M/1000M self-adaption
SATA
1-channel standard 7PIN SATA II interface
COM
1-channel 3P RS232 level debugging interface, 3-channel scalable serial port
RTC
1pcs
Micro SD
1pcs
User key
2pcs, used as the volume control buttons
Camera
1-channel,supports CMOS (Streaming media format)
IrDA
1-channel,support infrared remote control
LCD
40P FPC interface
LCD Option
support capacitive/resistance
Expansion Interface
2-channel USB, 17-channel interruptible IO, 2-channel CAN, 3-channel Serial
Port,1-channel SPI,1-channel, SDIO,2-channel PWM
Chapter Two: The Introduction of Each Part's Circuit
Note: This chapter starts from the HDMI interface then one by one according to clockwise. Please find the specific circuit
diagram in the related DVD.
2.1 HDMI High-definition Interface
It supports HDMI v1.4,1080p@30fps high-definition digital output and it can also realize audio video synchronization output.
Here, the HDMI interface is the regular 19pins HDMI type A, with width 13.9mm and thickness 4.45mm.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 6
2.2 1000M Ethernet Interface
As Freescale i.MX6Q has integrated Gigabit Ethernet MAC internally, you just need to connect the PHY chip externally when
using. This platform’s Ethernet transceiver uses RTL8211E as Ethernet chip. Currently, it works in Gigabit mode, the card
crystal is 25M. Mode can be configured through the resistor R87~R95 (please refer to the Base Board Diagram and RTL8211
Chip Manual for detailed configuration). The development board is configured as Gigabit full-duplex mode by default.
The RTL8211E/RTL8211EG is Realtek’s newest network PHY chip, supporting 10Base-T/100Base-TX/1000Base-T, IEEE
802.3 standards. The interface of the main chip MAC is RGMII, which supports Crossover, Detection, Auto-Correction,
polarity correction, adaptive equalization, cross-talk, cancellation, echo cancellation and other functions. The platform uses
RTL8211E as the network card, it is because RTL8211EG’s package is QFN64, RTL8211E’s package is QFN48, but the price is
so different between the two, RTL8211E is cheaper, while RTL8211EG is a little expensive, the main difference is RTL8211EG
supports GMII/MII interface, RTL8211E doesn’t. So if you are consider more about the cost control, it is suggested to chose

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 7
RTL8211E, RTL8211EG’s price is more expensive than RTL8211E by 60~70%.Specially,need to use GMII/MII interface,
please use RTL8211EG.
This platform Ethernet interface integrates transformer, after connecting the network cable and configuring correctly, you can
surf the Internet. The interface is as below:
2.3 Double-deck USB Interface
The 4-channel USB HOST interface is extended by USB-HUB chip FE1.1S. It is the USB2.0 HUB chip with high performance,
low power and cost-effective, it can extend 4-channel HOST output and support hot plug. Through one USB double-deck
interface--USB1 and the extended interface—J6, it can extend to 2-channel HOST. It supports external connection of
USB-WIFI module, USB Bluetooth module, USB mouse & keyboard, U disk and other USB equipment.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 8
2.4 I2S Audio Input/output Interface
I2S Audio Circuit adopts Wolfson Microelectronics audio converter chip--WM8960, which is a low power, high quality stereo
coder-decoder, especially designed for portable digital audio applications.
WM8960 integrates a complete microphone interface and a stereo headphone driver, as there is no need separate microphone,
speaker or headphone amplifiers, which greatly reduces the external component requirements. The advanced digital signal
processing realizes the automatic level control of microphone or circuit input.
The stereo uses 24-bit sigma-delta analog digital converter (ADC) and digital analog converter (DAC), while using a low power
oversampling digital interpolation and decimation filters, as well as a flexible digital audio interface. Master clock can be input
directly or generated by the built-in internal phase-locked loop, which supports the most common clock mode.
WM8960 operates at analogue supply voltages as low as 2.7V. To save power, the digital core can operate at voltages down to
1.7V. The speaker supplies voltage 5.5V superlatively, and each channel’s output can be 1W8Ω load, other power voltage is up
to 3.6V. Different parts of the chip can be turned off by software control. Using 5*5mm 32pins QFN package, it’s ideal for
making handheld and portable devices.
Diameter 3.5mm Headphone output interface (green):

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 9
Diameter 3.5mm Microphone input interface (pink):
1W8Ω SPK interface: 2Pin white interface, 2.00mm pitch
2.5 Power_in Interface
Standard 5V-2A power adapter input, using 6.8V transient pipe and 2.6V recoverable fuse to protect the overcurrent of the
power. In order to ensure the normal use, please use the mating power adapter.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 10
2.6 Switch Interface
J5 is the reserved power switch interface, using 2.54mm pitch white interface, and you need to let the external switch leads
docking when using. Its function is to skip the power management circuit and control the board’s power on or off directly.
If you use the J5 as the power switch, it may cause the situation that it can’t be switch off after power on. This is because the
application has the software power off. In this case, you need to modify the application to cancel the software control or remove
the MOS N1 on the circuit.
2.7 ON/OFF KEY
K1 is the power switch for the board. It is able to power on or off when pressing in long time (3-5 seconds), and wake-up
when pressing in short time (1 second).

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 11
2.8 MINI-USB Interface
Mini-USB interface will be used as the ordinary USB slave.
2.9 VGA Interface
VGA has the advantages of high resolution, quick display, rich color, etc. And it has already been widely used in color

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 12
display filed. i.MX6Q doesn’t support VGA interface in display. Here, it uses LCD to VGA chip-- GM7123C so as to realize
the VGA output.
The VGA interface on the board is the standard 15pins female connector.
2.10 User Keys
Two user keys K3 and K4 are used for increasing or decreasing the volume.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 13
2.11 IRDA
The IrDA is using HS0038B miniature infrared receiver. It’s easy to use, low output level, and compatible with TTL and
CMOS level, low power consumption, and strong anti-interference capability. Large-screen display with the IrDA remote
controller can realize remote control easily.
2.12 Boot Switch
J10 is the system boot mode selection interface; different selection will achieve different boot modes.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 14
Note: Put the Board internet interface upward, J10 interface, from left to right, is 1, 2, 3, and 4.
2.13 LCD Interface
The FPC interface is 40Pin 0.5mm pitch down renovate interface. Its interface definition matches with all LCD display from
Embedsky. And it supports to select resistive or capacitive screen (capacitive screen by default), the touch signal is in the 37pin
to 39pin interface.
When soldering U20, R182 and R185, not soldering R175 and R188, it’s for resistive screen;
When not soldering U20, R182 and R185, soldering R175 and R188, it’s for capacitive screen;
R175, R182, R185 and R188 are all 0 ohm resistor, 0402 package, they are on the top left of the LCD interface.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 15
2.14 Camera Interface
Camera interfaces--CAMERA is 2.00mm pitch 20 pins interface, can connect 3Megapixel OV3640 module.
Note: When connecting the camera module, it must pay attention to the interface’s direction; the triangle symbol on the
module must be inserted to the corresponding triangle symbol on the board. If connect incorrectly, it is easy to burn the
camera module directly. After connect the OV3640 camera module, the camera should be in the direction of the PCB.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 16
2.15 Micro SD Card Interface
Micro SD Card Interface is on the back side of Camera interface. When inserting please do not be so hard, in case of making
the SD card bend and damage. When there is no program, set the boot mode as SD card boot, then you can burn program to the
board. The SD card can be set as automatic burning, manual burning or UBoot boot card. After the system booted, the Micro
SD card can be used as an external storage device.
2.16 Debug serial port
UART1 white interface is the 3-line RS232 level debug serial port, 3pin 2.00mm pitch. The real pin’s position is on the bottom
of the interface. The interface definition is RXD0, TXD0, and GND from the bottom to top.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 17
2.17 RTC Circuit
In order to ensure the RTC is right and effective, the 3V button battery will continue to supply power to the system RTC after
the external power interrupted.
The battery model is CR1220; it is on the back of the board.
2.18 Extension Interface
E9 Mini PC provides 2.00mm pitch 2*25 double pins extension interfaces. The extension interfaces: 5V and 3.3V power supply,
2-channel USB Host, 17-channel GPIO with interrupt function, 2-channel CAN, 3-channel UART, 1-channel SPI, 1-channel
SDIO, 2-channel PWM.

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 18
On the front left of E9, the triangle part (in the right corner) is the 1 foot. Detailed features below:
NO.
CPU
Descriptions
1
GND
Ground
2
5V
5V Power
3
DP4
3 works with 5,can be used as USB Host
4
DP3
4 works with 6,can be used as USB Host
5
DM4
3 works with 5,can be used as USB Host
6
DM3
4 works with 6,can be used as USB Host
7
GND
Ground
8
3.3V
3.3V Power
9
GPIO1_28
GPIO interface
10
GPIO1_27
GPIO interface
11
EIM_D17
external interrupt 4, can be used as IO
12
EIM_D21
external interrupt 5, can be used as IO
13
EIM_D16
external interrupt 6(work with IrDA), can be used as IO
14
EIM_D19
external interrupt 8, can be used as IO
15
EIM_D30
external interrupt 16, can be used as IO or matrix keyboard
16
EIM_D20
external interrupt 17, can be used as IO or matrix keyboard
17
EIM_D18
external interrupt 18, can be used as IO or matrix keyboard
18
CSI0_DATA10
external interrupt 19, can be used as IO or matrix keyboard
19
SD1_CLK
external interrupt 20, can be used as IO or matrix keyboard
20
SD3_RST
external interrupt 21, can be used as IO or matrix keyboard
21
GPIO_5
external interrupt 22, can be used as IO or matrix keyboard
22
GPIO_18
external interrupt 23, can be used as IO or matrix keyboard

Waveshare Electronics
Address: Rm 813, Dynamic World Building, Zhenhua Rd, Futian District, Shenzhen, China
TEL: [phone] Web: http://www.wvshare.com/
FAX: [phone] E-mail: [e-mail]
Waveshare Electronics www.waveshare.com 19
23
EIM_D22
external interrupt 24, can be used as IO or matrix keyboard
24
EIM_D23
external interrupt 25, can be used as IO or matrix keyboard
25
GPIO1_30
external interrupt 26, can be used as IO or matrix keyboard
26
CAN1_RX
2-channel CAN Bus
27
CAN1_TX
28
CAN2_RX
29
CAN2_TX
30
UART4_RXD
3.3V level serial port 3
31
UART4_TXD
32
UART3_RXD
3.3V level serial port 2
33
UART3_TXD
34
UART2_RXD
3.3V level serial port 1,works with cts and rts,can realize 5-line
serial port
35
UART2_TXD
36
UART2_CTS
37
UART2_RTS
38
CSPI2_MISO
SPI0 interface, can connect gravity sensor and other SPI devices
39
CSPI2_CS0
40
CSPI2_CLK
41
CSPI2_CS0
42
SD3_DATA2
SD 3,can connect SDIO wifi and so on
43
SD3_DATA3
44
SD3_CMD
45
EIM_A25
46
SD3_CLK
47
SD3_DATA0
48
SD3_DATA1
49
PWM3
PWM
50
PWM4
PWM
