User Manual
3 Port HDR HDMI Switcher
Model NO:HDSW0021M1

Introduction
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Our series of converters, switchers, extenders, matrixes and splitters are designed to
make your A/V device use more convenient, more comfortable, more productive and
more cost-efficient.
The device can switch five HDMI Inputs to one HDMI Output, It can easily switch five
routes of UHD Source to any one UHD display or projector.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.

INTRODUCITON
Feature：
Five HDMI Inputs switch to one HDMI Output
Support 4K@60Hz UHD signal input and output.
Support Remote control and HDMI auto switch.
Support Auto Switch Turn On & Turn Off
Hidden Indicate Light brings the new using experience
Total All New Simple Outlook Design
In 4K@60Hz HDMI UHD resolution, HDMI Input and Output distance can be up to 5m
using the AWG26 standard HDMI Cable. In other HDMI resolution, HDMI Input and
Output distance can be up to 8m using the AWG26 standard HDMI Cable.
Easy-Install
Accessories Content:
1. Manual
2. Remote
3. USB to DC 5.5mm Power cable
Physical Connect Port:
Picture 1.0 Front Panel Showing
: Remote IR Window Port.

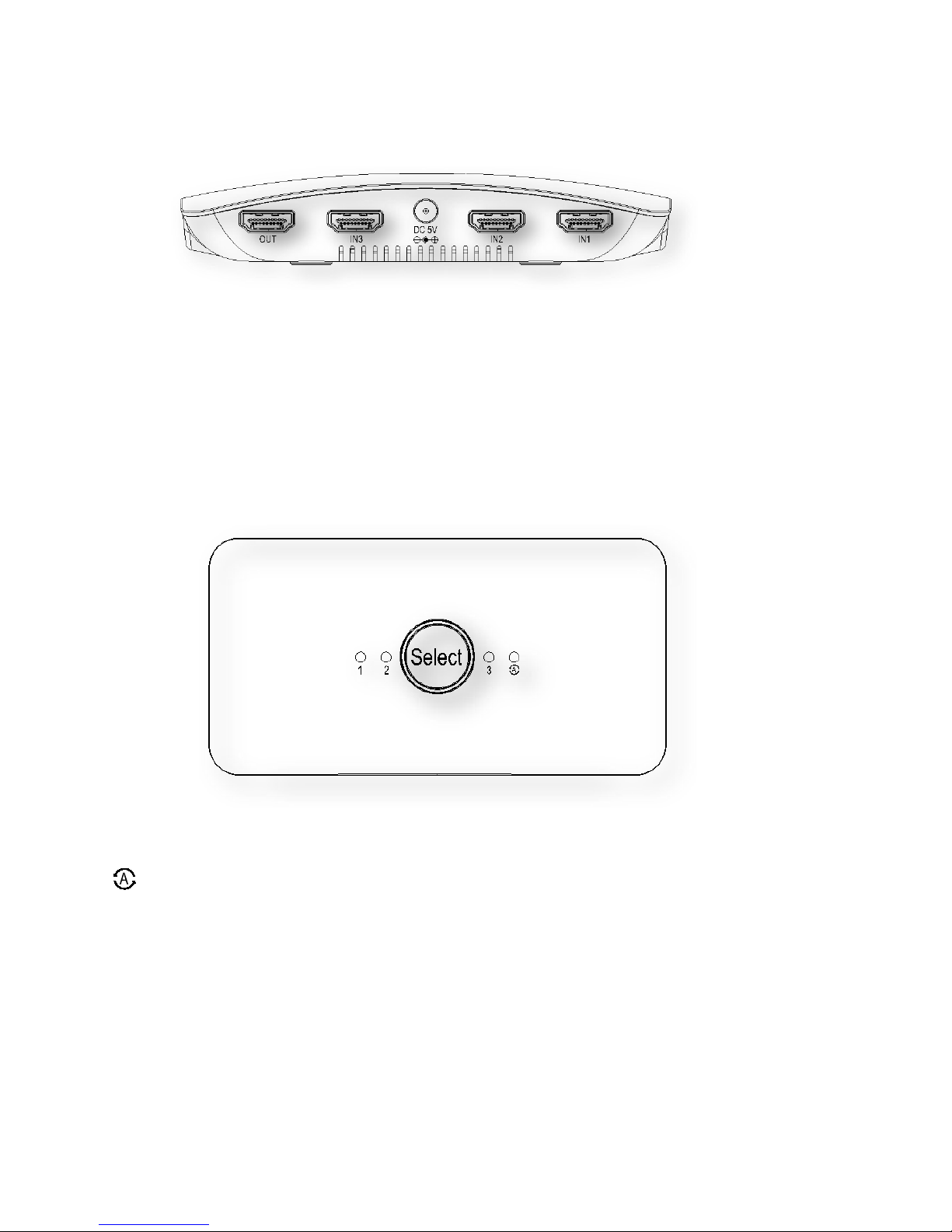

Picture 1.1 Rear Panel Showing
IN1, IN2, IN3: HDMI Input One, Two, Three, Port
DC 5V: 5V DC Port
OUT: HDMI Output Port
Picture 1.4 Top Panel Showing
1, 2, 3: HDMI Input Channel One Two Three Four Five LED Status Light
: Auto Switch function Status Light, When light goes bright, The function is open.
Select: HDMI input channel select button.
Remote Button Function Showing

：Standby Button/Start Button: When the device is working normally, if press the
button, the device will go into Standby state and the matched Led Light will go dark; if
press again, the device will go into Start state and the matched led light will go bright.
：Auto Switch Turn On/Turn Off Button: The device Auto Switch is default at Active
state, if press the button, the Auto Switch will be turned off; if press again the button, the
Auto Switch will be turned on.
1, 2, 3, 4, 5: HDMI Input Channel Switch Button. When you press the “1” Button, the
device will goes to the matched input 1 channel.
：
HMDI input channel switch button, If you press
“ ”
button ,The input channel
switch according to clockwise, If you press “ ” button ,The input channel
switch counterclockwise.
* Pls take out the film at the rear of the remote before you use. Pls insert the film to remote
rear if you do not use the remote for long time.
Connection and Operation:

1. To use HDMI Cable to connect the HD Source with the HDMI Input port of device.
2. To use HDMI Cable to connect the HDMI Output port of device with the Display.
3. To use the USB 2.0 TO DC 5.5MM power cable to connect the DC5V Port of the
device with USB Power source like TV or USB Power Docking.
4. Then press again the Select Button at device or press the button at remote to
operate the device.

Spec: HDSW0021M1
HDMI Resolution…………...24/50/60fs/2160P/1080P/1080i/720p/576p/576i/480P/480i
Deep Color …………24/30/36bit/1080P/1080i/720p/576p/576i/480P/480i,24bit/2160P
HDMI In/Out Supported Audio Format…………………………………………………………
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
HDMI Channel Max Bandwidth………………………………………………………600MHz
Input / Output DDC signal…………………………………………………….… 5Vp-p(TTL)
Remote Control distance…………………………………………………………………...≥4m
HDMI Input Cable Length……………….…………..…≤5m AWG26 HDMI standard cable
HDMI Output Cable Length……………………..….….≤5m AWG26 HDMI standard cable
Max Working Current…………………………………..……………………..…………600mA
Working Temperature Range…………………………………….....……………(-0 to +40℃)
Working Humidity Range……………………….……..…5 to 85%RH（No Condensation）
Storage Temperature……..……….……………………………..…………………..-15 to 55℃
Storage Humidity………………………….….………………5 ~95%RH(No Condensation)
Size………………………………………………………..…………………159x63.9x22 (mm)
Weight……………………………………………………….…………..……………………105g

Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the
machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature,
Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from
the socket.
5. Pls turn the power off when the machine is not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
8. .It does not support the conversion between DVI and HDMI signal Pls use your
signal source and display following the correct process.
Before power on, pls check the connection line carefully. And make sure that all
interfaces are normally connected. The common trouble shooting way shows below:
Serial NO
Trouble
Description
Cause and Ways to deal with
1
Non-Power-Conn
ected
1、Check the HD Source is truly and correctly inserted.
2、Check the HD Source is in on status.
2
No Picture
1、Pls to make sure that the TV is on and has been
connected with the machine,.
2、To check if the signal source is on and well
connected.
3、Check the system connection quality.

4、Check if the line is all good quality.
5、Check the cable quality.
3
Obscure Picture
1、To try again to connect the cable to be free from the
unsuccessful connection.
2、HDMI Cable Quality
4
No sound
1、Please confirm the setting position of audio mode
switch
5
Remote
1、Pls check if the film that stops the current has been
taken out.
2、To check if the remote battery is working well.
